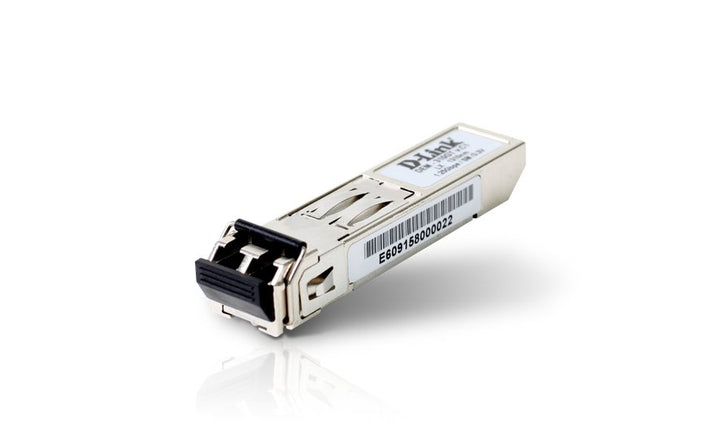

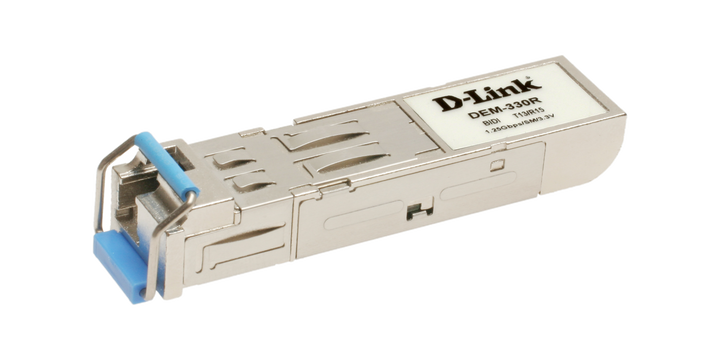

D-Link DEM-330R 1000BASE-BX-U BiDi SFP Transceiver (10 km)
PRODUCT DESCRIPTION
D-Link DEM-330R 1000BASE-BX-U BiDi SFP Transceiver, 10 km (DEM-330R) - 5 Years Local Warranty
Gigabit over a Single Fibre Strand
The D-Link DEM-330R is a 1000BASE-BX-U (upstream) bi-directional SFP transceiver. It transmits at 1310 nm and receives at 1550 nm over one single-mode 9/125 µm fibre with a simplex LC connector, reaching up to 10 km — halving the fibre needed for a Gigabit link.
Use as a Matched Pair
Install the DEM-330R at one end and the DEM-330T at the other — the two modules use opposite transmit and receive wavelengths so they can share one strand.
Need help choosing? Email sales@sourceit.com.sg with your switch model, fibre or cable type and link distance and we will match the right module for you.
D-Link DEM-330R Datasheet — Technical Specifications
General
| Product Name | D-Link DEM-330R 1000BASE-BX-U BiDi SFP Transceiver, 10 km |
| Part Number | DEM-330R |
| Series | DEM-300 Series Gigabit SFP Transceivers |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Optical Interface
| Standard | IEEE 802.3ah 1000BASE-BX-U |
| Connector | Simplex LC |
| Direction | Bi-directional over a single fibre |
| Media | Single-mode fibre 9/125 µm |
| Wavelength | Tx 1310 nm / Rx 1550 nm |
| Maximum Distance | 10 km |
| Transmit Power | -3 to -9 dBm |
| Receive Power Range | -1 to -21 dBm |
| Sensitivity | -21 dBm |
| Power Budget | 12 dB min / 18 dB max |
Module
| Power Supply | 3.3 V |
| Supply Current | 250 mA |
| Heat Generated | 1.78 kJ/h |
| Dimensions | 13.4 x 55.5 x 11.28 mm (W x D x H) |
| Weight | 19.8 g |
| MTBF | 445,890 hours |
Certifications
| EMI | FCC, ICES-003, CE, VCCI Class B |
| Safety | TUV, UL, FDA |
| Environmental | RoHS |
Compatibility & Software Support
Host Ports
Fits a Gigabit SFP slot. D-Link does not publish a host compatibility list — send us your switch model and we will confirm before you order.
Pairing
A DEM-330R must be paired with a DEM-330T at the far end; two identical modules will not link.
Package Contents & DEM-300 Gigabit BiDi SFP Ordering Information
D-Link Gigabit BiDi SFP Transceivers
| Model | Standard | Wavelength (Tx/Rx) | Distance | Part No. |
| DEM-330R (this listing) | 1000BASE-BX-U | 1310 / 1550 nm | 10 km | DEM-330R |
| DEM-330T | 1000BASE-BX-D | 1550 / 1310 nm | 10 km | DEM-330T |
| DEM-331R | 1000BASE-BX-U | — | 40 km | DEM-331R |
| DEM-331T | 1000BASE-BX-D | — | 40 km | DEM-331T |
Package contents are not listed by D-Link — ask us if you need confirmation of what is in the box.
Datasheet & Downloads
| D-Link datasheet | DEM-300 Series Gigabit SFP Datasheet, v1.02 WW, January 2024 (PDF) |
| D-Link product page | DEM-330R on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DEM-330R.
Frequently Asked Questions — D-Link DEM-330R
What do I need at the other end?
A DEM-330T. BiDi modules work in BX-U / BX-D pairs.
How far can it reach?
Up to 10 km over single-mode 9/125 µm fibre.
Is this module still current?
dlink.com lists the DEM-330R as End of Life (phased out 10 June 2013), although it remains in D-Link's current Singapore price list — contact us to confirm availability before ordering.
Which BiDi pair do I need for longer runs?
The DEM-331R / DEM-331T pair is rated for 40 km.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
