Barco ClickShare Button Gen 5 for ClickShare Hub
PRODUCT DESCRIPTION

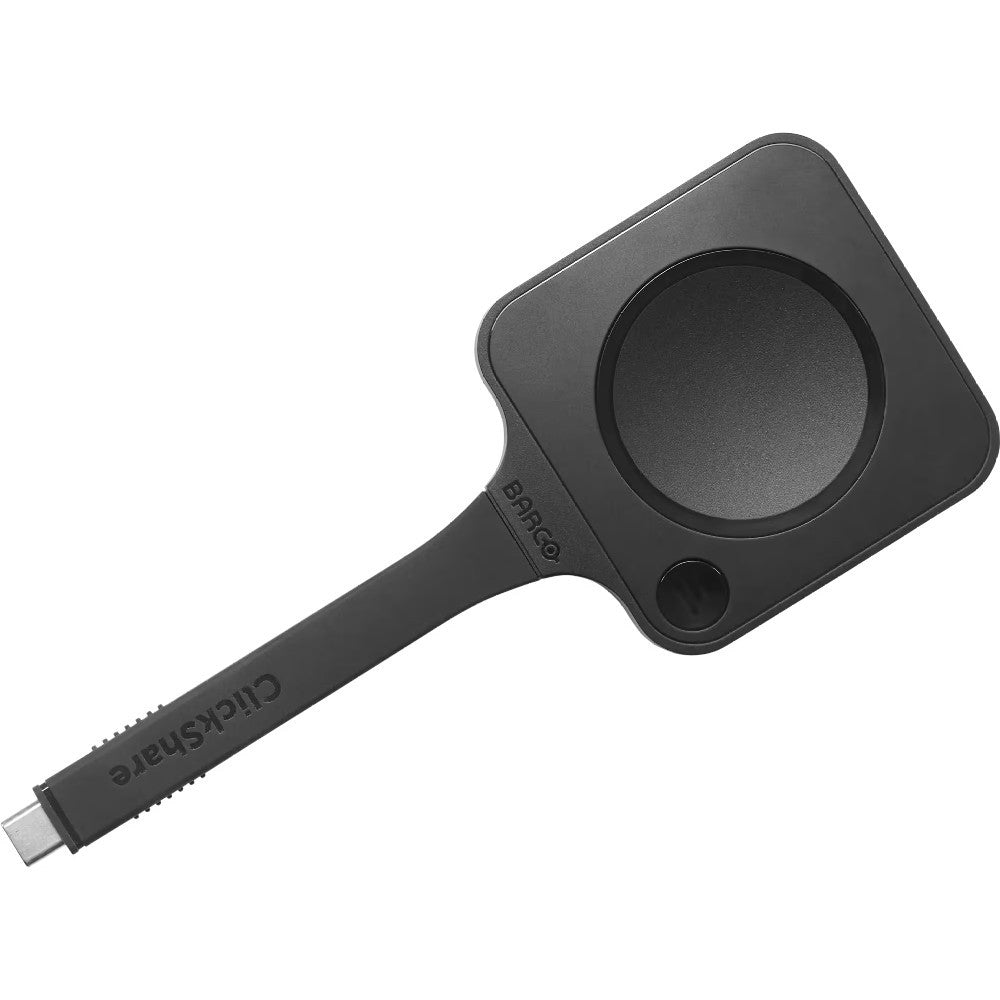

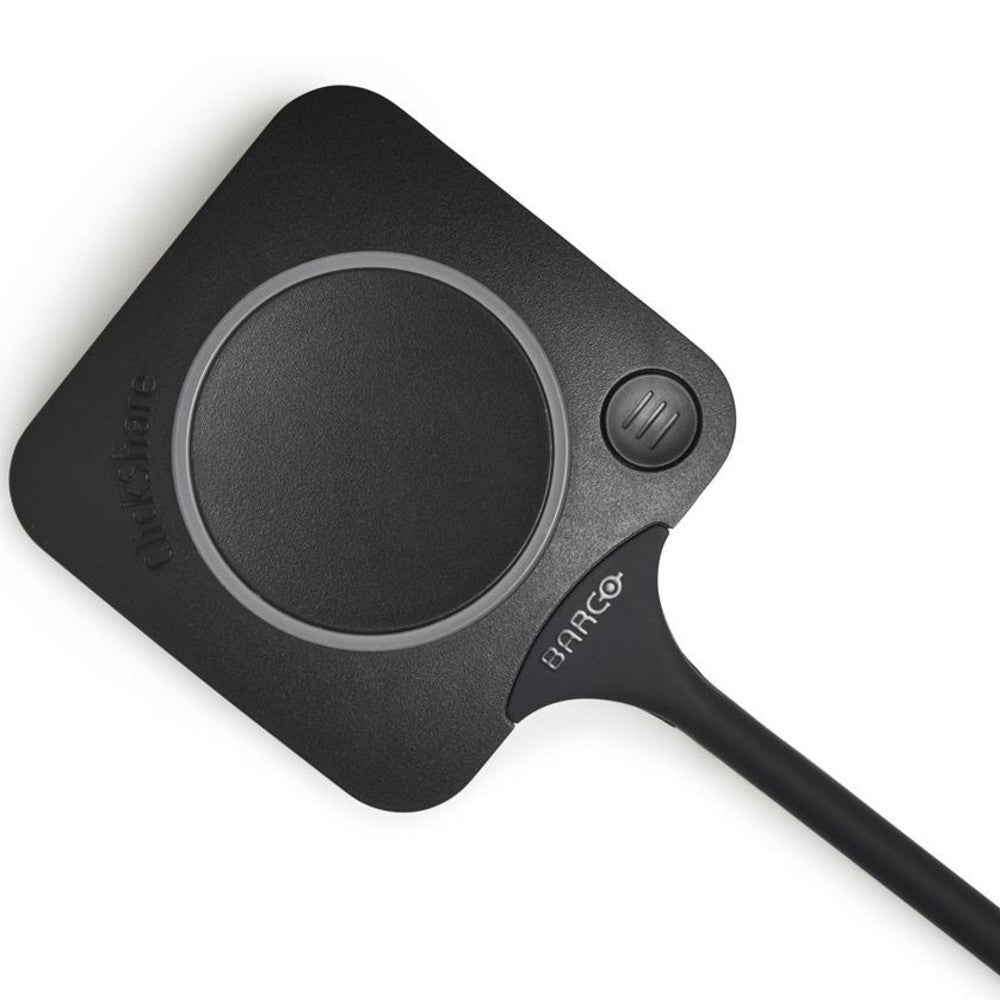

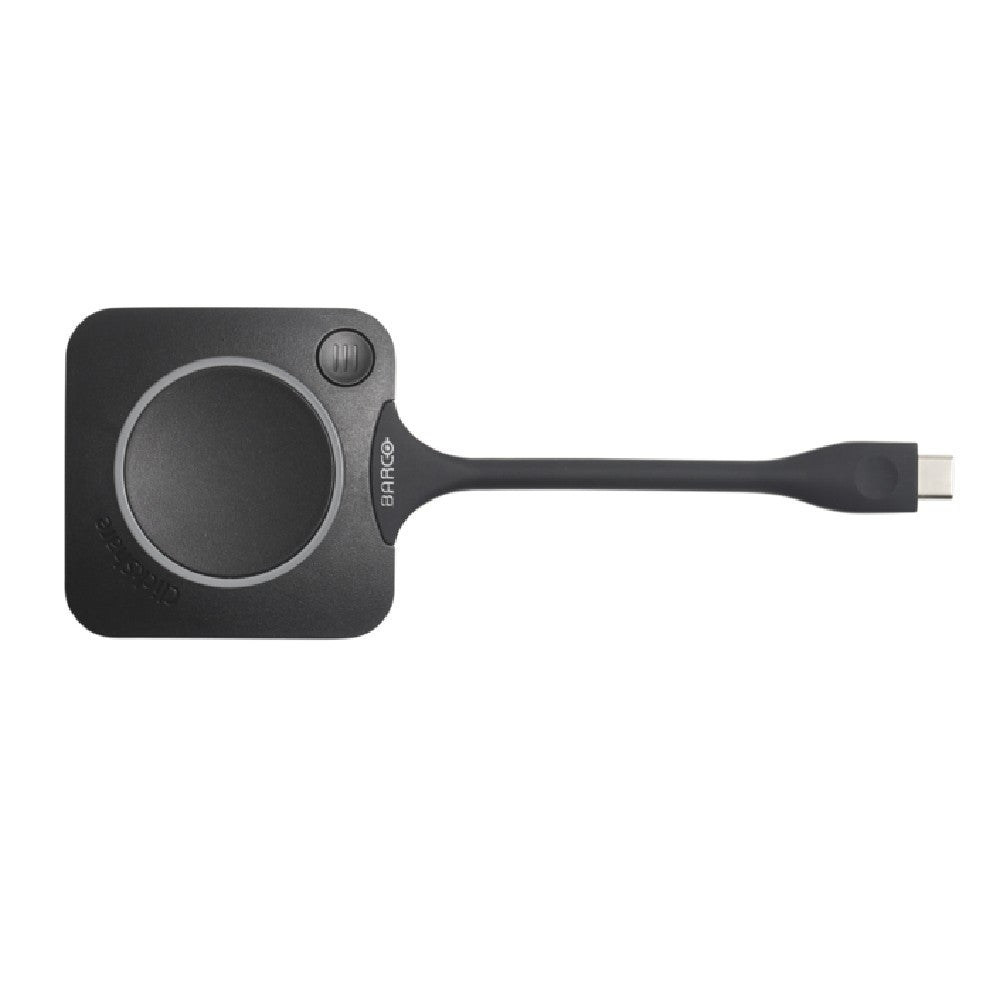

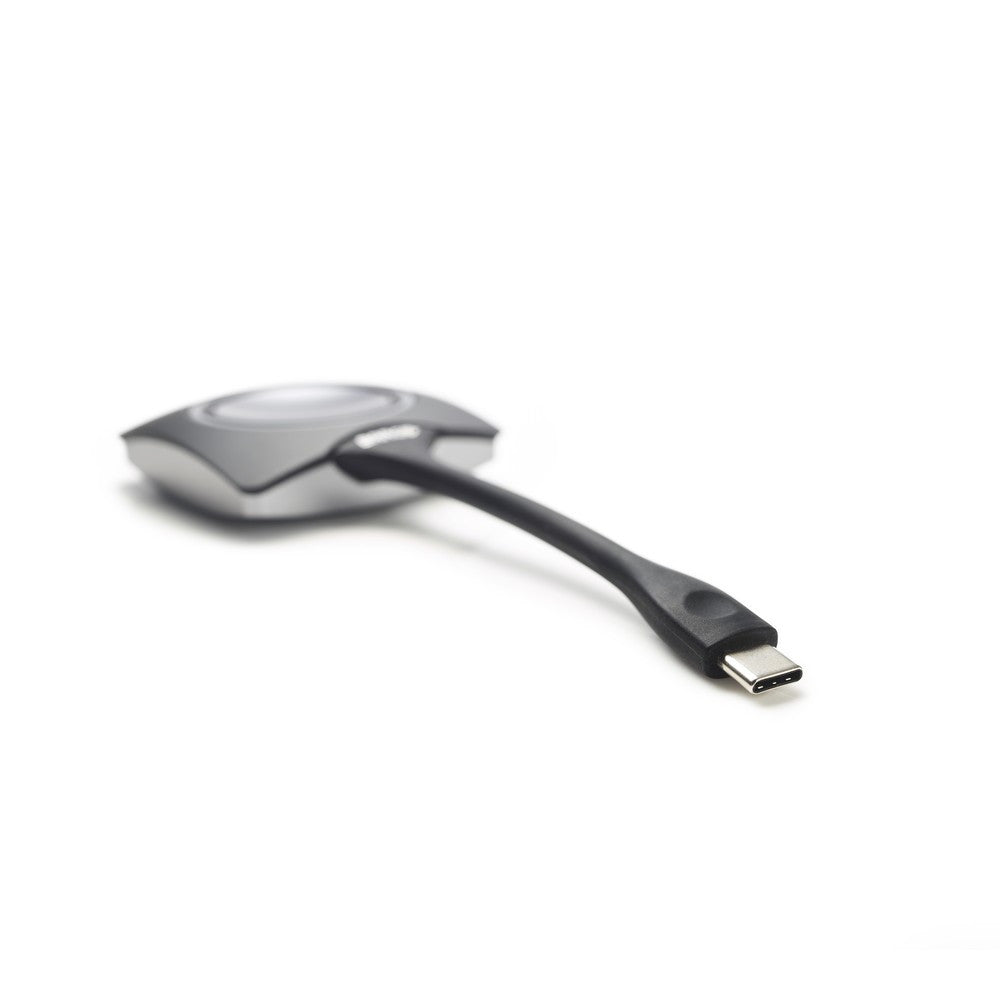

Barco ClickShare Button 5th Generation, USB-C, Wi-Fi 6E, 4K, for ClickShare Hub Core / Hub Pro (R9861700D01C)
The Next-Gen ClickShare Button
Barco's 5th-generation Button connects over USB-C with DisplayPort mode, so there is no software or driver to install. It shares up to 4K (3840 x 2160) at 30 fps over Wi-Fi 6E, works with all major operating systems including Linux and ChromeOS, and needs a deliberate press to start sharing for privacy.
For ClickShare Hub Rooms
The Gen 5 Button pairs with the ClickShare Hub Core and Hub Pro. Add Buttons so every regular presenter has their own.
Need help choosing? Email sales@sourceit.com.sg with your room size, conferencing platform and quantity and we will recommend the right ClickShare setup.
Barco R9861700D01C Datasheet — Technical Specifications
General
| Product Name | Barco ClickShare Button 5th generation (Next-gen ClickShare Button) |
| Part Number | R9861700D01C |
Technical
| Connector | USB Type-C 3.1 Gen 1 with USB-C DisplayPort mode |
| Wireless | Wi-Fi 6E: IEEE 802.11 a/b/g/n/ac/ax, 2.4 / 5 / 6 GHz |
| Security | WPA3-SAE (standalone) |
| Range | Up to 30 m (100 ft) from the base unit |
| Video | Up to 4K (3840 x 2160) @ 30 fps |
| Power | USB 5 V DC, 600 mA typical, 900 mA max |
| Dimensions (H x W x D) | 16 x 63 x 161.3 mm |
| Weight | 88 g |
| Operating Conditions | 0–40 °C, 0–85% humidity |
Compatibility & Software Support
Barco lists the Gen 5 Button for the ClickShare Hub Core and Hub Pro (and Hub Control Panel kits) only — it does not work with ClickShare Bar, CX or C series base units (use the Gen 4 Button, R9861600D01C). Per Barco's 4th-vs-5th-gen comparison, wireless conferencing, Flexible Meeting Room switching and dual-screen sharing are listed for the 4th generation but not the 5th.
Package Contents & ClickShare Accessories Ordering Information
In the Box
One ClickShare Button 5th generation. Barco does not publish further box contents.
Barco ClickShare Room Systems
| Model | Part Number | Type |
| C-5 Gen-2 | R9861605NA | Wireless presentation |
| C-10 Gen-2 (1 Button) | R9861611NAB1 | Wireless presentation |
| C-10 Gen-2 (2 Buttons) | R9861611NAB2 | Wireless presentation |
| CX-20 Gen-2 | R9861612NAB1 | Wireless conferencing (BYOM) |
| CX-30 Gen-2 | R9861613NAB2 | Wireless conferencing (BYOM) |
| CX-50 Gen-2 | R9861622NAB2 | Wireless conferencing (BYOM) |
| Bar Core | R9861632USB1 | All-in-one video bar |
| Bar Pro | R9861633USB2 | All-in-one video bar |
| Hub Core | R9861711CNB1 | Teams Rooms system |
| Hub Pro | R9861710CNB2 | Teams Rooms system |
| Control Panel | R9861720US | Hub touch console |
Barco ClickShare Accessories
| Model | Part Number |
| Button Gen 4 (USB-C) | R9861600D01C |
| 2 Buttons Gen 4 + Tray | R9861600P01C |
| Tray (4 Buttons) | R9861500T01 |
| HDMI-IN to USB-C Kit | R9861581 |
| CX-50 Gen-2 Power Supply | B5631051K |
| Bar Wall Mount | R8788066K |
| Bar TV Mount | R8788649K |
| Bar Front Cover | R8787713K |
| 2-in-1 Tray (Gen 5) | R9861700T01 |
| Hub Power Supply 100 W | B563235K |
| Hub Power Supply 180 W | B563236K |
| Button Gen 5 (this listing) | R9861700D01C |
| USB-C Cable 10 m | Z3406338K |
| Wall Mount Plate | B570170K |
Datasheet & Downloads
| Barco spec sheet | ClickShare Button Gen 5 Spec Sheet (PDF) |
| Barco product page | Button Gen 5 on barco.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting R9861700D01C.
Frequently Asked Questions — Barco R9861700D01C
Does it work with my CX-30 or Bar?
No — the Gen 5 Button is for the ClickShare Hub Core and Hub Pro only.
Do I need to install software?
No — it uses USB-C DisplayPort mode, so no software or driver is needed.
Does it work with Linux or Chromebooks?
Barco states it works with all major operating systems, including Linux and Chrome.
