Barco ClickShare Button Gen 4 USB-C
PRODUCT DESCRIPTION

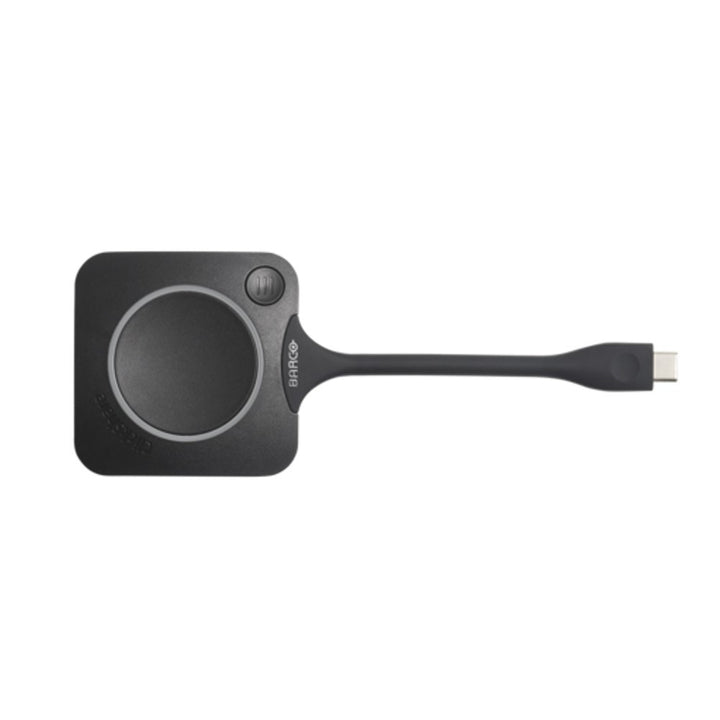

Barco ClickShare Button 4th Generation, USB-C, for C-5 / C-10 / CX / Bar Base Units (R9861600D01C)
Plug, Press, Share
The ClickShare Button plugs into a laptop's USB-C port and shares its screen to the meeting room display at the press of a button — sharing starts in under 7 seconds, and the LED ring turns red while you are live. On CX and Bar models the same Button also connects the laptop to the room camera and audio for wireless conferencing.
Add Buttons to Your Room
Use this spare or additional Button to give more presenters their own Button, or replace a lost one. Pair it to your base unit by plugging it into the base unit's USB port.
Need help choosing? Email sales@sourceit.com.sg with your room size, conferencing platform and quantity and we will recommend the right ClickShare setup.
Barco R9861600D01C Datasheet — Technical Specifications
General
| Product Name | Barco ClickShare Button, 4th generation (USB-C) |
| Part Number | R9861600D01C |
Technical
| Connector | USB Type-C |
| Wireless | IEEE 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz |
| Security | WPA2-PSK standalone; WPA2-PSK or IEEE 802.1X when integrated in a network |
| Video | Full HD 1080p @ 30 fps |
| Power | USB 5 V DC, 350 mA typical, 500 mA max |
| Dimensions (H x W x D) | 14.6 x 59.3 x 161.39 mm |
| Weight | 60 g |
Compatibility & Software Support
Barco lists the 4th-generation Button as compatible with ClickShare C-5, C-10, CX-20, CX-30, CX-50 (Gen-1 and Gen-2), Bar Core and Bar Pro. It is not compatible with the ClickShare Hub Core / Hub Pro, which use the Button 5th generation (R9861700D01C). Works with Windows and macOS laptops.
Package Contents & ClickShare Accessories Ordering Information
In the Box
One ClickShare Button (USB-C). Barco does not publish further box contents.
Barco ClickShare Room Systems
| Model | Part Number | Type |
| C-5 Gen-2 | R9861605NA | Wireless presentation |
| C-10 Gen-2 (1 Button) | R9861611NAB1 | Wireless presentation |
| C-10 Gen-2 (2 Buttons) | R9861611NAB2 | Wireless presentation |
| CX-20 Gen-2 | R9861612NAB1 | Wireless conferencing (BYOM) |
| CX-30 Gen-2 | R9861613NAB2 | Wireless conferencing (BYOM) |
| CX-50 Gen-2 | R9861622NAB2 | Wireless conferencing (BYOM) |
| Bar Core | R9861632USB1 | All-in-one video bar |
| Bar Pro | R9861633USB2 | All-in-one video bar |
| Hub Core | R9861711CNB1 | Teams Rooms system |
| Hub Pro | R9861710CNB2 | Teams Rooms system |
| Control Panel | R9861720US | Hub touch console |
Barco ClickShare Accessories
| Model | Part Number |
| Button Gen 4 (USB-C) (this listing) | R9861600D01C |
| 2 Buttons Gen 4 + Tray | R9861600P01C |
| Tray (4 Buttons) | R9861500T01 |
| HDMI-IN to USB-C Kit | R9861581 |
| CX-50 Gen-2 Power Supply | B5631051K |
| Bar Wall Mount | R8788066K |
| Bar TV Mount | R8788649K |
| Bar Front Cover | R8787713K |
| 2-in-1 Tray (Gen 5) | R9861700T01 |
| Hub Power Supply 100 W | B563235K |
| Hub Power Supply 180 W | B563236K |
| Button Gen 5 | R9861700D01C |
| USB-C Cable 10 m | Z3406338K |
| Wall Mount Plate | B570170K |
Datasheet & Downloads
| Barco spec sheet | ClickShare Button Gen 4 (USB-C) Spec Sheet (PDF) |
| Barco product page | Button Gen 4 (USB-C) on barco.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting R9861600D01C.
Frequently Asked Questions — Barco R9861600D01C
Will it work with my ClickShare Hub?
No — the Hub Core and Hub Pro need the Button 5th generation (R9861700D01C).
How do I pair a new Button?
Plug it into the USB port of your base unit and wait for pairing to complete (see the video below).
Does it support conferencing?
Yes, on the CX series and Bar models the Button also connects the room camera and audio to your laptop.
