APC Smart-UPS SRT 8000VA 230V

General

Output

Input

Batteries & Runtime

Communications & Management

Physical & Environmental

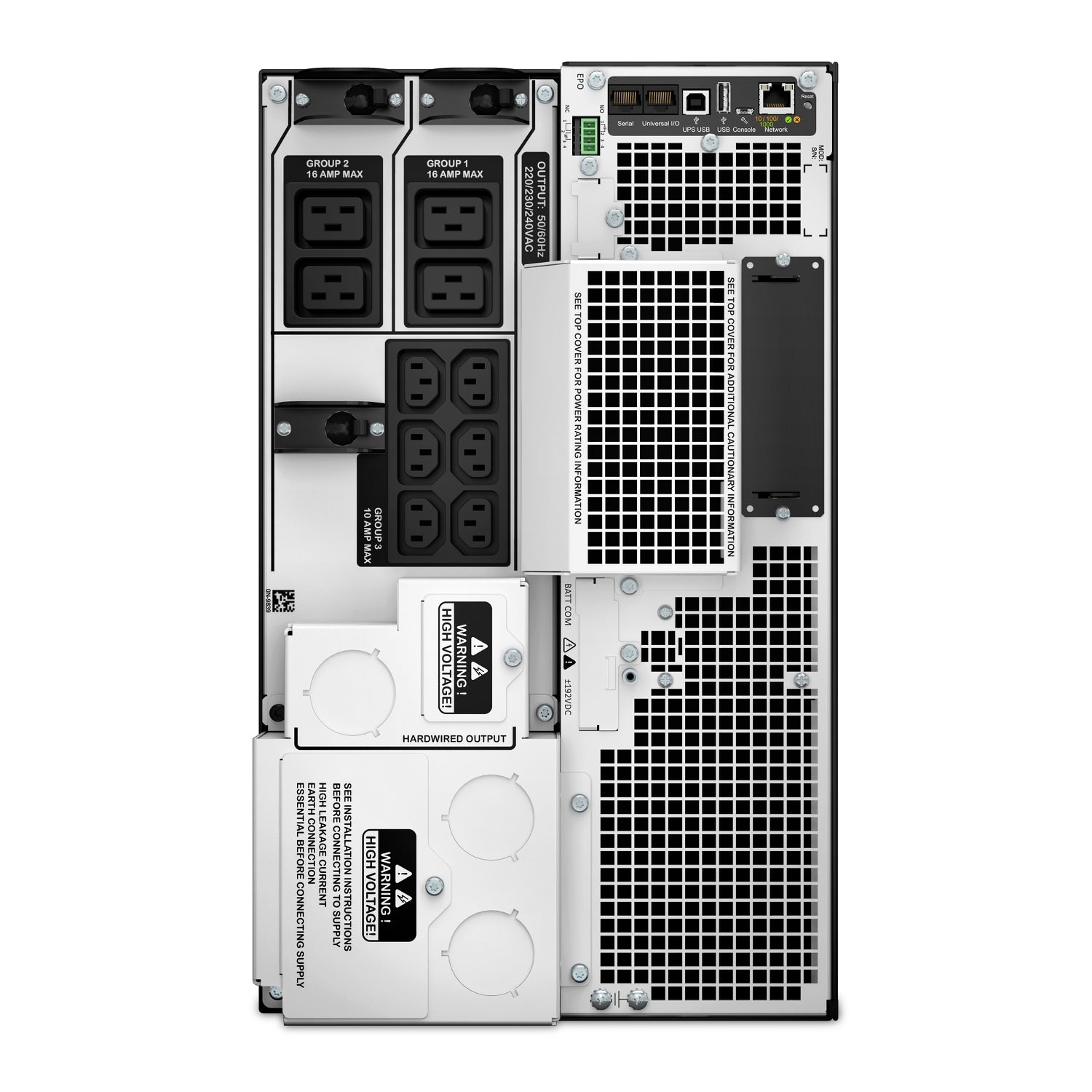

What you can plug in. The SRT8KXLI provides (6) IEC 60320 C13 and (4) IEC 60320 C19 outlets, plus a hard-wire output terminal sized for 16 mm² / 6 AWG. Output full-load current is 38 A. Total the real power draw (watts) of the equipment you intend to protect and keep it below the 8,000 W rating — runtime falls sharply as load rises.

Runtime depends on load. Runtime is not linear: halving the load more than doubles the time on battery. Schneider does not publish a runtime table for this model that we are able to cite, so rather than quote a figure we cannot source, ask SourceIT for a runtime calculation against your measured load.

Extended runtime. Connect up to ten SRT192BP2 external battery packs on the ±192 VDC bus, using the supplied 500 mm XLBP cable. Recharge time increases with each pack added, and each pack has a keyed mating connector that only fits its corresponding UPS — APC does not support third-party packs. The rackmount equivalent is the SRT192RMBP2.

Rack fit. The chassis measures 263 mm (H) x 432 mm (W) x 715 mm (D) and takes 6U when rack-mounted, but this SKU is the tower build and ships without a rail kit — Schneider lists SRTRK2 and SRTRK3 as the optional kits. If the unit is going into a cabinet from day one, the SRT8KRMXLI is the rackmount build with rails included. Net weight is 111.8 kg, so mount it at the bottom of the rack and plan the handling.

Input and circuit — read this before ordering. The SRT8KXLI is hard wired, with no input plug. It accepts either 220 / 230 / 240 Vac single phase or 380 / 400 / 415 Vac three phase at 40–70 Hz. Schneider specifies 16 mm² / 6 AWG conductors and a 63 A 2-pole breaker for single phase (63 A 4-pole for three phase); dual-feed wiring is supported. A licensed electrician must terminate it onto a suitably rated dedicated circuit — confirm the supply arrangement with your electrician and building management before delivery. This is the single most common cause of a delayed SRT installation in Singapore.

Network management. A network management card is included with this SKU, and Schneider's Singapore listing includes a one-year Secure Network Management Card subscription. The unit provides network, console, USB, serial, EPO and Universal I/O connections plus a SmartSlot for accessories such as the AP9613 Dry Contact I/O card or an AP9641 Network Management Card 3 with environmental monitoring for the AP9335TH sensor. Schneider does not publish a SmartSlot count for this model in the documents we can cite, so confirm with us if you need more than one accessory card.

In the box: Schneider does not publish an itemised package-contents list for the SRT8KXLI in the documents we are able to cite, so we have not invented one. The installation guide linked in the Downloads section below is the authoritative reference; ask SourceIT if you need the contents confirmed before a tender submission. Note that the rail kit is not included with this SKU.

Smart-UPS SRT 5–10 kVA range at SourceIT

Matching SRT external battery packs

Replacement battery cartridge

Rail kit

Network management and SmartSlot accessories

Schneider Electric Singapore product page — SRT8KXLI

Installation Guide — Smart-UPS On-Line SRT8K / SRT10K Tower / Rack-Mount 6U (Schneider document 990-4816G, SPD_SCON-9DETDD_EN)

Schneider FAQ FA349747 — which external battery pack and RBC fits your Smart-UPS On-Line (SRT) model

Schneider FAQ FA156518 — Smart-UPS warranty policy (SMT, SMX and SRT models)

Links open on Schneider Electric’s official product and document servers.

What is the difference between the 8,000 VA and 8,000 W rating, and how do I size the SRT8KXLI?
VA is apparent power and W is real power. On most UPS families the watt figure is lower than the VA figure, and watts is what limits you — but the SRT8KXLI is a unity power factor design, so it delivers the full 8,000 W. Add up the real draw of everything you want on battery and keep the total below 8,000 W. Sizing to about 70–80% of that leaves headroom for inrush and future additions, and gives noticeably longer runtime.

How long will the SRT8KXLI run on battery?
That depends entirely on load, and we would rather give you a calculation than a marketing figure. Runtime is not linear — halving the load more than doubles the time on battery. For defined autonomy, add SRT192BP2 packs (up to 10) and ask SourceIT to size the configuration against your measured load.

Does the SRT8KXLI produce a sine wave output, and will it work with an active-PFC power supply?
Yes. Schneider describes the SRT8KXLI as a double-conversion on-line pure sine wave UPS, so the load is fed from the inverter continuously and the output is a true sine wave. That is exactly what active-PFC server and workstation power supplies expect — unlike the step-approximated output of many entry-level line-interactive and standby UPS units, which some active-PFC supplies reject outright.

What does the XLI suffix mean?
XLI denotes the extended-runtime international build in tower orientation, supplied without a rail kit. RMXLI is the same electronics as a rackmount build with rails included. Schneider also produces XLT and XLW variants for other regional voltages. These are genuinely different builds, not packaging variants — check the part number carefully against your tender, because rack height and what is in the box differ across near-identical numbers.

Can the SRT8KXLI run from a three-phase supply?
Yes. It accepts either 220 / 230 / 240 Vac single phase or 380 / 400 / 415 Vac three phase at 40–70 Hz. Full-load input current is 44 A on single phase or 15 A per phase on three phase, and Schneider specifies a 63 A breaker either way (2-pole for single phase, 4-pole for three phase). Output remains single phase.

Which replacement battery does the SRT8KXLI take, and can I change it myself?
The battery system is four sealed VRLA modules at 96 VDC each (±192 VDC total, 5 Ah per module), and the replacement cartridge is the APCRBC140. APC designs the SRT battery modules to be user-replaceable. Plan on replacement every three to five years; heat is the main determinant, so a cabinet or plant room that runs hot will shorten cartridge life.

How much rack space does the SRT8KXLI need, and is the rail kit included?
The chassis takes 6U when rack-mounted and measures 263 mm (H) x 432 mm (W) x 715 mm (D). This SKU is the tower build and the rail kit is not included — SRTRK2 or SRTRK3 are the optional kits Schneider lists. For a cabinet deployment with rails in the box, order the SRT8KRMXLI instead. Net weight is 111.8 kg.

Can I monitor the SRT8KXLI over the network?
Yes. A network management card is included with this SKU and Schneider's Singapore listing includes a one-year Secure Network Management Card subscription, giving SNMP and HTTPS access out of the box. The unit also provides network, console, USB, serial, EPO and Universal I/O connections plus a SmartSlot for accessories such as the AP9613 Dry Contact I/O card.

How does the SRT8KXLI compare with the SRT10KRMXLI?
Both are on-line double-conversion Smart-UPS SRT units on the same 6U chassis with the same ±192 VDC battery architecture and the same APCRBC140 cartridge. The SRT8KXLI is 8,000 VA / 8,000 W in tower form without rails; the SRT10KRMXLI is 10,000 VA / 10,000 W as a rackmount with rails included. If your load sits close to 8 kW, take the 10 kVA unit — runtime and battery life both improve when a UPS is not run near its ceiling.

Is the SRT8KXLI covered by warranty in Singapore?
Yes. Every APC SRT8KXLI sold by SourceIT comes with local Singapore warranty and a GST invoice. Schneider's published Smart-UPS warranty policy (FAQ FA156518) states a three-year warranty on the UPS hardware and a two-year warranty on the battery for SMT, SMX and SRT models.
