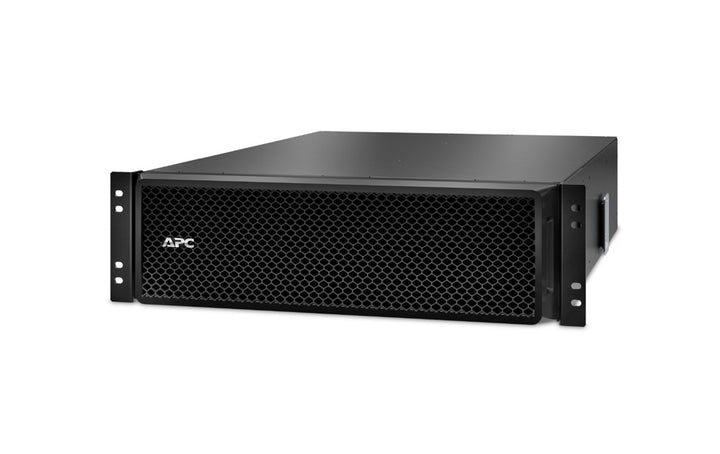

APC Smart-UPS SRT 192V 5kVA and 6kVA RM Battery Pack
PRODUCT DESCRIPTION
APC Smart-UPS SRT 192V 5kVA and 6kVA RM Battery Pack (SRT192RMBP) - 2 Years Local Warranty
Extended Runtime for APC Smart-UPS SRT 5 kVA and 6 kVA (SRT5K / SRT6K)
The APC SRT192RMBP is a 192 V DC external battery pack for the Smart-UPS On-Line SRT range, built to add autonomy to 5 kVA and 6 kVA (SRT5K / SRT6K) systems. Where the internal battery buys you a clean shutdown, an external pack buys you the option of riding an outage out — the difference between a controlled stop and continuous service for a Singapore server room or comms cabinet during a storm-season interruption on the PUB supply.
Which Smart-UPS SRT Models the SRT192RMBP Fits
This pack is keyed to the 5 kVA and 6 kVA (SRT5K / SRT6K) band. Schneider is explicit that each external battery pack carries a keyed mating connector compatible only with its corresponding UPS, and that the UPS does not support any other make or type of battery pack — so the part number matters. The 8 kVA / 10 kVA band uses a different pack. The full compatibility list is in the Compatibility block below.
Maintenance, Service Life and Singapore Conditions
The pack uses maintenance-free sealed lead-acid with suspended electrolyte, leakproof cells and takes the 2 x APCRBC140 replacement battery cartridge, so the batteries are a serviceable item rather than a reason to replace the whole pack. Heat is the main determinant of battery life: an unconditioned comms cupboard in Singapore will shorten service life noticeably compared with a cooled room. Schneider rates the pack for 0-40°C operation at 0-95% non-condensing humidity — keeping the cabinet cool is the cheapest life-extension measure available to you.
Installation and Local Singapore Supply
The SRT192RMBP occupies 3U of rack height in a 130 mm (H) x 432 mm (W) x 682 mm (D) chassis and connects to the UPS with the supplied keyed cable. It is a heavy item — 91.0 kg — so plan the lift and, in a rack, mount it low in the cabinet. SourceIT supplies the SRT192RMBP from Singapore stock with a GST invoice and local warranty support; batteries are consumable items, so ordering locally rather than importing avoids both the freight restrictions that apply to lead-acid shipments and an overseas RMA if a cell fails early.
APC SRT192RMBP Datasheet — Technical Specifications
General
| Part Number (SKU) | SRT192RMBP |
| Manufacturer Product Name | APC Smart-UPS On-Line SRT External Battery Pack, 3U Rack, 192Vdc |
| Brand | APC by Schneider Electric |
| Product Type | External battery pack (XLBP) for Smart-UPS On-Line SRT |
| Form Factor | Rackmount 3U |
| GTIN / UPC | 731304265905 |
Battery Specifications
| Nominal Battery Voltage | 192 V DC |
| Battery Type | Maintenance-free sealed lead-acid with suspended electrolyte, leakproof |
| Replacement Battery Cartridge | 2 x APCRBC140 |
| Expected Battery Service Life | 3 to 5 years |
| Compatible UPS Range | APC Smart-UPS On-Line SRT 5 kVA and 6 kVA (SRT5K / SRT6K) |
| Maximum Packs per UPS | Up to 10 packs |
| Connector | Keyed mating connector, compatible only with the corresponding SRT UPS |
Physical & Environmental
| Dimensions | 130 mm (H) x 432 mm (W) x 682 mm (D) |
| Net Weight | 91.0 kg |
| Shipping Weight | 105.5 kg |
| Rack Height | 3U |
| Operating Temperature | 0 to 40 °C |
| Operating Relative Humidity | 0 to 95%, non-condensing |
| Operating Altitude | 0 to 3,000 m (0 to 10,000 ft) |
| Standards & Marks | OSHPD; RoHS compliant; REACH — contains no SVHCs |
| Manufacturer Warranty | 2 years repair or replace (APC by Schneider Electric) |
| Local Warranty (Singapore) | 2 years, supplied and supported by SourceIT Pte Ltd |
Compatibility & Runtime
Which UPS models the SRT192RMBP fits. This pack is built for the APC Smart-UPS On-Line SRT 5 kVA and 6 kVA (SRT5K / SRT6K) band. The models SourceIT stocks in that band are:
| SRT5KRMXLI | 5,000 VA / 4,500 W · Rackmount 3U |
| SRT6KXLI | 6,000 VA / 6,000 W · Tower |
| SRT6KRMXLI | 6,000 VA / 6,000 W · Rackmount 4U |
Keyed connector — the part number matters. Schneider states that each external battery pack has a keyed mating connector that is only compatible with its corresponding UPS, and that the UPS does not support any other make or type of battery pack. Ordering the wrong pack in the SRT range is not a matter of an adapter; it will not connect. If you are unsure which band your unit is in, send SourceIT the UPS part number and we will confirm before you order.
Battery bus. This pack runs at 192 V DC, matching the internal battery bus of the 5 kVA and 6 kVA (SRT5K / SRT6K) UPS models above.
How many packs. Schneider states the UPS will recognise up to 10 packs for extended runtime. Recharge time increases with each pack added, and so does the floor loading or rack weight budget — check both before committing to a multi-pack configuration.
Runtime depends on load. An external battery pack extends autonomy but does not increase the UPS output rating — the SRT192RMBP cannot make a UPS carry more watts. Runtime is not linear with load either: halving the load more than doubles the time on battery. Send SourceIT your measured load in watts and the target autonomy in minutes and we will size the pack count for you.
Rack fit. The SRT192RMBP occupies 3U in a standard 19-inch cabinet with a chassis of 130 mm (H) x 432 mm (W) x 682 mm (D). Mount it in the lower part of the rack — at 91.0 kg it is one of the heaviest single items in a typical cabinet, and rack weight limits and floor loading are both worth checking against your building's specification.
Package Contents & Smart-UPS SRT Ordering Information
In the box: Battery pack, installation guide and warranty card. Exact contents are listed in the APC datasheet linked in the Downloads section below.
Smart-UPS SRT external battery packs at SourceIT
| SRT192BP | 192 V · SRT 5 kVA & 6 kVA · Tower |
| SRT192RMBP (this listing) | 192 V · SRT 5 kVA & 6 kVA · Rackmount 3U |
| SRT192BP2 | 192 V · SRT 8 kVA & 10 kVA · Tower |
| SRT192RMBP2 | 192 V · SRT 8 kVA & 10 kVA · Rackmount 3U |
Smart-UPS SRT models this pack supports
| SRT5KRMXLI | 5,000 VA / 4,500 W · Rackmount 3U |
| SRT6KXLI | 6,000 VA / 6,000 W · Tower |
| SRT6KRMXLI | 6,000 VA / 6,000 W · Rackmount 4U |
Replacement battery cartridge
| 2 x APCRBC140 | User-replaceable battery cartridge for the SRT192RMBP |
Network management and SmartSlot accessories for the host UPS
| AP9640 | UPS Network Management Card 3 |
| AP9641 | UPS Network Management Card 3 with Environmental Monitoring |
| AP9613 | Dry Contact I/O SmartSlot Card |
| AP9335TH | Temperature & Humidity Sensor |
Datasheet & Downloads
Schneider Electric Singapore product page — SRT192RMBP
APC SRT192RMBP product datasheet (Schneider Electric document library)
APC SRT192RMBP product data sheet (direct PDF)
Links open on Schneider Electric's official Singapore document servers.
Frequently Asked Questions — APC SRT192RMBP
Which APC Smart-UPS models does the SRT192RMBP fit?
It is built for the Smart-UPS On-Line SRT 5 kVA and 6 kVA (SRT5K / SRT6K) band. In SourceIT's catalogue that means SRT5KRMXLI, SRT6KXLI, SRT6KRMXLI. Schneider uses a keyed connector that only mates with the corresponding UPS, so a pack from the other band will not physically connect — check the UPS part number before ordering, or send it to us and we will confirm.
Will this pack make my UPS carry more equipment?
No. An external battery pack extends runtime, not output capacity. The UPS output rating in watts is fixed by the inverter, not the battery. If you need to power more equipment, you need a larger UPS; if you need the same equipment to stay up for longer, this is the right product.
How much extra runtime will I get?
That depends on your load in watts, and we would rather calculate it than quote a headline number. Runtime is not linear with load — halving the load more than doubles the time on battery. Send SourceIT your measured load and the autonomy you need and we will work out how many packs it takes.
Can I replace the batteries inside the pack, or do I replace the whole unit?
The batteries are serviceable. The SRT192RMBP takes the 2 x APCRBC140 replacement battery cartridge, so when the cells reach end of life you replace the cartridge rather than the entire pack. Plan on that every three to five years; heat is the main determinant, so a hot cabinet will bring the date forward.
Can I mix this pack with a third-party battery pack?
No. Schneider states plainly that the UPS does not support any other make or type of battery pack. Beyond the warranty question, the UPS relies on knowing the pack's chemistry and capacity to charge it correctly and to calculate remaining runtime — a foreign pack breaks both.
What is the difference between the SRT192RMBP and the SRT192BP?
They are the same electrical pack in different orientations: SRT192RMBP is the rackmount 3u version and SRT192BP is the tower version. Match the pack to how the UPS itself is deployed. See SRT192BP.
How heavy is it, and what do I need to prepare?
Net weight is 91.0 kg. Plan a two-person lift, and in a rack mount it as low as the cabinet allows. Check rack weight limits and floor loading against your building specification before installing multiple packs.
Is the SRT192RMBP covered by warranty in Singapore?
Yes. Every APC SRT192RMBP sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the SRT192RMBP with a 2 year repair-or-replace manufacturer warranty.
