APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect

APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect (SMT2200RMI2UC) - 2 Years Local Warranty

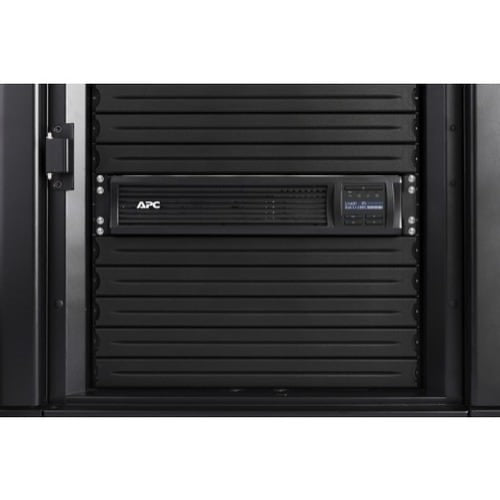

Heavy-Duty Rack-Mounted Backup

The APC SMT2200RMI2UC powers edge servers, storage arrays, networking gear, VoIP systems and critical workstations with a full 2200VA / 1980W of clean, pure sine-wave output. Its compact 2U rack profile fits neatly into data closets, while AVR stabilizes voltage dips and surges without wasting battery power, delivering dependable protection in demanding environments.

Cloud-Managed with SmartConnect and SmartSlot

Built-in SmartConnect offers remote monitoring, firmware updates and alert notifications via APC's secure cloud portal, with no additional network card needed. The integrated SmartSlot supports optional management or environmental sensor cards for enhanced control, making this UPS ideal for distributed, centrally monitored IT estates.

Rack-Optimized Features

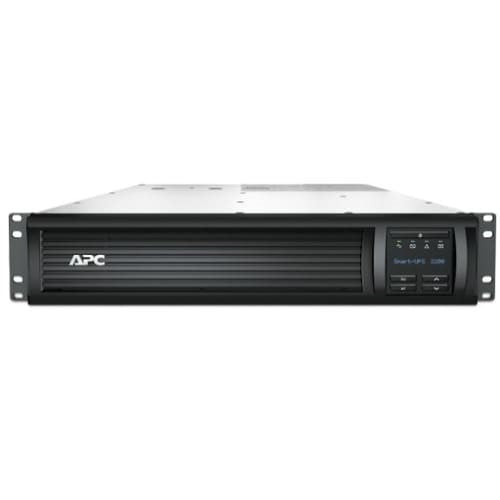

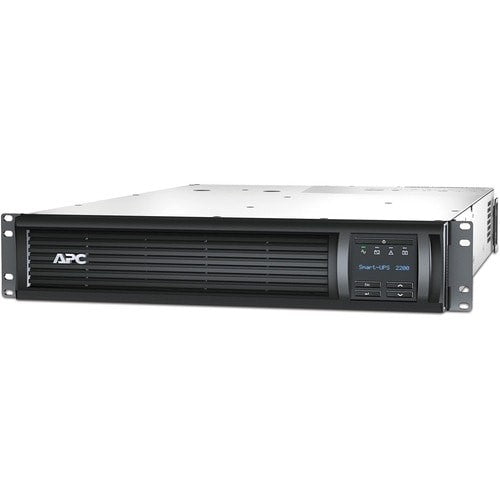

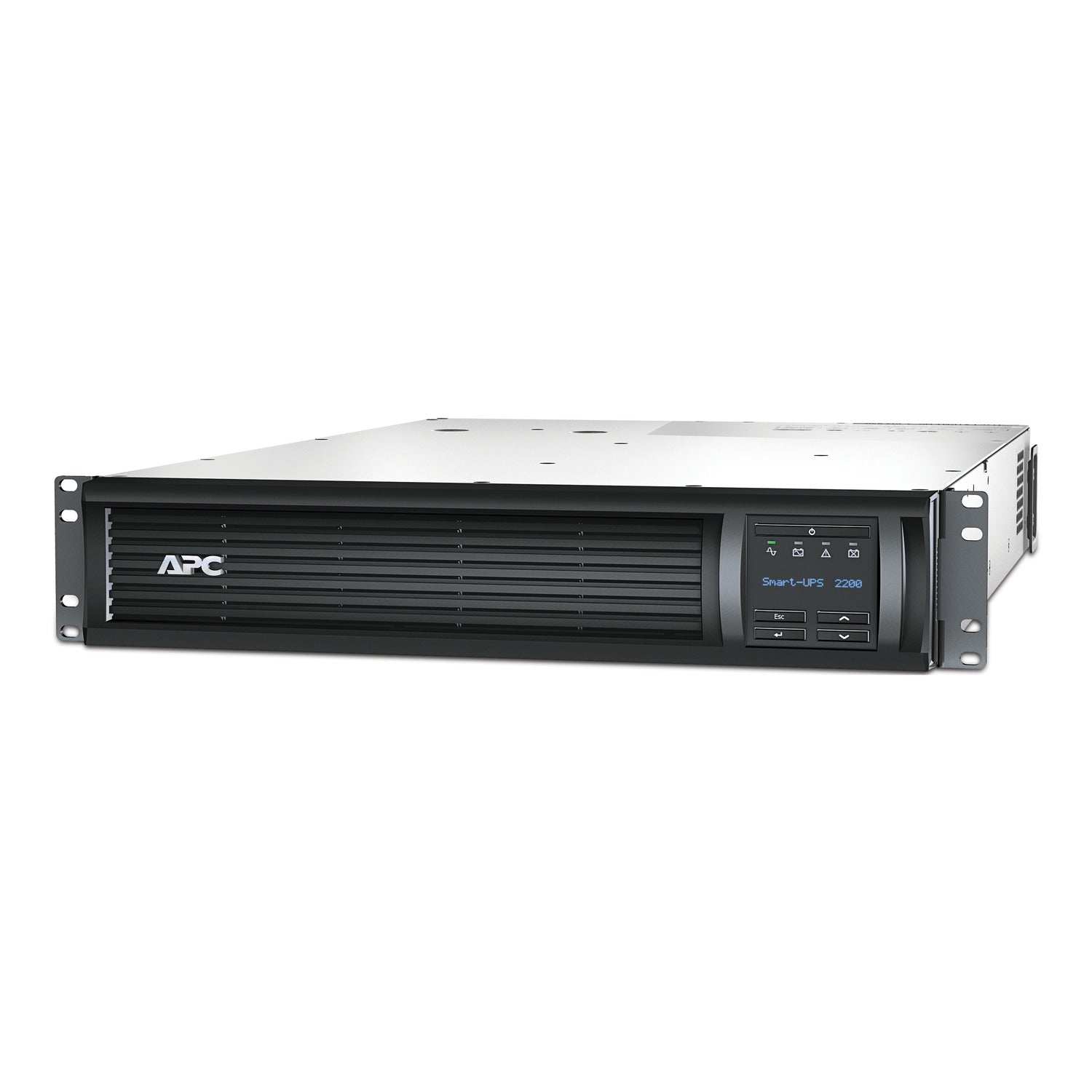

The SMT2200RMI2UC includes rack-mount hardware and a front-panel LCD that displays load, runtime, voltage, battery health and maintenance alerts. Local USB, RS-232 and SmartConnect Ethernet ports enable seamless PowerChute integration, while the hot-swappable battery cartridge ensures continuous uptime during maintenance.

Robust Runtime and Efficiency

Typical runtime is approximately 5-6 minutes at full load and around 12-15 minutes at half load, with a recharge to 90% in about three hours. Green mode bypasses unused circuitry under normal conditions for higher efficiency and lower operating costs, balancing strong protection with energy savings.

Technical Specifications

• Model: APC Smart-UPS 2200VA LCD RM 2U 230 V (SMT2200RMI2UC)
• Capacity: 2200 VA / 1980 W
• Topology: Line-interactive, pure sine wave, AVR
• Input Voltage: 151-302 V range
• Output Voltage: 230 V ±5%, 50/60 Hz ±3 Hz

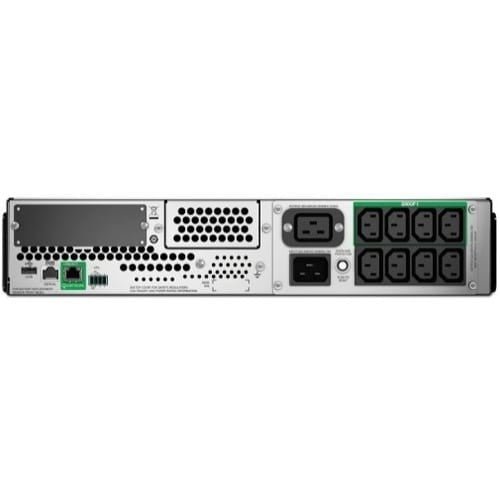

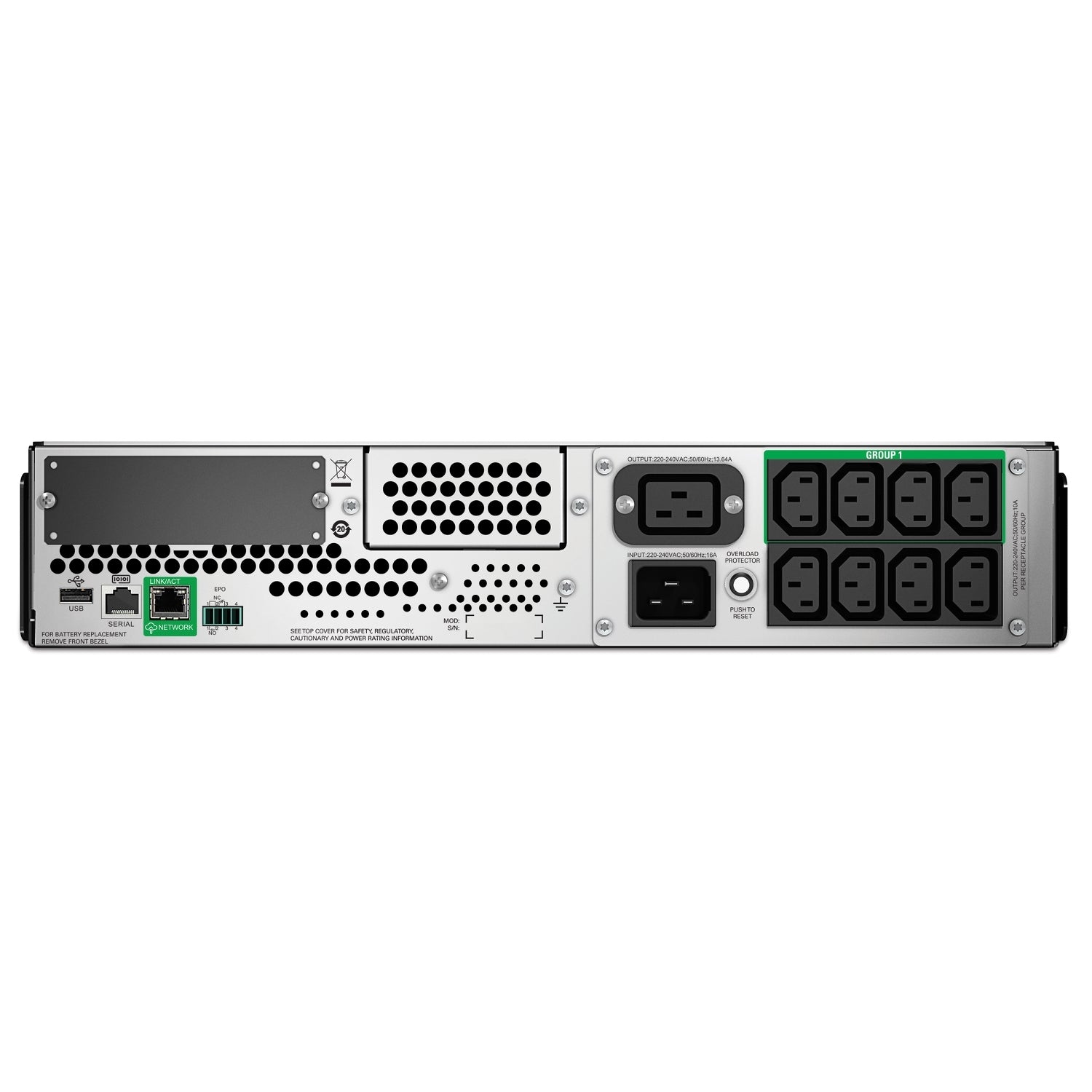

• Outlets: 8× IEC-C13 + 1× IEC-C19 + 3× IEC jumpers
• Transfer Time: 6 ms typical, 10 ms max
• Battery: Sealed lead-acid, hot-swappable (RBC43), 3-5 year lifespan
• Runtime: ~5-6 min at full load, ~12-15 min at half load
• Recharge Time: ~3 hours to 90 %
• Rack Height: 2U
• Dimensions: ~480 × 683 × 86 mm
• Weight: ~42 kg
• Noise: ~55 dBA
• Certifications: CE, UL 1778, IEC 62040-1/2, ENERGY STAR, RoHS, REACH, VDE, EAC
• Warranty: 3 years electronics; 2 years battery

Ideal Use Case: High-capacity rack protection for edge servers, storage, networking gear, VoIP and workstations in data closets needing cloud monitoring.

GTIN/UPC: 0731304337324 / 731304337324
