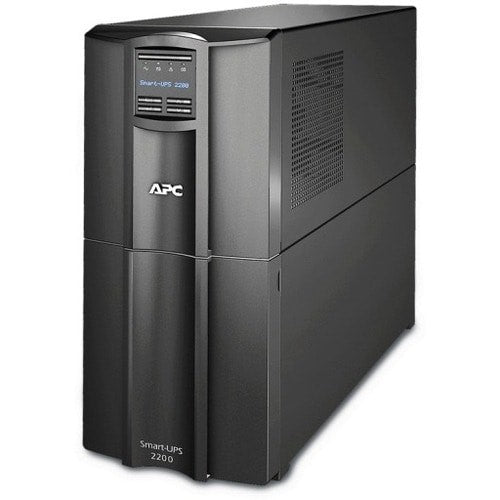

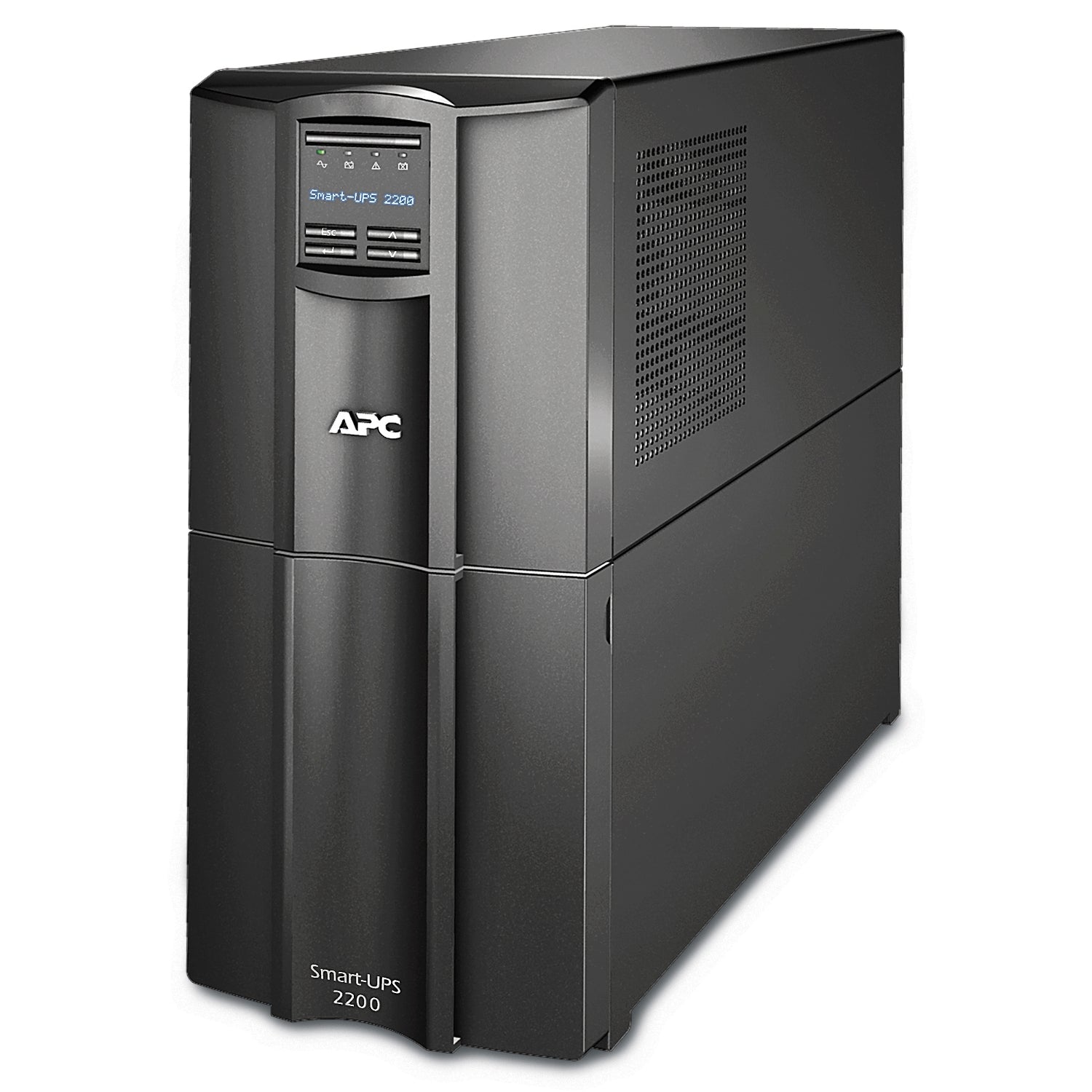

APC Smart-UPS 2200VA LCD 230V with SmartConnect

APC Smart-UPS 2200VA LCD 230V with SmartConnect (SMT2200IC) - 2 Years Local Warranty

High-Capacity Tower Protection

The APC SMT2200IC delivers robust power protection for data center edge applications, servers, workstations and network infrastructure. With 2200VA / 1980W pure sine-wave output and line-interactive AVR, it handles voltage dips, surges, brownouts and spikes without draining the battery, making it ideal for environments that demand uninterrupted uptime and clean, stable power.

SmartConnect and SmartSlot for Remote Management

Built-in SmartConnect offers real-time UPS health monitoring, firmware updates and lifecycle alerts via APC's secure cloud portal, with no extra network card needed. The SmartSlot enables optional management or environment-monitoring cards for enhanced control, giving you flexible, centralised oversight of your power protection.

Efficient Operation, User-Friendly Interface

Green mode bypasses unused circuitry under normal power for higher efficiency and lower running costs, while the front-panel LCD displays load, battery runtime, input and output voltage and notifications with intuitive navigation controls. The result is a UPS that is as easy to manage day to day as it is dependable.

Strong Runtime and Fast Transfer

Transfer time is a swift 6 ms typical (10 ms max), and the SMT2200IC provides about 6 minutes of runtime under full load (1980W) and roughly 20 minutes at 1000W, with a recharge to 90% capacity in around three hours. This combination keeps connected equipment protected and online through outages.

Technical Specifications

• Model: APC Smart-UPS 2200VA LCD 230 V with SmartConnect (SMT2200IC)
• Capacity: 2200 VA / 1980 W
• Topology: Line-interactive, pure sine wave, AVR
• Input Voltage Range: 160-286 V (adjustable 151-302 V)
• Output Voltage: 230 V ±5%, 50/60 Hz ±3 Hz
• Outlets: 8× IEC-C13 + 2× IEC-C19
• Transfer Time: 6 ms typical, 10 ms max
• Battery: Sealed lead-acid (RBC55), 3-5 year lifespan
• Runtime: ~6 min @ full load; ~20 min @ 1000 W
• Recharge Time: ~3 hours to 90%
• Dimensions: 197 × 435 × 544 mm
• Weight: 49 kg
• Noise: 45 dBA
• Surge Rating: 365 J

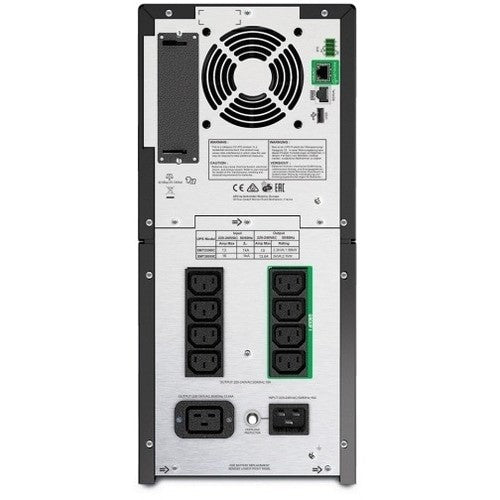

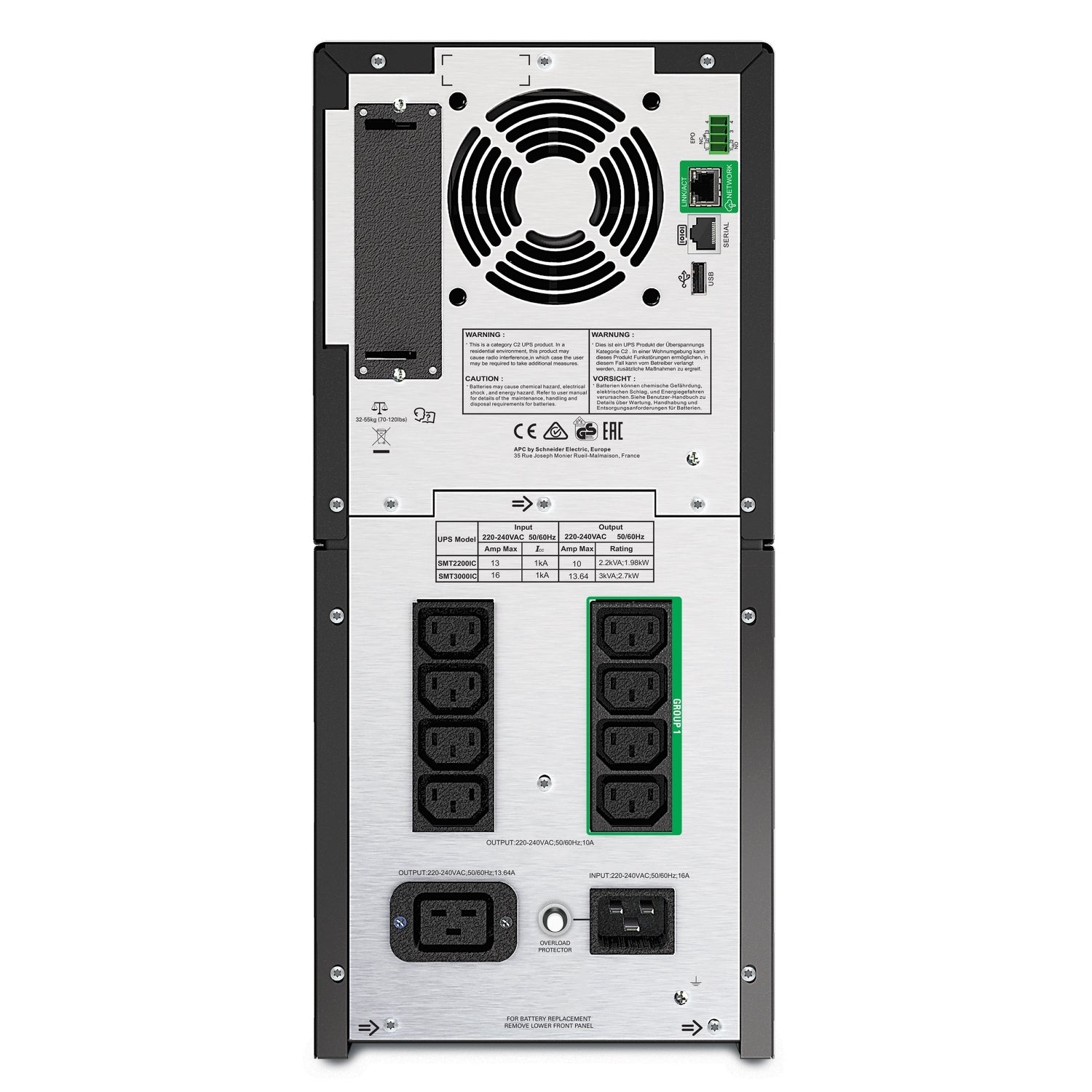

• Communications: USB, RS-232, RJ-45 SmartConnect port, SmartSlot
• Certifications: CE, UL 1778, IEC 62040-1/2, ENERGY STAR, RoHS, REACH
• Warranty: 3 years electronics; 2 years battery

Ideal Use Case: High-capacity protection for edge data centers, servers, workstations and network infrastructure requiring clean power and cloud monitoring.

GTIN/UPC: 0731304333012
