APC NetShelter Power Cord IEC C19 to C14 10A 2.0m Black Rack PDU Lead
PRODUCT DESCRIPTION
APC NetShelter Power Cord, IEC C19 to C14, 10A, 2.0 m (AP9878) - 2 Years Local Warranty
Powers a C20-Inlet Device From an Ordinary C13 Outlet

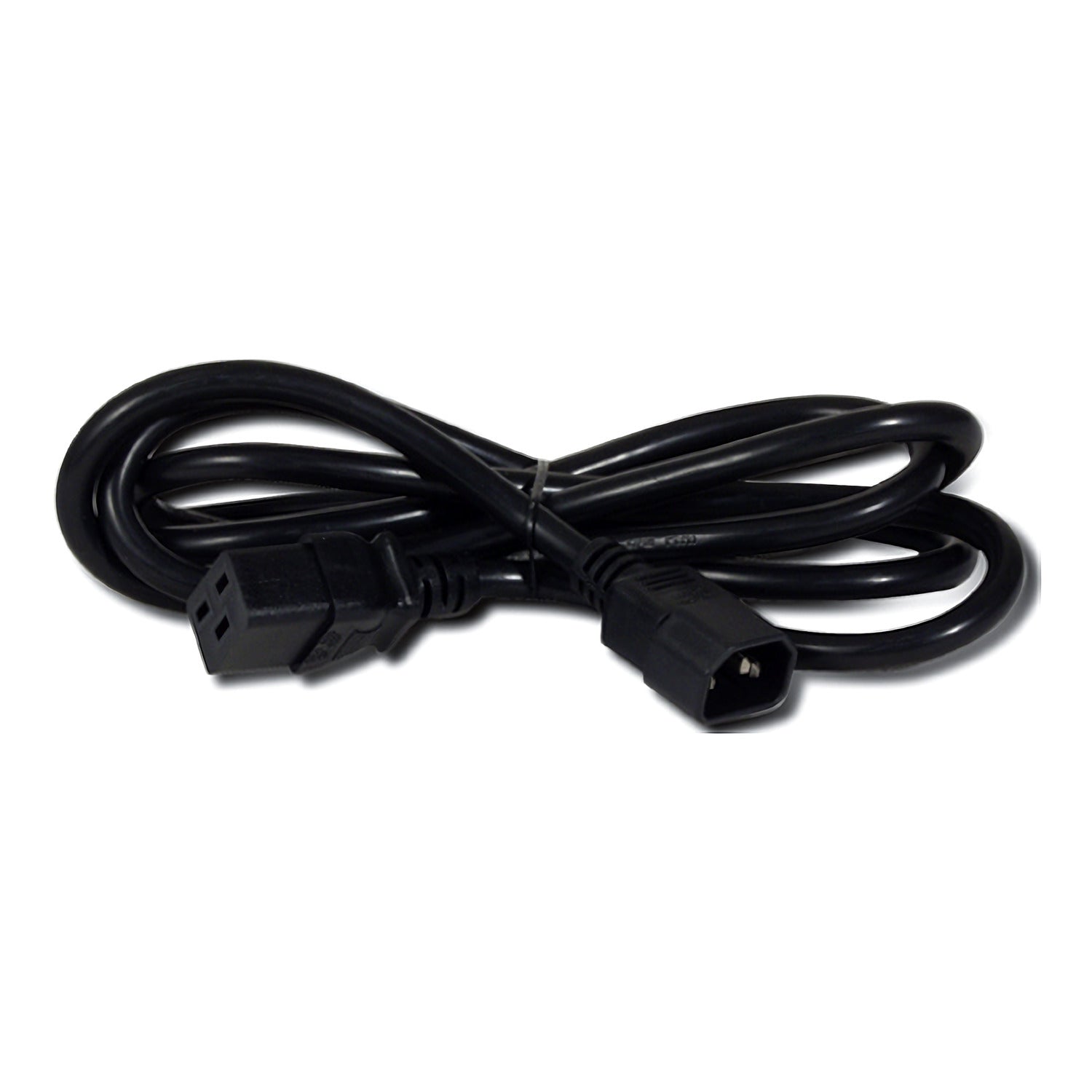

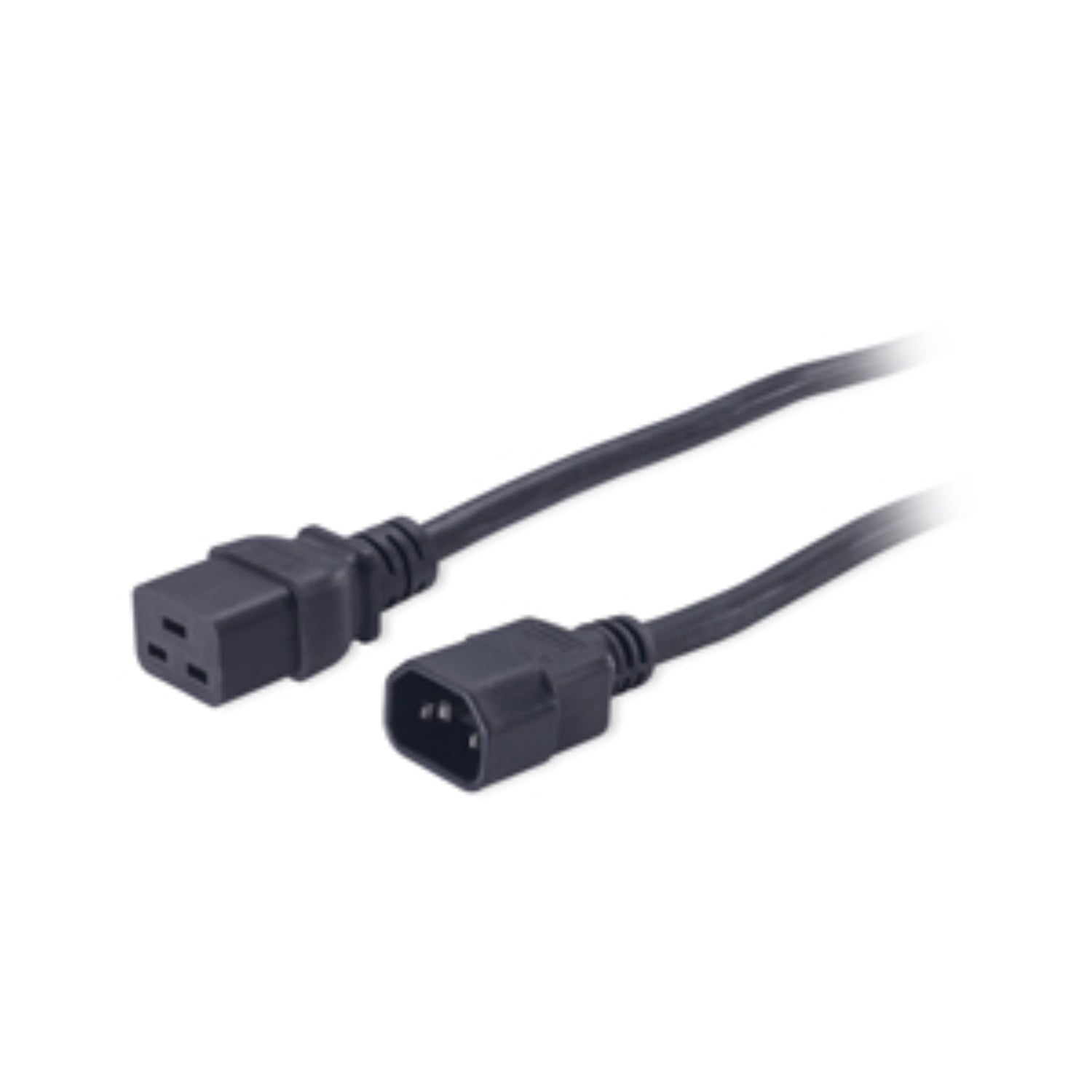

The APC NetShelter Power Cord AP9878 is a 2.0 m lead with an IEC 60320 C14 plug on one end and an IEC 60320 C19 connector on the other. The C14 goes into a standard C13 outlet on a PDU, UPS or Rack ATS; the C19 goes into the C20 inlet on the equipment. It solves a specific and common problem: a device that was built with a 16 A C20 inlet but actually draws well under 10 A, sitting in a rack whose PDU or UPS only offers C13 outlets.
Rated 10 A - the C14 End Sets the Limit
Schneider prints the AP9878 at 10 A maximum line current and 230 V AC. The C19 connector could carry more, but the C14 plug and the C13 outlet behind it are 10 A parts, so the whole cord is a 10 A cord. Use it for a device whose real draw is comfortably inside that figure - a small C20-inlet PDU carrying a light load, a switch or storage unit with a C20 inlet and a modest power supply - and not for a fully loaded 16 A PDU.
2.0 m for In-Rack Runs
Two metres reaches from a UPS or 1U PDU at the bottom of the rack to a C20-inlet device most of the way up, or from a zero-U PDU on the rear rail to anything in the cabinet, with slack to route through the cable management fingers.
Supplied Locally in Singapore with GST Invoice
Schneider lists the AP9878 as EU RoHS compliant and REACh conformant, with a 2-year repair-or-replace warranty. SourceIT supplies it with a GST invoice and local Singapore warranty support. If you are not sure whether your device's draw fits within 10 A, send us the model and we will check the nameplate before you order.
APC AP9878 Datasheet — Technical Specifications
General
| Part Number (SKU) | AP9878 |
| Schneider Electric Product Name | APC NetShelter Power Cord, IEC C19 to C14, 2.0m |
| Range | APC NetShelter Power Cords |
| Product Type | Power cord |
| Quantity per Pack | 1 |
| Warranty | 2-Year Manufacturer Warranty (APC by Schneider Electric) - repair or replace |
| Local Warranty (Singapore) | Yes - supplied and supported locally by SourceIT |
Connectors & Electrical
| Plug End | IEC 60320 C14 (3-pin male) - plugs into a C13 outlet |
| Connector End | IEC 60320 C19 (3-pin female) - mates with a C20 inlet |
| Connector Standard | IEC 60320 |
| Rated Current | 10 A |
| Maximum Line Current | 10 A |
| Voltage Rating | 230 V AC |
| Cord Length | 2.0 m |
| Colour | Black |
| Wire Gauge | Not published by Schneider Electric for this part |
Physical & Environmental
| Net Weight | 0.28 kg |
| Standards (as printed) | EU RoHS compliant; REACh - free of substances of very high concern above threshold; multi-region approved |
Compatibility & Fit
Where it goes. C14 plug into any C13 outlet - PDU, UPS, Rack ATS or bypass PDU - and C19 connector into a C20 inlet on the equipment. Both ends are IEC 60320; it does not connect to a wall socket.
C13 outlets that feed it, from the SourceIT catalogue. UPS: Smart-UPS SRT 1000VA rackmount, Smart-UPS SRT 3000VA (8 C13, 2 C19 outlets), Smart-UPS SMT 1500VA rackmount and Easy UPS On-Line SRV 2000VA rackmount. Rack ATS: AP4421A Rack ATS (C14 in, 12 C13 out) and AP4423A Rack ATS (C20 in, 8 C13 and 1 C19 out). PDUs: AP7921B switched 1U PDU (8 C13, C20 cord), AP9565 basic 1U PDU (12 C13), AP7552 zero-U basic PDU (20 C13, 4 C19, C20 inlet) and AP8853 metered zero-U PDU (36 C13, 6 C19).
What it can safely feed. Any C20-inlet device whose real draw is inside 10 A at 230 V - about 2,300 VA. A C20-inlet PDU carrying a handful of switches and a couple of 1U servers, a storage shelf with a C20 inlet, a large switch with a C20 inlet and a 700 W supply. Check the nameplate or the measured load, not the inlet type: the inlet says what the device could draw, not what it does.
What it should not feed. A 16 A PDU that is actually loaded towards 16 A, or a blade chassis or high-density device that needs the full C20 rating. For those, feed from a C19 outlet with the AP9877 jumper or from a commando socket with the AP9876. The upstream C13 outlet and its breaker are the limit, and exceeding them trips the outlet bank, not just the cord.
Rack ATS use. On a Rack ATS with C13 outlets, such as the AP4421A Rack ATS (C14 in, 12 C13 out) or AP4423A Rack ATS (C20 in, 8 C13 and 1 C19 out), the AP9878 lets a single C20-inlet device draw redundant power from the ATS without needing a C19 outlet - provided its load fits the 10 A figure.
IEC Connector Guide
Rack power cords are named by the IEC 60320 coupler on each end. The socket side of a coupler is the odd number and the pin side is the even number, so a C14 plug goes into a C13 outlet and a C19 connector goes onto a C20 inlet.
| Connector | Found on | Mates with | Rating |
| C13 (socket) | Cord end that goes into equipment; PDU, UPS and ATS outlets | C14 | 10 A |
| C14 (pins) | Cord plug; inlet on servers, switches, 10 A PDUs and UPS units | C13 | 10 A |
| C19 (socket) | Cord end for high-power equipment; outlets on larger UPS, ATS and PDUs | C20 | 16 A (IEC) |
| C20 (pins) | Cord plug; inlet on 16 A PDUs, Rack ATS and high-power servers | C19 | 16 A (IEC) |
| IEC 60309 16 A 2P+E (blue commando) | Wall and busway sockets, UPS and bypass outlets, captive PDU and ATS input cords | IEC 60309 16 A socket | 16 A |
Not one of these is a BS 1363 (Type G) wall plug. In a Singapore rack the mains connection is normally made once, at the UPS or PDU input, and everything downstream is IEC to IEC.
Package Contents & APC NetShelter Power Cord Ordering Information
What's in the Box
- 1 x APC NetShelter Power Cord, IEC C19 to C14, 2.0 m (AP9878)
APC NetShelter Power Cords — Ordering Information
These five NetShelter cords cover the common rack connections. Each is a separate listing; the one you are reading is in bold.
| Part Number | Connectors | Rating | Length | Typical use |
| AP9870 | IEC C13 to C14 | 10 A, 250 V | 2.5 m | Equipment cord: PDU, UPS or ATS C13 outlet to a C14 inlet on a server or switch |
| AP9876 | IEC C19 to IEC 60309 16 A plug | 16 A | 2.5 m | Input cord: 16 A commando socket to a C20-inlet PDU, ATS or UPS |
| AP9877 | IEC C19 to C20 | 16 A (IEC 60320) | 2.0 m | Jumper: UPS or ATS C19 outlet to a C20-inlet PDU, ATS or high-power server |
| AP9878 (this listing) | IEC C19 to C14 | 10 A | 2.0 m | Adapter cord: C13 outlet to a C20-inlet device at 10 A |
| AP9890 | IEC C13 to C14, 5 cords | 10 A (IEC 60320 coupler rating) | 0.6 m | Short equipment cords for tidy in-rack runs from a zero-U PDU |
Locking Alternative
| AP8704S-WW | AP8704S-WW locking C13 to C14 cord kit, 6 x 1.2 m - locking C13 connectors that cannot be nudged out of a PDU outlet |
Datasheet & Downloads
Official Schneider Electric documentation for the APC AP9878. Links open in a new tab.
| Schneider Electric product page | APC AP9878 NetShelter Power Cord, IEC C19 to C14, 2.0 m on se.com — Singapore site |
Schneider's own datasheet and user manual download links redirect to a document host that has repeatedly served the wrong model's file, so we do not publish those links here rather than risk sending you the wrong specification. Email sales@sourceit.com.sg quoting AP9878 and we will send you the current PDF datasheet and user guide directly.
Frequently Asked Questions — APC AP9878
Why would I connect a C19 device to a C13 outlet?
Because plenty of equipment is fitted with a C20 inlet for a worst-case configuration it will never reach. A storage shelf, a chassis switch or a small C20-inlet PDU carrying a light load may draw 3 or 4 A in practice. The AP9878 lets it run from the C13 outlets you already have on a UPS, PDU or Rack ATS, instead of forcing a C19 outlet or a new circuit.
How much current can it carry?
10 A, as Schneider prints. The C14 plug and the C13 outlet it goes into are 10 A parts, and the cord is rated to match. At 230 V that is around 2,300 VA. If the device's nameplate or measured load is above that, use a C19 outlet with the AP9877 or a commando socket with the AP9876 instead.
Is it safe to run a 16 A PDU through it?
Only if the PDU's actual load is under 10 A and the outlet feeding it is protected accordingly. The cord does not make a 10 A outlet a 16 A outlet. Where a PDU may grow towards its rating, feed it properly from the start.
What is the difference between the AP9878 and the AP9877?
The plug end. The AP9877 has a C20 plug for a C19 outlet and carries the full 16 A coupler rating. The AP9878 has a C14 plug for a C13 outlet and is limited to 10 A. Both have a C19 connector on the equipment end; the choice depends on which outlet you have available and how much the device draws.
Which APC UPS models can feed it?
Any with C13 outlets - the Smart-UPS SMT, SMC, SRT and Easy UPS On-Line SRV ranges in the SourceIT catalogue all qualify, for example the Smart-UPS SRT 3000VA (8 C13, 2 C19 outlets) or the Easy UPS On-Line SRV 2000VA rackmount. The same applies to the C13 outlets on the AP4421A Rack ATS (C14 in, 12 C13 out) and AP4423A Rack ATS (C20 in, 8 C13 and 1 C19 out) Rack ATS units.
Is 2.0 m long enough?
For a run within one rack, yes. From a UPS at the bottom to a device two-thirds of the way up a 42U cabinet, routed through the cable management, 2.0 m leaves a modest service loop. For between-rack runs, measure the route first.
Will this plug into a Singapore wall socket?
No. The AP9878 has an IEC C14 plug and an IEC C19 connector. Singapore wall sockets are BS 1363 (Type G), and none of the connectors on this cord are BS 1363. The normal Singapore arrangement is an IEC-fed rack PDU or a UPS with IEC outlets, with cords like this one running from those outlets to the equipment. If you need a BS 1363 to IEC lead for a UPS or PDU input, ask us separately.
Does it come with a Singapore warranty?
Yes. Every APC AP9878 sold by SourceIT comes with local Singapore warranty and a GST invoice; APC by Schneider Electric backs its NetShelter power cords with a 2-year repair-or-replace manufacturer warranty.
