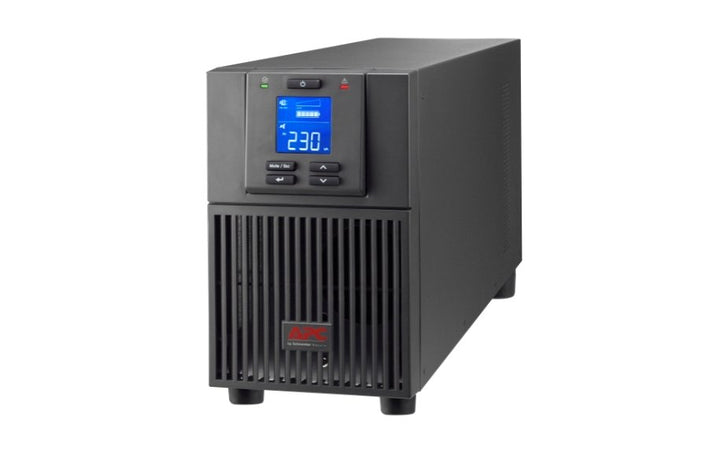

APC Easy UPS On-Line SRV 2000VA 230V
PRODUCT DESCRIPTION
APC Easy UPS On-Line SRV 2000VA 230V (SRV2KI) - 2 Years Local Warranty
Double-Conversion On-Line Protection for Singapore's 230 V / 50 Hz Mains
The APC SRV2KI is a double-conversion on-line UPS: incoming mains is rectified to DC and rebuilt as a clean sine wave output, so the connected load never sees the supply it is actually plugged into. That matters on the Singapore grid, where the day-to-day problem is rarely a full blackout and much more often the voltage sag that arrives with an afternoon thunderstorm, or the disturbance from a large motor load elsewhere in the building. The unit rides those out on its inverter, holding a 160–280 V full-load input window before it needs the battery at all.
2000 VA of Protected Capacity, 1600 W of Real Power
Rated at 2000 VA / 1600 W, the SRV2KI is sized for a comms cabinet, a pair of servers or a PoE switch stack. Size against the watts figure rather than the VA figure — servers, switches and storage are watts loads — and leave headroom rather than running it hard, which costs you both runtime and battery life. On-line efficiency is 88 % at full load, and output distortion is held to 3 %, which is what an active-PFC server power supply expects to see.
Tower Format with Four C13 Outlets
A tower at 238 mm (H) × 145 mm (W) × 400 mm (D) and 16.8 kg net / 18.1 kg shipping, the SRV2KI suits an SME office, a home office or a floor comms position where there is no rack to mount into. Output is 4 × IEC 60320 C13 (all battery backup and surge protected), and every one of them carries battery backup and surge protection — there is no surge-only bank to accidentally plug a server into. Input connection is IEC 60320 C14 inlet, 1.5 m input cord.
Batteries, Service Life and Singapore's Heat
Internal batteries are maintenance-free sealed VRLA (48 V DC, from 4 × 12 V 9 Ah blocks), recharging in 4 hours, with an expected service life of 3–5 years. Heat is what actually kills UPS batteries, and a poorly ventilated cabinet in Singapore's climate will take years off them — the unit is rated for 0 °C to 40 °C and runs at 50 dBA, so give it airflow. When the time comes the cartridge is APCRBCV204 (VRLA, 9 Ah, 48 V DC) and it is user-replaceable, with battery condition readable from the front-panel LCD.
Buy the APC SRV2KI in Singapore with Local Warranty and GST Invoice
SourceIT supplies the APC SRV2KI from Singapore with a GST invoice and local warranty support, backed by APC's 2-year manufacturer warranty. Tell us the load you need to protect — in watts, and how long you need it to stay up — and we will size the unit, the cartridge and the network card properly rather than sell you the nearest number. Email sales@sourceit.com.sg.
APC SRV2KI Datasheet — Technical Specifications
General
| Part Number (SKU) | SRV2KI |
| Model | SRV2KI |
| Brand / Series | APC by Schneider Electric — Easy UPS On-Line SRV |
| Schneider product name | APC Easy UPS On-Line, 2000VA/1600W, Tower, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD |
| Topology | Double conversion on-line |
| Form factor | Tower |
| Display | Multifunction LCD status and control console |
| Warranty | 2-Year Manufacturer Warranty (APC by Schneider Electric) |
| Local support | Local Warranty (Singapore) |
Output
| Output power capacity | 2000 VA / 1600 W |
| Nominal output voltage | 230 V nominal, configurable for 220 / 230 / 240 V |
| Output frequency | 50 / 60 Hz ± 3 Hz, synchronised to mains |
| Output waveform | Sine wave |
| Output voltage distortion | 3 % |
| Crest factor | 3 : 1 |
| On-line efficiency | 88 % at full load |
| Output connections | 4 × IEC 60320 C13 (all battery backup and surge protected) |
| Surge energy rating | 600 Joules |
| Internal bypass | Automatic and manual |
Input
| Input voltage range | 160–280 V at full load; 110–285 V at half load |
| Input frequency | 40–70 Hz, auto-sensing |
| Input connection | IEC 60320 C14 inlet, 1.5 m input cord |
Batteries & Runtime
| Battery type | Maintenance-free sealed valve-regulated lead-acid (VRLA) |
| Battery voltage | 48 V DC, from 4 × 12 V 9 Ah blocks |
| Replacement battery cartridge | APCRBCV204 (VRLA, 9 Ah, 48 V DC) |
| Typical recharge time | 4 hours |
| Expected battery life | 3–5 years |
| Runtime | Up to 4 minutes at full load; approximately 10 minutes at half load |
| External battery pack | Not supported on this model — internal batteries only |
Communications & Management
| USB port | Yes (USB cable supplied) |
| Serial port | RS-232, DB-9 (configuration cable supplied) |
| Card slot | 1 × Intelligent Card Slot (Schneider’s term — not a Smart-UPS “SmartSlot”) |
| Network management card | APV9601 — APC Easy UPS On-Line SRV SNMP card (sold separately) |
| Shutdown software | Compatible with PowerChute Serial Shutdown and PowerChute Business Edition — Schneider FAQ FA315835 lists SRV models of 3 kVA and below as supported over USB or serial |
| Emergency Power Off (EPO) | Not available on this model |
| Audible alarm | On battery, distinctive low-battery alarm, continuous-tone overload alarm |
Physical & Environmental
| Dimensions | 238 mm (H) × 145 mm (W) × 400 mm (D) |
| Net weight | 16.8 kg net / 18.1 kg shipping |
| Operating temperature | 0 °C to 40 °C |
| Operating relative humidity | 0–95 % relative humidity, non-condensing |
| Operating elevation | 0–3,000 m |
| Audible noise | 50 dBA |
| Thermal dissipation | 745 BTU/hour |
| Ingress protection | IP20 |
| Colour | Black (RAL 7010) |
| Certifications and standards | CE, UKCA, EAC, TISI; EN/IEC 62040-1, EN/IEC 62040-2; EU and China RoHS compliant |
Compatibility & Runtime
What you can plug in
The SRV2KI provides 4 × IEC 60320 C13 (all battery backup and surge protected). Every outlet is fed from the inverter, so all of them carry battery backup and surge protection — there is no surge-only bank on this model. Rated capacity is 2000 VA / 1600 W: size the load against the 1600 W figure, because a server, switch or storage array is a watts load, not a VA load.
Input and circuit requirements
Input connection is IEC 60320 C14 inlet, 1.5 m input cord. Singapore mains is 230 V / 50 Hz, which sits comfortably inside this unit's 160–280 V full-load input window, and the on-line inverter regenerates the output waveform continuously rather than switching to battery for every dip — useful during the voltage sags that accompany a thunderstorm on the PUB grid.
Footprint
This is a tower unit at 238 mm (H) × 145 mm (W) × 400 mm (D) and it is not rack-mountable. The rackmount equivalent at the same capacity is a separate part number — see the ordering block below.
Batteries and runtime
The SRV2KI runs on sealed maintenance-free VRLA batteries at 48 V DC, from 4 × 12 V 9 Ah blocks, and recharges in 4 hours. Expected service life is 3–5 years in a temperature-controlled room; Singapore's ambient heat and humidity are the main things that shorten it, so a comms cabinet with airflow is worth the effort.
Schneider's published runtime figure for this model is up to 4 minutes at full load, and approximately 10 minutes at half load. Runtime always depends on the actual connected load — treat that as the manufacturer's headline figure, not a guarantee for your particular equipment.
The matching replacement battery cartridge is APCRBCV204 (VRLA, 9 Ah, 48 V DC). Note this is the APCRBCV series used by Easy UPS On-Line, which is a different range from the APCRBC cartridges used by Smart-UPS — do not substitute across the two.
This model does not accept an external battery pack. If you need longer autonomy at this capacity, the extended-runtime power-module models are the correct product — they are listed in the ordering block below.
Management options
The SRV2KI has a USB port, an RS-232 DB-9 serial port and one Intelligent Card Slot. Schneider's card for that slot is the APV9601 SNMP card. The Easy UPS On-Line SRV range uses a different card family from Smart-UPS: the AP9640 and AP9641 Network Management Card 3 units fit Smart-UPS SmartSlot equipment and will not work in this UPS.
For direct USB or serial shutdown of a single host, Schneider's FAQ FA315835 lists SRV models of 3 kVA and below as supported by PowerChute Serial Shutdown and PowerChute Business Edition. PowerChute itself is a Schneider download rather than a licence sold with the UPS — ask us if you want the current version confirmed for your operating system before you commission.
Package Contents & Easy UPS On-Line SRV Ordering Information
In the box
- 1 × IEC C13 to Schuko power cable
- 1 × IEC C13 to C14 power cable
- 1 × USB cable
- 1 × RS-232 configuration cable
- User manual
Schneider's documented carton contents list an IEC C13-to-Schuko (European) cord. In Singapore these units are normally fed from a rack PDU or a locally fitted BS 1363 cord — tell us how you intend to power it and we will confirm what ships in the Singapore carton and supply the right cordage with the order.
Easy UPS On-Line SRV 1–3 kVA — tower models
| Model | Capacity, outlets and battery cartridge |
| APC Easy UPS On-Line SRV1KI | 1000 VA / 800 W · 3 × C13 · APCRBCV203 |
| APC Easy UPS On-Line SRV2KI (this listing) | 2000 VA / 1600 W · 4 × C13 · APCRBCV204 |
| APC Easy UPS On-Line SRV3KI | 3000 VA / 2400 W · 6 × C13 + 1 × C19 · APCRBCV205 |
Easy UPS On-Line SRV 1–3 kVA — rackmount 2U models (supplied with SRVRK1 rail kit)
| Model | Capacity, outlets and battery cartridge |
| APC Easy UPS On-Line SRV1KRI | 1000 VA / 800 W · 3 × C13 · APCRBCV200 |
| APC Easy UPS On-Line SRV2KRI | 2000 VA / 1600 W · 4 × C13 · APCRBCV201 |
| APC Easy UPS On-Line SRV3KRI | 3000 VA / 2400 W · 6 × C13 + 1 × C19 · APCRBCV202 |
Extended-runtime models (no internal battery, external pack supplied)
| Model | Capacity, outlets and battery pack |
| APC Easy UPS On-Line SRVPM1KIL | 1000 VA / 800 W · 3 × C13 · SRV36BP-9A (36 V) |
| APC Easy UPS On-Line SRVPM2KIL | 2000 VA / 1600 W · 4 × C13 · SRV72BP-9A (72 V) |
| APC Easy UPS On-Line SRVPM3KIL | 3000 VA / 2400 W · 6 × C13 + 1 × C19 · SRV72BP-9A (72 V) |
Larger Easy UPS On-Line SRV models
| Model | Capacity and format |
| APC Easy UPS On-Line SRV6KI | 6000 VA tower |
| APC Easy UPS On-Line SRV10KI | 10000 VA tower |
| APC Easy UPS On-Line SRV6KRIRK | 6000 VA rackmount with rail kit and external battery pack |
| APC Easy UPS On-Line SRV10KRIRK | 10000 VA rackmount with rail kit and external battery pack |
Accessories for this UPS
| Accessory | What it is |
| APC Easy UPS On-Line SRV SNMP Card (APV9601) | SNMP network management card for the Intelligent Card Slot. The correct card for Easy UPS On-Line SRV — the Smart-UPS AP9640 and AP9641 cards do not fit. |
| APCRBCV204 (VRLA, 9 Ah, 48 V DC) | Replacement battery cartridge for this model. User-replaceable. Order by this exact part number — the APCRBCV series is specific to Easy UPS On-Line and is not interchangeable with Smart-UPS APCRBC cartridges. Email sales@sourceit.com.sg to order. |
Current-generation alternative
Schneider has moved this range to the “-E” generation, which is a genuinely different build — higher output wattage at the same VA rating (0.9 output power factor instead of 0.8), EPO support and different battery cartridges. If you are specifying a new installation rather than matching existing equipment, look at APC Easy UPS On-Line SRV 2000VA 1800W 230V (SRV2KI-E). Do not assume the two share specifications.
Datasheet & Downloads
Official Schneider Electric product page for the APC SRV2KI — Singapore regional page. Schneider publishes the product datasheet, user guide and environmental disclosure from the document list on that page.
Schneider serves its APC datasheet PDFs from a redirecting download host that regularly returns the wrong model's document, so we do not publish direct PDF links that we cannot verify resolve to the right part number. Email sales@sourceit.com.sg with the model you need and we will send the correct current-revision datasheet and user manual, along with a GST-invoiced quotation.
Every specification on this page was taken from Schneider Electric's own product page and its published product datasheet or user manual for this exact part number. Where Schneider's own sources disagreed, or published nothing, the field has been left out rather than estimated.
Frequently Asked Questions — APC SRV2KI
What is the difference between the 2000 VA and 1600 W ratings, and how do I size it?
VA is apparent power, watts is real power. The SRV2KI is rated 2000 VA / 1600 W, an output power factor of 0.8. Add up the watts of everything you intend to protect, keep the total under 1600 W, and leave headroom — loading a UPS to 100 % shortens both runtime and battery life. As a rough Singapore rule of thumb, a 1U rack server draws 200–400 W, a 24-port PoE switch 150–400 W depending on how much PoE is actually drawn, and a small NAS 60–120 W. Send us the list and we will size it.
How long will the SRV2KI run my equipment?
Schneider's published figure for this model is up to 4 minutes at full load, and approximately 10 minutes at half load, with healthy batteries.
What matters in practice is that an on-line UPS in this class is sized for a clean shutdown or a generator start, not for riding through a long outage. If you need tens of minutes, the extended-runtime power-module models with external battery packs are the right product. Email sales@sourceit.com.sg with your load in watts and the autonomy you want.
Is the output a true sine wave, and will it work with an active-PFC power supply?
Yes. Schneider's datasheet for this exact model states a sine wave output with 3 % voltage distortion, and the topology is double conversion on-line — the load is fed from the inverter continuously rather than being switched over when mains fails. That is what an active-PFC server or workstation PSU wants; the step-approximated output of a low-cost standby UPS is what causes those supplies to trip. Schneider does not publish a numeric transfer time for this model and we do not claim one.
What do the different Easy UPS On-Line suffixes mean?
They are genuinely different builds, not marketing variants. KI is a tower with internal batteries. KRI is the 2U rackmount build of the same capacity — different outlet count and dimensions, so do not read tower specs onto a rack unit. PM…IL is an extended-runtime power module with no internal batteries, supplied with an external pack. -E is the newer generation with a 0.9 output power factor, so an SRV3KI-E delivers 2700 W where this generation delivers 2400 W at the same 3 kVA. RK means the rail kit is included in the part number.
Which replacement battery cartridge does the SRV2KI take, and can I change it myself?
The cartridge is APCRBCV204 (VRLA, 9 Ah, 48 V DC). It is user-replaceable, and the batteries are the consumable part of any UPS — expect 3–5 years in a well-ventilated room, less in a hot cabinet, which is the usual Singapore constraint. Order by that exact part number: the APCRBCV series belongs to Easy UPS On-Line and is not interchangeable with the APCRBC cartridges used by Smart-UPS, even where the voltage looks similar. Email sales@sourceit.com.sg to order one.
Can the SRV2KI be rack mounted?
No. This is a tower unit at 238 mm (H) × 145 mm (W) × 400 mm (D). Schneider builds the rackmount version as a separate part number — the 2U SRVxKRI family listed in the ordering block above. The two are not convertible, and their outlet counts and dimensions differ, so pick the form factor at the point of order.
How do I monitor it over the network?
Fit the APV9601 SNMP card in the UPS Intelligent Card Slot. That is the Easy UPS On-Line card — the AP9640 and AP9641 Network Management Card 3 units fit Smart-UPS SmartSlot equipment and will not work here. Without a card you still get USB and RS-232 for a direct shutdown link to one host, with PowerChute Serial Shutdown or PowerChute Business Edition. Note that Schneider has discontinued the APV9601; ask us about current stock and the AP9544 successor before you commit to a monitoring design.
Is the SRV2KI covered by warranty in Singapore?
Yes. Every APC SRV2KI sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the SRV2KI with a 2-year manufacturer warranty. Schneider publishes a single worldwide figure of “2 years repair or replace” for the Easy UPS On-Line SRV range — there is no separate European and rest-of-world split on this family, so the term above is the one that applies in Singapore.
