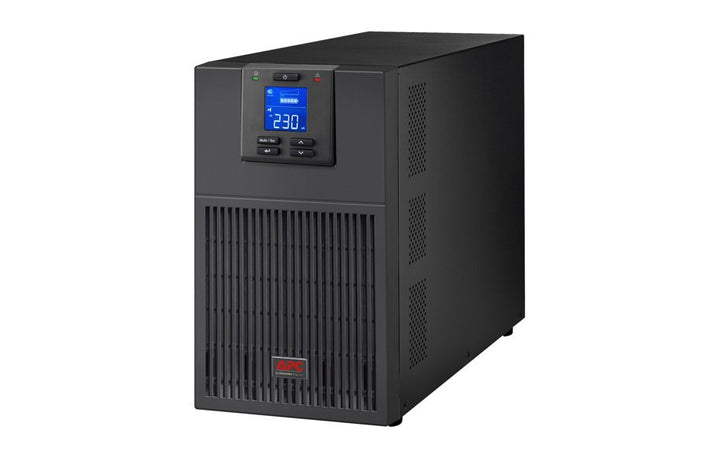

APC Easy UPS On-Line SRV 3000VA 230V

General

Output

Input

Batteries & Runtime

Communications & Management

Physical & Environmental

What you can plug in

The SRV3KI provides 6 × IEC 60320 C13 + 1 × IEC 60320 C19 (all battery backup and surge protected). Every outlet is fed from the inverter, so all of them carry battery backup and surge protection — there is no surge-only bank on this model. Rated capacity is 3000 VA / 2400 W: size the load against the 2400 W figure, because a server, switch or storage array is a watts load, not a VA load.

The single IEC C19 outlet is the one to reserve for a higher-draw device — a blade chassis, a large PSU or a rack PDU feeding a sub-bank. Note this model has one C19, not two.

Input and circuit requirements

Input connection is IEC 60320 C20 inlet — a 16 A inlet, not the 10 A C14 used on the 1 kVA and 2 kVA models. Singapore mains is 230 V / 50 Hz, which sits comfortably inside this unit's 160–280 V full-load input window, and the on-line inverter regenerates the output waveform continuously rather than switching to battery for every dip — useful during the voltage sags that accompany a thunderstorm on the PUB grid.

Footprint

This is a tower unit at 336 mm (H) × 190 mm (W) × 425 mm (D) and it is not rack-mountable. The rackmount equivalent at the same capacity is a separate part number — see the ordering block below.

Batteries and runtime

The SRV3KI runs on sealed maintenance-free VRLA batteries at 72 V DC, from 6 × 12 V 9 Ah blocks, and recharges in 4 hours. Expected service life is 3–5 years in a temperature-controlled room; Singapore's ambient heat and humidity are the main things that shorten it, so a comms cabinet with airflow is worth the effort.

Schneider publishes no runtime-at-load table for this model that we could verify against two independent sources, so none is quoted here. Send us your load in watts and the autonomy you need — sales@sourceit.com.sg — and we will size it properly rather than guess.

The matching replacement battery cartridge is APCRBCV205 (VRLA, 9 Ah, 72 V DC). Note this is the APCRBCV series used by Easy UPS On-Line, which is a different range from the APCRBC cartridges used by Smart-UPS — do not substitute across the two.

This model does not accept an external battery pack. If you need longer autonomy at this capacity, the extended-runtime power-module models are the correct product — they are listed in the ordering block below.

Management options

The SRV3KI has a USB port, an RS-232 DB-9 serial port and one Intelligent Card Slot. Schneider's card for that slot is the APV9601 SNMP card. The Easy UPS On-Line SRV range uses a different card family from Smart-UPS: the AP9640 and AP9641 Network Management Card 3 units fit Smart-UPS SmartSlot equipment and will not work in this UPS.

For direct USB or serial shutdown of a single host, Schneider's FAQ FA315835 lists SRV models of 3 kVA and below as supported by PowerChute Serial Shutdown and PowerChute Business Edition. PowerChute itself is a Schneider download rather than a licence sold with the UPS — ask us if you want the current version confirmed for your operating system before you commission.

In the box

• 1 × IEC C13 to Schuko power cable
• 1 × IEC C13 to C14 power cable
• 1 × USB cable
• 1 × RS-232 configuration cable
• User manual

Schneider's documented carton contents list an IEC C13-to-Schuko (European) cord. In Singapore these units are normally fed from a rack PDU or a locally fitted BS 1363 cord — tell us how you intend to power it and we will confirm what ships in the Singapore carton and supply the right cordage with the order.

Easy UPS On-Line SRV 1–3 kVA — tower models

Easy UPS On-Line SRV 1–3 kVA — rackmount 2U models (supplied with SRVRK1 rail kit)

Extended-runtime models (no internal battery, external pack supplied)

Larger Easy UPS On-Line SRV models

Accessories for this UPS

Current-generation alternative

Schneider has moved this range to the “-E” generation, which is a genuinely different build — higher output wattage at the same VA rating (0.9 output power factor instead of 0.8), EPO support and different battery cartridges. If you are specifying a new installation rather than matching existing equipment, look at APC Easy UPS On-Line SRV 3000VA 2700W 230V (SRV3KI-E). Do not assume the two share specifications.

Official Schneider Electric product page for the APC SRV3KI — Singapore regional page. Schneider publishes the product datasheet, user guide and environmental disclosure from the document list on that page.

Schneider serves its APC datasheet PDFs from a redirecting download host that regularly returns the wrong model's document, so we do not publish direct PDF links that we cannot verify resolve to the right part number. Email sales@sourceit.com.sg with the model you need and we will send the correct current-revision datasheet and user manual, along with a GST-invoiced quotation.

Every specification on this page was taken from Schneider Electric's own product page and its published product datasheet or user manual for this exact part number. Where Schneider's own sources disagreed, or published nothing, the field has been left out rather than estimated.

What is the difference between the 3000 VA and 2400 W ratings, and how do I size it?

VA is apparent power, watts is real power. The SRV3KI is rated 3000 VA / 2400 W, an output power factor of 0.8. Add up the watts of everything you intend to protect, keep the total under 2400 W, and leave headroom — loading a UPS to 100 % shortens both runtime and battery life. As a rough Singapore rule of thumb, a 1U rack server draws 200–400 W, a 24-port PoE switch 150–400 W depending on how much PoE is actually drawn, and a small NAS 60–120 W. Send us the list and we will size it.

How long will the SRV3KI run my equipment?

Schneider does not publish a runtime-at-load table for this model that we could verify against two independent official sources, so we do not quote minutes here rather than invent them.

What matters in practice is that an on-line UPS in this class is sized for a clean shutdown or a generator start, not for riding through a long outage. If you need tens of minutes, the extended-runtime power-module models with external battery packs are the right product. Email sales@sourceit.com.sg with your load in watts and the autonomy you want.

Is the output a true sine wave, and will it work with an active-PFC power supply?

Yes. Schneider's datasheet for this exact model states a sine wave output with 3 % voltage distortion, and the topology is double conversion on-line — the load is fed from the inverter continuously rather than being switched over when mains fails. That is what an active-PFC server or workstation PSU wants; the step-approximated output of a low-cost standby UPS is what causes those supplies to trip. Schneider does not publish a numeric transfer time for this model and we do not claim one.

What do the different Easy UPS On-Line suffixes mean?

They are genuinely different builds, not marketing variants. KI is a tower with internal batteries. KRI is the 2U rackmount build of the same capacity — different outlet count and dimensions, so do not read tower specs onto a rack unit. PM…IL is an extended-runtime power module with no internal batteries, supplied with an external pack. -E is the newer generation with a 0.9 output power factor, so an SRV3KI-E delivers 2700 W where this generation delivers 2400 W at the same 3 kVA. RK means the rail kit is included in the part number.

Which replacement battery cartridge does the SRV3KI take, and can I change it myself?

The cartridge is APCRBCV205 (VRLA, 9 Ah, 72 V DC). It is user-replaceable, and the batteries are the consumable part of any UPS — expect 3–5 years in a well-ventilated room, less in a hot cabinet, which is the usual Singapore constraint. Order by that exact part number: the APCRBCV series belongs to Easy UPS On-Line and is not interchangeable with the APCRBC cartridges used by Smart-UPS, even where the voltage looks similar. Email sales@sourceit.com.sg to order one.

Can the SRV3KI be rack mounted?

No. This is a tower unit at 336 mm (H) × 190 mm (W) × 425 mm (D). Schneider builds the rackmount version as a separate part number — the 2U SRVxKRI family listed in the ordering block above. The two are not convertible, and their outlet counts and dimensions differ, so pick the form factor at the point of order.

How do I monitor it over the network?

Fit the APV9601 SNMP card in the UPS Intelligent Card Slot. That is the Easy UPS On-Line card — the AP9640 and AP9641 Network Management Card 3 units fit Smart-UPS SmartSlot equipment and will not work here. Without a card you still get USB and RS-232 for a direct shutdown link to one host, with PowerChute Serial Shutdown or PowerChute Business Edition. Note that Schneider has discontinued the APV9601; ask us about current stock and the AP9544 successor before you commit to a monitoring design.

Is the SRV3KI covered by warranty in Singapore?

Yes. Every APC SRV3KI sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the SRV3KI with a 2-year manufacturer warranty. Schneider publishes a single worldwide figure of “2 years repair or replace” for the Easy UPS On-Line SRV range — there is no separate European and rest-of-world split on this family, so the term above is the one that applies in Singapore.
