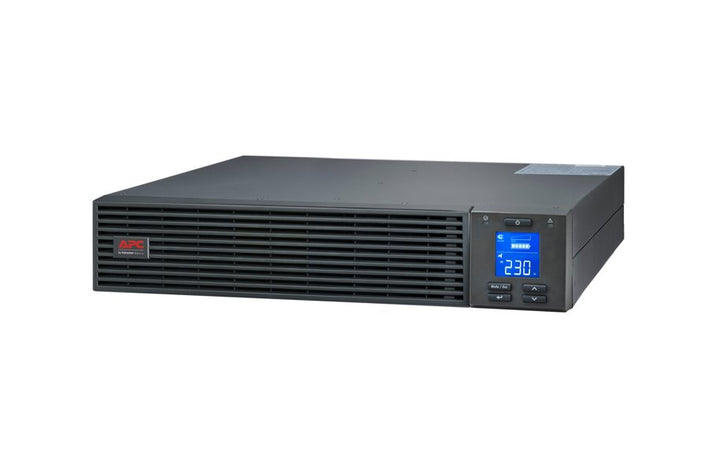

APC Easy UPS On-Line SRV 2000VA RM 230V with Rail Kit (SRV2KRI)
[PRE-ORDER] APC Easy UPS On-Line SRV 2000VA RM 230V with Rail Kit (SRV2KRI) - 2 Years Local Warranty [Authorized Reseller]
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 4x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV201. The UPS is compatible with SRVRK1 rail kit sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
- Main Input Voltage
- 230 V
- Other Input Voltage
- 220 V
- 240 V
- Main Output Voltage
- 230 V
- Other Output Voltage
- 220 V
- 240 V
- Rated power in W
- 1600 W
- Rated power in VA
- 2000 VA
- Input Connection Type
- IEC 60320 C14
- output connection type
- 4 IEC 60320 C13
- number of rack unit
- 2U
- Cable length
- 1.50 m
- number of cables
- 1
- provided equipment
- 1 IEC 60320 C13 to Schuko power cable
- 1 IEC 60320 C13 to C14 power cable
- 1 USB cable
- 1 RS-232 configuration cable
- 1 rack mounting brackets
- 1 user manual
- General
- Max runtime
- 4 min
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Physical
- colour
- Black (RAL 7010)
- Height
- 8.6 cm
- Width
- 43.7 cm
- Depth
- 46.2 cm
- Product weight
- 18.2 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted with kit
- USB compatible
- Yes
- Mounting position
- Horizontal
- Input
- input voltage limits
- 110...285 V half load
- 160...280 V full load
- network frequency
- 40...70 Hz auto sensing
- Output
- Maximum configurable power in VA
- 2000 VA
- Maximum configurable power in W
- 1600 W
- output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Harmonic distortion
- 3 %
- UPS type
- Double conversion online
- Wave type
- Sine wave
- efficiency
- 88 % (full load)
- Additional information
- Configurable for 220 : 230 or 240 nominal output voltage
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
