APC Easy UPS On-Line SRV 1000VA 900W Tower UPS 230V
PRODUCT DESCRIPTION
APC Easy UPS On-Line SRV 1000VA/900W Tower UPS 230V (SRV1KI-E) - 2 Years Local Warranty
On-Line Double Conversion for Singapore's 230V/50Hz Supply
The APC Easy UPS On-Line SRV1KI-E is a true double-conversion on-line UPS rated at 1000 VA / 900 W in a compact tower. The load runs from the inverter continuously, on a clean 230 V sine wave with 3% maximum distortion, rather than waiting on a transfer when the mains misbehaves.
For a Singapore office, clinic or small comms room that means the everyday problems β voltage sag during a storm, a brownout on a loaded riser, switching transients from lift or air-conditioning plant β are absorbed by the rectifier rather than passed to your equipment, and the battery is held in reserve for a real outage. The input stage accepts anything from 180 V to 285 V at full load without touching the battery, which is a far wider window than a line-interactive UPS offers.
0.9 Power Factor β More Real Watts per kVA
The -E generation is the 0.9 power factor build of the Easy UPS On-Line SRV range, and that is the main reason to choose it: the SRV1KI-E delivers 900 W from 1000 VA, where the earlier SRV1KI delivers 800 W from the same VA rating. When you are sizing against a tower server, a NAS, a small switch stack or a point-of-sale back office, watts are the number that decides whether the UPS copes.
Size on the total continuous watts of the connected load with headroom for start-up surge, and talk to us if you are close to the limit β we would rather size it right than have it trip.

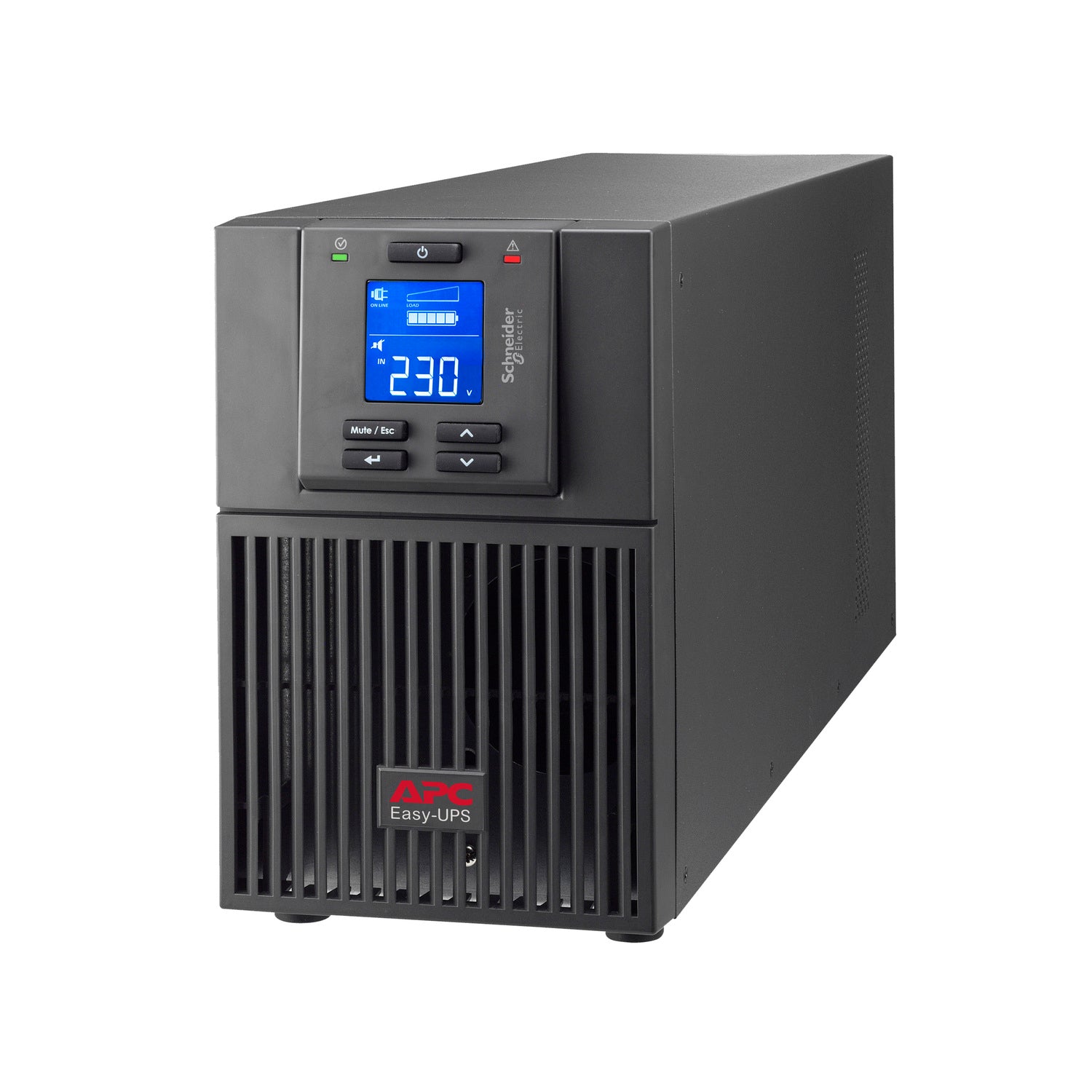

A Small Tower That Sits Beside the Equipment
At 223 mm high, 145 mm wide and 288 mm deep, and 9.6 kg, the SRV1KI-E is a genuine desk-side or floor-standing unit. It needs no rack, no rails and no lifting help, which makes it the natural choice where the load is one server or a wall-mounted comms panel rather than a cabinet. It is not rack-mountable; if you need the same 1 kVA rating on rails, the SRV1KRIRK-E is the 2U rackmount build.
Audible noise is 50 dBA, so it is acceptable in a back office but is not a silent unit β place it in a store room or comms cupboard rather than on a shared desk if that matters.

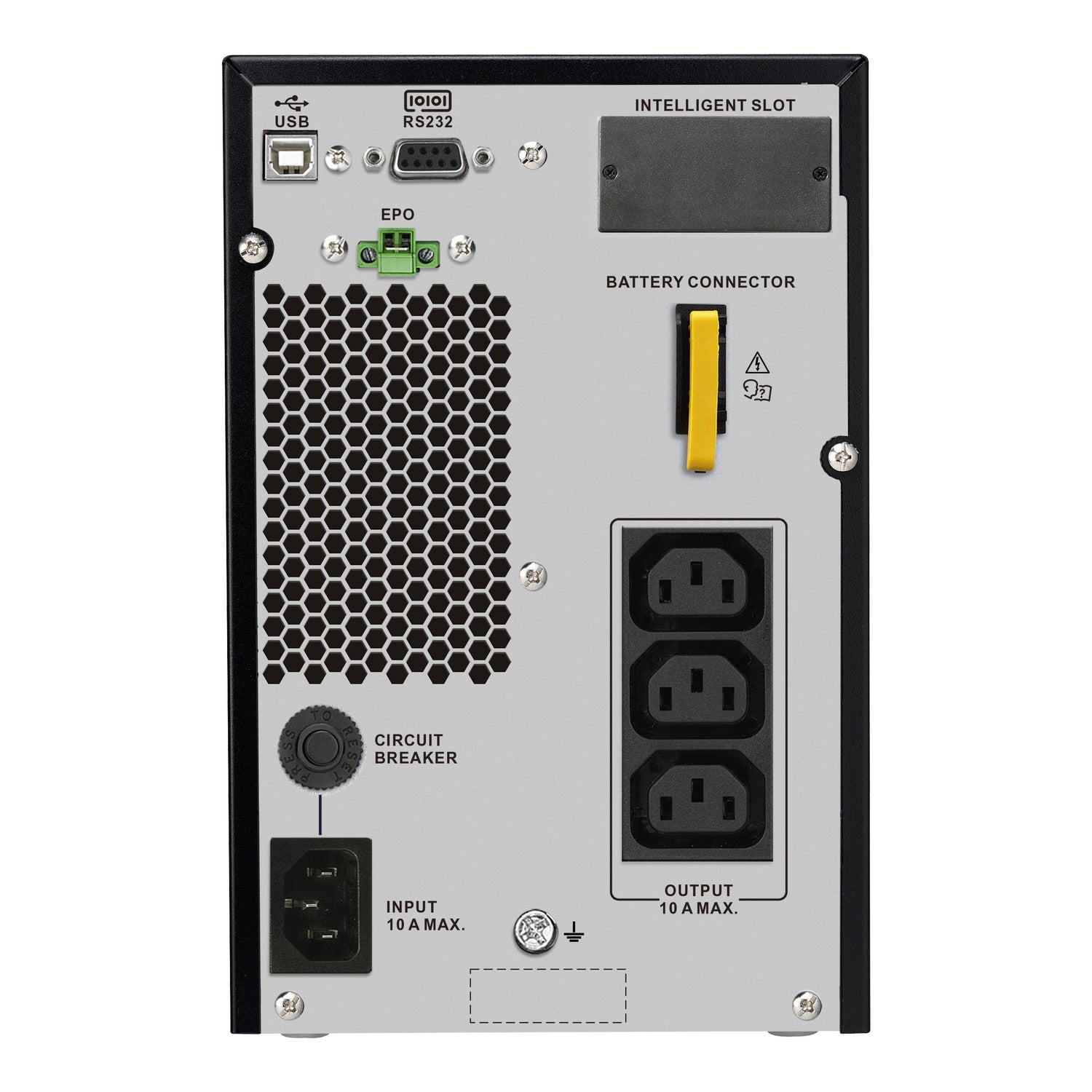

Outlets, Power Cord and Network Management
Output is provided on 3 x IEC C13, so ordinary IEC power leads plug straight in β no electrician and no hardwiring required. Input is a standard IEC C14 inlet. The input lead in the carton is an IEC C13 to Schuko (CEE 7/7) cable, which does not fit Singapore's BS 1363 (Type G) wall sockets. The normal solution here is a BS 1363 to IEC C13 lead, which plugs into the unit's C14 inlet, or feeding the UPS from an IEC-outlet rack PDU. Neither is bundled; ask us if you need one.
The -E generation adds an Emergency Power Off connector, using normally-closed contacts, which the earlier non-E models do not have β a genuine advantage where a room EPO loop is a condition of occupancy. An Intelligent Card Slot takes an AP9544 Network Management Card 3 for SNMP monitoring, and PowerChute Serial Shutdown handles graceful unattended shutdown over USB or serial.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the SRV1KI-E as an APC by Schneider Electric product with a full GST invoice and local Singapore warranty support. APC's manufacturer term for the Easy UPS On-Line SRV range is two years, repair or replace, applied worldwide with no separate European figure.
Not sure whether you need the -E build, the earlier non-E model, the rackmount version or an extended-runtime model? Email sales@sourceit.com.sg with your load and the runtime you need and we will size it for you.
APC SRV1KI-E Datasheet β Technical Specifications
General
| Schneider Electric Product Name | APC Easy UPS On-Line, 1000VA/900W, Tower, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD |
| Part Number (SKU) | SRV1KI-E |
| Range | APC Easy UPS On-Line SRV, -E generation |
| Topology | Double conversion on-line |
| Form Factor | Tower, free-standing (not rack-mountable) |
| Manufacturer Warranty | 2-Year Manufacturer Warranty (APC by Schneider Electric) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Output
| Output Power Capacity | 1000 VA / 900 W |
| Output Power Factor | 0.9 β the -E generation delivers more real watts than the 0.8 power factor of the earlier non-E SRV models |
| Nominal Output Voltage | 230 V, configurable to 220 V / 230 V / 240 V |
| Output Frequency | 50/60 Hz Β±3 Hz synchronised to mains; Β±0.1 Hz on battery |
| Output Voltage Distortion | 3% maximum (linear load) |
| Output Waveform | Sine wave |
| Output Receptacles | 3 x IEC C13 |
| Efficiency | 88% at full load in double conversion; up to 94% in ECO mode |
| Surge Energy Rating | 945 joules |
| Internal Bypass | Automatic and manual |
| Transfer Time | Not published by Schneider Electric for the -E generation β the load is fed continuously from the inverter |
Input
| Nominal Input Voltage | 230 V |
| Input Voltage Range (full load) | 180β285 V AC |
| Input Voltage Range (reduced load) | 110β285 V AC at half load |
| Input Frequency | 40β70 Hz auto-sensing |
| Input Connection | IEC 60320 C14 inlet |
| Input Circuit Breaker | 10 A |
Batteries & Runtime
| Battery Type | Sealed maintenance-free lead-acid (VRLA), 12 V 9 Ah blocks, 3 to 5 year typical service life |
| Battery Bus Voltage | 24 V DC (2 x 12 V 9 Ah) |
| Replacement Battery Cartridge | APCRBCV203 |
| Typical Recharge Time | 4 hours |
| External Battery Packs | Not supported on this model. The extended-runtime SRV1KRILRK-E, SRV2KRILRK-E and SRV3KRILRK-E are the models documented to take the SRV36RLBP-9A / SRV72RLBP-9A packs. |
| Runtime at Load | Schneider's range brochure prints 10 minutes at half load and 3 minutes at full load; runtime depends on the connected load β ask us for a sizing calculation |
Communications & Management
| Communication Ports | USB (Type B), RS-232 serial, EPO connector, Intelligent Card Slot (1 slot, free) |
| Emergency Power Off (EPO) | Yes β EPO connector with normally-closed contacts |

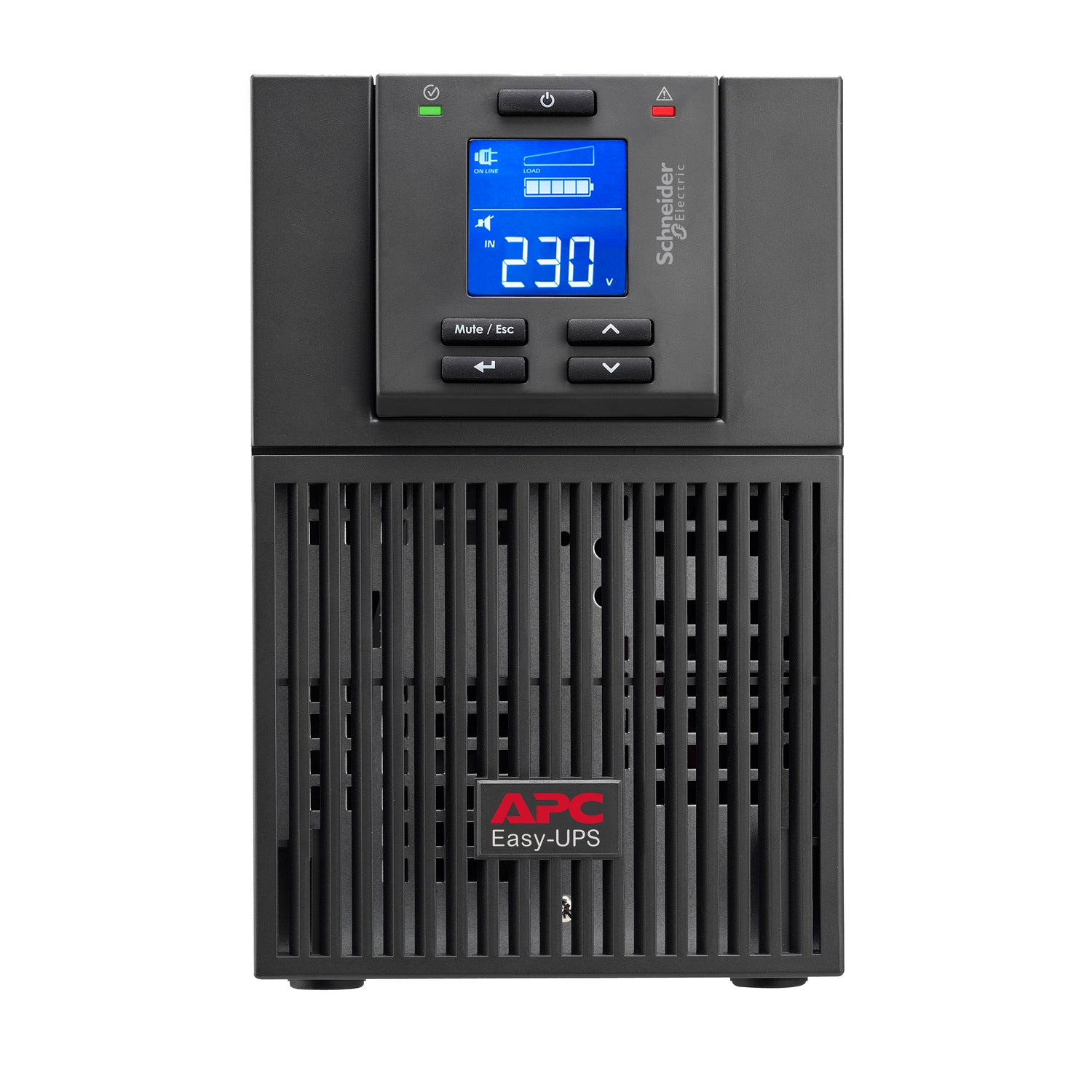

| Control Panel | Multifunction LCD with LED status indicators |
| Network Management | Optional AP9544 Network Management Card 3, fitted in the Intelligent Card Slot |
| Shutdown Software | PowerChute Serial Shutdown |
Physical & Environmental
| Dimensions (H x W x D) | 223 x 145 x 288 mm |
| Net Weight | 9.6 kg |
| Shipping Weight | 10.9 kg |
| Audible Noise | 50 dBA |
| Heat Dissipation | 380 BTU/hour |
| Ingress Protection | IP20 |
| Finish | Black, RAL 7010 |
| Operating Environment | 0β40 Β°C, 0β95% relative humidity non-condensing |
| Operating Altitude | Rated load up to 2000 m |
| Storage Temperature | β20 to 50 Β°C |
| Certifications | CE, UKCA, TISI |
| Safety Standards | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2018 |
| Package Contents | IEC C13 to Schuko input cable, IEC C13 to C14 cable, USB cable, RS-232 serial cable, PowerChute Serial Shutdown software, front bezel, user documentation |
Compatibility & Runtime
Outlets and What Can Be Plugged In
The SRV1KI-E provides 3 x IEC C13 on the output. Standard IEC leads plug straight in, so no electrician is needed for the load side. Three outlets is enough for a server, its monitor and a switch, or a NAS plus a router and a modem; if you need more, an IEC C14-to-multiple-C13 splitter or a small IEC-outlet PDU on one of the C13 sockets is the usual answer, provided the total stays inside 900 W.
Size on watts, not on VA. This unit is a 0.9 power factor build rated at 900 W. Add up the continuous draw of everything you intend to connect, leave headroom for start-up surge, and check the total against that figure. We are happy to do the sum for you.
Placement
The chassis is a tower measuring 223 x 145 x 288 mm and weighing 9.6 kg. It stands vertically on its own feet with the supplied front bezel and is not designed for rack mounting. Leave clear space at the rear and sides for the cooling fan, and keep it off carpet where dust builds up; a shelf in a comms cupboard or the floor of a plant room beside the equipment is ideal.
Battery and Runtime
The battery is a sealed maintenance-free VRLA type β two 12 V 9 Ah blocks on a 24 V bus β with a typical three to five year service life in normal conditions. Singapore's humidity and ambient temperature both shorten battery life, so a room that stays close to 25 Β°C will get materially more service out of a battery than one that sits at 35 Β°C. The replacement cartridge for this model is APCRBCV203 β note that the -E generation uses different cartridge part numbers from the earlier non-E models, so check the part number against your actual unit before ordering.
Schneider's range brochure prints 10 minutes at half load and 3 minutes at full load β enough for a graceful shutdown, not for continued working. For tens of minutes, look at the SRV1KRILRK-E extended-runtime model. Send us your load in watts and the hold-up time you need and we will size it for you.
Package Contents & Easy UPS On-Line SRV Ordering Information
In the Box
IEC C13 to Schuko input cable, IEC C13 to C14 cable, USB cable, RS-232 serial cable, PowerChute Serial Shutdown software, front bezel, user documentation
Easy UPS On-Line SRV -E Range Ordering Information
| SRV1KI-E (this listing) | 1 kVA / 900 W | Tower | 3 x C13 |
| SRV2KI-E | 2 kVA / 1800 W | Tower | 4 x C13 |
| SRV3KI-E | 3 kVA / 2700 W | Tower | 6 x C13, 1 x C19 |
| SRV1KRIRK-E | 1 kVA / 900 W | Rackmount 2U, rail kit | 3 x C13 |
| SRV2KRIRK-E | 2 kVA / 1800 W | Rackmount 2U, rail kit | 4 x C13 |
| SRV3KRI-E | 3 kVA / 2700 W | Rackmount 2U, without rail kit | 6 x C13, 1 x C19 |
| SRV3KRIRK-E | 3 kVA / 2700 W | Rackmount 2U, rail kit | 6 x C13, 1 x C19 |
| SRV1KRILRK-E | 1 kVA / 900 W | Rackmount 4U, rail kit | 4 x C13, extended runtime |
| SRV2KRILRK-E | 2 kVA / 1800 W | Rackmount 4U, rail kit | 4 x C13, extended runtime |
| SRV3KRILRK-E | 3 kVA / 2700 W | Rackmount 4U, rail kit | 6 x C13, 1 x C19, extended runtime |
Replacement Battery Cartridges
The -E generation uses the APCRBCV cartridge series. Cartridge numbers differ between the tower and rackmount builds and between generations, so match the cartridge to the exact part number on your unit.
| APCRBCV203 | Replacement cartridge for the SRV1KI-E tower |
| APCRBCV204 | Replacement cartridge for the SRV2KI-E tower |
| APCRBCV205 | Replacement cartridge for the SRV3KI-E tower |
| APCRBCV200 | Replacement cartridge for the SRV1KRIRK-E rackmount |
| APCRBCV201 | Replacement cartridge for the SRV2KRIRK-E rackmount |
| APCRBCV202 | Replacement cartridge for the SRV3KRI-E and SRV3KRIRK-E rackmount |
| AP9544 | Network Management Card 3 for the Intelligent Card Slot |
We do not hold these cartridges in stock β email sales@sourceit.com.sg with your part number and we will source it.
The Earlier Non-E Models
The earlier 0.8 power factor generation is also in our catalogue: fewer real watts per kVA and no EPO connector, but a sound choice where neither matters.
| SRV1KI | 1 kVA / 800 W | Tower |
| SRV2KI | 2 kVA / 1600 W | Tower |
| SRV3KI | 3 kVA / 2400 W | Tower |
| SRV1KRI + SRVRK1 | 1 kVA / 800 W | Rackmount 2U |
| SRV2KRI + SRVRK1 | 2 kVA / 1600 W | Rackmount 2U |
| SRV3KRI + SRVRK1 | 3 kVA / 2400 W | Rackmount 2U |
Datasheet & Downloads
Schneider Electric hosts the official documentation for this product. The links below are the Schneider Electric product page for this exact part number and the landing page for the user manual that covers it.
| Schneider Electric product page | APC SRV1KI-E on se.com β Singapore site |
| User manual landing page | User Manual Easy UPS On-Line SRV1KI-E, SRV2KI-E, SRV3KI-E, SRV1KRI-E, SRV2KRI-E, SRV3KRI-E (EUO-UM-990-91498A) β Schneider Electric document landing page, English |
Schneider's own datasheet and user manual download links redirect to a document host that has repeatedly served the wrong model's file, so we do not publish those links here rather than risk sending you the wrong specification. Email sales@sourceit.com.sg quoting SRV1KI-E and we will send you the current PDF datasheet and user manual directly.
The governing document for the standard -E models is Schneider user manual EUO-UM-990-91498A-MN01_EN.
Frequently Asked Questions β APC SRV1KI-E
What is the difference between the VA and the watt rating, and how do I size this UPS?
VA is apparent power and watts is real power; the watt rating is what limits your load. The -E generation is a 0.9 power factor build, so this model gives 900 W from 1000 VA β more real power than the earlier SRV1KI, which gives 800 W. Total up the continuous watts of everything you want to protect, allow headroom for start-up surge and growth, and compare that to 900 W.
What does the β-Eβ suffix actually change?
Three things that matter. The output power factor rises from 0.8 to 0.9, so you get more real watts from the same VA rating. An Emergency Power Off connector is fitted, which the non-E models do not have. And the replacement battery cartridge part number changes β APCRBCV203 for this model β so a cartridge from a non-E unit is not the right part for an -E unit. Everything else β on-line double conversion, the two-year warranty, the Intelligent Card Slot β carries over.
Will the supplied power cord plug into a Singapore wall socket?
No. The input lead in the box is a Schuko (CEE 7/7) plug to IEC C13, which is the continental European type and does not fit a BS 1363 Type G socket. You need a BS 1363 to IEC C13 lead, which plugs straight into the unit's C14 inlet, or you feed the UPS from an IEC-outlet rack PDU. Neither is included in the carton; ask us and we can quote one.
What runtime will I get?
Schneider's brochure for the range prints 10 minutes at half load and 3 minutes at full load, and the datasheet gives a maximum of 3 minutes. Runtime falls sharply as load rises, so a 300 W load will run considerably longer than a 900 W one. Email sales@sourceit.com.sg with your load in watts and the hold-up time you need and we will size it against the manufacturer's runtime curve.
Which replacement battery cartridge does it take, and can I change it myself?
This model takes the APCRBCV203 cartridge, a 24 V pack made up of two 12 V 9 Ah blocks. Schneider describes the batteries as user replaceable. Plan on a short shutdown window for a battery change unless we confirm otherwise for your build. Because the -E cartridge numbers differ from the non-E ones, always check the part number printed on the unit before ordering.
Can I mount it in a rack?
No β the SRV1KI-E is a tower-only chassis with no rack ears or rail option. If you need the same 1000 VA / 900 W rating in a cabinet, the SRV1KRIRK-E is the 2U rackmount build with the rails in the box, and the SRV1KRILRK-E is the 4U extended-runtime rackmount build.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every APC SRV1KI-E sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the SRV1KI-E with a 2-year manufacturer warranty, repair or replace.
