Yealink ZVC 860-C5-000 Native Zoom Rooms System
PRODUCT DESCRIPTION
Yealink ZVC 860-C5-000 Native Zoom Rooms System (ZVC860-C5-000) - 2 Years Local Warranty
Native Zoom Rooms Base Kit for Medium to Large Meeting Rooms

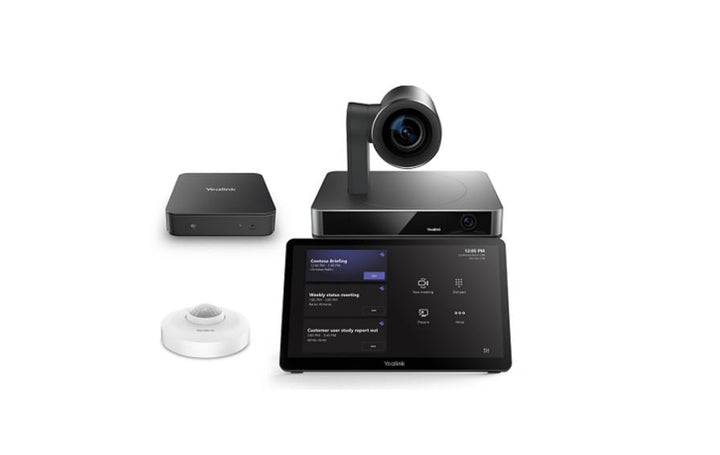

The Yealink ZVC860-C5-000 is a complete, native Zoom Rooms video system for medium to large meeting rooms in Singapore offices. The kit bundles the UVC86 dual-eye 4K intelligent tracking camera, the MCore Pro mini-PC with the Zoom Rooms app preinstalled on Windows 10 IoT Enterprise, the 11.6-inch MTouch Plus touch console and the RoomSensor — a pre-matched Zoom Rooms core that deploys quickly and lets you choose the audio that best suits your room.
UVC86 Dual-Eye 4K PTZ Camera with 12x Optical Zoom and AI Tracking
The UVC86 combines two 8 MP Sony sensors: a 4K PTZ camera with 20.4x HD zoom (12x optical, 1.7x digital) and 90° DFOV for crisp close-ups of individual speakers, plus a 120° DFOV AI panoramic camera that detects participants across the whole room. Auto Framing, Speaker Tracking, Presenter Tracking, Multi-Focus and Picture-in-Picture keep everyone naturally framed throughout the meeting — a professional hybrid-work experience for Singapore teams on Zoom.
Bring Your Own Audio — Scale Microphones and Speakers to the Room
The C5-000 base kit intentionally ships without audio devices, so you can match audio to your space: add Yealink VCM35 or VCM34 microphone arrays and an MSpeaker II soundbar, or integrate other room audio. If you prefer a fully bundled configuration, the ZVC860-C5-713 includes 2 x VCM35, MSpeaker II, a WPP30 pod and an RCH40 PoE switch.
One-Touch Zoom Rooms with MCore Pro and MTouch Plus
The MCore Pro mini-PC (11th Gen Intel Core i5, 8 GB RAM, 128 GB SSD) delivers the native Zoom Rooms experience and drives up to three HDMI displays with CEC and a built-in EDID adapter. The 11.6-inch Full HD MTouch Plus console connects over a single Ethernet cable to the MCore Pro's dedicated MTouch port for one-touch join and intuitive meeting control, while the battery-powered RoomSensor adds PIR-based occupancy awareness.
Centralised Management and Local Singapore Support
IT teams can deploy, monitor and update the room remotely with the Yealink Device Management Platform or Yealink Management Cloud Service, alongside Zoom's admin tools. Purchased from SourceIT in Singapore, every ZVC860-C5-000 includes 2 years local warranty and a GST invoice.
Yealink ZVC860-C5-000 Datasheet — Technical Specifications
General
| Part Number | ZVC860-C5-000 (Yealink P/N 1109938) |
| Product Type | Native Zoom Rooms system (base kit, audio not included) |
| Platform | Zoom Rooms app preinstalled on Windows 10 IoT Enterprise |
| Recommended Room Size | Medium to large meeting rooms |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera — UVC86
| Design | Dual-eye: 4K PTZ camera + AI panoramic camera |
| Sensors | 8 MP Sony sensor (PTZ) + 8 MP Sony sensor (panoramic) |
| Video | 4K Ultra HD at 30 fps |
| Zoom | 20.4x HD zoom (12x optical, 1.7x digital) |
| Field of View (PTZ) | 90° DFOV / 81° HFOV / 50° VFOV |
| Field of View (Panoramic) | 120° DFOV / 110° HFOV / 78° VFOV |
| Pan / Tilt | Pan ±100°; tilt +40° / −90° |
| AI Features | Auto Framing, Speaker Tracking, Presenter Tracking, Multi-Focus, Picture-in-Picture |
| Camera Presets | Up to 9 preset positions |
| Interfaces | 1 x USB 3.0 Type-B, 1 x USB 2.0 Type-A, 1 x Yealink VCH port (RJ45), 1 x HDMI out, 1 x 3.5 mm line-in |
Compute — MCore Pro
| Processor | 11th Gen Intel Core i5 |
| Memory / Storage | 8 GB RAM (2 x 4 GB) / 128 GB SSD |
| Operating System | Windows 10 IoT Enterprise |
| Display Outputs | 3 x HDMI out with CEC, built-in EDID adapter |
| Ports | 4 x USB 3.0 Type-A, dedicated Yealink MTouch port (RJ45), Gigabit Ethernet |
| Wireless | Built-in Wi-Fi and Bluetooth |
Touch Console — MTouch Plus
| Display | 11.6-inch narrow-bezel IPS touchscreen, 1920 x 1080 |
| Connection | Single Ethernet cable to MCore Pro MTouch port (7.5 m cable included) |
| Content Input | USB-C cable with HDMI adapter included for wired sharing |
| Mounting | Desktop, wall-mounted or fixed installation |
Room Sensor
| Detection | Passive infrared (PIR), 120° detection angle |
| Connectivity | Bluetooth Low Energy, battery powered (3V battery included) |
Audio
| Included Audio | None — base kit supports Yealink and third-party microphones/speakers |
| Yealink Options | VCM35 / VCM34 microphone arrays, MSpeaker II soundbar, VCM36-W and VCM38 microphones |
Compatibility & Software Support
The ZVC860-C5-000 is a native Zoom Rooms appliance: the MCore Pro ships with Windows 10 IoT Enterprise and the Zoom Rooms application preinstalled, delivering one-touch join, calendar integration and full Zoom Rooms meeting controls on the MTouch Plus console. Rooms are administered through the Zoom admin portal like any Zoom Rooms deployment.
| Operating System | Windows 10 IoT Enterprise (preloaded) |
| Platform | Zoom Rooms (Zoom Rooms app preinstalled) |
| Device Management | Yealink Device Management Platform / Yealink Management Cloud Service (YMCS) |
| Displays | Up to 3 displays via HDMI (CEC supported) |
| Content Sharing | Wired via MTouch Plus USB-C (HDMI adapter included); wireless with optional WPP30 pod |
For a Microsoft Teams room instead of Zoom, ask SourceIT about the equivalent Yealink MVC-series Teams Rooms kits.
Package Contents & ZVC Series Ordering Information
- 1 x Yealink UVC86 dual-eye 4K intelligent tracking camera (with VCR20 remote, power adapter, mounting bracket and cables)
- 1 x MCore Pro mini-PC (Zoom Rooms preinstalled; 3 x HDMI cables, power adapter and mounting kit included)
- 1 x MTouch Plus 11.6-inch touch console (USB-C cable with HDMI adapter, 7.5 m Ethernet cable)
- 1 x RoomSensor occupancy sensor (3V battery included)
- Note: no microphones or speakers included — pair with Yealink VCM-series microphones and MSpeaker II, or third-party audio
| Yealink ZVC860-C5-000 | This model — base kit, bring your own audio |
| Yealink ZVC860-C5-713 | Bundled kit — adds 2 x VCM35, MSpeaker II, WPP30 and RCH40 PoE switch |
| Yealink MCoreKit-C5-ZR | Zoom Rooms base kit (MCore Pro + MTouch Plus + RoomSensor, no camera or audio) |
| Yealink ZVC S40-C5U-000 | Zoom Rooms system for small-to-medium rooms |
| Yealink ZVC S50-C5U-000 | Zoom Rooms system for small-to-medium rooms |
| Yealink ZVC S80-C5U-000 | Zoom Rooms system for large rooms |
| Yealink ZVC S90-C5-007 | Zoom Rooms system for professional AV rooms |
| Yealink ZVC S98-C5U-004 | Zoom Rooms system for professional AV rooms |
| Yealink UVC86 Camera | UVC86 4K dual-eye intelligent tracking camera (standalone) |
| Yealink VCM34 | Video conferencing microphone array (add-on) |
| Yealink VCM35 | Video conferencing microphone array (add-on) |
Datasheet & Downloads
Frequently Asked Questions — Yealink ZVC860-C5-000
What is the difference between the ZVC860-C5-000 and the ZVC860-C5-713?
Both share the same core: UVC86 camera, MCore Pro, MTouch Plus and RoomSensor. The C5-000 is the base kit with no audio devices, while the ZVC860-C5-713 adds 2 x VCM35 microphone arrays, an MSpeaker II soundbar, a WPP30 wireless presentation pod and an RCH40 PoE switch for an out-of-the-box audio solution.
Which microphones and speakers should I pair with this base kit?
Yealink options include the VCM35 and VCM34 microphone arrays and the MSpeaker II soundbar; the system also supports third-party room audio, so you can scale pickup and playback precisely to your table size.
How does the ZVC860 compare with the Yealink ZVC S-series Zoom Rooms kits?
The ZVC860 is a Windows-based Zoom Rooms kit built around the UVC86 PTZ camera with 12x optical zoom for long-reach framing. SourceIT also carries the ZVC S-series: ZVC S40 and ZVC S50 for small-to-medium rooms, ZVC S80 for large rooms, and ZVC S90 / ZVC S98 for professional AV rooms.
Do I need a separate PC or Zoom Rooms licence to run this system?
No separate PC is required — the MCore Pro mini-PC ships with Windows 10 IoT Enterprise and the Zoom Rooms app preinstalled, driving up to three HDMI displays. You only need a Zoom Rooms licence from Zoom for the room.
How does the UVC86 camera keep participants framed?
The UVC86 uses its 120° panoramic camera to detect participants in real time while the 4K PTZ camera with 12x optical zoom frames them, with AI Auto Framing, Speaker Tracking, Presenter Tracking, Multi-Focus and Picture-in-Picture modes selectable from the MTouch Plus console.
Does the ZVC860-C5-000 come with local warranty in Singapore?
Yes. Every ZVC860-C5-000 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
