Yealink ZVC 860-C5-713 Native Zoom Rooms System
PRODUCT DESCRIPTION
Yealink ZVC 860-C5-713 Native Zoom Rooms System (ZVC860-C5-713) - 2 Years Local Warranty
Complete Native Zoom Rooms Kit for Medium to Large Meeting Rooms

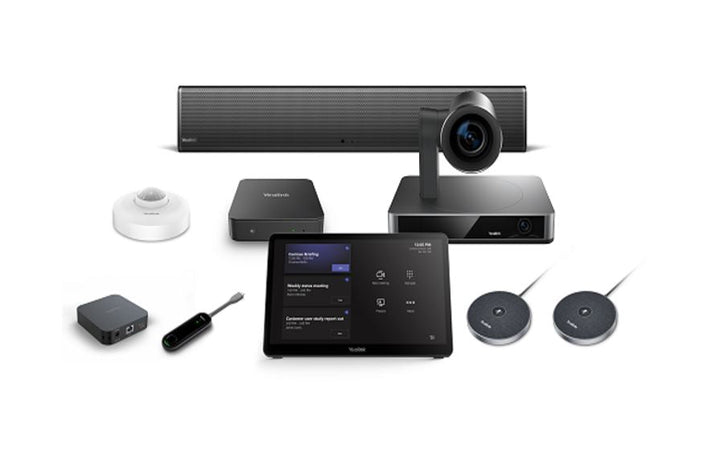

The Yealink ZVC860-C5-713 is a fully bundled, native Zoom Rooms system for medium to large meeting rooms in Singapore offices. It combines the UVC86 dual-eye 4K intelligent tracking camera, the MCore Pro mini-PC with the Zoom Rooms app preinstalled on Windows 10 IoT Enterprise, the 11.6-inch MTouch Plus touch console, the RoomSensor, two VCM35 microphone arrays, an MSpeaker II soundbar, a WPP30 wireless presentation pod and an RCH40 PoE switch — everything a demanding Zoom room needs, pre-matched by Yealink and ready to deploy.
UVC86 Dual-Eye 4K PTZ Camera with 12x Optical Zoom and AI Tracking
The UVC86 pairs two 8 MP Sony sensors in one housing: a 4K PTZ camera with 20.4x HD zoom (12x optical, 1.7x digital) and 90° DFOV that captures individual faces in sharp detail, plus a 120° DFOV panoramic camera that watches the whole room. AI-driven Auto Framing, Speaker Tracking, Presenter Tracking, Multi-Focus and Picture-in-Picture keep every participant clearly framed as the meeting flows — ideal for hybrid work across Singapore's distributed teams.
Room-Filling Audio: Dual VCM35 Microphone Arrays plus MSpeaker II
Unlike bring-your-own-audio base kits, the C5-713 bundle ships with two VCM35 video conferencing microphone arrays and an MSpeaker II soundbar, connected cleanly through the included RCH40 PoE switch. Every seat in a medium-to-large boardroom is covered for pickup and playback out of the box, with room to add further microphones as your space grows.
One-Touch Zoom Rooms with MCore Pro and MTouch Plus
The MCore Pro mini-PC (11th Gen Intel Core i5, 8 GB RAM, 128 GB SSD) runs the native Zoom Rooms experience and drives up to three HDMI displays with CEC and a built-in EDID adapter. The 11.6-inch Full HD MTouch Plus console connects over a single Ethernet cable to the MCore Pro's dedicated MTouch port for one-touch join and meeting control, while the included WPP30 pod enables instant wireless content sharing and the RoomSensor adds occupancy awareness.
Centralised Management and Local Singapore Support
IT teams can monitor and manage the room remotely through the Yealink Device Management Platform or Yealink Management Cloud Service, alongside Zoom's own admin tools. Purchased from SourceIT in Singapore, every ZVC860-C5-713 includes 2 years local warranty and a GST invoice.
Yealink ZVC860-C5-713 Datasheet — Technical Specifications
General
| Part Number | ZVC860-C5-713 (Yealink P/N 1109937) |
| Product Type | Native Zoom Rooms system (bundled audio configuration) |
| Platform | Zoom Rooms app preinstalled on Windows 10 IoT Enterprise |
| Recommended Room Size | Medium to large meeting rooms |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera — UVC86
| Design | Dual-eye: 4K PTZ camera + AI panoramic camera |
| Sensors | 8 MP Sony sensor (PTZ) + 8 MP Sony sensor (panoramic) |
| Video | 4K Ultra HD at 30 fps |
| Zoom | 20.4x HD zoom (12x optical, 1.7x digital) |
| Field of View (PTZ) | 90° DFOV / 81° HFOV / 50° VFOV |
| Field of View (Panoramic) | 120° DFOV / 110° HFOV / 78° VFOV |
| Pan / Tilt | Pan ±100°; tilt +40° / −90° |
| AI Features | Auto Framing, Speaker Tracking, Presenter Tracking, Multi-Focus, Picture-in-Picture |
| Camera Presets | Up to 9 preset positions |
| Interfaces | 1 x USB 3.0 Type-B, 1 x USB 2.0 Type-A, 1 x Yealink VCH port (RJ45), 1 x HDMI out, 1 x 3.5 mm line-in |
Compute — MCore Pro
| Processor | 11th Gen Intel Core i5 |
| Memory / Storage | 8 GB RAM (2 x 4 GB) / 128 GB SSD |
| Operating System | Windows 10 IoT Enterprise |
| Display Outputs | 3 x HDMI out with CEC, built-in EDID adapter |
| Ports | 4 x USB 3.0 Type-A, dedicated Yealink MTouch port (RJ45), Gigabit Ethernet |
| Wireless | Built-in Wi-Fi and Bluetooth |
Touch Console — MTouch Plus
| Display | 11.6-inch narrow-bezel IPS touchscreen, 1920 x 1080 |
| Connection | Single Ethernet cable to MCore Pro MTouch port (7.5 m cable included) |
| Content Input | USB-C cable with HDMI adapter included for wired sharing |
| Mounting | Desktop, wall-mounted or fixed installation |
Audio & Sharing (included in this bundle)
| Microphones | 2 x Yealink VCM35 video conferencing microphone arrays |
| Speaker | 1 x Yealink MSpeaker II soundbar |
| Audio Connection | 1 x RCH40 PoE switch |
| Wireless Sharing | 1 x WPP30 wireless presentation pod |
Room Sensor
| Detection | Passive infrared (PIR), 120° detection angle |
| Connectivity | Bluetooth Low Energy, battery powered (3V battery included) |
Compatibility & Software Support
The ZVC860-C5-713 is a native Zoom Rooms appliance: the MCore Pro ships with Windows 10 IoT Enterprise and the Zoom Rooms application preinstalled, delivering one-touch join, calendar integration and full Zoom Rooms meeting controls on the MTouch Plus console. Rooms are administered through the Zoom admin portal like any Zoom Rooms deployment.
| Operating System | Windows 10 IoT Enterprise (preloaded) |
| Platform | Zoom Rooms (Zoom Rooms app preinstalled) |
| Device Management | Yealink Device Management Platform / Yealink Management Cloud Service (YMCS) |
| Displays | Up to 3 displays via HDMI (CEC supported) |
| Content Sharing | Wireless via included WPP30 pod; wired via MTouch Plus USB-C (HDMI adapter included) |
For a Microsoft Teams room instead of Zoom, ask SourceIT about the equivalent Yealink MVC-series Teams Rooms kits.
Package Contents & ZVC Series Ordering Information
- 1 x Yealink UVC86 dual-eye 4K intelligent tracking camera (with VCR20 remote, power adapter, mounting bracket and cables)
- 1 x MCore Pro mini-PC (Zoom Rooms preinstalled; HDMI cables, power adapter and mounting kit included)
- 1 x MTouch Plus 11.6-inch touch console (USB-C cable with HDMI adapter, 7.5 m Ethernet cable)
- 1 x RoomSensor occupancy sensor
- 2 x VCM35 video conferencing microphone arrays
- 1 x MSpeaker II soundbar (with power adapter and cables)
- 1 x WPP30 wireless presentation pod
- 1 x RCH40 PoE switch
| Yealink ZVC860-C5-713 | This model — medium-to-large room kit with 2 x VCM35, MSpeaker II, WPP30 and RCH40 included |
| Yealink ZVC860-C5-000 | Base kit — same UVC86 + MCore Pro + MTouch Plus + RoomSensor, no audio devices (bring your own) |
| Yealink MCoreKit-C5-ZR | Zoom Rooms base kit (MCore Pro + MTouch Plus + RoomSensor, no camera or audio) |
| Yealink ZVC S40-C5U-000 | Zoom Rooms system for small-to-medium rooms |
| Yealink ZVC S50-C5U-000 | Zoom Rooms system for small-to-medium rooms |
| Yealink ZVC S80-C5U-000 | Zoom Rooms system for large rooms |
| Yealink ZVC S90-C5-007 | Zoom Rooms system for professional AV rooms |
| Yealink ZVC S98-C5U-004 | Zoom Rooms system for professional AV rooms |
| Yealink UVC86 Camera | UVC86 4K dual-eye intelligent tracking camera (standalone) |
| Yealink VCM34 | Video conferencing microphone array (add-on) |
| Yealink VCM35 | Video conferencing microphone array (as bundled in this kit) |
Datasheet & Downloads
Frequently Asked Questions — Yealink ZVC860-C5-713
What is the difference between the ZVC860-C5-713 and the ZVC860-C5-000?
Both are built on the same UVC86 camera, MCore Pro, MTouch Plus and RoomSensor. The C5-713 adds a complete audio and sharing bundle — 2 x VCM35 microphone arrays, an MSpeaker II soundbar, a WPP30 wireless presentation pod and an RCH40 PoE switch — while the ZVC860-C5-000 ships without audio devices so you can pair your own microphones and speakers.
How does the ZVC860 compare with the Yealink ZVC S-series Zoom Rooms kits?
The ZVC860 is a Windows-based Zoom Rooms kit built around the UVC86 PTZ camera with 12x optical zoom, making it ideal where you need long-reach framing in medium-to-large rooms. SourceIT also carries the ZVC S-series: ZVC S40 and ZVC S50 for small-to-medium rooms, ZVC S80 for large rooms, and ZVC S90 / ZVC S98 for professional AV rooms.
Can I expand the audio coverage for a bigger room?
Yes. The bundled VCM35 arrays connect via the included RCH40 PoE switch, and additional VCM35 or VCM34 microphone arrays can be added to extend pickup across longer tables.
Do I need a separate PC or Zoom Rooms licence to run this system?
No separate PC is required — the MCore Pro mini-PC comes with Windows 10 IoT Enterprise and the Zoom Rooms app preinstalled. You only need a Zoom Rooms licence from Zoom for the room, and the system supports up to three HDMI displays.
How does the UVC86 camera keep participants framed?
The UVC86 uses its 120° panoramic camera to detect participants in real time while the 4K PTZ camera with 12x optical zoom frames them, with AI Auto Framing, Speaker Tracking, Presenter Tracking, Multi-Focus and Picture-in-Picture modes selectable from the MTouch Plus console.
Does the ZVC860-C5-713 come with local warranty in Singapore?
Yes. Every ZVC860-C5-713 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
