Yealink ZVC S80-C5U-000 Native Zoom Rooms System
PRODUCT DESCRIPTION
Yealink ZVC S80-C5U-000 Native Zoom Rooms System (ZVC S80-C5U-000) - 2 Years Local Warranty
Yealink ZVC S80 Native Zoom Rooms System for Large Rooms
The Yealink ZVC S80-C5U-000 is a complete, native Zoom Rooms on Windows system purpose-built for large meeting rooms. It bundles the SmartVision 80 intelligent quad-lens PTZ camera, the fourth-generation MCore 4 mini-PC (Intel Core Ultra 5), the 11.6-inch MTouch Plus touch console and the RoomSensor occupancy detector — boardroom-grade optics with the AI compute to drive them, validated as one kit.
SmartVision 80: Quad-Lens PTZ Camera with 20× Optical Zoom
The SmartVision 80 combines a mechanical PTZ lens with 20× optical zoom (pan ±100°, tilt +50°/-90°) and three electronic lenses — one panoramic (110° DFOV) and two telephoto (51° DFOV) — delivering UHD 4K video that picks out individual faces even at the far end of a large room. A built-in 48-TOPS Qualcomm QCS8550 processor runs the AI on-device.
AI Framing, Tracking and Participant Identification
Verified AI features include IntelliFrame, IntelliFocus, Speaker Tracking, Presenter Tracking with lossless 20× zoom, Video Fence, Picture-in-Picture, Auto Framing and Participant Identification. A built-in 4-microphone array performs sound-source localisation so the camera locks onto the active speaker, supported by AI noise suppression and de-reverberation.
Scales with the Yealink Room Audio Ecosystem
For room audio, the S80 pairs with Yealink audio devices such as the VCM35 and VCM36-W microphones, CM20 and CM50 ceiling microphones, MSpeaker Pro, CS10-D ceiling loudspeaker and AP08 DSP — letting integrators match coverage to the room. SourceIT designs, supplies and supports complete ZVC S80-C5U-000 large-room deployments across Singapore with 2 years local warranty and a GST invoice.
Yealink ZVC S80 Datasheet — Technical Specifications
General
| Product | Yealink ZVC S80-C5U-000 Native Zoom Rooms System |
| Part Number | ZVC S80-C5U-000 |
| Platform | Native Zoom Rooms on Windows (Zoom Rooms app and Yealink RoomConnect preloaded) |
| Recommended Room Size | Large meeting rooms |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera & Video (SmartVision 80)
| Camera | Quad-lens (“3+1 eye”): 1 × mechanical PTZ lens + 1 × panoramic + 2 × telephoto electronic lenses |
| Optical Zoom | 20× optical zoom (PTZ lens) |
| Pan / Tilt | Pan ±100°; Tilt +50° / -90° |
| Field of View | PTZ: 69° DFOV / 61.5° HFOV; Panoramic: 110° DFOV / 98° HFOV; Telephoto: 51° DFOV / 41.6° HFOV |
| Max Resolution | UHD 4K (3840 × 2160) |
| AI Processor | Qualcomm QCS8550, 48 TOPS |
| AI Features | IntelliFrame, Participant Identification, IntelliFocus, Speaker Tracking, Presenter Tracking, Video Fence, Picture-in-Picture, Auto Framing |
Audio & Microphones
| Built-in Microphones | 4-microphone array for sound-source localisation and camera tracking |
| Audio Processing | AI noise suppression, de-reverberation |
| Room Audio | Pairs with Yealink audio ecosystem: VCM35 / VCM36-W, CM20 / CM50 ceiling microphones, MSpeaker Pro, CS10-D ceiling loudspeaker, AP08 DSP (sold separately) |
Compute & Console
| Mini-PC | Yealink MCore 4 (Gen-4 Mini-PC) |
| Processor | Intel Core Ultra 5 125H |
| Memory / Storage | 16 GB (2 × 8 GB) DDR5 / 256 GB SSD |
| Operating System | Windows 11 IoT Enterprise x64 |
| Mini-PC Ports | 1 × HDMI-Out 2.1, 2 × HDMI-Out 2.0 (CEC), 1 × HDMI-In (4K content sharing), 4 × USB 3.0 Type-A, 1 × MTouch port (RJ-45), 1 × AV-network LAN, 1 × Gigabit Ethernet |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.2 |
| Touch Console | Yealink MTouch Plus — 11.6″ narrow-bezel IPS display, 1920 × 1080, adjustable 30°–70° screen angle, single CAT5e connection to the mini-PC |
| Room Sensor | Yealink RoomSensor — occupancy, temperature, humidity & ambient light sensing; Bluetooth BLE 5.2, up to 30 m range |
Connectivity (SmartVision 80)
| Ports | 1 × USB 3.0 Type-B, 1 × USB 2.0 Type-A, 2 × VCH port (RJ-45), 1 × network port (RJ-45), 1 × HDMI out, 1 × 3.5 mm line in/out |
| Wireless Sharing | Optional Yealink WPP30 pod (1080p/30fps) |
Design
| Dimensions (camera) | 230 × 135 × 171.5 mm |
| Mounting | Multiple mounting options with adjustable bracket (mounting kit included) |
Compatibility & Software Support
Runs the native Zoom Rooms experience on Windows 11 IoT Enterprise with the Zoom Rooms app preloaded — one-touch join, calendar integration and intuitive in-room controls on the MTouch Plus console.
Device management is handled with Yealink RoomConnect (preloaded) and the Yealink Management Cloud Service (YMCS), giving IT remote monitoring, diagnostics and firmware updates for every ZVC S80 room.
Wired HDMI content sharing is supported out of the box; the optional Yealink WPP30 pod adds one-click 1080p/30fps wireless sharing.

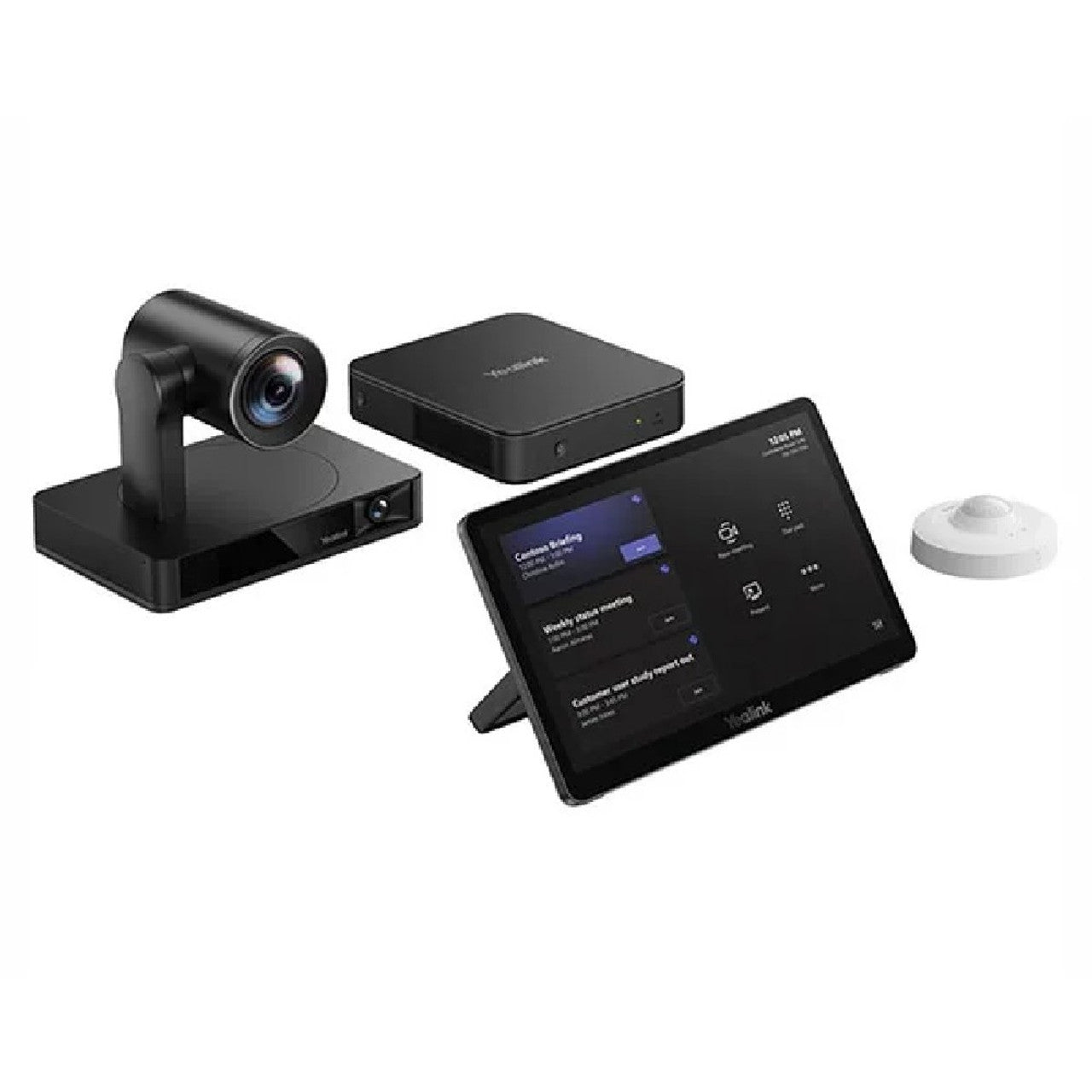

Package Contents & ZVC S-Series Ordering Information
In the box:
- SmartVision 80 quad-lens PTZ camera with mounting kit
- MCore 4 mini-PC (Intel Core Ultra 5)
- MTouch Plus 11.6″ touch console
- RoomSensor
Yealink MVC/ZVC S Series Rooms Systems at SourceIT:
| MVC S40-C5U-000 | Microsoft Teams — Small-medium rooms |
| ZVC S40-C5U-000 | Zoom — Small-medium rooms |
| MVC S50-C5U-000 | Microsoft Teams — Medium-large rooms |
| ZVC S50-C5U-000 | Zoom — Medium-large rooms |
| MVC S60-C5-000 | Microsoft Teams — Medium rooms (360° centre-of-table) |
| MVC S80-C5U-000 | Microsoft Teams — Large rooms |
| ZVC S80-C5U-000 | Zoom — Large rooms |
| MVC S90-C5U-004 | Microsoft Teams — Extra-large rooms |
| ZVC S90-C5-007 | Zoom — Extra-large rooms |
| MVC S98-C5U-004 | Microsoft Teams — ProAV / extra-large rooms |
| ZVC S98-C5U-004 | Zoom — ProAV / extra-large rooms |
Datasheet & Downloads
Official Yealink documentation for this system:
Frequently Asked Questions — Yealink ZVC S80
Q: What is included in the ZVC S80-C5U-000 kit?
A: The kit contains the SmartVision 80 quad-lens PTZ camera, the MCore 4 mini-PC, the MTouch Plus touch console and the RoomSensor. Room microphones and speakers are chosen separately from the Yealink audio ecosystem to match your room.
Q: What is the difference between the MVC S80 and the ZVC S80?
A: Identical hardware, different preloaded platform: the MVC S80 runs native Microsoft Teams Rooms while the MVC S80-C5U-000 runs native Zoom Rooms.
Q: Does the S80 kit include microphones and speakers?
A: The SmartVision 80 has a built-in 4-mic array used for sound-source localisation and camera tracking, but room audio is deployed separately — typically VCM35/VCM36-W or CM20/CM50 ceiling microphones with MSpeaker Pro or CS10-D loudspeakers. SourceIT can specify the right audio package for your room size.
Q: How does the S80 compare with the MVC/ZVC S90?
A: The S80 uses a single quad-lens SmartVision 80 camera — ideal for large rooms with one primary view. The S90 system steps up to two UVC86 cameras plus the AVHub processor for multi-camera coverage of extra-large and ProAV rooms.
Q: Can the SmartVision 80 track a moving presenter?
A: Yes. Presenter Tracking follows the presenter smoothly using the PTZ lens’s 20× optical zoom, while Speaker Tracking and the sound-source-localising mic array keep the active speaker framed during discussion.
Q: Does the ZVC S80 come with a local Singapore warranty?
A: Yes. Every ZVC S80 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
