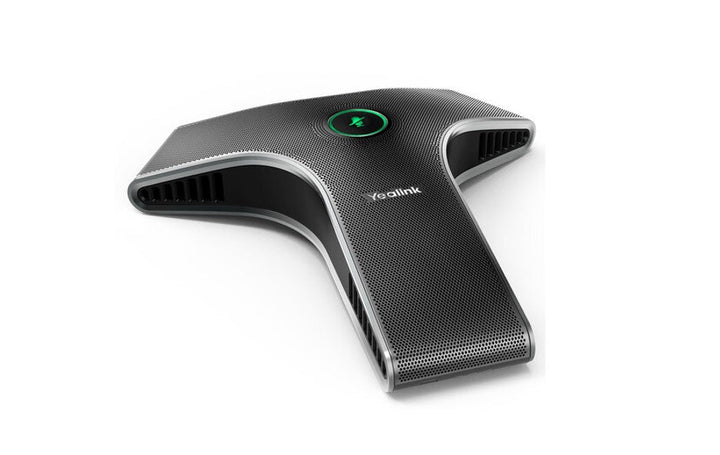

Yealink VCM34 Video Conferencing Microphone Array
PRODUCT DESCRIPTION
Yealink VCM34 Video Conferencing Microphone Array (VCM34) - 2 Years Local Warranty
360° Voice Pickup for Singapore Meeting Rooms and Boardrooms
The Yealink VCM34 is a wired video conferencing microphone array with a built-in 3-microphone array delivering 360° voice pickup within a 20 ft (6 m) range. Placed on the meeting table, a single unit gives every participant in a medium-sized Singapore meeting room a clear, natural voice on the far end of the call.
Yealink Noise Proof Technology for Distraction-Free Audio
Yealink Noise Proof Technology, background noise suppression, Acoustic Echo Canceling (AEC), Voice Activity Detection (VAD) and Comfort Noise Generator (CNG) work together with Optima HD voice so keyboard clicks, air-conditioning hum and hallway chatter stay out of your conference audio.
Daisy-Chain Up to 4 Units for Larger Boardrooms
Need more coverage for a long boardroom table? Up to 4 VCM34 units can be cascaded in one system via the dedicated cascade RJ45 port, extending microphone coverage across large meeting rooms without complex audio processing equipment.
Simple Single-Cable PoE Deployment
The VCM34 connects over a single RJ45 cable carrying both audio and power (Power over Ethernet, IEEE 802.3af). A 3 m Ethernet cable is included, keeping cabling on the meeting table clean and installation fast for Singapore AV integrators and IT teams.
Yealink VCM34 Datasheet — Technical Specifications
General
| Product | Yealink VCM34 Video Conferencing Microphone Array |
| Part Number | VCM34 |
| Designed For | Yealink Video Conferencing Systems / Yealink UVC PTZ Cameras |
| Warranty | 2 Years Local Warranty (Singapore) |
Microphones
| Microphone Array | Built-in 3-microphone array |
| Voice Pickup | 360° voice pickup, 20 ft (6 m) pickup range |
Audio
| Voice Quality | Optima HD voice |
| Noise Handling | Yealink Noise Proof Technology, background noise suppression |
| Audio Processing | AEC (Acoustic Echo Canceling), VAD (Voice Activity Detection), CNG (Comfort Noise Generator) |
Connectivity
| Ports | 1 × RJ45 for Ethernet and power; 1 × RJ45 for cascading |
| Cascading | Up to 4 units can be cascaded in one system |
| Included Cable | 3 m Ethernet cable |
Power
| Power Supply | Power over Ethernet (IEEE 802.3af) |
| Power Input | PSE 54V/0.56A or PoE 48V/0.27A |
Design & Environment
| Dimensions | 169 mm x 171.5 mm x 37.5 mm |
| Operating Temperature | 0~40°C (+32~104°F) |
| Operating Humidity | 5~90% |
Compatibility & Software Support
Per the official Yealink datasheet, the VCM34 is designed to work with Yealink Video Conferencing Systems and Yealink UVC PTZ Camera-based room solutions, connecting over RJ45 for audio and PoE power. Up to 4 VCM34 units can be cascaded in one system.
The VCM34 is managed through the Yealink room system it is connected to; firmware for the host system is available from the Yealink support portal. Contact SourceIT to confirm compatibility with your specific Yealink room kit (MVC / UVC deployments) before ordering.
Package Contents & VCM Series Ordering Information
In the box:
- Yealink VCM34 microphone array
- 3 m Ethernet cable
- Silicone pad
- Quick Start Guide
Yealink VCM series microphones at SourceIT:
| Yealink VCM34 (VCM34) | Wired 3-mic table array, PoE, cascade up to 4 units (this product) |
| Yealink VCM35 (1303144) | Wired 3-mic table array with Full Duplex, star-cascade deployment |
| Yealink VCM36-W (1303143) | Wi-Fi wireless 3-mic array with rechargeable battery |
| Yealink VCM38 (VCM38) | 8-mic beamforming ceiling microphone array |
Also available: CM20 Ceiling Microphone — Yealink's AI-powered beamforming ceiling microphone.
Datasheet & Downloads
Frequently Asked Questions — Yealink VCM34
Which Yealink VCM microphone should I choose?
Choose the VCM34 for wired PoE table microphones with simple daisy-chaining. Pick the VCM35 for newer MeetingBar/MVC 4th-gen rooms, the VCM36-W if you want a cable-free wireless microphone, or the VCM38 for a clean ceiling-mounted install.
Which systems is the VCM34 compatible with?
Per the official datasheet, the VCM34 is designed for Yealink Video Conferencing Systems and Yealink UVC PTZ Camera-based rooms. Contact SourceIT to confirm fit with your specific Yealink room kit.
How many VCM34 units can be daisy-chained?
Up to 4 VCM34 units can be cascaded in one system using the dedicated cascade RJ45 port.
Does the VCM34 need a separate power adapter?
No. It is powered over a single RJ45 connection via Power over Ethernet (IEEE 802.3af); a 3 m Ethernet cable is included.
Should I use table microphones or a ceiling microphone?
Table arrays like the VCM34 are ideal when the table is the focal point. For cable-free tables and fixed installs, consider the VCM38 ceiling array or the CM20 Ceiling Microphone.
Does the Yealink VCM34 come with a warranty in Singapore?
Yes. Every VCM34 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
