Yealink UVC86 4K Dual-Eye Intelligent Tracking Camera
PRODUCT DESCRIPTION
Yealink UVC86 4K Dual-Eye Intelligent Tracking Camera (1206663) - 2 Years Local Warranty

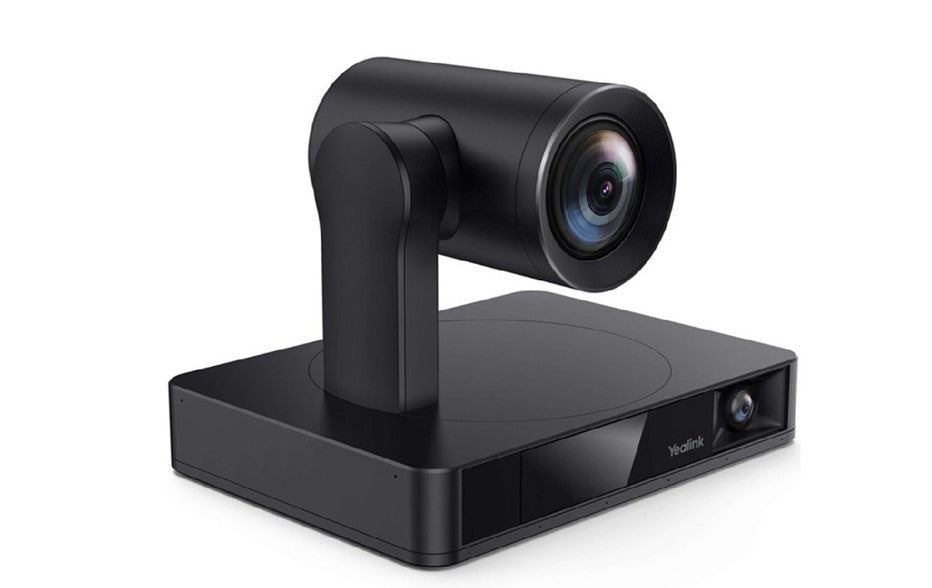

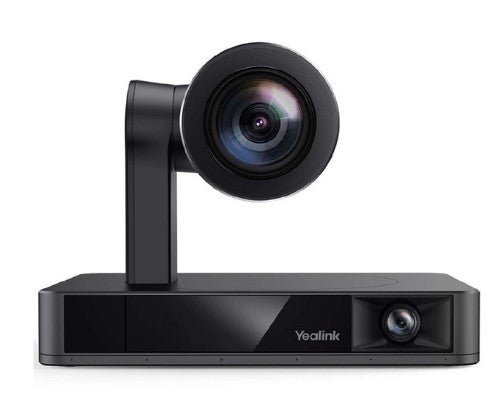

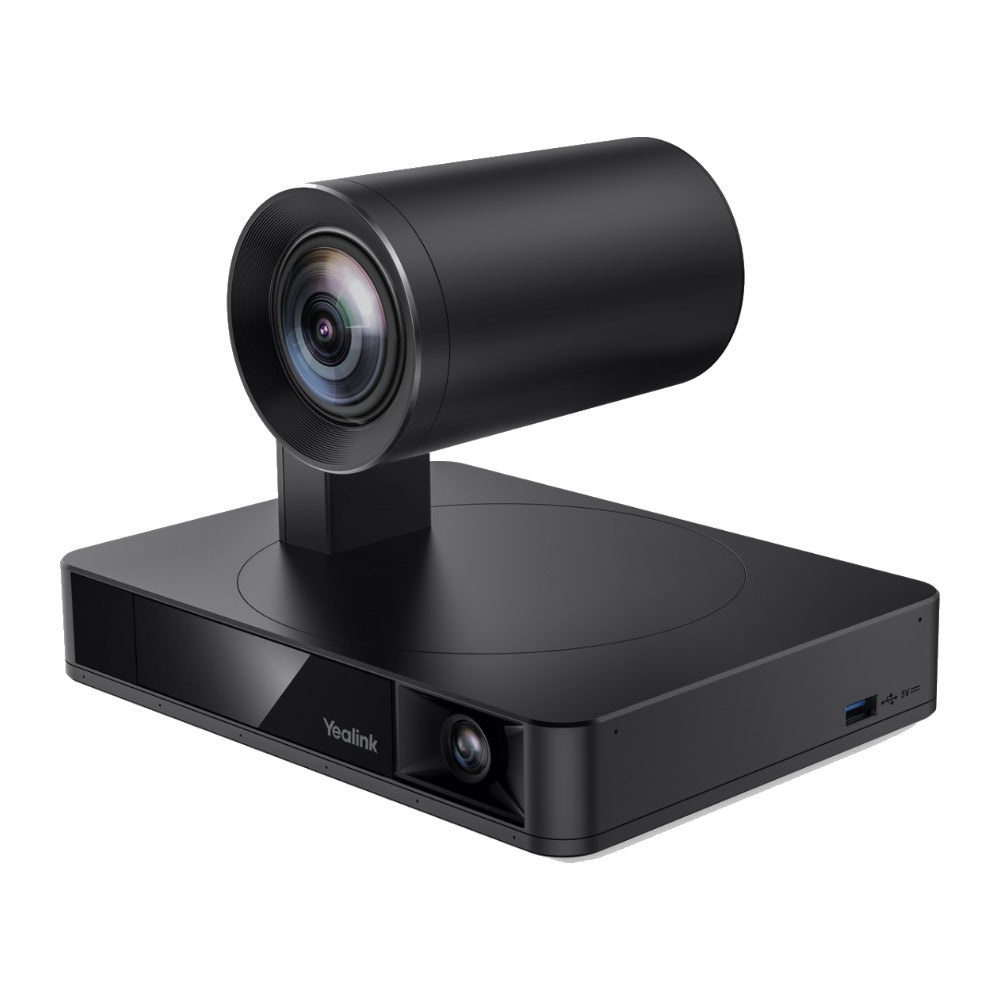

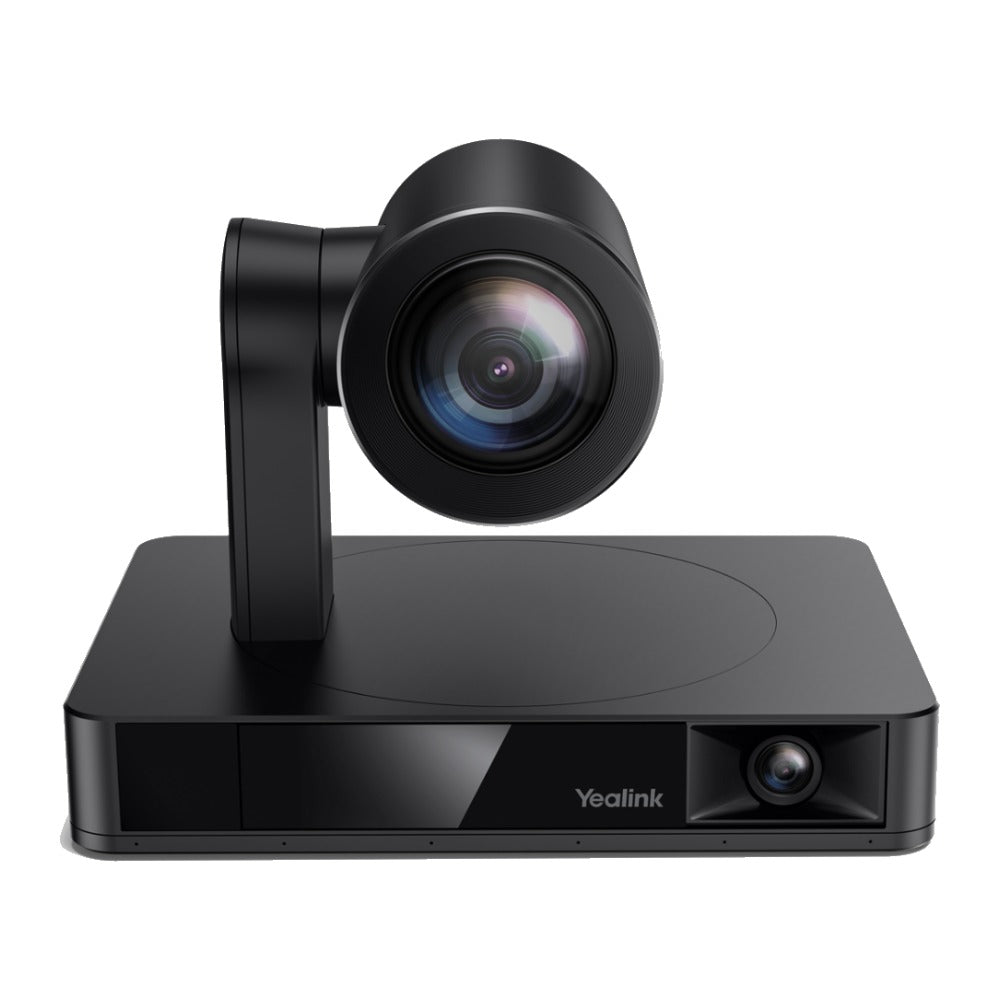

Yealink UVC86 Dual-Eye 4K Tracking Camera for Medium and Large Rooms
The Yealink UVC86 is a 4K dual-eye intelligent tracking camera for medium and large meeting rooms, combining two 8 MP Sony sensors in one device: a panoramic camera with a 120° (diagonal) view that detects participants in real time, and a mechanical PTZ camera with 20.4x total HD zoom (12x optical) that delivers the clearest possible view of each speaker. The result is a face-to-face video experience that always showcases the best view of your room — ideal for Singapore boardrooms, training rooms and town-hall spaces.
AI Speaker, Presenter and Auto Tracking
Auto Framing, Speaker Tracking and Presenter Tracking — with Wide Area, Stage and Segment modes plus picture-in-picture and multi-focus views — keep the conversation perfectly framed as people speak, move and present. The panoramic eye watches the whole room while the PTZ eye moves, so framing changes are smooth rather than jarring.
12x Optical Zoom with Mechanical PTZ
The PTZ camera offers a 90° diagonal field of view with pan ±100° and tilt +40°/−90°, 12x optical zoom (20.4x total HD zoom) and 9 camera presets — sharp detail from the back of a large room that digital-zoom webcams cannot match.
Flexible Deployment in USB and Room Systems
Connect the UVC86 over USB to a room PC or laptop for BYOD meetings, or integrate it with Yealink MVC (Microsoft Teams Rooms) and A-series/ZVC room systems via the VCH port. An electric lens cap flips the lens away automatically for privacy when the camera sleeps.
Yealink UVC86 Datasheet — Technical Specifications
General
| Part Number | 1206663 |
| Camera Type | Dual-eye 4K intelligent tracking camera (PTZ + panoramic) |
| Warranty | 2 Years Local Warranty (Singapore) |
Video & Sensors
| Sensors | 2x 8 MP Sony sensors (PTZ camera with auto focus + panoramic camera) |
| Max Resolution | 4K (2160p) @ 30 fps |
| Zoom (PTZ) | 12x optical x 1.7x digital = 20.4x total HD zoom |
| FOV (PTZ camera) | 90° diagonal / 81° horizontal / 50° vertical |
| FOV (Panoramic camera) | 120° diagonal / 110° horizontal / 78° vertical |
| Pan / Tilt | Pan ±100°; Tilt +40° / −90° (mechanical); panoramic manual tilt ±9° |
| Focus | Auto focus, 1 m to infinity |
| Camera Presets | 9 |
| AI Features | Auto Framing, Speaker Tracking, Presenter Tracking (Wide Area / Stage / Segment modes), PIP, Multi-Focus |
Connectivity

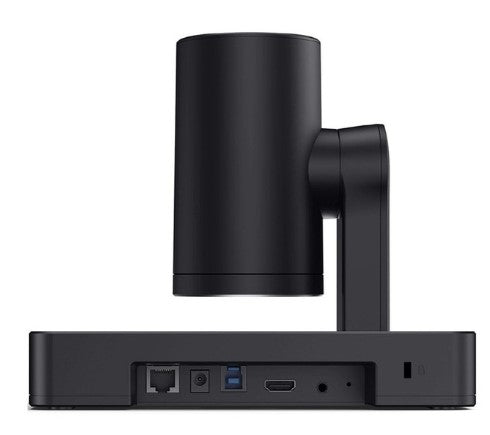

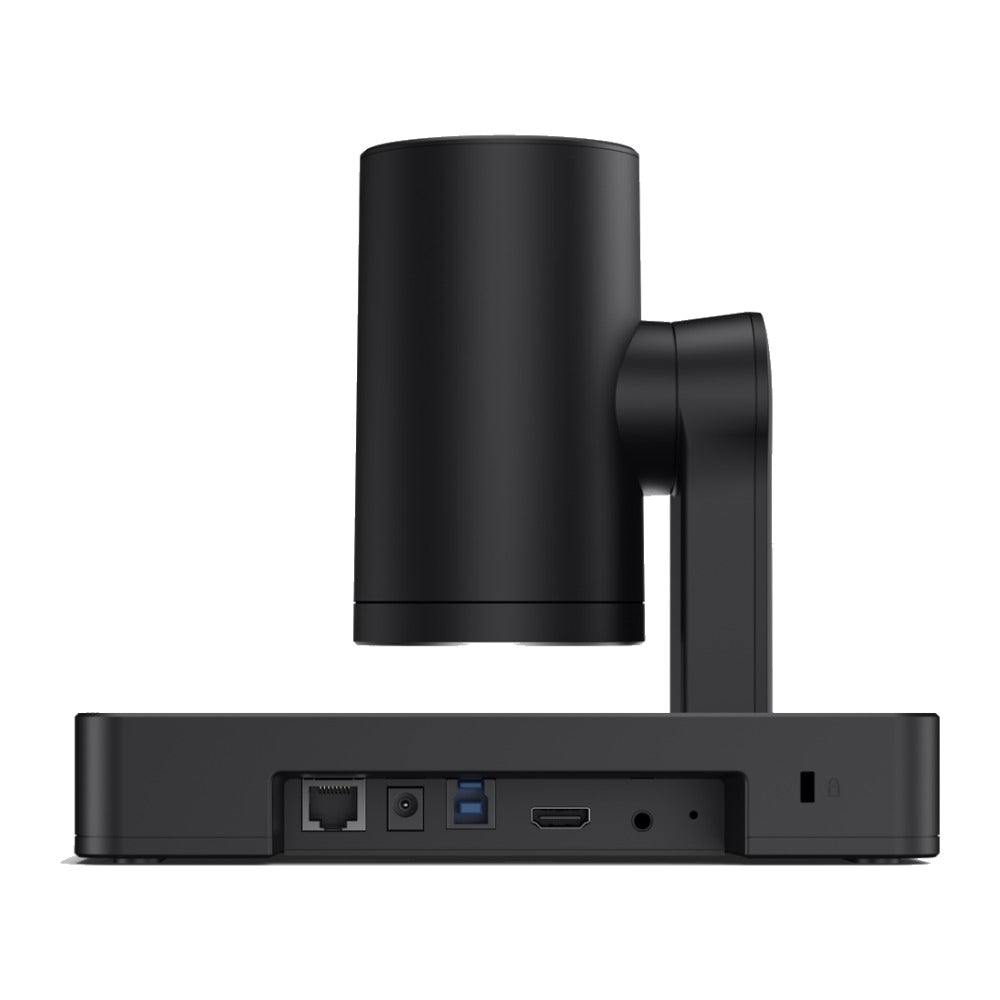

| Interfaces | 1x USB 3.0 Type-B, 1x USB 2.0 Type-A, 1x Yealink VCH port (RJ45, for MVC/A-series room systems), 1x HDMI output, 1x 3.5 mm line-in, security lock slot |
Design & Power
| Privacy | Electric lens cap with automatic privacy flip |
| Mounting | Tabletop, TV-top, wall, ceiling, TV stand, tripod (wall bracket included) |
| Dimensions | 210 x 156 x 156 mm (working; height adjustable 156–192 mm) |
| Weight | 3.27 kg |
| Power | External adapter, AC 100–240 V in, DC 48 V / 0.7 A out |
Compatibility & Software Support
Over USB, the UVC86 works as a standard UVC camera with Microsoft Teams, Zoom, Google Meet, Cisco Webex and other conferencing applications on Windows and macOS. It is also deployed as the camera in Yealink MVC Microsoft Teams Rooms and ZVC Zoom Rooms systems, connecting to Yealink MCore/A-series codecs via the VCH port.
Camera configuration, firmware updates and tracking-mode control are handled through Yealink USB Connect on the connected PC, with fleet management available via the Yealink Device Management Platform (YDMP/YMCS).
Package Contents & UVC Camera Ordering Information
UVC86 package includes:
- Yealink UVC86 dual-eye 4K camera
- VCR20 remote control
- Power adapter
- Wall bracket
- 7 m USB cable
| UVC86 (1206663) | Dual-eye 4K tracking camera — medium/large rooms (this product) |
| UVC84-BYOD-210 | Single-lens 4K PTZ camera kit with room audio — large rooms |
| UVC34 | All-in-one 4K USB video bar — small/huddle rooms |
| UVC40 E2 | All-in-one UHD 4K USB video bar — small/medium rooms |
| SmartVision S80 | Quad-eye 4K 20x optical PTZ camera — premium AV rooms |
Datasheet & Downloads
Frequently Asked Questions — Yealink UVC86
What does "dual-eye" mean on the UVC86?
The UVC86 has two 8 MP Sony cameras in one housing: a fixed panoramic eye with a 120° diagonal view that continuously detects everyone in the room, and a mechanical PTZ eye with 12x optical zoom that frames the current speaker or presenter. Because detection and framing use separate lenses, tracking shots stay smooth.
What tracking modes does it support?
Auto Framing, Speaker Tracking and Presenter Tracking, with Wide Area, Stage and Segment presenter modes plus picture-in-picture and multi-focus layouts — selectable via Yealink USB Connect or the room system UI.
How is the UVC86 different from the UVC84?
The UVC84 is a single-lens 4K PTZ camera with 12x optical zoom and Auto Framing. The UVC86 adds the second panoramic sensor and full AI Speaker/Presenter Tracking, plus HDMI output — choose it when you want the camera to follow the conversation automatically.
Can I use the UVC86 in a Microsoft Teams Room or Zoom Room?
Yes. The UVC86 is the camera used in several Yealink MVC (Teams Rooms) and ZVC (Zoom Rooms) kits, and connects to Yealink room codecs via its VCH port or USB.
Does it have a privacy cover?
Yes — an electric lens cap automatically covers the lens when the camera sleeps, so the room knows the camera is off.
Does the UVC86 come with warranty in Singapore?
Yes. Every UVC86 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
