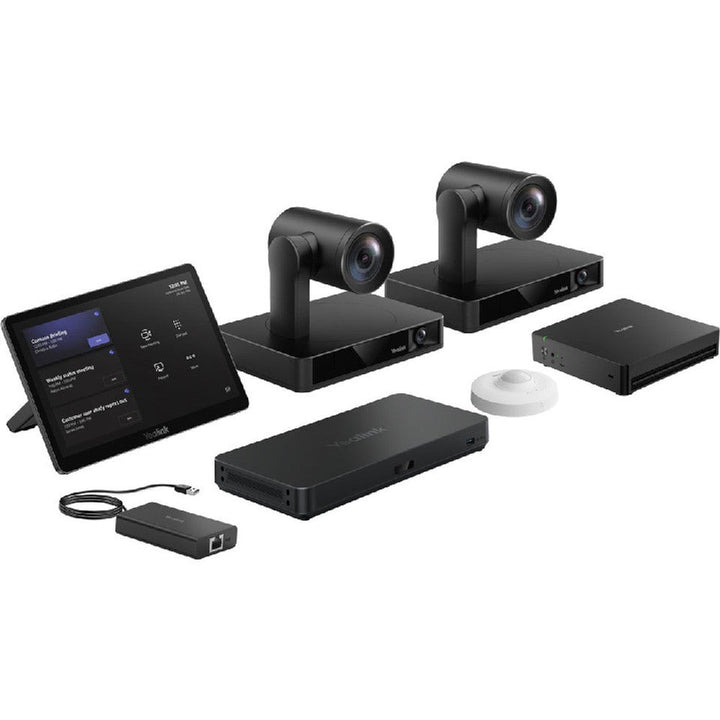

Yealink MVC S90-C5U-004 Native Teams Rooms System

Yealink MVC S90-C5U-004 Native Teams Rooms System for Pro AV Rooms (1106999) - 2 Years Local Warranty

Comprehensive Microsoft Teams Rooms Solution for Large Spaces

The Yealink MVC S90-C5-004 is a premium native Microsoft Teams Rooms system purpose-built for extra-large meeting rooms, classrooms, boardrooms, auditoriums, and AV-intensive collaboration spaces. This complete solution delivers seamless Teams integration, intelligent multi-camera video, and scalable deployment options, making it ideal for enterprises that require reliable, professional communication at scale.

Advanced Multi-Camera Setup with Intelligent Tracking

The MVC S90-C5-004 includes two Yealink UVC86 dual-eye 4K PTZ cameras, each equipped with 12x optical zoom, AI framing, presenter tracking, and speaker tracking. With multiple AI modes built in, the system automatically adjusts viewpoints based on participant behavior, switching smoothly between cameras to create immersive and engaging meeting experiences. This multi-camera intelligence supports active speakers, panel discussions, classroom instruction, and large group interactions.

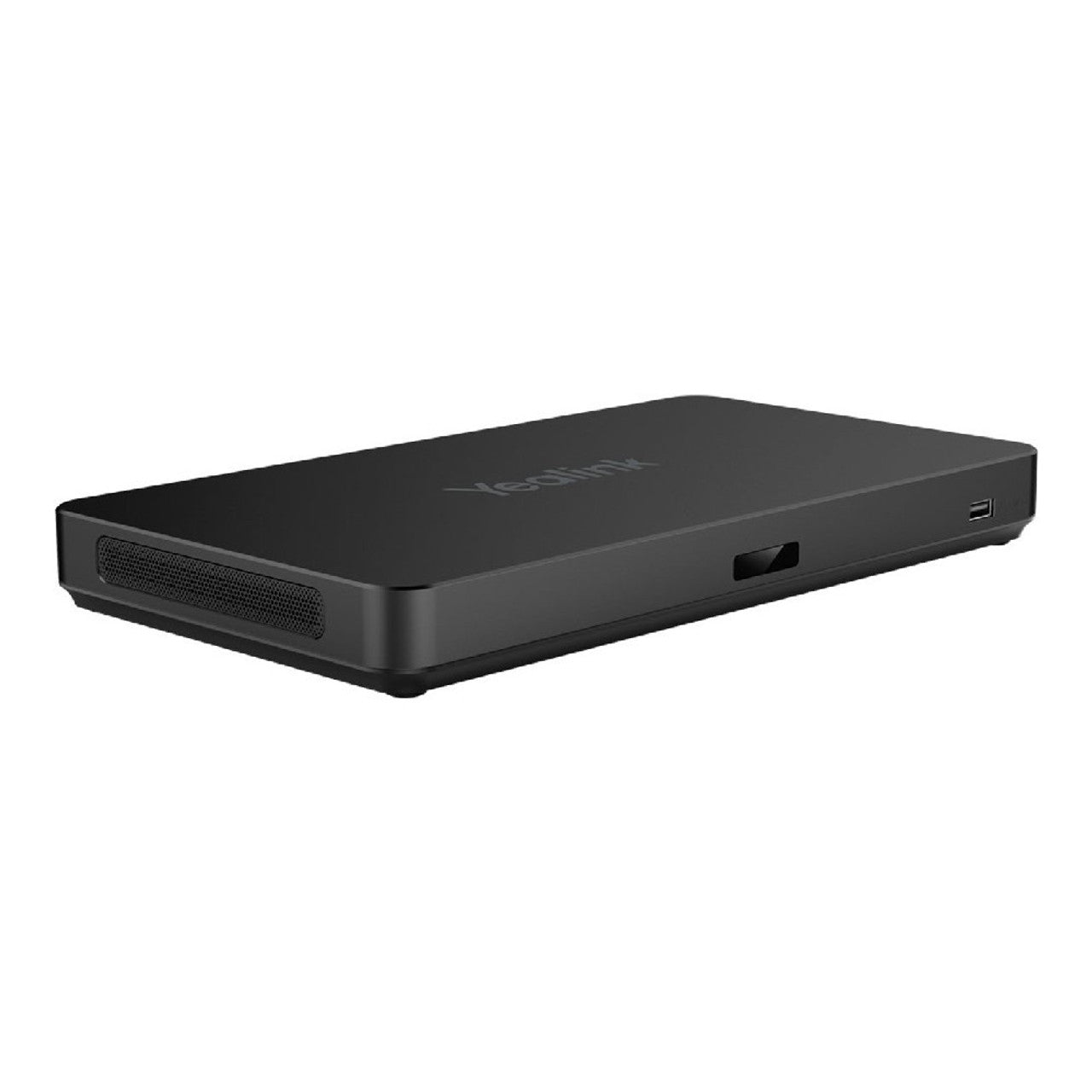

AVHub for Flexible Multi-Camera Processing

At the core of the MVC S90 system is the Yealink AVHub, a powerful multi-camera processor capable of supporting up to nine simultaneous camera inputs. The AVHub enables flexible camera layouts, audio-based switching, zone-based presenter tracking, and full-room coverage—ideal for complex meeting environments. Whether it’s a large training room, town hall setting, or multi-zone conference space, AVHub ensures smooth processing and consistent visual output.

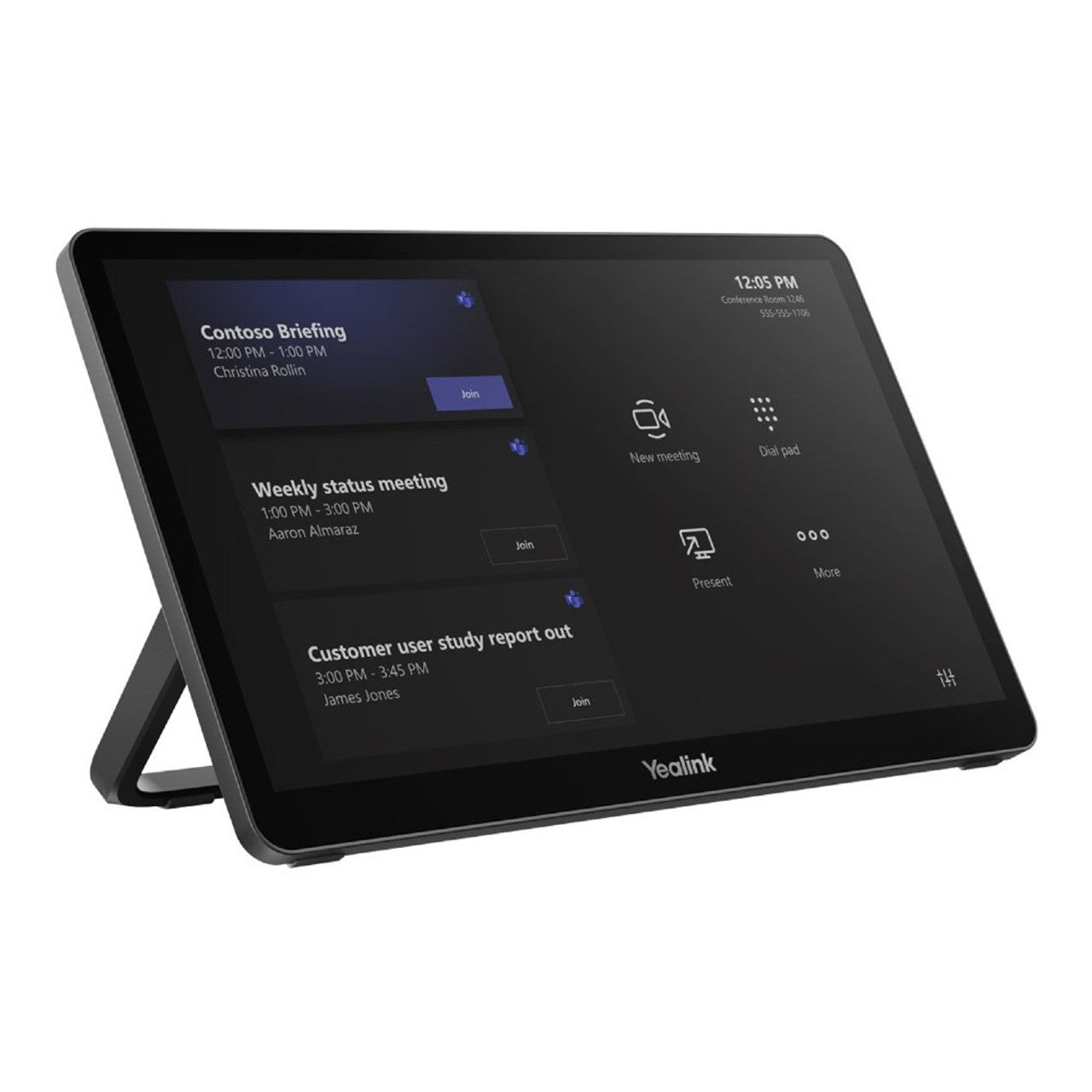

Centralized Control with MTouch Plus Panel

The bundle includes the Yealink MTouch Plus, an 11.6-inch touch panel designed for Teams Rooms. It gives users quick access to call controls, camera settings, content sharing, and layout adjustments. With clear icons and an intuitive interface, the MTouch Plus minimizes training time and enables smooth room operation, even for first-time users.

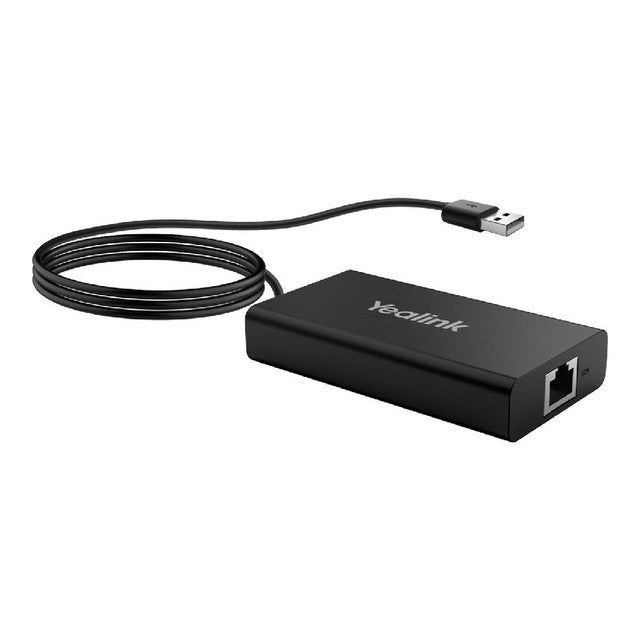

BYOD Mode via USB Extender

The included MVC-BYOD-Extender allows meeting participants to connect their laptop and instantly take over the room’s cameras, microphones, and displays using any conferencing platform (Zoom, Webex, Google Meet, etc.). This protects AV investments while supporting flexible workflows across hybrid teams.

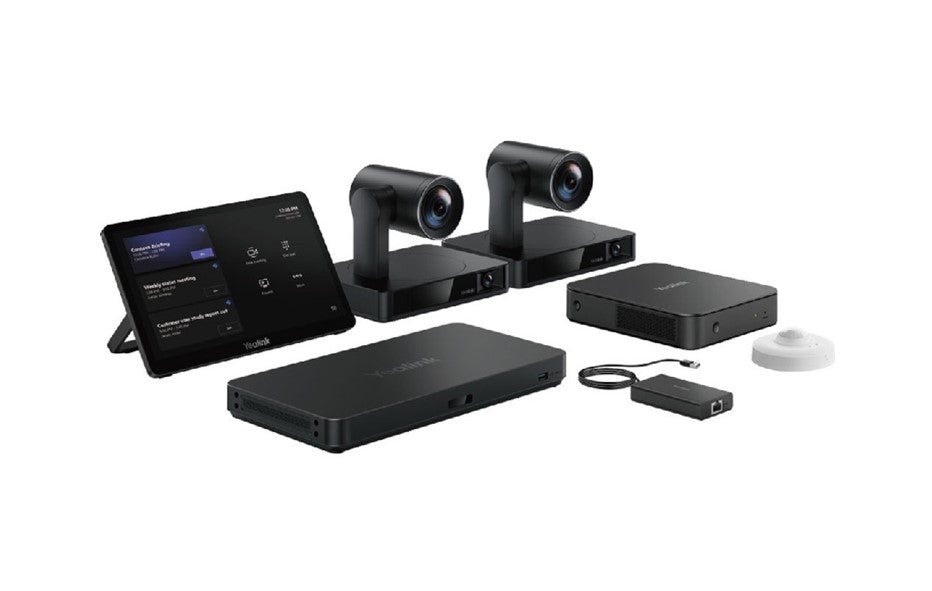

Package Contents

• MCore Pro Mini-PC: Intel Core i5, 8GB RAM, 128GB SSD

• MTouch Plus: 11.6" Teams-certified touch panel

• 2× UVC86 4K PTZ Cameras: Dual-eye design with 12x optical zoom, AI tracking

• Yealink AVHub: Multi-camera processor supporting up to 9 inputs

• MVC-BYOD-Extender: Enables laptop plug-in for BYOD meeting mode

• RoomSensor: Intelligent presence and environmental monitoring

• Accessories: Power adapters, HDMI cables, wall brackets, remote control

Technical Specifications

General
Model: MVC S90-C5U-004
Part Number: 1106999
Product Name: Yealink MVC S90-C5U-004 Native Teams Rooms System for Pro AV Rooms
Manufacturer: Yealink
Product Type: Microsoft Teams Rooms Video Conferencing System
Platform: Microsoft Teams Rooms on Windows
Deployment Type: Large Rooms, Extra-Large Conference Rooms, Boardrooms, Auditoriums, Training Rooms, Pro AV Spaces
Operating System: Windows 11 IoT Enterprise
Room Type: Pro AV Rooms
Certification: Microsoft Teams Rooms Certified
Warranty: 2 Years Hardware Warranty

System Components Included
MCore 4 Mini-PC
MTouch Plus Touch Console
2 × UVC86 Intelligent 4K PTZ Cameras
AVHub Audio & Video Processor
MVC-BYOD Extender
RoomSensor
VCR20 Remote Control
Power Adapters and Mounting Accessories
Required Connection Cables

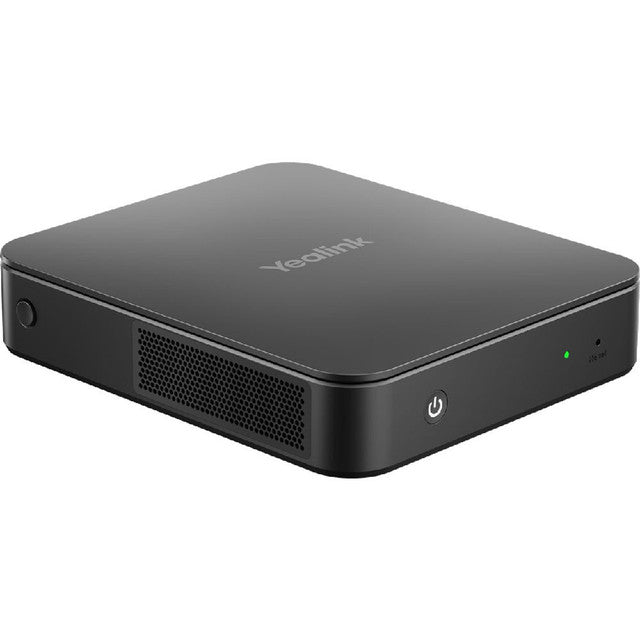

MCore 4 Mini-PC Specifications
Processor: Intel Core Ultra 5 Processor
AI Processing: Integrated NPU
Memory: 16GB DDR5 RAM
Storage: 256GB SSD
Operating System: Windows 11 IoT Enterprise
Video Output: 3 × HDMI with CEC Support
Content Sharing Input: HDMI-In 4K Content Sharing
Wireless Connectivity: Wi-Fi and Bluetooth
USB Ports: 4 × USB 3.0
Touch Panel Connectivity: Dedicated MTouch Port (RJ45)
Built-in EDID Management: Supported

Touch Console Specifications
Model: MTouch Plus
Display Size: 11.6 Inches
Display Type: IPS Touchscreen
Resolution: 1920 × 1080 Full HD
Touch Technology: Capacitive Multi-Touch
Viewing Angle Adjustment: 30°–70°
Content Sharing: HDMI and USB-C Input Support
Wireless Presentation: WPP30 Compatible
Deployment Options: Tabletop, Fixed Desktop, Wall Mount

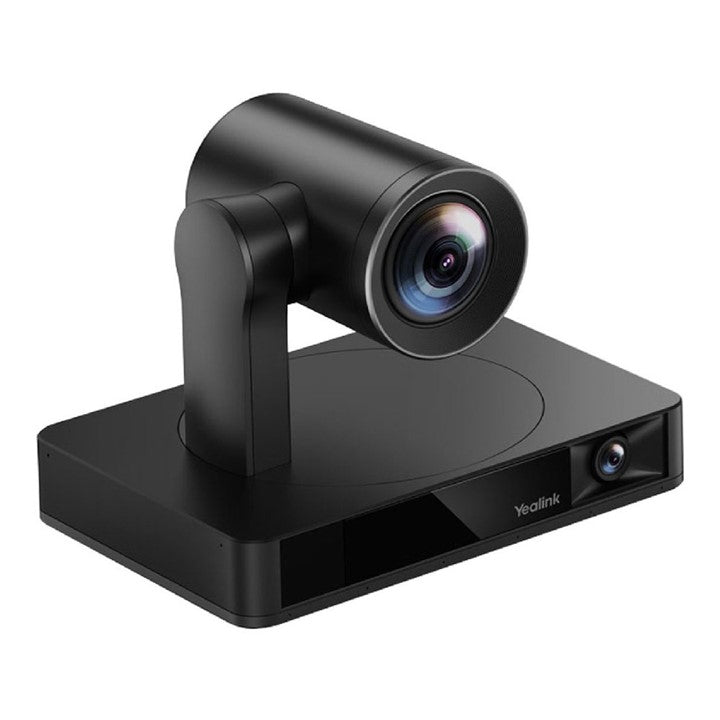

Camera Specifications
Camera Model: UVC86 Intelligent PTZ Camera
Quantity: 2 Cameras Included
Resolution: 4K Ultra HD
Optical Zoom: 12×
Digital Zoom: 1.7×
Auto Framing: Supported
Speaker Tracking: Supported
Presenter Tracking: Supported
Intelligent Tracking: Supported
Multi-Camera Collaboration: Supported
Field of View: Up to 120° Combined Coverage
Remote Camera Control: Supported via MTouch Plus

AVHub Audio & Video Processor
Device Type: Multi-Camera AV Processor
Multi-Camera Support: Up to 9 Cameras
Video Layout Management: Supported
Camera Switching: Supported
Multi-Speaker Tracking: Supported
Voice Incentive Mechanism: Supported
Large Room Optimization: Supported
Audio & Video Signal Distribution: Supported
Enterprise AV Integration: Supported

Microsoft Teams Rooms Features
Native Microsoft Teams Experience
One-Touch Meeting Join
Calendar Integration
Microsoft Teams Certified
Wireless Content Sharing
HDMI Content Sharing
Meeting Recording Support
Teams Device Management
Remote Administration
Meeting Room Automation
Multi-Camera IntelliFrame Technology
Speaker Highlighting and Tracking

BYOD Features
MVC-BYOD Extender Included
USB Single-Cable Laptop Connection
Bring Your Own Device Support
Third-Party UC Platform Compatibility
Zoom Support via BYOD
Webex Support via BYOD
Google Meet Support via BYOD
Seamless Room Resource Utilization

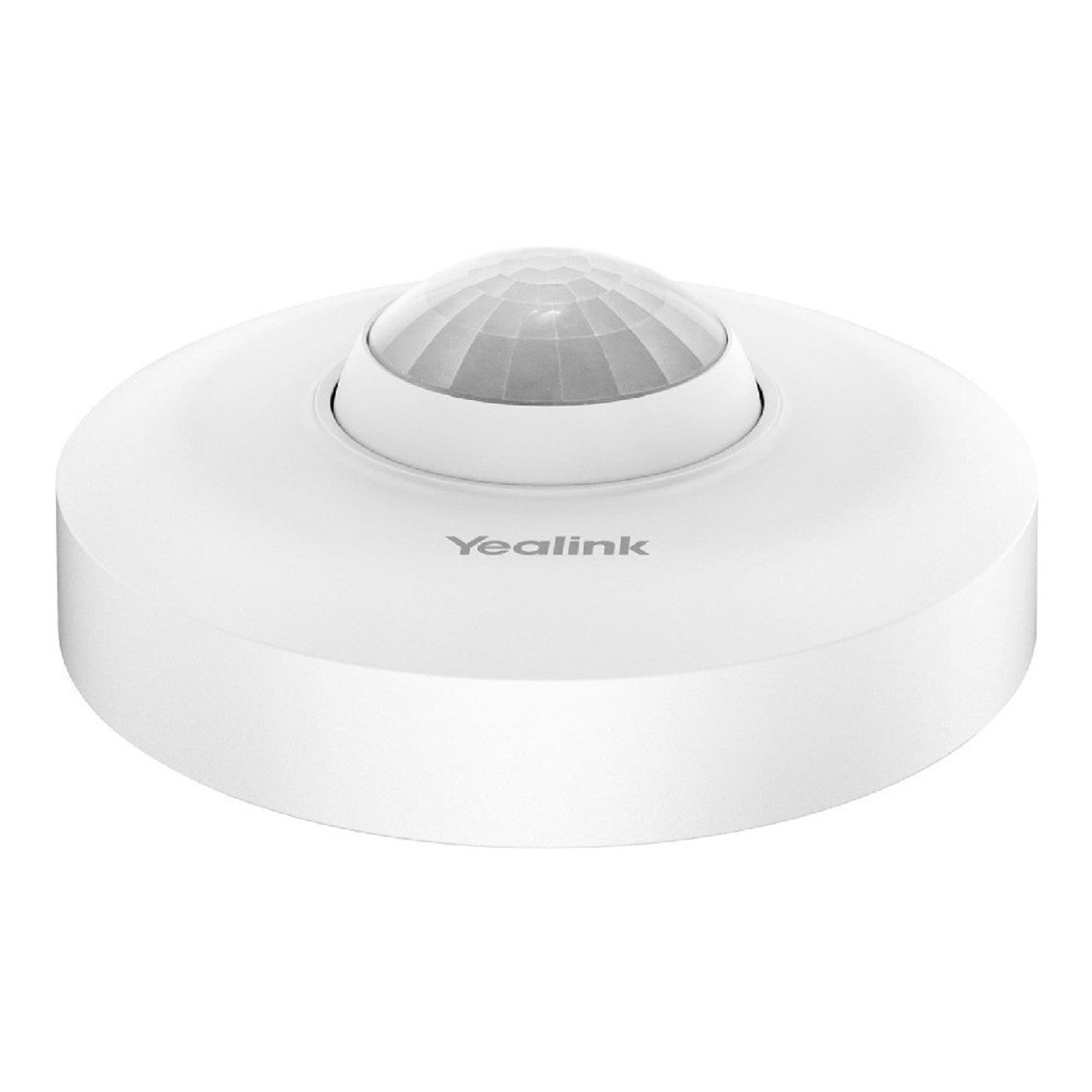

RoomSensor Specifications
Occupancy Detection: Supported
Temperature Monitoring: Supported
Humidity Monitoring: Supported
Light Detection: Supported
Bluetooth BLE 5.2 Connectivity
Range: Up to 30 Meters
Automatic System Wake-Up: Supported
Environmental Monitoring: Supported

Audio Integration
Native Audio Device Support: Supported
Yealink CM50 Ceiling Microphone Compatible
Yealink CS10-D Dante Speaker Compatible
Yealink AP08 DSP Compatible
Third-Party Dante Audio Systems Supported
Professional AV Audio Integration Ready
Large Room Audio Expansion Supported

Connectivity Specifications
Network Connectivity: Gigabit Ethernet
Wireless Connectivity: Wi-Fi
Bluetooth: Supported
HDMI Outputs: 3
HDMI Content Input: 1
USB Ports: 4 × USB 3.0
RJ45 Touch Console Port: 1
BYOD Connectivity: Supported
Enterprise Network Integration: Supported

AI Features
IntelliFrame
Speaker Tracking
Presenter Tracking
Auto Framing
Multi-Camera Coordination
Participant Recognition Optimization
Intelligent Camera Switching
Meeting Experience Enhancement
Remote Participant Focus Optimization

Management & Administration
Yealink Device Management Platform (YDMP)
Remote Monitoring
Remote Configuration
Firmware Management
Health Monitoring
Centralized Administration
Enterprise Device Provisioning
Mass Deployment Support

Design & Construction
Color: Black / Silver Components
Enterprise-Class Construction
Professional AV Deployment Ready
Modular Architecture
Scalable Multi-Camera Design
Cable Management Support
Rack and AV Cabinet Integration Supported

Key Features
Native Microsoft Teams Rooms System
Designed for Large and Extra-Large Rooms
Dual UVC86 Intelligent 4K PTZ Cameras
12× Optical Zoom Cameras
MCore 4 AI Mini-PC
11.6" MTouch Plus Touch Console
AVHub Multi-Camera Processor
Support for Up to 9 Cameras
Multi-Camera IntelliFrame Technology
RoomSensor Environmental Monitoring
BYOD Extender Included
Windows 11 IoT Enterprise
Professional AV Room Ready
Microsoft Teams Certified Solution

Performance & Features
Purpose-built for enterprise boardrooms, auditoriums, divisible rooms, and large training spaces requiring advanced camera coverage and professional AV integration. The AVHub enables flexible multi-camera layouts and intelligent speaker tracking, while the dual UVC86 cameras deliver cinematic meeting experiences with auto-framing, presenter tracking, and 4K image quality. The included BYOD extender allows organizations to leverage the room's cameras, microphones, and speakers with virtually any UC platform beyond Microsoft Teams.

Typical Use Cases
Microsoft Teams Rooms
Boardrooms
Executive Conference Rooms
Large Meeting Rooms
Training Centers
Lecture Theatres
Auditoriums
Town Hall Spaces
Government Meeting Facilities
University Collaboration Rooms
Enterprise Pro AV Deployments
Hybrid Workplace Collaboration
Multi-Camera Conference Rooms
Divisible Meeting Spaces

GTIN / EAN
GTIN / EAN: 6938818323810
