Yealink MVC S60-C5-000 Native Teams Rooms System
PRODUCT DESCRIPTION
Yealink MVC S60-C5-000 Native Microsoft Teams Rooms System (MVC S60-C5-000) - 2 Years Local Warranty
Yealink MVC S60 Native Microsoft Teams Rooms System for Medium Rooms

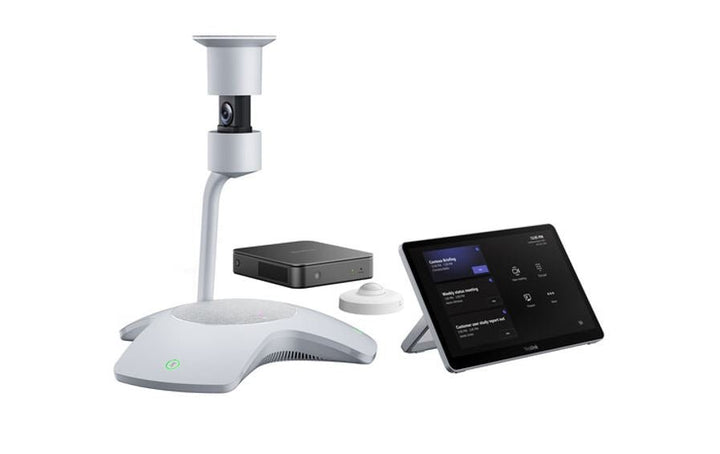

The Yealink MVC S60-C5-000 is a complete, native Microsoft Teams Rooms on Windows system built around the SmartVision 60 — a 360° all-in-one audio-video device that sits at the centre of the table. Bundled with the MCore Pro mini-PC, the 11.6-inch MTouch Plus touch console and the RoomSensor, it delivers an immersive, AI-driven Teams experience for high-end medium meeting rooms in Singapore.
SmartVision 60: 10K 360° Panoramic Camera with Multi-Speaker Tracking
Placed at the centre of the table, the SmartVision 60 captures the whole room with a 10K panoramic camera (360° HFOV, 60° VFOV), adaptive digital zoom and a 0.5–10 m depth of field. Intelligent multi-speaker tracking and Teams Multi-Stream IntelliFrame frame up to four active speakers simultaneously alongside the panoramic view, and an electric privacy cover shields the camera when idle.
Dual Microphone Arrays with 6-Metre 360° Pickup and Teams AI
Two dedicated arrays — a 6-mic MEMS array for meeting audio and a 6+1 intelligent speech-recognition array for AI audio — capture voices from every direction up to 6 metres, feeding Teams AI features including participant identification, People Feed, phonetic voice transcription and Cortana Voice Assistant. A 7 W high-fidelity speaker delivers clear playback across the table.
One-Cable Deployment with MCore Pro and MTouch Plus
The MCore Pro mini-PC (11th Gen Intel Core i5, Windows 11 IoT Enterprise) drives the native Teams Rooms experience, with a single CAT5e cable linking the table area to the TV area for data and power. The RoomSensor wakes the room automatically and reports occupancy, temperature and humidity. SourceIT supplies the MVC S60-C5-000 with 2 years local Singapore warranty and a GST invoice.
Yealink MVC S60 Datasheet — Technical Specifications
General
| Product | Yealink MVC S60-C5-000 Native Microsoft Teams Rooms System |
| Part Number | MVC S60-C5-000 |
| Platform | Native Microsoft Teams Rooms on Windows (Microsoft Teams Rooms app and Yealink RoomConnect preloaded) |
| Recommended Room Size | Medium meeting rooms (centre-of-table 360° deployment) |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera & Video (SmartVision 60)
| Camera | 10K 360° panoramic camera |
| Field of View | 360° HFOV / 60° VFOV |
| Zoom / Depth of Field | Adaptive digital zoom (5×); 0.5–10 m depth of field |
| AI Features | Intelligent multi-speaker tracking, Teams Multi-Stream IntelliFrame (up to 4 active speakers), Participant Identification, People Feed, voice transcription, Cortana Voice Assistant |
| Privacy | Electric camera privacy cover |
Audio & Microphones
| Meeting Audio Microphones | 6 × MEMS microphone array (sensitivity -46±2 dB, SNR 56 dB) |
| AI Audio Microphones | 6+1 intelligent speech-recognition microphone array (sensitivity -37 dB, SNR 66 dB) |
| Voice Pickup Range | 6 m, 360° all-round pickup |
| Speaker | 7 W high-fidelity speaker (effective power 5 W, 100 Hz–22 kHz) |
Compute & Console
| Mini-PC | Yealink MCore Pro (Gen-3 Mini-PC) |
| Processor | 11th Gen Intel Core i5 |
| Memory / Storage | 8 GB (2 × 4 GB) / 128 GB SSD |
| Operating System | Windows 11 IoT Enterprise x64 |
| Mini-PC Ports | 3 × HDMI output (CEC), 4 × USB 3.0 Type-A, 1 × 10/100/1000M Ethernet, 1 × MTouch port (RJ-45) |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.2 |
| Touch Console | Yealink MTouch Plus — 11.6″ narrow-bezel IPS display, 1920 × 1080, adjustable 30°–70° screen angle, single CAT5e connection to the mini-PC |
| Room Sensor | Yealink RoomSensor — occupancy, temperature, humidity & ambient light sensing; Bluetooth BLE 5.2, up to 30 m range |
Connectivity
| SmartVision 60 Ports | 1 × USB Type-C 3.0, 1 × DC power port (15V/2.4A) |
| Controls | 2 × microphone mute buttons, 1 × camera mute button |
| Table Deployment | Single CAT5e connects the TV area and the conference table area (data + power) |
Design
| Weight (SmartVision 60) | 3.246 kg |
| Operating Conditions | 0–40 °C, 10–95% humidity |
Compatibility & Software Support
Runs the native Microsoft Teams Rooms on Windows experience: Windows 11 IoT Enterprise with the Microsoft Teams Rooms app preloaded, one-touch join, calendar integration and multi-display support. Manageable through the Microsoft Teams Admin Center alongside your other Teams Rooms.
Device management is handled with Yealink RoomConnect (preloaded) and the Yealink Management Cloud Service (YMCS), giving IT remote monitoring, diagnostics and firmware updates for every MVC S60 room.
Wired HDMI content sharing is supported out of the box; the optional Yealink WPP30 pod adds one-click 1080p/30fps wireless sharing.
Package Contents & MVC S-Series Ordering Information
In the box:
- SmartVision 60 360° all-in-one audio-video device with power adapter
- MCore Pro mini-PC
- MTouch Plus 11.6″ touch console
- RoomSensor
- Cables and wall bracket
Yealink MVC S Series Rooms Systems at SourceIT:
| MVC S40-C5U-000 | Microsoft Teams — Small-medium rooms |
| ZVC S40-C5U-000 | Zoom — Small-medium rooms |
| MVC S50-C5U-000 | Microsoft Teams — Medium-large rooms |
| ZVC S50-C5U-000 | Zoom — Medium-large rooms |
| MVC S60-C5-000 | Microsoft Teams — Medium rooms (360° centre-of-table) |
| MVC S80-C5U-000 | Microsoft Teams — Large rooms |
| ZVC S80-C5U-000 | Zoom — Large rooms |
| MVC S90-C5U-004 | Microsoft Teams — Extra-large rooms |
| ZVC S90-C5-007 | Zoom — Extra-large rooms |
| MVC S98-C5U-004 | Microsoft Teams — ProAV / extra-large rooms |
| ZVC S98-C5U-004 | Zoom — ProAV / extra-large rooms |
Datasheet & Downloads
Official Yealink documentation for this system:
Frequently Asked Questions — Yealink MVC S60
Q: What is included in the MVC S60-C5-000 kit?
A: The kit contains the SmartVision 60 360° all-in-one audio-video device, the MCore Pro mini-PC, the MTouch Plus touch console and the RoomSensor — a complete native Microsoft Teams Rooms system for medium rooms.
Q: How is the MVC S60 different from a front-of-room system like the MVC S40?
A: The S60’s SmartVision 60 sits at the centre of the table and captures a 360° view of everyone around it, while the MVC S40 uses a front-of-room bar with a 120° view. Choose the S60 for discussion-heavy rooms where participants face each other.
Q: Which Teams AI features does the SmartVision 60 support?
A: Verified Teams AI capabilities include intelligent multi-speaker tracking, Multi-Stream IntelliFrame with up to four simultaneous speaker streams, participant identification, People Feed, voice transcription and Cortana Voice Assistant.
Q: Is there a Zoom Rooms version of the S60?
A: The S60 is offered as a native Microsoft Teams Rooms system. For Zoom deployments, SourceIT carries the ZVC S40, ZVC S50 and ZVC S80 Zoom Rooms kits.
Q: How many cables run to the meeting table?
A: One. A single CAT5e cable connects the TV area to the conference table area, carrying both data and power — keeping the table clean and installation simple.
Q: Does the MVC S60 come with a local Singapore warranty?
A: Yes. Every MVC S60 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
