Yealink MVC S40-C5U-000 Native Teams Rooms System
PRODUCT DESCRIPTION
Yealink MVC S40-C5U-000 Native Microsoft Teams Rooms System (MVC S40-C5U-000) - 2 Years Local Warranty
Yealink MVC S40 Native Microsoft Teams Rooms System for Small to Medium Rooms

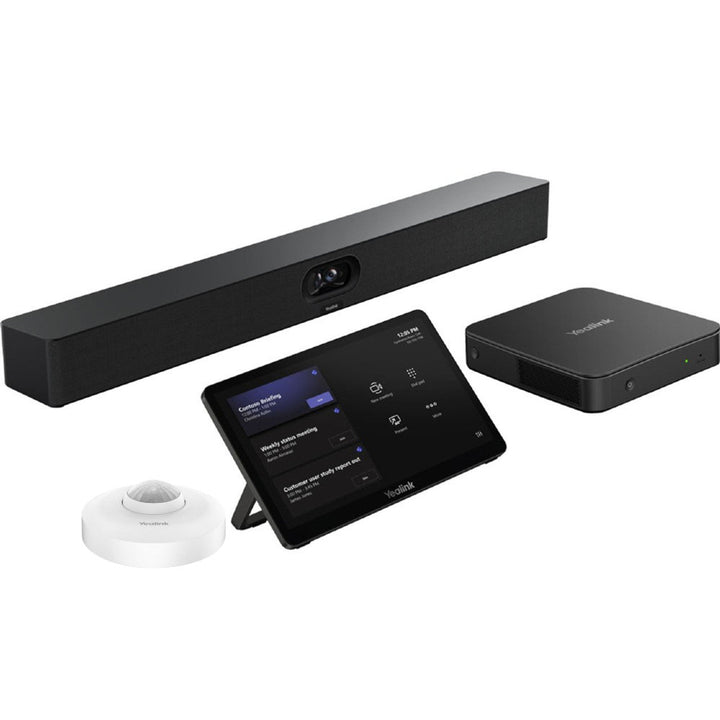

The Yealink MVC S40-C5U-000 is a complete, native Microsoft Teams Rooms on Windows system for small to medium meeting rooms in Singapore. It bundles the SmartVision 40 all-in-one audio-video bar, the fourth-generation MCore 4 mini-PC with Intel Core Ultra 5 processor, the 11.6-inch MTouch Plus touch console and the RoomSensor occupancy detector into one validated, ready-to-deploy kit — every component engineered to work together, so users simply walk in and start collaborating.
SmartVision 40: Dual 48 MP Cameras with 120° Field of View
The SmartVision 40 bar pairs two 48 MP fixed-focus cameras with image stitching for a 120° DFOV / 111° HFOV view of the room, 6× digital zoom and UHD 4K video at 30 fps. On-device AI features include IntelliFocus, Video Fence, Auto Framing, Speaker Tracking, Multi-Focus, Picture-in-Picture and Image Super Resolution, plus Multi-Stream IntelliFrame on Microsoft Teams Rooms, while an electric privacy cover physically shields the lens when the room is idle.
8-Microphone MEMS Array with 6-Metre Voice Pickup
An 8-microphone MEMS array captures every voice up to 6 metres away with AI-enhanced noise cancellation and reverberation suppression, backed by echo cancellation and 3-metre full-duplex performance. Two 10 W stereo speakers deliver clear, room-filling audio, and the bar supports two optional expansion microphones to extend pickup across longer tables.
One-Cable Deployment for Singapore Meeting Rooms
A single CAT5e cable links the MTouch Plus console on the table to the MCore 4 at the display, carrying both data and power for a clean install. The RoomSensor wakes the system automatically as participants enter and reports live occupancy, temperature and humidity. SourceIT supplies, delivers and supports the MVC S40-C5U-000 across Singapore with 2 years local warranty and a GST invoice.
Yealink MVC S40 Datasheet — Technical Specifications
General
| Product | Yealink MVC S40-C5U-000 Native Microsoft Teams Rooms System |
| Part Number | MVC S40-C5U-000 |
| Platform | Native Microsoft Teams Rooms on Windows (Microsoft Teams Rooms app and Yealink RoomConnect preloaded) |
| Recommended Room Size | Small to medium meeting rooms (expandable to larger rooms with 2 expansion microphones) |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera & Video (SmartVision 40)
| Camera | 2 × 48 MP cameras (dual-lens, image stitching) |
| Field of View | 120° DFOV / 111° HFOV |
| Zoom | 6× digital zoom |
| Max Resolution | UHD 4K (3840 × 2160) at 30 fps |
| AI Features | IntelliFocus, Multi-Stream IntelliFrame (Teams), Video Fence, Auto Framing, Speaker Tracking, Multi-Focus, Picture-in-Picture, Image Super Resolution |
| Privacy | Automatic electric lens privacy cover |
Audio & Microphones
| Microphones | 8 × MEMS microphone array; supports 2 optional expansion microphones |
| Voice Pickup Range | Up to 6 metres |
| Speakers | 2 × 10 W stereo speakers |
| Audio Processing | AI-enhanced noise cancellation, reverberation suppression, echo cancellation, 3-metre full-duplex |
Compute & Console
| Mini-PC | Yealink MCore 4 (Gen-4 Mini-PC) |
| Processor | Intel Core Ultra 5 125H |
| Memory / Storage | 16 GB (2 × 8 GB) DDR5 / 256 GB SSD |
| Operating System | Windows 11 IoT Enterprise x64 |
| Mini-PC Ports | 1 × HDMI-Out 2.1, 2 × HDMI-Out 2.0 (CEC), 1 × HDMI-In (4K content sharing), 4 × USB 3.0 Type-A, 1 × MTouch port (RJ-45), 1 × AV-network LAN, 1 × Gigabit Ethernet |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.2 |
| Touch Console | Yealink MTouch Plus — 11.6″ narrow-bezel IPS display, 1920 × 1080, adjustable 30°–70° screen angle, single CAT5e connection to the mini-PC |
| Room Sensor | Yealink RoomSensor — occupancy, temperature, humidity & ambient light sensing; Bluetooth BLE 5.2, up to 30 m range |
Connectivity (SmartVision 40)
| Ports | 1 × USB 3.0 Type-B, 1 × USB 2.0 Type-A, 1 × USB-C, 1 × Yealink VCH port (RJ-45), 1 × HDMI out, 1 × 3.5 mm line in/out |
| Wireless Sharing | Optional Yealink WPP30 pod (1080p/30fps) |
Design
| Dimensions (bar) | 650 × 62 × 80 mm |
| Weight (bar) | 5.54 kg |
| Mounting | Wall mount bracket included (recommended height 1.1 m); TV stand / tabletop options supported |
Compatibility & Software Support
Runs the native Microsoft Teams Rooms on Windows experience: Windows 11 IoT Enterprise with the Microsoft Teams Rooms app preloaded, one-touch join, calendar integration and multi-display support. Manageable through the Microsoft Teams Admin Center alongside your other Teams Rooms.
Device management is handled with Yealink RoomConnect (preloaded) and the Yealink Management Cloud Service (YMCS), giving IT remote monitoring, diagnostics and firmware updates for every MVC S40 room.
Wired HDMI content sharing is supported out of the box; the optional Yealink WPP30 pod adds one-click 1080p/30fps wireless sharing.
Package Contents & MVC S-Series Ordering Information
In the box:
- SmartVision 40 all-in-one audio-video bar (with wall mount bracket and 2.5 m USB cable)
- MCore 4 mini-PC (Intel Core Ultra 5)
- MTouch Plus 11.6″ touch console
- RoomSensor
Yealink MVC/ZVC S Series Rooms Systems at SourceIT:
| MVC S40-C5U-000 | Microsoft Teams — Small-medium rooms |
| ZVC S40-C5U-000 | Zoom — Small-medium rooms |
| MVC S50-C5U-000 | Microsoft Teams — Medium-large rooms |
| ZVC S50-C5U-000 | Zoom — Medium-large rooms |
| MVC S60-C5-000 | Microsoft Teams — Medium rooms (360° centre-of-table) |
| MVC S80-C5U-000 | Microsoft Teams — Large rooms |
| ZVC S80-C5U-000 | Zoom — Large rooms |
| MVC S90-C5U-004 | Microsoft Teams — Extra-large rooms |
| ZVC S90-C5-007 | Zoom — Extra-large rooms |
| MVC S98-C5U-004 | Microsoft Teams — ProAV / extra-large rooms |
| ZVC S98-C5U-004 | Zoom — ProAV / extra-large rooms |
Datasheet & Downloads
Official Yealink documentation for this system:
Frequently Asked Questions — Yealink MVC S40
Q: What is included in the MVC S40-C5U-000 kit?
A: The kit contains the SmartVision 40 all-in-one audio-video bar, the MCore 4 mini-PC (Intel Core Ultra 5), the MTouch Plus 11.6-inch touch console and the RoomSensor — a complete native Microsoft Teams Rooms system in one order.
Q: What is the difference between the MVC S40 and the ZVC S40?
A: The hardware is identical; the difference is the preloaded software platform. The MVC S40 runs native Microsoft Teams Rooms, while the ZVC S40-C5U-000 runs native Zoom Rooms. Choose the variant that matches your UC platform.
Q: How does the S40 compare with the MVC/ZVC S50?
A: The S40 uses the SmartVision 40 dual-48 MP bar with 6 m voice pickup, sized for small to medium rooms. The S50 system steps up to the MeetingBar A50 triple-50 MP camera with a 16-microphone array and 10 m pickup for medium to large rooms.
Q: Can the S40 cover a longer boardroom table?
A: Yes. The SmartVision 40 supports two optional expansion microphones, extending voice pickup beyond the built-in 6-metre range so the same system can cover a larger conference room.
Q: Does the MVC S40 support wireless content sharing?
A: Wired HDMI sharing works out of the box via the MCore 4’s HDMI-In port. Adding the optional Yealink WPP30 pod enables one-click wireless sharing at 1080p/30fps.
Q: Does the MVC S40 come with a local Singapore warranty?
A: Yes. Every MVC S40 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
