Yealink MCoreKit-C5U-MS Native Microsoft Teams Rooms System Base Kit

Yealink MCoreKit-C5U-MS Native Microsoft Teams Rooms System Base Kit (MCoreKit-C5U-MS) - 2 Years Local Warranty

Yealink MCoreKit-C5U Base Kit for Microsoft Teams Rooms

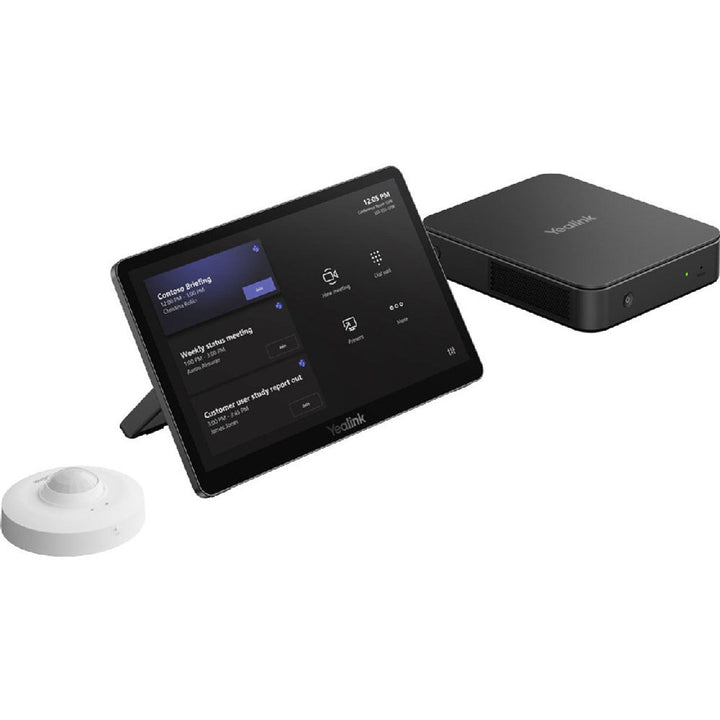

The Yealink MCoreKit-C5U-MS is the compute-and-control foundation for building a custom Microsoft Teams Rooms on Windows deployment. It bundles the fourth-generation MCore 4 mini-PC (Intel Core Ultra 5), the 11.6-inch MTouch Plus touch panel and the RoomSensor occupancy detector — add your choice of Yealink UVC camera and room audio to complete a Teams room precisely scaled to the space.

Powerful MCore 4 Compute

The MCore 4 pairs the Intel Core Ultra 5 125H processor with 16 GB DDR5 and a 256 GB SSD, its built-in NPU powering intelligent conferencing features. It drives up to three HDMI displays (1 × HDMI 2.1 + 2 × HDMI 2.0 with CEC/EDID), accepts a 4K auxiliary stream via HDMI-In, and offers four USB 3.0 ports for cameras and audio — with TPM 2.0, Kernel DMA and AV-LAN/Internet separation for enterprise-grade security.

MTouch Plus Control and RoomSensor Automation

The 11.6-inch MTouch Plus connects over a single Cat5e cable carrying both power and data, providing one-touch join, call control and wired (HDMI/USB-C) or wireless (WPP30) content sharing. The BLE RoomSensor wakes the room automatically as participants enter and reports live temperature and humidity to the panel.

Ideal For

The Yealink MCoreKit-C5U-MS is ideally suited to integrators and IT teams building custom Microsoft Teams Rooms around Yealink UVC cameras and VCM/MSpeaker audio, from focus rooms to boardrooms.

Technical Specifications

General
• Model: MCoreKit-C5U-MS
• Manufacturer: Yealink
• Product Type: Microsoft Teams Rooms base kit (compute + control + sensor)
• Preload: Windows 11 IoT Enterprise x64, Microsoft Teams Rooms app, Yealink RoomConnect
• Warranty: 2 Years Local Warranty

Kit Contents
• MCore 4 Gen-4 mini-PC
• MTouch Plus 11.6″ touch panel
• RoomSensor occupancy sensor
• Power adapter, cables and wall bracket

MCore 4 — Compute
• Processor: Intel Core Ultra 5 125H; NPU AI acceleration
• Memory: 16 GB (2×8 GB) DDR5; Storage: 256 GB SSD
• Security: TPM 2.0, Kernel DMA
• Ports: 1 × HDMI-Out 2.1, 2 × HDMI-Out 2.0 (CEC/EDID), 1 × HDMI-In (4K aux), 4 × USB 3.0-A, MTouch port (RJ-45), AV-network LAN, Gigabit Ethernet, 3.5 mm headphone
• Wireless: Wi-Fi 802.11a/b/g/n/ac/ax, Bluetooth 5.2

MTouch Plus & RoomSensor
• 11.6″ IPS, 1920 × 1080; single Cat5e power + data; wired/wireless sharing with PD power
• RoomSensor: 120° detection (±20°), BLE, auto wake, temperature/humidity

Management
• Microsoft Teams Admin Center; Yealink Device Management Platform / Cloud Service

Ordering Information
• Yealink MCoreKit-C5U-MS — this model
• Zoom Rooms version: MCoreKit-C5U-ZR (1206661)
• Add: UVC86/UVC84 cameras, VCM microphones, MSpeaker — available from SourceIT
