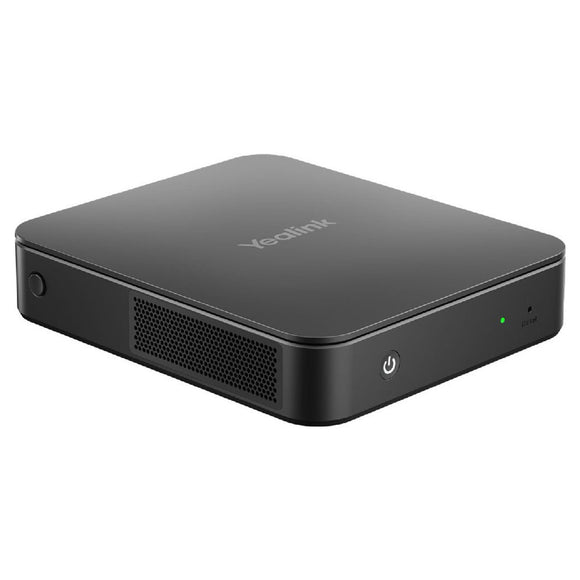

Yealink MCore Pro-MS for Microsoft Teams Room
PRODUCT DESCRIPTION
Yealink MCore Pro-MS Mini-PC for Microsoft Teams Rooms (MCore Pro-MS) - 2 Years Local Warranty
Yealink MCore Pro — The Compute Engine for Microsoft Teams Rooms
The Yealink MCore Pro-MS is a mini-PC designed specifically for video conference rooms, preloaded with Windows 11 IoT Enterprise and the Microsoft Teams Rooms application. An 11th-generation Intel Core i5 (i5-1135G7 / i5-1145G7E) with 8 GB DDR4 and a 128 GB SSD provides reliable, quiet room computing, while TPM 2.0, UEFI Secure Boot and Kernel DMA protection deliver the enterprise security Singapore IT teams expect.
Triple-Display Output and One-Cable Console Connection
Three HDMI outputs — one HDMI 2.1 supporting 5K 21:9 plus two HDMI 2.0 — drive up to three screens simultaneously, with CEC automatic screen wake. The dedicated MTouch port (RJ-45) connects a Yealink MTouch console over a single Cat5e cable, keeping the meeting table clean, and four USB 3.0 ports handle cameras and audio devices.
Compact, Secure, Centrally Managed
At just 168 × 197 × 39 mm (~1.2 L) and 0.69 kg, the MCore Pro tucks behind a display on the included mount bracket, with a built-in security lock slot. Wi-Fi 6-class wireless (802.11ax) and Bluetooth 5.2 are built in, and the estate is managed remotely for provisioning, monitoring and updates.
Ideal For
The MCore Pro-MS is ideally suited to organisations building or refreshing Microsoft Teams Rooms with Yealink UVC cameras and audio peripherals, from focus rooms to large boardrooms.
Yealink MCore Pro Datasheet — Technical Specifications
| Model | Yealink MCore Pro-MS |
| Part Number | MCore Pro-MS |
| Product Type | Mini-PC for Microsoft Teams Rooms video conference systems |
| Preload | Windows 11 IoT Enterprise x64 + Microsoft Teams Rooms app |
| Warranty | 2 Years Local Warranty (Singapore) |
| Processor | 11th Gen Intel Core i5 (i5-1135G7 / i5-1145G7E) |
| Memory | 8 GB (2 × 4 GB) DDR4 |
| Storage | 128 GB SSD |
| Security | TPM 2.0; UEFI Secure Boot; Kernel DMA; built-in security lock slot |
| Video Output | 1 × HDMI 2.1 (supports 5K 21:9) + 2 × HDMI 2.0 — up to 3 displays, CEC auto wake |
| USB | 4 × USB 3.0 Type-A |
| Ethernet | 1 × 10/100/1000M Gigabit port |
| Console Port | 1 × MTouch port (RJ-45), single-cable console connection |
| Wireless | Wi-Fi IEEE 802.11a/b/g/n/ac/ax; Bluetooth 5.2 |
| Power Supply | 19V / 4.74A, 90.06 W |
| Dimensions | 168 × 197 × 39 mm (≈1.2 L) |
| Weight | 0.69 kg |
Compatibility & Software Support
The MCore Pro-MS ships with Windows 11 IoT Enterprise and the Microsoft Teams Rooms application, pairing with Yealink MTouch consoles (via the dedicated RJ-45 MTouch port), UVC cameras, and Yealink room audio over USB 3.0. The MCore Pro platform is also offered with Zoom Rooms preload (MCore Pro-ZR variant) and supports remote provisioning, monitoring and updates through centralised device management.
Package Contents & MCore Pro Ordering Information
1 × MCore Pro mini-PC, 1 × power supply, 1 × mount bracket, 3 × HDMI cables, 1 × Quick Start Guide.
| MCore Pro-MS | i5 / 8 GB / 128 GB — Microsoft Teams Rooms (this model) |
| MCore Pro-ZR | i5 / 8 GB / 128 GB — Zoom Rooms |
| MCore Pro-i701-MS | i7 / 16 GB / 256 GB — Microsoft Teams Rooms |
| MCore Pro-i701-ZR | i7 / 16 GB / 256 GB — Zoom Rooms |
| MCoreKit-C5U-MS | Base kit with MTouch console — Teams Rooms |
| MCoreKit-C5U-ZR | Base kit with MTouch console — Zoom Rooms |
Datasheet & Downloads
Frequently Asked Questions — Yealink MCore Pro-MS
What is the difference between the MCore Pro-MS and MCore Pro-ZR?
Hardware is identical; the software preload differs. The MS ships with Microsoft Teams Rooms, while the ZR ships configured for Zoom Rooms.
When should I choose the i701 version instead?
The MCore Pro-i701-MS upgrades to an Intel Core i7 with 16 GB RAM and a 256 GB SSD — recommended for demanding rooms with multiple cameras, advanced AV processing or triple-display layouts.
How many displays can it drive?
Up to three simultaneously: one HDMI 2.1 output (supporting 5K 21:9 ultrawide) and two HDMI 2.0 outputs, with CEC automatic screen wake.
How does the MTouch console connect?
Through the dedicated MTouch RJ-45 port over a single Cat5e cable — no separate power outlet needed at the meeting table.
Is it secure enough for enterprise deployment?
Yes — TPM 2.0, UEFI Secure Boot and Kernel DMA protection are supported, with a physical security lock slot on the chassis.
Does the MCore Pro-MS come with local warranty in Singapore?
Yes. Every MCore Pro-MS sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
