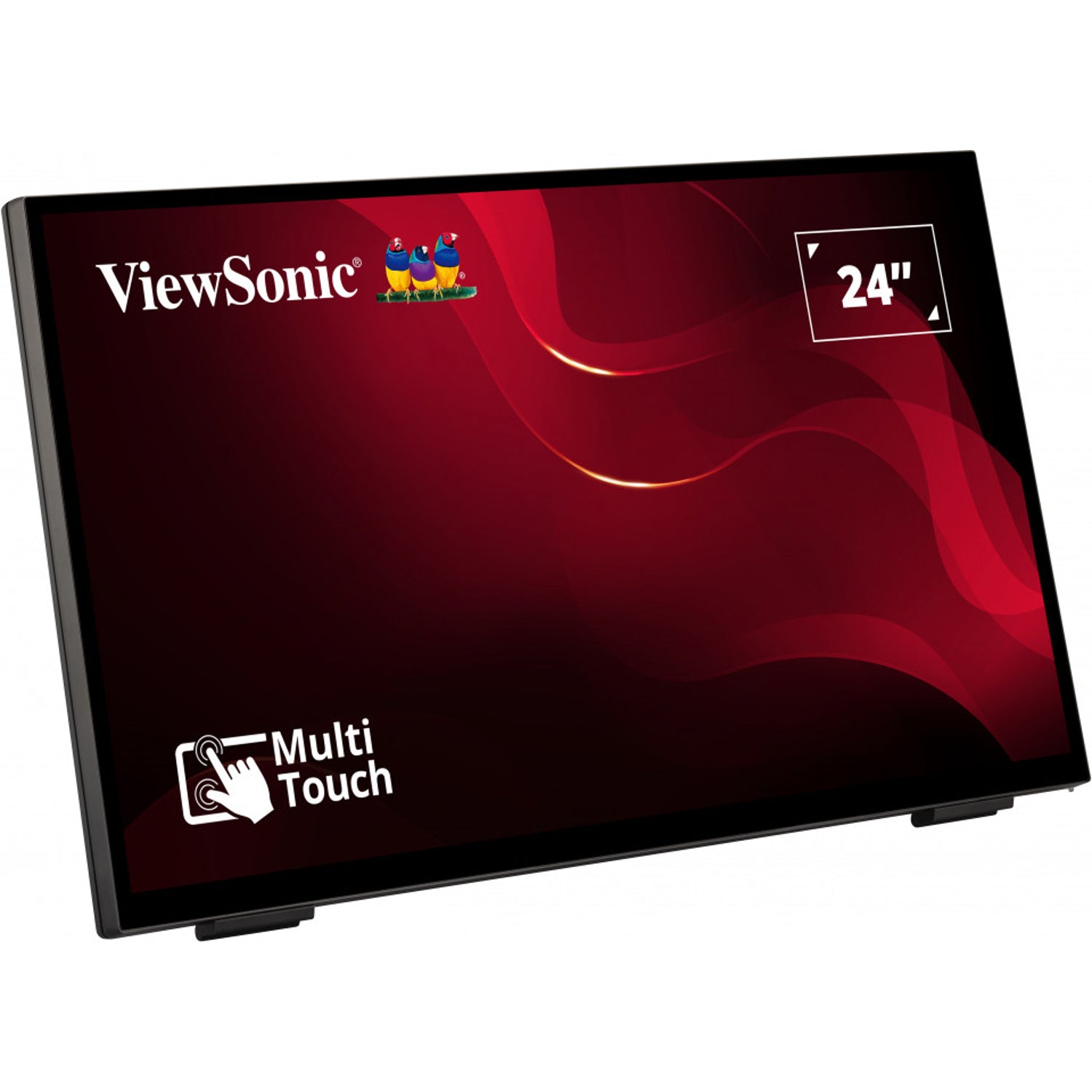

ViewSonic TD2465 24" Full HD Frameless PCAP Touch Monitor
PRODUCT DESCRIPTION
ViewSonic TD2465 24" Frameless Touch Monitor with 10 Points PCAP - 3 Years Local Warranty
10-Point PCAP Touch
Intuitive, responsive touch with highly sensitive projected capacitive technology.
Wet Hand and Glove Touch
Operates with wet hands, several glove types and conductive styluses.
Pen Support with Palm Rejection
Full support for multiple pen types with palm rejection for natural writing.

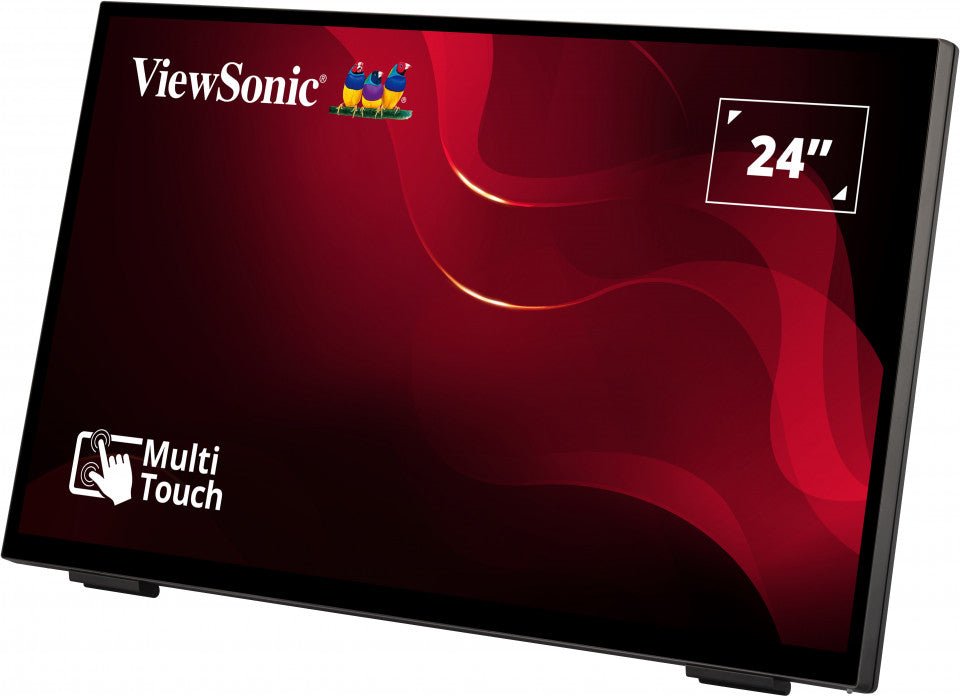

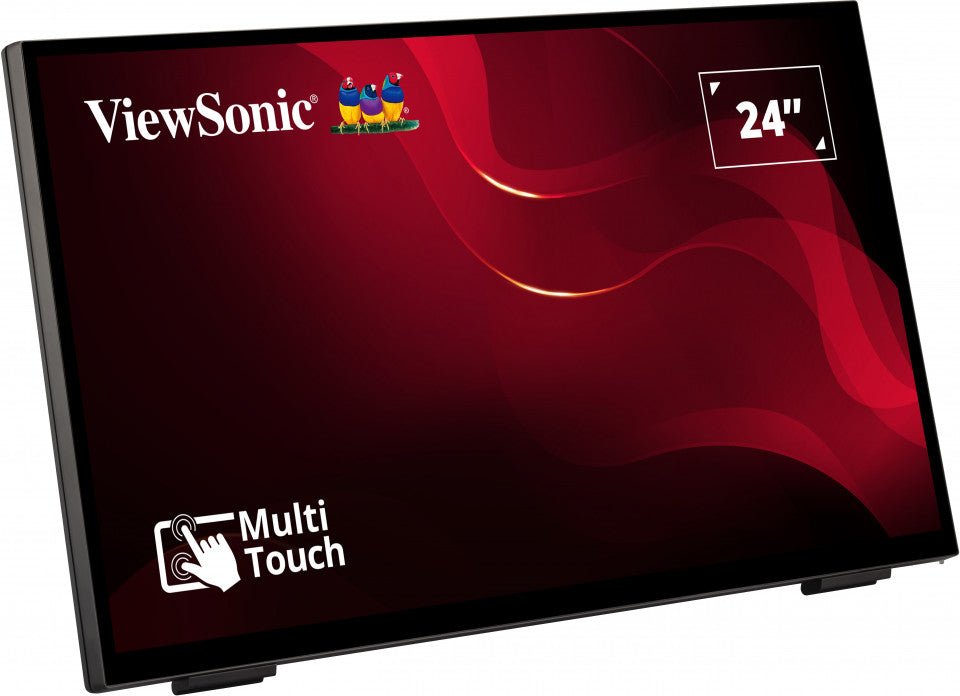

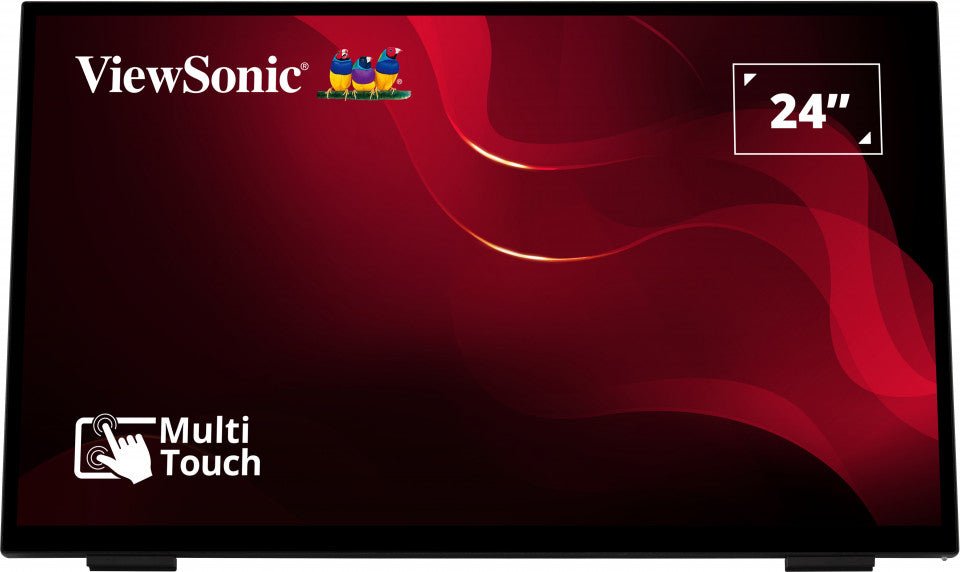

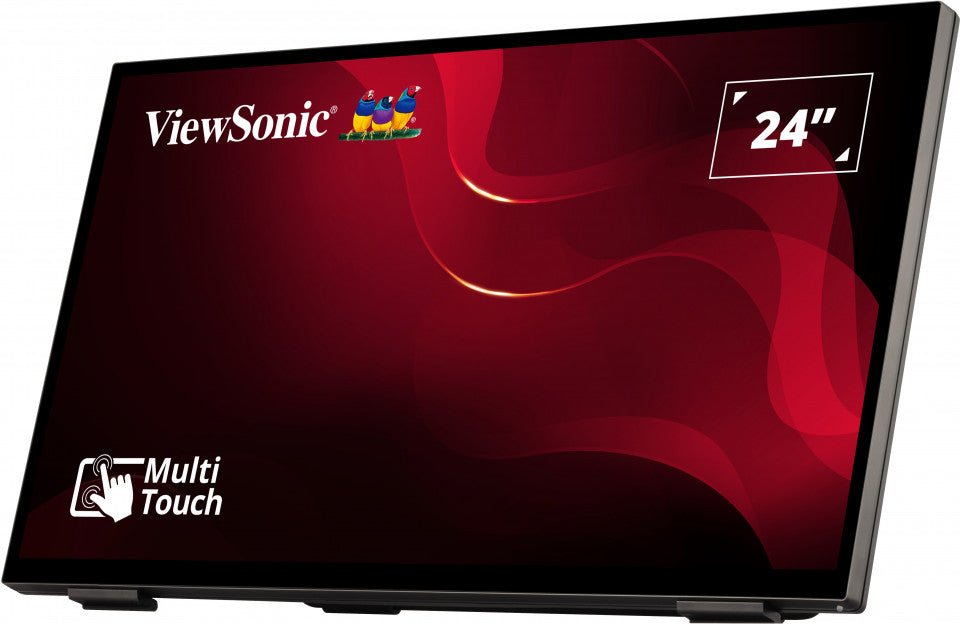

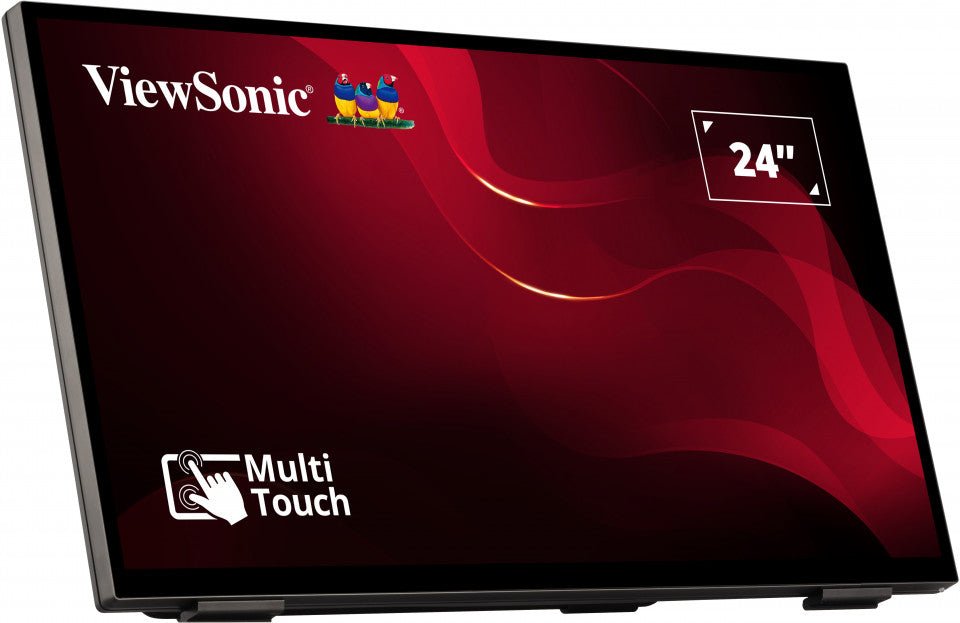

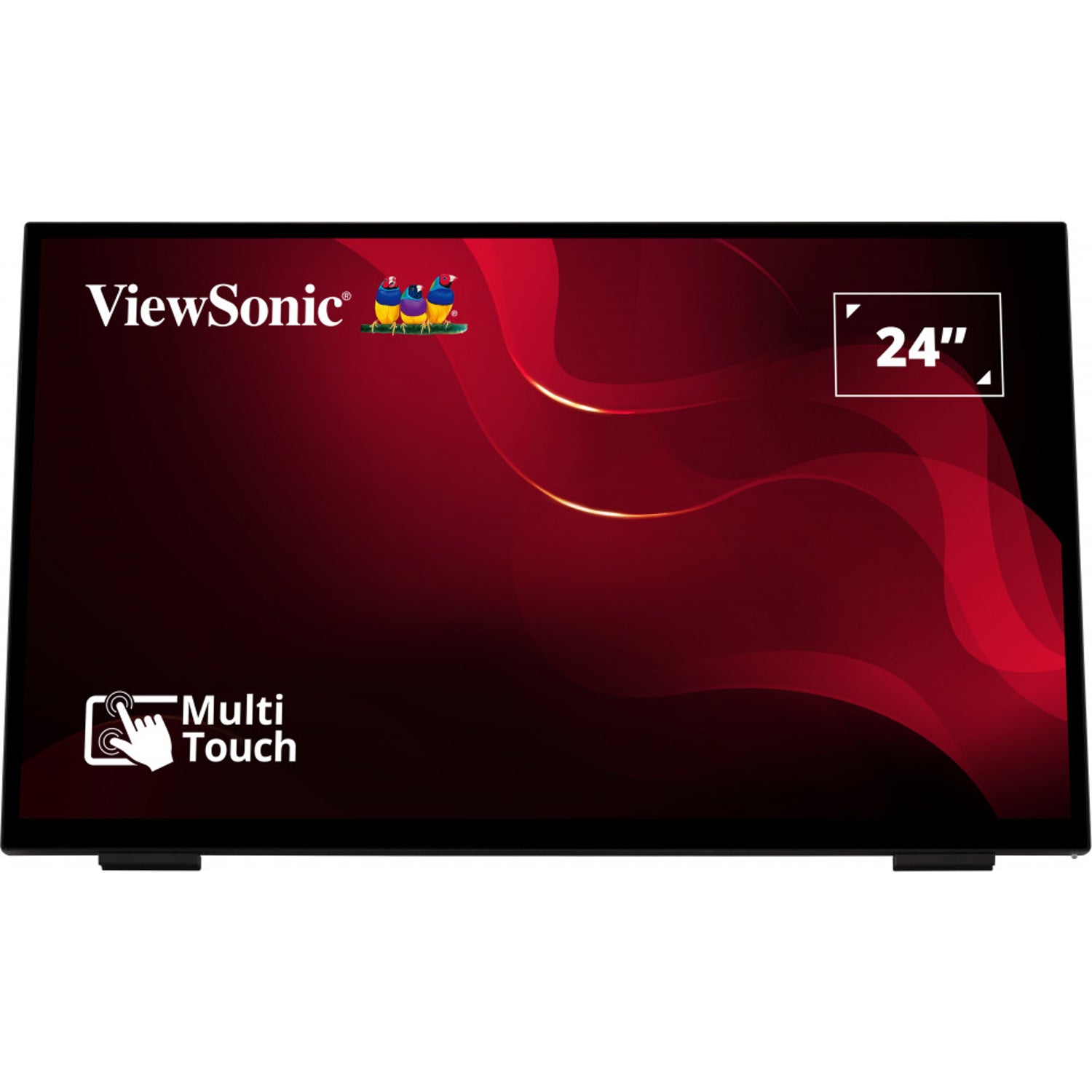

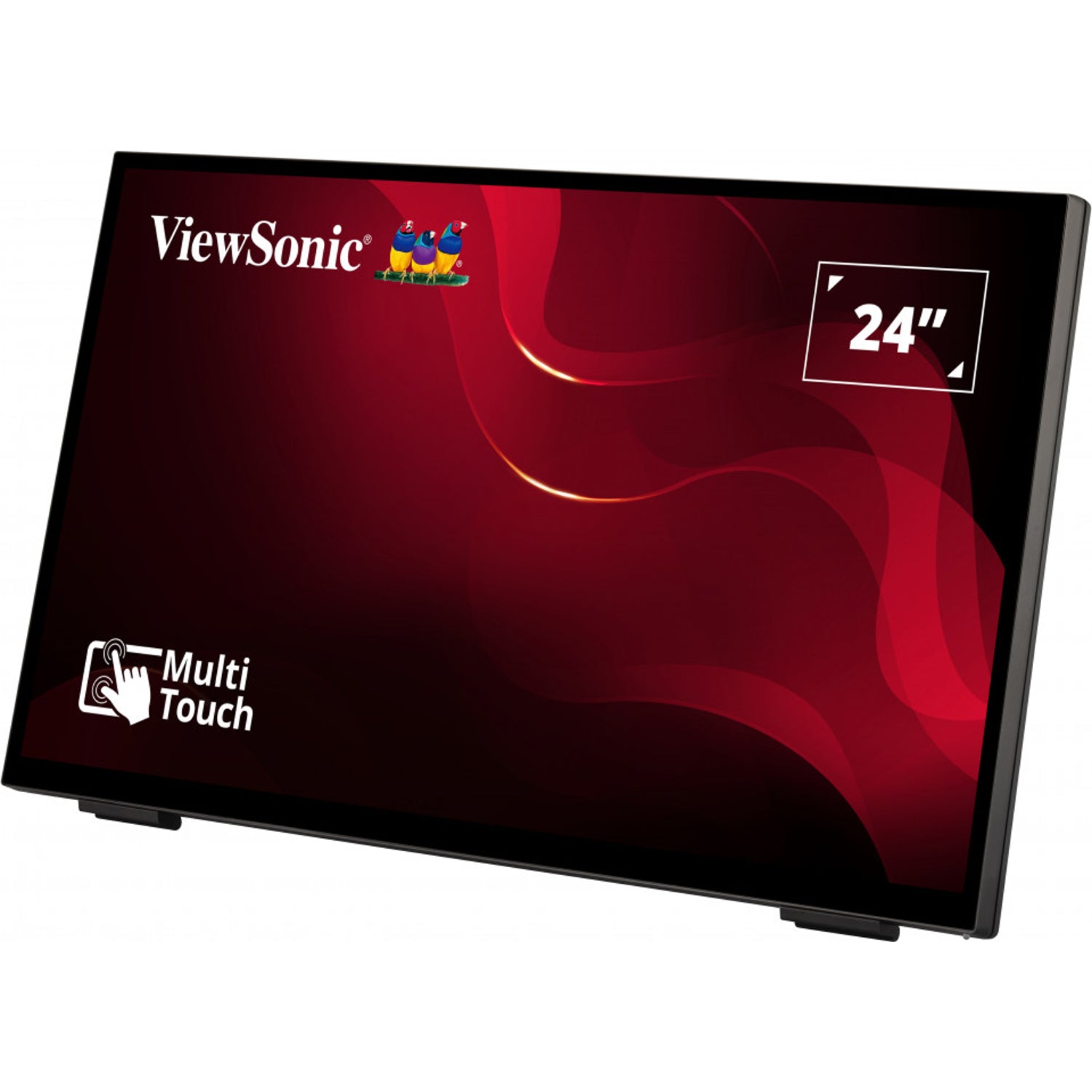

4-Side Frameless, Kiosk-Ready

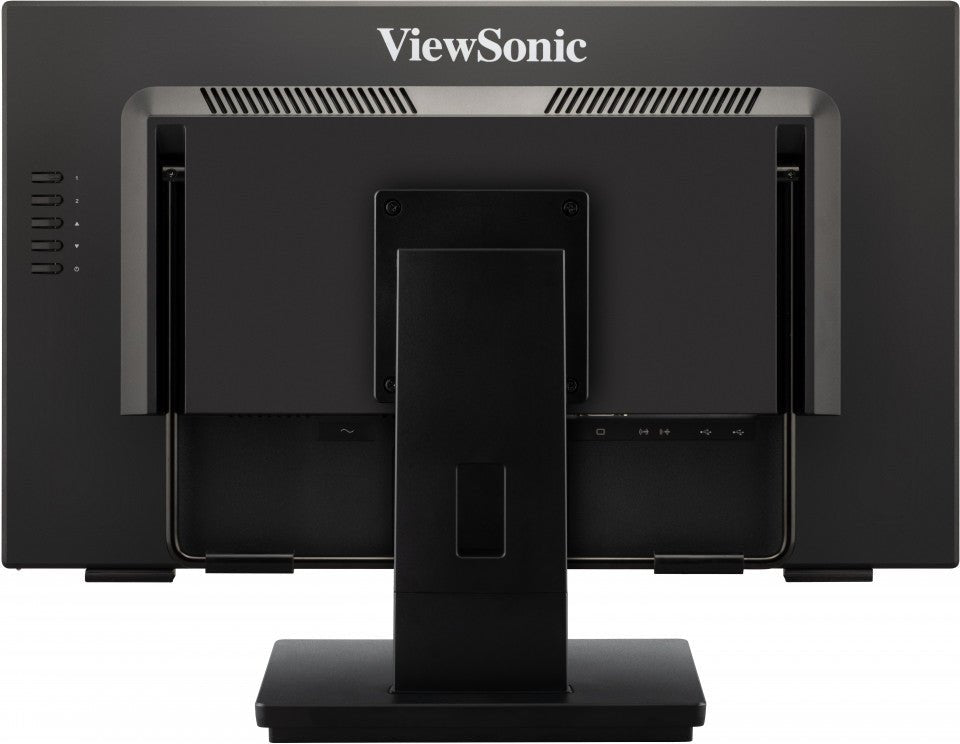

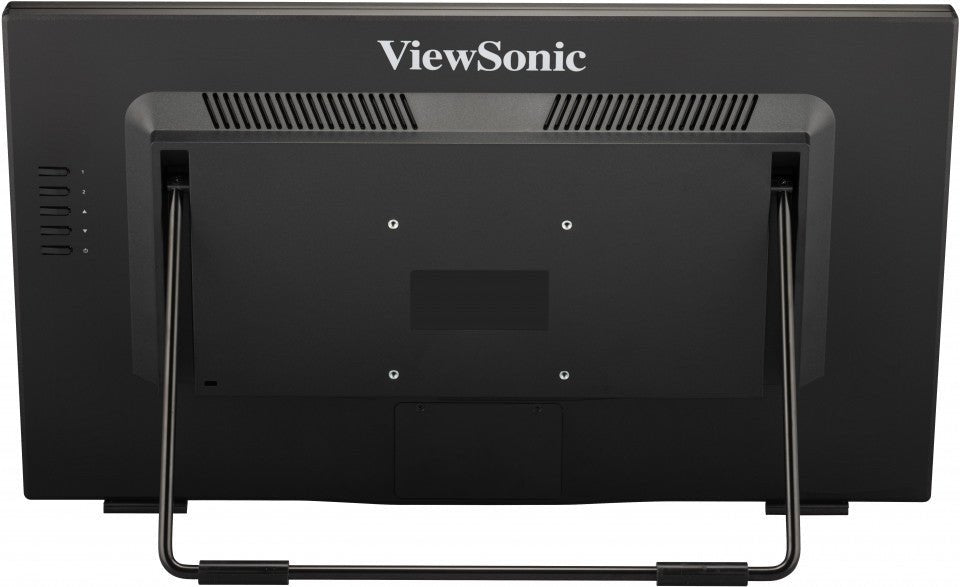

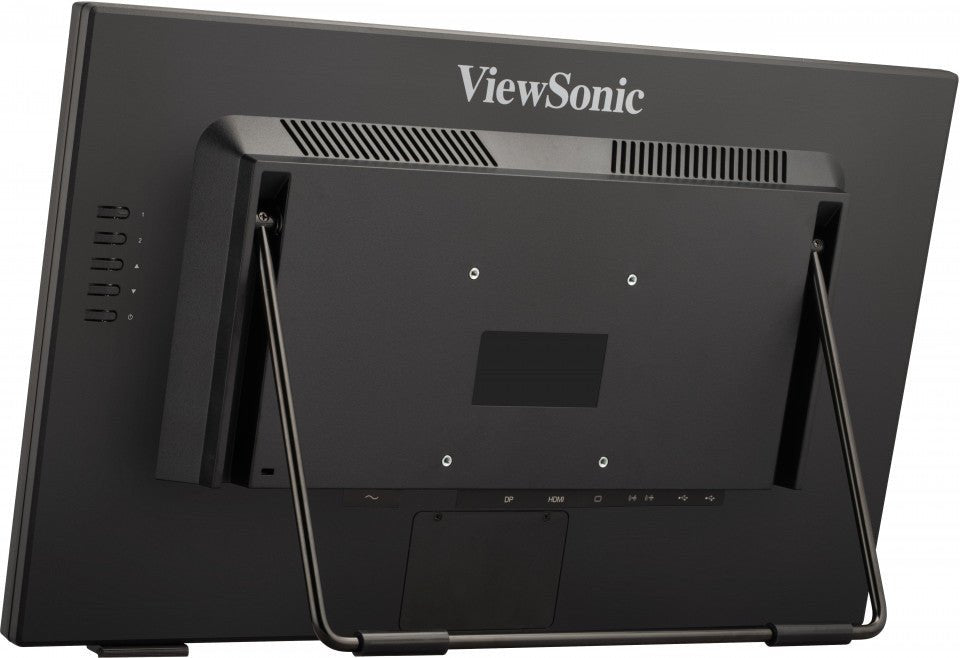

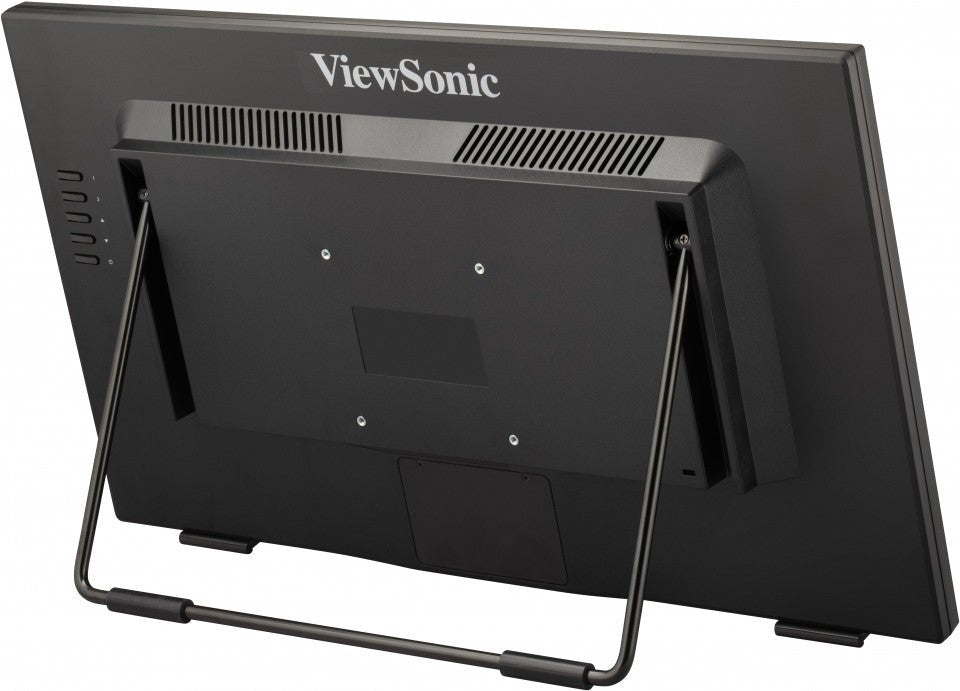

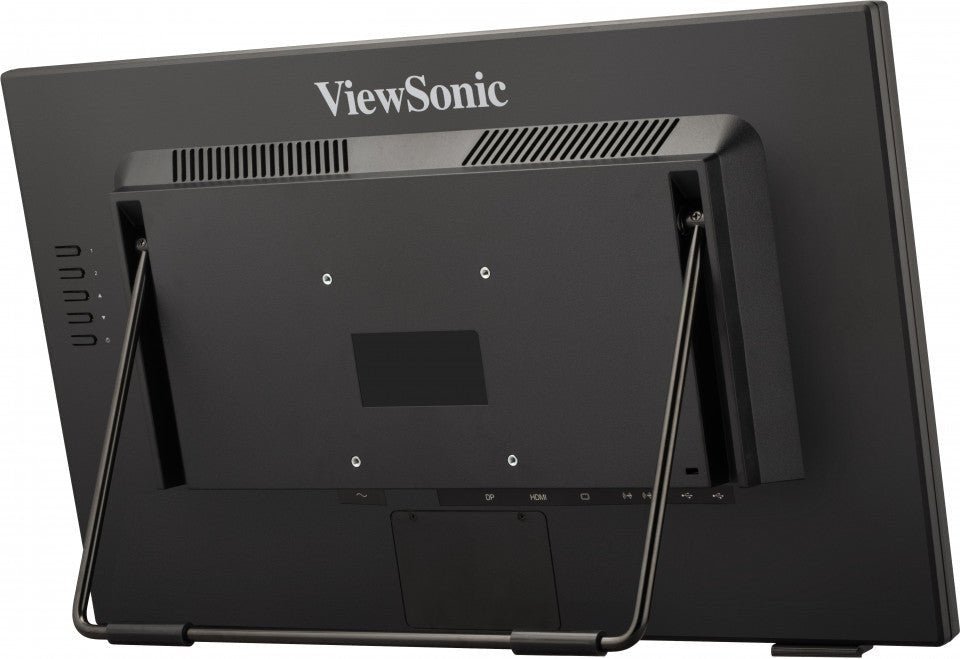

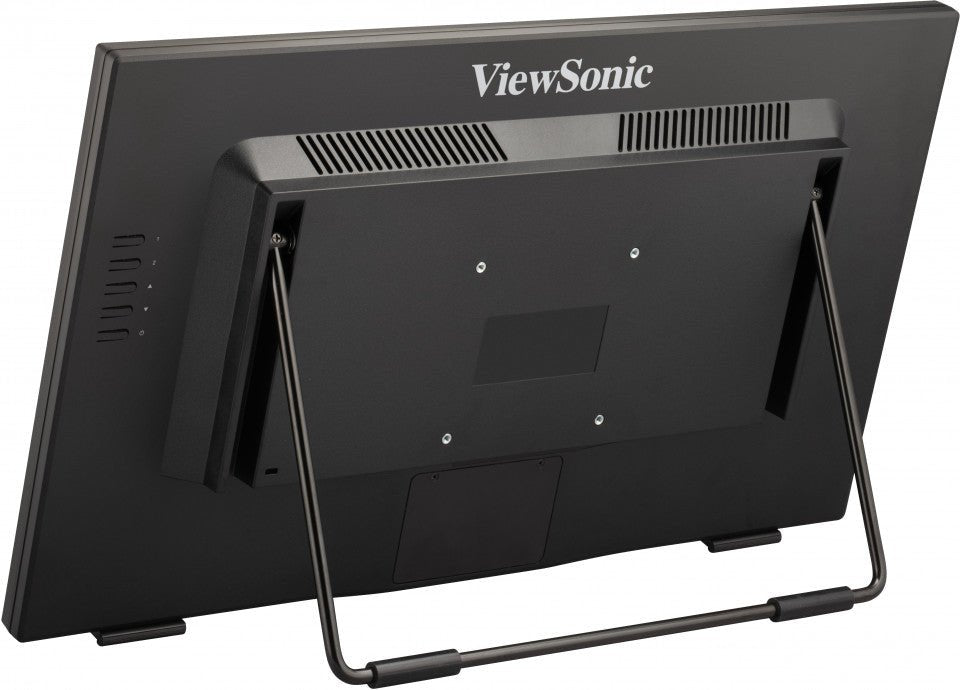

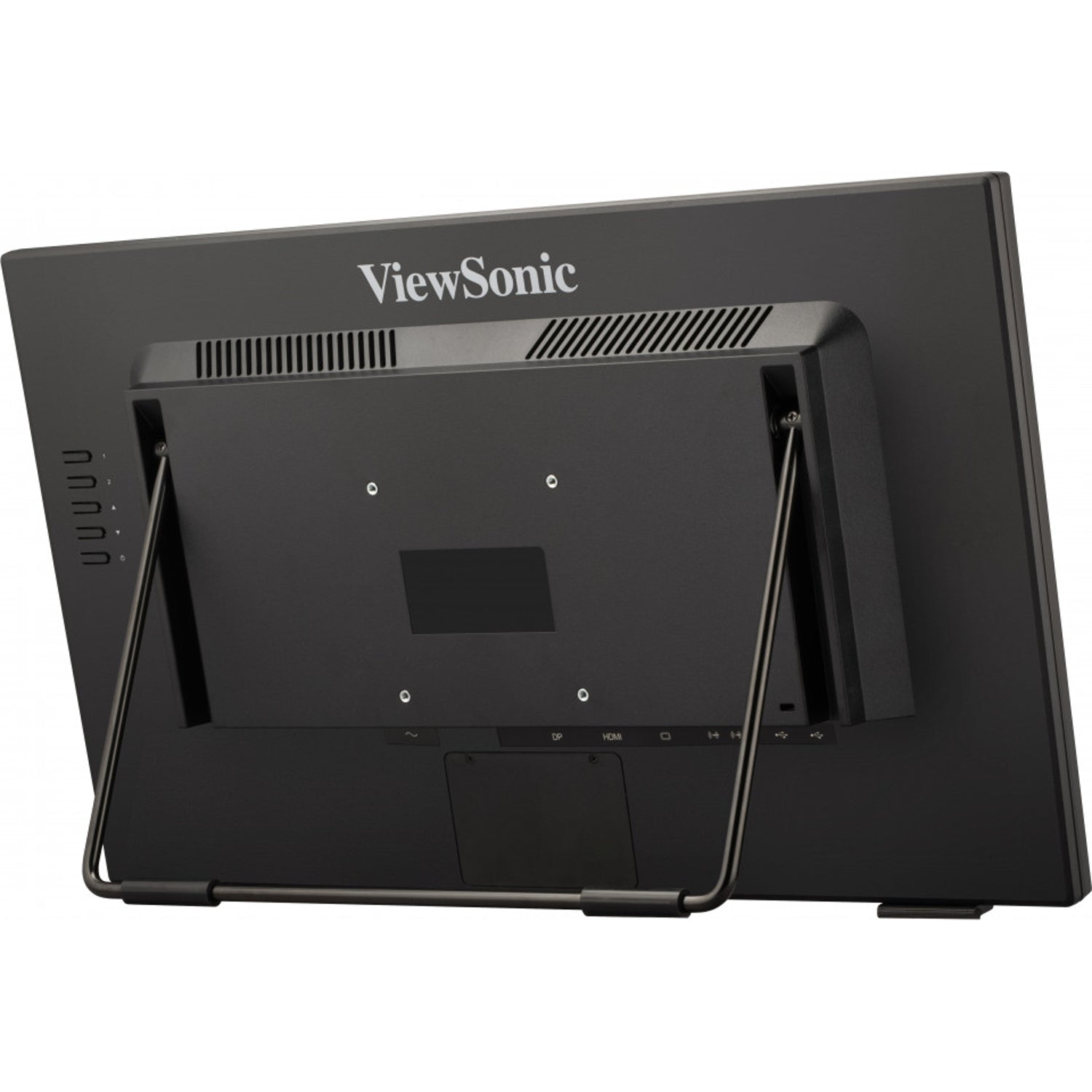

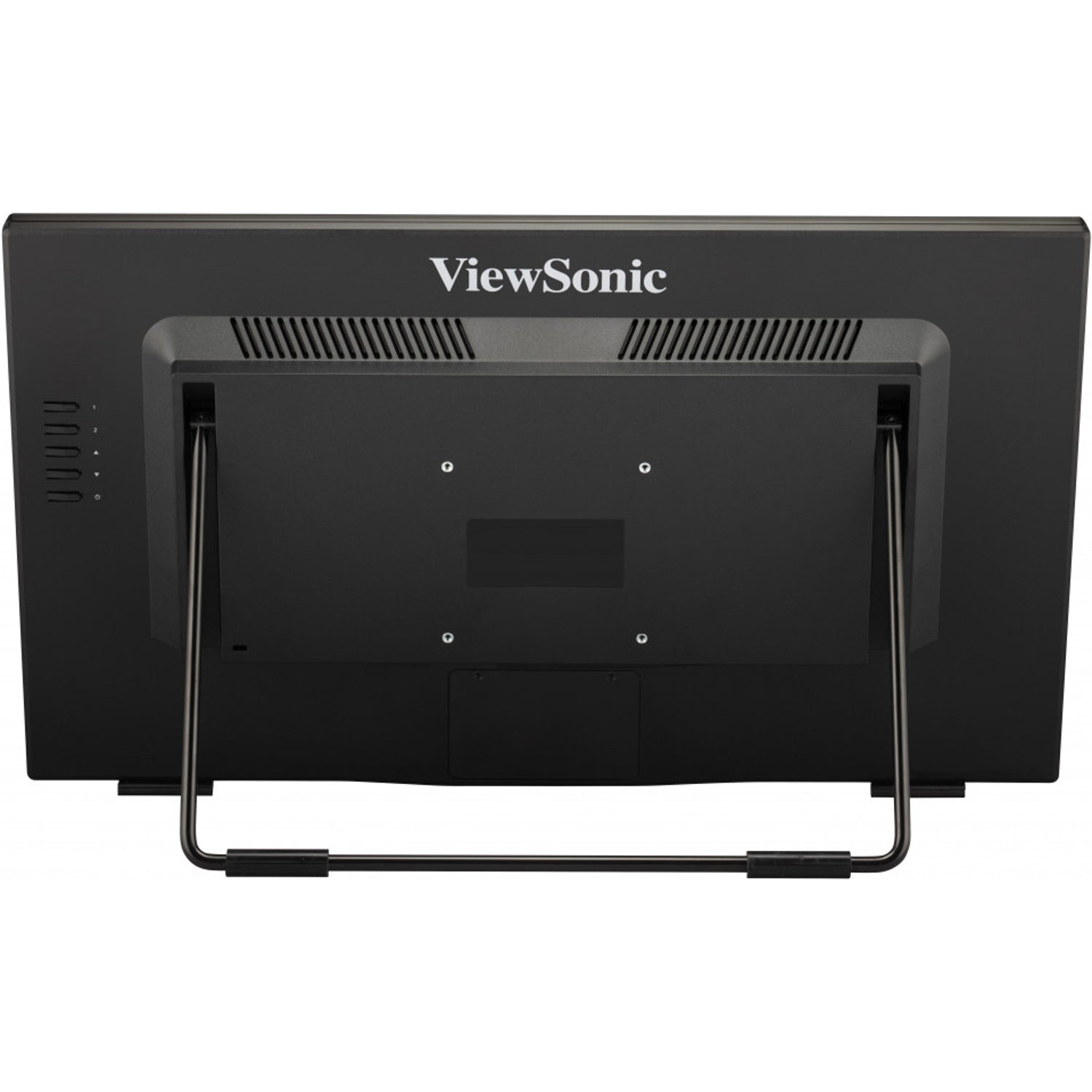

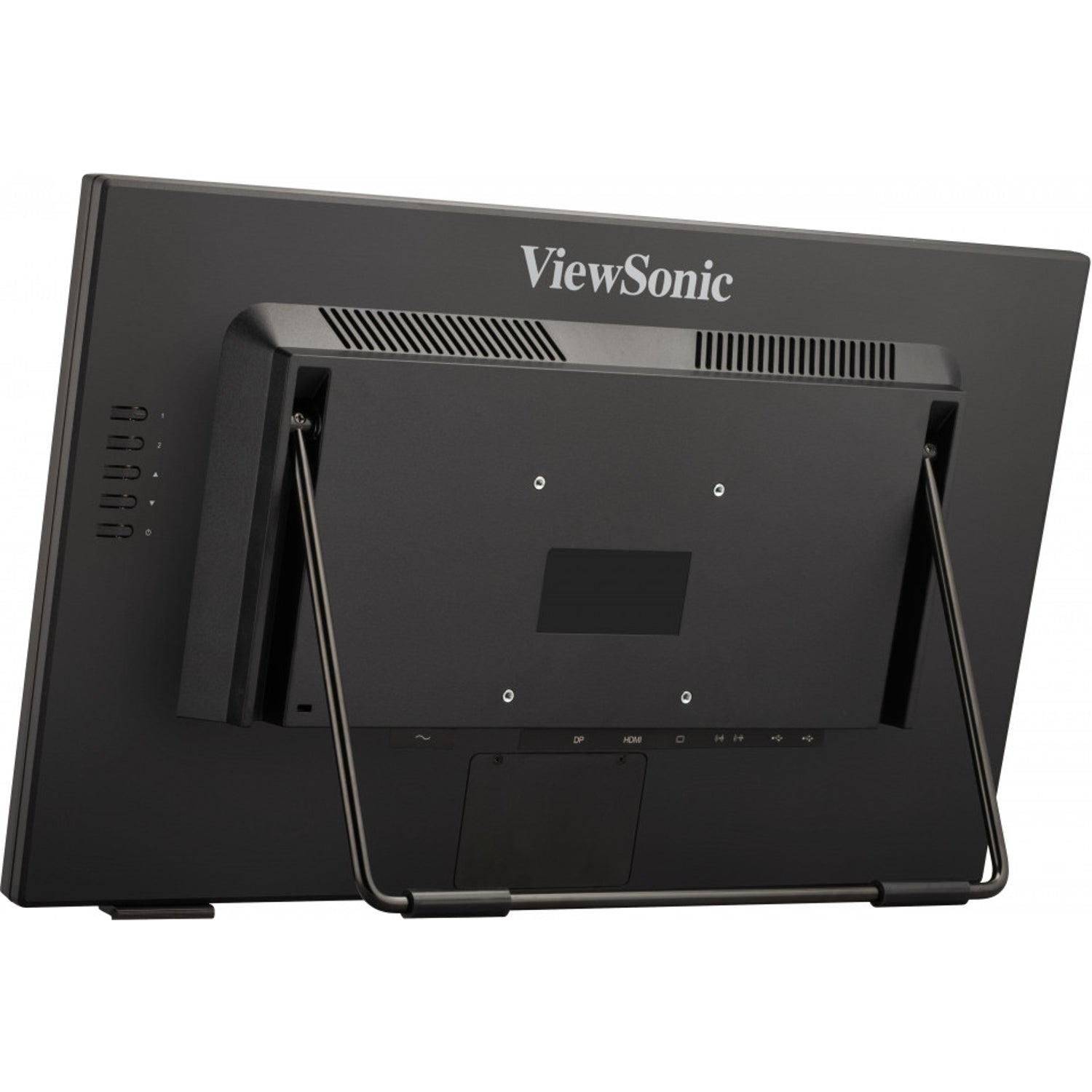

Seamless attachment into kiosk designs, with book stand (15°–70°) and classic stand included.
Need touch monitors for a retail counter, kiosk, classroom or office rollout? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic TD2465 Datasheet — Technical Specifications
General
| Product Name | ViewSonic TD2465 24" Frameless Touch Monitor with 10 Points PCAP |
| Model | TD2465 |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Screen Size | 24" (23.8" viewable) |
| Panel Type | VA |
| Resolution | 1920 x 1080 (Full HD) |
| Refresh Rate | 100 Hz |
| Response Time | 7 ms (GTG) |
| Brightness | 250 cd/m² (typ) |
| Contrast Ratio | 4,000:1 static (typ); 20M:1 dynamic |
| Colours | 16.7M, 8-bit (6-bit + Hi-FRC) |
| Colour Gamut | NTSC 86%; sRGB 122% (typ) |
| Viewing Angles | 178° H / 178° V |
| Pixel Size | 0.275 x 0.275 mm |
| Backlight Life | 30,000 hours (min) |
Touch
| Touch Technology | Projected capacitive, 10-point multi-touch |
| Input | Finger, wet hand, gloves, conductive stylus; palm rejection |
| Surface | Glossy, 7H hard coating |
| Cover Glass Thickness | 1.2 mm |
| Touch Interface | USB 3.2 Type-B |

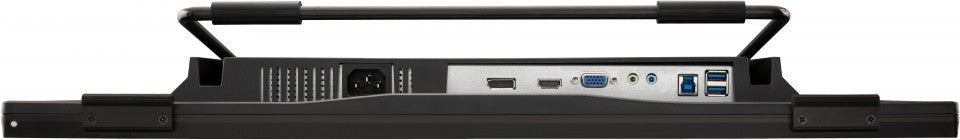

Connectivity
| HDMI | 1 x HDMI 1.4 |
| DisplayPort | 1 (v1.2) |
| VGA | 1 |
| USB | 2 x USB 3.2 Type-A downstream; 1 x USB 3.2 Type-B upstream |
| Audio | 1 x 3.5 mm in; 1 x 3.5 mm out |
| Speakers | 2 x 2 W |
| Kensington Lock Slot | 1 |
Power
| Voltage | AC 100–240 V |
| Consumption | 24 W typical; 26 W max; 0.5 W standby |
| Eco Mode | 20 W (conserve) / 22 W (optimised) |
| Power Supply | Internal |
Operating Conditions
| Temperature | 0–40 °C |
| Humidity (non-condensing) | 20%–90% |
Physical & Ergonomics
| Dimensions with Stand (W x H x D) | 550 x 401 x 198 mm |
| Dimensions without Stand | 550 x 326 x 49 mm |
| Net Weight | 5.4 kg (4.4 kg without stand) |
| Packaging (W x H x D) | 647 x 426 x 138 mm |
| Gross Weight | 6.7 kg |
| Tilt (classic stand) | -5° / 20° |

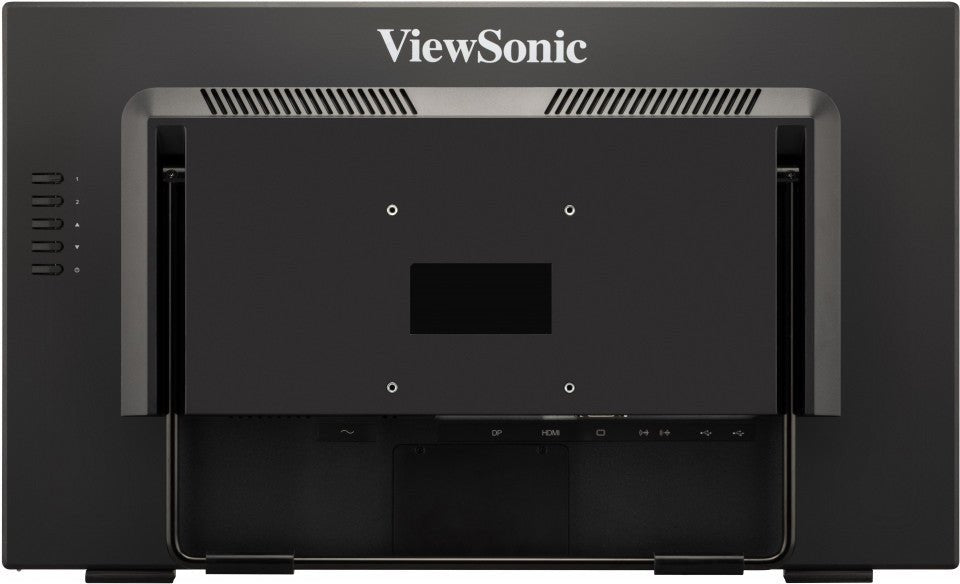

| VESA | 100 x 100 mm |
Compatibility & Software Support
Devices
Windows 10/11 certified and macOS tested at 1920 x 1080. Connect video by HDMI, DisplayPort or VGA plus the USB-B cable for touch.
Software
ViewSonic Touch Controller software gives shortcuts for volume, brightness, contrast and touch modes (Windows, plus a Linux installer); vTouch is available for macOS.
Package Contents & ViewSonic TD Series Ordering Information
In the Box
TD2465 monitor, power cable (IEC C13), HDMI cable (v1.4), USB A/B cable (v3.2), quick start guide.
ViewSonic TD Series Touch Monitors
| Model | Key feature |
| TD1617A-2K | 16" WQXGA IPS 165 Hz portable, 10-point touch, 2 x USB-C |
| TD1630-3 | 16" (15.6") WXGA, 10-point PCAP, HDMI + VGA |
| TD1655 | 16" (15.6") FHD IPS portable, 10-point touch, USB-C, pen |
| TD2223-2 | 22" (21.5") FHD VA, 10-point IR touch, 7H glass |
| TD2230 | 22" (21.5") FHD IPS, 10-point PCAP, frameless, DP/HDMI/VGA |
| TD2423 | 24" (23.6") FHD VA 75 Hz, 10-point IR touch, 7H glass |
| TD2455 | 24" (23.8") FHD IPS in-cell PCAP, USB-C 60 W, stylus |
| TD2465 (this listing) | 24" (23.8") FHD VA 100 Hz, frameless PCAP, wet-hand/glove touch |
| TD2760 | 27" FHD VA, 10-point PCAP, fold-flat stand, RS232 |
| TD3207 | 32" (31.5") FHD open frame PCAP, IP65 front, 24/7, 450 nits |
Datasheet & Downloads
| ViewSonic datasheet | TD2465 Datasheet |
| User guide | TD2465 User Guide (PDF, English) |
| Quick start guide | TD2465 Quick Start Guide (PDF) |
| ViewSonic product page | TD2465 on viewsonic.com |
| Touch Controller software | Touch Controller for Windows |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting TD2465.
Frequently Asked Questions — ViewSonic TD2465
Does touch work with wet hands or gloves?
Yes, the PCAP touch supports wet hands, several glove types and conductive styluses.
Is it suitable for kiosks?
Yes. The 4-side frameless design mounts seamlessly into kiosk enclosures, and it is VESA 100 x 100 mm compatible.
Which stand is included?

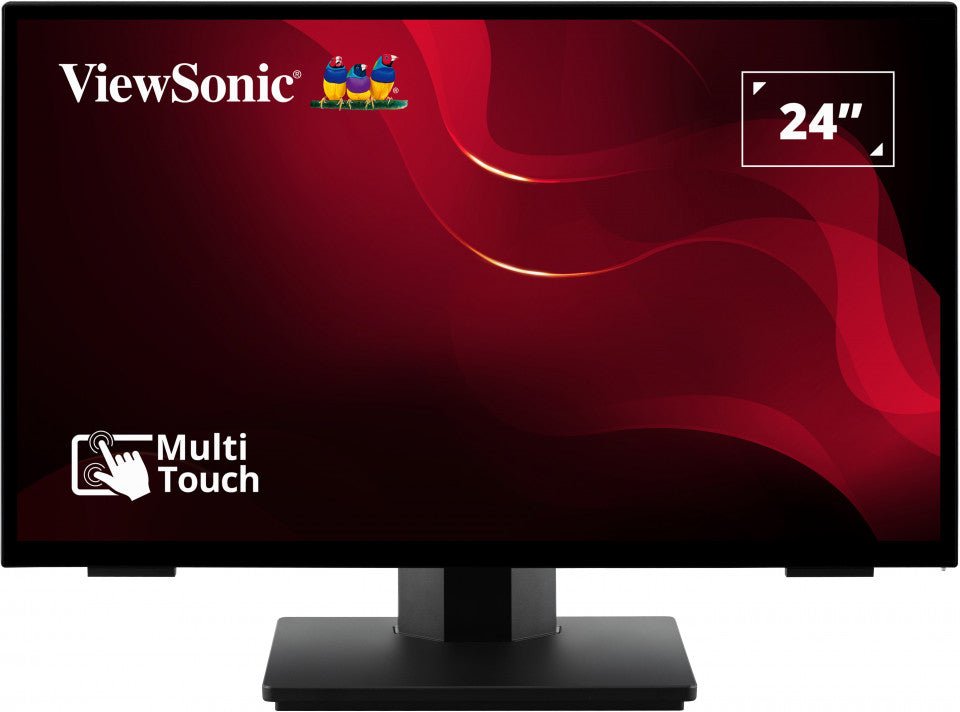

Both a book stand (15°–70° tilt) and a classic stand are included.
What warranty do I get?
3 years on-site limited warranty on parts and labour in Singapore. Supplied by SourceIT with a GST invoice.
