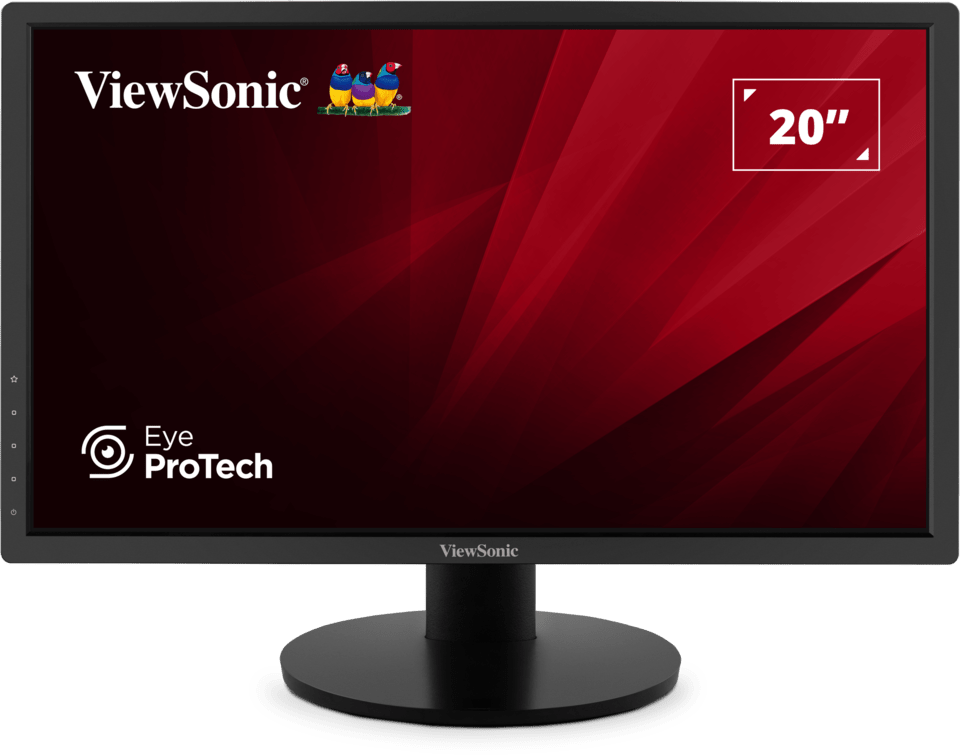

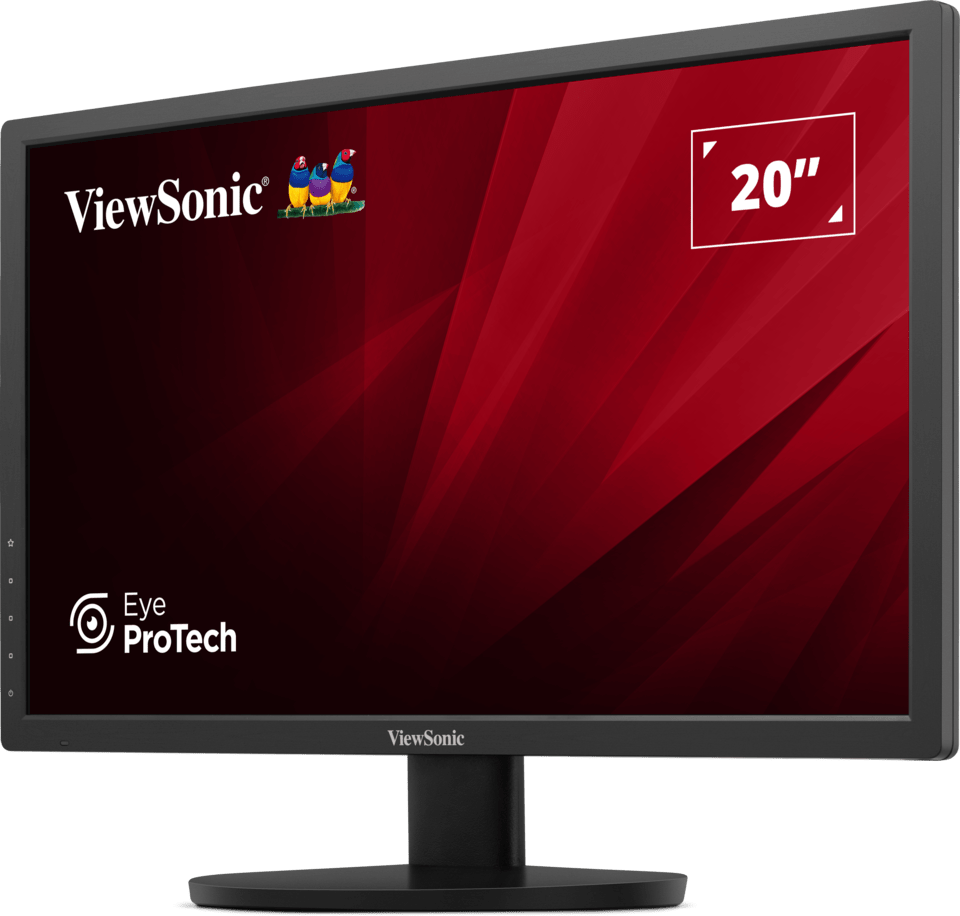

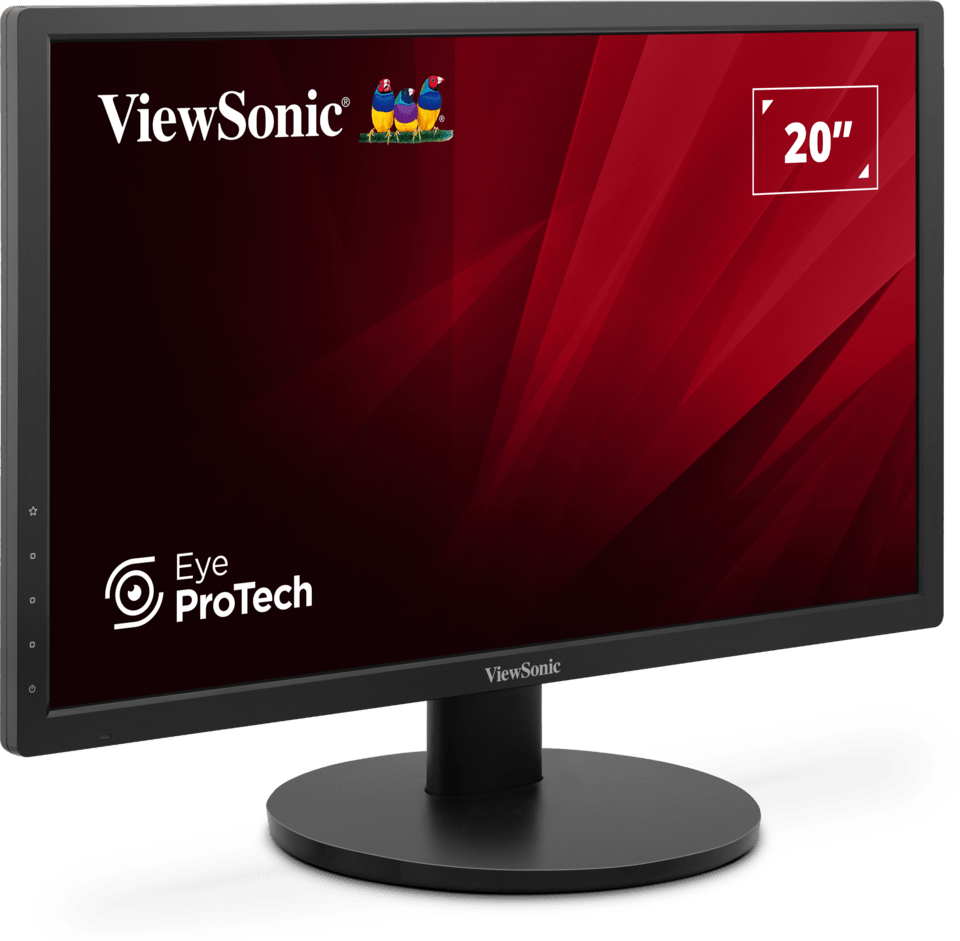

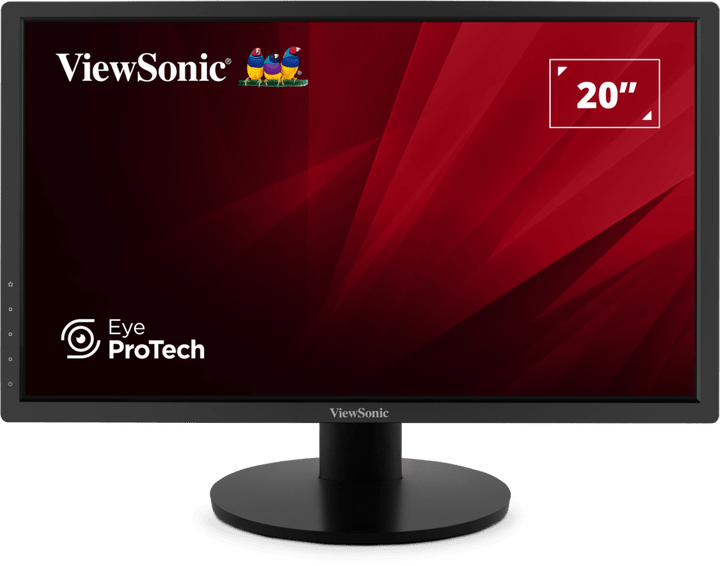

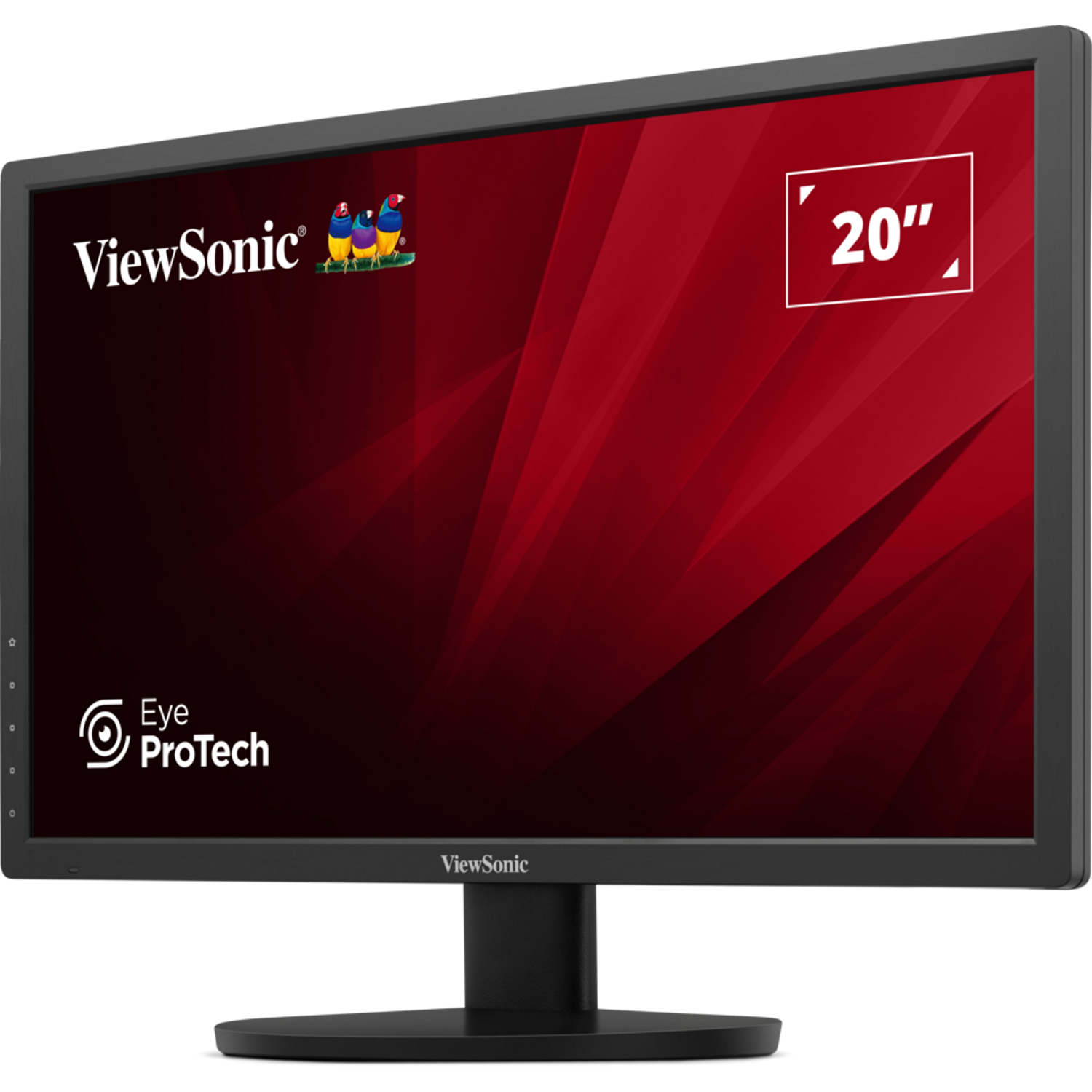

ViewSonic VA2025-H 19.5" HD+ Monitor with HDMI & VGA
PRODUCT DESCRIPTION
ViewSonic VA2025-H 19.5" HD+ 1600 x 900 Monitor with HDMI & VGA - 3 Years Local Warranty
Compact Screen for Everyday Work

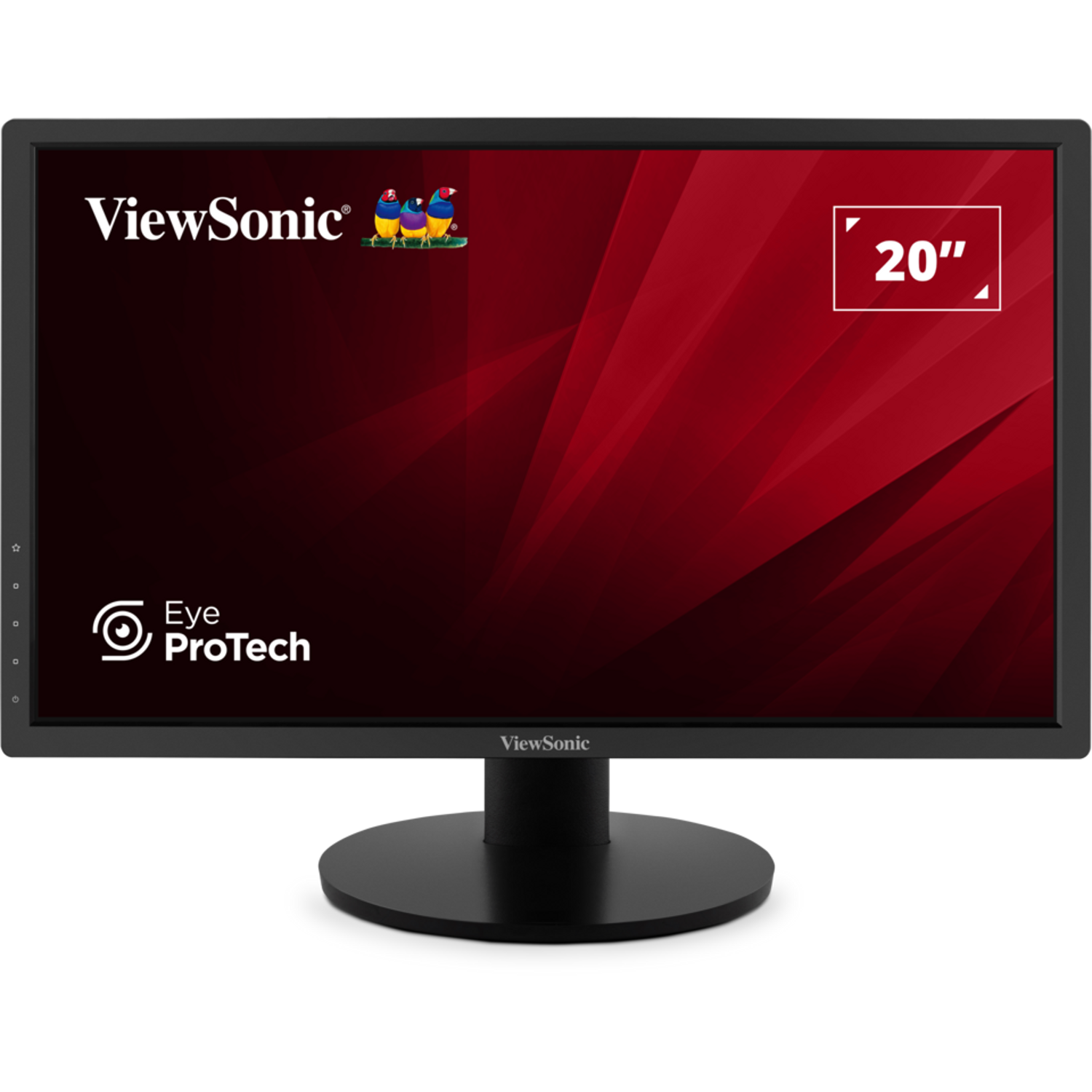

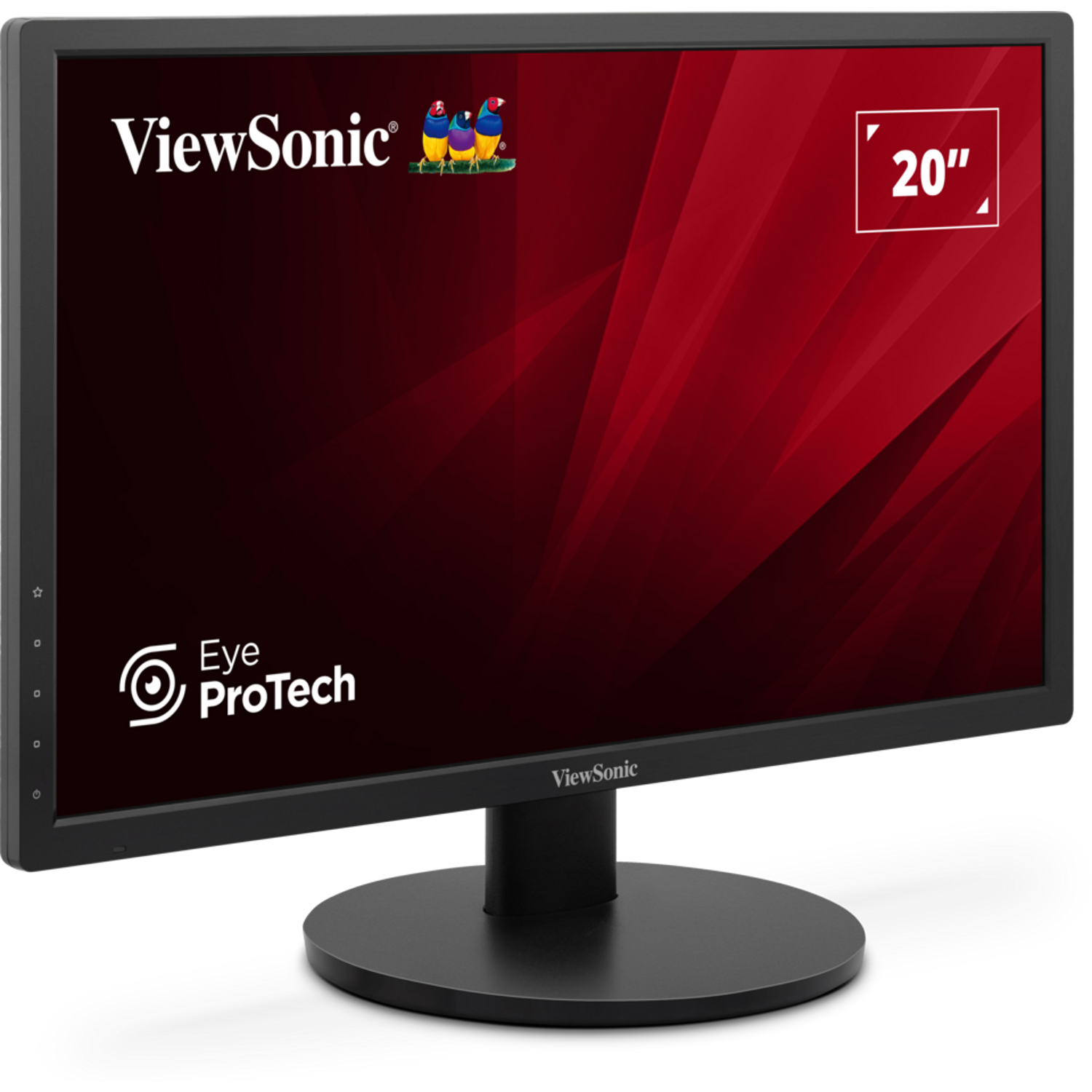

The ViewSonic VA2025-H is a 19.5" viewable 16:9 monitor with 1600 x 900 (HD+) resolution, a practical fit for reception counters, POS stations, labs and space-limited desks.

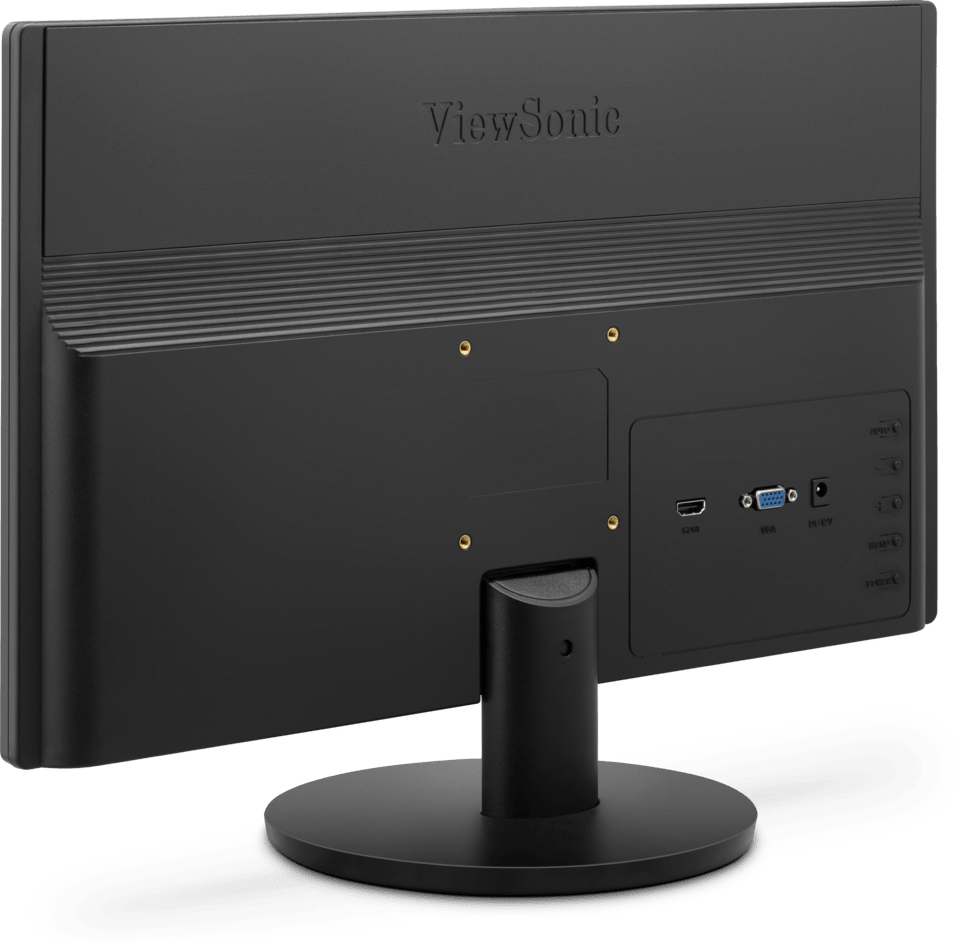

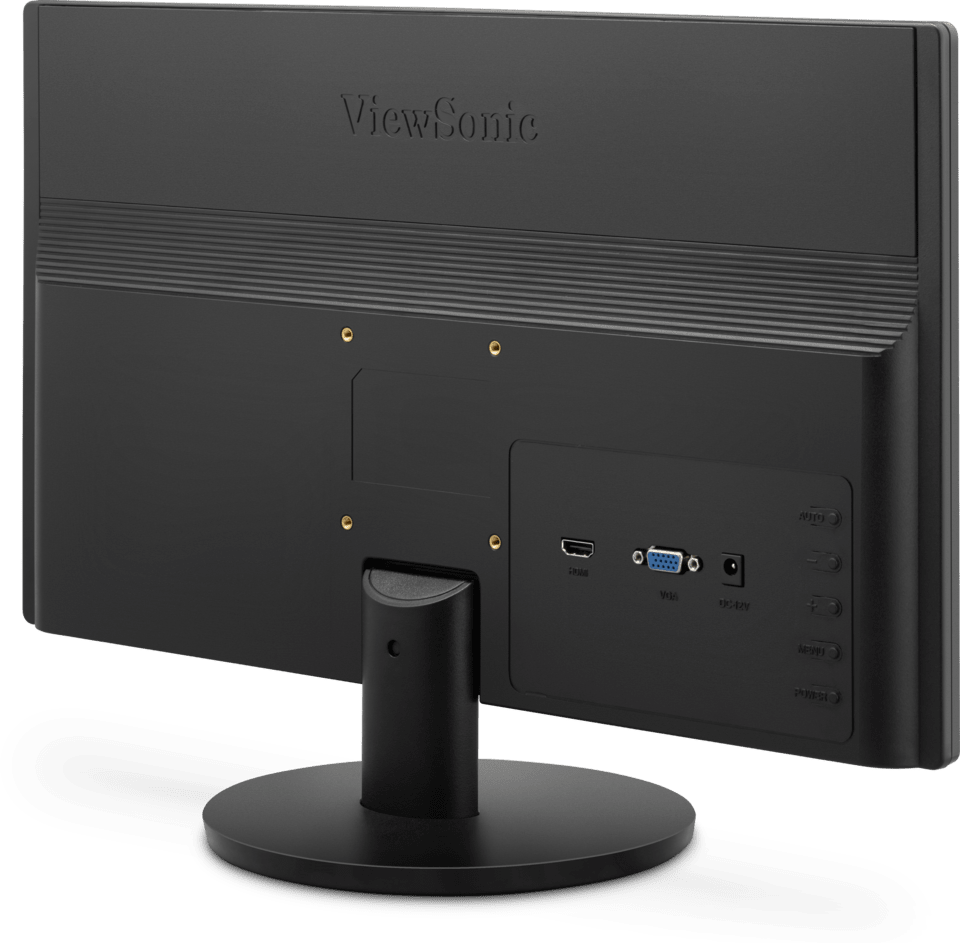

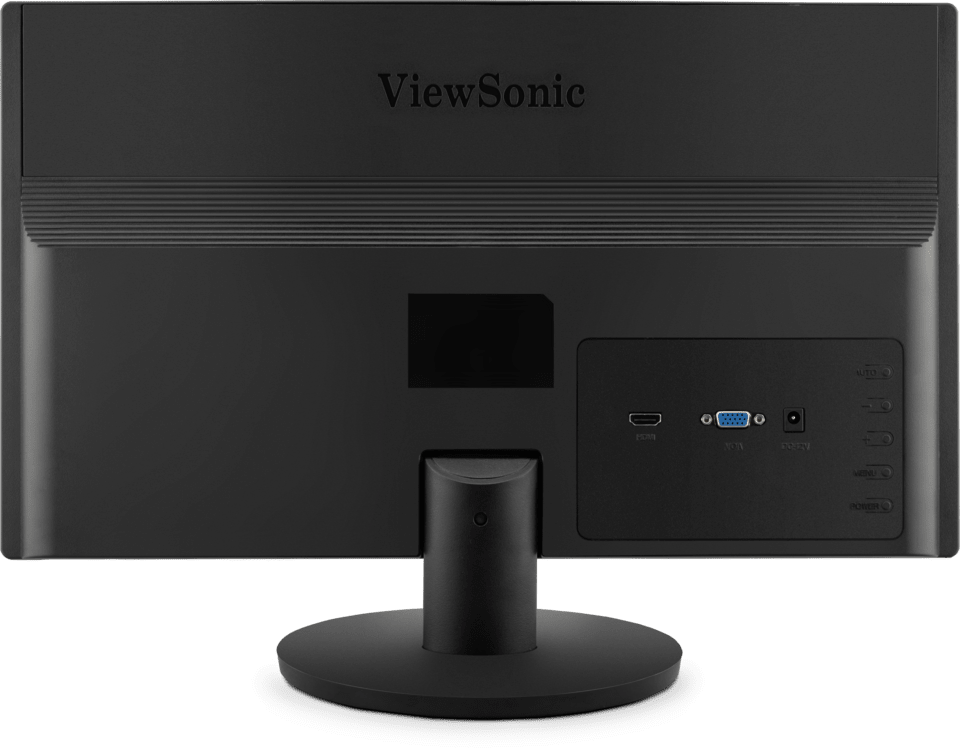

HDMI and VGA

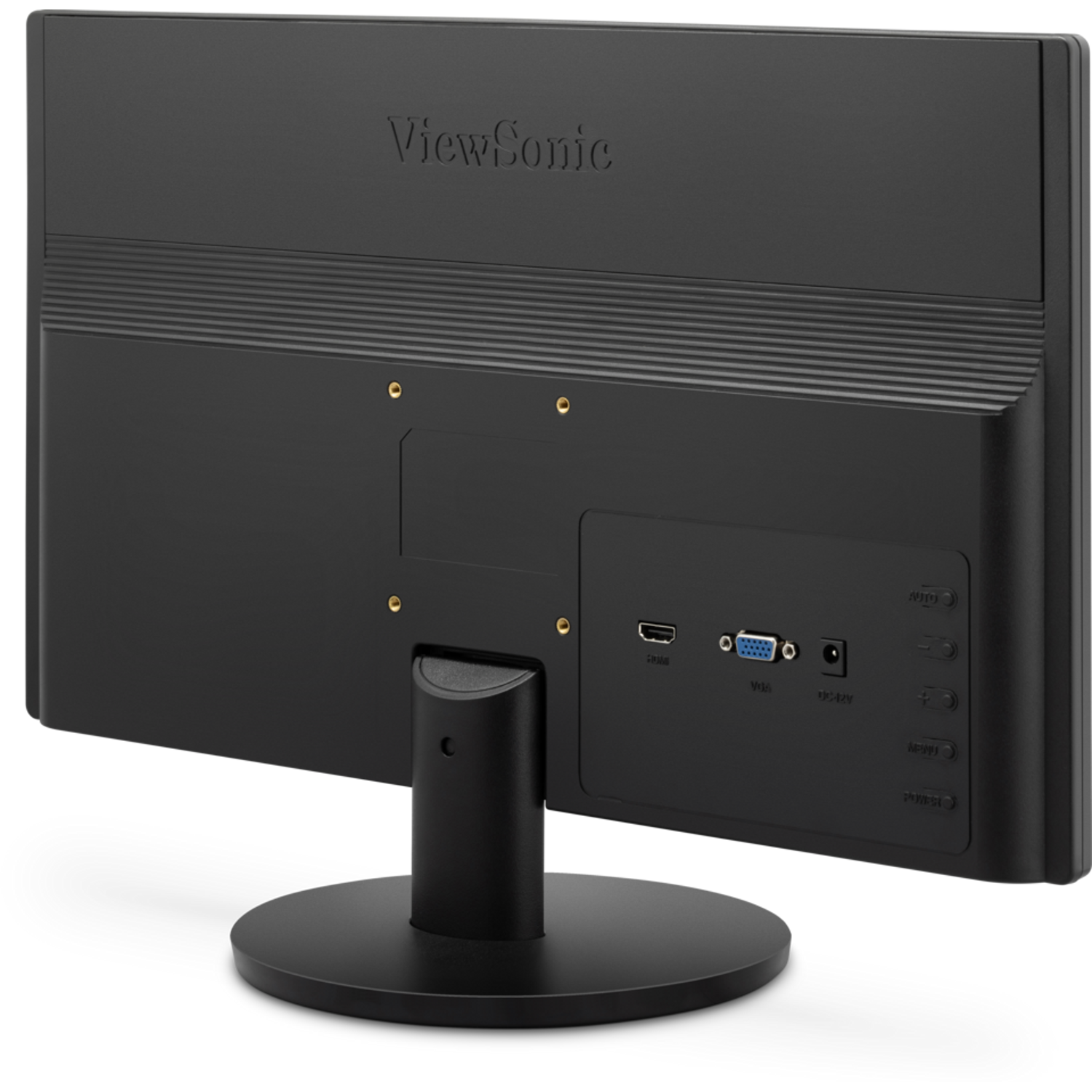

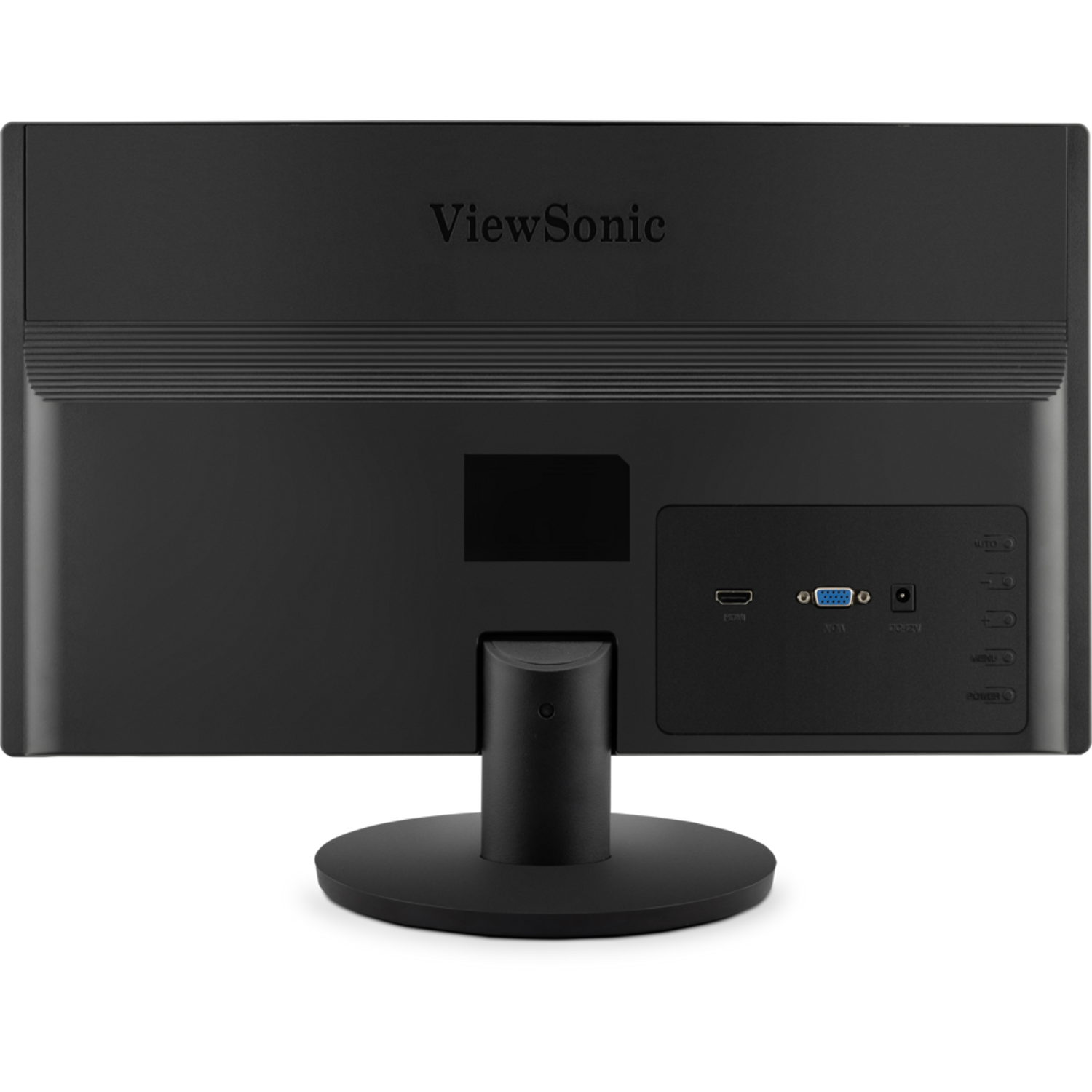

HDMI 1.4 connects current PCs and mini PCs, while the VGA input keeps older desktops and legacy equipment in service.
Eye ProTech
Flicker-free backlight and a blue light filter help reduce eye strain during long shifts.
Low Running Cost

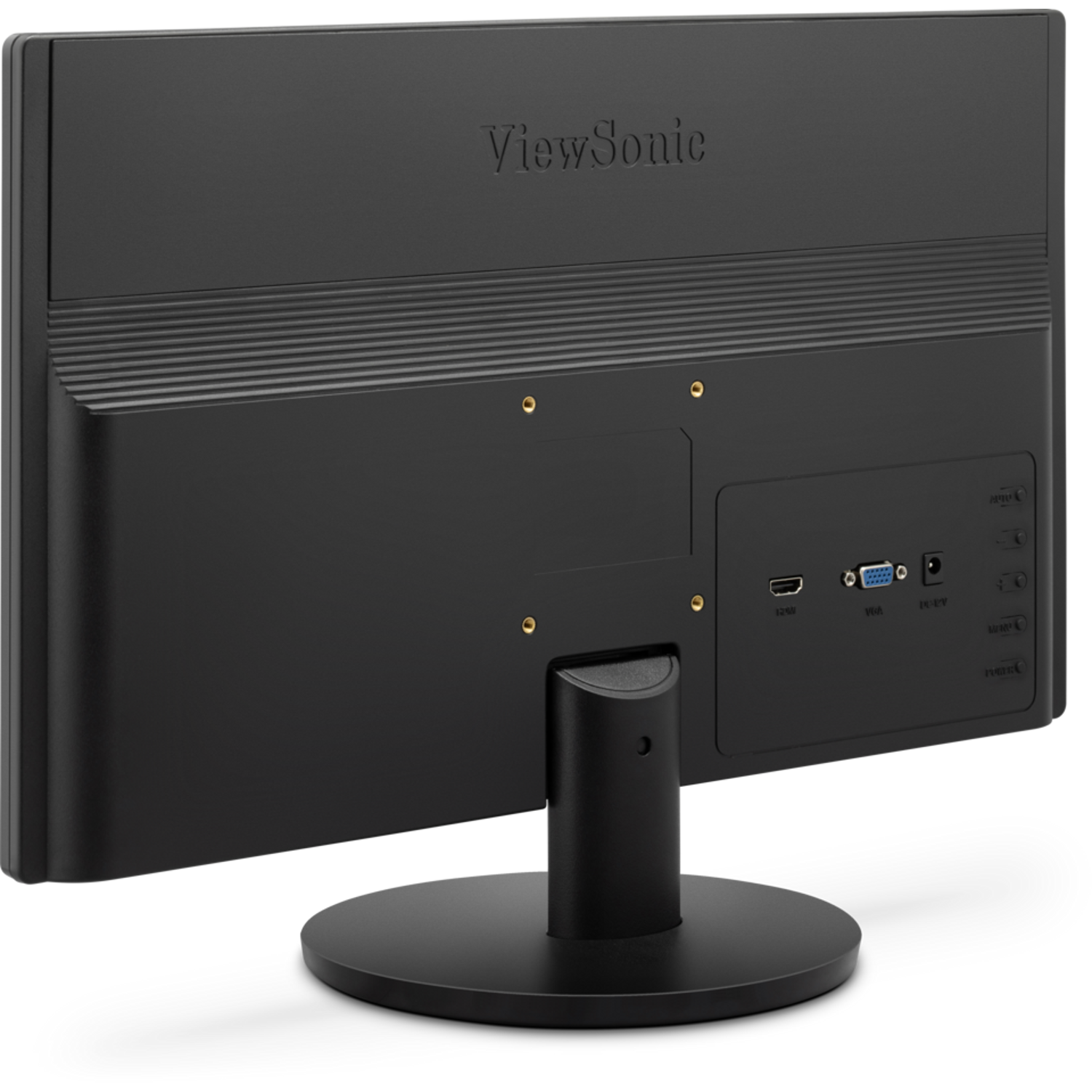

Typical power draw is 17 W, with Eco Mode settings of 11 W and 14 W, and a 75 x 75 mm VESA mount lets you wall- or arm-mount it.
Need monitors for a whole office, classroom or call centre? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic VA2025-H Datasheet — Technical Specifications
General
| Product Name | ViewSonic VA2025-H 19.5" HD+ 1600 x 900 Monitor with HDMI & VGA |
| Model | VA2025-H |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Screen Size | 20" (19.5" viewable) |
| Panel Type | TN |
| Resolution | 1600 x 900 (HD+ / WSXGA) |
| Refresh Rate | 60 Hz |
| Response Time | 5 ms (typical GTG) |
| Brightness | 250 cd/m² (typ) |
| Contrast Ratio | 600:1 static (typ); 50M:1 dynamic |
| Colours | 16.7M, 8-bit (6-bit + FRC) |
| Colour Gamut | NTSC 72%, sRGB 103% |
| Viewing Angles | 90° H / 65° V |
| Surface | Anti-glare, 3H hard coating |
| Flicker-Free / Low Blue Light | Yes / software solution |
| Backlight Life | 30,000 hours (min) |
Connectivity
| HDMI | 1 x HDMI 1.4 |
| VGA | 1 x VGA |
| Power In | DC socket |
Power
| Voltage | AC 100–240 V |
| Consumption | 17 W typical; 22 W max; 0.3 W standby |
| Eco Mode | 11 W (Conserve); 14 W (Optimized) |
| Power Supply | External power adapter |
Operating Conditions
| Temperature | 0–40 °C |
| Humidity (non-condensing) | 20%–90% |
Physical
| Dimensions with Stand (W x H x D) | 463.22 x 328.46 x 194.65 mm |
| Dimensions without Stand | 463.22 x 269.3 x 25.3 mm |
| Net Weight | 1.6 kg (1.4 kg without stand) |
| Packaging (W x H x D) | 520 x 335 x 100 mm |
| Gross Weight | 2.4 kg |
| Tilt | -4° / 14° |
| VESA | 75 x 75 mm |
Compatibility & Software Support
Sources
Connect desktops, mini PCs and thin clients over HDMI or VGA. Windows 10/11 certified and macOS tested.
Typical Use
POS terminals, reception desks, labs, factory stations and budget office seats.
Package Contents & ViewSonic VA Series Ordering Information
In the Box
VA2025-H monitor, HDMI cable (v1.4, male-male), AC/DC adapter, quick start guide.
ViewSonic VA Series Monitors
| Model | Key feature |
| VA1650 | 16" FHD IPS portable, USB-C |
| VA2025-H (this listing) | 19.5" HD+ 1600 x 900 |
| VA220A-H | 22" FHD VA, 120 Hz |
| VA240A-H | 24" FHD IPS, 120 Hz |
| VA2432-MH | 24" FHD IPS, 100 Hz, speakers |
| VA24G1-H | 24" FHD IPS, 144 Hz |
| VA2708-2K-MHD | 27" QHD IPS, 100 Hz, speakers |
| VA2708-4K-MHD | 27" 4K UHD IPS, HDR10, speakers |
| VA270A-H | 27" FHD, 120 Hz |
| VA2715-H | 27" FHD VA |
| VA2932-MHD | 29" WFHD IPS ultrawide |
| VA3208-4K-MHD | 32" 4K UHD |
| VA3209-MH | 32" FHD, speakers |
| VA709 | 17" 5:4 SXGA |
Datasheet & Downloads
| ViewSonic datasheet | VA2025-H Datasheet |
| User guide | VA2025-H User Guide (PDF, English) |
| Quick start guide | VA2025-H Quick Start Guide (PDF) |
| ViewSonic product page | VA2025-H on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VA2025-H.
Frequently Asked Questions — ViewSonic VA2025-H
What resolution is it?
1600 x 900 (HD+) at 60 Hz on a 19.5" viewable 16:9 panel.
Can I connect an older PC?
Yes. It has a VGA input as well as HDMI 1.4.
Can it be wall-mounted?
Yes, it supports a 75 x 75 mm VESA mount.
What warranty do I get?
3 years on-site limited warranty on parts and labour in Singapore. Supplied by SourceIT with a GST invoice.
