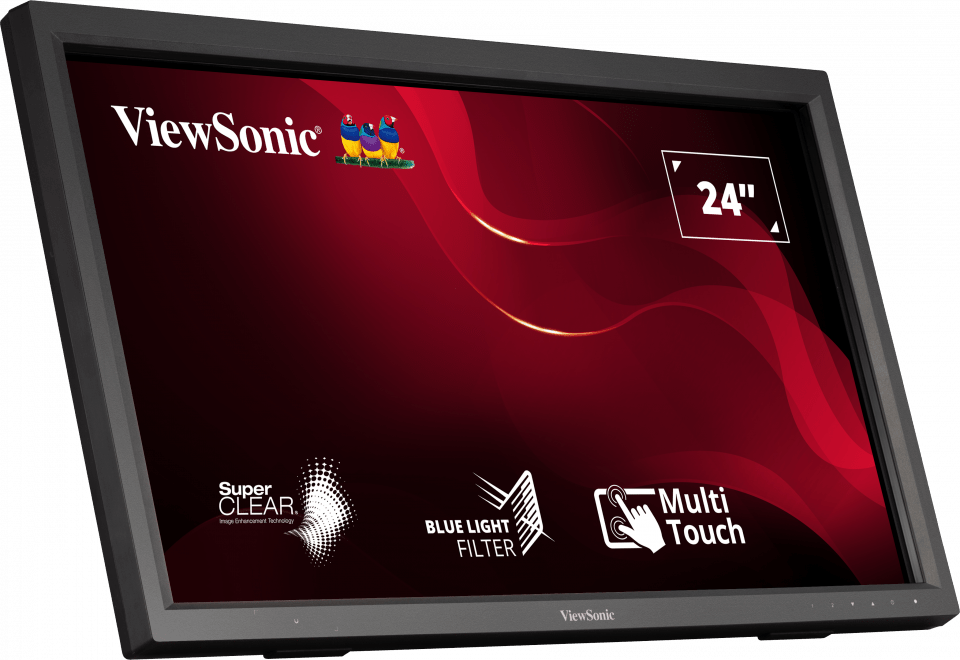

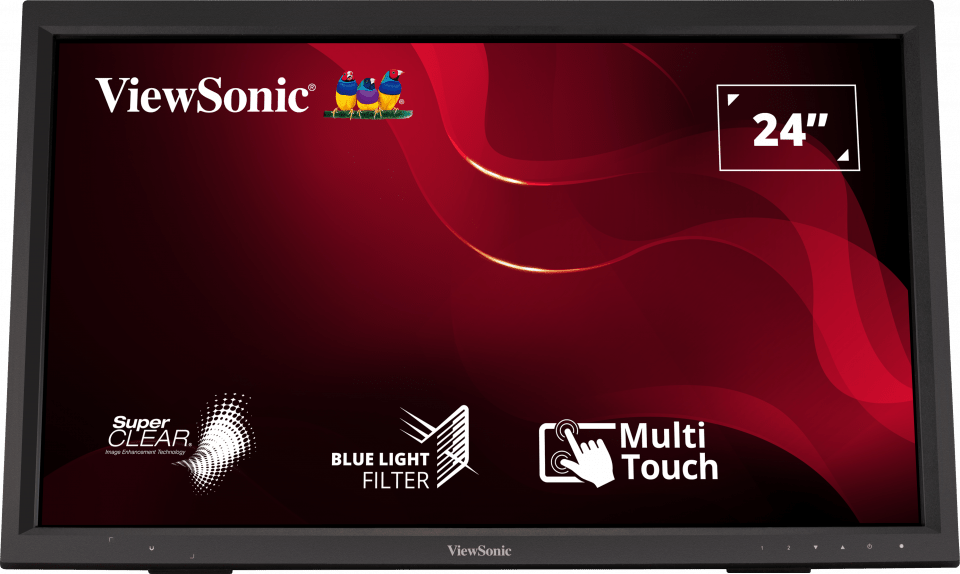

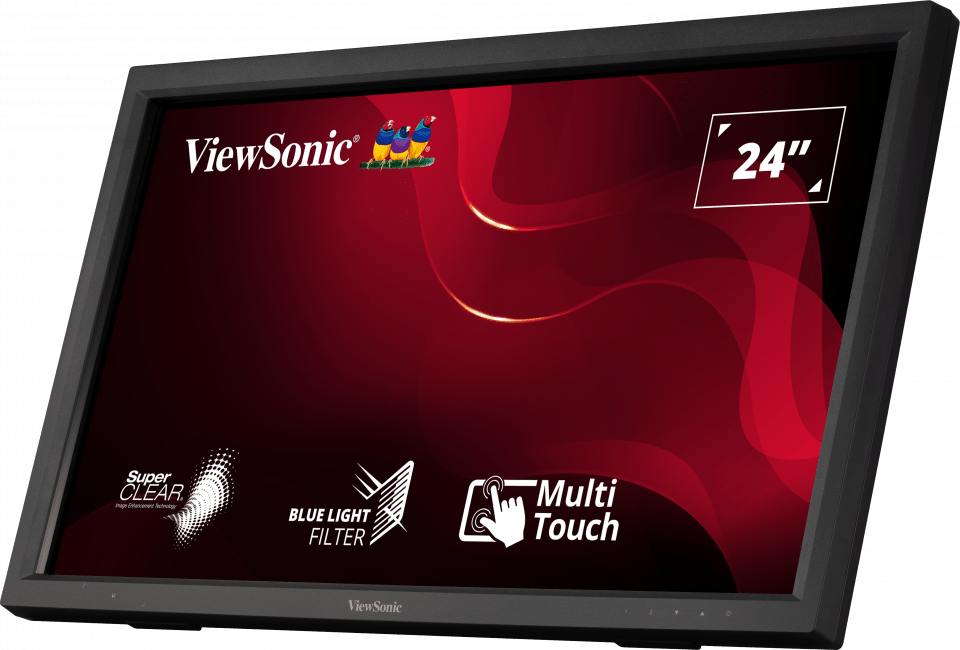

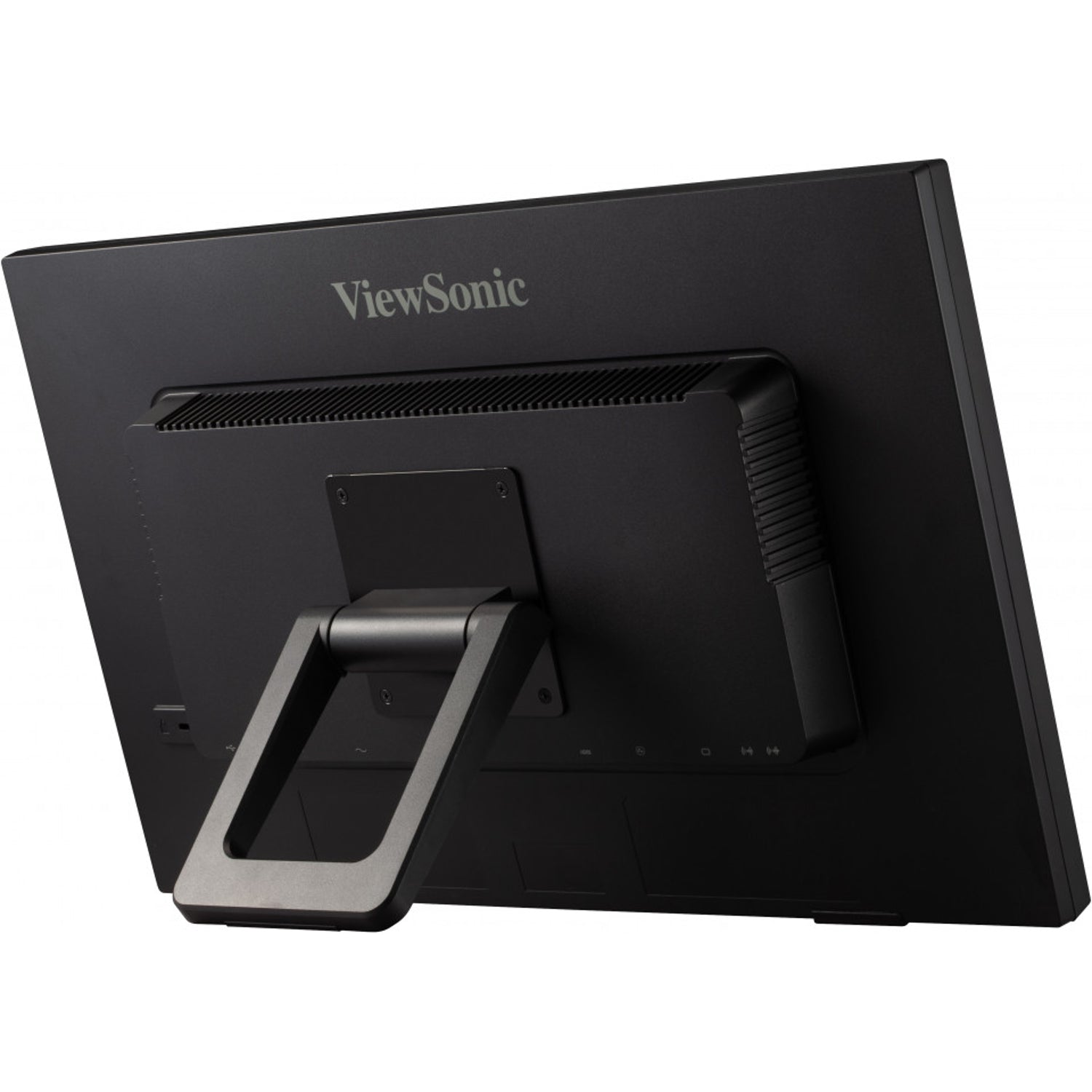

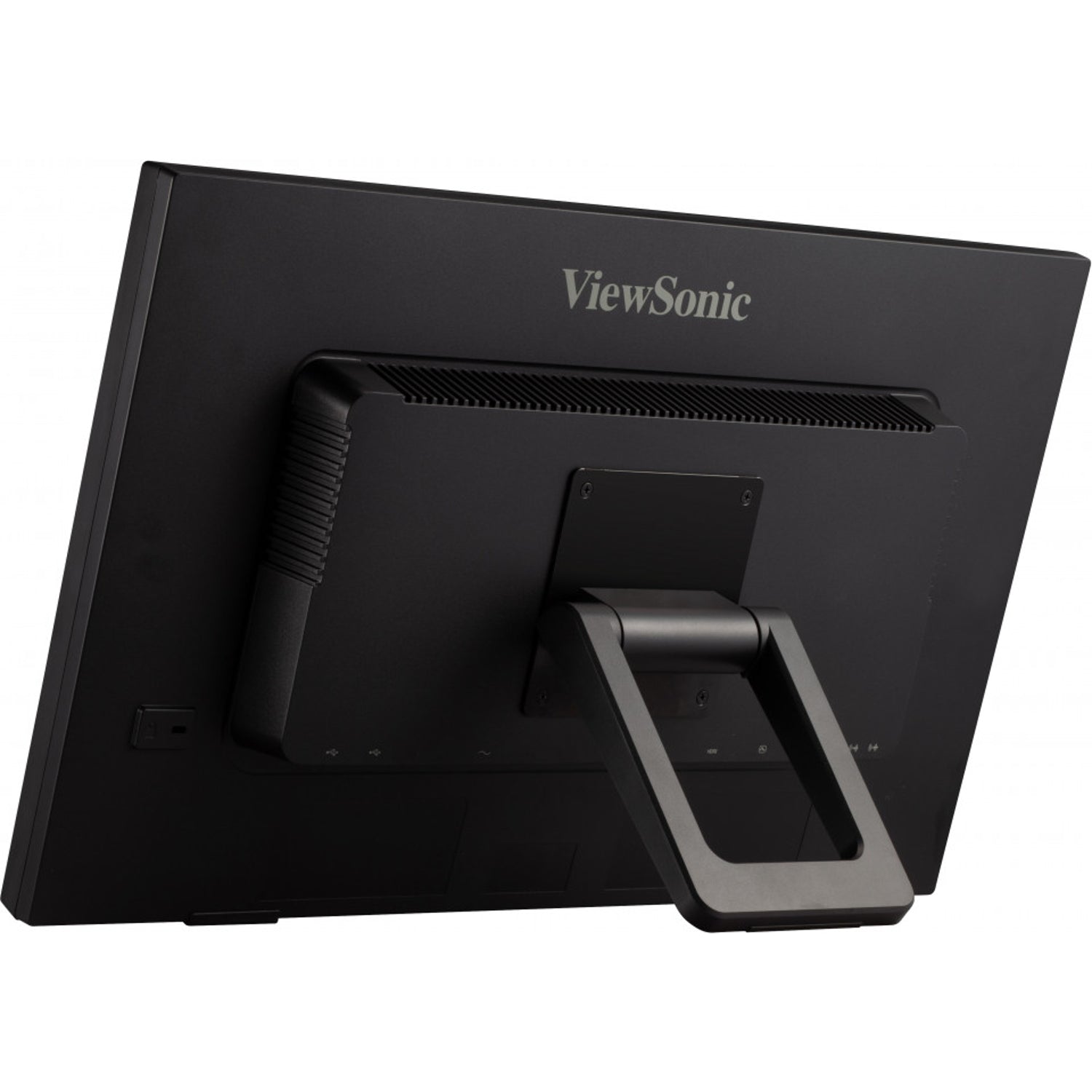

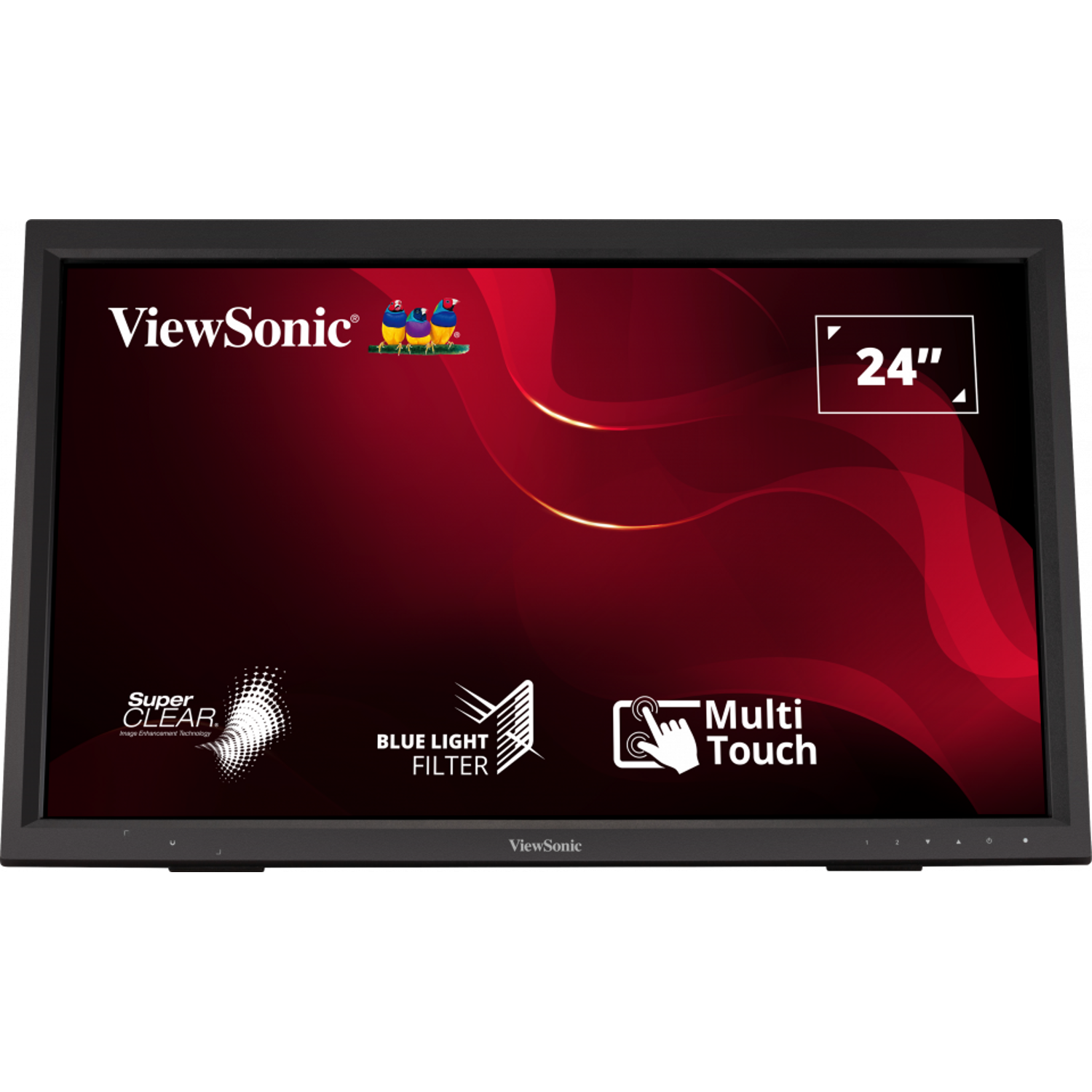

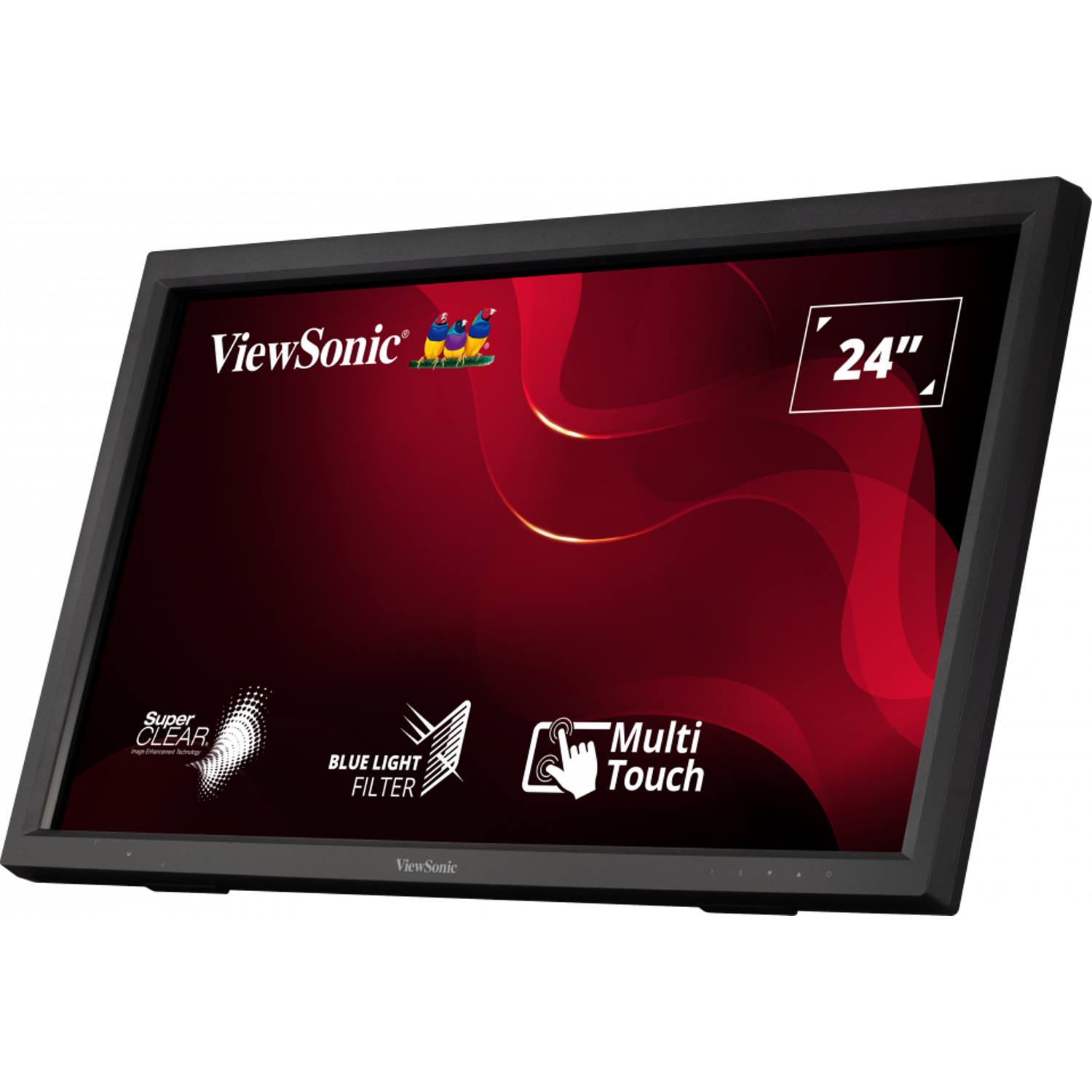

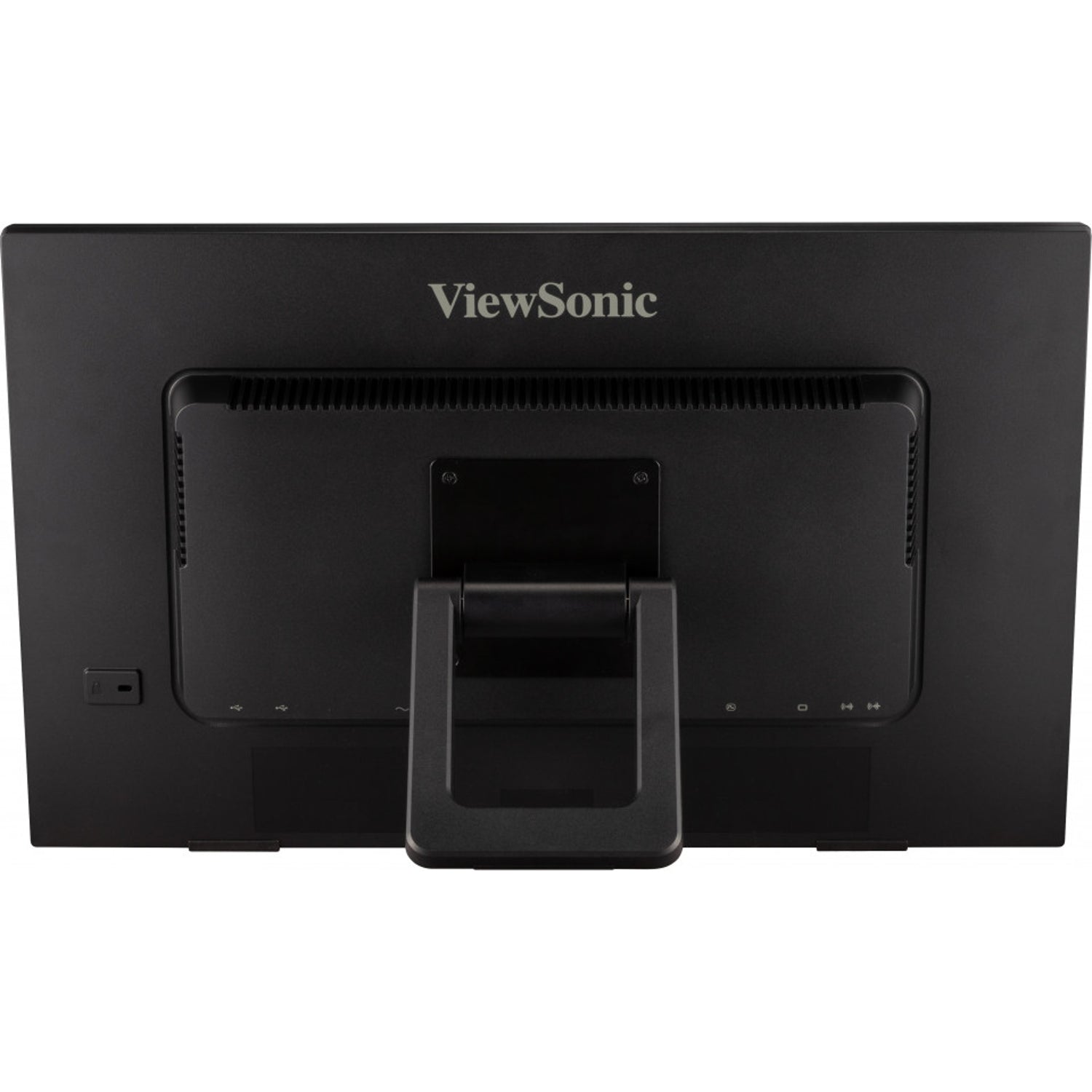

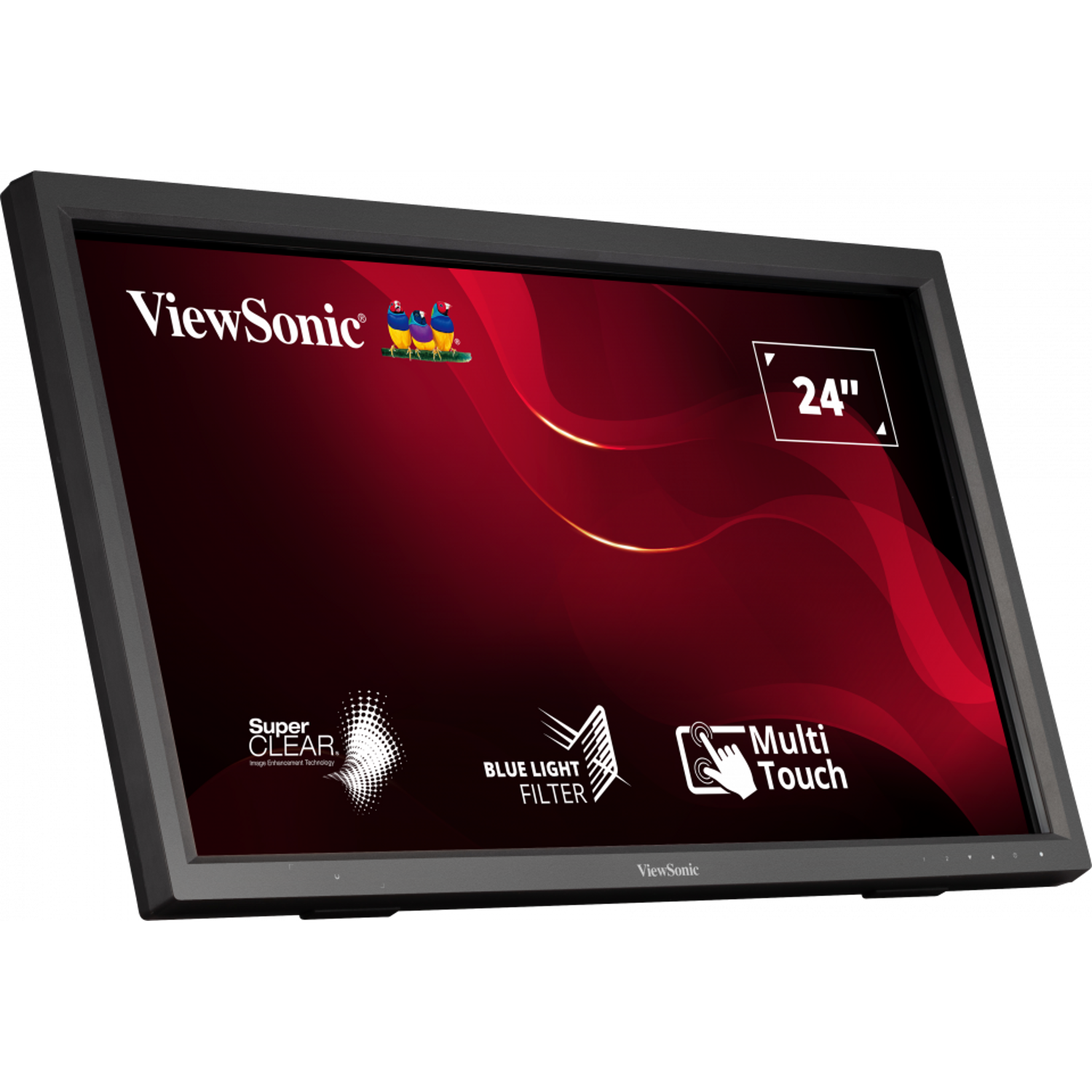

ViewSonic TD2423 24" Full HD IR Touch Monitor
PRODUCT DESCRIPTION
ViewSonic TD2423 24" IR Touch Monitor - 3 Years Local Warranty
10-Point Touchscreen
Infrared technology detects up to 10 contact points for multi-touch interaction.
Finger, Stylus and Glove Touch
Works with gloved hands for improved hygiene in retail, healthcare and kiosk use.
7H Scratch-Resistant Screen
Built-in hard coating resists surface damage from sharp objects.

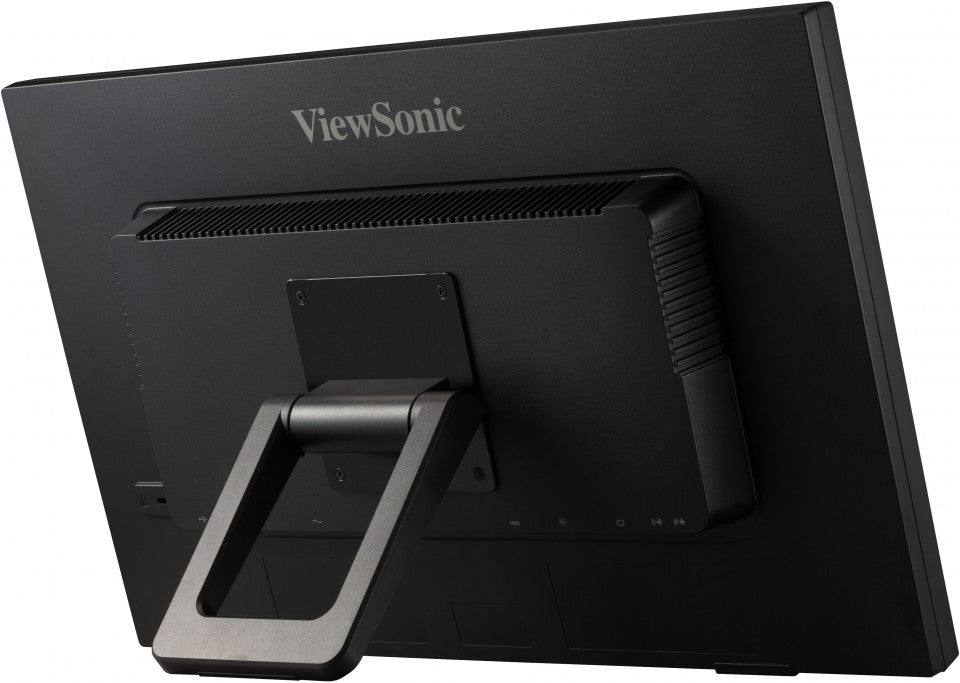

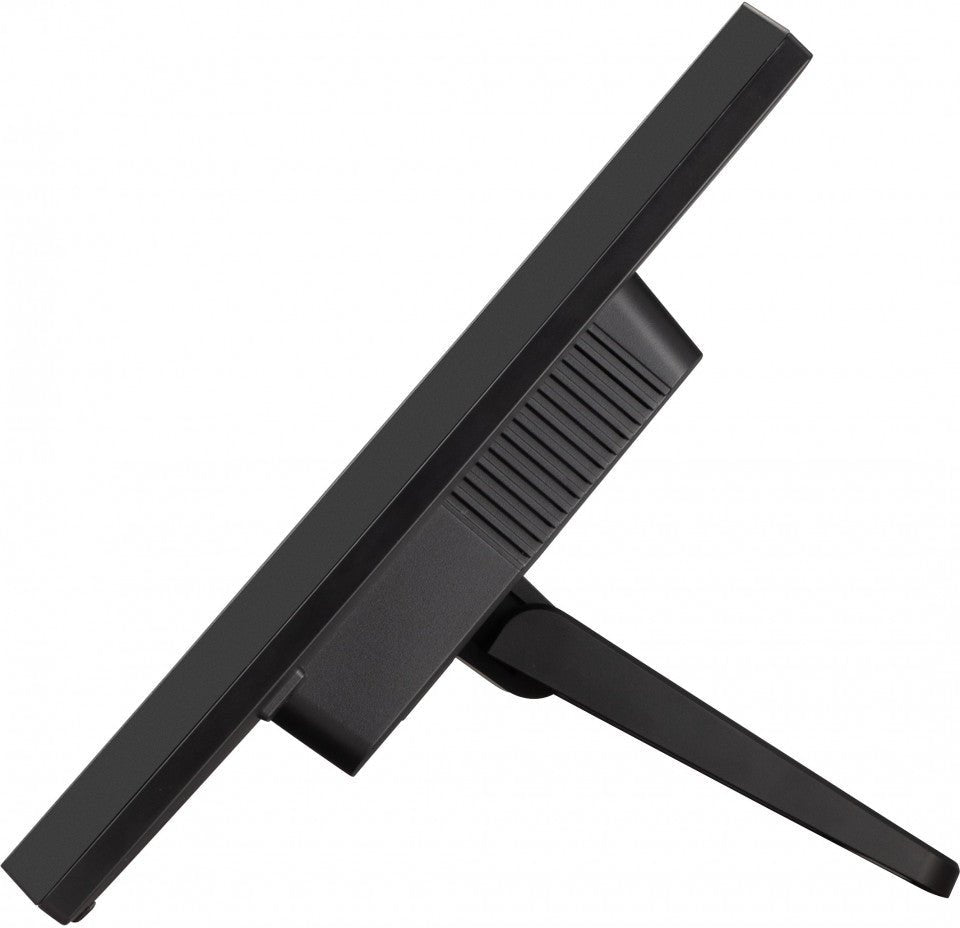

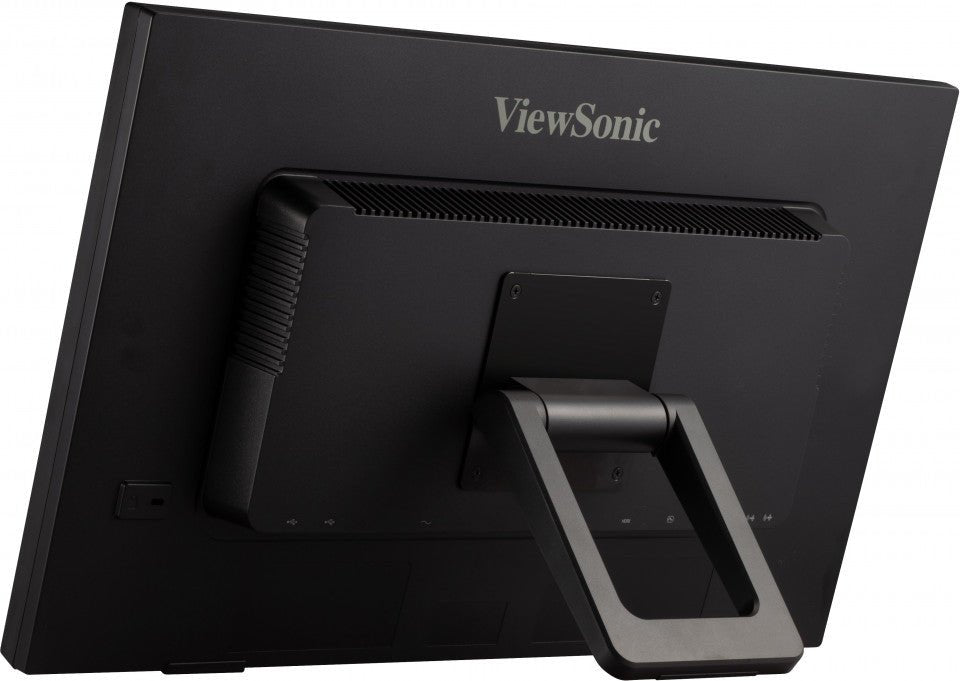

Adjustable Tilt
Tilts back up to 40° for comfortable viewing; integrated 2 x 2 W speakers.
Need touch monitors for a retail counter, kiosk, classroom or office rollout? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic TD2423 Datasheet — Technical Specifications
General
| Product Name | ViewSonic TD2423 24" IR Touch Monitor |
| Model | TD2423 |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Screen Size | 24" (23.6" viewable) |
| Panel Type | VA |
| Resolution | 1920 x 1080 (Full HD) |
| Refresh Rate | 75 Hz |
| Response Time | 7 ms (GTG) |
| Brightness | 250 cd/m² (typ) |
| Contrast Ratio | 3,000:1 static (typ); 20M:1 dynamic |
| Colours | 16.7M, 8-bit (6-bit + Hi-FRC) |
| Colour Gamut | NTSC 72%; sRGB 104% (typ) |
| Viewing Angles | 178° H / 178° V |
| Pixel Size | 0.272 x 0.272 mm |
| Flicker-Free / Low Blue Light | Yes / software solution |
| Backlight Life | 40,000 hours (min) |
Touch
| Touch Technology | IR, 10-point multi-touch |
| Input | Finger, stylus and glove |
| Surface | Glossy, 7H hard coating |
| Cover Glass Thickness | 1.85 mm |
| Touch Interface | USB 2.0 Type-B |

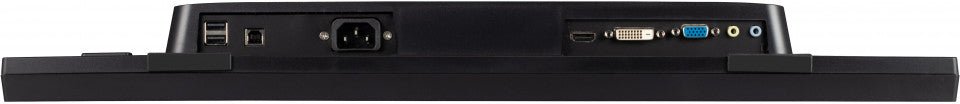

Connectivity
| HDMI | 1 x HDMI 1.4 |
| DVI-D | 1 |
| VGA | 1 |
| USB | 2 x USB 2.0 Type-A; 1 x USB 2.0 Type-B |
| Audio | 1 x 3.5 mm in; 1 x 3.5 mm out |
| Speakers | 2 x 2 W |
| Kensington Lock Slot | 1 |
Power
| Voltage | AC 100–240 V |
| Consumption | 15.5 W typical; 16.5 W max; 0.5 W standby |
| Eco Mode | 11.5 W (conserve) / 13.5 W (optimised) |
| Power Supply | Internal |
Operating Conditions
| Temperature | 0–40 °C |
| Humidity (non-condensing) | 20%–90% |
Physical & Ergonomics
| Dimensions with Stand (W x H x D) | 571 x 348 x 101 mm |
| Dimensions without Stand | 571 x 348 x 61 mm |
| Net Weight | 5.2 kg (4.7 kg without stand) |
| Packaging (W x H x D) | 645 x 422 x 166 mm |
| Gross Weight | 7 kg |
| Tilt | 20° / 40° |

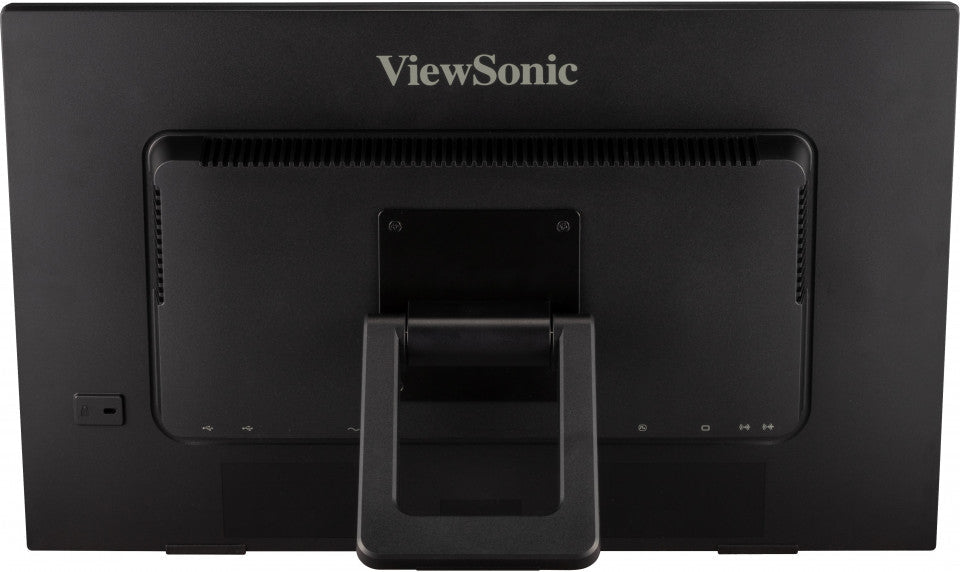

| VESA | 100 x 100 mm |
Compatibility & Software Support
Devices
Windows 7/8.1/10/11 certified and macOS tested; ViewSonic also lists Android, Chrome OS, Linux and Raspberry Pi support. Connect video by HDMI, DVI or VGA plus the USB-B cable for touch.
Software
On-screen menu with auto image adjust, colour and audio settings, flicker-free backlight and software low blue light filter; vTouch software is available for macOS.
Package Contents & ViewSonic TD Series Ordering Information
In the Box
TD2423 monitor, power cable (IEC C13), HDMI cable (v1.4), USB A/B cable (v2.0), audio cable, quick start guide.
ViewSonic TD Series Touch Monitors
| Model | Key feature |
| TD1617A-2K | 16" WQXGA IPS 165 Hz portable, 10-point touch, 2 x USB-C |
| TD1630-3 | 16" (15.6") WXGA, 10-point PCAP, HDMI + VGA |
| TD1655 | 16" (15.6") FHD IPS portable, 10-point touch, USB-C, pen |
| TD2223-2 | 22" (21.5") FHD VA, 10-point IR touch, 7H glass |
| TD2230 | 22" (21.5") FHD IPS, 10-point PCAP, frameless, DP/HDMI/VGA |
| TD2423 (this listing) | 24" (23.6") FHD VA 75 Hz, 10-point IR touch, 7H glass |
| TD2455 | 24" (23.8") FHD IPS in-cell PCAP, USB-C 60 W, stylus |
| TD2465 | 24" (23.8") FHD VA 100 Hz, frameless PCAP, wet-hand/glove touch |
| TD2760 | 27" FHD VA, 10-point PCAP, fold-flat stand, RS232 |
| TD3207 | 32" (31.5") FHD open frame PCAP, IP65 front, 24/7, 450 nits |
Datasheet & Downloads
| ViewSonic datasheet | TD2423 Datasheet |
| User guide | TD2423 User Guide (PDF, English) |
| Quick start guide | TD2423 Quick Start Guide (PDF) |
| ViewSonic product page | TD2423 on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting TD2423.
Frequently Asked Questions — ViewSonic TD2423
Does touch work with gloves?
Yes, the IR touch frame responds to finger, stylus and glove input.
How is touch connected?
Connect the supplied USB A/B cable to your PC in addition to HDMI, DVI or VGA video.
Can I wall-mount it?
Yes, it is VESA 100 x 100 mm compatible.
What warranty do I get?
3 years on-site limited warranty on parts and labour in Singapore. Supplied by SourceIT with a GST invoice.
