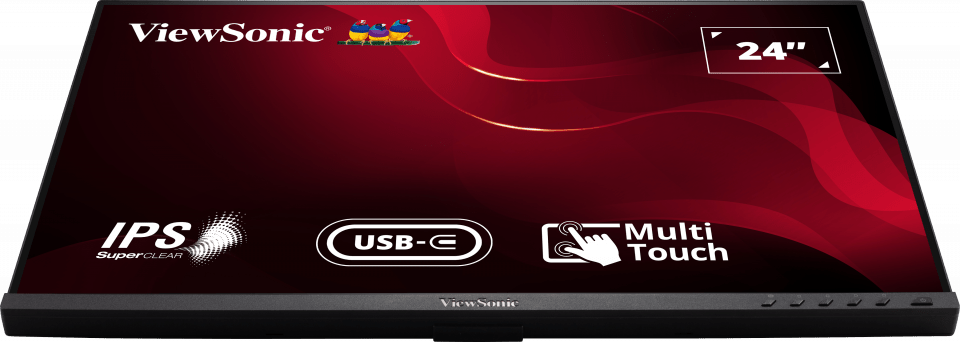

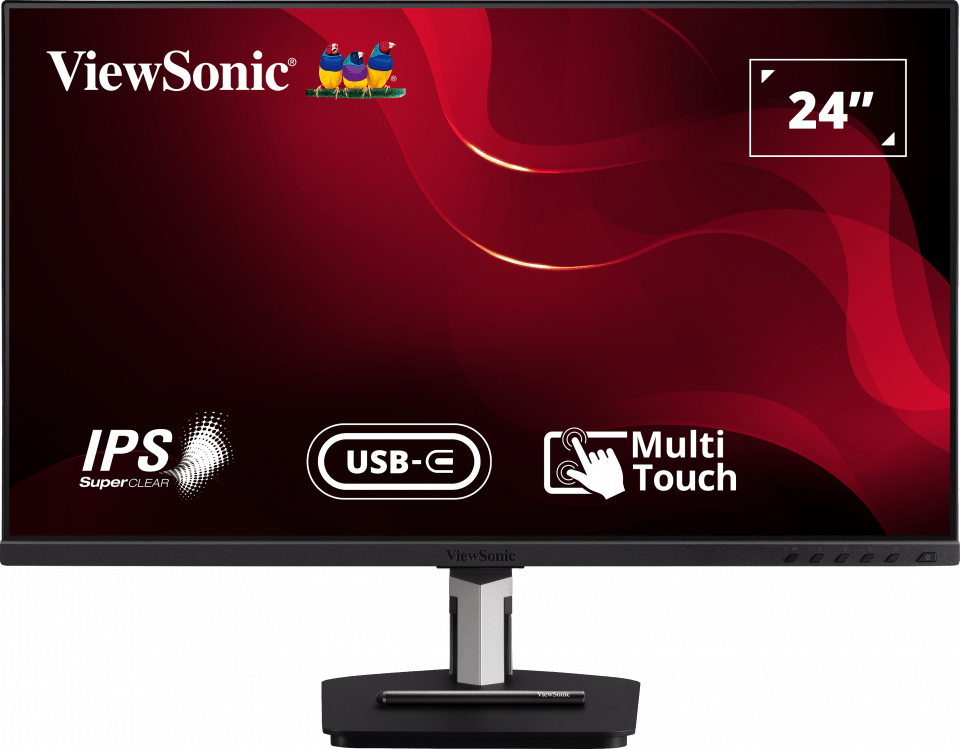

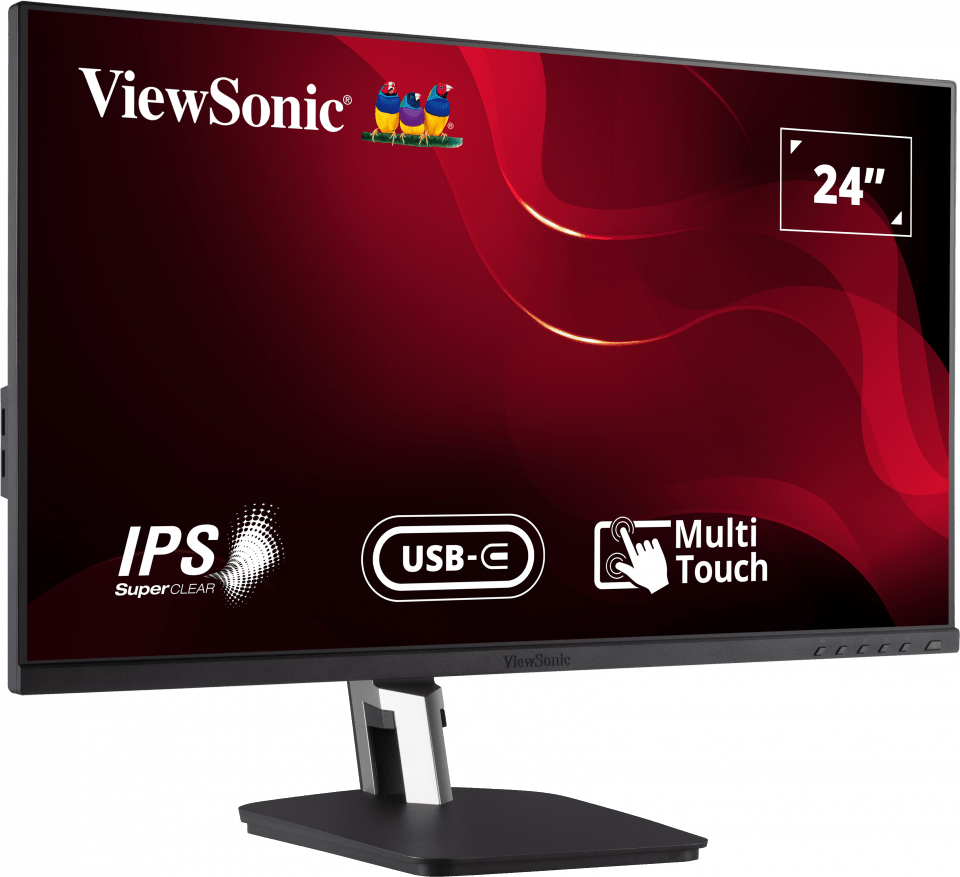

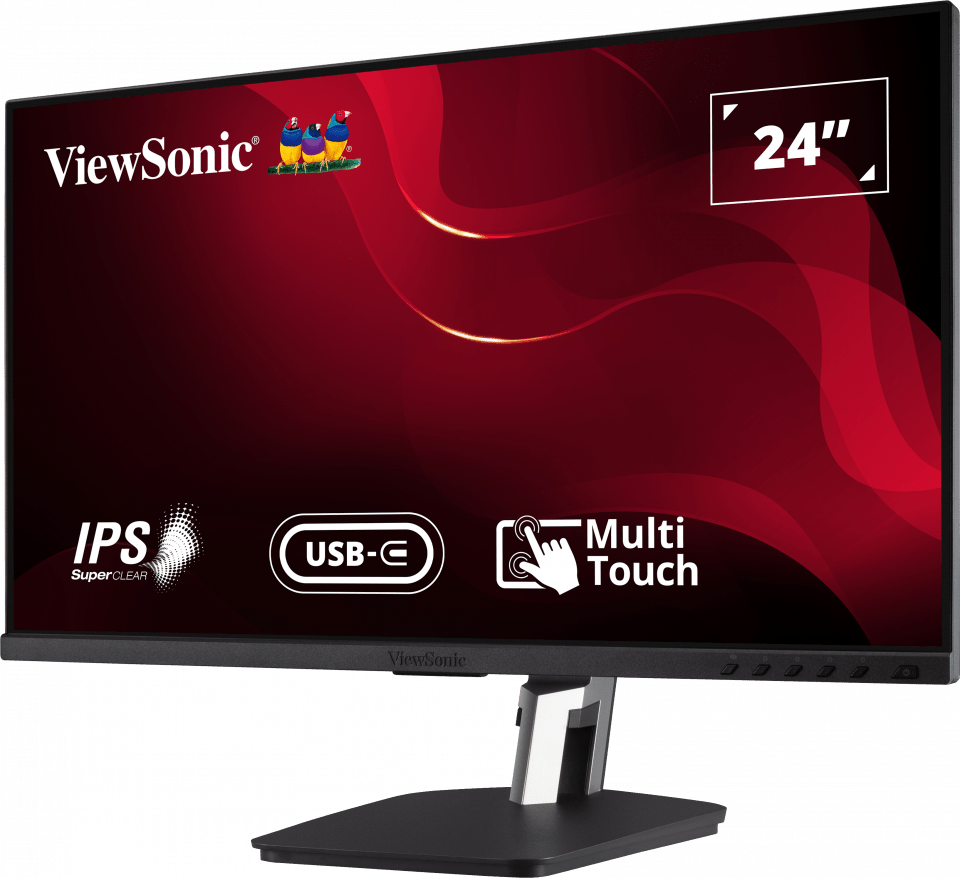

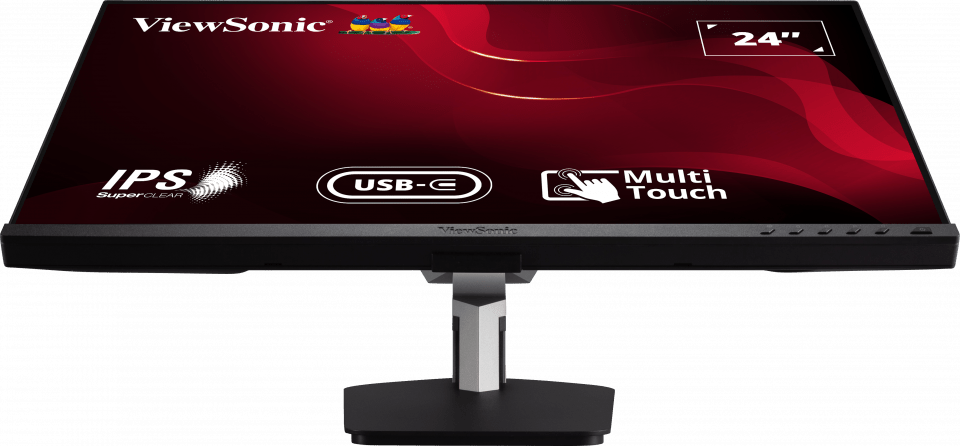

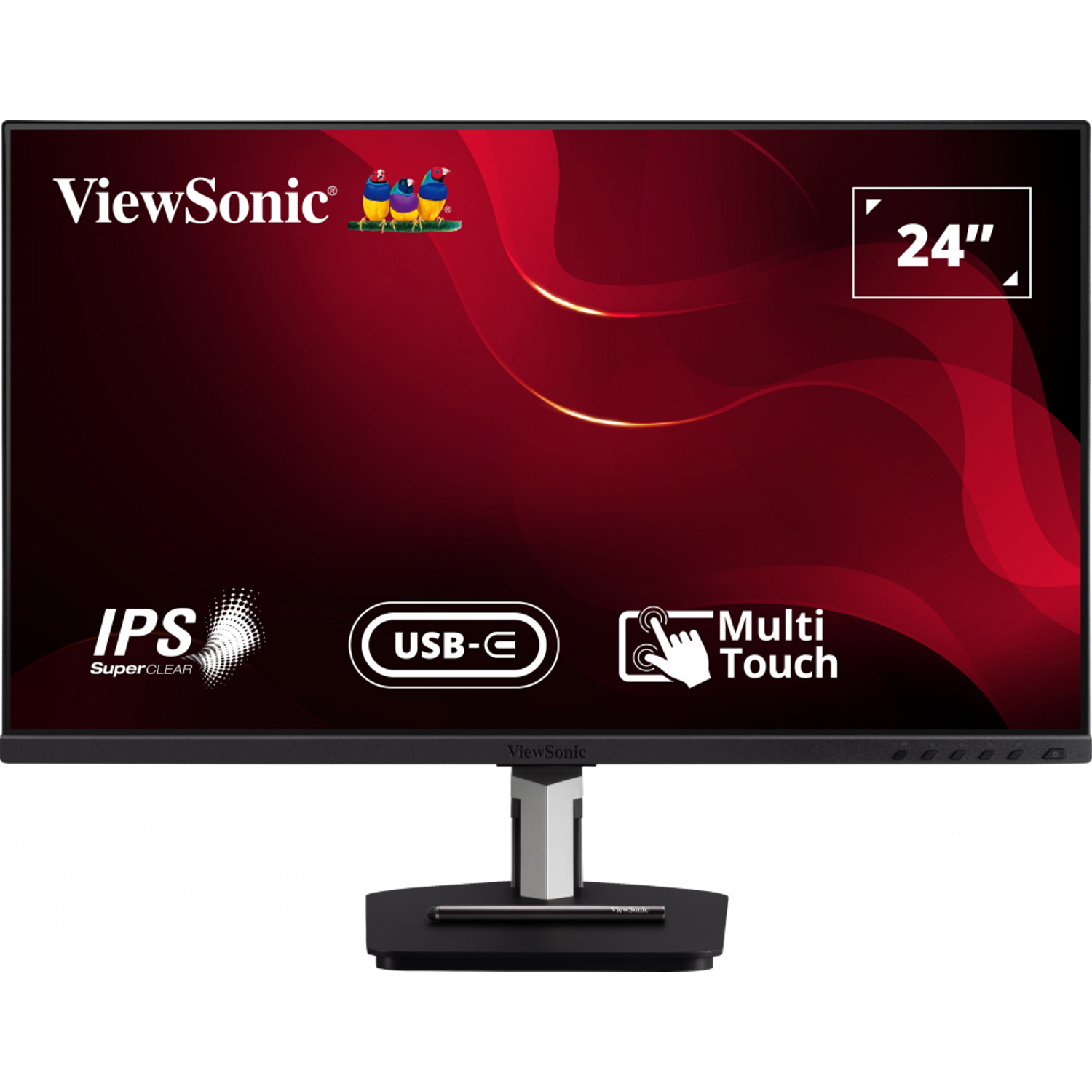

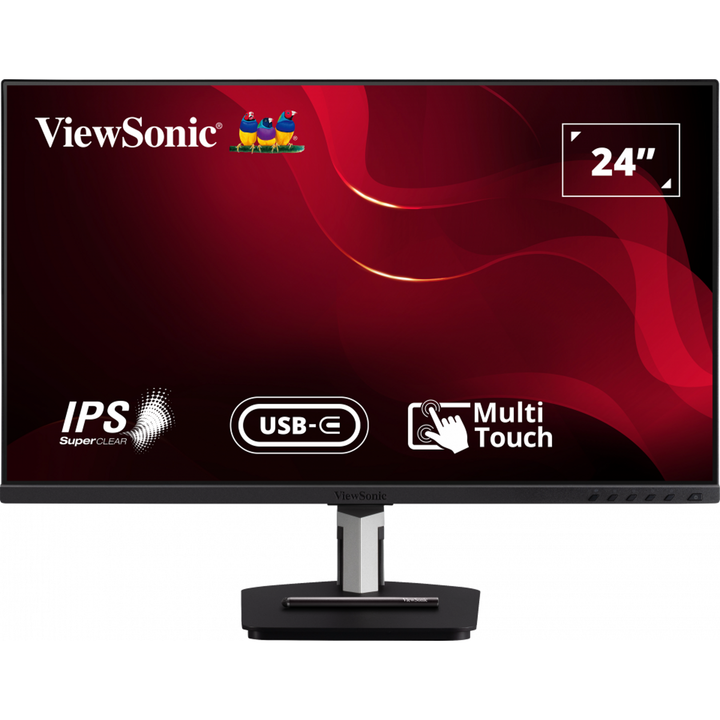

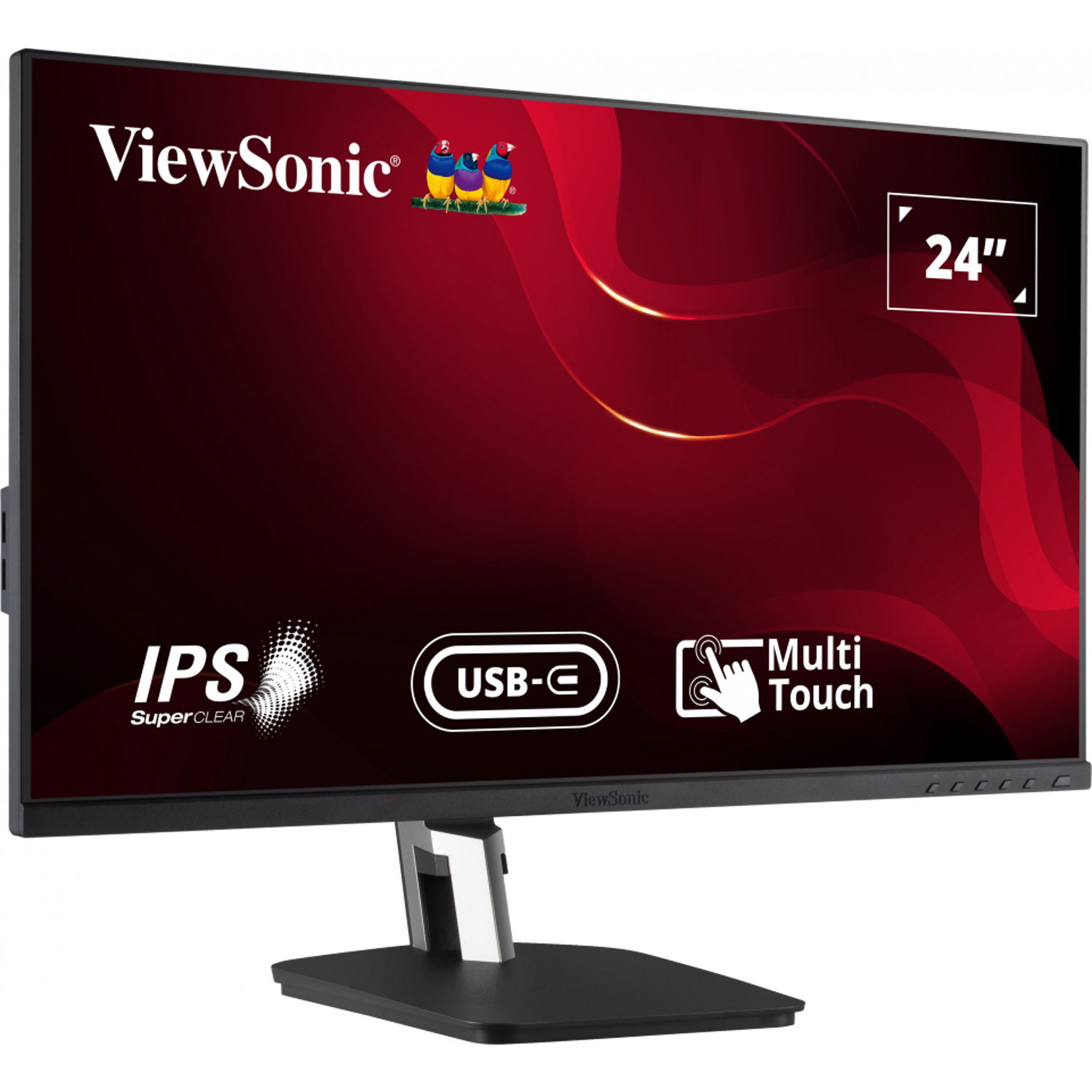

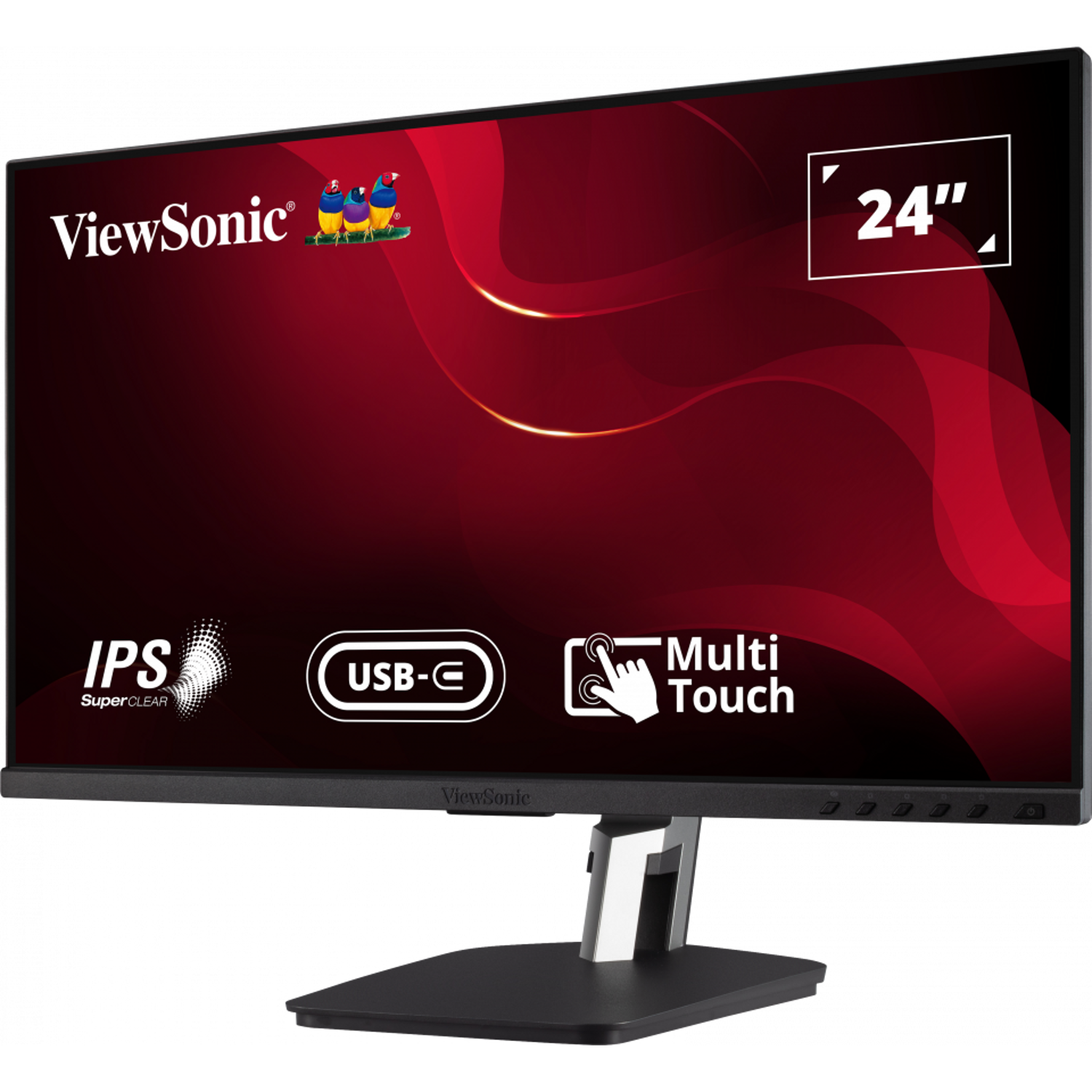

ViewSonic TD2455 24" Full HD In-Cell Touch Monitor with USB-C
PRODUCT DESCRIPTION
ViewSonic TD2455 24" In-Cell Touch Monitor with USB Type-C Input and Advanced Ergonomics - 3 Years Local Warranty
10-Point In-Cell PCAP Touch
Sensitive, responsive in-cell projected capacitive touch for kiosks, collaboration stations and teaching.

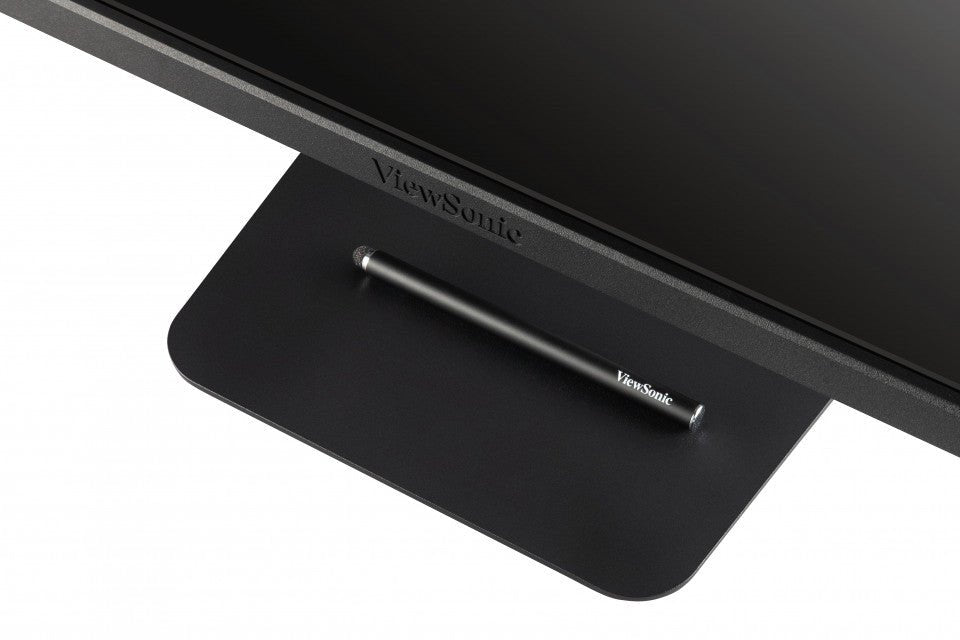

Touch Annotation with Stylus
The included magnetic passive pen allows precise drawing, writing and editing.
USB Type-C Single-Cable Connection
Delivers video, audio, data and 60 W of power to laptops and Chromebooks.

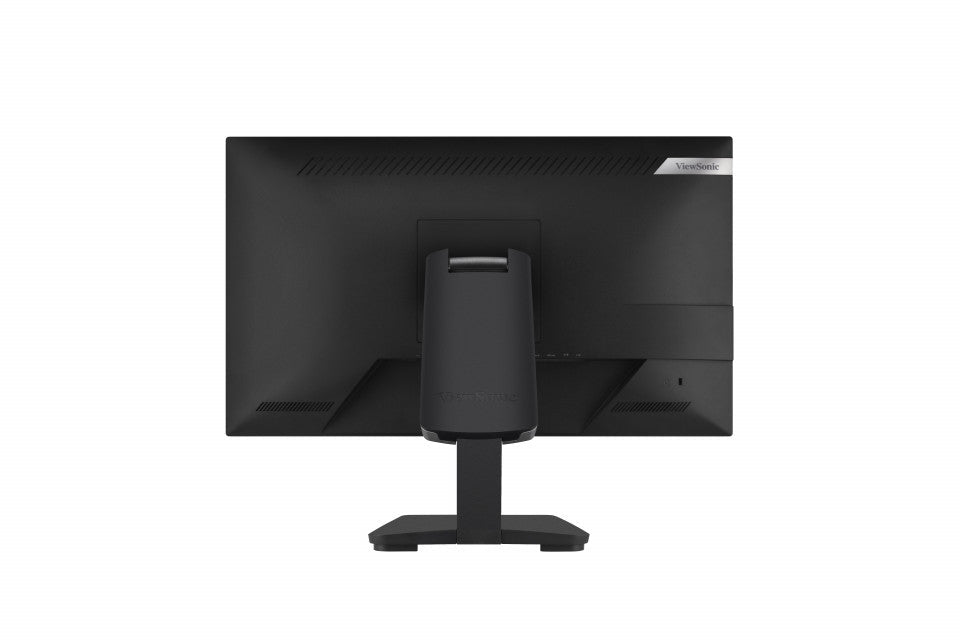

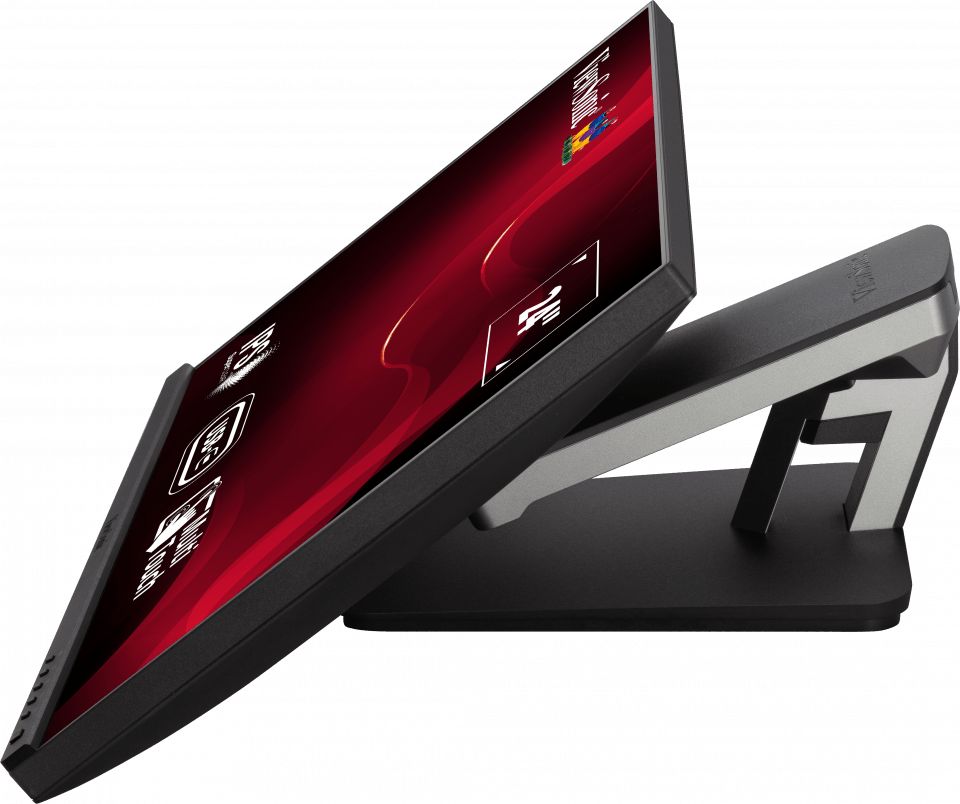

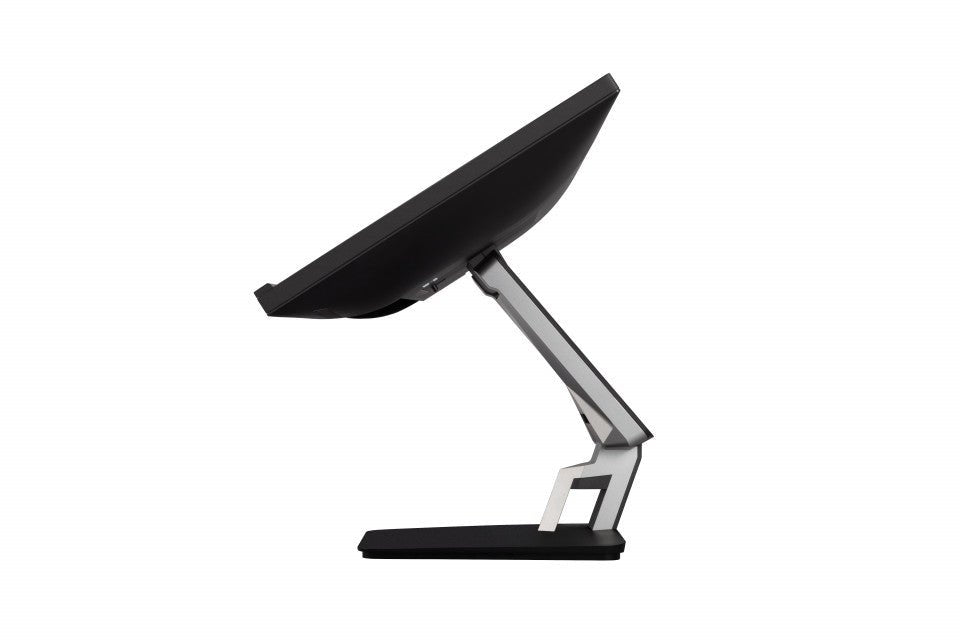

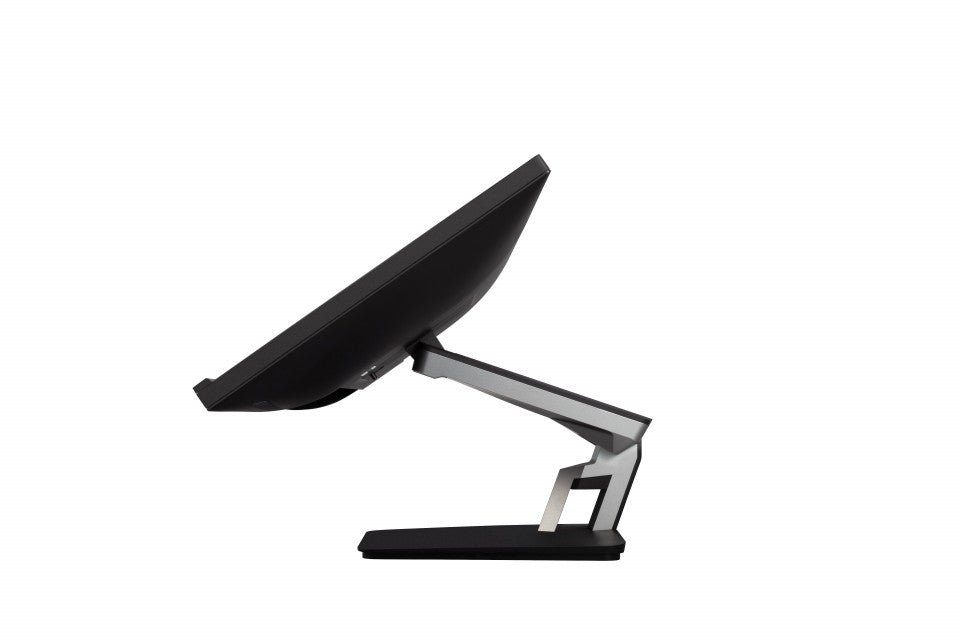

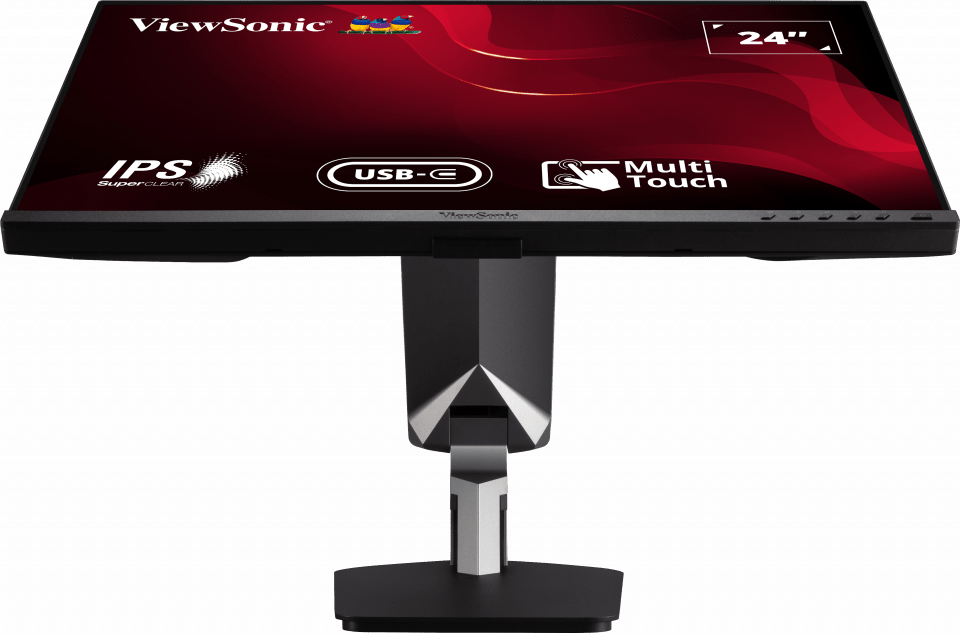

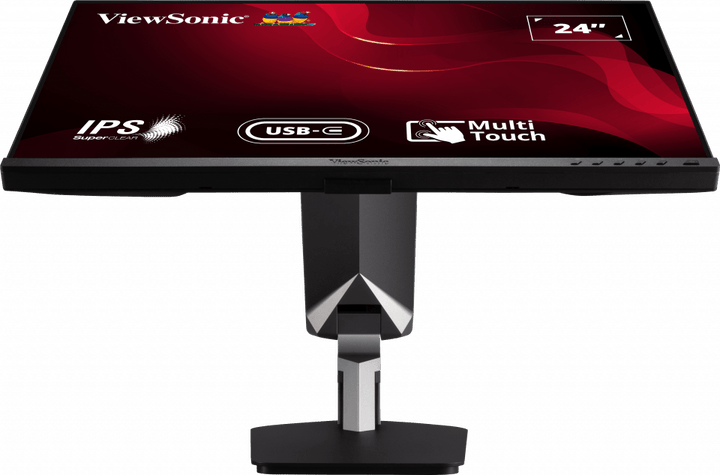

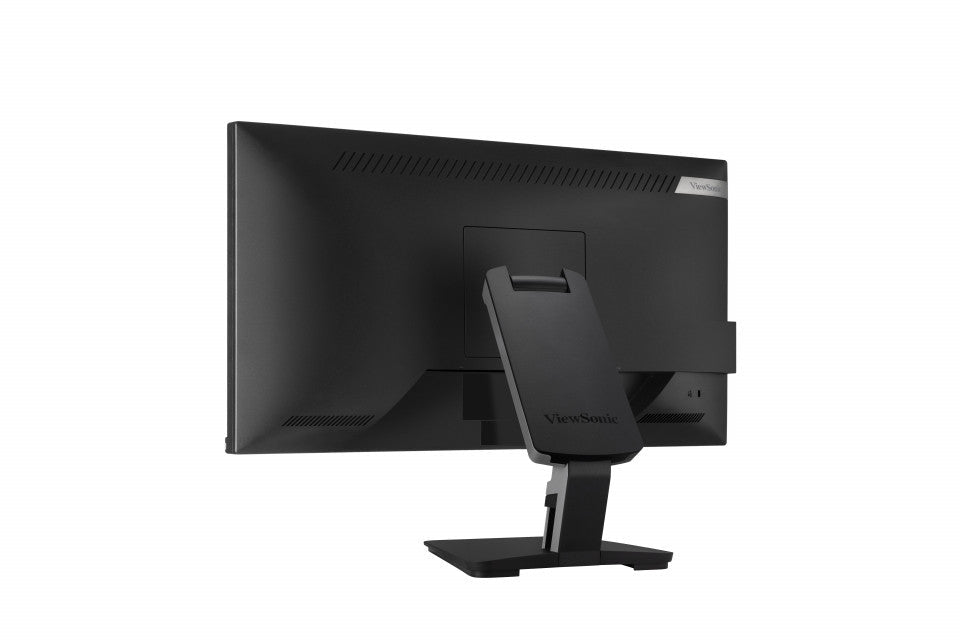

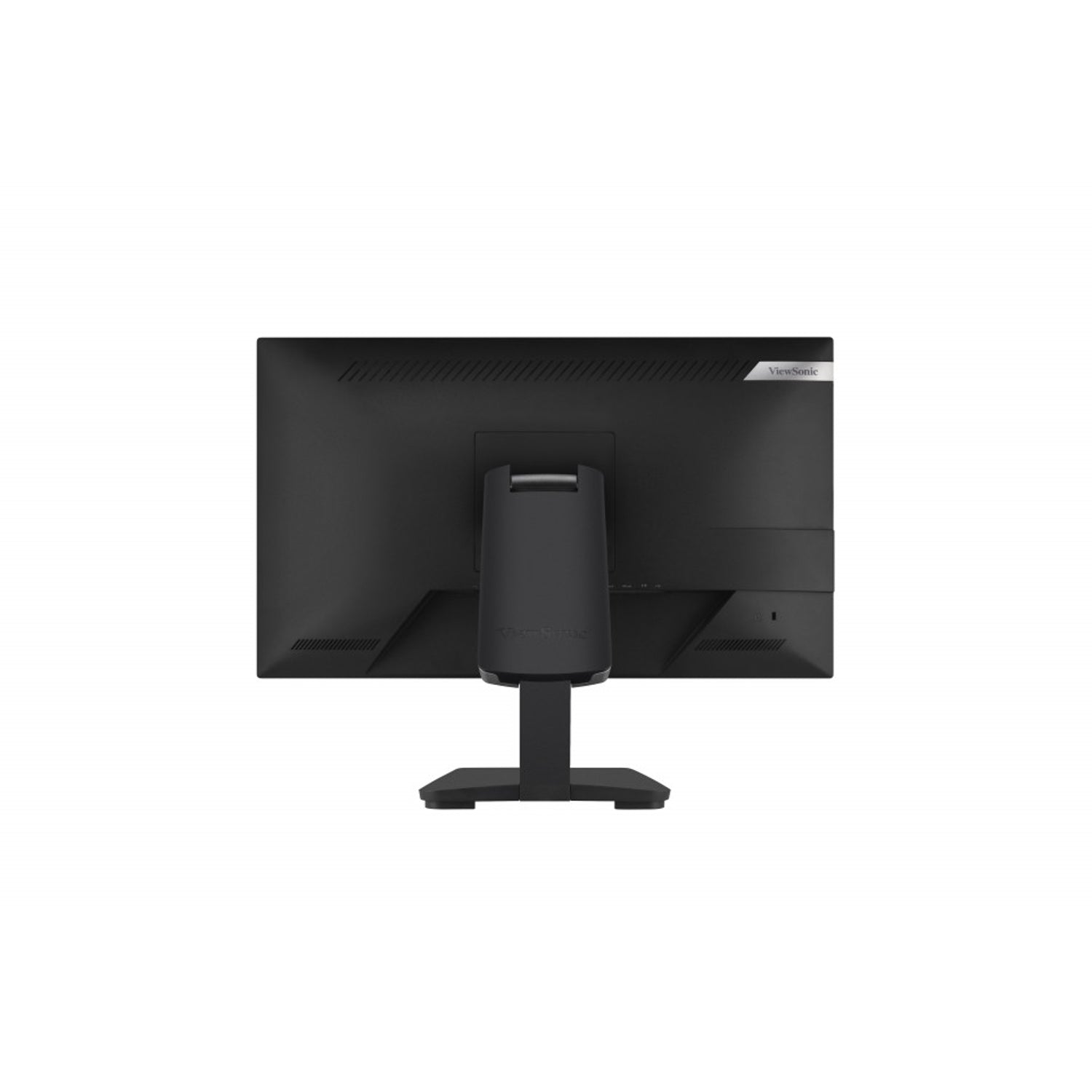

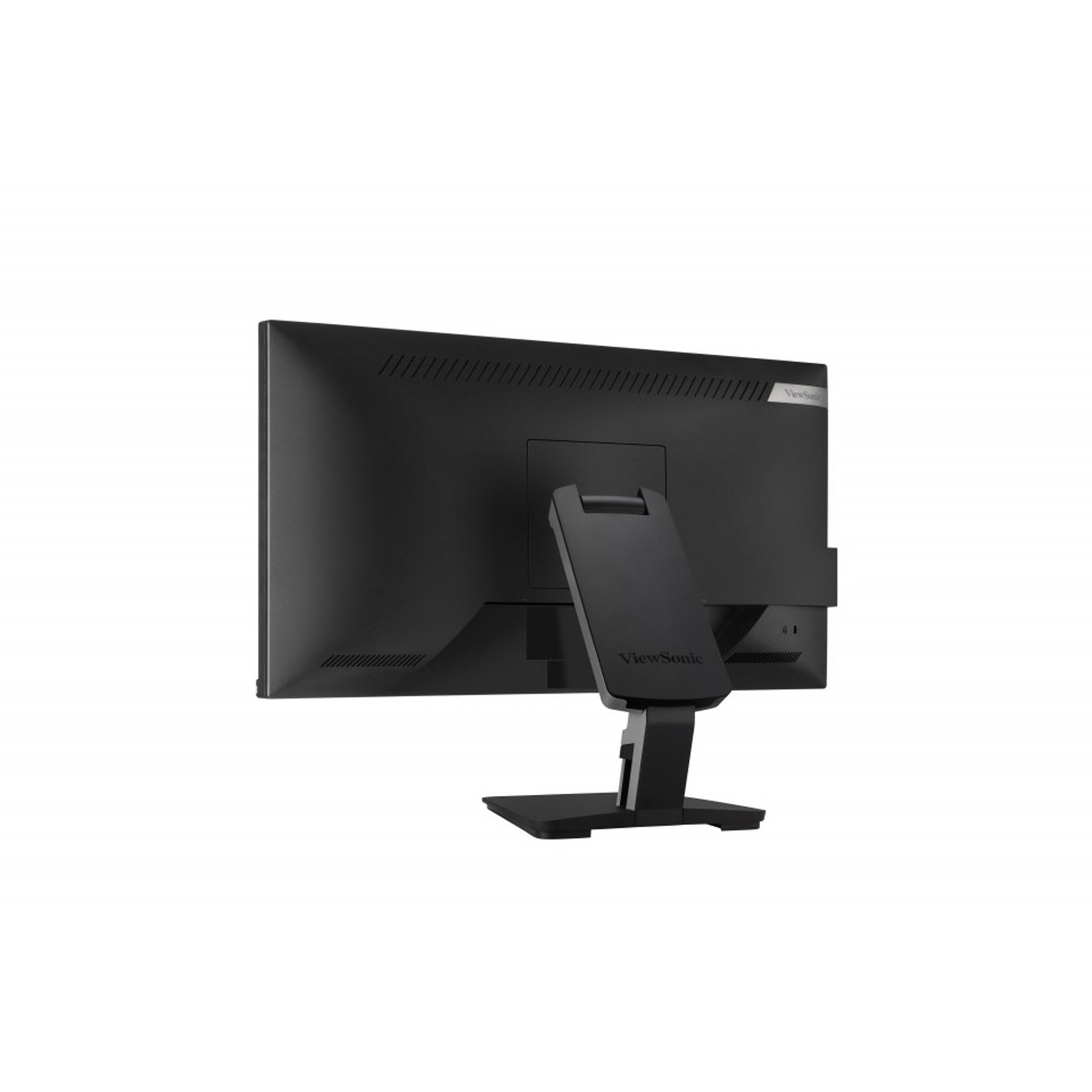

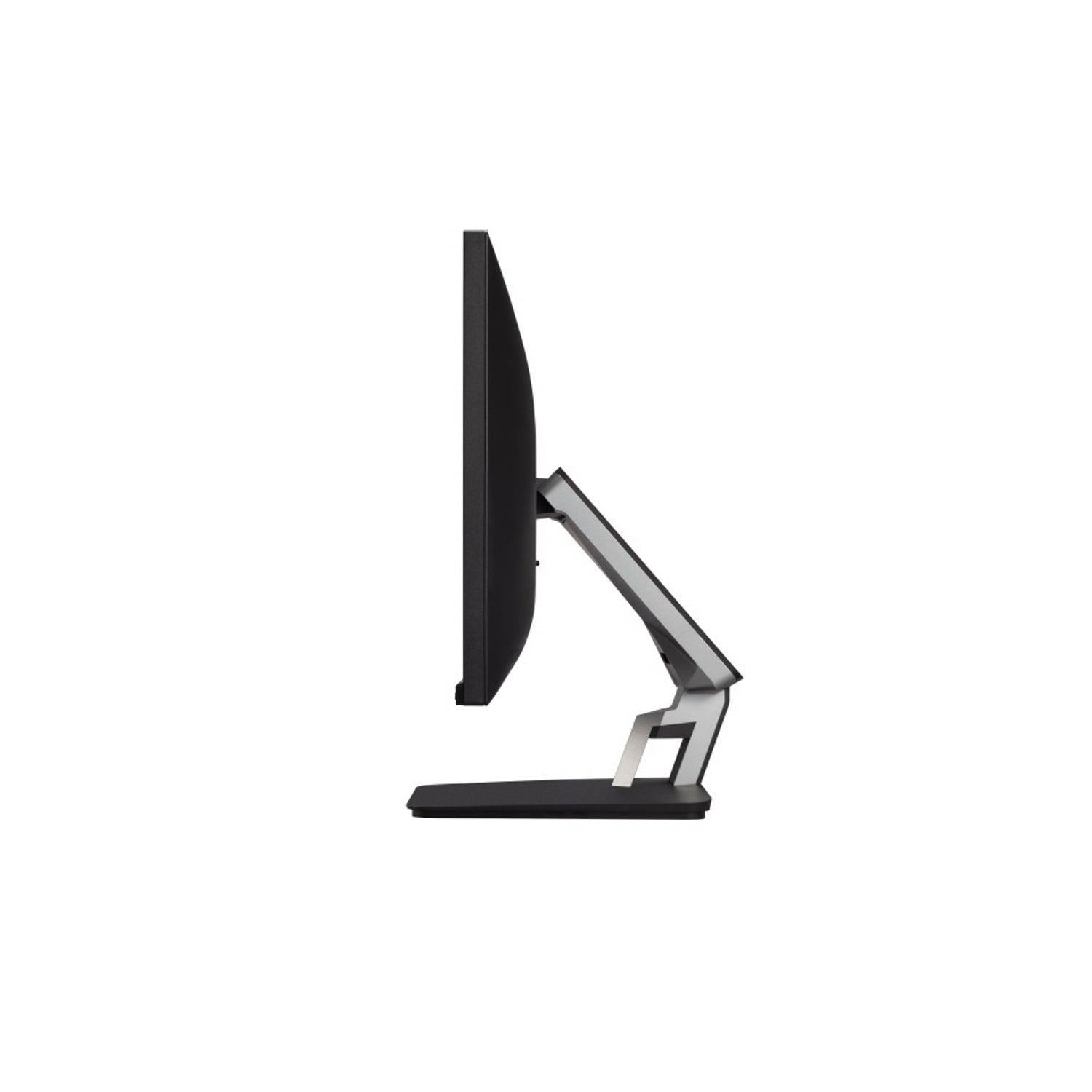

Advanced Ergonomic Stand

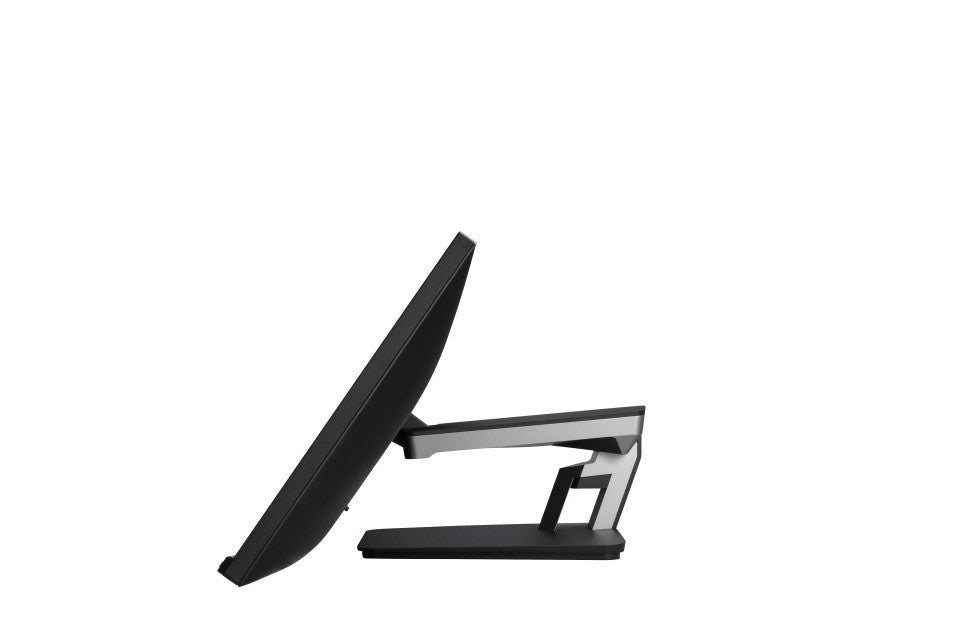

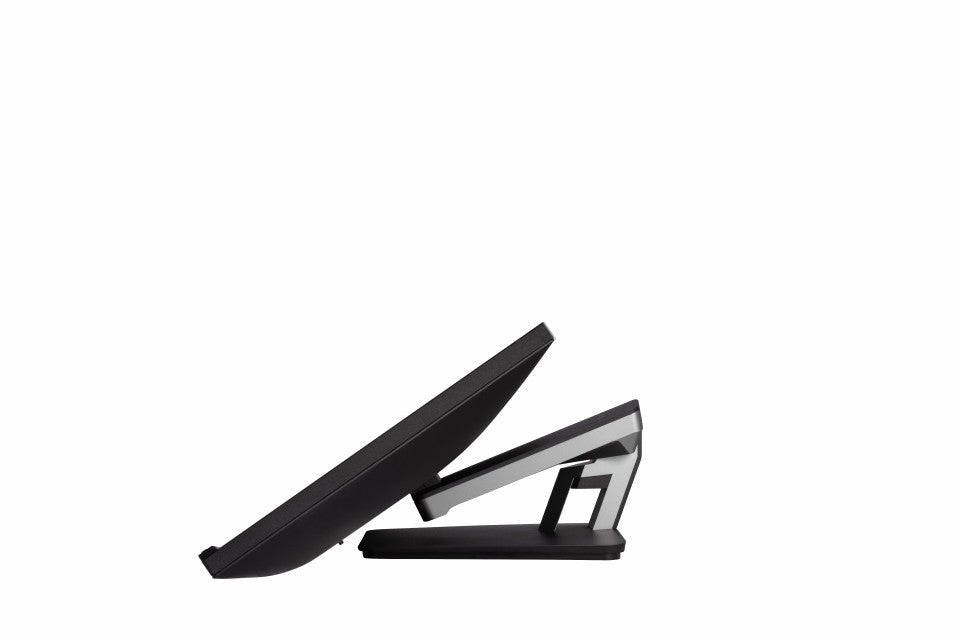

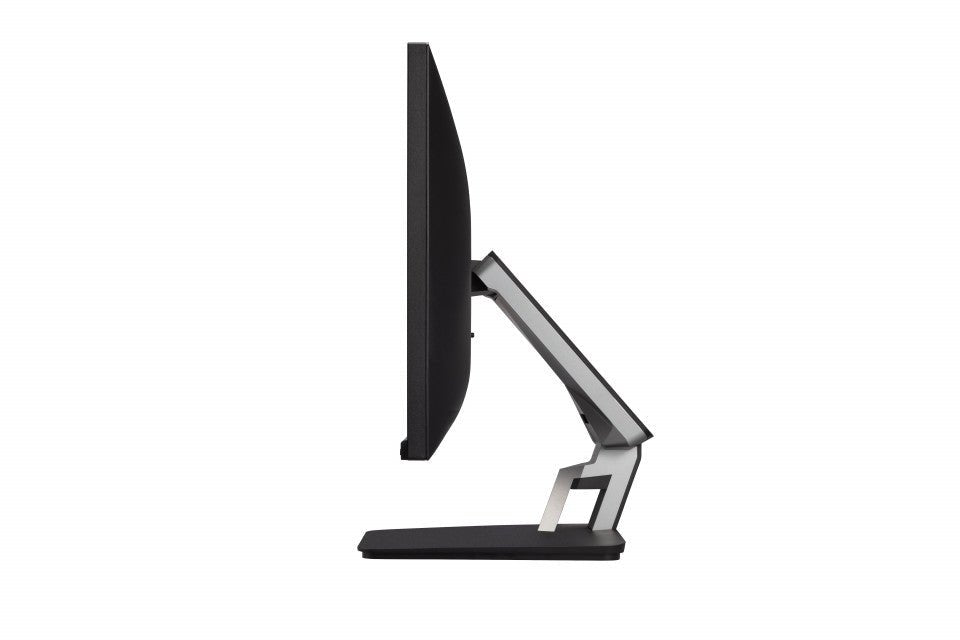

Dual-hinge stand tilts from -5° to 60° for comfortable touch use; DisplayPort MST daisy chains up to 4 screens.
Need touch monitors for a retail counter, kiosk, classroom or office rollout? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic TD2455 Datasheet — Technical Specifications
General
| Product Name | ViewSonic TD2455 24" In-Cell Touch Monitor with USB Type-C Input and Advanced Ergonomics |
| Model | TD2455 |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Screen Size | 24" (23.8" viewable) |
| Panel Type | IPS |
| Resolution | 1920 x 1080 (Full HD) |
| Refresh Rate | 60 Hz |
| Response Time | 6 ms (GTG) |
| Brightness | 250 cd/m² (typ) |
| Contrast Ratio | 1,000:1 static (typ); 50M:1 dynamic |
| Colours | 16.7M, 8-bit (6-bit + Hi-FRC) |
| Colour Gamut | NTSC 72%; sRGB 104% (typ) |
| Viewing Angles | 178° H / 178° V |
| Pixel Size | 0.275 x 0.275 mm |
| Flicker-Free / Low Blue Light | Yes / software solution |
| Backlight Life | 30,000 hours (min) |
Touch
| Touch Technology | In-cell projected capacitive, 10-point multi-touch |
| Surface | Anti-glare, 3H hard coating |
| Stylus | Passive touch pen and spare pen head included |

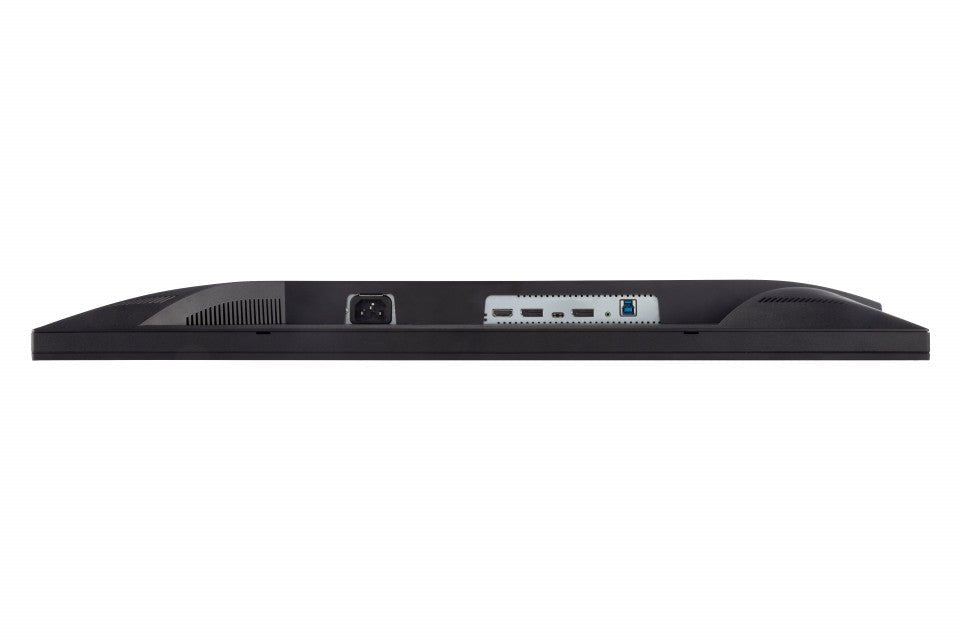

Connectivity
| USB-C | 1 x USB 3.2 Type-C upstream (DisplayPort Alt Mode, 60 W power delivery) |
| HDMI | 1 x HDMI 1.4 |
| DisplayPort | 1 x DP in; 1 x DP out (MST daisy chain) |
| USB | 2 x USB 3.2 Type-A downstream; 1 x USB 3.2 Type-B upstream |
| Audio | 1 x 3.5 mm out |
| Speakers | 2 x 2 W |
| Kensington Lock Slot | 1 |
Power
| Voltage | AC 100–240 V |
| Consumption | 17.9 W typical; 20.4 W max; 0.3 W standby |
| Eco Mode | 9.7 W (conserve) / 12.8 W (optimised) |
| Power Supply | Internal |
Operating Conditions
| Temperature | 0–40 °C |
| Humidity (non-condensing) | 20%–90% |
Physical & Ergonomics
| Dimensions with Stand (W x H x D) | 539 x 426 x 286 mm |
| Dimensions without Stand | 539 x 320 x 52 mm |
| Net Weight | 6.4 kg (3.7 kg without stand) |
| Packaging (W x H x D) | 617 x 415 x 285 mm |
| Gross Weight | 8.4 kg |
| Tilt | -5° / 60° |
| VESA | 100 x 100 mm |
Compatibility & Software Support
Devices
Windows 7/8/8.1/10/11 certified and macOS tested at 1920 x 1080. Use USB-C for single-cable video, touch and 60 W charging, or HDMI/DisplayPort with the USB-B cable for touch.
Software
On-screen menu with ViewMode presets, colour and audio settings, flicker-free backlight and software low blue light filter.
Package Contents & ViewSonic TD Series Ordering Information
In the Box
TD2455 monitor, power cable (IEC C13), DisplayPort cable (v1.2), USB A/B cable (v3.2), passive touch pen and spare pen head, quick start guide.
ViewSonic TD Series Touch Monitors
| Model | Key feature |
| TD1617A-2K | 16" WQXGA IPS 165 Hz portable, 10-point touch, 2 x USB-C |
| TD1630-3 | 16" (15.6") WXGA, 10-point PCAP, HDMI + VGA |
| TD1655 | 16" (15.6") FHD IPS portable, 10-point touch, USB-C, pen |
| TD2223-2 | 22" (21.5") FHD VA, 10-point IR touch, 7H glass |
| TD2230 | 22" (21.5") FHD IPS, 10-point PCAP, frameless, DP/HDMI/VGA |
| TD2423 | 24" (23.6") FHD VA 75 Hz, 10-point IR touch, 7H glass |
| TD2455 (this listing) | 24" (23.8") FHD IPS in-cell PCAP, USB-C 60 W, stylus |
| TD2465 | 24" (23.8") FHD VA 100 Hz, frameless PCAP, wet-hand/glove touch |
| TD2760 | 27" FHD VA, 10-point PCAP, fold-flat stand, RS232 |
| TD3207 | 32" (31.5") FHD open frame PCAP, IP65 front, 24/7, 450 nits |
Datasheet & Downloads
| ViewSonic datasheet | TD2455 Datasheet |
| User guide | TD2455 User Guide (PDF, English) |
| ViewSonic product page | TD2455 on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting TD2455.
Frequently Asked Questions — ViewSonic TD2455
Can I connect a laptop with one cable?
Yes. The USB-C port carries video, audio, touch data and up to 60 W of charging power.
Does it come with a pen?
Yes, a passive touch pen and a spare pen head are included.
Can I daisy chain monitors?
Yes, DisplayPort out supports Multi-Stream Transport daisy chaining of up to 4 screens (source must support MST).
What warranty do I get?
3 years on-site limited warranty on parts and labour in Singapore. Supplied by SourceIT with a GST invoice.
