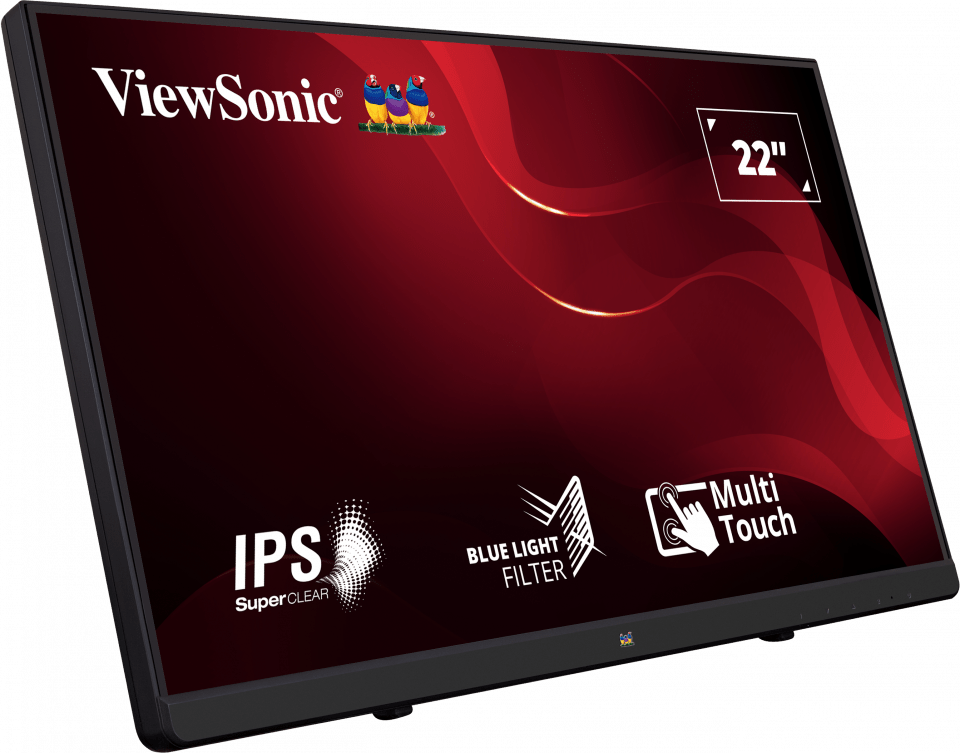

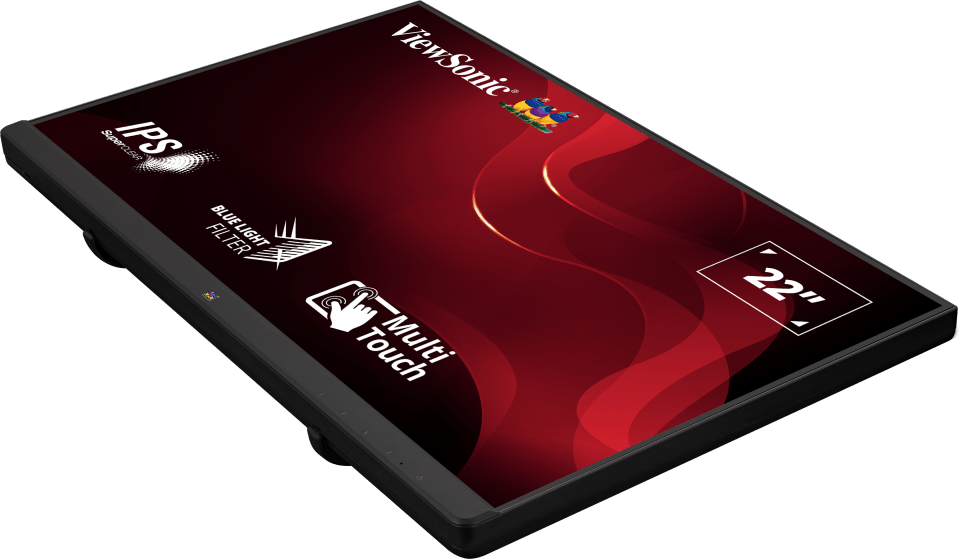

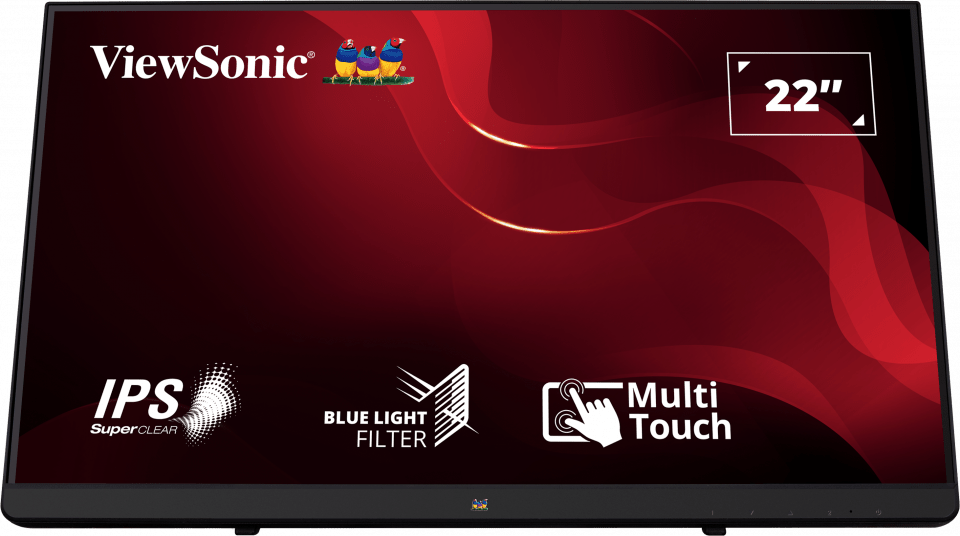

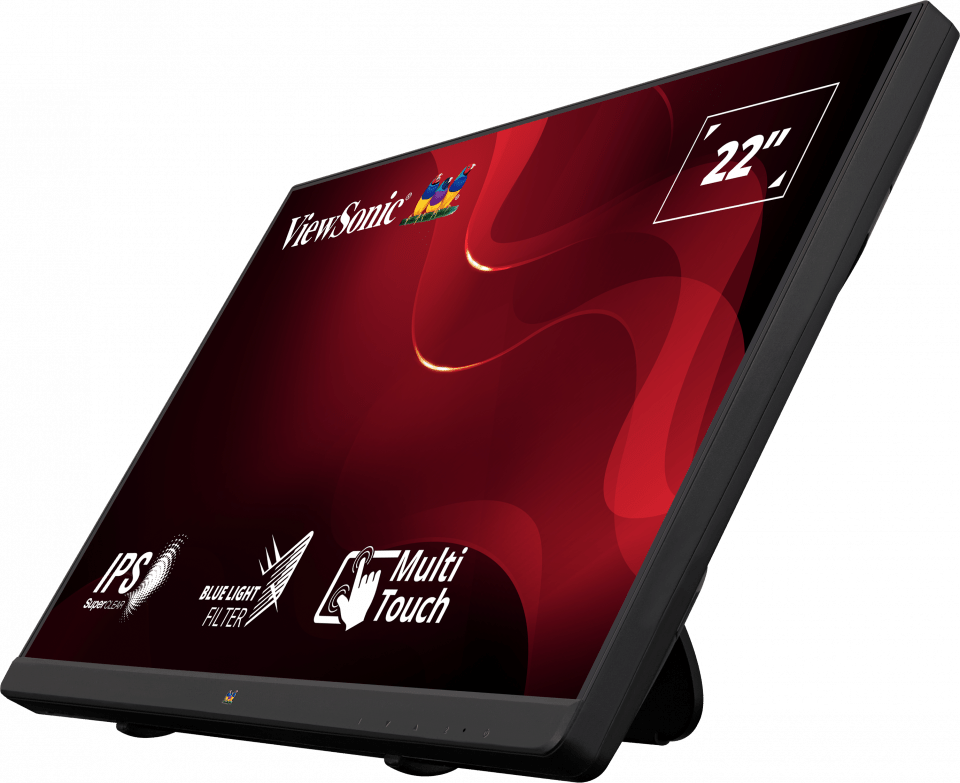

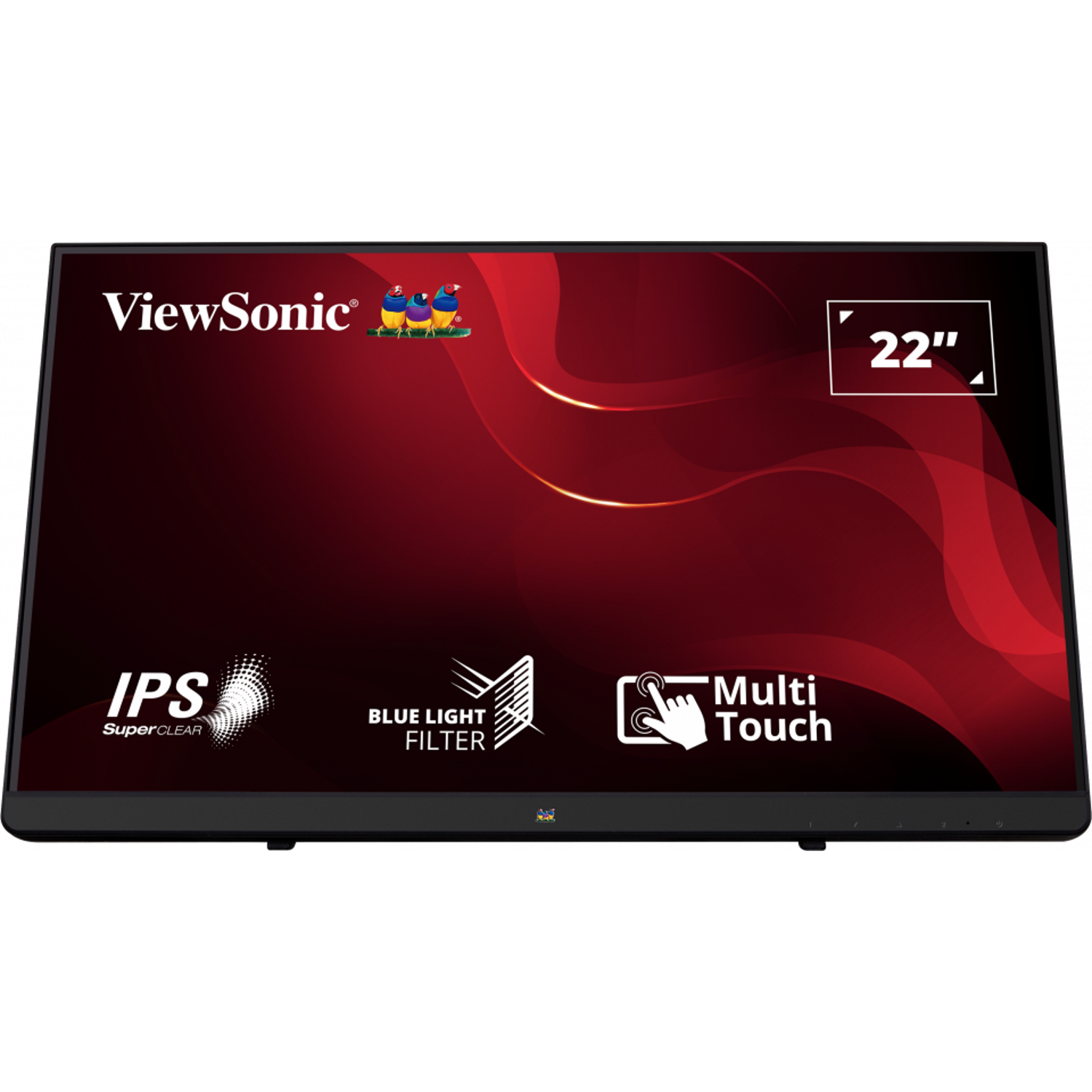

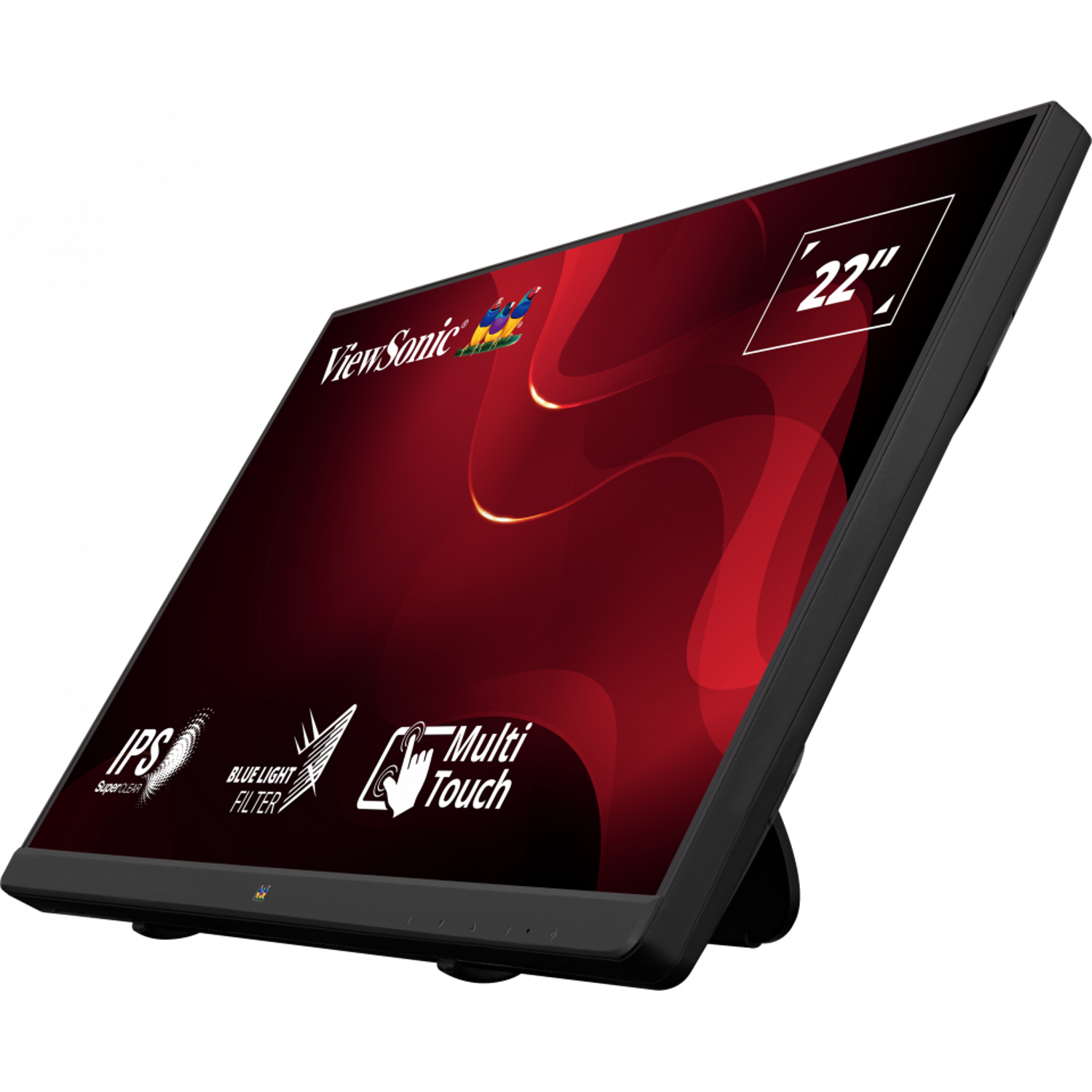

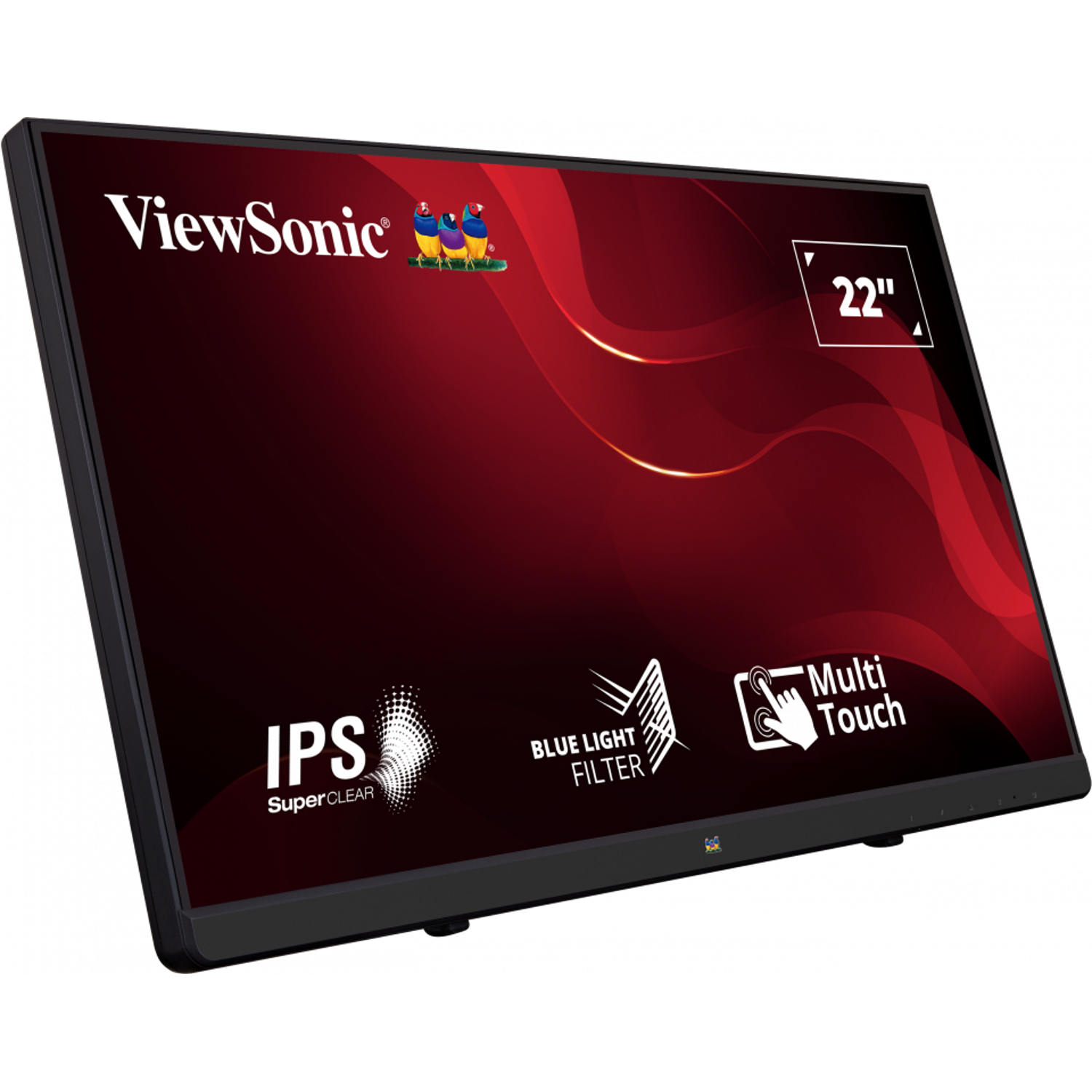

ViewSonic TD2230 22" Full HD IPS 10-Point Touch Screen Monitor
PRODUCT DESCRIPTION
ViewSonic TD2230 22" 10-point Touch Screen Monitor - 3 Years Local Warranty
10-Point Projected Capacitive Touch
Recognises up to 10 simultaneous touch points for responsive, multi-user interaction.
SuperClear IPS Panel
Accurate colour and consistent brightness with 178° viewing angles.
Frameless Edge-to-Edge Glass
Ultra-slim bezel and a 7H scratch-resistant glass faceplate for public environments.
Flexible Connectivity
HDMI, DisplayPort and VGA inputs, a USB 3.2 hub and integrated 2 x 3 W speakers.
Need touch monitors for a retail counter, kiosk, classroom or office rollout? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic TD2230 Datasheet — Technical Specifications
General
| Product Name | ViewSonic TD2230 22" 10-point Touch Screen Monitor |
| Model | TD2230 |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Screen Size | 22" (21.5" viewable) |
| Panel Type | IPS |
| Resolution | 1920 x 1080 (Full HD) |
| Refresh Rate | 60 Hz |
| Response Time | 5 ms (GTG) |
| Brightness | 200 cd/m² (typ) |
| Contrast Ratio | 1,000:1 static (typ); 50M:1 dynamic |
| Colours | 16.7M, 8-bit (6-bit + Hi-FRC) |
| Colour Gamut | NTSC 77% size; sRGB 108% size (typ) |
| Viewing Angles | 178° H / 178° V |
| Pixel Size | 0.248 x 0.248 mm |
| Flicker-Free / Low Blue Light | Yes / software solution |
| Backlight Life | 30,000 hours (min) |
Touch
| Touch Technology | Projected capacitive, 10-point multi-touch |
| Surface | Glossy, 7H hard coating |
| Cover Glass Thickness | 0.7 mm |
| Touch Interface | USB 3.2 Type-B |

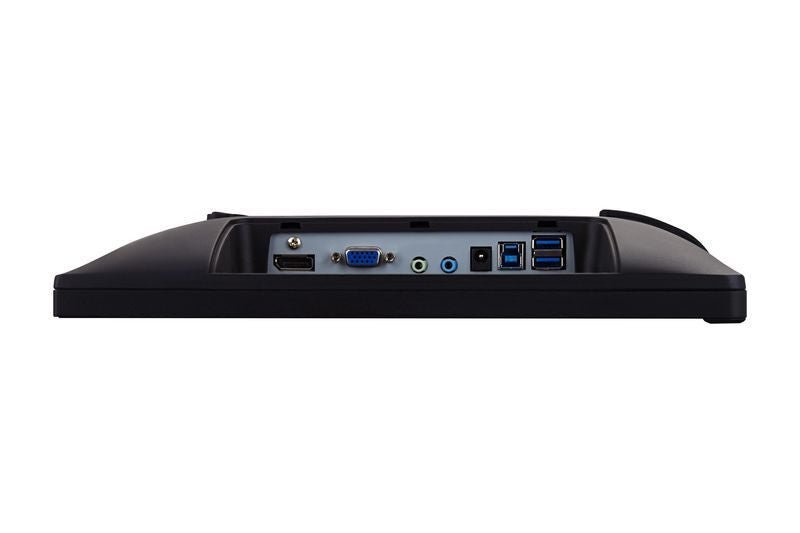

Connectivity

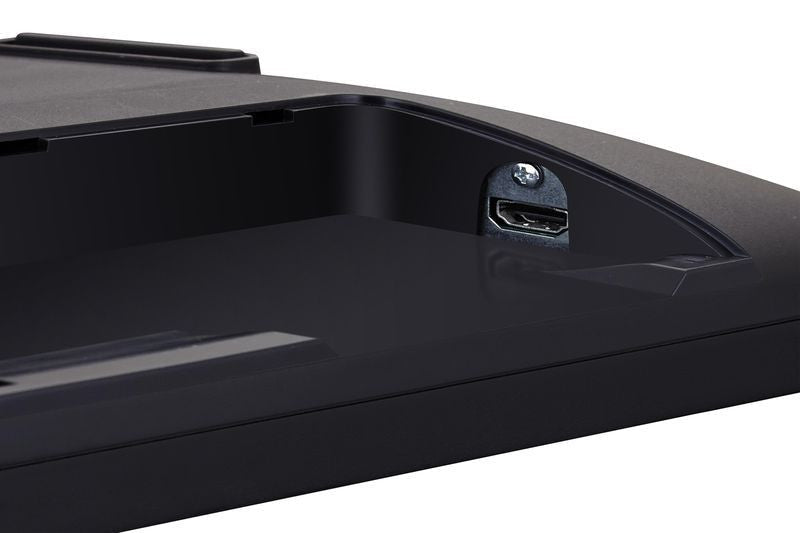

| HDMI | 1 x HDMI 1.4 |
| DisplayPort | 1 (v1.2) |
| VGA | 1 |
| USB | 2 x USB 3.2 Type-A downstream; 1 x USB 3.2 Type-B upstream |
| Audio | 1 x 3.5 mm in; 1 x 3.5 mm out |
| Speakers | 2 x 3 W |
| Kensington Lock Slot | 1 |
Power
| Voltage | AC 100–240 V |
| Consumption | 20 W typical; 25 W max (with ES 7.0); 0.5 W standby |
| Eco Mode | 16 W (conserve) / 18 W (optimised), with ES 7.0 |
| Power Supply | External power adaptor |
Operating Conditions
| Temperature | 0–40 °C |
| Humidity (non-condensing) | 20%–90% |
Physical & Ergonomics
| Dimensions (W x H x D) | 490 x 299 x 47 mm |
| Net Weight | 3.6 kg |
| Packaging (W x H x D) | 550 x 371 x 114 mm |
| Gross Weight | 4.7 kg |

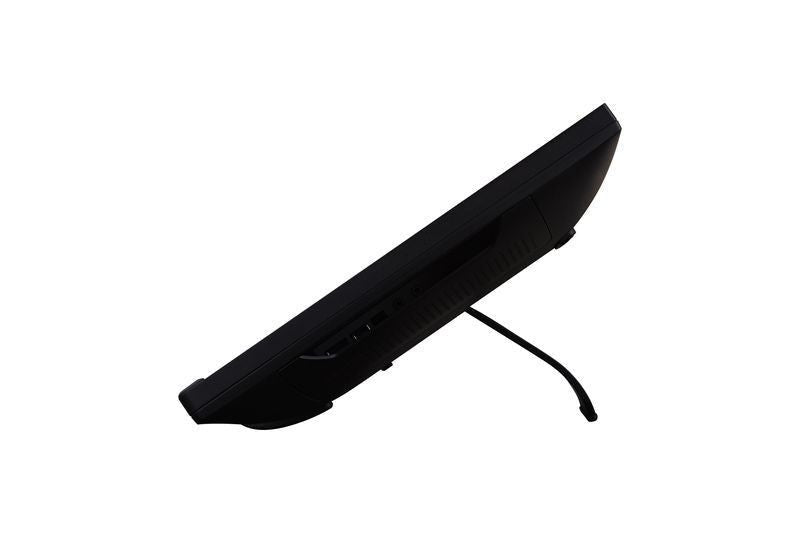

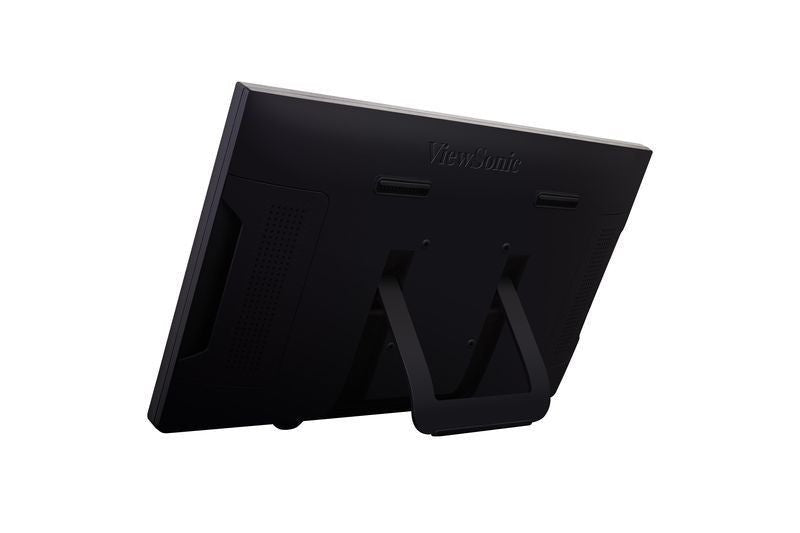

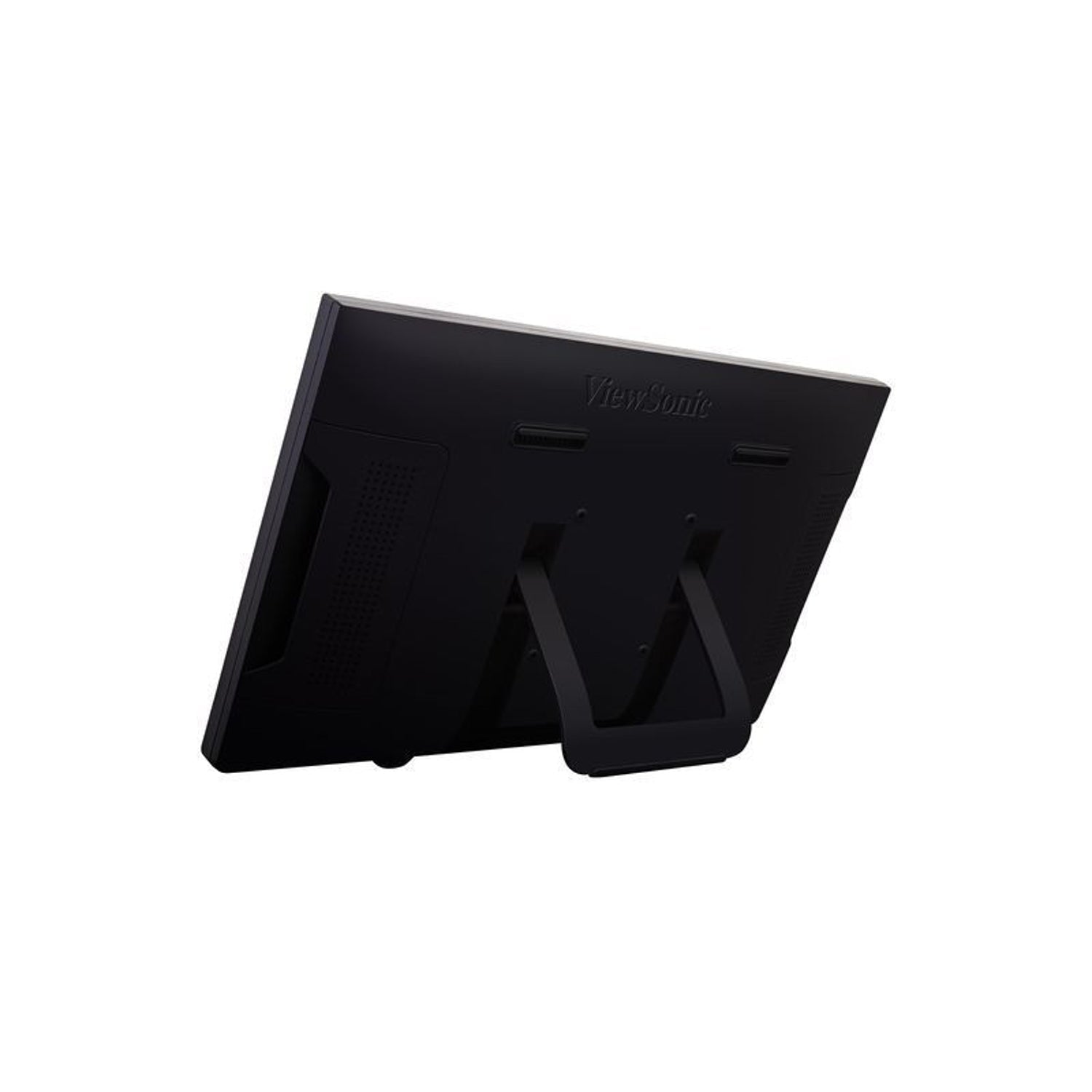

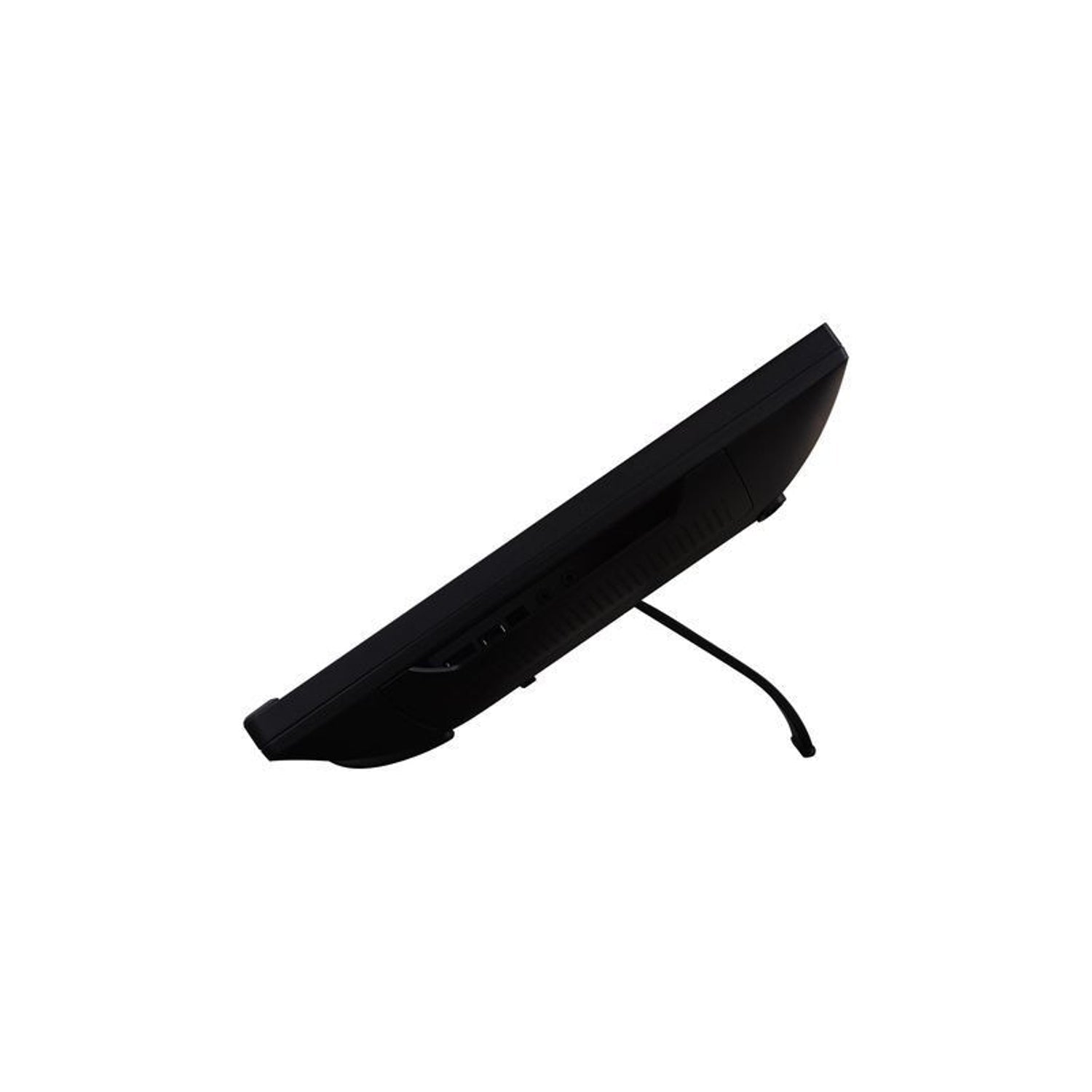

| Tilt | 20° / 70° |

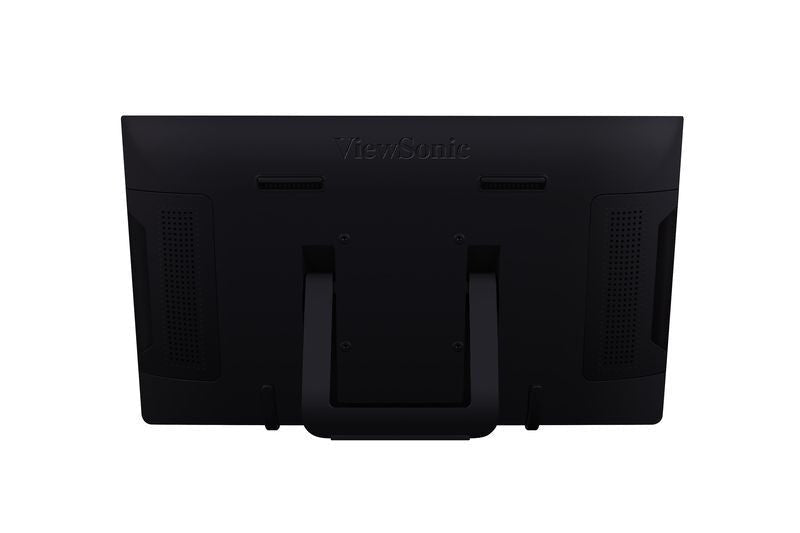

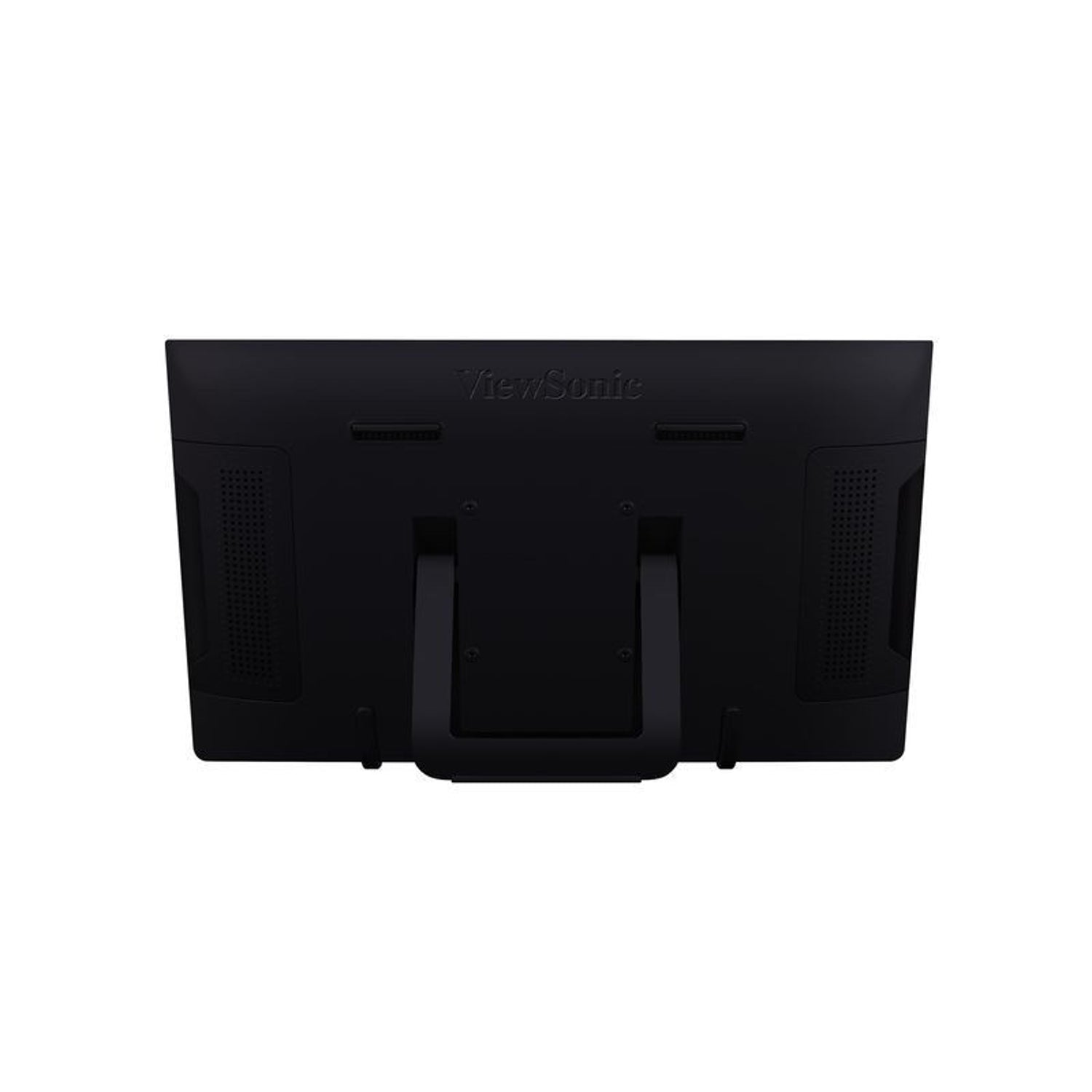

| VESA | 100 x 100 mm |
Compatibility & Software Support
Devices
Windows 7/8/8.1/10/11 certified and macOS tested at 1920 x 1080. Connect video by HDMI, DisplayPort or VGA plus the USB-B cable for touch; the 2-port USB 3.2 hub is handy for scanners and peripherals.
Software
On-screen menu with auto image adjust, colour and audio settings, flicker-free backlight and software low blue light filter.
Package Contents & ViewSonic TD Series Ordering Information
In the Box
TD2230 monitor, power cord (IEC C5), AC/DC adapter, HDMI cable (v1.4), USB A/B cable (v3.2), audio cable, quick start guide.
ViewSonic TD Series Touch Monitors
| Model | Key feature |
| TD1617A-2K | 16" WQXGA IPS 165 Hz portable, 10-point touch, 2 x USB-C |
| TD1630-3 | 16" (15.6") WXGA, 10-point PCAP, HDMI + VGA |
| TD1655 | 16" (15.6") FHD IPS portable, 10-point touch, USB-C, pen |
| TD2223-2 | 22" (21.5") FHD VA, 10-point IR touch, 7H glass |
| TD2230 (this listing) | 22" (21.5") FHD IPS, 10-point PCAP, frameless, DP/HDMI/VGA |
| TD2423 | 24" (23.6") FHD VA 75 Hz, 10-point IR touch, 7H glass |
| TD2455 | 24" (23.8") FHD IPS in-cell PCAP, USB-C 60 W, stylus |
| TD2465 | 24" (23.8") FHD VA 100 Hz, frameless PCAP, wet-hand/glove touch |
| TD2760 | 27" FHD VA, 10-point PCAP, fold-flat stand, RS232 |
| TD3207 | 32" (31.5") FHD open frame PCAP, IP65 front, 24/7, 450 nits |
Datasheet & Downloads
| ViewSonic datasheet | TD2230 Datasheet |
| User guide | TD2230 User Guide (PDF, English) |
| Quick start guide | TD2230 Quick Start Guide (PDF) |
| ViewSonic product page | TD2230 on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting TD2230.
Frequently Asked Questions — ViewSonic TD2230
What touch technology does it use?
Projected capacitive (PCAP) touch recognising up to 10 points at once, under a 7H hard-coated glass surface.
How is touch connected?
Connect the supplied USB A/B cable to your PC in addition to HDMI, DisplayPort or VGA video.
Can I wall-mount it?
Yes, it is VESA 100 x 100 mm compatible.
What warranty do I get?
3 years on-site limited warranty on parts and labour in Singapore. Supplied by SourceIT with a GST invoice.
