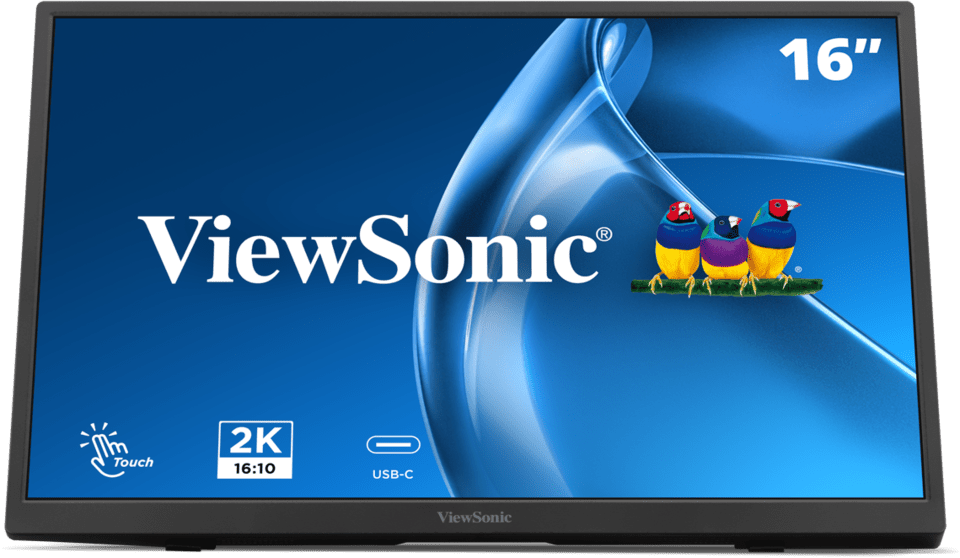

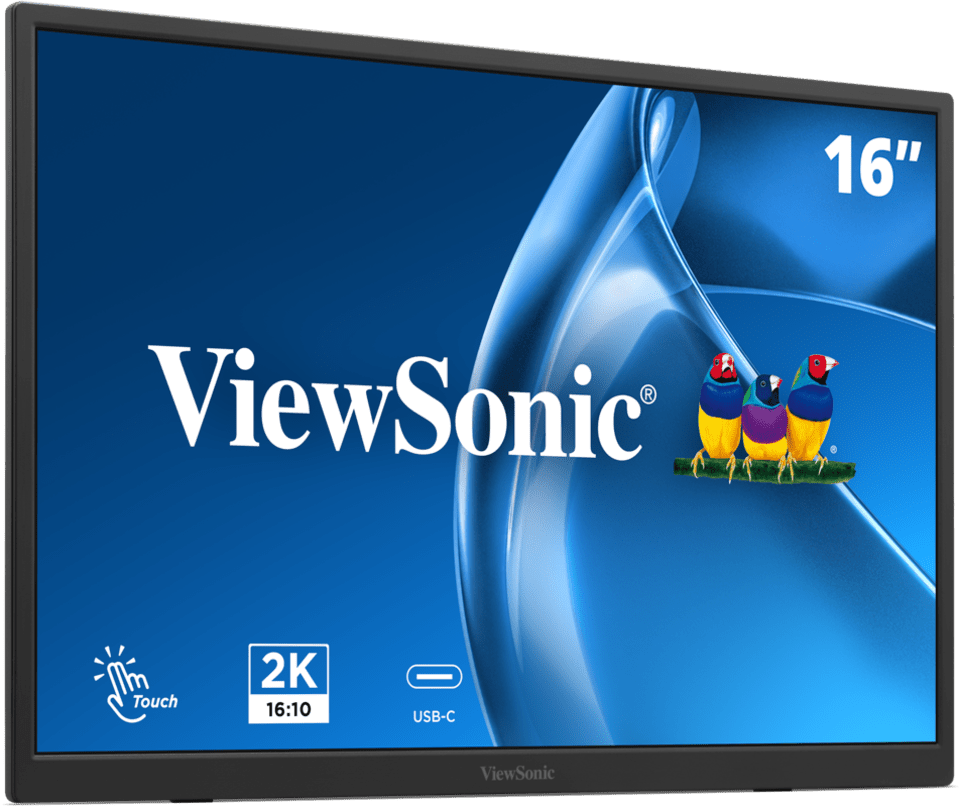

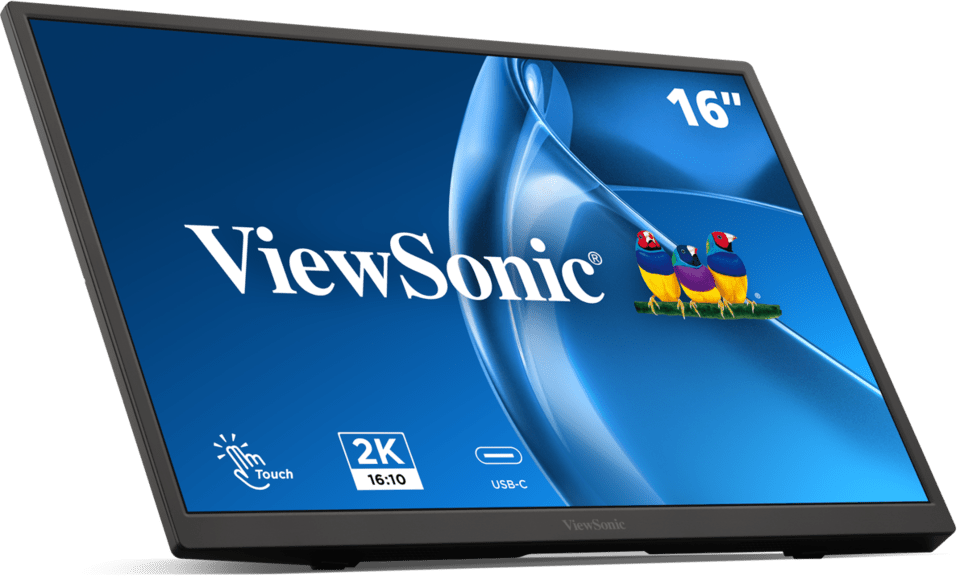

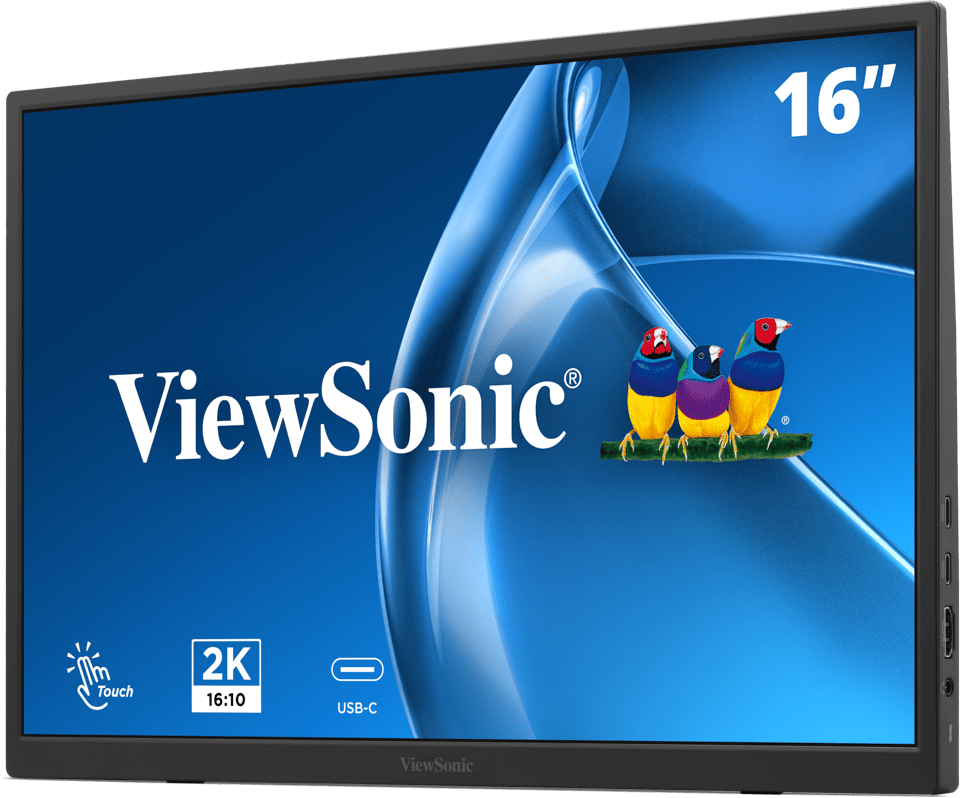

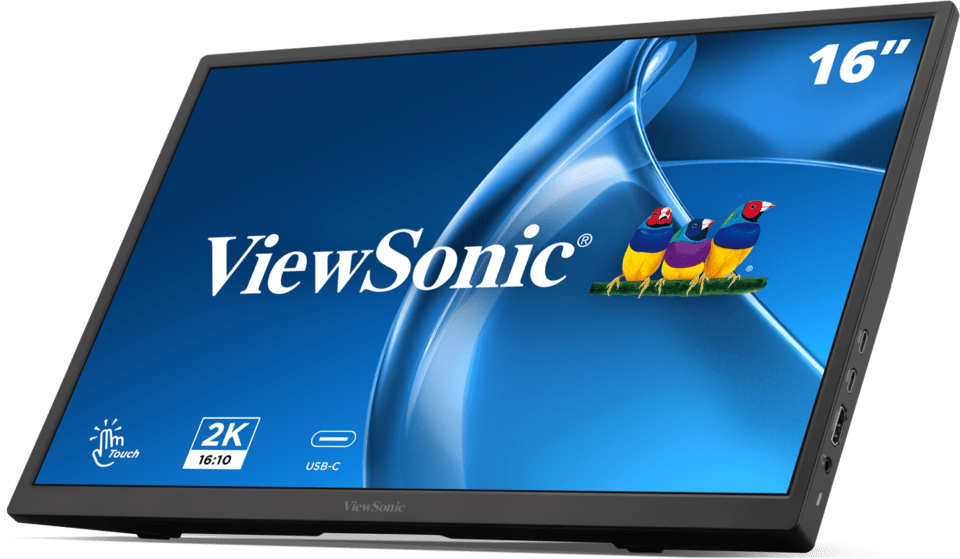

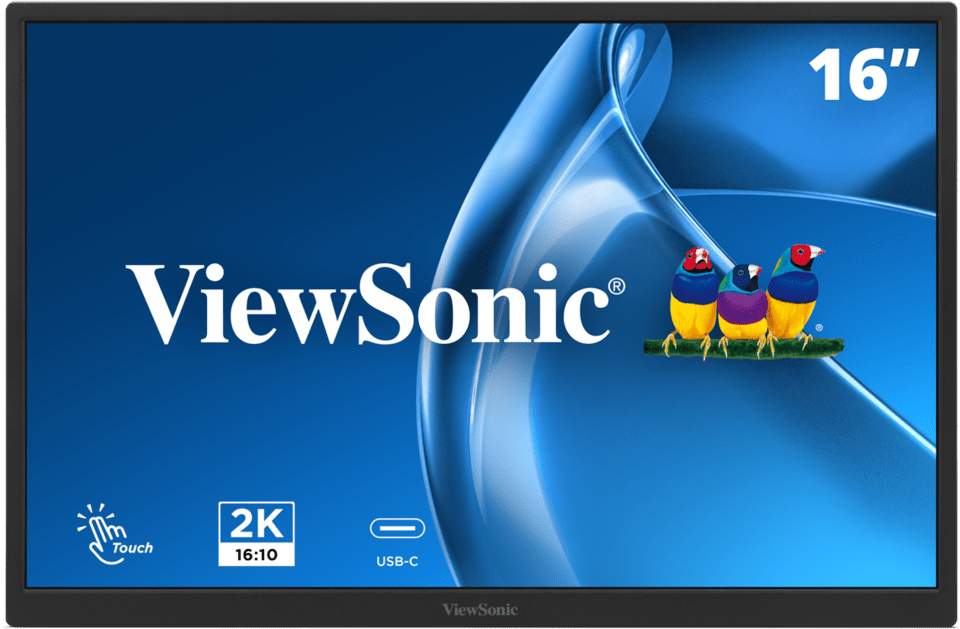

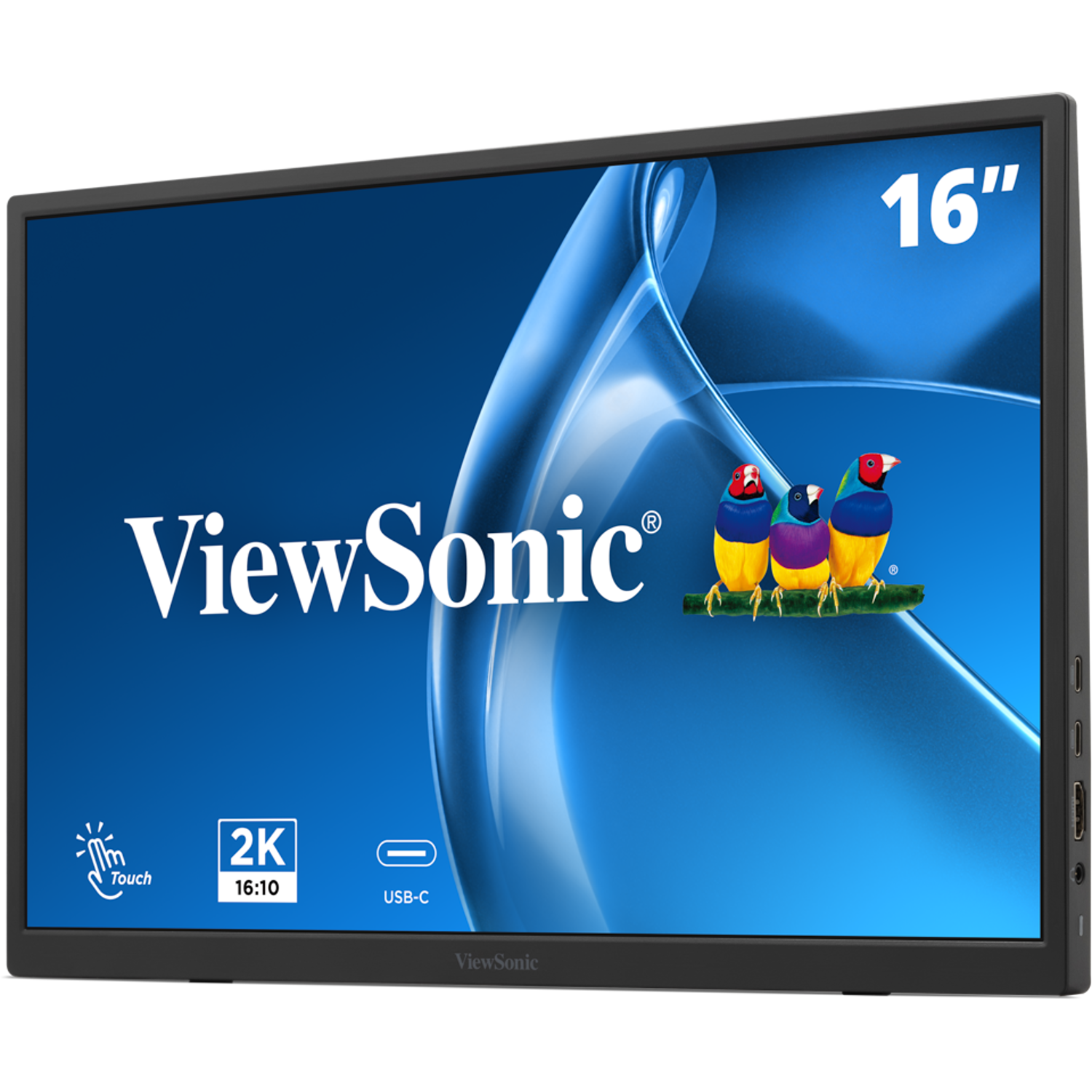

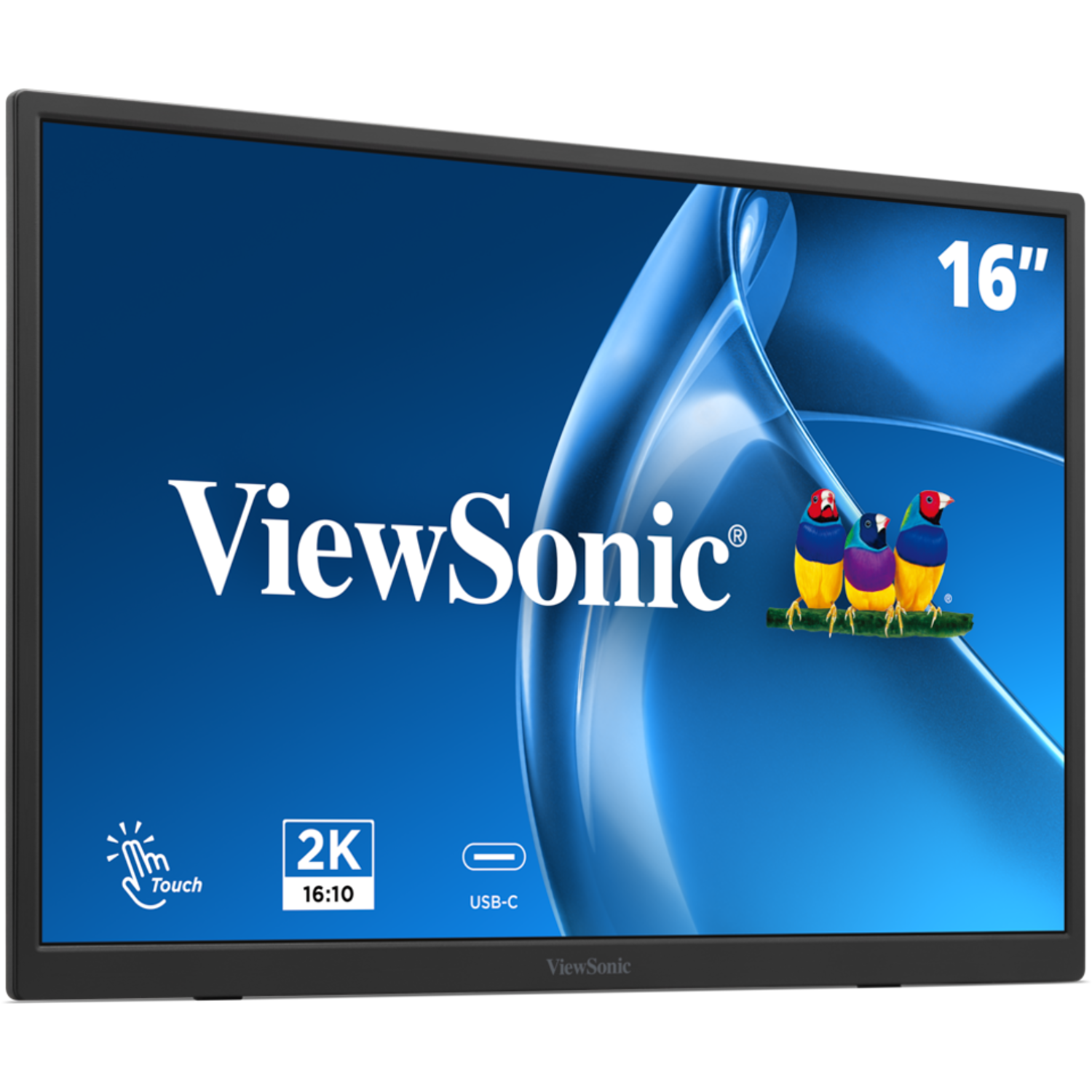

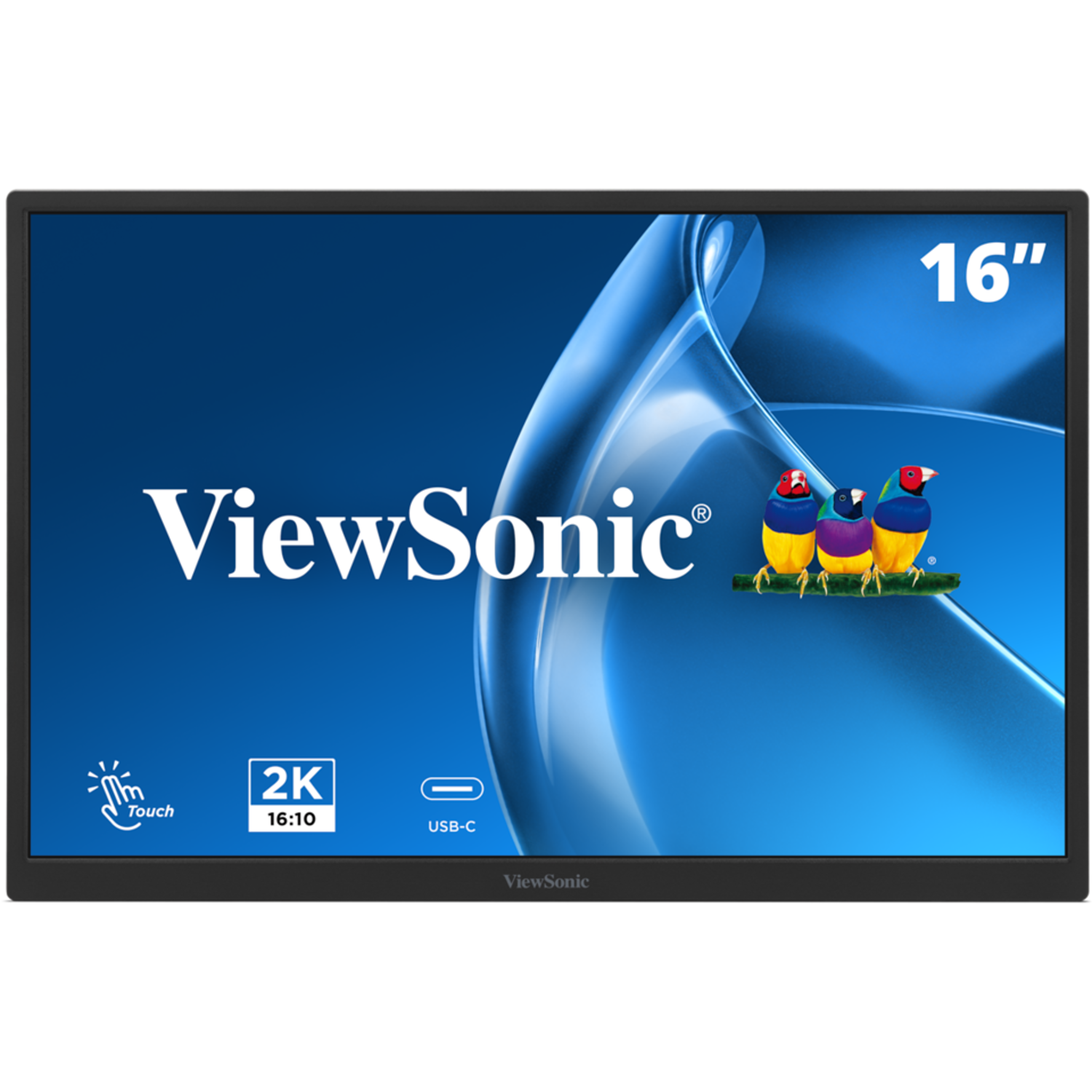

ViewSonic TD1617A-2K 16" WQXGA 165Hz Portable Touch Monitor
PRODUCT DESCRIPTION
ViewSonic TD1617A-2K 16" WQXGA 165Hz Multi-Touch Portable Monitor with USB-C - 3 Years Local Warranty
16:10 WQXGA Display
2560 x 1600 resolution with 100% sRGB coverage.
165 Hz Refresh Rate
Smooth visuals with reduced stutter for dynamic content.
10-Point Multi-Touch
Capacitive touchscreen with finger or stylus support.
USB-C One-Cable Solution
Power, video, audio and touch data over one cable.
Need touch monitors for a retail counter, kiosk, classroom or office rollout? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic TD1617A-2K Datasheet — Technical Specifications
General
| Product Name | ViewSonic TD1617A-2K 16" WQXGA 165Hz Multi-Touch Portable Monitor with USB-C |
| Model | TD1617A-2K |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Screen Size | 16" |
| Panel Type | IPS |
| Resolution | 2560 x 1600 (WQXGA), 16:10 |
| Refresh Rate | 165 Hz (USB-C); 120 Hz (HDMI) |
| Response Time | 3 ms (GTG) |
| Brightness | 300 cd/m² (typ) |
| Contrast Ratio | 1,200:1 static (typ); 50M:1 dynamic |
| Colours | 10-bit (8-bit + FRC) |
| Colour Gamut | sRGB 100% coverage; NTSC 76% size (typ) |
| Viewing Angles | 178° H / 178° V |
| Pixel Size | 0.135 x 0.135 mm |
| Low Blue Light | Software solution |
| Backlight Life | 15,000 hours (min) |
Touch
| Touch Technology | Projected capacitive, 10-point multi-touch |
| Surface | Glossy, ≥6H hard coating |
| Cover Glass Thickness | 0.663 mm |

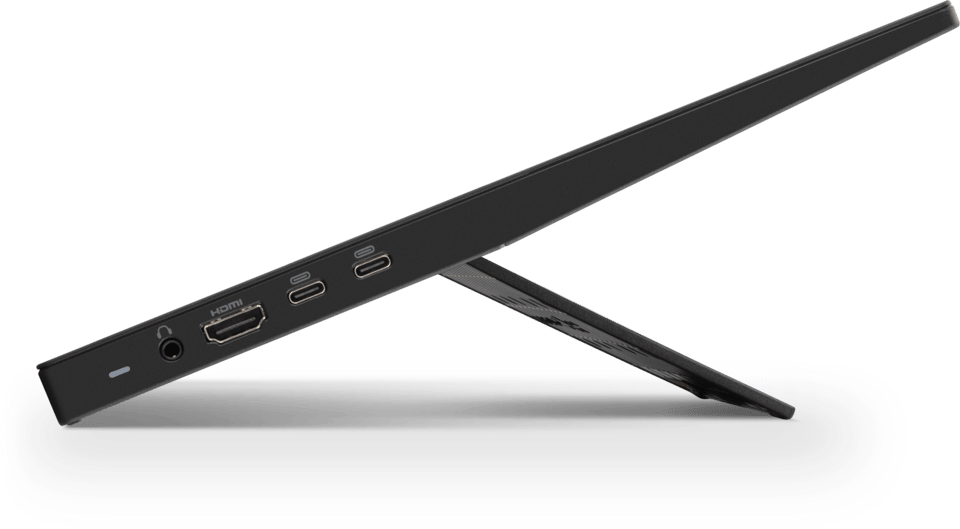

Connectivity
| USB-C | 2 x USB 3.2 Type-C (DisplayPort Alt mode, 60 W power charger) |
| HDMI | 1 x HDMI 1.4 |
| Audio Out | 1 x 3.5 mm |
| Speakers | 2 x 0.8 W |
Power
| Power In | USB Type-C (DC 5/9/12/15/20 V) |
| Consumption | 9.3 W typical; 10.3 W max; 0.5 W standby |
| Eco Mode | 7.5 W (conserve) / 8.5 W (optimised) |
| Power Supply | External (optional) |
Operating Conditions
| Temperature | 0–40 °C |
| Humidity (non-condensing) | 20%–90% |
Physical & Ergonomics
| Dimensions (W x H x D) | 360 x 239 x 16 mm |
| Net Weight | 0.8 kg |
| Packaging (W x H x D) | 448 x 307 x 74 mm |
| Gross Weight | 1.6 kg |

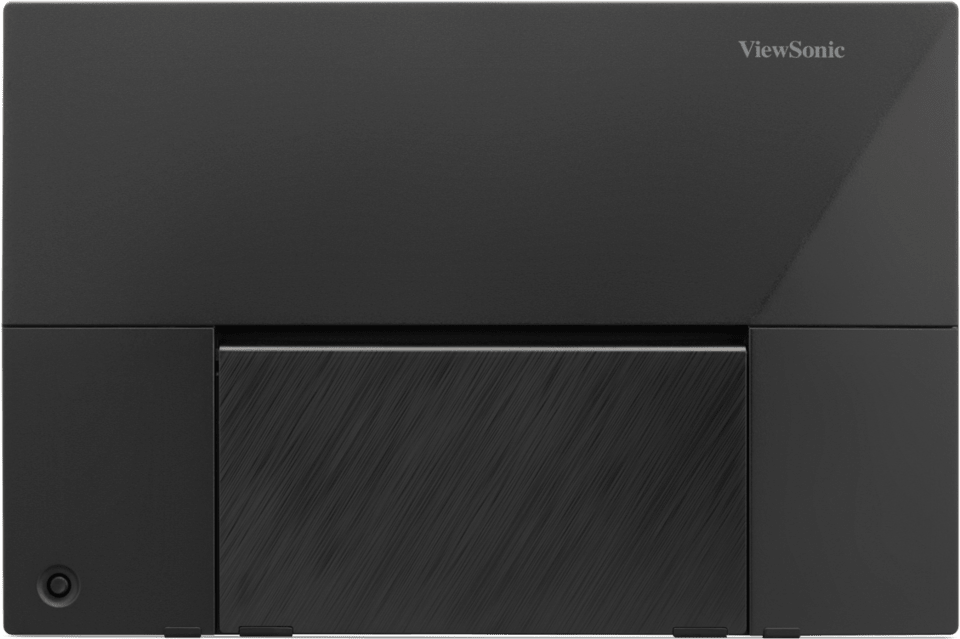

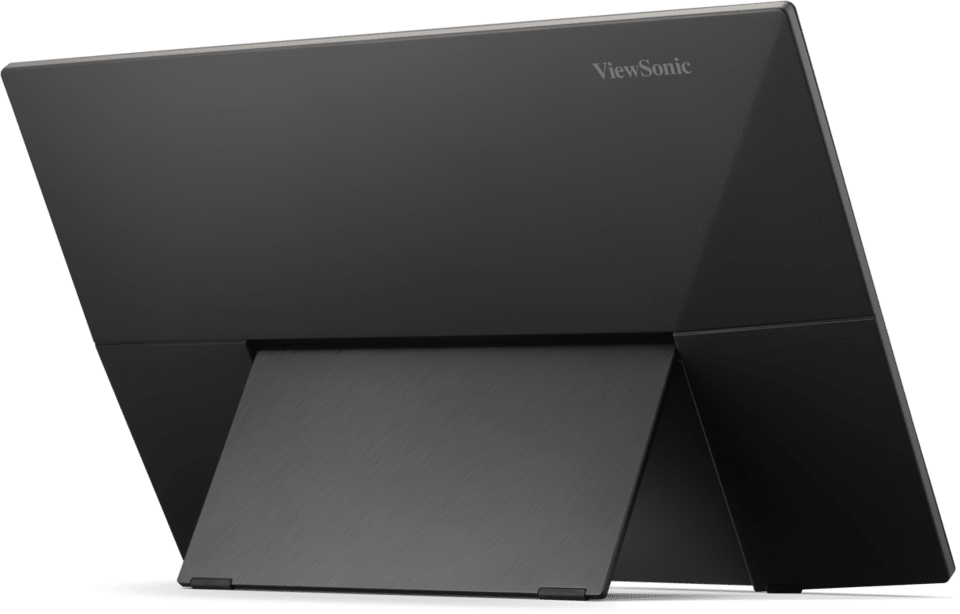

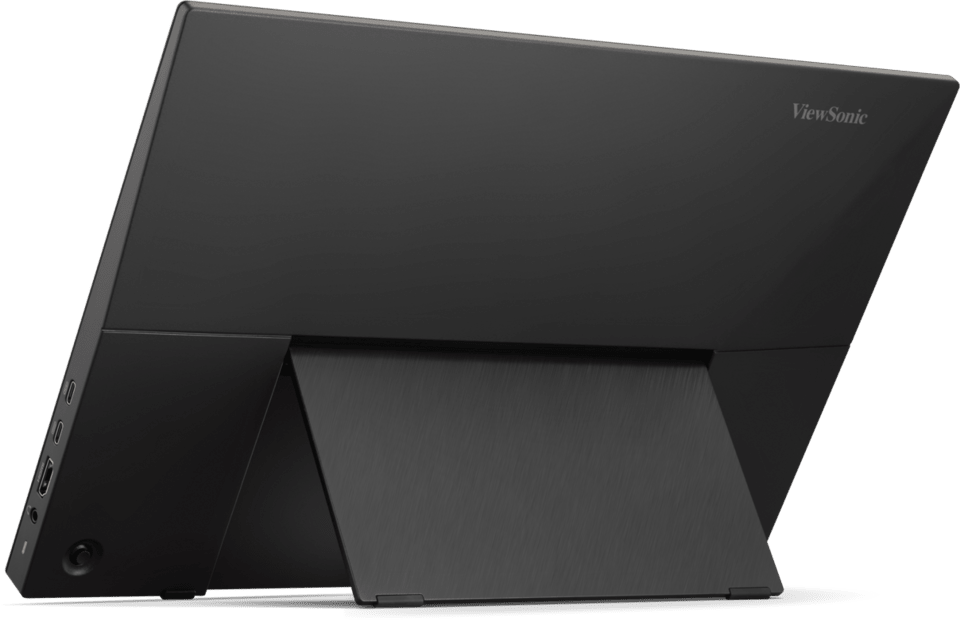

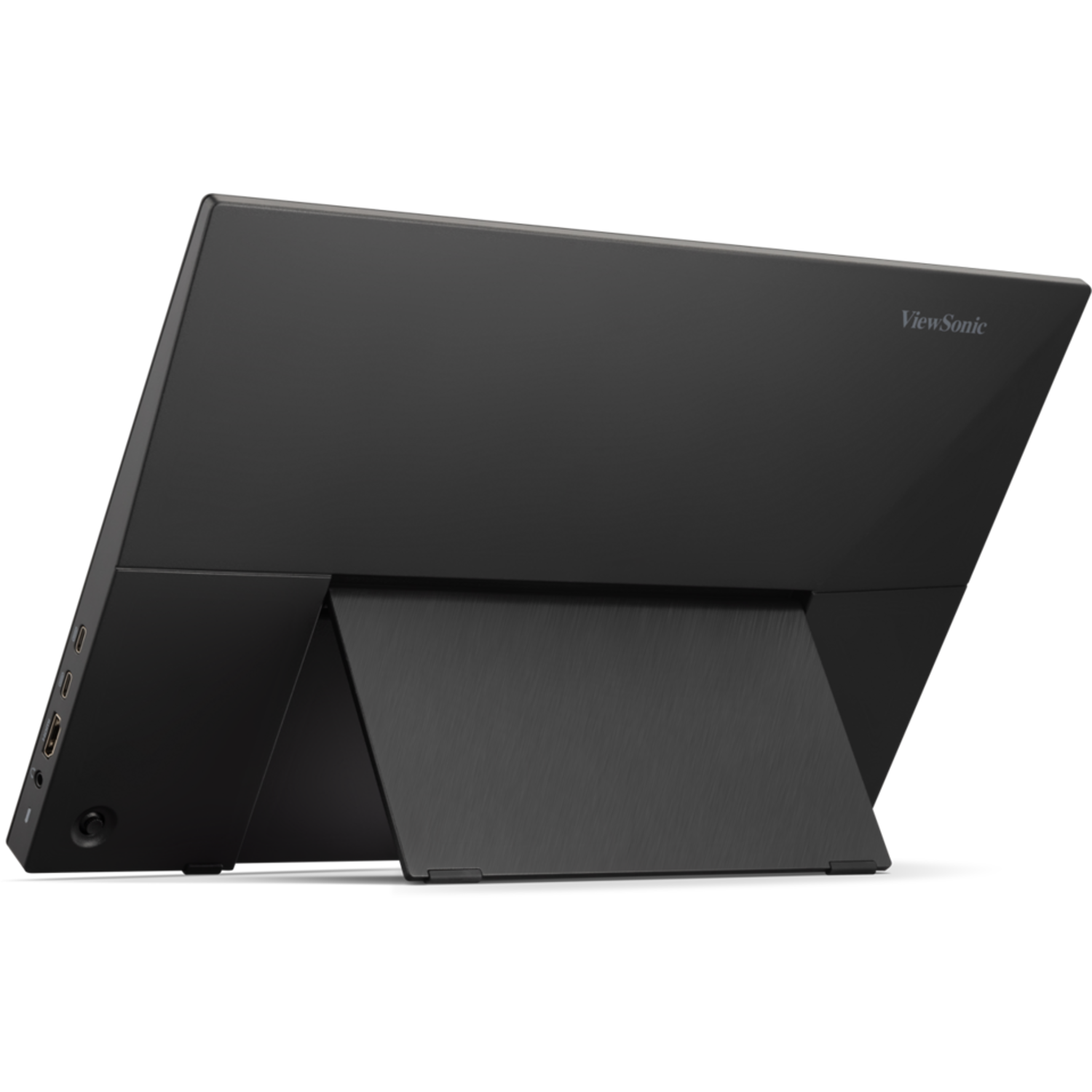

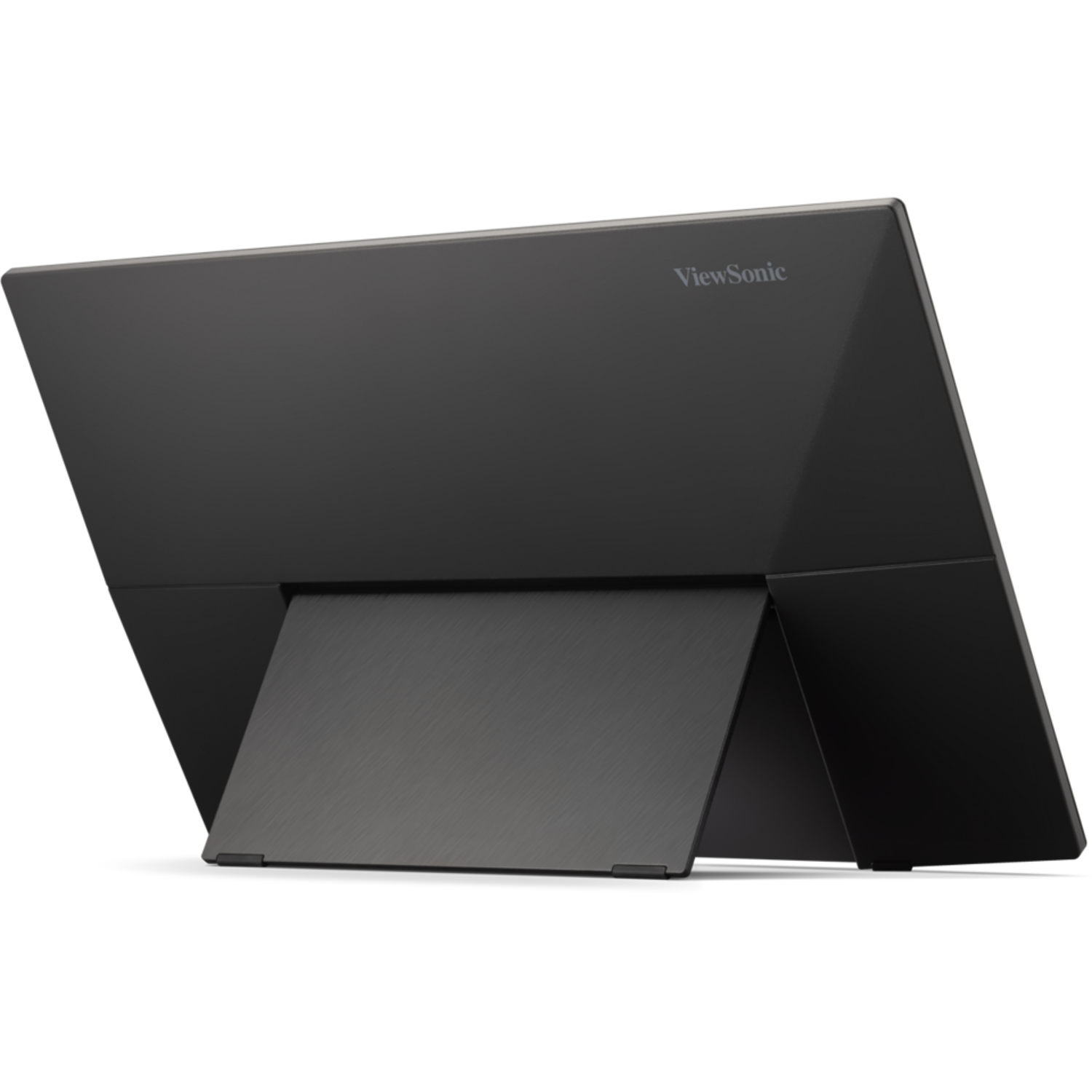

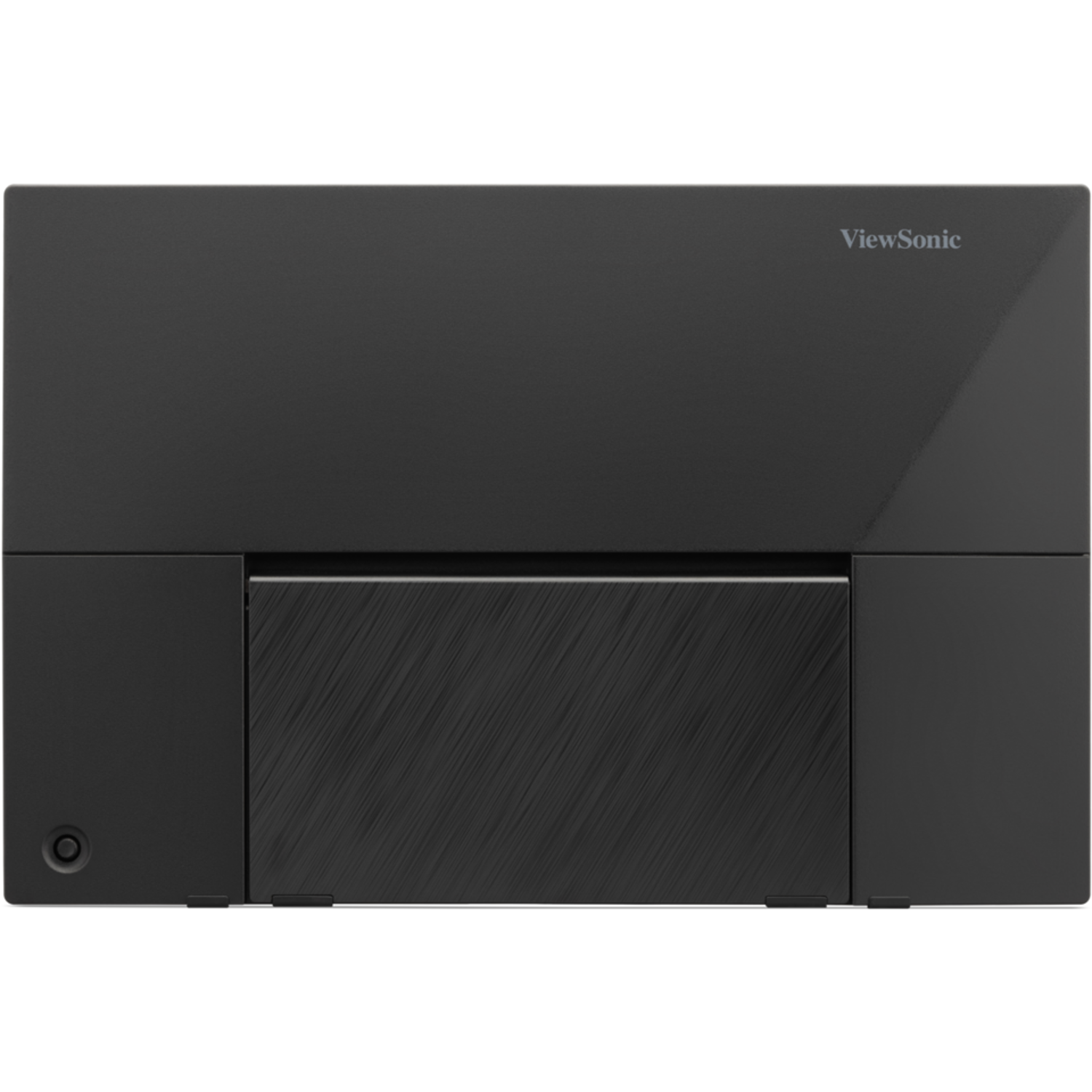

| Tilt (built-in stand) | 20° / 60° |
Compatibility & Software Support
Devices
Windows 10/11 certified and macOS tested at 2560 x 1600. Connect a laptop, tablet or phone that supports USB-C DisplayPort Alt mode with one cable, or use HDMI.
Software
On-screen ViewMode presets, Eco Mode and low blue light filter; touch works as standard HID multi-touch on Windows.
Package Contents & ViewSonic TD Series Ordering Information
In the Box
TD1617A-2K monitor, USB Type-C cable (M-M), USB Type-C to Type-A 3.2 Gen 1 cable, sleeve case, cleaning cloth, quick start guide.
ViewSonic TD Series Touch Monitors
| Model | Key feature |
| TD1617A-2K (this listing) | 16" WQXGA IPS 165 Hz portable, 10-point touch, 2 x USB-C |
| TD1630-3 | 16" (15.6") WXGA, 10-point PCAP, HDMI + VGA |
| TD1655 | 16" (15.6") FHD IPS portable, 10-point touch, USB-C, pen |
| TD2223-2 | 22" (21.5") FHD VA, 10-point IR touch, 7H glass |
| TD2230 | 22" 10-point touch screen |
| TD2423 | 24" IR touch |
| TD2455 | 24" in-cell touch, USB-C |
| TD2465 | 24" frameless 10-point PCAP touch |
| TD2760 | 27" 10-point touch screen |
| TD3207 | 32" open-frame touch, 24/7 operation |
Datasheet & Downloads
| ViewSonic datasheet | TD1617A-2K Datasheet |
| User guide | TD1617A-2K User Guide (PDF, English) |
| Quick start guide | TD1617A-2K Quick Start Guide (PDF) |
| ViewSonic product page | TD1617A-2K on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting TD1617A-2K.
Frequently Asked Questions — ViewSonic TD1617A-2K
Can one USB-C cable carry video, touch and power?
Yes, from a USB-C port with DisplayPort Alt mode; the second USB-C port can take power and pass up to 60 W.
Does touch work on a Mac?
It is macOS tested for display; multi-touch features depend on the operating system.
Is a case included?
Yes, a sleeve case and cleaning cloth are in the box.
What warranty do I get?
3 years on-site limited warranty on parts and labour in Singapore. Supplied by SourceIT with a GST invoice.
