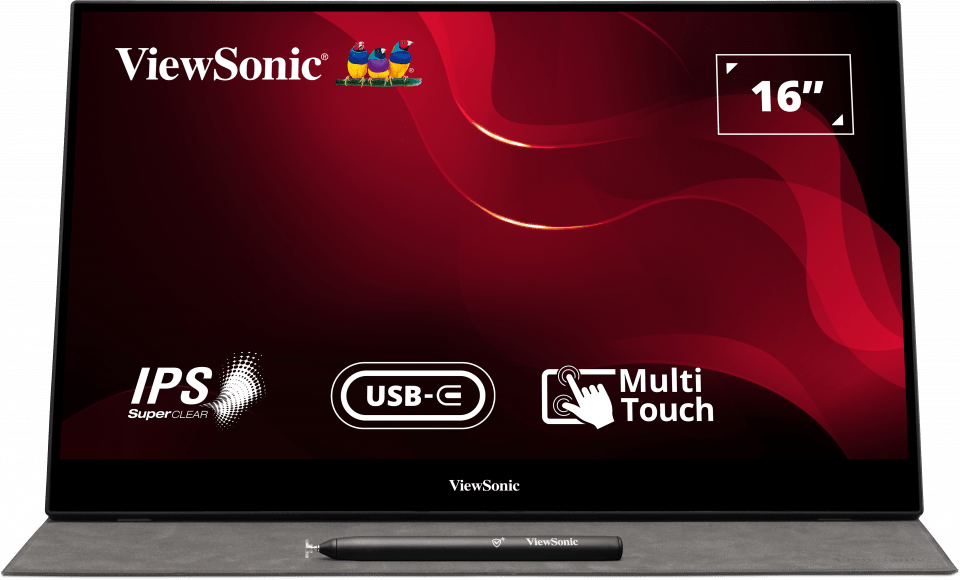

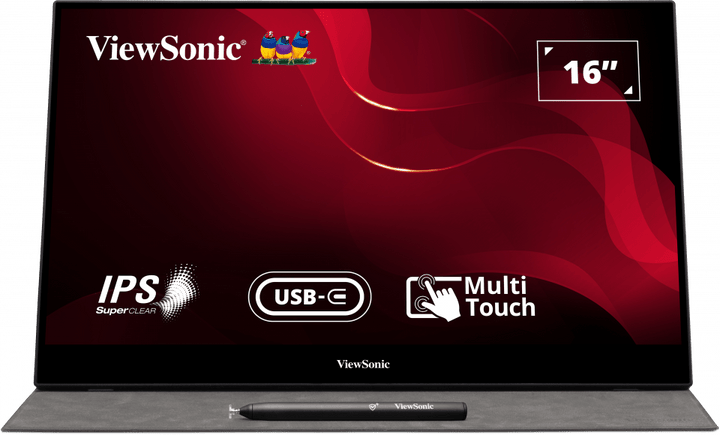

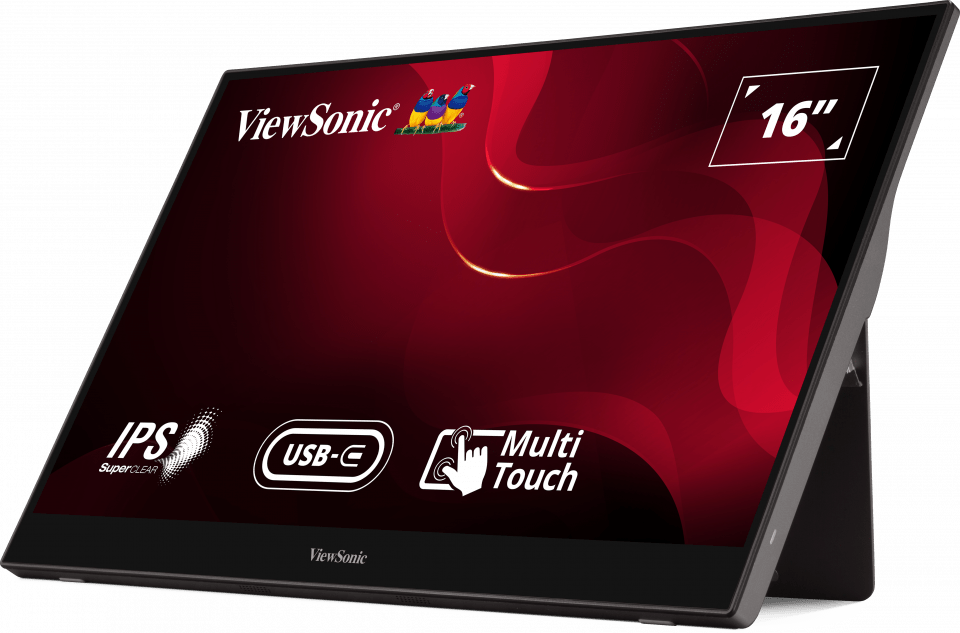

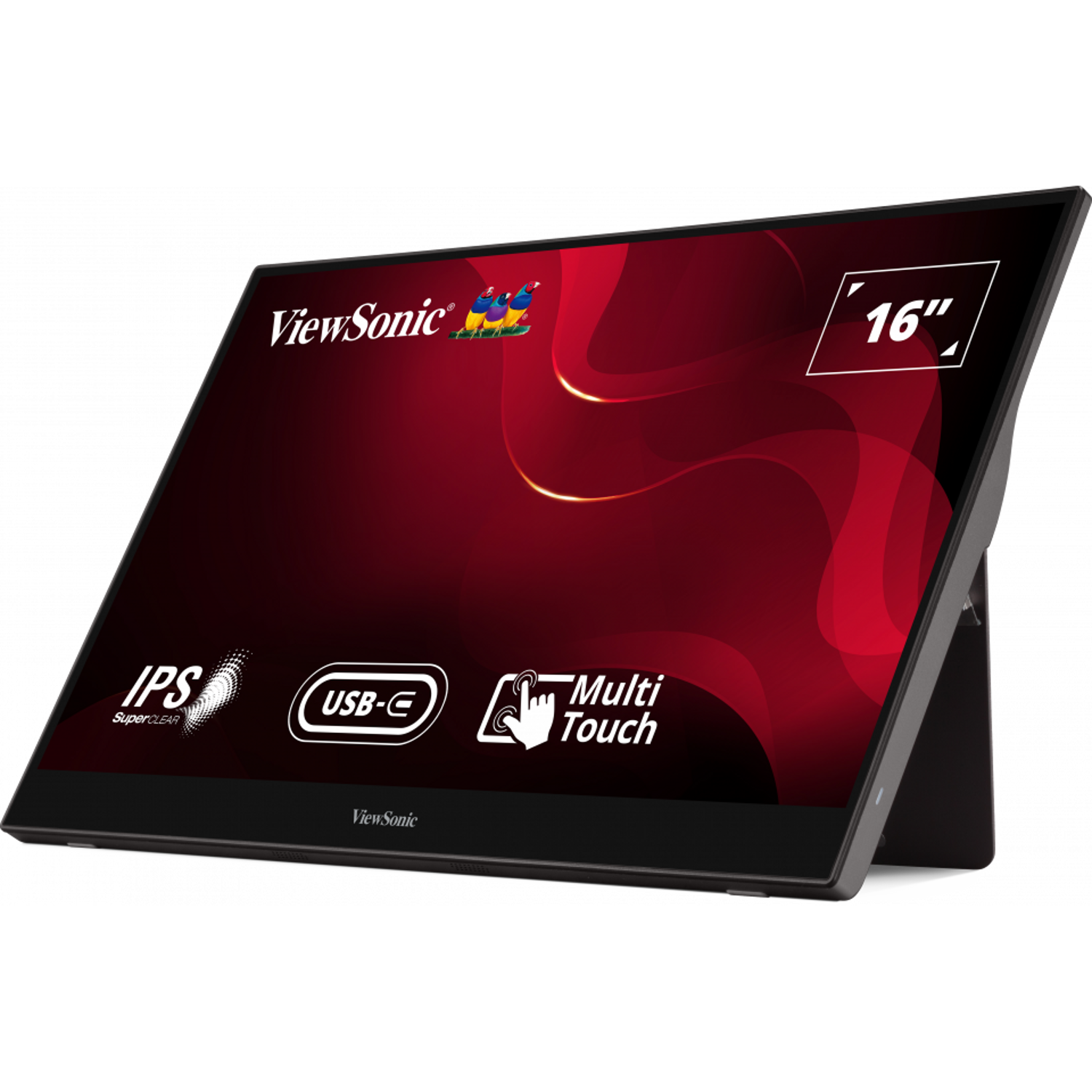

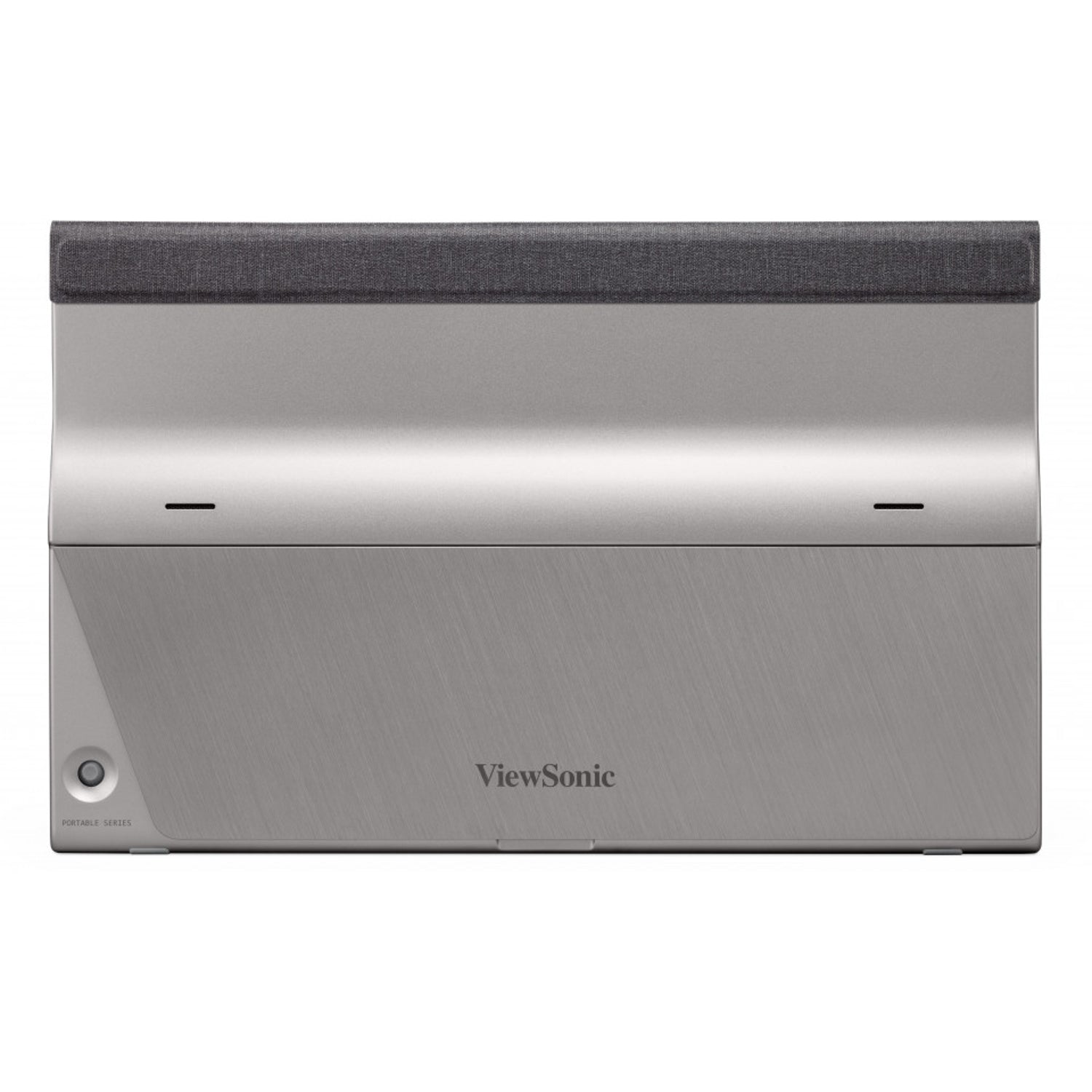

ViewSonic TD1655 16" USB-C Multi-Touch Portable Monitor
PRODUCT DESCRIPTION
ViewSonic TD1655 16" USB-C Multi-Touch Portable Monitor - 3 Years Local Warranty
Compact and Lightweight
A 16-inch display that weighs under 1 kg.
10-Point Multi-Touch
Intuitive screen control with touch pen support.
USB-C One-Cable Solution
Video, touch signals and power charging over one cable.
Flexible Setup

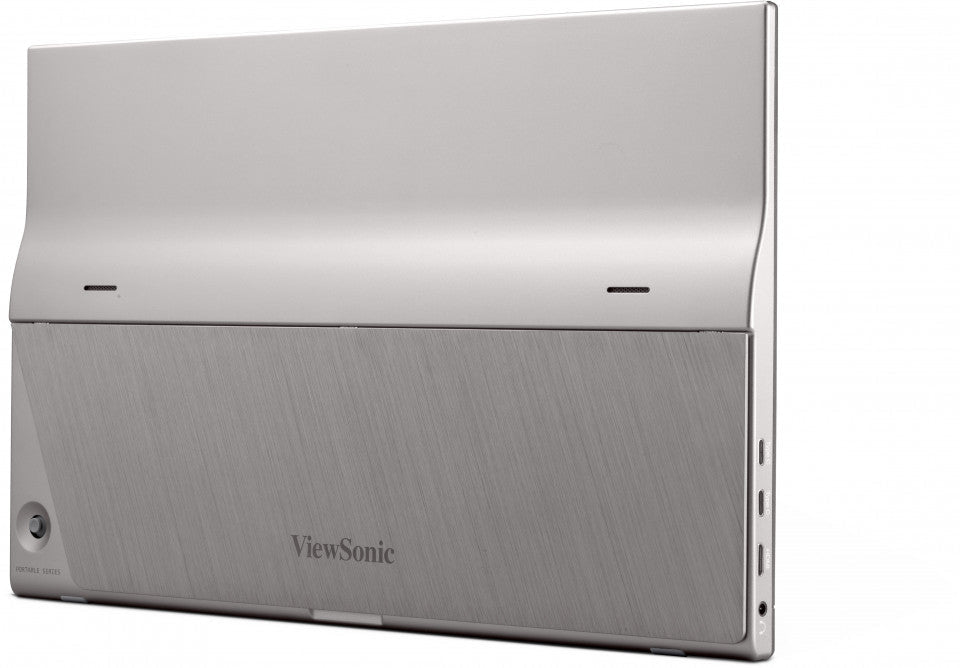

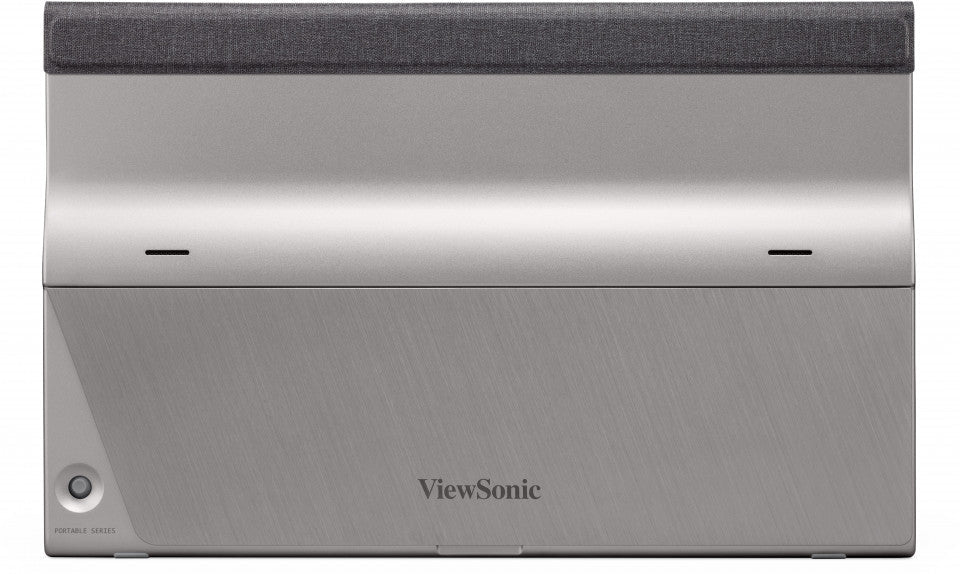

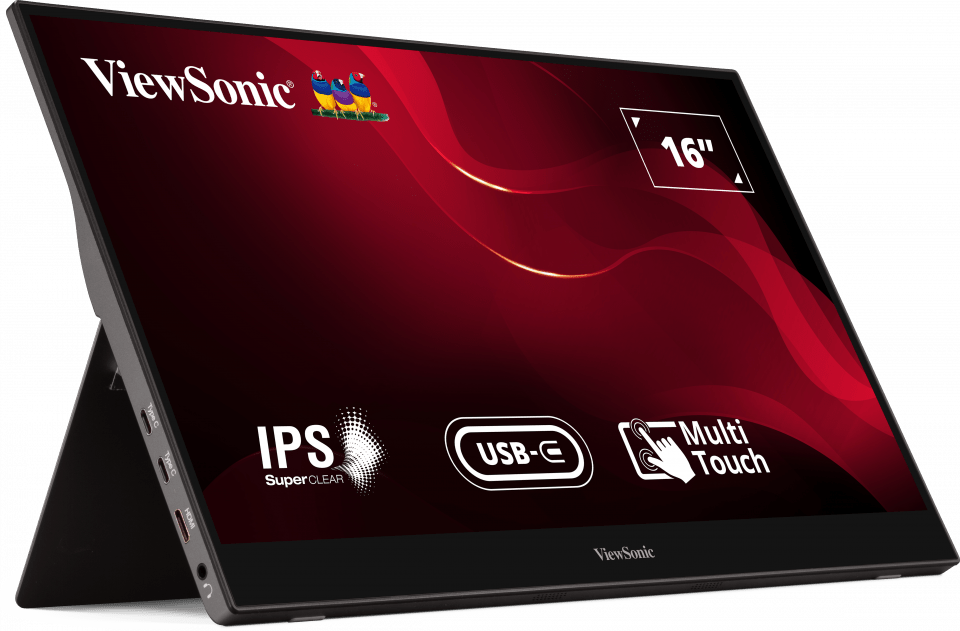

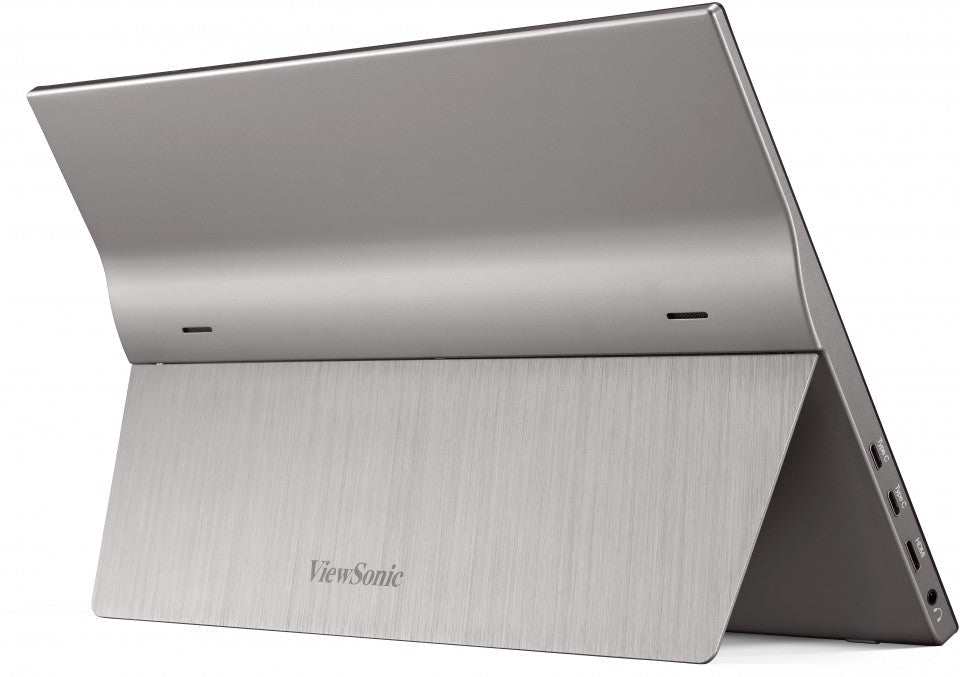

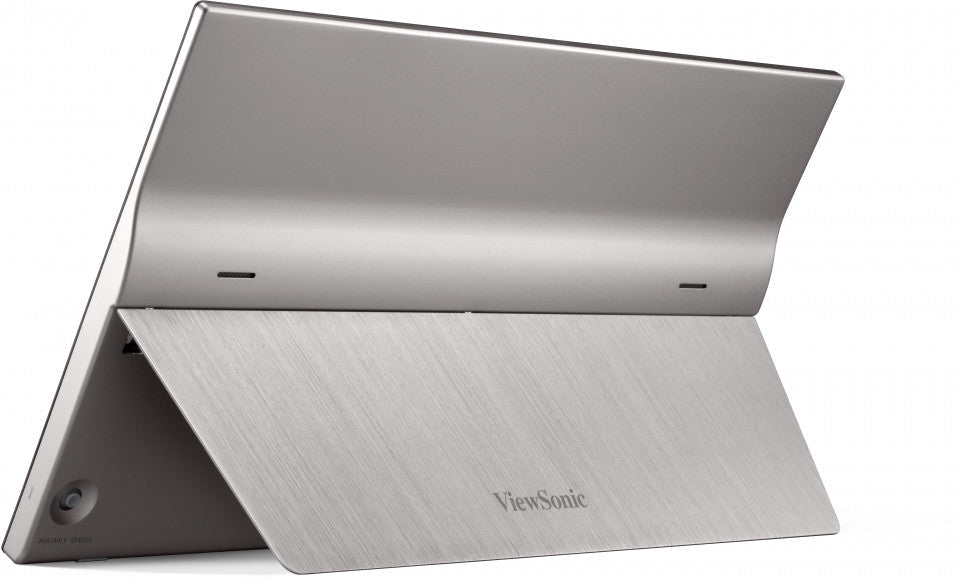

Adjustable stand with up to 60° tilt and pivot support.
Need touch monitors for a retail counter, kiosk, classroom or office rollout? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic TD1655 Datasheet — Technical Specifications
General
| Product Name | ViewSonic TD1655 16" USB-C Multi-Touch Portable Monitor |
| Model | TD1655 |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Screen Size | 16" (15.6" viewable) |
| Panel Type | IPS |
| Resolution | 1920 x 1080 (Full HD) |
| Refresh Rate | 60 Hz |
| Response Time | 6.5 ms (GTG) |
| Brightness | 250 cd/m² (typ) |
| Contrast Ratio | 800:1 static (typ); 50M:1 dynamic |
| Colours | 262K, 6-bit |
| Colour Gamut | sRGB 64%; NTSC 45% (typ) |
| Viewing Angles | 178° H / 178° V (CR>5) |
| Pixel Size | 0.179 x 0.179 mm |
| Low Blue Light | Software solution |
| Backlight Life | 15,000 hours (min) |
Touch
| Touch Technology | Projected capacitive, 10-point multi-touch |
| Surface | Glossy with anti-fingerprint, ≥6H hard coating |
| Cover Glass Thickness | 0.8 mm |
| Pen | Passive touch pen included |
Connectivity
| USB-C | 2 x USB 3.2 Type-C (DisplayPort Alt mode, 60 W power charger) |
| Mini HDMI | 1 |
| Audio Out | 1 x 3.5 mm |
| Speakers | 2 x 0.8 W |
Power
| Power In | USB Type-C |
| Consumption | 8 W typical; 8.3 W max; 0.5 W standby |
| Eco Mode | 6 W (conserve) / 6.9 W (optimised) |
| Power Supply | External power adapter (included) |
Operating Conditions
| Temperature | 0–40 °C |
| Humidity (non-condensing) | 20%–90% |
Physical & Ergonomics
| Dimensions (W x H x D) | 355 x 223 x 14.7 mm |
| Net Weight | 0.96 kg |
| Packaging (W x H x D) | 440 x 288 x 89 mm |
| Gross Weight | 2.3 kg |
| Tilt (built-in stand) | 20° / 60° |
Compatibility & Software Support
Devices
Windows 10/11 certified and macOS tested. Connect a laptop, tablet or phone with USB-C DisplayPort Alt mode using one cable, or use the mini HDMI input.
Software
On-screen ViewMode presets, Eco Mode and low blue light filter; touch works as standard HID multi-touch on Windows.
Package Contents & ViewSonic TD Series Ordering Information
In the Box

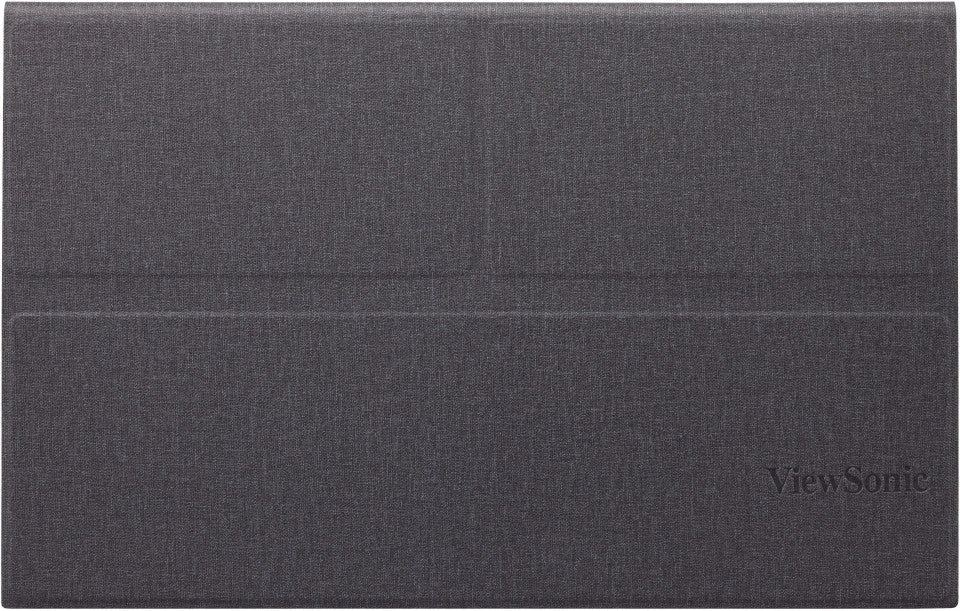

TD1655 monitor, mini HDMI to HDMI cable, USB Type-C cable, USB Type-C to Type-A 3.2 Gen 1 cable, AC/DC adapter, protective cover, cleaning cloth, passive touch pen, quick start guide.
ViewSonic TD Series Touch Monitors
| Model | Key feature |
| TD1617A-2K | 16" WQXGA IPS 165 Hz portable, 10-point touch, 2 x USB-C |
| TD1630-3 | 16" (15.6") WXGA, 10-point PCAP, HDMI + VGA |
| TD1655 (this listing) | 16" (15.6") FHD IPS portable, 10-point touch, USB-C, pen |
| TD2223-2 | 22" (21.5") FHD VA, 10-point IR touch, 7H glass |
| TD2230 | 22" 10-point touch screen |
| TD2423 | 24" IR touch |
| TD2455 | 24" in-cell touch, USB-C |
| TD2465 | 24" frameless 10-point PCAP touch |
| TD2760 | 27" 10-point touch screen |
| TD3207 | 32" open-frame touch, 24/7 operation |
Datasheet & Downloads
| ViewSonic datasheet | TD1655 Datasheet |
| User guide | TD1655 User Guide (PDF, English) |
| Quick start guide | TD1655 Quick Start Guide (PDF) |
| ViewSonic product page | TD1655 on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting TD1655.
Frequently Asked Questions — ViewSonic TD1655
Can one USB-C cable carry video, touch and power?
Yes, from a USB-C port with DisplayPort Alt mode; with the adapter on the second USB-C port it can charge the laptop at up to 60 W.
Is a pen included?

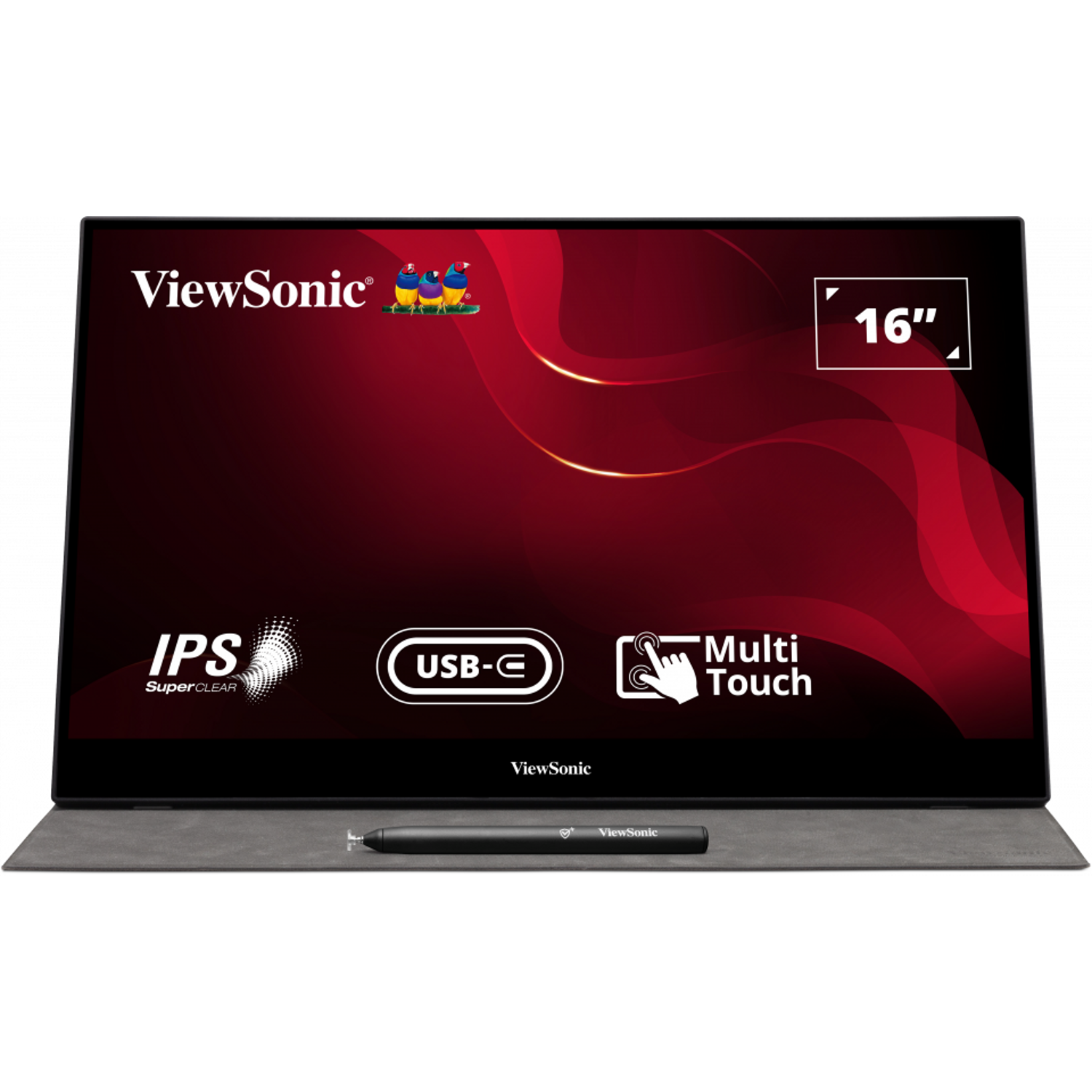

Yes, a passive touch pen, protective cover and cleaning cloth are in the box.
Can I use it in portrait?
Yes, the stand supports pivot for portrait use.
What warranty do I get?
3 years on-site limited warranty on parts and labour in Singapore. Supplied by SourceIT with a GST invoice.
