Ergotron SV Sit-Stand Combo Extender, Short White
PRODUCT DESCRIPTION
Ergotron SV Sit-Stand Combo Extender, Short White (97-858-216) - Local Warranty
Add 9 Inches of Reach to an SV Sit-Stand Combo Arm

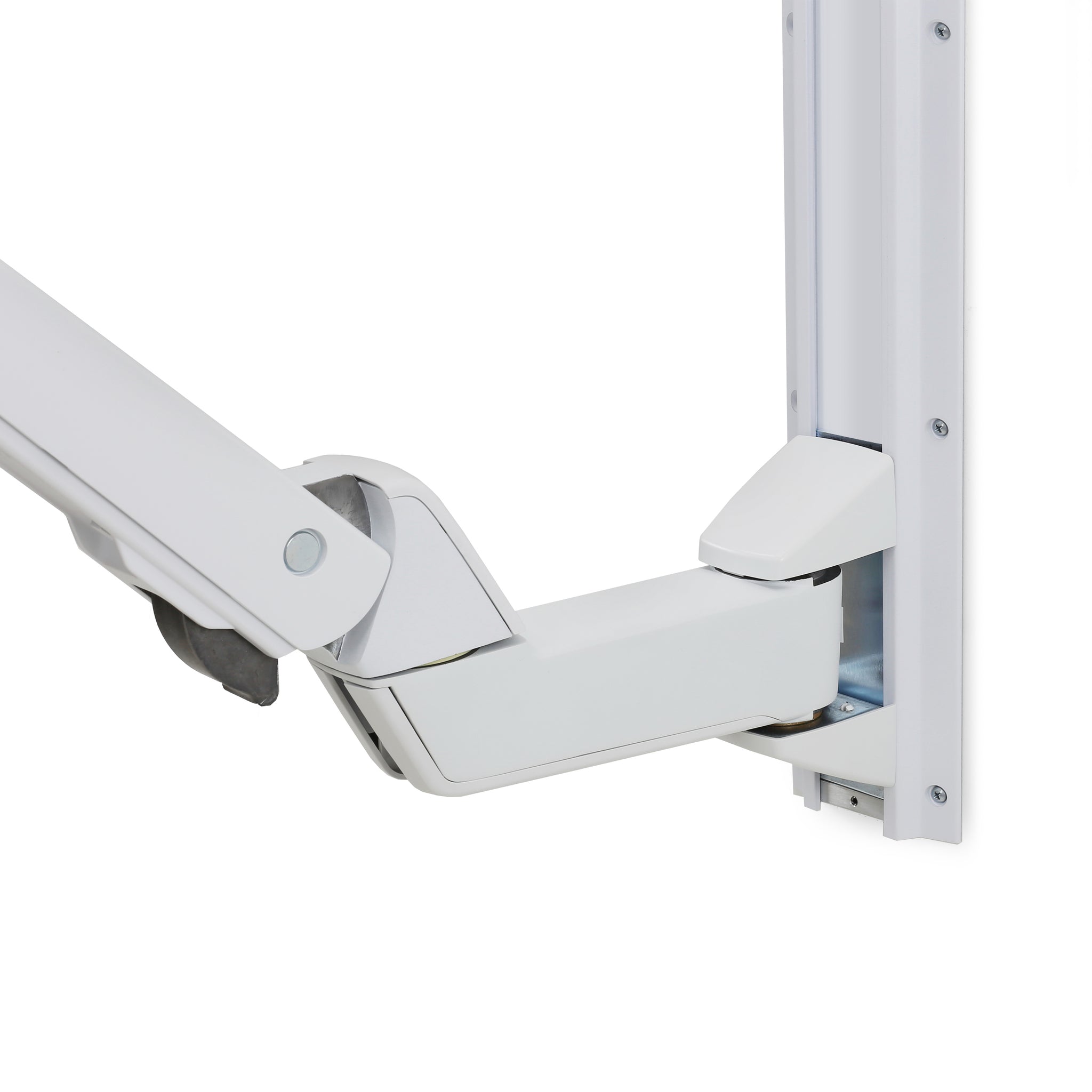

The Ergotron SV Sit-Stand Combo Extender, Short (97-858-216) is a factory extension module that increases the reach of an Ergotron SV Sit-Stand Combo Arm by 9″ (23 cm). It fits between the wall track and the arm, pushing the whole sit-stand workstation further out from the wall so clinicians and staff can stand square to the screen instead of leaning in toward it.
Built for Wall-Track Workstations in Singapore Healthcare
StyleView Combo Arms and Combo Systems are the standard wall-mounted EHR workstation in wards, consultation rooms, nursing stations and pharmacy counters. Where the arm is mounted behind a counter, a bedhead panel, a services rail or a deep skirting, the standard reach can leave the screen and keyboard too far back to use comfortably standing up. The short extender recovers that 9″ without moving the wall track.
A 360° Pivot With a Factory Wall Stop
The extender adds a rotating pivot with 360° of travel. It ships with a rotation stop bolt already fitted, limiting rotation to 180° so the extender cannot swing back into the wall — the correct configuration for most installations. Remove the bolt where a full 360° sweep is needed and the surrounding clearance allows it.
White Finish, Colour-Matched to the Combo Family
This is the white version (97-858-216), matched to the white StyleView Combo Arms and Combo Systems SourceIT stocks. Order the extender in the same finish as the arm it is fitted to so the completed workstation reads as one unit.
An Extension, Not a Standalone Mount
The extender has no worksurface, no display mount and no keyboard tray of its own. It is fitted to an SV Sit-Stand Combo Arm or Combo System, which is ordered separately and which supplies the height adjustment, tilt, display mount and load rating for the finished workstation.
Ergotron SV Sit-Stand Combo Extender Datasheet — Technical Specifications
General
| Product Name | Ergotron SV Sit-Stand Combo Extender, Short |
| Part Number | 97-858-216 (white) |
| Product Type | 9″ extension module for the SV Sit-Stand Combo Arm |
| Host Product Required | Yes — an SV Sit-Stand Combo Arm or Combo System, ordered separately |
| Mounting | Fits between the wall track / wall mount and the SV Combo Arm |
| Manufacturer Warranty | Ergotron does not publish a separate manufacturer warranty term for this extension module; the SV Sit-Stand Combo Arm family it fits carries a 5-year Ergotron manufacturer warranty |
| Local Warranty (Singapore) | Supplied by SourceIT Pte Ltd with GST invoice |
Adjustment & Motion
| Additional Reach | +9″ (23 cm) |
| Maximum Reach With Extender Fitted | 31.5″ (775 mm) |
| Rotation | 360° at the extender pivot |
| Rotation Stop | 180° — a rotation stop bolt is fitted from the factory to prevent the extender striking the wall; it can be removed where clearance allows |
Design & Fit
| Finish | White |
| Alternative Finish | Polished Aluminium (97-858-026) |
| Longer Alternative | SV Sit-Stand Combo Extender 45-261-216 — adds 17″ (43 cm) |
Ergotron does not publish a separate weight capacity, tilt range or height-adjustment figure for the extender itself. Those are set by the SV Sit-Stand Combo Arm it is fitted to — see Compatibility & Fit below for the host arm's ratings. SourceIT lists only what Ergotron documents; unpublished figures are deliberately omitted rather than estimated.
Compatibility & Fit
The extender is a reach extension, not a workstation. Everything the user touches — worksurface, keyboard tray, display mount, height adjustment — belongs to the SV Sit-Stand Combo Arm or Combo System it is fitted to. Those host figures are reproduced here so you can size the complete installation.
Host SV Sit-Stand Combo Arm — Published Ratings
| Weight Capacity | Up to 32 lbs (14.5 kg) |
| Worksurface / System Load | Up to 29 lbs (13.2 kg) |
| Height Adjustment | 25″ (63.5 cm) of LCD height adjustment |
| Tilt | 30° (25° up / 5° down) |
| Pan / Rotation | 360° |
| Manufacturer Warranty | 5 years |
Fitting the Extender
| Compatible Host Products | Ergotron SV Sit-Stand Combo Arm and SV Sit-Stand Combo System families |
| Mounting Position | Between the wall track or wall mount and the Combo Arm |
| Finish Matching | Order the extender in the same finish as the host arm — -026 polished aluminium with -026 arms, -216 white with -216 arms |
| Wall Fixing | Unchanged — the existing wall track or wall mount carries the load |
| Rotation Clearance | Allow for the 180° factory-stopped sweep; a full 360° sweep needs the stop bolt removed and clear wall space |
Short or long? This listing is the short extender at 9″ (23 cm). Where the arm needs to clear a deeper obstruction — a wide counter, a services bulkhead, a bedhead unit — the SV Sit-Stand Combo Extender 45-261-216 adds 17″ (43 cm) instead.
Choosing the host arm. A Combo Arm supplies the arm and keyboard tray; a Combo System adds the worksurface and mounting hardware for a complete wall workstation. SourceIT can confirm the exact fit against your existing installation before you order.
Package Contents & StyleView Combo Ordering Information

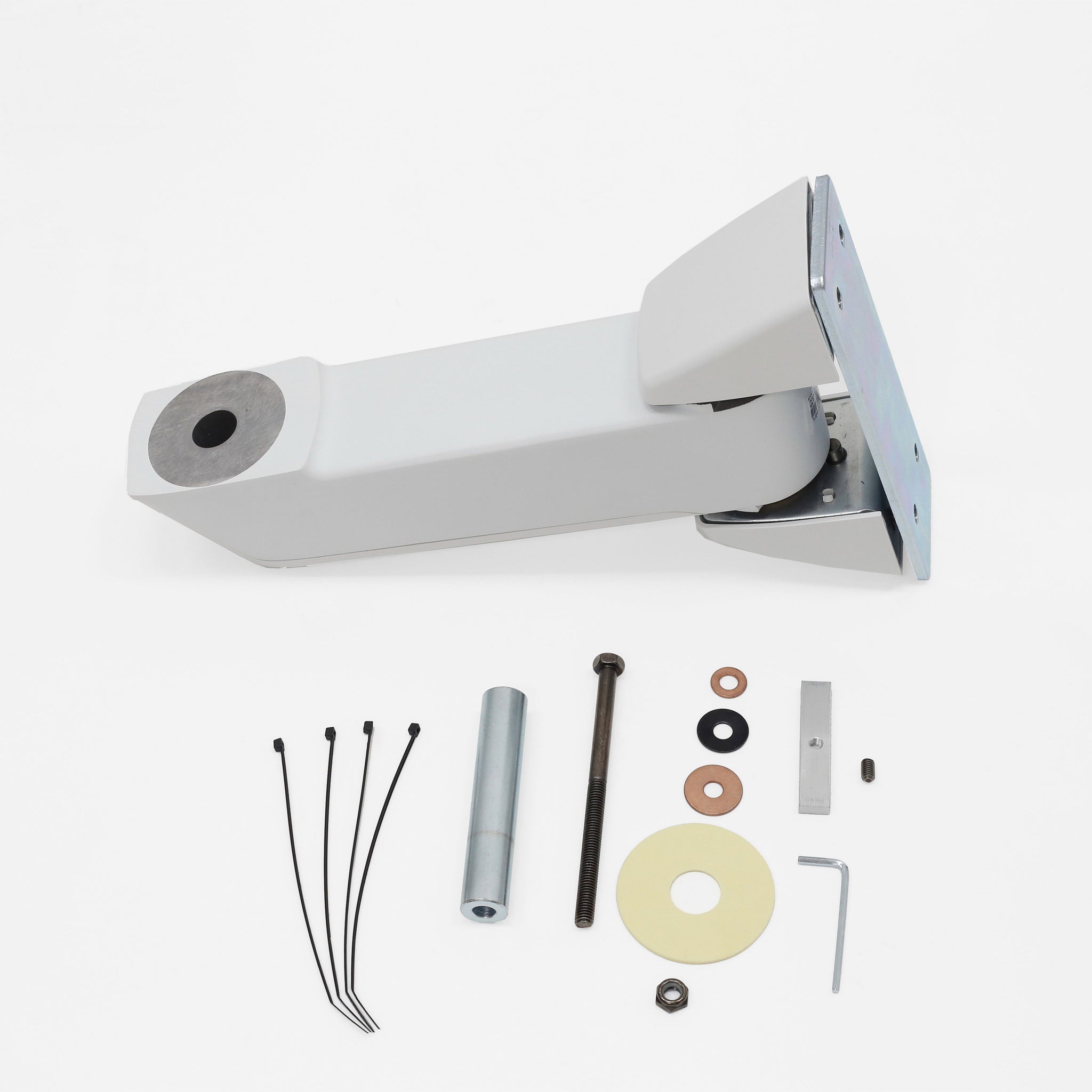

In the Box
- SV Sit-Stand Combo Extender, short (9″ / 23 cm)
- Rotation stop bolt, fitted
- Mounting hardware and instruction manual
Note: an Ergotron SV Sit-Stand Combo Arm or Combo System is required and is not included.
SV Sit-Stand Combo Extenders — Ordering Information
| 97-858-216 | White, short — adds 9″ (23 cm) (this listing) |
| 97-858-026 | Polished Aluminium, short — adds 9″ (23 cm) |
| 45-261-216 | SV Sit-Stand Combo Extender — adds 17″ (43 cm) |
Compatible SV & CareFit Combo Workstations at SourceIT
| 45-266-026 | StyleView Sit-Stand Combo Arm |
| 45-273-026 | StyleView Sit-Stand Combo System |
| 45-583-026 | SV Combo Arm with Worksurface & Pan |
| 45-594-026 / 45-594-216 | SV Combo System with Worksurface, Pan & Small CPU Holder |
| 45-595-026 | SV Combo System with Worksurface, Pan & Medium CPU Holder |
| 45-619-251 | CareFit Combo System with Worksurface |
| 45-621-251 | CareFit Combo Arm |
Related SV Workstation Accessories
| 97-827 | SV Height-Adjustable Keyboard Arm |
Datasheet & Downloads
- Ergotron SV Sit-Stand Combo Extender, short official product page (ergotron.com)
- Official Ergotron SV Combo 9″ Extension installation guide, doc 888-97-398 (PDF)
- Official Ergotron SV Sit-Stand Combo Arm datasheet — host product specifications (PDF)
Need the datasheet emailed as a PDF for a tender or quotation? Contact SourceIT Pte Ltd at sales@sourceit.com.sg.
Frequently Asked Questions — Ergotron SV Sit-Stand Combo Extender
What finishes does the SV Sit-Stand Combo Extender, Short come in?
White (97-858-216, this listing) and polished aluminium (97-858-026). The mechanics are identical — order the finish that matches the Combo Arm it is fitted to.
How much reach does it actually add?
9″ (23 cm). With the short extender fitted, Ergotron shows a maximum reach of 31.5″ (775 mm) for the assembly.
Does this include the Combo Arm or a worksurface?
No. The extender is an extension module only. You need an Ergotron SV Sit-Stand Combo Arm or Combo System as well — SourceIT stocks the StyleView Sit-Stand Combo Arm and the StyleView Sit-Stand Combo System.
What monitor weight and height adjustment do I get?
Those come from the host arm, not the extender. The SV Sit-Stand Combo Arm carries up to 32 lbs (14.5 kg), gives 25″ (63.5 cm) of LCD height adjustment, 30° of tilt and 360° of pan. Ergotron publishes no separate load or lift rating for the extender itself, so SourceIT does not quote one.
Why is the rotation limited to 180°?
A rotation stop bolt is fitted at the factory to stop the extender swinging back into the wall. The pivot itself travels 360°; removing the bolt restores the full sweep where there is clearance to allow it.
Short or long — which extender do I need?
The short extender in this listing adds 9″ (23 cm) and suits most wall-track installations. Where the arm must clear a deeper counter or bulkhead, the 45-261-216 extender adds 17″ (43 cm) instead.
Can I fit it to a CareFit Combo Arm?
The extender is designed for the Ergotron SV Sit-Stand Combo Arm family. CareFit Combo Arms share the same wall-track architecture and SourceIT stocks the CareFit Combo Arm and CareFit Combo System — contact us with your existing part number and we will confirm the fit before you order rather than guess.
Does the SV Sit-Stand Combo Extender come with a Singapore warranty?
Yes. Every Ergotron SV Sit-Stand Combo Extender sold by SourceIT comes with local Singapore warranty and a GST invoice. Ergotron does not publish a separate manufacturer warranty term for this extension module; the SV Sit-Stand Combo Arm family it fits carries a 5-year Ergotron manufacturer warranty. Contact SourceIT for the warranty position on a specific project.
