Ergotron SV Sit-Stand Combo Extender White
PRODUCT DESCRIPTION
Ergotron SV Sit-Stand Combo Extender White (45-261-216) - 5 Years Local Warranty
Ergotron SV Sit-Stand Combo Extender — 17″ More Reach for Your Wall Workstation

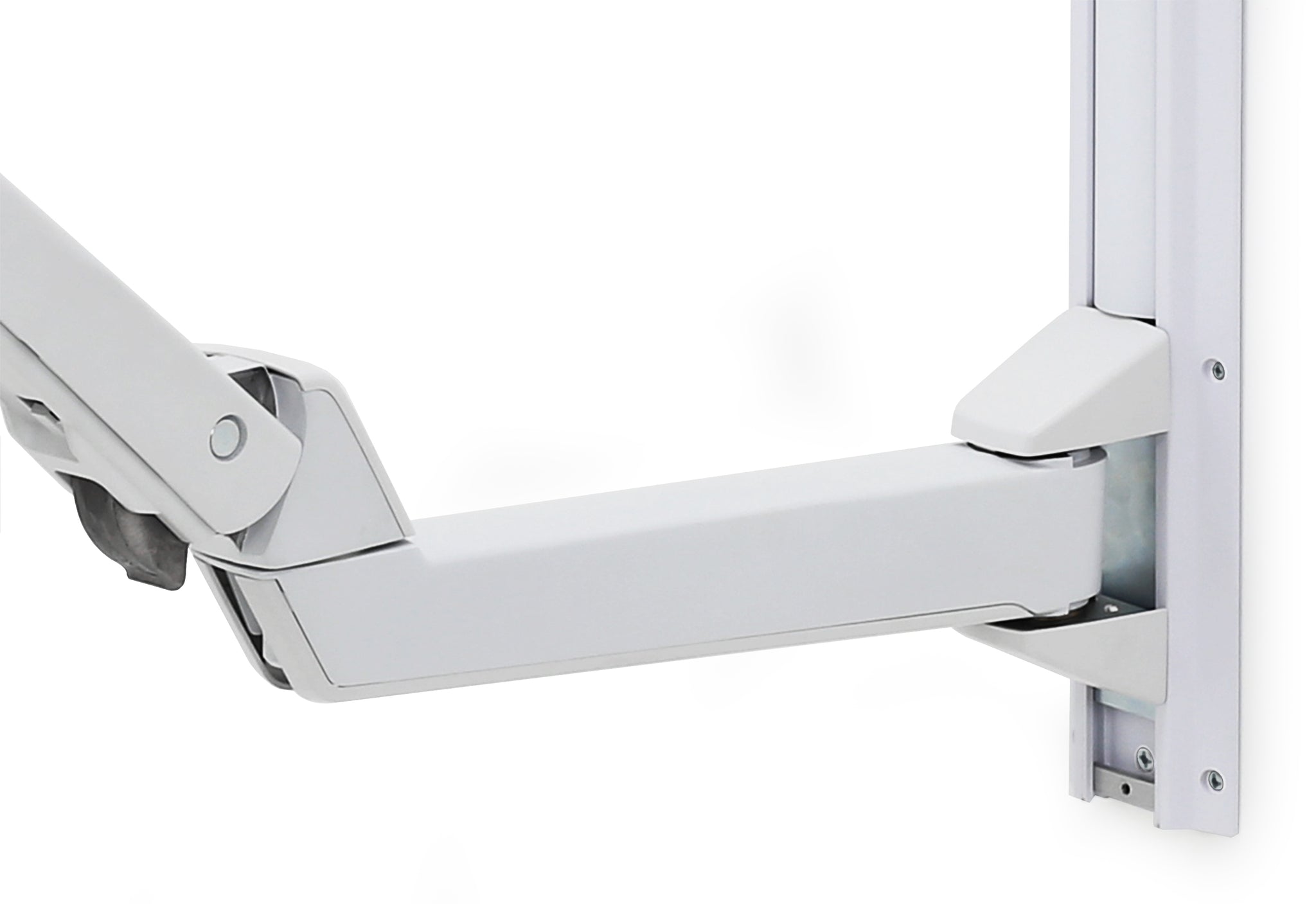

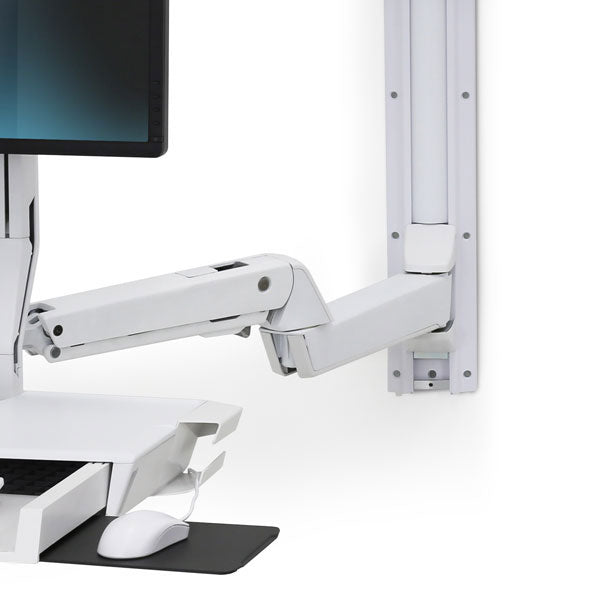

The SV Sit-Stand Combo Extender is Ergotron's factory extension arm for the StyleView and SV Sit-Stand Combo range. Fitted between the wall bracket and the combo arm, it adds 17″ (43 cm) of reach so the workstation can be used further from the wall — across a bed, over a counter, or from the working side of a treatment bay.
Solves the Classic Point-of-Care Reach Problem
Wall-mounted workstations are specified because they free the floor, but the wall is rarely where the clinician actually stands. The extender closes that gap without moving the mounting point, which is why it is so often added in Singapore ward retrofits where the wall track position is already fixed by services behind the plasterboard.
No Compromise to Lift, Tilt or Pan
The extender is a pure extension section: the host arm keeps its full published range of motion — the sit-stand lift, the tilt, the pan and the rotation are all unchanged. It simply moves the whole working envelope further out from the wall.
White Finish, Wipe-Clean Construction
Built from aluminium and high-grade plastic with the same easy-to-clean exterior as the rest of the SV Combo range, the white finish matches white combo arms and blends into clinical interiors. Cable routing continues through the extender, so nothing is left exposed.
Backed by a 5-Year Ergotron Warranty
The extender carries the same 5-year Ergotron manufacturer warranty as the combo arms it extends. SourceIT supplies it with local Singapore warranty support and a GST invoice.
Ergotron SV Sit-Stand Combo Extender Datasheet — Technical Specifications
General
| Product Name | Ergotron SV Sit-Stand Combo Extender |
| Part Number | 45-261-216 |
| Series | StyleView (SV) Sit-Stand Combo |
| Finish | White |
| Type | Optional extension arm for StyleView / SV Sit-Stand Combo Arm and Combo System |
| Construction | Aluminium and high-grade plastic, easy-to-clean exterior |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Local Warranty (Singapore) |
Adjustment & Motion
| Additional Extension / Reach | 17″ (43 cm) further from the wall |
| Host System Reach (StyleView Combo) | Up to 43″ (109.2 cm) before the extender is fitted |
| Effect on Lift | None — the host arm keeps its published lift, tilt, pan and rotation |
Compatibility
| Compatible Combo Arms | StyleView Sit-Stand Combo Arm and Combo Arm with Worksurface (45-260, 45-266) |
| Compatible Combo Systems | StyleView Sit-Stand Combo System (45-271, 45-273) |
| Compatible SV Combo with Pan | SV Combo Arm / System with Worksurface & Pan (45-583, 45-594, 45-595) |
| Finishes | 45-261-026 polished aluminium; 45-261-216 white (this listing) |
Design & Durability
| Mounting | Fits between the wall bracket and the combo arm; no separate wall track required |
| Cable Management | Cable routing continues through the extender |
| Hygiene | Easy-to-clean exterior, consistent with the SV Combo range |
Compatibility & Fit
This is an accessory, not a standalone workstation — it requires an Ergotron StyleView or SV Sit-Stand Combo Arm or Combo System to extend. It fits between the existing wall bracket and the combo arm and needs no additional wall track.
Compatible hosts include the StyleView Sit-Stand Combo Arm (45-260, 45-266), the StyleView Sit-Stand Combo System (45-271, 45-273) and the SV Combo Arm / System with Worksurface & Pan (45-583, 45-594, 45-595). Ergotron supplies the extender in polished aluminium (45-261-026) and white (45-261-216, this listing) — match it to the finish of the host arm.
Fitting the extender does not change the display size, weight capacity, VESA pattern or lift range of the host system; those remain as published for the arm itself. It only increases how far the whole assembly reaches from the wall — by 17″ (43 cm).
Package Contents & StyleView Sit-Stand Combo Ordering Information

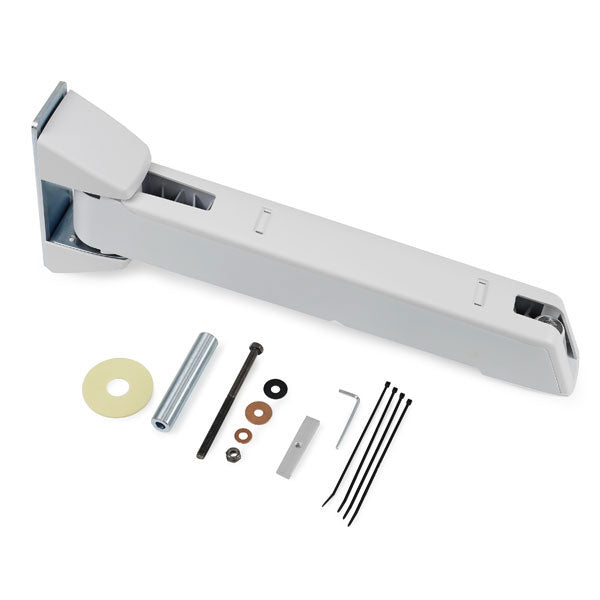

In the box: extension arm section with mounting hardware and fasteners for installation between the wall bracket and the combo arm.
Extension arms — SourceIT catalogue
| SV Sit-Stand Combo Extender, white (adds 17″ / 43 cm reach) (this listing) | 45-261-216 |
| SV Sit-Stand Combo Extender, Short, polished aluminium | 97-858-026 |
| SV Sit-Stand Combo Extender, Short, white | 97-858-216 |
Compatible SV Combo Arms & Systems
Compatible StyleView Sit-Stand Combo
| StyleView Sit-Stand Combo Arm, polished aluminium | 45-266-026 |
| StyleView Sit-Stand Combo System with small CPU holder, polished aluminium | 45-273-026 |
Ergotron also lists the extender in polished aluminium as 45-261-026. Contact SourceIT to quote it.
Datasheet & Downloads
Frequently Asked Questions — Ergotron SV Sit-Stand Combo Extender
What is the difference between the white and polished aluminium extenders?
Finish only. 45-261-216 (this listing) is white; 45-261-026 is polished aluminium. Both add the same 17″ (43 cm) of reach. Match the extender to the finish of the arm it is fitted to.
Does the extender work on its own?
No. It is an extension section for an Ergotron StyleView or SV Sit-Stand Combo Arm or Combo System. It has no display mount, keyboard tray or wall track of its own.
Which combo arms does it fit?
The StyleView Sit-Stand Combo Arm (45-260, 45-266), the StyleView Sit-Stand Combo System (45-271, 45-273) and the SV Combo Arm / System with Worksurface & Pan (45-583, 45-594, 45-595).
Does adding the extender change how much weight the arm can carry?
Ergotron does not publish a reduced capacity for the extended configuration; the host arm's rated display and tray capacities continue to apply. Stay within them.
Do I need a longer wall track or extra fixings?
No. The extender installs between the existing wall bracket and the combo arm, so the wall track and its fixings are unchanged. The wall must, of course, still be sound enough to carry the assembly at its new reach.
Is there a shorter version?
Yes — SourceIT also stocks the SV Sit-Stand Combo Extender, Short in polished aluminium (97-858-026) and white (97-858-216) for installations that need less additional reach.
Is the Ergotron SV Sit-Stand Combo Extender covered by warranty in Singapore?
Yes. Every Ergotron SV Sit-Stand Combo Extender sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the SV Sit-Stand Combo Extender with a 5-year manufacturer warranty.
