Ergotron SV Combo Arm Worksurface & Pan Polished Aluminum
PRODUCT DESCRIPTION
Ergotron SV Combo Arm with Worksurface & Pan (45-583-026) - 5 Years Local Warranty
Ergotron SV Combo Arm with Worksurface & Pan — Wall-Mounted Sit-Stand Workstation

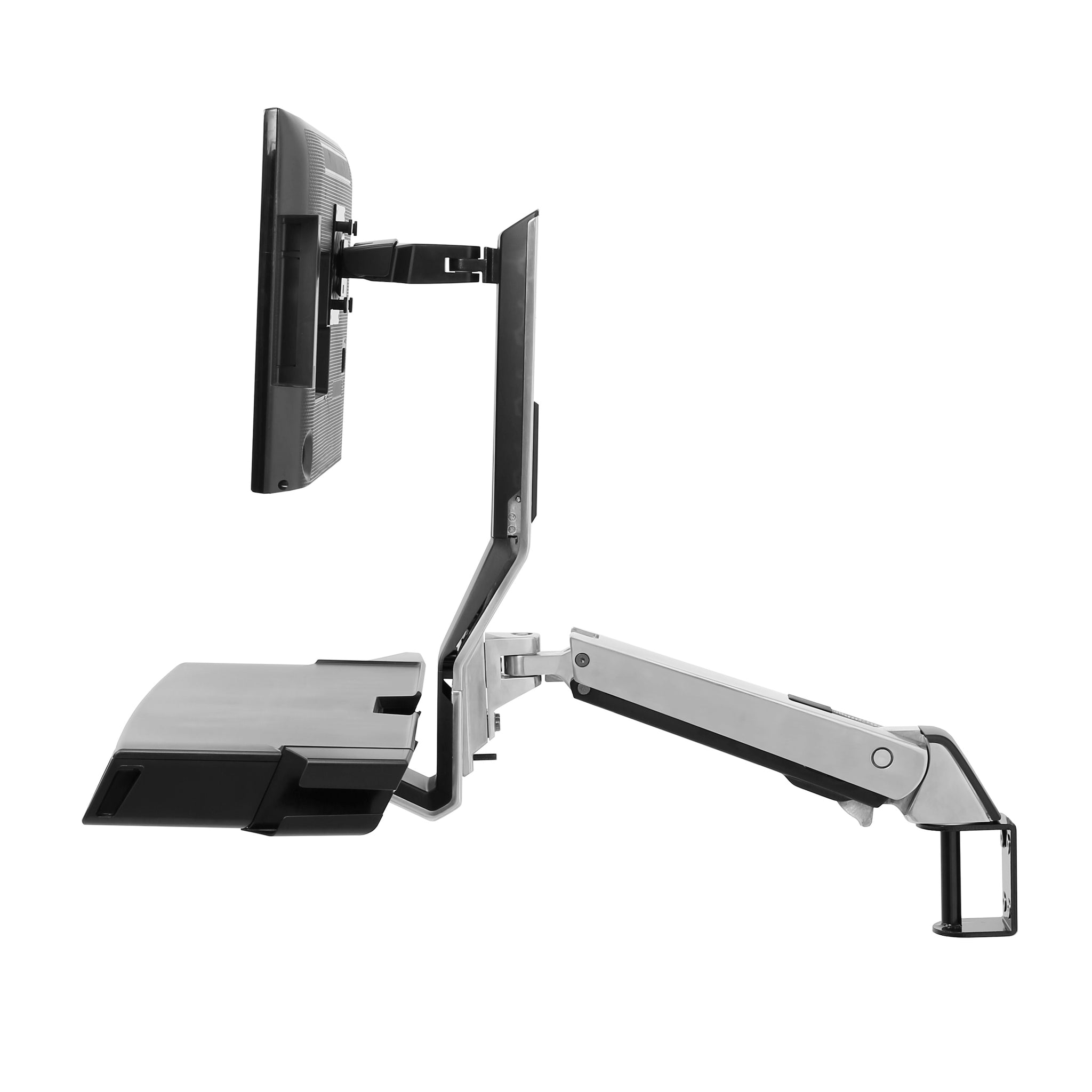

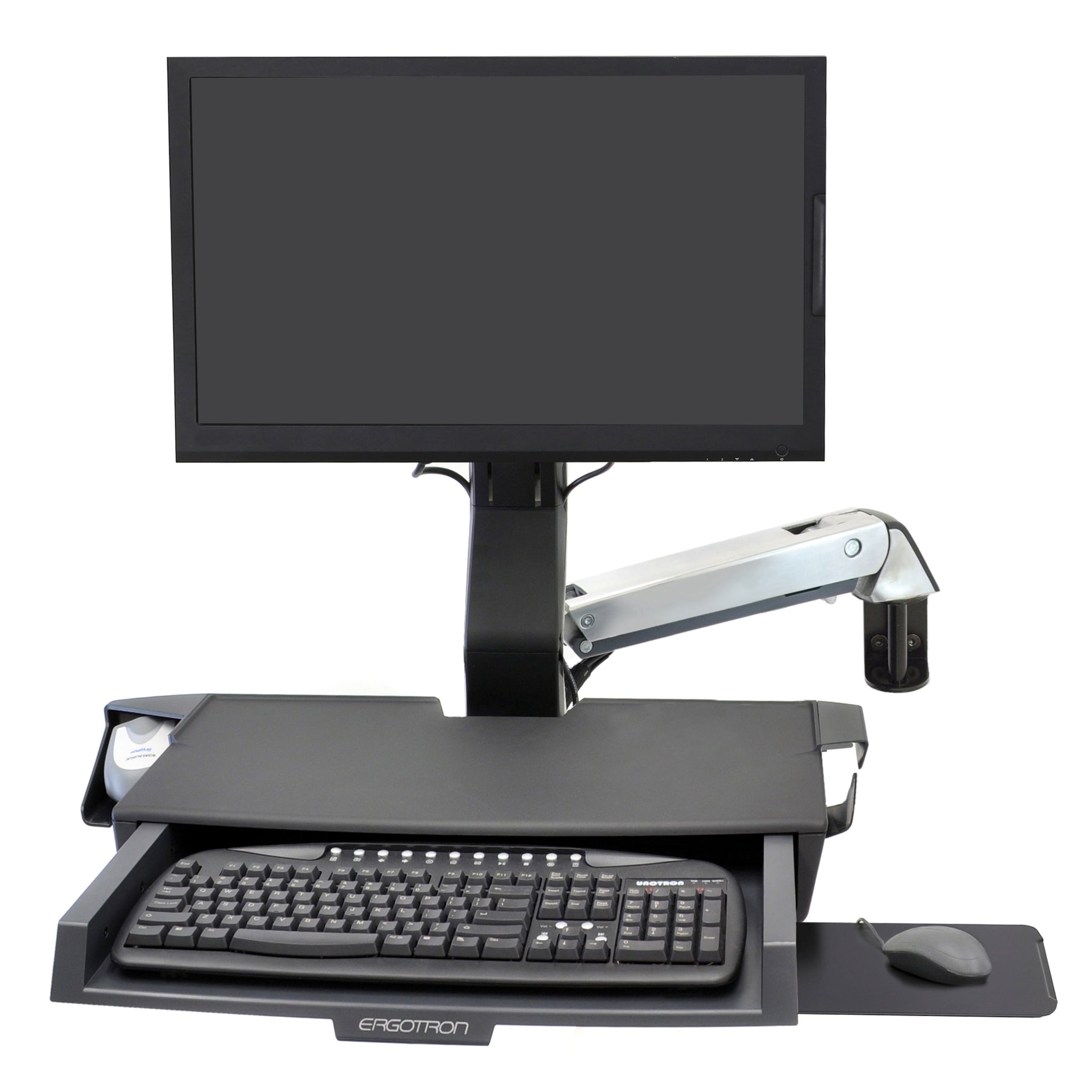

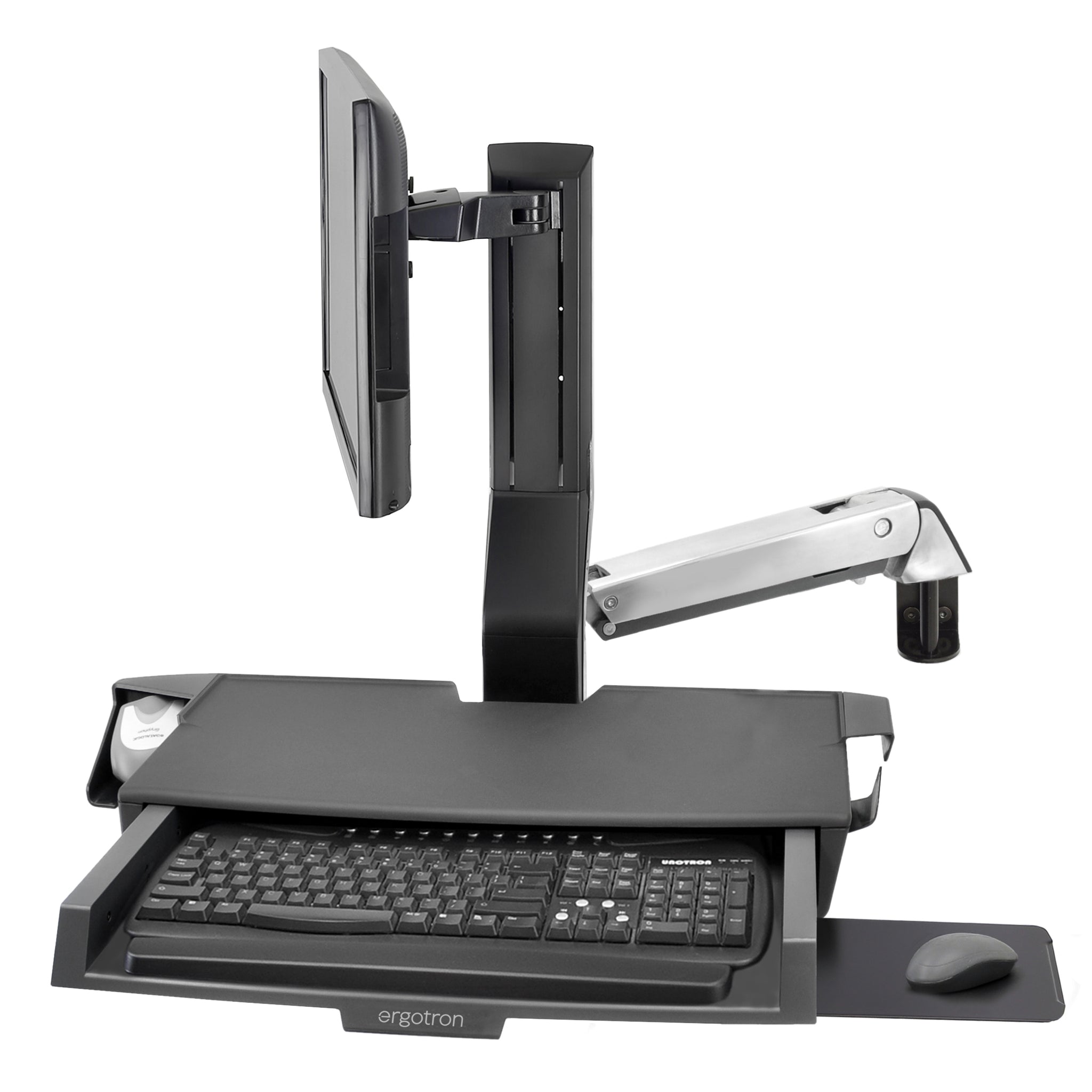

The SV Combo Arm with Worksurface & Pan puts a monitor, keyboard, mouse, scanner and a real writing surface on one folding wall arm. Ergotron gives it 20″ (51 cm) of tandem lift and a further 5″ (13 cm) of independent screen travel — 25″ (64 cm) of total LCD height range — so any user can set a correct posture in seconds and fold it away afterwards.
A Worksurface Where There Is No Desk
The integrated worksurface, rated 10 lbs (4.5 kg), gives clinicians and front-desk staff somewhere to put a chart, a tablet or a set of forms right at the point of work. Combined with the 4 lbs (1.8 kg) keyboard tray, wrist rest and scanner holder, it is a complete working position that occupies no floor area at all.
Pan and Tilt Built for Shared Screens
The whole system pans 360° and the monitor itself pans a further 180°, tilts 25° up and 5° down, and rotates 90°. In a consult room that means the screen can be turned to a patient and returned without moving the arm; at a service counter it means one station serves both sides.
Antimicrobial, Wipe-Clean Surfaces for Singapore Healthcare
Ergotron builds the SV Combo range from aluminium and high-grade plastic with antimicrobial-treated surfaces and concealed cable routing. That matters in Singapore hospitals, clinics and dental practices where every horizontal surface is wiped down between patients and trailing cables are a documented infection-control problem.
VESA MIS-D Fit, 6–18 lbs Display Range, 5-Year Warranty
The supplied VESA kit fits MIS-D displays at 75 x 75 mm or 100 x 100 mm, with a rated display weight window of 6–18 lbs (2.7–8.2 kg) at a typical 24″ size. Ergotron backs it with a 5-year manufacturer warranty; SourceIT supplies it with local Singapore warranty support and a GST invoice.
Ergotron SV Combo Arm with Worksurface & Pan Datasheet — Technical Specifications
General
| Product Name | Ergotron SV Combo Arm with Worksurface & Pan |
| Part Number | 45-583-026 |
| Series | StyleView (SV) Combo with Worksurface & Pan |
| Finish | Polished aluminium |
| Mounting Type | Wall mount |
| Construction | Aluminium and high-grade plastic with antimicrobial-treated surfaces |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Local Warranty (Singapore) |
Display Compatibility
| Typical LCD Size | 24″ |
| VESA Pattern | VESA MIS-D (75 x 75 mm / 100 x 100 mm) |
| Display Weight Capacity | 6–18 lbs (2.7–8.2 kg) |
| Worksurface Capacity | 10 lbs (4.5 kg) |
| Keyboard / Mouse / Scanner Capacity | 4 lbs (1.8 kg) |
| Number of Screens | 1 |
Adjustment & Motion
| Lift (worksurface and keyboard in tandem) | 20″ (51 cm) |
| Independent LCD Adjustment | 5″ (13 cm) |
| Total LCD Height Adjustment | 25″ (64 cm) |
| Tilt | 25° up / 5° down |
| Pan | 360° full system; 180° monitor pan |
| Rotation | 90° |
| Optional Extender | Adds 17″ (43 cm) of reach from the wall — 45-261-026 / 45-261-216 |
Design & Durability

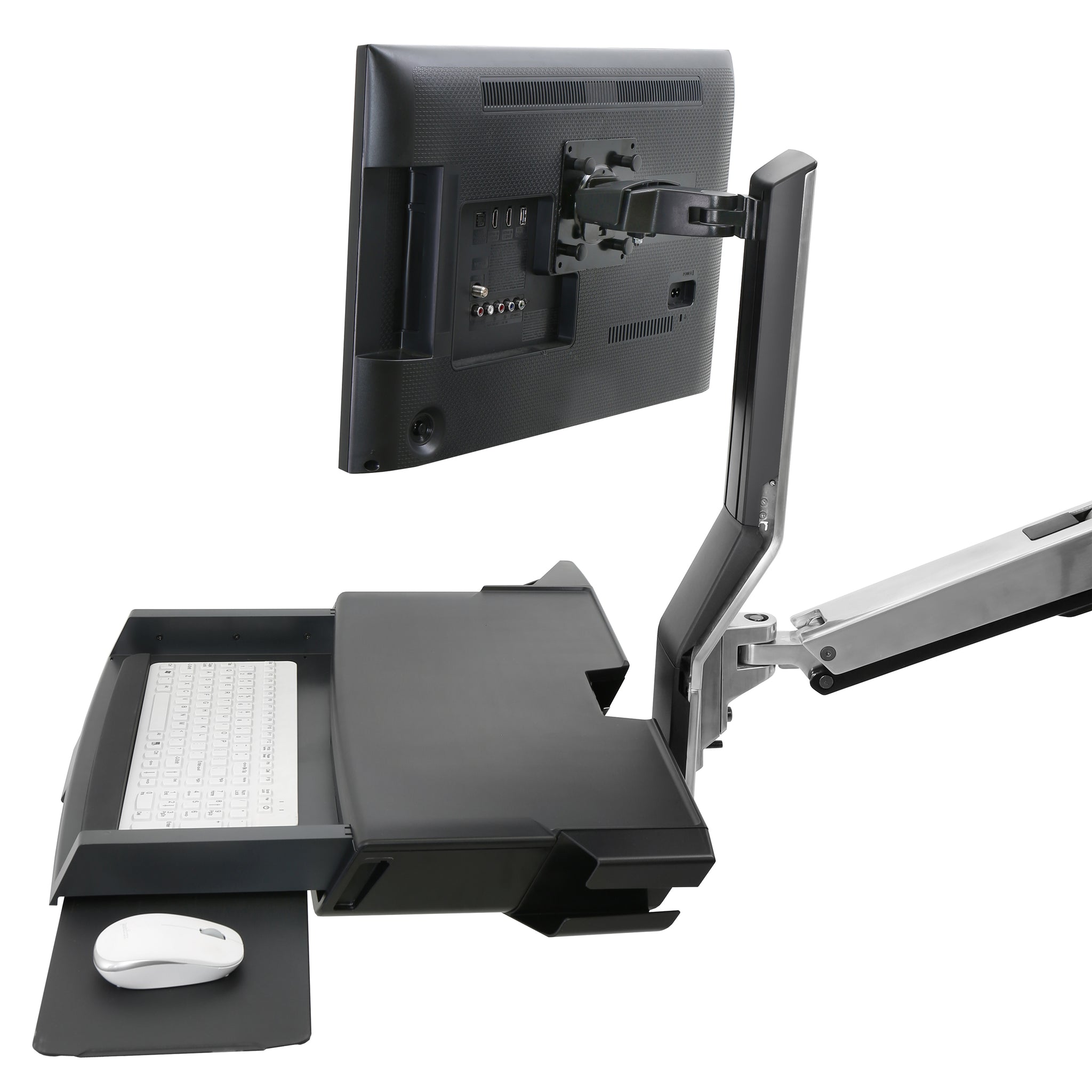

| Keyboard Tray | Keyboard tray with slide-out mouse tray, wrist rest and scanner/mouse holder |
| Worksurface | Integrated worksurface, rated 10 lbs (4.5 kg) |
| Cable Management | Cable ties; cables stay hidden and organised for easy cleaning |
| Hygiene | Antimicrobial-treated, easy-to-clean exterior |
| Product Weight | 41 lbs (19 kg) (with worksurface) |
| Shipping Weight | 51 lbs (23 kg) |
Compatibility & Fit
The SV Combo Arm with Worksurface & Pan carries a single display plus a keyboard, mouse and scanner on a wall-mounted arm. Ergotron rates it for a typical 24″ LCD weighing 6–18 lbs (2.7–8.2 kg), attaching through a VESA MIS-D pattern — that is 75 x 75 mm or 100 x 100 mm, the two patterns almost every business monitor of that size uses.
The worksurface is rated separately at 10 lbs (4.5 kg) and the keyboard tray at 4 lbs (1.8 kg), so a scanner, wrist rest and mouse are all accounted for. Mounting is wall-mount only; there is no desk-clamp or grommet option, so no desk-thickness check is needed — but the wall construction must be able to carry the assembly.
Ultrawide and strongly curved panels are outside the published envelope. The 6–18 lbs (2.7–8.2 kg) window is a minimum as well as a maximum: a display lighter than 6 lbs will not load the constant-force lift correctly and the arm will drift upward, so very light panels need a counterweight or a different mount.
This model is the arm and worksurface only — it does not include a CPU holder or a wall track. If the PC also has to come off the floor, specify the SV Combo System with small CPU holder (45-594-026) or the medium CPU holder version (45-595-026) instead.
Package Contents & SV Combo Ordering Information
In the box: combo arm, wall-mount bracket, height-adjustable LCD mount, wrist rest, scanner/mouse holder, keyboard tray, slide-out mouse tray, VESA kit and cable ties.
SV Combo with Worksurface & Pan — SourceIT catalogue
| SV Combo Arm with Worksurface & Pan, polished aluminium (this listing) | 45-583-026 |
| SV Combo System with Worksurface & Pan, small CPU holder, polished aluminium | 45-594-026 |
| SV Combo System with Worksurface & Pan, small CPU holder, white | 45-594-216 |
| SV Combo System with Worksurface & Pan, medium CPU holder, polished aluminium | 45-595-026 |
Extension arms
| SV Sit-Stand Combo Extender, white (adds 17″ / 43 cm reach) | 45-261-216 |
| SV Sit-Stand Combo Extender, Short, polished aluminium | 97-858-026 |
| SV Sit-Stand Combo Extender, Short, white | 97-858-216 |
Earlier-generation StyleView Sit-Stand Combo
| StyleView Sit-Stand Combo Arm, polished aluminium | 45-266-026 |
| StyleView Sit-Stand Combo System with small CPU holder, polished aluminium | 45-273-026 |
Ergotron also lists white (-216) equivalents of 45-583 and 45-595. Contact SourceIT to quote finishes not held in local stock.
Datasheet & Downloads
Frequently Asked Questions — Ergotron SV Combo Arm with Worksurface & Pan
What is the difference between the polished aluminium and white versions?
Finish only. Ergotron builds this model in polished aluminium (45-583-026, this listing) and white (45-583-216). Every published mechanical specification — lift, tilt, pan, rotation, capacity — is identical.
What monitor size and weight does it take?
A typical 24″ LCD weighing 6–18 lbs (2.7–8.2 kg). Note that 6 lbs is a genuine minimum: a display lighter than that will not hold position on the lift.
Does it fit my monitor's VESA pattern?
Yes for the standard patterns: Ergotron specifies VESA MIS-D, which covers 75 x 75 mm and 100 x 100 mm. The VESA kit is supplied in the box, so no separate adapter is normally required. Displays with a proprietary or 200 x 100 mm pattern need a manufacturer adapter plate.
How much height adjustment does it give?
The worksurface and keyboard travel 20″ (51 cm) in tandem, and the display adds a further 5″ (13 cm) of independent adjustment, giving 25″ (64 cm) of total LCD height range. That is enough for one station to be shared across a full range of user heights in a multi-shift ward or office.
Can I mount two monitors on it?
No. This is a single-display workstation. For two screens at a wall position, specify one of Ergotron's dual wall mount systems.
Can it be clamped to a desk instead of a wall?
No — it is wall-mount only. There is no desk-clamp or grommet base, so desk thickness does not apply. Confirm the wall construction can take the load before installation, particularly on drywall or lightweight partitions.
Is it suitable for sit-stand use all day?
Yes — that is what it is designed for. The 20″ (51 cm) of tandem lift lets a user move between seated and standing postures without tools, and the arm folds back toward the wall between tasks so the floor stays clear.
How does it compare with the CareFit Combo Arm with Worksurface (45-622-251)?
The CareFit Combo Arm with Worksurface (45-622-251) is the newer clinical-focused design: it takes a larger display (up to 27″) at a heavier 8–22 lbs (3.6–10 kg) and reaches much further from the wall. The SV Combo Arm is the established 24″ solution and is available in polished aluminium as well as white.
Is the Ergotron SV Combo Arm with Worksurface & Pan covered by warranty in Singapore?
Yes. Every Ergotron SV Combo Arm with Worksurface & Pan sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the SV Combo Arm with Worksurface & Pan with a 5-year manufacturer warranty.
