Ergotron CareFit™ Combo System with Worksurface
PRODUCT DESCRIPTION
Ergotron CareFit Combo System with Worksurface (45-619-251) - 5 Years Local Warranty

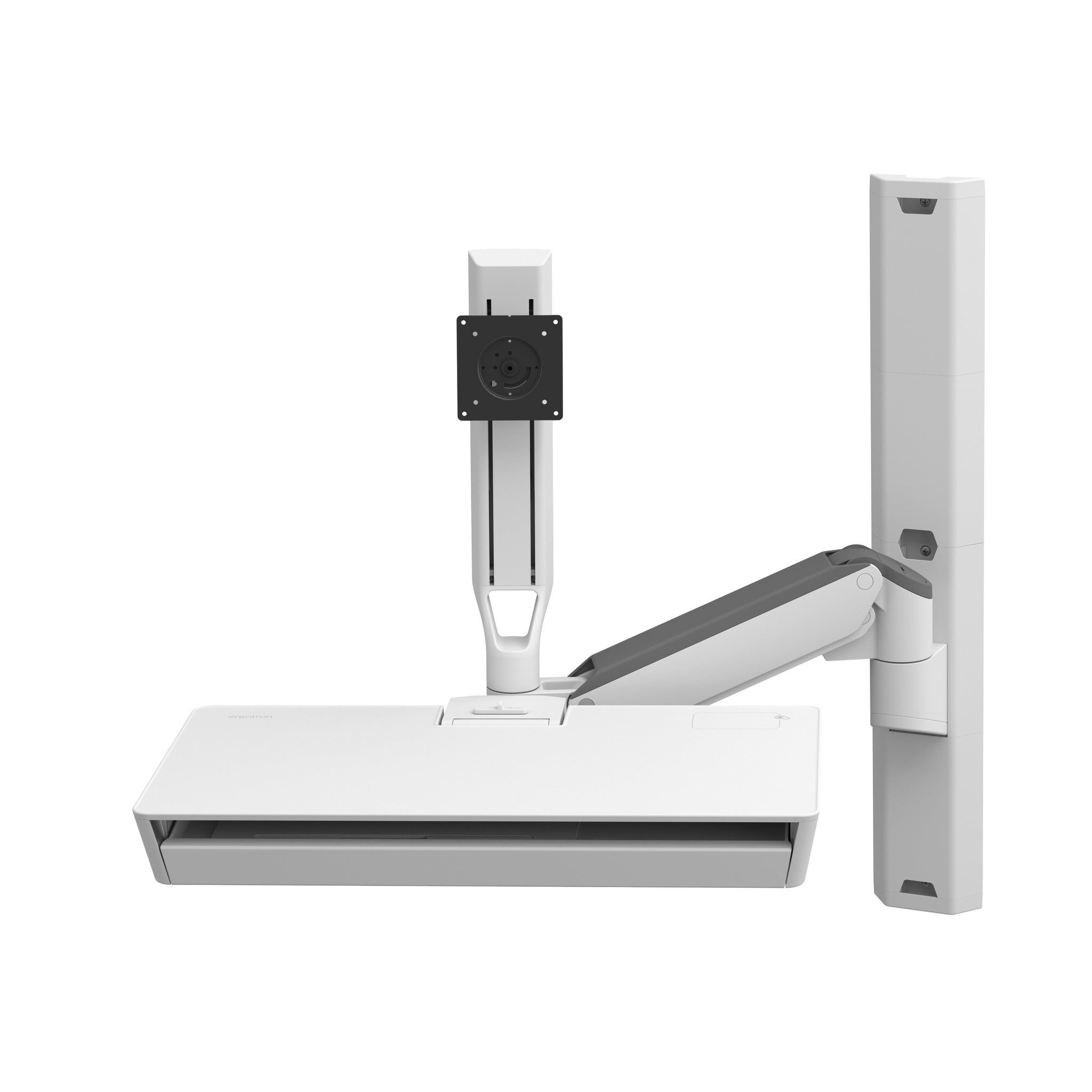

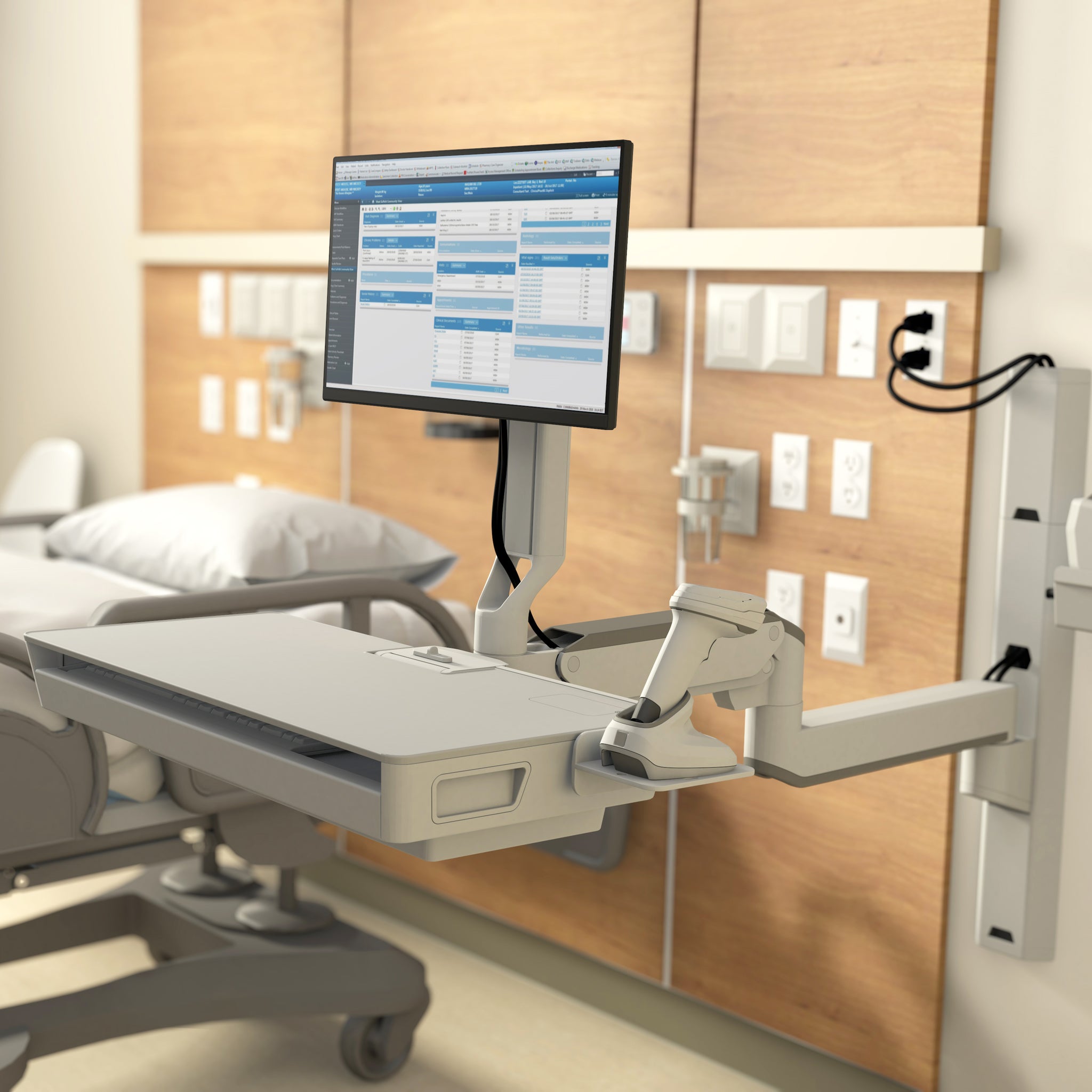

Ergotron CareFit Combo System with Worksurface — The Complete Clinical Wall Station
This is the fullest CareFit Combo configuration: display mount, keyboard and mouse platform, an integrated worksurface and CPU storage, all carried on one wall track. With 20″ (51 cm) of vertical lift and reach of up to 57.8″ (146 cm), a clinician gets a complete documentation position at the bedside and the room keeps its entire floor.

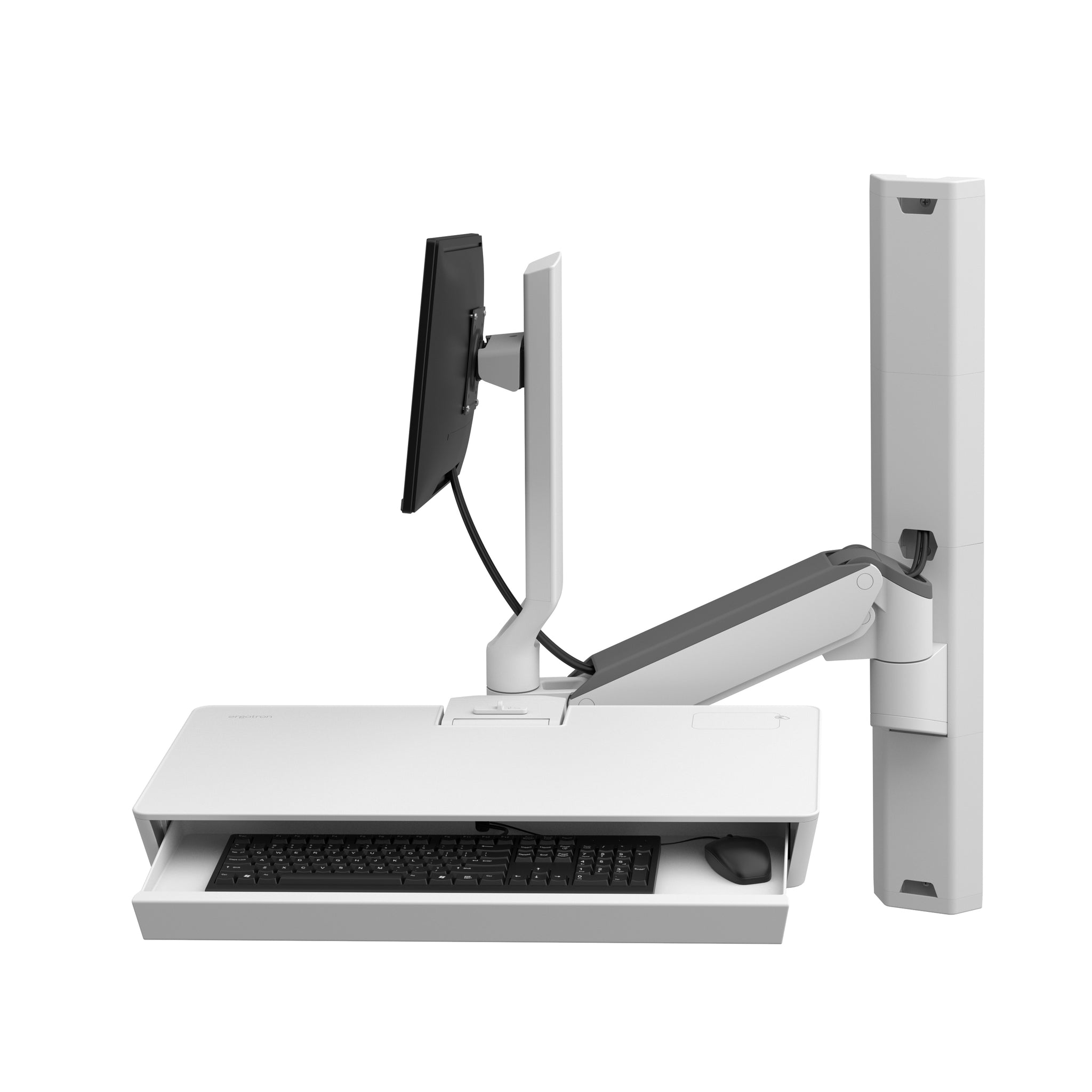

Screen, Keyboard, Worksurface and PC — All Off the Floor

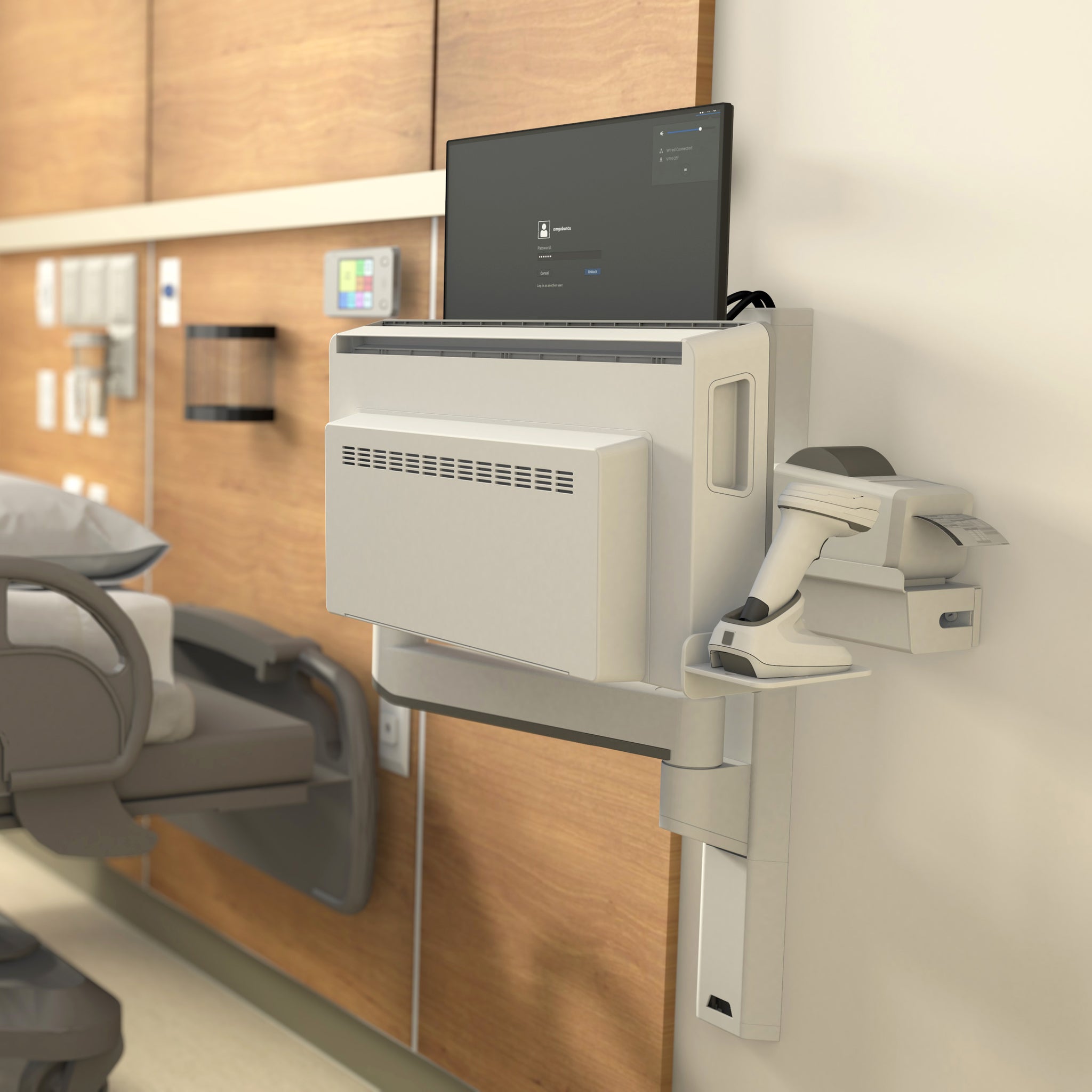

Every element that would otherwise stand on a trolley or a desk is on the wall: the panel, the input devices, the writing surface and the computer. Cleaning staff have an unobstructed floor, cables are routed inside the arm and track, and the room can be reconfigured without moving IT equipment.

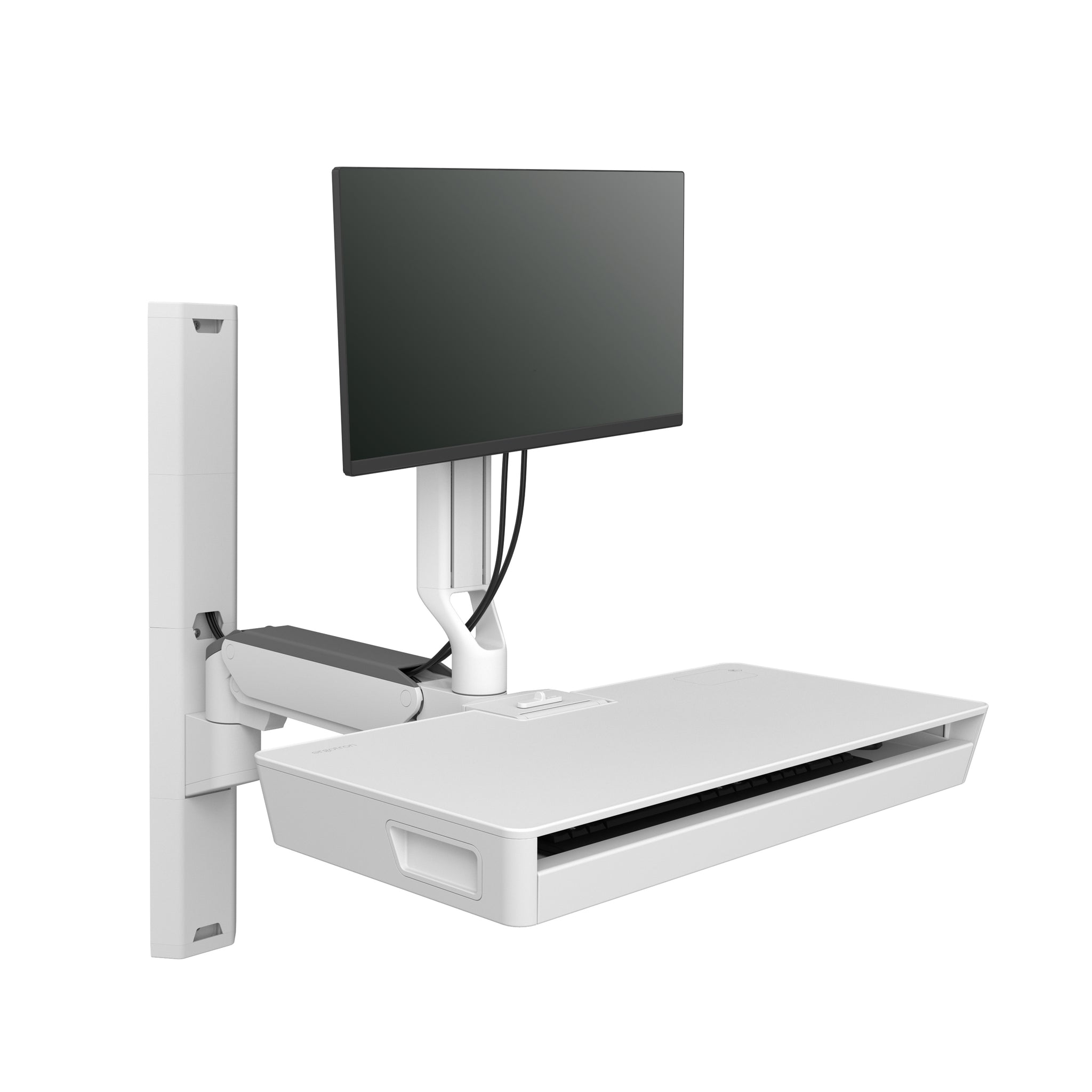

27″ Display Support with VESA MIS-D Fit
Ergotron rates the CareFit Combo for a typical 27″ display weighing 8–22 lbs (3.6–10 kg), on a VESA MIS-D pattern at 100 x 100 mm or 75 x 75 mm. No adapter plate is normally needed for a standard clinical or business monitor.
Reaches 57.8″ — and 65.3″ with the Extender

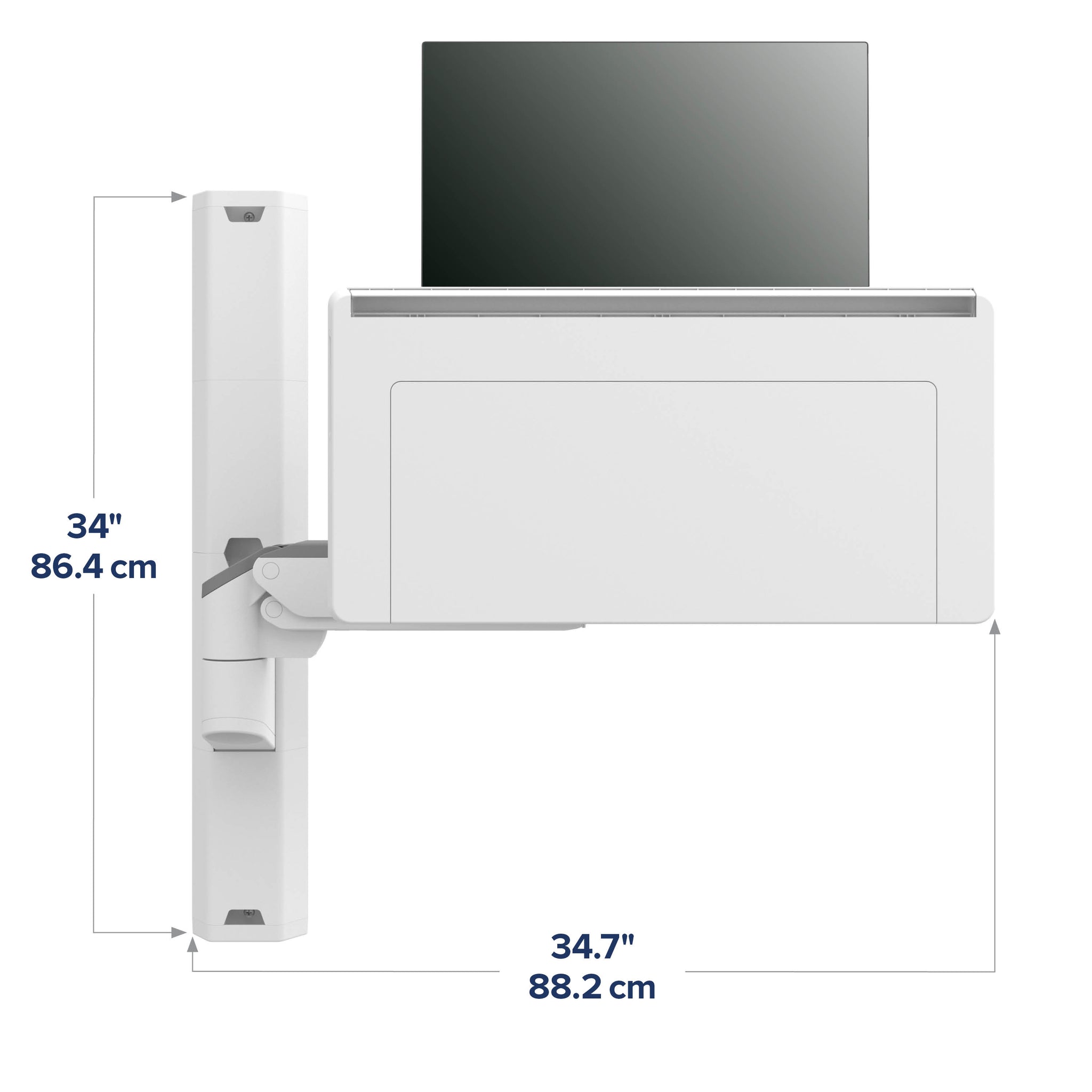

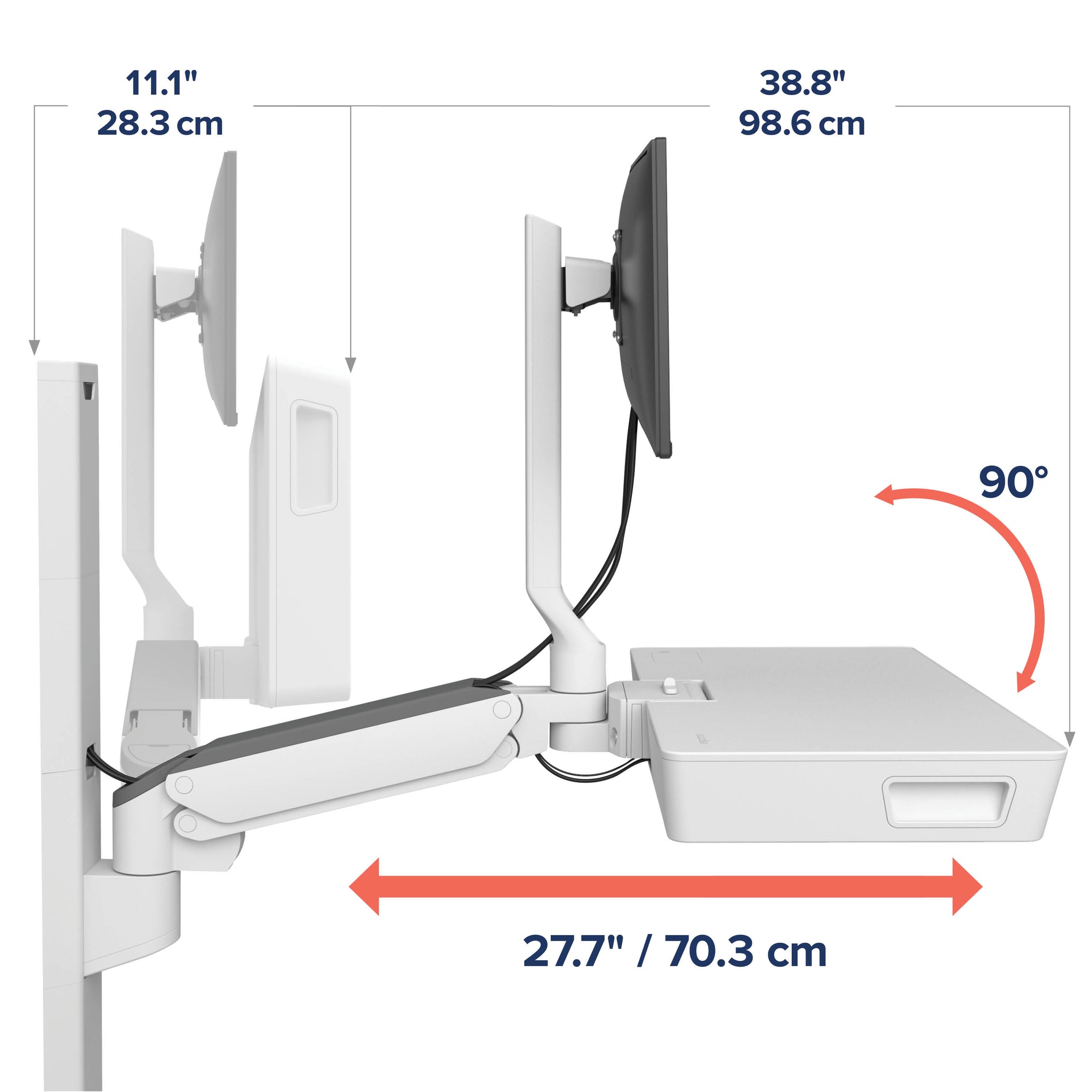

Standard reach is 57.8″ (146 cm) from the wall, extending to 65.3″ (165.7 cm) with the CareFit Combo Extender (98-547-251). Folded away, the station sits just 10″–13″ (25.5–33 cm) from the wall, so it disappears between patients.
Snow White, Cable-Managed and Backed for 5 Years
Snow white finish and integrated cable management keep the installation wipe-clean end to end — a practical requirement in Singapore wards, day surgeries and dental practices. Ergotron backs it with a 5-year manufacturer warranty; SourceIT supplies it with local Singapore warranty support and a GST invoice.
Ergotron CareFit Combo System with Worksurface Datasheet — Technical Specifications
General
| Product Name | Ergotron CareFit Combo System with Worksurface |
| Part Number | 45-619-251 |
| Series | CareFit Combo |
| Finish | Snow white |
| Mounting Type | Wall mount on CareFit 34″ wall track (31-018-216) |
| Construction | Wall-mounted arm assembly with integrated cable management |

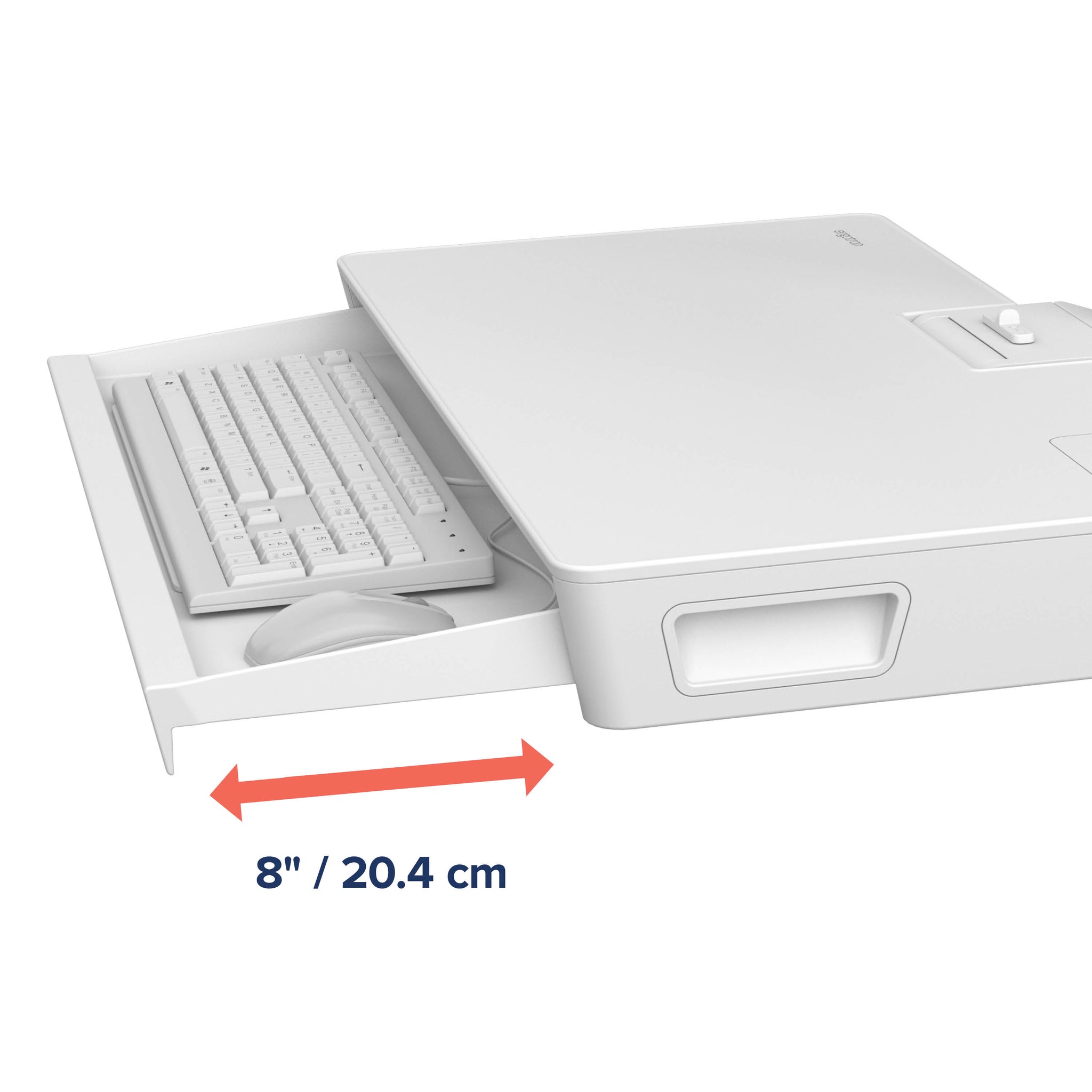

| Configuration | Monitor mount, keyboard and mouse platform, integrated worksurface and CPU storage |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Local Warranty (Singapore) |
Display Compatibility
| Typical LCD Size | ≤ 27″ |
| VESA Pattern | VESA MIS-D (100 x 100 mm and 75 x 75 mm) |
| Display Weight Capacity | 8–22 lbs (3.6–10 kg) |
| Number of Screens | 1 (dual displays via Ergotron CareFit Combo Dual Monitor Kit 98-650-251) |

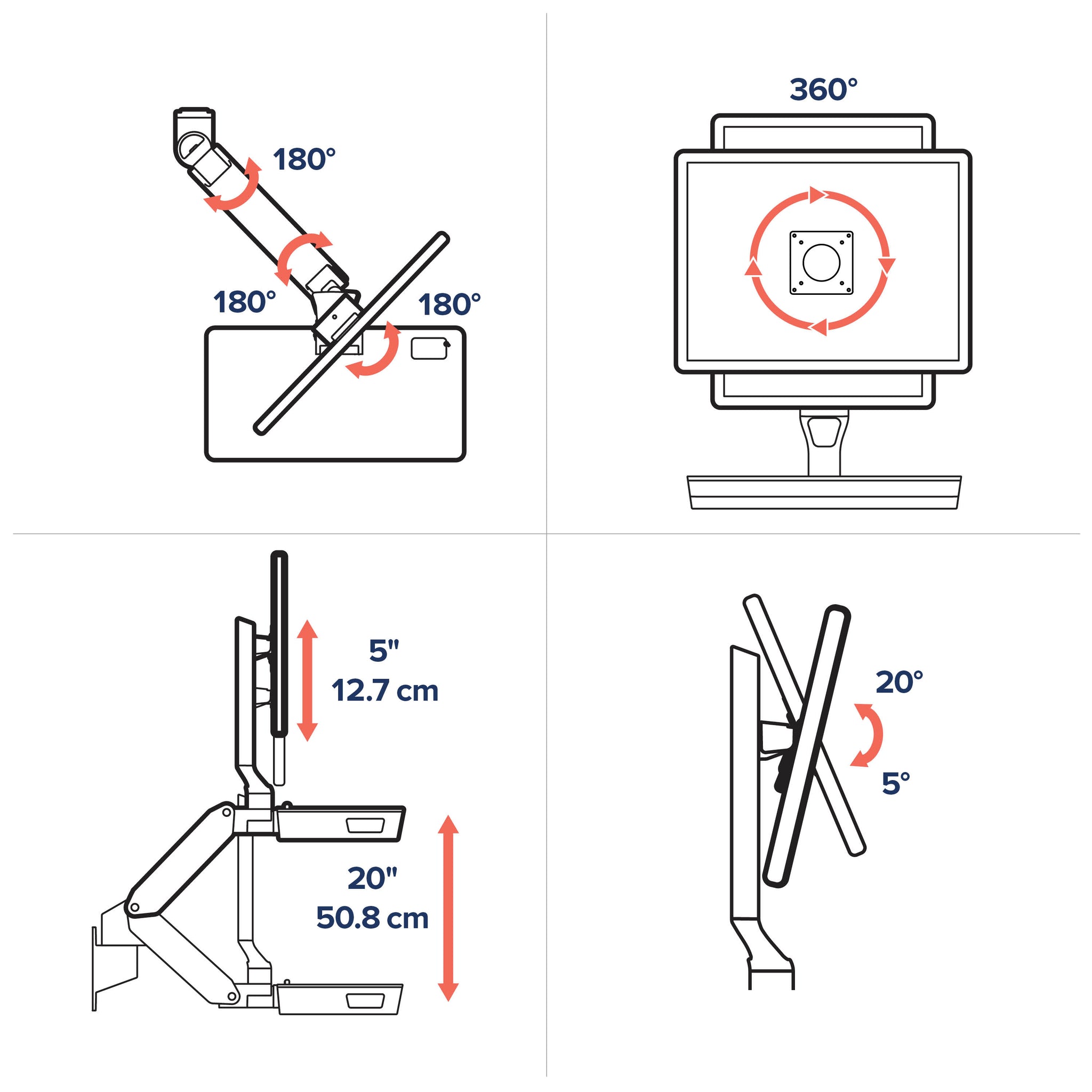

Adjustment & Motion
| Vertical Lift | 20″ (51 cm) |
| Pan | 180° |
| Rotation | 180° |
| Extension / Reach from Wall | Up to 57.8″ (146 cm) |
| Reach with CareFit Combo Extender | Up to 65.3″ (165.7 cm) with 98-547-251 (adds 18.5″ / 47.1 cm) |
| Folded Depth | 10″–13″ (25.5–33 cm) |
Design & Durability
| Wall Track | 34″ CareFit wall track (31-018-216) |
| Product Weight | 38.9–47.3 lbs (17.6–21.5 kg) across CareFit Combo configurations |
| Folded Depth | 10″–13″ (25.5–33 cm) |

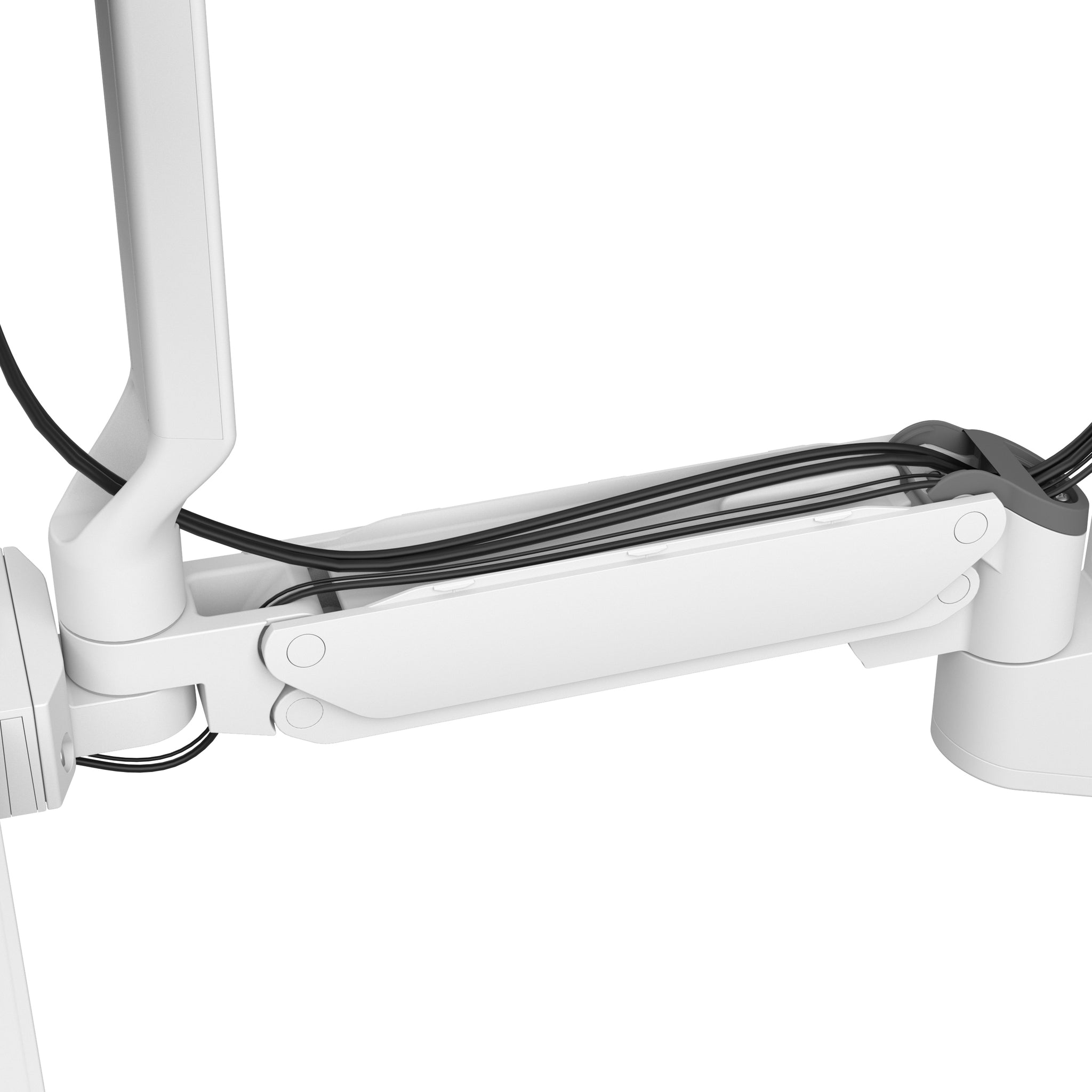

| Cable Management | Integrated cable routing through the arm and wall track |
| Available Accessories | CareFit Combo Extender (98-547-251), Short Extender (98-648-251), CPU Tray (98-548-251), CPU Wall Cabinet (98-543-251), Dual Monitor Kit (98-650-251) |
Compatibility & Fit
The CareFit Combo System with Worksurface carries a single display up to a typical 27″ weighing 8–22 lbs (3.6–10 kg). Displays attach through a VESA MIS-D pattern — 100 x 100 mm or 75 x 75 mm — which covers virtually every clinical and business monitor in that size class. A larger display range than the older StyleView Combo arms makes this the current choice where sites have standardised on 24″–27″ panels.
Mounting is wall-mount only, on Ergotron's 34″ CareFit wall track (31-018-216). There is no desk-clamp or grommet option, so desk thickness is not a consideration — but the wall construction must carry the assembly, which weighs 38.9–47.3 lbs (17.6–21.5 kg) depending on configuration. Confirm the wall type before installation, especially on drywall or lightweight partitions.
Reach is the CareFit Combo's headline advantage: up to 57.8″ (146 cm) from the wall as standard, and up to 65.3″ (165.7 cm) with the CareFit Combo Extender (98-547-251), which adds 18.5″ (47.1 cm). Folded away it sits 10″–13″ (25.5–33 cm) from the wall. Ultrawide and strongly curved panels sit outside the published 27″ / 22 lbs envelope and are not recommended.
A second display can be added using Ergotron's CareFit Combo Dual Monitor Kit (98-650-251); without it, the arm is a single-screen workstation.
This is the most complete configuration in the range. If CPU storage is not required, the CareFit Combo Arm with Worksurface (45-622-251) gives the same arm and worksurface without it.
Package Contents & CareFit Combo Ordering Information
In the box: CareFit Combo arm assembly with height-adjustable display mount, keyboard and mouse platform, wall-mount hardware and integrated cable management. The 34″ CareFit wall track is part number 31-018-216.
CareFit Combo range — SourceIT catalogue
| CareFit Combo Arm, snow white | 45-621-251 |
| CareFit Combo Arm with Worksurface, snow white | 45-622-251 |
| CareFit Combo System (with CPU holder), snow white | 45-618-251 |
| CareFit Combo System with Worksurface, snow white (this listing) | 45-619-251 |
CareFit Combo accessories — SourceIT catalogue
| CareFit Combo Extender (adds 18.5″ / 47.1 cm reach) | 98-547-251 |
| CareFit Combo CPU Tray | 98-548-251 |

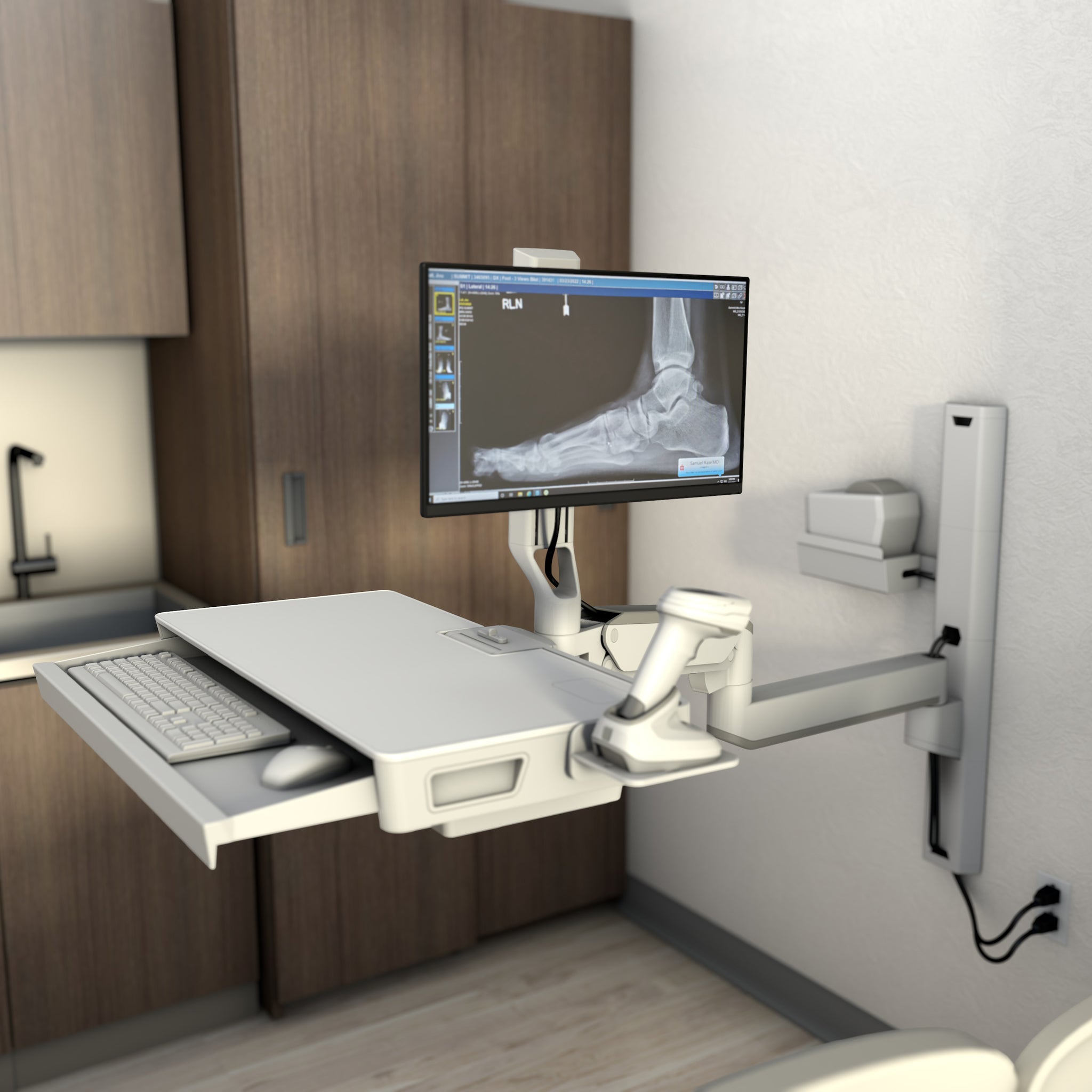

| CareFit Combo Scanner Bracket | 98-551-251 |
| CareFit Combo Wireless Scanner Bracket | 98-549-251 |
Related: SV Combo with Worksurface & Pan
Ergotron also lists a CareFit Combo Short Extender (98-648-251), CPU Wall Cabinet (98-543-251) and Dual Monitor Kit (98-650-251). Contact SourceIT to quote items not held in local stock.
Datasheet & Downloads
Frequently Asked Questions — Ergotron CareFit Combo System with Worksurface
What finishes is it available in?
Snow white (-251), the standard CareFit clinical finish. The polished aluminium equivalent in Ergotron's SV range is the SV Combo System with Worksurface & Pan (45-594-026), which takes a smaller 24″ display.
What size and weight of monitor does the CareFit Combo take?
Ergotron publishes a typical LCD size of 27″ or smaller and a display weight capacity of 8–22 lbs (3.6–10 kg). Note that 8 lbs is a real minimum as well as 22 lbs being the maximum — a display lighter than 8 lbs will not hold position on the lift.
Do I need a VESA adapter?
Not for a standard monitor. The CareFit Combo mounts VESA MIS-D displays at either 100 x 100 mm or 75 x 75 mm. Only panels with a proprietary or oversized pattern need a manufacturer adapter plate.

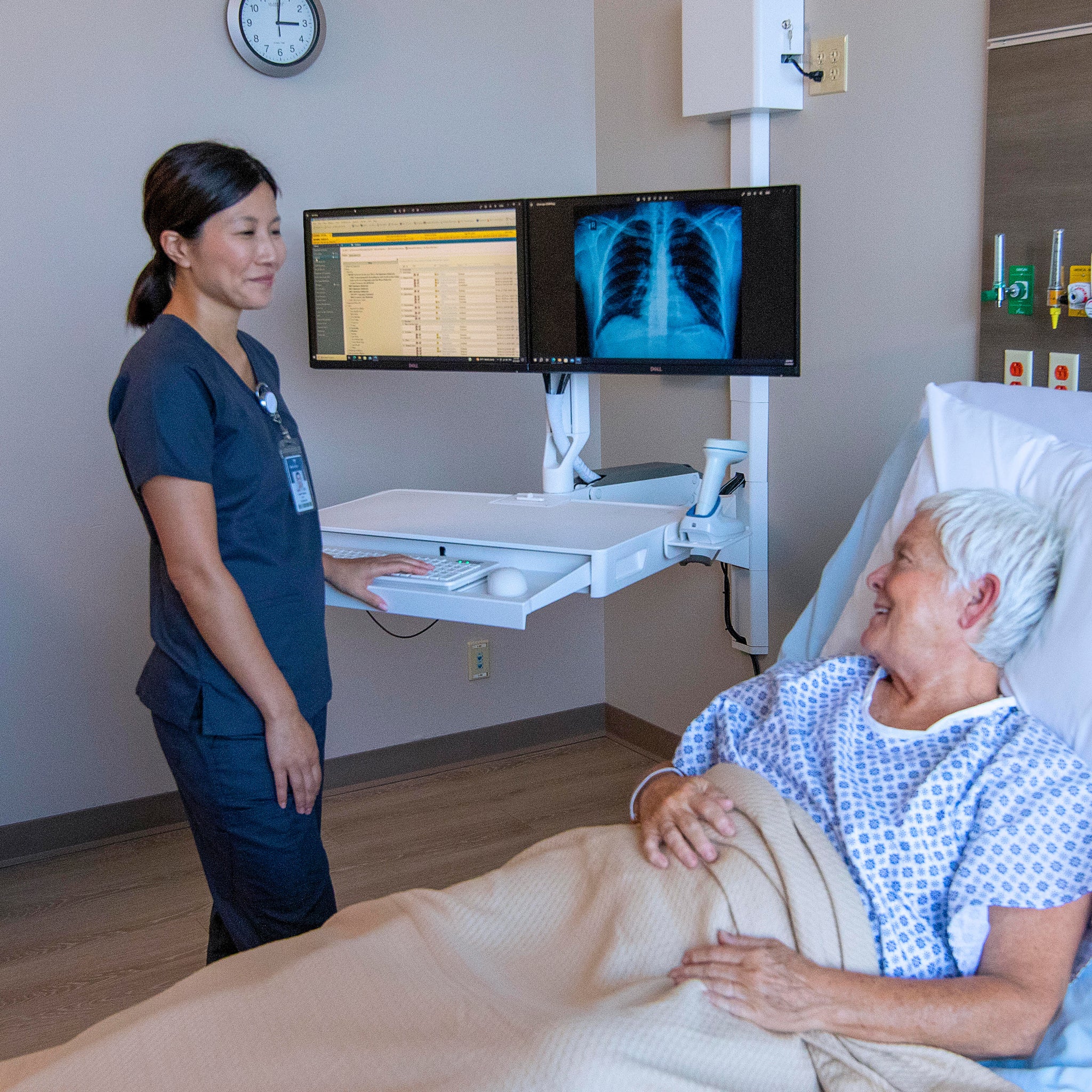

Can it carry two screens?
Not as supplied. A second display can be added with Ergotron's CareFit Combo Dual Monitor Kit (98-650-251); on its own the arm is a single-screen workstation.
How does it mount, and does desk thickness matter?
It is wall-mount only, fixed to Ergotron's 34″ CareFit wall track (31-018-216), so desk thickness does not apply. What does matter is the wall: the assembly weighs 38.9–47.3 lbs (17.6–21.5 kg) depending on configuration, so confirm the wall construction before installing, particularly on drywall or partitions.

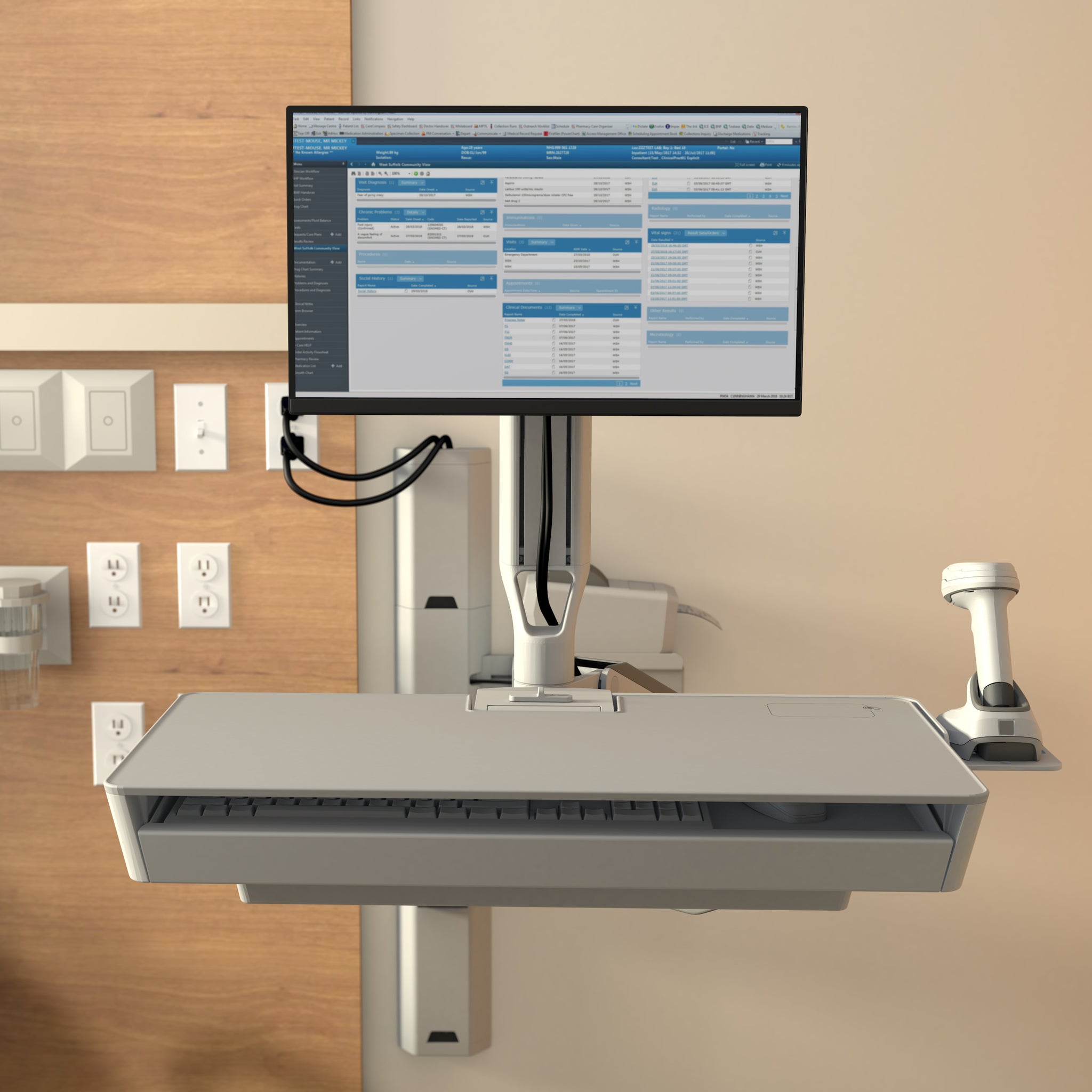

Can it reach across a bed?
That is what the reach specification is for. The CareFit Combo extends up to 57.8″ (146 cm) from the wall as standard, and up to 65.3″ (165.7 cm) with the CareFit Combo Extender (98-547-251). Folded away between uses it sits 10″–13″ (25.5–33 cm) from the wall.
Is it suitable for sit-stand documentation all shift?
Yes. The 20″ (51 cm) of vertical lift lets each clinician set the screen and keyboard to their own standing or seated height without tools, and the arm folds back to the wall between patients.
How does it differ from the CareFit Combo System (45-618-251)?
The worksurface. 45-618-251 has the same arm and CPU storage without the integrated writing surface. Display size, weight range, lift, pan, rotation and reach are identical.
Is the Ergotron CareFit Combo System with Worksurface covered by warranty in Singapore?
Yes. Every Ergotron CareFit Combo System with Worksurface sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the CareFit Combo System with Worksurface with a 5-year manufacturer warranty.
