Ergotron CareFit™ Combo Arm
PRODUCT DESCRIPTION
Ergotron CareFit Combo Arm (45-621-251) - 5 Years Local Warranty
Ergotron CareFit Combo Arm — Point-of-Care Wall Workstation

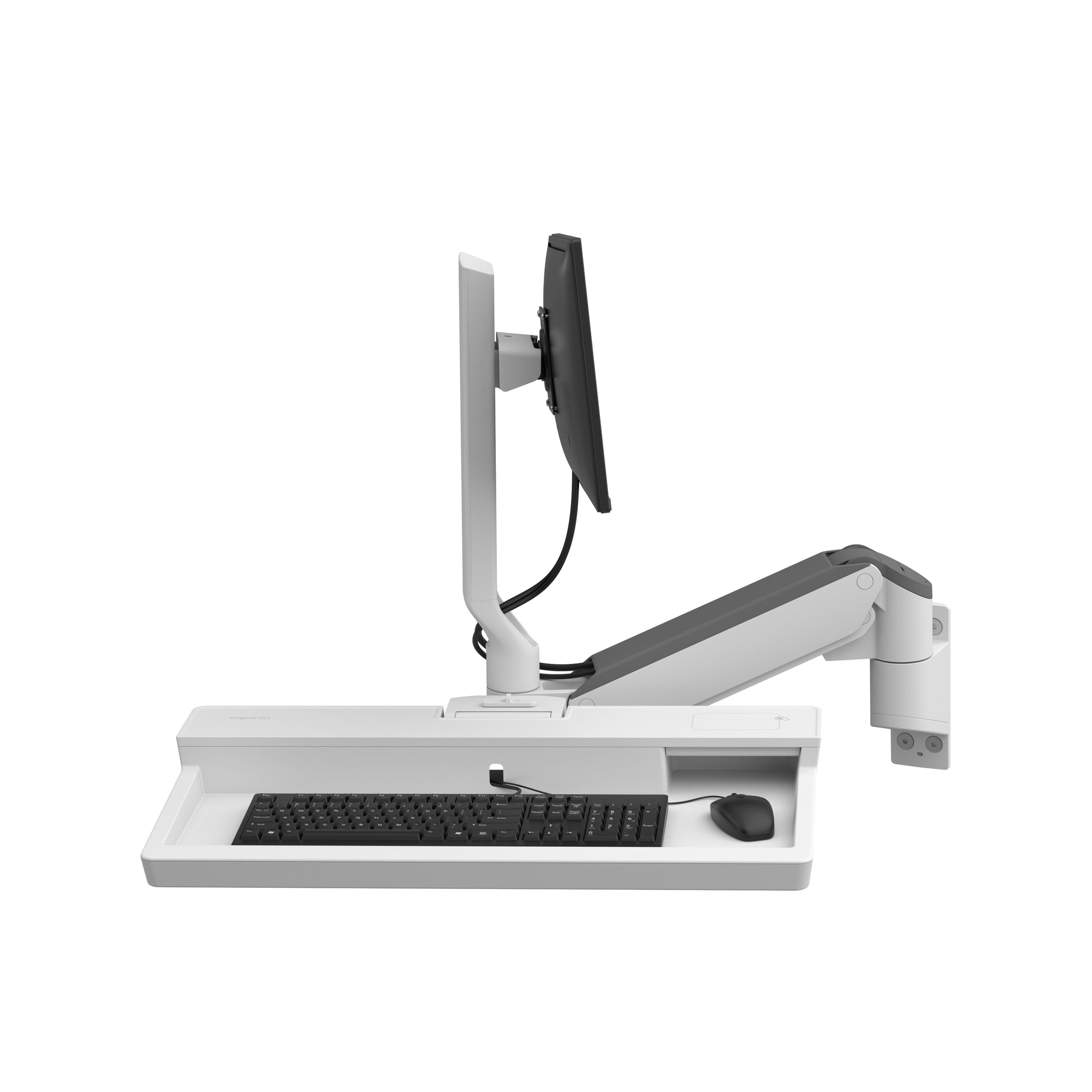

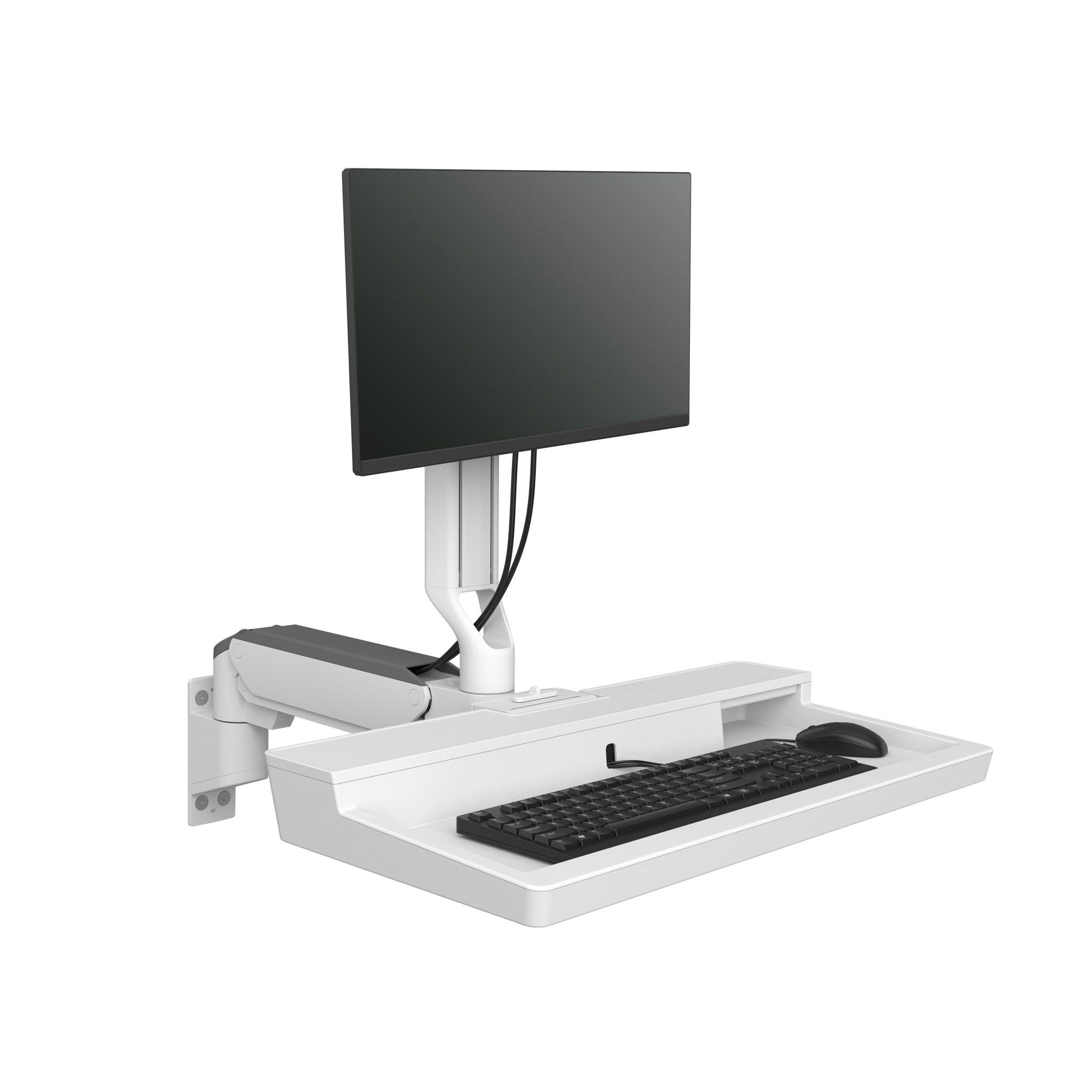

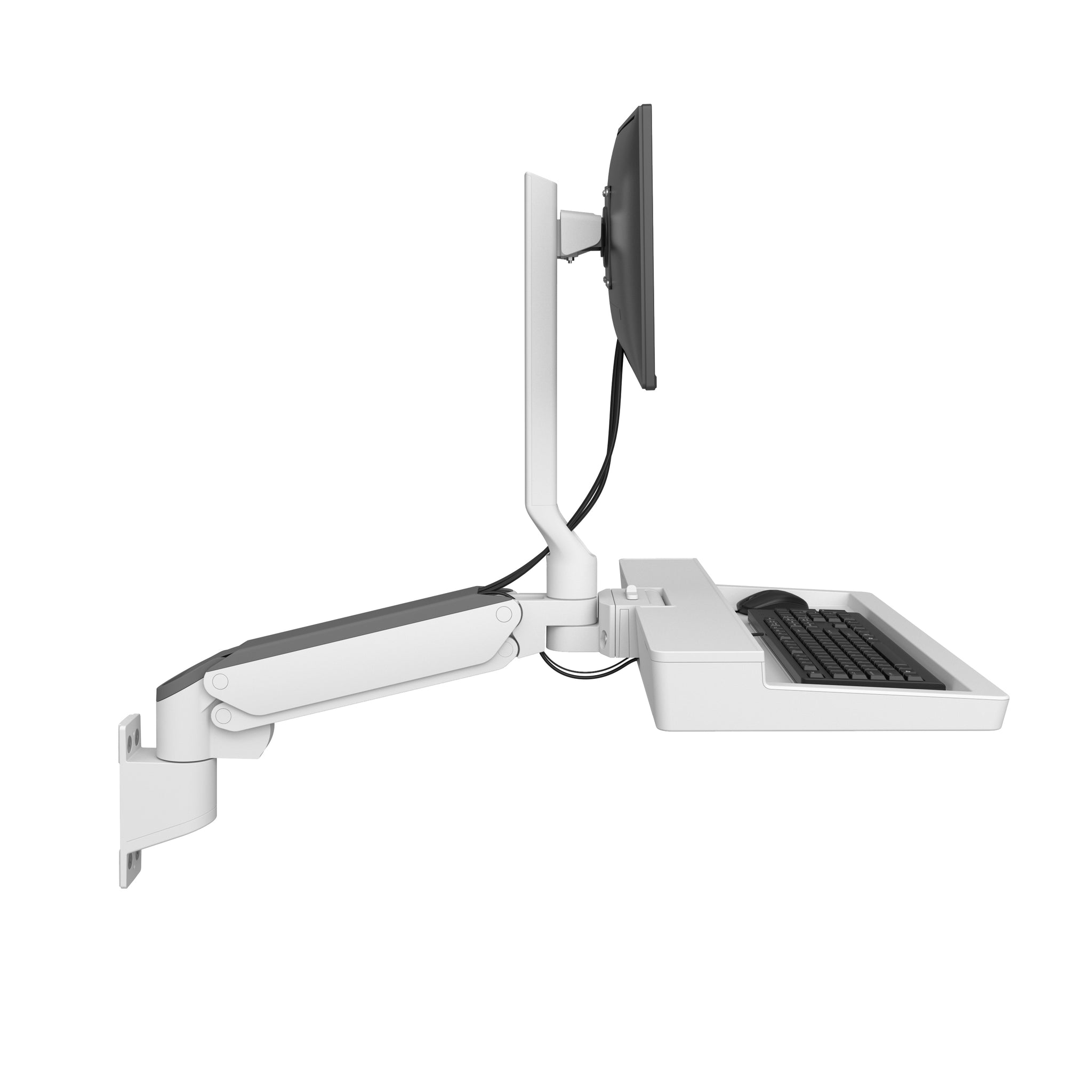

The CareFit Combo Arm mounts a display, keyboard and mouse on a single folding wall arm designed for clinical use. With 20″ (51 cm) of vertical lift and reach of up to 57.8″ (146 cm) from the wall, it brings the screen to the caregiver at the bedside rather than making the caregiver walk to the screen.
Reaches Almost 1.5 Metres from the Wall
Reach is what separates the CareFit Combo from a conventional wall arm. 57.8″ (146 cm) as standard — and 65.3″ (165.7 cm) with the CareFit Combo Extender — is enough to work from the far side of a bed or across a treatment bay, which is precisely the constraint that sends most Singapore wards toward mobile carts they would rather not buy.
Takes Displays up to 27″ and 22 lbs
Ergotron rates the CareFit Combo for a typical 27″ display weighing 8–22 lbs (3.6–10 kg), mounted through a VESA MIS-D pattern at 100 x 100 mm or 75 x 75 mm. That is a materially larger envelope than the older StyleView Combo arms and matches the 24″–27″ panels most healthcare sites now standardise on.

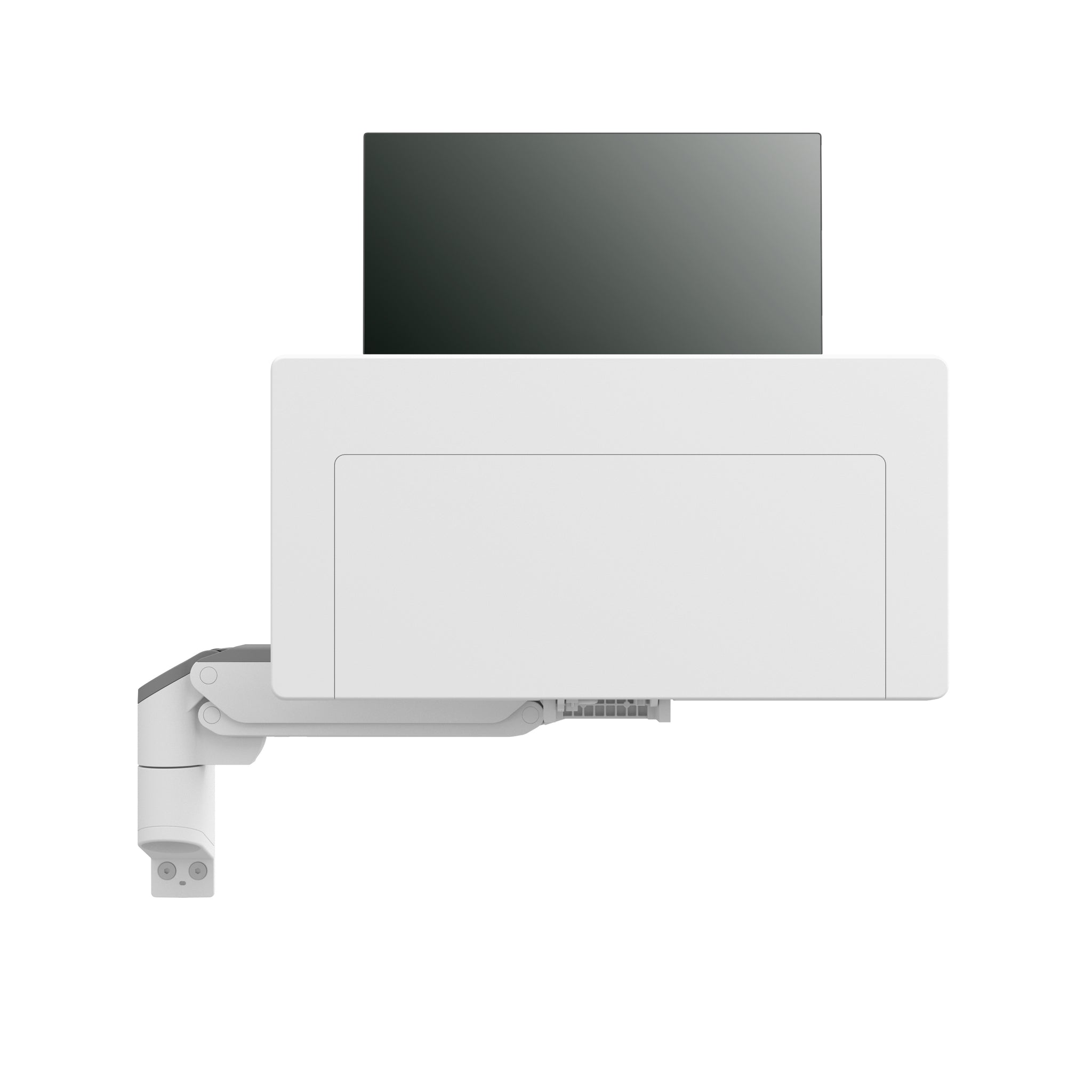

Folds to 10″–13″ and Clears the Room

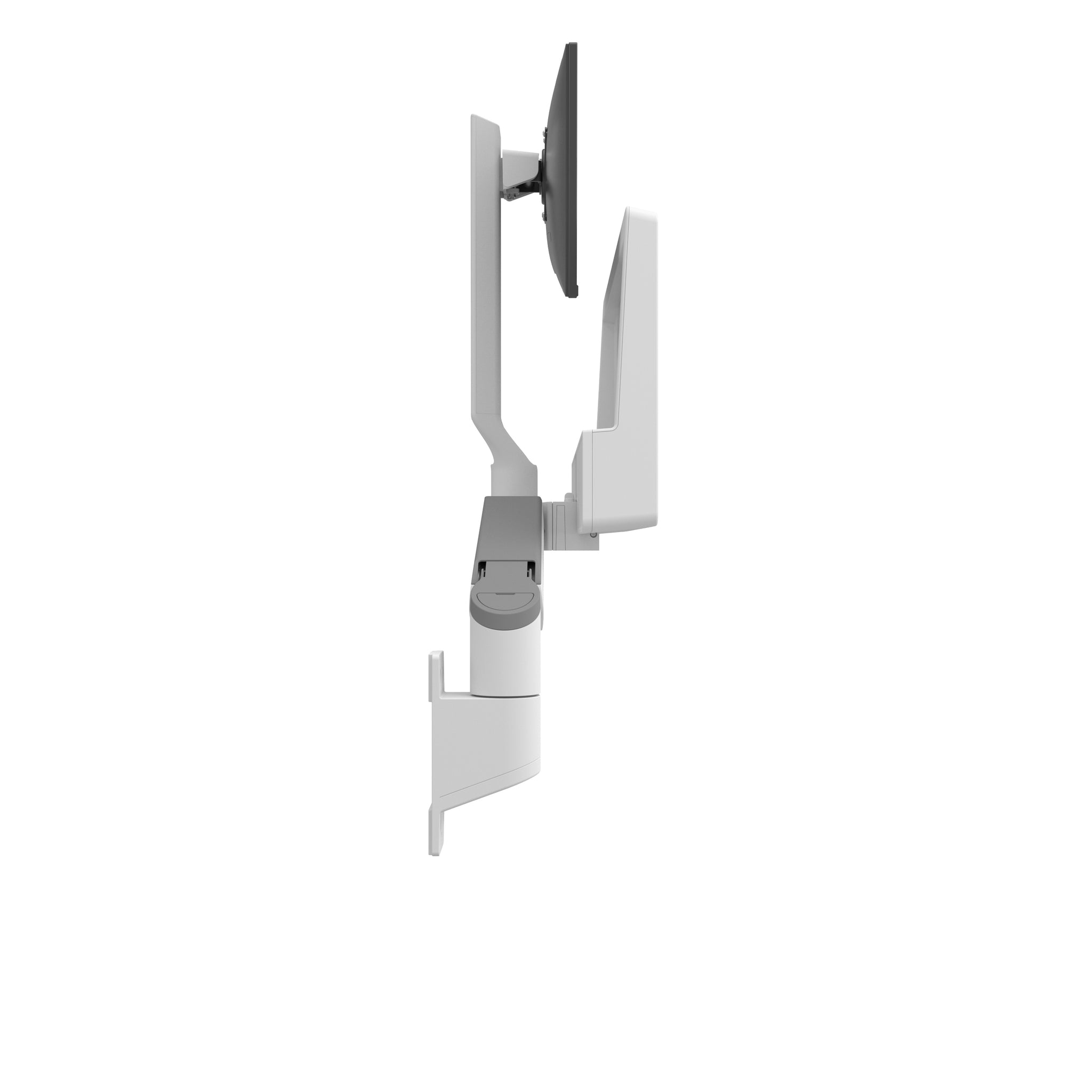

Between uses the arm folds back to 10″–13″ (25.5–33 cm) from the wall, keeping patient rooms, corridors and nurses' stations clear. With no floor footprint at all, cleaning and infection-control routines are simpler than around a cart.
Snow White Finish, Integrated Cabling, 5-Year Warranty
The snow white finish and integrated cable routing suit modern Singapore clinical interiors where surfaces are wiped between patients and exposed cabling is a documented risk. Ergotron backs the CareFit Combo with a 5-year manufacturer warranty; SourceIT supplies it with local Singapore warranty support and a GST invoice.
Ergotron CareFit Combo Arm Datasheet — Technical Specifications
General
| Product Name | Ergotron CareFit Combo Arm |
| Part Number | 45-621-251 |
| Series | CareFit Combo |
| Finish | Snow white |
| Mounting Type | Wall mount on CareFit 34″ wall track (31-018-216) |
| Construction | Wall-mounted arm assembly with integrated cable management |
| Configuration | Monitor mount with keyboard and mouse platform (no worksurface, no CPU holder) |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Local Warranty (Singapore) |
Display Compatibility
| Typical LCD Size | ≤ 27″ |
| VESA Pattern | VESA MIS-D (100 x 100 mm and 75 x 75 mm) |
| Display Weight Capacity | 8–22 lbs (3.6–10 kg) |
| Number of Screens | 1 (dual displays via Ergotron CareFit Combo Dual Monitor Kit 98-650-251) |

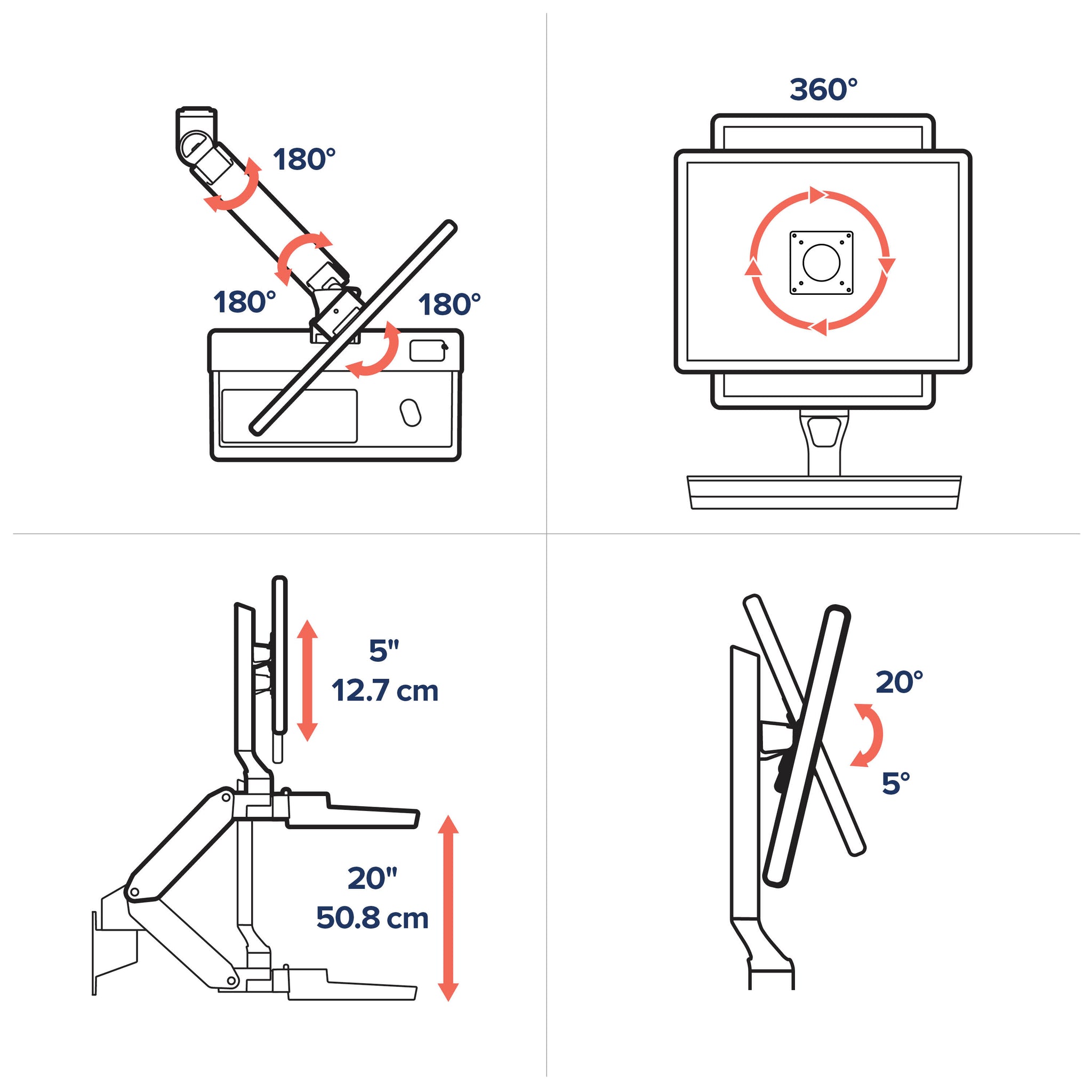

Adjustment & Motion
| Vertical Lift | 20″ (51 cm) |
| Pan | 180° |
| Rotation | 180° |
| Extension / Reach from Wall | Up to 57.8″ (146 cm) |
| Reach with CareFit Combo Extender | Up to 65.3″ (165.7 cm) with 98-547-251 (adds 18.5″ / 47.1 cm) |
| Folded Depth | 10″–13″ (25.5–33 cm) |
Design & Durability
| Wall Track | 34″ CareFit wall track (31-018-216) |
| Product Weight | 38.9–47.3 lbs (17.6–21.5 kg) across CareFit Combo configurations |
| Folded Depth | 10″–13″ (25.5–33 cm) |

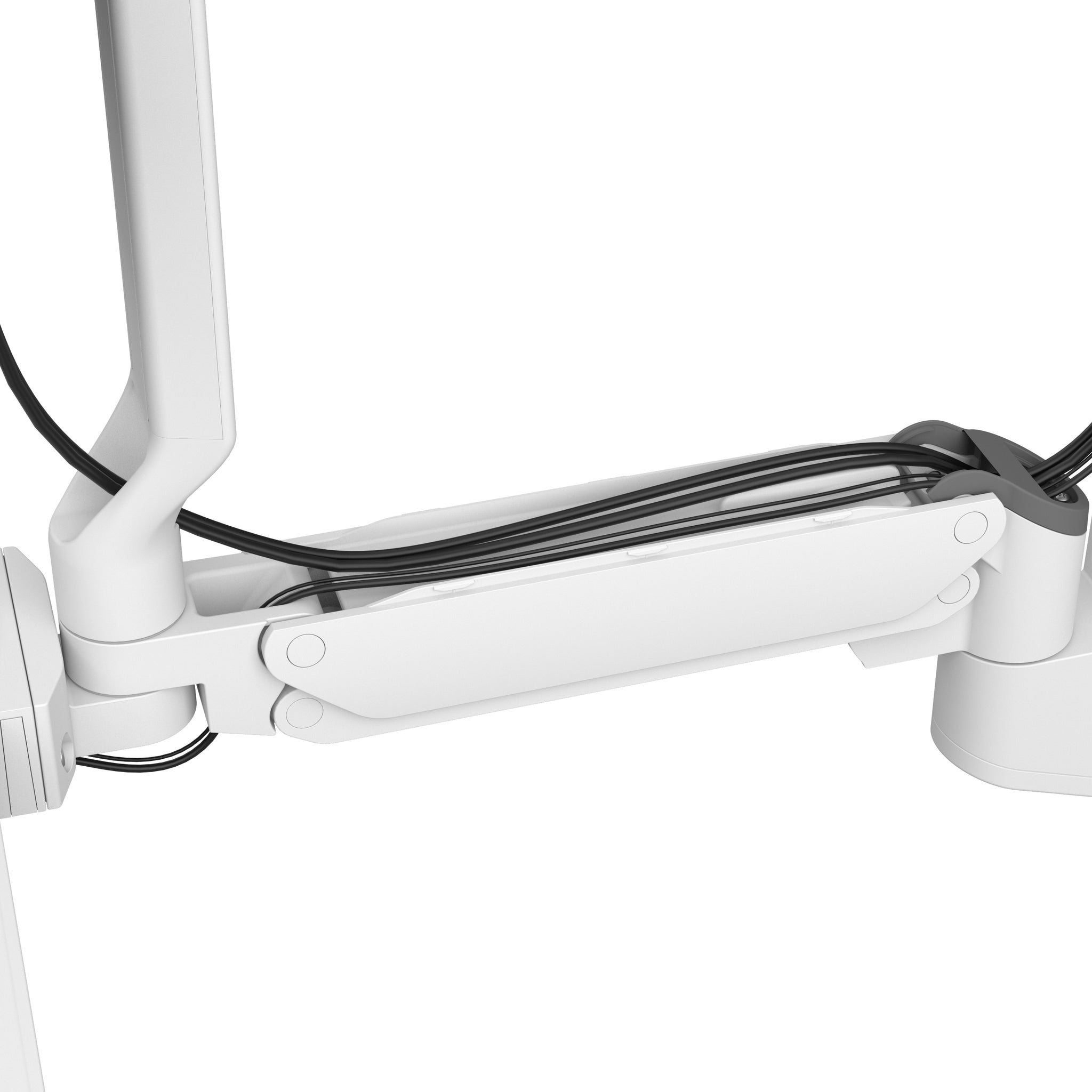

| Cable Management | Integrated cable routing through the arm and wall track |
| Available Accessories | CareFit Combo Extender (98-547-251), Short Extender (98-648-251), CPU Tray (98-548-251), CPU Wall Cabinet (98-543-251), Dual Monitor Kit (98-650-251) |
Compatibility & Fit
The CareFit Combo Arm carries a single display up to a typical 27″ weighing 8–22 lbs (3.6–10 kg). Displays attach through a VESA MIS-D pattern — 100 x 100 mm or 75 x 75 mm — which covers virtually every clinical and business monitor in that size class. A larger display range than the older StyleView Combo arms makes this the current choice where sites have standardised on 24″–27″ panels.
Mounting is wall-mount only, on Ergotron's 34″ CareFit wall track (31-018-216). There is no desk-clamp or grommet option, so desk thickness is not a consideration — but the wall construction must carry the assembly, which weighs 38.9–47.3 lbs (17.6–21.5 kg) depending on configuration. Confirm the wall type before installation, especially on drywall or lightweight partitions.
Reach is the CareFit Combo's headline advantage: up to 57.8″ (146 cm) from the wall as standard, and up to 65.3″ (165.7 cm) with the CareFit Combo Extender (98-547-251), which adds 18.5″ (47.1 cm). Folded away it sits 10″–13″ (25.5–33 cm) from the wall. Ultrawide and strongly curved panels sit outside the published 27″ / 22 lbs envelope and are not recommended.
A second display can be added using Ergotron's CareFit Combo Dual Monitor Kit (98-650-251); without it, the arm is a single-screen workstation.
This model is the arm only. If a writing surface is needed at the point of care, specify the CareFit Combo Arm with Worksurface (45-622-251); if the PC has to come off the floor as well, specify the CareFit Combo System (45-618-251).
Package Contents & CareFit Combo Ordering Information

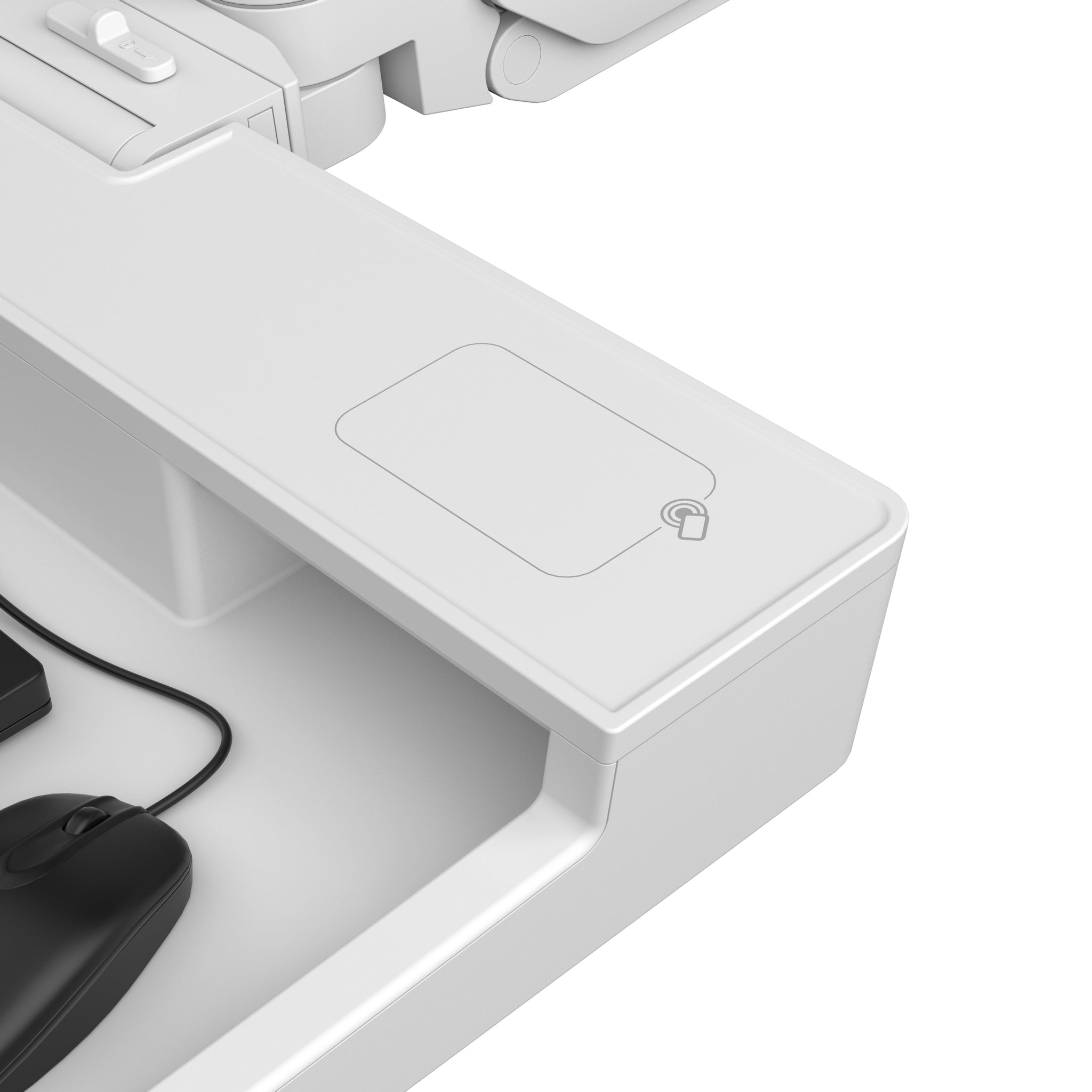

In the box: CareFit Combo arm assembly with height-adjustable display mount, keyboard and mouse platform, wall-mount hardware and integrated cable management. The 34″ CareFit wall track is part number 31-018-216.
CareFit Combo range — SourceIT catalogue
| CareFit Combo Arm, snow white (this listing) | 45-621-251 |
| CareFit Combo Arm with Worksurface, snow white | 45-622-251 |
| CareFit Combo System (with CPU holder), snow white | 45-618-251 |
| CareFit Combo System with Worksurface, snow white | 45-619-251 |
CareFit Combo accessories — SourceIT catalogue
| CareFit Combo Extender (adds 18.5″ / 47.1 cm reach) | 98-547-251 |
| CareFit Combo CPU Tray | 98-548-251 |
| CareFit Combo Scanner Bracket | 98-551-251 |
| CareFit Combo Wireless Scanner Bracket | 98-549-251 |
Related: SV Combo with Worksurface & Pan
Ergotron also lists a CareFit Combo Short Extender (98-648-251), CPU Wall Cabinet (98-543-251) and Dual Monitor Kit (98-650-251). Contact SourceIT to quote items not held in local stock.
Datasheet & Downloads
Frequently Asked Questions — Ergotron CareFit Combo Arm
What finishes is the CareFit Combo Arm available in?
Ergotron supplies the CareFit Combo range in snow white (-251), the finish specified for clinical interiors. There is no aluminium option in this range — for a polished aluminium wall combo arm, look at the SV Combo Arm with Worksurface & Pan (45-583-026).
What size and weight of monitor does the CareFit Combo take?
Ergotron publishes a typical LCD size of 27″ or smaller and a display weight capacity of 8–22 lbs (3.6–10 kg). Note that 8 lbs is a real minimum as well as 22 lbs being the maximum — a display lighter than 8 lbs will not hold position on the lift.
Do I need a VESA adapter?
Not for a standard monitor. The CareFit Combo mounts VESA MIS-D displays at either 100 x 100 mm or 75 x 75 mm. Only panels with a proprietary or oversized pattern need a manufacturer adapter plate.
Can it carry two screens?
Not as supplied. A second display can be added with Ergotron's CareFit Combo Dual Monitor Kit (98-650-251); on its own the arm is a single-screen workstation.
How does it mount, and does desk thickness matter?
It is wall-mount only, fixed to Ergotron's 34″ CareFit wall track (31-018-216), so desk thickness does not apply. What does matter is the wall: the assembly weighs 38.9–47.3 lbs (17.6–21.5 kg) depending on configuration, so confirm the wall construction before installing, particularly on drywall or partitions.

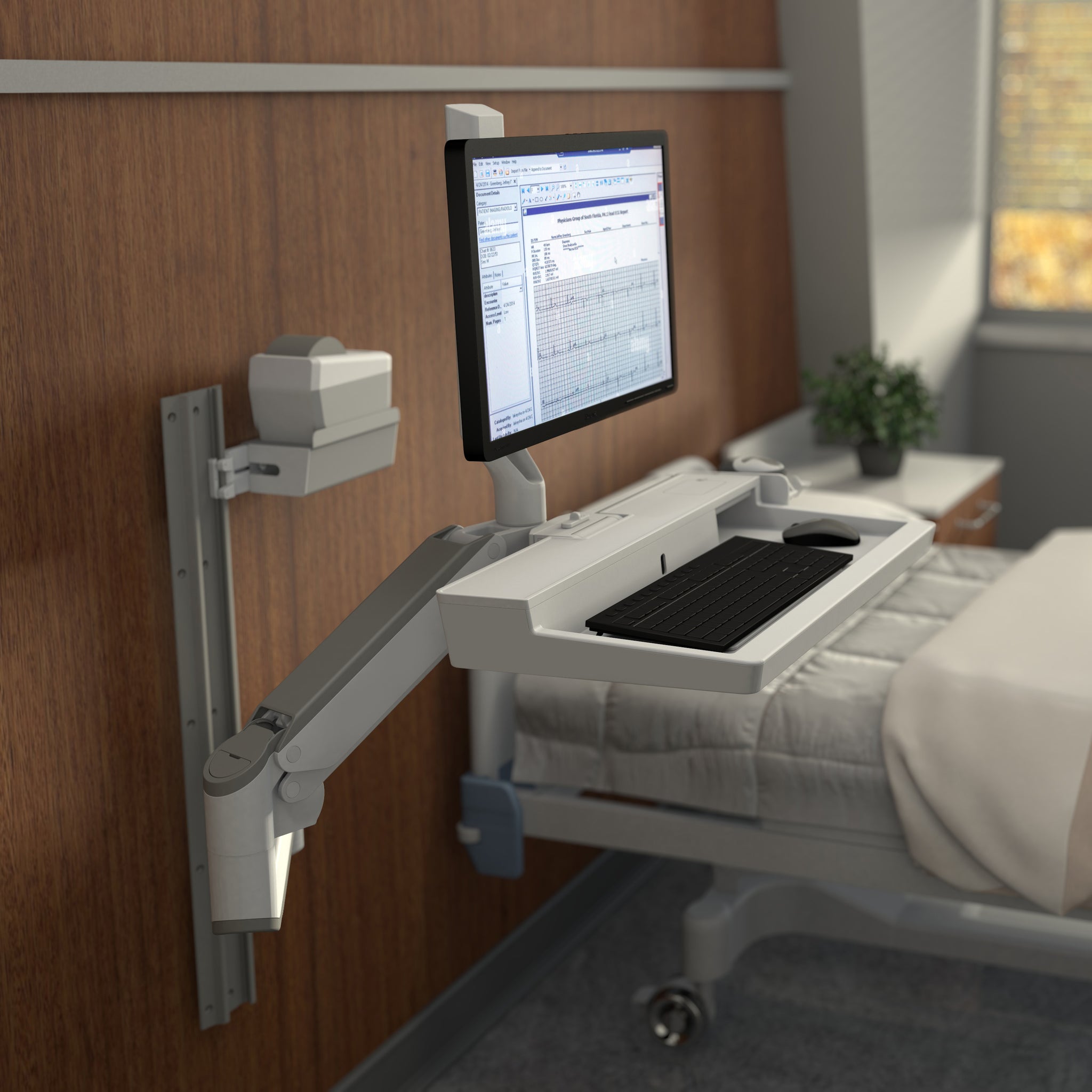

Can it reach across a bed?
That is what the reach specification is for. The CareFit Combo extends up to 57.8″ (146 cm) from the wall as standard, and up to 65.3″ (165.7 cm) with the CareFit Combo Extender (98-547-251). Folded away between uses it sits 10″–13″ (25.5–33 cm) from the wall.
Is it suitable for sit-stand documentation all shift?
Yes. The 20″ (51 cm) of vertical lift lets each clinician set the screen and keyboard to their own standing or seated height without tools, and the arm folds back to the wall between patients.
How does the CareFit Combo Arm compare with the SV Combo Arm with Worksurface & Pan?
The SV Combo Arm with Worksurface & Pan (45-583-026) takes a smaller display (typical 24″, 6–18 lbs / 2.7–8.2 kg) but includes a worksurface and is available in polished aluminium. The CareFit Combo Arm takes a larger display (up to 27″, 8–22 lbs / 3.6–10 kg) and reaches much further from the wall. Choose on display size and reach first.
Is the Ergotron CareFit Combo Arm covered by warranty in Singapore?
Yes. Every Ergotron CareFit Combo Arm sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the CareFit Combo Arm with a 5-year manufacturer warranty.
