Ergotron StyleView® Sit-Stand Combo System Small CPU holder
PRODUCT DESCRIPTION
Ergotron StyleView Sit-Stand Combo System with Small CPU Holder (45-273-026) - 5 Years Local Warranty

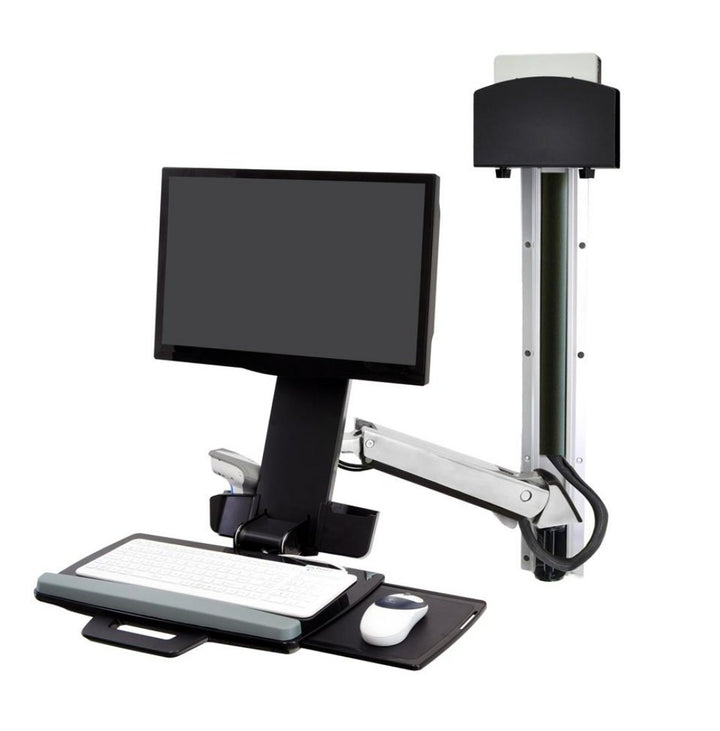

Ergotron StyleView Sit-Stand Combo System — Complete Wall Workstation with CPU Holder
The StyleView Sit-Stand Combo System puts the display, keyboard, mouse, scanner and the PC itself onto one wall track. Nothing sits on the floor and nothing sits on a desk. With 25″ (63.5 cm) of LCD height adjustment and up to 43″ (109.2 cm) of reach, it turns a wall into a full sit-stand computing position for wards, clinics, labs and operations rooms.
Small CPU Holder Keeps the Computer Off the Floor
The included small CPU holder carries a small-form-factor PC on the wall track alongside the arm. That protects the machine from spills, floor cleaning and knocks, improves airflow around the chassis, and removes the trailing cable run that a floor-standing PC always creates — a real advantage in Singapore healthcare facilities working to strict infection-control routines.
25″ of Lift and 360° Rotation for Every User
The system gives 25″ (63.5 cm) of LCD height travel, a further 5.1″ (13 cm) of independent screen adjustment, 30° of tilt and a full 360° of both pan and rotation. Staff of any height can set a correct posture in seconds, and the screen can be swung to show a patient or colleague without moving the workstation.
Folds Flat and Frees the Whole Floor Plate
Stored with the keyboard folded, the assembly sits 12″ (30.5 cm) from the wall. In a small consult room or a busy corridor that is the difference between a workable space and a congested one, and it is why wall-mounted systems are usually specified in preference to carts where the workstation does not need to travel.
Rated to 29 lbs (13.2 kg), Built to Be Wiped Down
Ergotron rates the Combo System at ≤ 29 lbs (≤ 13.2 kg) across the display and tray, and builds it from aluminium and high-grade plastic with an easy-to-clean exterior and concealed cabling. It carries a 5-year Ergotron manufacturer warranty, supplied by SourceIT with local Singapore warranty support and a GST invoice.
Ergotron StyleView Sit-Stand Combo System with Small CPU Holder Datasheet — Technical Specifications
General
| Product Name | Ergotron StyleView Sit-Stand Combo System with Small CPU Holder |
| Part Number | 45-273-026 |
| Series | StyleView Sit-Stand Combo |
| Finish | Polished aluminium |
| Mounting Type | Wall mount (Ergotron wall track) |
| Number of Screens | 1 display, plus keyboard, mouse and scanner |
| Construction | Aluminium and high-grade plastic, easy-to-clean exterior |
| CPU Storage | Small CPU holder included |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Local Warranty (Singapore) |
Display Compatibility
| Typical LCD Size | ≤ 24″ |
| Weight Capacity | ≤ 29 lbs (≤ 13.2 kg) |
| Screens Supported | Single display |
Adjustment & Motion
| LCD Height Adjustment (lift) | 25″ (63.5 cm) |
| Independent LCD Adjustment | 5.1″ (13 cm) |
| Tilt | 30° (25° up / 5° down) |
| Pan | 360° |
| Rotation | 360° |
| Extension / Reach | Up to 43″ (109.2 cm) of LCD and keyboard extension |
| Optional Extender | Adds 17″ (43 cm) — 45-261-026 (polished aluminium) / 45-261-216 (white) |
Design & Durability
| Keyboard Tray | 18.6″W x 9″D (47.2 x 22.8 cm), back-tilt, with slide-out mouse tray |
| Folded Depth | 12″ (30.5 cm) with keyboard stored |
| Cable Management | Integrated — cables stay hidden and organised for easy cleaning |
| Product Weight | 38.4 lbs (17.5 kg) |
| Shipping Weight | 47 lbs (21.4 kg) |
Compatibility & Fit
The StyleView Sit-Stand Combo System with Small CPU Holder is a wall-mounted sit-stand workstation that carries a single display together with a keyboard, mouse and scanner. Ergotron rates it for a typical LCD size of 24″ or smaller, with a total system weight capacity of ≤ 29 lbs (≤ 13.2 kg) covering the display and everything on the keyboard tray.
Mounting is wall-mount only — the arm fixes to an Ergotron wall track, so there is no desk-clamp or grommet option and no desk-thickness requirement. Because the whole assembly folds back toward the wall (to a depth of 12″ / 30.5 cm with the keyboard stored), it suits Singapore consult rooms, nurses' stations, ward corridors and compact back-office bays where floor and desk space is at a premium.
Displays attach through Ergotron's supplied VESA mount. Ultrawide and deeply curved panels are not recommended: the 24″ typical size and the ≤ 29 lbs (≤ 13.2 kg) capacity are the limits Ergotron publishes, and a wide panel on a folding wall arm places extra leverage on the mount. If a display exceeds the published limits, choose a heavier-duty Ergotron wall system instead.
The small CPU holder is sized for small-form-factor desktops. If the site standard is a larger chassis, Ergotron builds a medium CPU holder variant of this system — ask SourceIT to quote it. An optional SV Sit-Stand Combo Extender (45-261-026 / 45-261-216) adds a further 17″ (43 cm) of reach from the wall.
Package Contents & StyleView Sit-Stand Combo Ordering Information
In the box: sit-stand combo arm assembly, wall-mount bracket, height-adjustable LCD mount, keyboard tray with slide-out mouse tray, VESA mounting kit, cable management hardware and fasteners.
StyleView Sit-Stand Combo — SourceIT catalogue
| StyleView Sit-Stand Combo Arm, polished aluminium | 45-266-026 |
| StyleView Sit-Stand Combo System with small CPU holder, polished aluminium (this listing) | 45-273-026 |
Extension arms
| SV Sit-Stand Combo Extender, white (adds 17″ / 43 cm reach) | 45-261-216 |
| SV Sit-Stand Combo Extender, Short, polished aluminium | 97-858-026 |
| SV Sit-Stand Combo Extender, Short, white | 97-858-216 |
Ergotron also lists white (-216) finishes and a Combo Arm with Worksurface (45-260) in this series. Contact SourceIT for indent orders on finishes not stocked locally.
Datasheet & Downloads
Frequently Asked Questions — Ergotron StyleView Sit-Stand Combo System with Small CPU Holder
What is the difference between the polished aluminium and white versions?
Finish only. Ergotron builds this system in polished aluminium (45-273-026, this listing) and white (45-273-216); lift, tilt, pan, rotation and capacity are identical.
What size monitor fits the StyleView Sit-Stand Combo System?
Ergotron publishes a typical LCD size of 24″ or smaller, with a system weight capacity of ≤ 29 lbs (≤ 13.2 kg) covering the display plus the keyboard, mouse and scanner.
Can I mount two screens on it?
No — this is a single-display system. For two screens at a wall position, specify one of Ergotron's dual wall mount systems instead.
How is it mounted, and does it need a special wall?
It mounts to an Ergotron wall track — wall-mount only, no desk clamp or grommet option, so desk thickness is irrelevant. The wall itself must carry the load, so confirm the wall construction (concrete, brick, stud or partition) with your contractor before installation.
What size CPU does the holder take?
The included holder is Ergotron's small CPU holder, intended for small-form-factor desktops. Measure the chassis before ordering if your standard build is a tower.
How does it compare with the StyleView Sit-Stand Combo Arm (45-266-026)?
The StyleView Sit-Stand Combo Arm (45-266-026) is the same arm without the CPU holder and wall track, rated slightly higher at ≤ 32 lbs (14.5 kg) but with 90° rather than 360° rotation. Choose the Combo System when the PC has to come off the floor as well.
Is the Ergotron StyleView Sit-Stand Combo System with Small CPU Holder covered by warranty in Singapore?
Yes. Every Ergotron StyleView Sit-Stand Combo System with Small CPU Holder sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the StyleView Sit-Stand Combo System with Small CPU Holder with a 5-year manufacturer warranty.
