Ergotron StyleView® Sit-Stand Combo Arm
PRODUCT DESCRIPTION
Ergotron StyleView Sit-Stand Combo Arm (45-266-026) - 5 Years Local Warranty

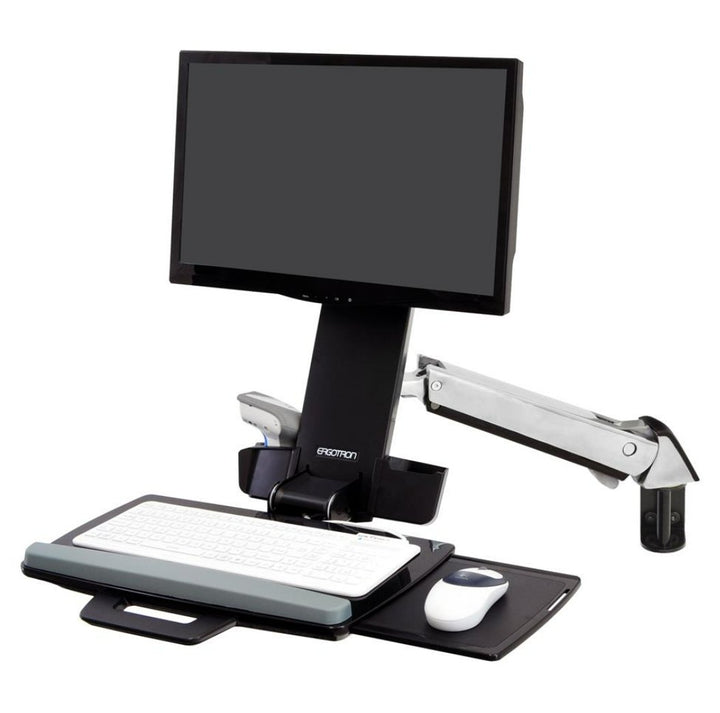

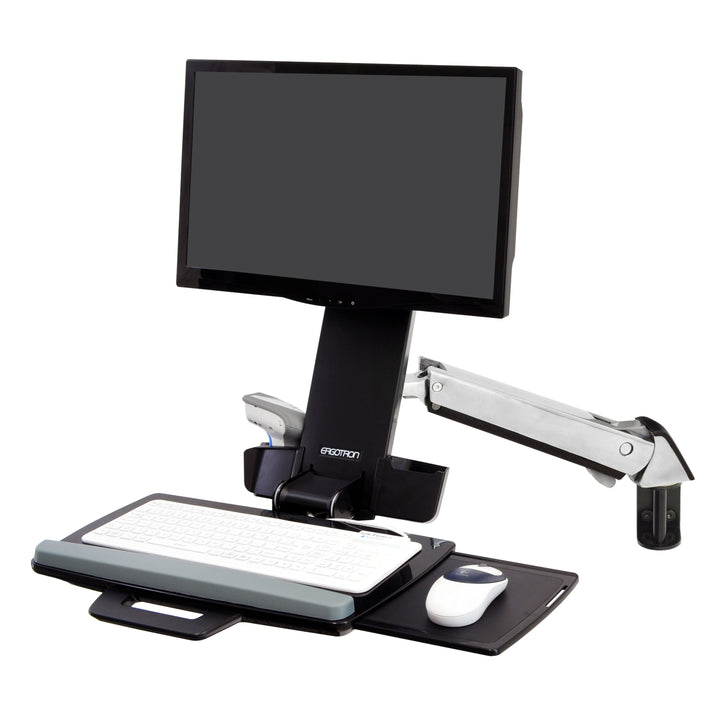

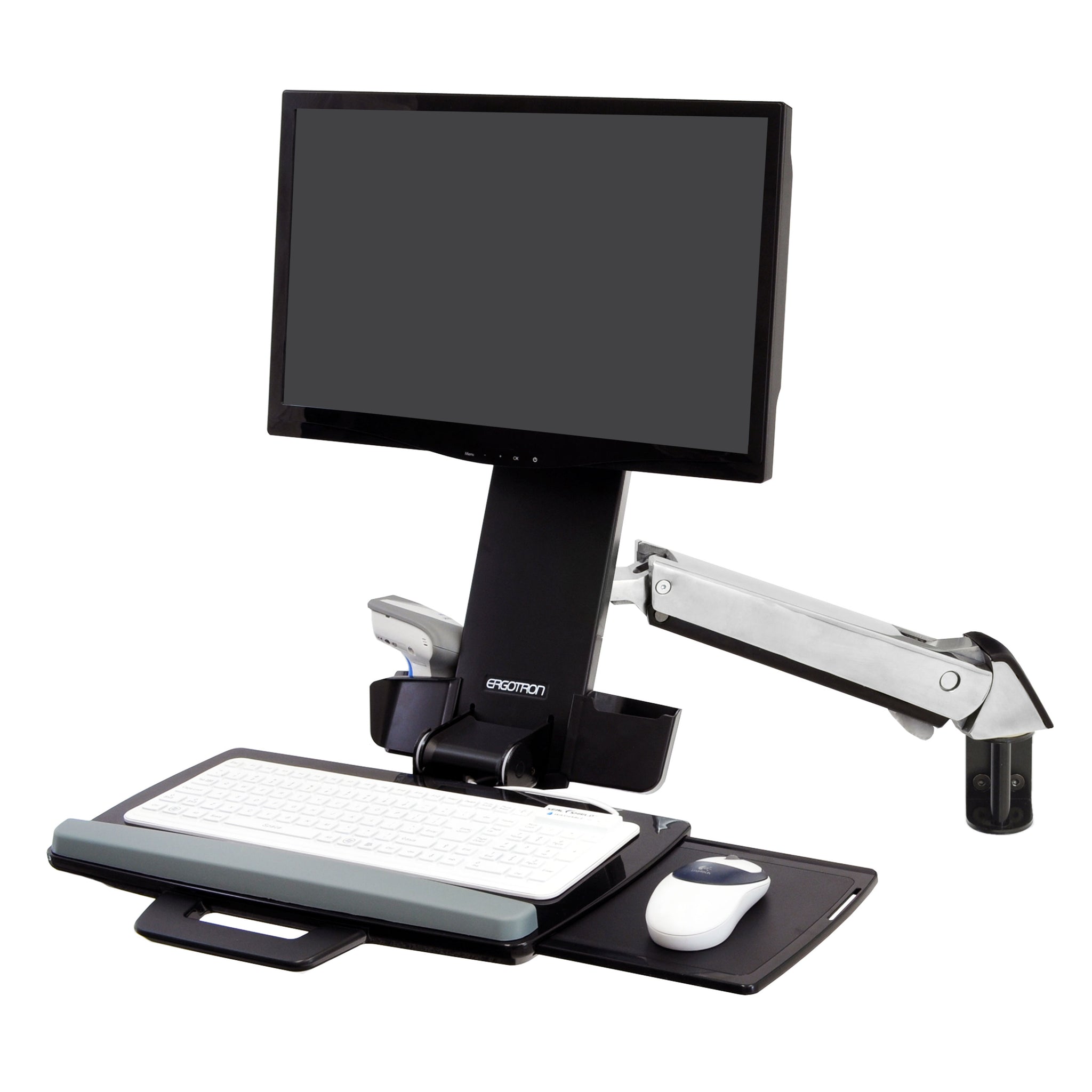

Ergotron StyleView Sit-Stand Combo Arm — Wall-Mounted Monitor and Keyboard Workstation
The StyleView Sit-Stand Combo Arm mounts a display, keyboard, mouse and scanner on one folding wall arm, turning a bare wall into a complete sit-stand workstation. Ergotron gives the arm 25″ (63.5 cm) of LCD height adjustment and up to 43″ (109.2 cm) of reach, so a nurse, receptionist or shift worker can pull the screen to where they are standing, type, and push it back flat when the next task starts.
25″ of Sit-Stand Height Adjustment for Shared Shifts
Height is the specification that matters most in a shared station. With 25″ (63.5 cm) of travel and a further 5.1″ (13 cm) of independent LCD adjustment, one arm serves a 1.5 m and a 1.9 m user without tools or re-installation. That is what makes it practical for three-shift Singapore hospital wards, clinic front desks and 24-hour operations rooms where the same station is handed over several times a day.
Zero Desk Footprint — Folds to 12″ from the Wall
Because the whole assembly is wall-borne, it consumes no desk or floor area at all. Stored with the keyboard folded, it sits just 12″ (30.5 cm) from the wall, which keeps corridors, bedside zones and narrow consult rooms clear. In Singapore's high-value floor space that is often the deciding factor over a mobile cart or a fixed desk.
30° Tilt, 360° Pan and Full Cable Management
The display tilts 30° (25° up, 5° down), pans a full 360° and rotates 90°, so the screen can be angled to a patient or a colleague and then returned. Cables run inside the arm and stay hidden and organised, which keeps the surface wipeable — a requirement in clinical and food-adjacent environments.
Aluminium Build Rated to 32 lbs (14.5 kg)
Ergotron rates the Combo Arm at ≤ 32 lbs (14.5 kg) across the display and the keyboard tray, and builds it from aluminium and high-grade plastic with an easy-to-clean exterior. It is backed by a 5-year Ergotron manufacturer warranty and supplied by SourceIT with local Singapore warranty support and a GST invoice.
Ergotron StyleView Sit-Stand Combo Arm Datasheet — Technical Specifications
General
| Product Name | Ergotron StyleView Sit-Stand Combo Arm |
| Part Number | 45-266-026 |
| Series | StyleView Sit-Stand Combo |
| Finish | Polished aluminium |
| Mounting Type | Wall mount (Ergotron wall track) |
| Number of Screens | 1 display, plus keyboard, mouse and scanner |
| Construction | Aluminium and high-grade plastic, easy-to-clean exterior |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Local Warranty (Singapore) |
Display Compatibility
| Typical LCD Size | ≤ 24″ |
| Weight Capacity | ≤ 32 lbs (≤ 14.5 kg) |
| Screens Supported | Single display |
Adjustment & Motion
| LCD Height Adjustment (lift) | 25″ (63.5 cm) |
| Independent LCD Adjustment | 5.1″ (13 cm) |
| Tilt | 30° (25° up / 5° down) |
| Pan | 360° |
| Rotation | 90° |
| Extension / Reach | Up to 43″ (109.2 cm) of LCD and keyboard extension |
| Optional Extender | Adds 17″ (43 cm) — 45-261-026 (polished aluminium) / 45-261-216 (white) |
Design & Durability
| Keyboard Tray | 18.6″W x 9″D (47.2 x 22.8 cm), back-tilt, with slide-out mouse tray |
| Folded Depth | 12″ (30.5 cm) with keyboard stored |
| Cable Management | Integrated — cables stay hidden and organised for easy cleaning |
| Product Weight | 32 lbs (14.6 kg) |
| Shipping Weight | 39 lbs (17.7 kg) |
Compatibility & Fit
The StyleView Sit-Stand Combo Arm is a wall-mounted sit-stand workstation that carries a single display together with a keyboard, mouse and scanner. Ergotron rates it for a typical LCD size of 24″ or smaller, with a total system weight capacity of ≤ 32 lbs (≤ 14.5 kg) covering the display and everything on the keyboard tray.
Mounting is wall-mount only — the arm fixes to an Ergotron wall track, so there is no desk-clamp or grommet option and no desk-thickness requirement. Because the whole assembly folds back toward the wall (to a depth of 12″ / 30.5 cm with the keyboard stored), it suits Singapore consult rooms, nurses' stations, ward corridors and compact back-office bays where floor and desk space is at a premium.
Displays attach through Ergotron's supplied VESA mount. Ultrawide and deeply curved panels are not recommended: the 24″ typical size and the ≤ 32 lbs (≤ 14.5 kg) capacity are the limits Ergotron publishes, and a wide panel on a folding wall arm places extra leverage on the mount. If a display exceeds the published limits, choose a heavier-duty Ergotron wall system instead.
An optional SV Sit-Stand Combo Extender (45-261-026 / 45-261-216) adds a further 17″ (43 cm) of reach where the user needs to work further from the wall, for example on the far side of a bed or a counter.
Package Contents & StyleView Sit-Stand Combo Ordering Information
In the box: sit-stand combo arm assembly, wall-mount bracket, height-adjustable LCD mount, keyboard tray with slide-out mouse tray, VESA mounting kit, cable management hardware and fasteners.
StyleView Sit-Stand Combo — SourceIT catalogue
| StyleView Sit-Stand Combo Arm, polished aluminium (this listing) | 45-266-026 |
| StyleView Sit-Stand Combo System with small CPU holder, polished aluminium | 45-273-026 |
Extension arms
| SV Sit-Stand Combo Extender, white (adds 17″ / 43 cm reach) | 45-261-216 |
| SV Sit-Stand Combo Extender, Short, polished aluminium | 97-858-026 |
| SV Sit-Stand Combo Extender, Short, white | 97-858-216 |
Ergotron also lists white (-216) finishes and a Combo Arm with Worksurface (45-260) in this series. Contact SourceIT for indent orders on finishes not stocked locally.
Datasheet & Downloads
Frequently Asked Questions — Ergotron StyleView Sit-Stand Combo Arm
What is the difference between the polished aluminium and white finishes?
Only the finish. Ergotron builds the StyleView Sit-Stand Combo Arm in polished aluminium (45-266-026, this listing) and white (45-266-216); the lift, tilt, pan, rotation and weight capacity are identical. Choose the finish that matches the room — polished aluminium reads as a technical/office finish, white blends into clinical interiors.
What size and weight of monitor does the StyleView Sit-Stand Combo Arm take?
Ergotron publishes a typical LCD size of 24″ or smaller and a system weight capacity of ≤ 32 lbs (≤ 14.5 kg). That capacity covers the display plus the keyboard, mouse and scanner on the tray, so budget for all of them, not just the panel.
Can it hold two monitors?
No. The Combo Arm is a single-screen workstation. If you need two displays at the point of care, look at Ergotron's dual wall systems rather than adding a second panel to this arm.
How does it mount — can I clamp it to a desk?
It is wall-mount only, fixed to an Ergotron wall track. There is no desk-clamp or grommet option, so there is no desk-thickness requirement to check — but the wall must be able to carry the arm and its load. Have the wall type confirmed before installation, particularly on drywall or partition construction.
Do I need a separate VESA adapter?
No. The arm ships with Ergotron's height-adjustable LCD mount and VESA kit, which fits standard VESA-compliant displays in the supported size and weight range.
How is it different from the StyleView Sit-Stand Combo System (45-273-026)?
The StyleView Sit-Stand Combo System (45-273-026) adds a small CPU holder and wall track so the computer itself is carried on the wall too, and its rotation is 360° rather than 90°. Pick the Combo Arm if the PC already lives elsewhere; pick the Combo System if the whole workstation, PC included, has to come off the floor.
Is the Ergotron StyleView Sit-Stand Combo Arm covered by warranty in Singapore?
Yes. Every Ergotron StyleView Sit-Stand Combo Arm sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the StyleView Sit-Stand Combo Arm with a 5-year manufacturer warranty.
