Ergotron SV Combo System Worksurface, Small CPU Holder Aluminum
PRODUCT DESCRIPTION
Ergotron SV Combo System with Worksurface & Pan, Small CPU Holder (45-594-026) - 5 Years Local Warranty
Ergotron SV Combo System with Worksurface & Pan — Complete Wall Workstation

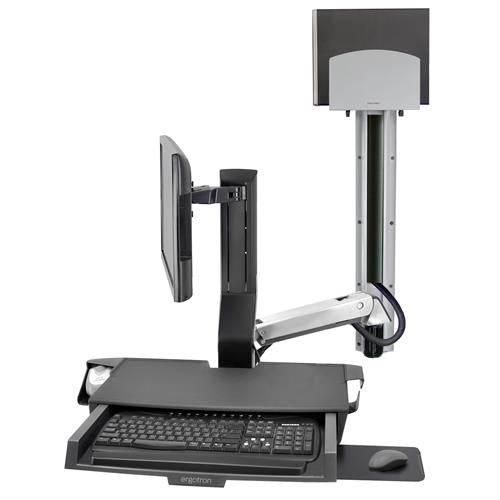

The SV Combo System is the full wall-mounted workstation: monitor arm, worksurface, keyboard tray with slide-out mouse tray, scanner holder, a small CPU holder and a 34″ wall track, all supplied together. Nothing touches the floor and nothing occupies a desk, yet the user gets 25″ (64 cm) of total display height range.
Small CPU Holder Takes the PC Off the Floor
The included small CPU holder carries a small-form-factor desktop on the same wall track as the arm. That protects the machine from floor cleaning and spills, improves airflow, and removes the trailing cable run that a floor-standing PC always creates — a genuine infection-control and housekeeping gain in Singapore wards and clinics.
20″ of Tandem Sit-Stand Lift for Multi-Shift Teams
Worksurface and keyboard rise together through 20″ (51 cm), with the display adding 5″ (13 cm) of independent travel on top. One station therefore fits every user on every shift without tools, re-drilling or a service call — the practical test of a shared clinical workstation.
360° System Pan, 180° Monitor Pan, 25°/5° Tilt
The system pans a full 360° and the monitor pans a further 180° on its own, tilting 25° up and 5° down and rotating 90°. Screens can be shown to patients or colleagues and returned without disturbing the rest of the setup.
Antimicrobial Surfaces, VESA MIS-D Fit, 5-Year Warranty
Aluminium and high-grade plastic construction with antimicrobial-treated surfaces and concealed cabling makes the system wipe-clean end to end. The supplied VESA kit fits MIS-D (75 x 75 mm / 100 x 100 mm) displays of 6–18 lbs (2.7–8.2 kg). Ergotron backs it with a 5-year manufacturer warranty; SourceIT adds local Singapore warranty support and a GST invoice.
Ergotron SV Combo System with Worksurface & Pan, Small CPU Holder Datasheet — Technical Specifications
General
| Product Name | Ergotron SV Combo System with Worksurface & Pan, Small CPU Holder |
| Part Number | 45-594-026 |
| Series | StyleView (SV) Combo with Worksurface & Pan |
| Finish | Polished aluminium |
| Mounting Type | Wall mount (34″ wall track included) |
| Construction | Aluminium and high-grade plastic with antimicrobial-treated surfaces |
| CPU Storage | Small CPU holder included |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Local Warranty (Singapore) |
Display Compatibility
| Typical LCD Size | 24″ |
| VESA Pattern | VESA MIS-D (75 x 75 mm / 100 x 100 mm) |
| Display Weight Capacity | 6–18 lbs (2.7–8.2 kg) |
| Worksurface Capacity | 10 lbs (4.5 kg) |
| Keyboard / Mouse / Scanner Capacity | 4 lbs (1.8 kg) |
| Number of Screens | 1 |
Adjustment & Motion
| Lift (worksurface and keyboard in tandem) | 20″ (51 cm) |
| Independent LCD Adjustment | 5″ (13 cm) |
| Total LCD Height Adjustment | 25″ (64 cm) |
| Tilt | 25° up / 5° down |
| Pan | 360° full system; 180° monitor pan |
| Rotation | 90° |
| Optional Extender | Adds 17″ (43 cm) of reach from the wall — 45-261-026 / 45-261-216 |
Design & Durability
| Keyboard Tray | Keyboard tray with slide-out mouse tray, wrist rest and scanner/mouse holder |
| Worksurface | Integrated worksurface, rated 10 lbs (4.5 kg) |
| Cable Management | Cable ties and cable channels; cables stay hidden and organised for easy cleaning |
| Hygiene | Antimicrobial-treated, easy-to-clean exterior |
| Product Weight | 41 lbs (19 kg) (with worksurface) |
| Shipping Weight | 51 lbs (23 kg) |
Compatibility & Fit
The SV Combo System with Worksurface & Pan, Small CPU Holder carries a single display plus a keyboard, mouse and scanner on a wall-mounted arm. Ergotron rates it for a typical 24″ LCD weighing 6–18 lbs (2.7–8.2 kg), attaching through a VESA MIS-D pattern — that is 75 x 75 mm or 100 x 100 mm, the two patterns almost every business monitor of that size uses.
The worksurface is rated separately at 10 lbs (4.5 kg) and the keyboard tray at 4 lbs (1.8 kg), so a scanner, wrist rest and mouse are all accounted for. Mounting is wall-mount only and the 34″ wall track is supplied in the box; there is no desk-clamp or grommet option, so no desk-thickness check is needed — but the wall construction must be able to carry the assembly.
Ultrawide and strongly curved panels are outside the published envelope. The 6–18 lbs (2.7–8.2 kg) window is a minimum as well as a maximum: a display lighter than 6 lbs will not load the constant-force lift correctly and the arm will drift upward, so very light panels need a counterweight or a different mount.
The small CPU holder is sized for small-form-factor desktops. If your standard build is a larger chassis, order the medium CPU holder version (45-595-026) instead. Note that this is a wall-mounted system, not a mobile cart — it has no casters and does not move between rooms.
Package Contents & SV Combo Ordering Information
In the box: combo arm, wall-mount bracket, height-adjustable LCD mount, wrist rest, scanner/mouse holder, keyboard tray, slide-out mouse tray, VESA kit and cable ties. System models additionally include a 34″ wall track, the CPU holder, cable channels and fasteners.
SV Combo with Worksurface & Pan — SourceIT catalogue
| SV Combo Arm with Worksurface & Pan, polished aluminium | 45-583-026 |
| SV Combo System with Worksurface & Pan, small CPU holder, polished aluminium (this listing) | 45-594-026 |
| SV Combo System with Worksurface & Pan, small CPU holder, white | 45-594-216 |
| SV Combo System with Worksurface & Pan, medium CPU holder, polished aluminium | 45-595-026 |
Extension arms
| SV Sit-Stand Combo Extender, white (adds 17″ / 43 cm reach) | 45-261-216 |
| SV Sit-Stand Combo Extender, Short, polished aluminium | 97-858-026 |
| SV Sit-Stand Combo Extender, Short, white | 97-858-216 |
Earlier-generation StyleView Sit-Stand Combo
| StyleView Sit-Stand Combo Arm, polished aluminium | 45-266-026 |
| StyleView Sit-Stand Combo System with small CPU holder, polished aluminium | 45-273-026 |
Ergotron also lists white (-216) equivalents of 45-583 and 45-595. Contact SourceIT to quote finishes not held in local stock.
Datasheet & Downloads
Frequently Asked Questions — Ergotron SV Combo System with Worksurface & Pan, Small CPU Holder
What is the difference between the aluminium and white versions?
Finish only. The polished aluminium 45-594-026 (this listing) and the white 45-594-216 share every published mechanical specification.
What monitor does it take?
A typical 24″ LCD weighing 6–18 lbs (2.7–8.2 kg), mounted through the supplied VESA MIS-D kit.
What size CPU fits the holder?
The small CPU holder supplied with this model is intended for small-form-factor desktops. Measure your chassis first; for larger machines specify 45-595-026 with the medium holder.
Does it fit my monitor's VESA pattern?
Yes for the standard patterns: Ergotron specifies VESA MIS-D, which covers 75 x 75 mm and 100 x 100 mm. The VESA kit is supplied in the box, so no separate adapter is normally required. Displays with a proprietary or 200 x 100 mm pattern need a manufacturer adapter plate.
How much height adjustment does it give?
The worksurface and keyboard travel 20″ (51 cm) in tandem, and the display adds a further 5″ (13 cm) of independent adjustment, giving 25″ (64 cm) of total LCD height range. That is enough for one station to be shared across a full range of user heights in a multi-shift ward or office.
Can I mount two monitors on it?
No. This is a single-display workstation. For two screens at a wall position, specify one of Ergotron's dual wall mount systems.
Can it be clamped to a desk instead of a wall?
No — it is wall-mount only. There is no desk-clamp or grommet base, so desk thickness does not apply. Confirm the wall construction can take the load before installation, particularly on drywall or lightweight partitions.
Is it suitable for sit-stand use all day?
Yes — that is what it is designed for. The 20″ (51 cm) of tandem lift lets a user move between seated and standing postures without tools, and the arm folds back toward the wall between tasks so the floor stays clear.
Is the Ergotron SV Combo System with Worksurface & Pan, Small CPU Holder covered by warranty in Singapore?
Yes. Every Ergotron SV Combo System with Worksurface & Pan, Small CPU Holder sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the SV Combo System with Worksurface & Pan, Small CPU Holder with a 5-year manufacturer warranty.
