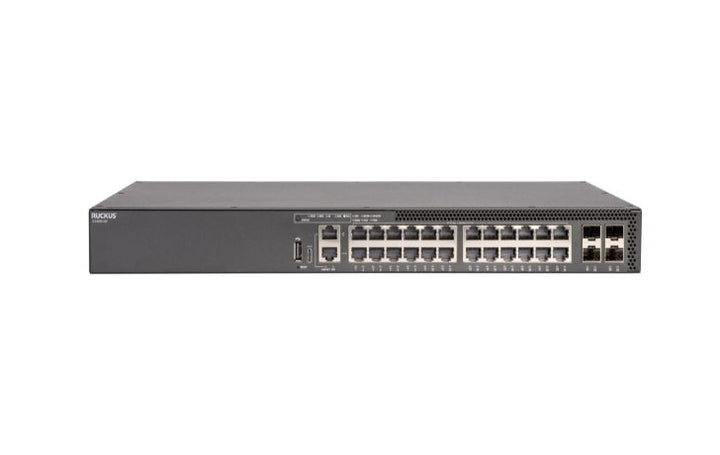

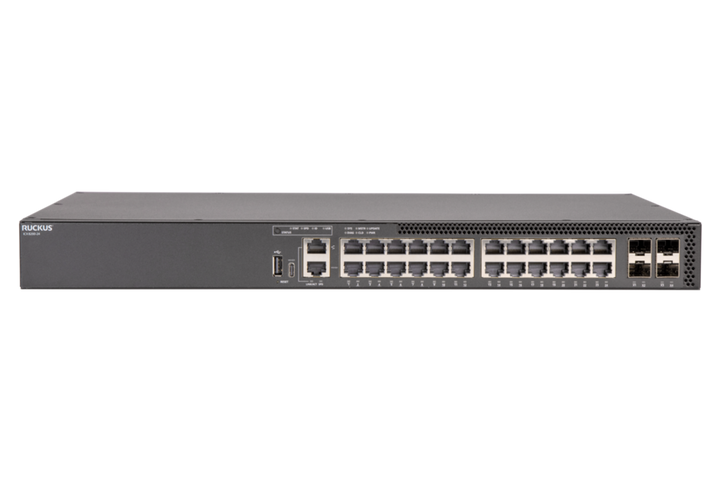

RUCKUS ICX 8200-24 24-Port Gigabit Stackable Switch with 4 x 25G SFP28
PRODUCT DESCRIPTION
RUCKUS ICX 8200-24 24-Port Gigabit Stackable Switch with 4 x 25G SFP28 (ICX8200-24) - Limited Lifetime Local Warranty
Enterprise-Class Stackable Access Switch
The RUCKUS ICX 8200-24 is a 1U stackable non-PoE access switch with 24 x 10/100/1000 Mbps RJ-45 ports and 4 x 1/10/25 GbE SFP28 ports for uplink or stacking. RUCKUS offers a fanless mode for quiet spaces (SFP28 ports run at up to 10 GbE in that mode).
25G Uplinks and Stacking up to 12 Switches
RUCKUS rates the ICX 8200-24 at 248 Gbps switching capacity and 184 Mpps forwarding. Up to 12 switches can be stacked, with up to 1.2 Tbps aggregated stacking bandwidth and stacking distances of up to 10 km, so a stack can span floors or buildings and be managed as one switch.
Layer 3 Routing, Upgradable by License
Base software includes IPv4/IPv6 static routing and RIP. The ICX8200-PREM-LIC premium license adds OSPF, VRRP, VRF, GRE, PIM, PBR and VXLAN for larger campus designs.
Cloud, On-Premises or Controller-Less Management
RUCKUS lists three unified management options for the ICX 8200: RUCKUS One (cloud), SmartZone (on premises) and RUCKUS Unleashed (controller-less), alongside CLI, embedded web management, SNMPv3 and sFlow.
Supplied in Singapore with Local Warranty
RUCKUS includes 3 years of remote TAC support with every ICX 8200 model, plus a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. Transceivers and the power cord are not included. Email sales@sourceit.com.sg with your port count and uplink plan for a quote.
RUCKUS ICX 8200-24 ICX8200-24 Datasheet — Technical Specifications
General
| Product Name | RUCKUS ICX 8200-24 Switch |
| Part Number | ICX8200-24 |
| RUCKUS Description | 24×10/100/1000 Mbps ports, 4×25 GbE SFP28 stacking/uplink-ports. Power cord not included. |
| Form Factor | 1U rack-mount |
| Manufacturer Warranty | Limited lifetime warranty; 3 years remote TAC support included (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports
| Access Ports | 24 x 10/100/1000 Mbps RJ-45 (non-PoE) |
| Uplink / Stacking | 4 x 1/10/25 GbE SFP28 |
Performance
| Switching Capacity | 248 Gbps |
| Forwarding Rate | 184 Mpps |
| MAC Addresses | 32K |
| VLANs | 4,095 |
Stacking
| Stack Size | Up to 12 switches |
| Aggregated Stacking Bandwidth | 1.2 Tbps |
| Maximum Stacking Distance | 10 km |
Layer 3
| Base | IPv4/IPv6 static routing, RIP |
| With ICX8200-PREM-LIC | OSPF, VRRP, VRF, GRE, PIM, PBR, VXLAN |
Power & Cooling
| Power Supply | Single integrated supply, 100 W |
| Power Consumption | 31 W idle; 38 W max |
| Heat Dissipation | 106 BTU/hr idle; 132 BTU/hr max |
| Fans | Fanless mode available (SFP28 ports limited to 10 GbE in fanless mode); airflow front and side to back |
| Acoustic Level | 40.0 dBA |
Physical & Environmental
| Dimensions | 44.00 cm (W) x 28.00 cm (D) x 4.40 cm (H) |
| Weight | 3.74 kg (8.24 lb) |
| Operating Temperature | 0°C to 45°C |
Figures are taken from the RUCKUS ICX 8200 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
RUCKUS One (cloud), SmartZone (on premises) or RUCKUS Unleashed (controller-less), plus CLI, embedded web management (HTTP/HTTPS), SNMPv3 and sFlow.
Powering Devices
This is a non-PoE model. For PoE+ on the same platform see the ICX 8200-24P (370 W) or ICX 8200-24ZP (740 W, 2.5G PoE+++).
Optics
The SFP28 ports accept 1, 10 and 25 GbE optics. Transceivers are sold separately; ask us for RUCKUS-qualified SFP/SFP+/SFP28 modules.
Package Contents & RUCKUS ICX 8200 Ordering Information
In the Box
One ICX 8200-24 switch. The power cord and transceivers are not included (per the RUCKUS ordering description). Rack mount kits and console cables are listed by RUCKUS as accessories; confirm with us before ordering if you need them.
RUCKUS ICX 8200 Switches — Ordering Information
| RUCKUS ICX 8200-C08PF | 8 x 1G PoE+, 2 x 10G SFP+, 124 W PoE | ICX8200-C08PF |
| RUCKUS ICX 8200-C08PFV | Pro AV compact: 8 x 1G PoE+, 2 x 10G SFP+, 124 W PoE | ICX8200-C08PFV |
| RUCKUS ICX 8200-C08ZP | 4 x 2.5G + 4 x 10G PoE+++, 2 x 25G SFP28, 240 W PoE | ICX8200-C08ZP |
| RUCKUS ICX 8200-24 (this listing) | 24 x 1G, 4 x 25G SFP28 | ICX8200-24 |
| RUCKUS ICX 8200-24P | 24 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-24P |
| RUCKUS ICX 8200-24PV | Pro AV: 24 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-24PV |
| RUCKUS ICX 8200-24ZP | 24 x 2.5G PoE+++, 4 x 25G SFP28, 740 W PoE | ICX8200-24ZP |
| RUCKUS ICX 8200-24F | 24 x 1G SFP, 4 x 25G SFP28 | ICX8200-24F |
| RUCKUS ICX 8200-24FX | 16 x 10G SFP+, 8 x 25G SFP28 | ICX8200-24FX |
| RUCKUS ICX 8200-24XP2-E-G | 8 x 10G + 16 x 2.5G PoE+++, 6 x 25G SFP28, 1 PSU, 950 W PoE | ICX8200-24XP2-E-G |
| RUCKUS ICX 8200-24XP2-E2-G | 8 x 10G + 16 x 2.5G PoE+++, 6 x 25G SFP28, 2 PSU, 1900 W PoE | ICX8200-24XP2-E2-G |
| RUCKUS ICX 8200-48 | 48 x 1G, 4 x 25G SFP28 | ICX8200-48 |
| RUCKUS ICX 8200-48P | 48 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-48P |
| RUCKUS ICX 8200-48PF | 48 x 1G PoE+, 4 x 25G SFP28, 740 W PoE | ICX8200-48PF |
| RUCKUS ICX 8200-48PF2-E | 48 x 1G PoE+, hot-swap PSU/fans, 1 PSU, 840 W PoE | ICX8200-48PF2-E |
| RUCKUS ICX 8200-48PF2-E2 | 48 x 1G PoE+, 2 hot-swap PSU, 1480 W PoE | ICX8200-48PF2-E2 |
| RUCKUS ICX 8200-48ZP2-E | 32 x 1G PoE+ + 16 x 2.5G PoE+++, 1 PSU, 800 W PoE | ICX8200-48ZP2-E |
| RUCKUS ICX 8200-48ZP2-E2 | 32 x 1G PoE+ + 16 x 2.5G PoE+++, 2 PSU, 1480 W PoE | ICX8200-48ZP2-E2 |
| RUCKUS ICX 8200-48F | 48 x 1G SFP, 4 x 25G SFP28 | ICX8200-48F |
| RUCKUS ICX 8200-48NP2-E-G | 8 x 10G + 40 x 5G PoE+++, 8 x 25G SFP28, 1 PSU, 950 W PoE | ICX8200-48NP2-E-G |
| RUCKUS ICX 8200-48NP2-E2-G | 8 x 10G + 40 x 5G PoE+++, 8 x 25G SFP28, 2 PSU, 1900 W PoE | ICX8200-48NP2-E2-G |
Licences & Accessories
ICX8200-PREM-LIC Layer 3 premium licence; regional power cords including UK; RUCKUS-qualified SFP/SFP+/SFP28 optics and DAC cables. Ask us for the full RUCKUS accessory list.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS ICX 8200 Data Sheet |
| RUCKUS product page | RUCKUS ICX 8200-24 on ruckusnetworks.com |
| Technical specifications | RUCKUS ICX 8200 Switch Technical Specifications |
| Installation guide | RUCKUS ICX 8200 Hardware Installation Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ICX8200-24.
Frequently Asked Questions — RUCKUS ICX 8200-24 ICX8200-24
Does the ICX 8200-24 support PoE?
No. It is the non-PoE 24-port model; the 24P and 24ZP add PoE.
Can it run silently?
RUCKUS lists a fanless mode; in that mode the SFP28 ports are limited to 10 GbE.
Can I stack it with other ICX 8200 switches?
Yes. Up to 12 ICX 8200 switches per stack, with stacking distances up to 10 km.
Does it do Layer 3 routing?
Static routing (IPv4/IPv6) and RIP are included. OSPF, VRRP, VRF, PIM, PBR, GRE and VXLAN need the ICX8200-PREM-LIC licence.
Can I manage it from the cloud?
Yes — RUCKUS One. It can also be managed by SmartZone, RUCKUS Unleashed, the CLI or the built-in web interface.
What warranty and support come with it?
A RUCKUS limited lifetime warranty and 3 years of remote TAC support, supplied by SourceIT with local support and a GST invoice.
