RUCKUS ICX 8200-24XP2-E2-G 24-Port Multi-Gigabit PoE+++ Switch with 6 x 25G SFP28, 2 PSU
PRODUCT DESCRIPTION
RUCKUS ICX 8200-24XP2-E2-G 24-Port Multi-Gigabit PoE+++ Switch with 6 x 25G SFP28, 2 PSU (ICX8200-24XP2-E2-G) - Limited Lifetime Local Warranty
Multi-Gigabit PoE+++ Access for Wi-Fi 7
The RUCKUS ICX 8200-24XP2 is a 1U stackable access switch with 8 x 10 GbE and 16 x 2.5 GbE multi-gigabit RJ-45 ports, all PoE+++ (802.3bt), plus 6 x 25 GbE SFP28 ports for uplink or stacking — built to power and backhaul Wi-Fi 7 access points and high-power PoE devices.
Hot-Swap Power and Fans
Power supplies and fans are hot-swappable. This -E2-G bundle ships with two power supplies and 2 fans, giving a 1900 W PoE budget.
25G Uplinks and Stacking
RUCKUS rates the ICX 8200-24XP2 at 540 Gbps switching capacity and 380 Mpps forwarding. ICX 8200 switches stack up to 12 units and are managed as one switch.
Layer 3 Routing, Upgradable by License
Base software includes IPv4/IPv6 static routing and RIP. The ICX8200-PREM-LIC premium license adds OSPF, VRRP, VRF, GRE, PIM, PBR and VXLAN for larger campus designs.
Supplied in Singapore with Local Warranty
RUCKUS includes 3 years of remote TAC support with every ICX 8200 model, plus a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. Transceivers and the power cord are not included. Email sales@sourceit.com.sg with your AP count and uplink plan for a quote.
RUCKUS ICX 8200-24XP2 ICX8200-24XP2-E2-G Datasheet — Technical Specifications
General
| Product Name | RUCKUS ICX 8200-24XP2 Switch |
| Part Number | ICX8200-24XP2-E2-G |
| RUCKUS Description | RUCKUS ICX 8200 Switch, 8x10/100/1000/2500/5000/10000 Mbps PoE+++ ports, 16x100/1000/2500 Mbps PoE+++ ports, 6x25 GbE SFP28 stacking/uplink, 1900W PoE budget with two power supplies, hot swap power supplies and fans, two power supplies and two fans included, three-year remote TAC support. Power cord not included. COO: Vietnam |
| Form Factor | 1U rack-mount, stackable |
| Manufacturer Warranty | Limited lifetime warranty; 3 years remote TAC support included (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports
| Multi-Gigabit Ports | 8 x 100M/1/2.5/5/10 GbE RJ-45, PoE+++ (802.3bt) |
| Multi-Gigabit Ports | 16 x 100M/1/2.5 GbE RJ-45, PoE+++ (802.3bt) |
| Uplink / Stacking | 6 x 25 GbE SFP28 |
| PoE Budget | 1900 W with two power supplies |
Performance
| Switching Capacity | 540 Gbps |
| Forwarding Rate | 380 Mpps |
Stacking
| Stack Size | Up to 12 switches (ICX 8200 family) |
Layer 3
| Base | IPv4/IPv6 static routing, RIP |
| With ICX8200-PREM-LIC | OSPF, VRRP, VRF, GRE, PIM, PBR, VXLAN |
Power & Cooling
| Power Supplies | Hot-swap; two RPS24 (1200 W each) included |
| Fans | Hot-swap; 2 fans included |
| Maximum Power Consumption | 2366 W (100% traffic, full PoE) |
| Heat Dissipation | 1592 BTU/hr (100% traffic) |
| Acoustic Level | 48.9 dBA |
Physical & Environmental
| Dimensions | 44.00 cm (W) x 28.00 cm (D) x 4.40 cm (H) |
| Weight | 7.79 kg |
| Operating Temperature | 0°C to 45°C |
Figures are taken from the RUCKUS ICX 8200 data sheet. Items the data sheet does not state for this model are left out; for anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
RUCKUS One (cloud), SmartZone (on premises) or RUCKUS Unleashed (controller-less), plus CLI, embedded web management (HTTP/HTTPS), SNMPv3 and sFlow — the management options RUCKUS lists for the ICX 8200 family.
Powering Access Points
All 24 RJ-45 ports are multi-gigabit PoE+++ (802.3bt), suited to multi-gigabit Wi-Fi 7 access points such as the RUCKUS R670 or R770. PoE budget: 1900 W with two power supplies.
Optics
The SFP28 ports accept 1, 10 and 25 GbE optics. Transceivers are sold separately; ask us for RUCKUS-qualified SFP/SFP+/SFP28 modules.
Package Contents & RUCKUS ICX 8200 Ordering Information
In the Box
One ICX 8200-24XP2 switch with 2 hot-swap power supplies and 2 fans installed. The power cord and transceivers are not included (per the RUCKUS ordering description).

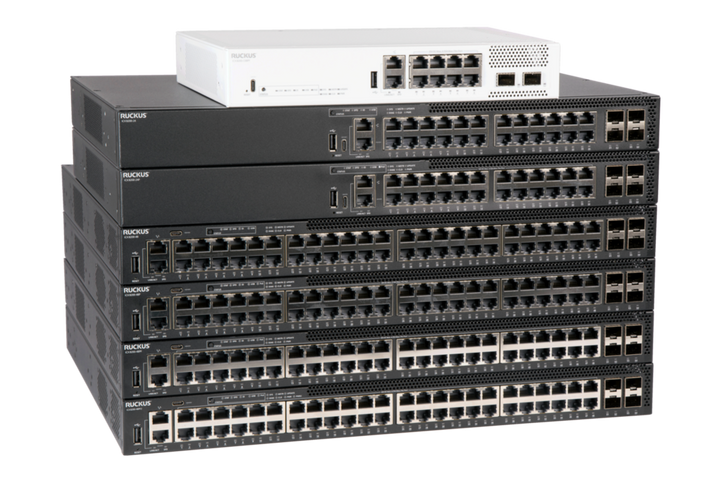

RUCKUS ICX 8200 Switches — Ordering Information
| RUCKUS ICX 8200-C08PF | 8 x 1G PoE+, 2 x 10G SFP+, 124 W PoE | ICX8200-C08PF |
| RUCKUS ICX 8200-C08PFV | Pro AV compact: 8 x 1G PoE+, 2 x 10G SFP+, 124 W PoE | ICX8200-C08PFV |
| RUCKUS ICX 8200-C08ZP | 4 x 2.5G + 4 x 10G PoE+++, 2 x 25G SFP28, 240 W PoE | ICX8200-C08ZP |
| RUCKUS ICX 8200-24 | 24 x 1G, 4 x 25G SFP28 | ICX8200-24 |
| RUCKUS ICX 8200-24P | 24 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-24P |
| RUCKUS ICX 8200-24PV | Pro AV: 24 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-24PV |
| RUCKUS ICX 8200-24ZP | 24 x 2.5G PoE+++, 4 x 25G SFP28, 740 W PoE | ICX8200-24ZP |
| RUCKUS ICX 8200-24F | 24 x 1G SFP, 4 x 25G SFP28 | ICX8200-24F |
| RUCKUS ICX 8200-24FX | 16 x 10G SFP+, 8 x 25G SFP28 | ICX8200-24FX |
| RUCKUS ICX 8200-24XP2-E-G | 8 x 10G + 16 x 2.5G PoE+++, 6 x 25G SFP28, 1 PSU, 950 W PoE | ICX8200-24XP2-E-G |
| RUCKUS ICX 8200-24XP2-E2-G (this listing) | 8 x 10G + 16 x 2.5G PoE+++, 6 x 25G SFP28, 2 PSU, 1900 W PoE | ICX8200-24XP2-E2-G |
| RUCKUS ICX 8200-48 | 48 x 1G, 4 x 25G SFP28 | ICX8200-48 |
| RUCKUS ICX 8200-48P | 48 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-48P |
| RUCKUS ICX 8200-48PF | 48 x 1G PoE+, 4 x 25G SFP28, 740 W PoE | ICX8200-48PF |
| RUCKUS ICX 8200-48PF2-E | 48 x 1G PoE+, hot-swap PSU/fans, 1 PSU, 840 W PoE | ICX8200-48PF2-E |
| RUCKUS ICX 8200-48PF2-E2 | 48 x 1G PoE+, 2 hot-swap PSU, 1480 W PoE | ICX8200-48PF2-E2 |
| RUCKUS ICX 8200-48ZP2-E | 32 x 1G PoE+ + 16 x 2.5G PoE+++, 1 PSU, 800 W PoE | ICX8200-48ZP2-E |
| RUCKUS ICX 8200-48ZP2-E2 | 32 x 1G PoE+ + 16 x 2.5G PoE+++, 2 PSU, 1480 W PoE | ICX8200-48ZP2-E2 |
| RUCKUS ICX 8200-48F | 48 x 1G SFP, 4 x 25G SFP28 | ICX8200-48F |
| RUCKUS ICX 8200-48NP2-E-G | 8 x 10G + 40 x 5G PoE+++, 8 x 25G SFP28, 1 PSU, 950 W PoE | ICX8200-48NP2-E-G |
| RUCKUS ICX 8200-48NP2-E2-G | 8 x 10G + 40 x 5G PoE+++, 8 x 25G SFP28, 2 PSU, 1900 W PoE | ICX8200-48NP2-E2-G |
Licences & Accessories
ICX8200-PREM-LIC Layer 3 premium licence; RPS24-E (1200 W) hot-swap power supply for redundancy or full PoE budget; regional power cords including UK.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS ICX 8200 Data Sheet |
| RUCKUS product page | RUCKUS ICX 8200 Switches |
| Technical specifications | RUCKUS ICX 8200 Switch Technical Specifications |
| Installation guide | RUCKUS ICX 8200 Hardware Installation Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ICX8200-24XP2-E2-G.
Frequently Asked Questions — RUCKUS ICX 8200-24XP2 ICX8200-24XP2-E2-G
How much PoE does the ICX 8200-24XP2 provide?
PoE budget 1900 W with two power supplies, shared across 24 PoE+++ (802.3bt) ports.
What is the difference between -E-G and -E2-G?
-E-G ships with one hot-swap power supply (950 W PoE); -E2-G ships with two (1900 W PoE and power redundancy). Both have hot-swap fans.
Can I stack it with other ICX 8200 switches?
Yes. Up to 12 ICX 8200 switches per stack over the SFP28 ports.
Can I manage it from the cloud?
Yes — RUCKUS One. It can also be managed by SmartZone, RUCKUS Unleashed, the CLI or the built-in web interface.
What warranty and support come with it?
A RUCKUS limited lifetime warranty and 3 years of remote TAC support, supplied by SourceIT with local support and a GST invoice.
