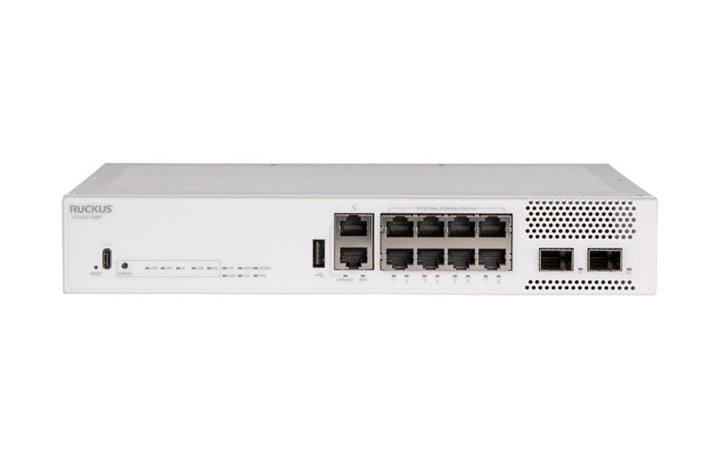

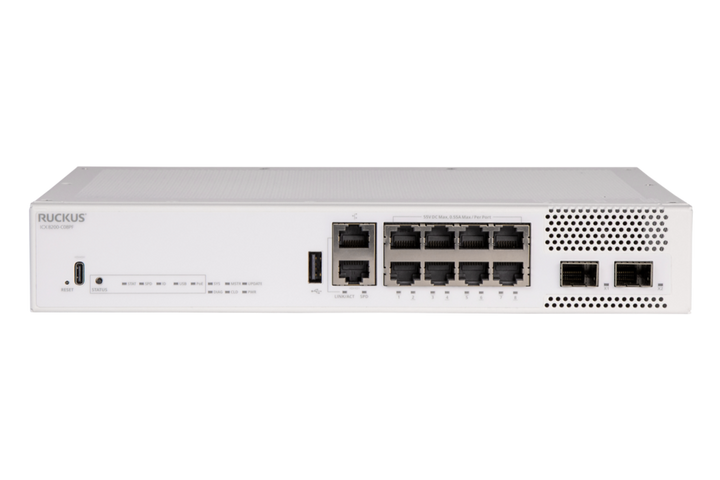

RUCKUS ICX 8200-C08PF 8-Port Gigabit PoE+ Compact Fanless Switch with 2 x 10G SFP+
PRODUCT DESCRIPTION
RUCKUS ICX 8200-C08PF 8-Port Gigabit PoE+ Compact Fanless Switch with 2 x 10G SFP+ (ICX8200-C08PF) - Limited Lifetime Local Warranty
Compact, Fanless 8-Port PoE+ Switch
The RUCKUS ICX 8200-C08PF is a fanless compact switch with 8 x 10/100/1000 Mbps RJ-45 PoE+ ports (up to 30 W per port) and 2 x 1/10 GbE SFP+ ports for uplink or stacking. Its 124 W PoE budget suits small offices, classrooms, retail counters and ceiling or cabinet installs where noise matters.
Stackable with the ICX 8200 Family
RUCKUS rates the C08PF at 56 Gbps switching capacity and 42 Mpps forwarding, with 240 Gbps aggregated stacking bandwidth. It stacks with other ICX 8200 switches (up to 12 per stack) over its two SFP+ ports.
Layer 3 Routing, Upgradable by License
Base software includes IPv4/IPv6 static routing and RIP. The ICX8200-PREM-LIC premium license adds OSPF, VRRP, VRF, GRE, PIM, PBR and VXLAN for larger campus designs.
Cloud, On-Premises or Controller-Less Management
RUCKUS lists three unified management options for the ICX 8200: RUCKUS One (cloud), SmartZone (on premises) and RUCKUS Unleashed (controller-less), alongside CLI, embedded web management, SNMPv3 and sFlow.
Supplied in Singapore with Local Warranty
RUCKUS includes 3 years of remote TAC support with every ICX 8200 model, plus a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. Transceivers and the power cord are not included. RUCKUS lists a rack mount kit and a wall mount bracket kit for compact switches as accessories. Email sales@sourceit.com.sg with your port count and uplink plan for a quote.
RUCKUS ICX 8200-C08PF ICX8200-C08PF Datasheet — Technical Specifications
General
| Product Name | RUCKUS ICX 8200-C08PF Compact Switch |
| Part Number | ICX8200-C08PF |
| RUCKUS Description | 8×10/100/1000 Mbps PoE+ ports, 2×10 GbE SFP+ stacking/uplink-ports, 124 W PoE budget. Power cord not included. |
| Form Factor | Compact, fanless |
| Manufacturer Warranty | Limited lifetime warranty; 3 years remote TAC support included (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports
| Access Ports | 8 x 10/100/1000 Mbps RJ-45, PoE+ (30 W per port) |
| Uplink / Stacking | 2 x 1/10 GbE SFP+ |
| PoE Budget | 124 W |
Performance
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 42 Mpps |
| MAC Addresses | 32K |
| VLANs | 4,095 |
Stacking
| Stack Size | Up to 12 switches |
| Aggregated Stacking Bandwidth | 240 Gbps |
Layer 3
| Base | IPv4/IPv6 static routing, RIP |
| With ICX8200-PREM-LIC | OSPF, VRRP, VRF, GRE, PIM, PBR, VXLAN |
Power & Cooling
| Power Consumption | 18 W idle; 150 W max |
| Heat Dissipation | 61 BTU/hr idle; 514 BTU/hr max |
| Cooling | Fanless |
Physical & Environmental
| Dimensions | 27.00 cm (W) x 21.40 cm (D) x 4.40 cm (H) |
| Weight | 2.27 kg (5.00 lb) |
| Operating Temperature | 0°C to 45°C |
Figures are taken from the RUCKUS ICX 8200 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
RUCKUS One (cloud), SmartZone (on premises) or RUCKUS Unleashed (controller-less), plus CLI, embedded web management (HTTP/HTTPS), SNMPv3 and sFlow.
Powering Access Points
All 8 ports deliver PoE+ (802.3at, up to 30 W) from a shared 124 W budget — typically enough for several RUCKUS Wi-Fi 6 APs. For multigigabit Wi-Fi 7 APs, see the ICX 8200-C08ZP (PoE+++, 2.5G/10G ports).
Optics
The SFP+ ports accept 1 and 10 GbE optics. Transceivers are sold separately; ask us for RUCKUS-qualified modules.
Package Contents & RUCKUS ICX 8200 Ordering Information
In the Box
One ICX 8200-C08PF switch. The power cord and transceivers are not included (per the RUCKUS ordering description). Rack and wall mount kits for compact switches are sold separately.
RUCKUS ICX 8200 Switches — Ordering Information
| RUCKUS ICX 8200-C08PF (this listing) | 8 x 1G PoE+, 2 x 10G SFP+, 124 W PoE | ICX8200-C08PF |
| RUCKUS ICX 8200-C08PFV | Pro AV compact: 8 x 1G PoE+, 2 x 10G SFP+, 124 W PoE | ICX8200-C08PFV |
| RUCKUS ICX 8200-C08ZP | 4 x 2.5G + 4 x 10G PoE+++, 2 x 25G SFP28, 240 W PoE | ICX8200-C08ZP |
| RUCKUS ICX 8200-24 | 24 x 1G, 4 x 25G SFP28 | ICX8200-24 |
| RUCKUS ICX 8200-24P | 24 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-24P |
| RUCKUS ICX 8200-24PV | Pro AV: 24 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-24PV |
| RUCKUS ICX 8200-24ZP | 24 x 2.5G PoE+++, 4 x 25G SFP28, 740 W PoE | ICX8200-24ZP |
| RUCKUS ICX 8200-24F | 24 x 1G SFP, 4 x 25G SFP28 | ICX8200-24F |
| RUCKUS ICX 8200-24FX | 16 x 10G SFP+, 8 x 25G SFP28 | ICX8200-24FX |
| RUCKUS ICX 8200-24XP2-E-G | 8 x 10G + 16 x 2.5G PoE+++, 6 x 25G SFP28, 1 PSU, 950 W PoE | ICX8200-24XP2-E-G |
| RUCKUS ICX 8200-24XP2-E2-G | 8 x 10G + 16 x 2.5G PoE+++, 6 x 25G SFP28, 2 PSU, 1900 W PoE | ICX8200-24XP2-E2-G |
| RUCKUS ICX 8200-48 | 48 x 1G, 4 x 25G SFP28 | ICX8200-48 |
| RUCKUS ICX 8200-48P | 48 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-48P |
| RUCKUS ICX 8200-48PF | 48 x 1G PoE+, 4 x 25G SFP28, 740 W PoE | ICX8200-48PF |
| RUCKUS ICX 8200-48PF2-E | 48 x 1G PoE+, hot-swap PSU/fans, 1 PSU, 840 W PoE | ICX8200-48PF2-E |
| RUCKUS ICX 8200-48PF2-E2 | 48 x 1G PoE+, 2 hot-swap PSU, 1480 W PoE | ICX8200-48PF2-E2 |
| RUCKUS ICX 8200-48ZP2-E | 32 x 1G PoE+ + 16 x 2.5G PoE+++, 1 PSU, 800 W PoE | ICX8200-48ZP2-E |
| RUCKUS ICX 8200-48ZP2-E2 | 32 x 1G PoE+ + 16 x 2.5G PoE+++, 2 PSU, 1480 W PoE | ICX8200-48ZP2-E2 |
| RUCKUS ICX 8200-48F | 48 x 1G SFP, 4 x 25G SFP28 | ICX8200-48F |
| RUCKUS ICX 8200-48NP2-E-G | 8 x 10G + 40 x 5G PoE+++, 8 x 25G SFP28, 1 PSU, 950 W PoE | ICX8200-48NP2-E-G |
| RUCKUS ICX 8200-48NP2-E2-G | 8 x 10G + 40 x 5G PoE+++, 8 x 25G SFP28, 2 PSU, 1900 W PoE | ICX8200-48NP2-E2-G |
Licences & Accessories
ICX8200-PREM-LIC Layer 3 premium licence; ICX7000-C12-RMK rack mount kit and ICX7000-C12-WMK wall mount bracket kit for compact switches; regional power cords including UK.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS ICX 8200 Data Sheet |
| RUCKUS product page | RUCKUS ICX 8200-C08PF on ruckusnetworks.com |
| Technical specifications | RUCKUS ICX 8200 Switch Technical Specifications |
| Installation guide | RUCKUS ICX 8200 Hardware Installation Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ICX8200-C08PF.
Frequently Asked Questions — RUCKUS ICX 8200-C08PF ICX8200-C08PF
How much PoE does the ICX 8200-C08PF provide?
A 124 W budget shared across 8 PoE+ ports, up to 30 W per port.
Is it silent?
Yes. RUCKUS lists the C08PF as fanless.
Can I stack it?
Yes. It stacks with other ICX 8200 switches (up to 12 per stack) over its 2 SFP+ ports.
Does it do Layer 3 routing?
Static routing (IPv4/IPv6) and RIP are included. OSPF, VRRP, VRF, PIM, PBR, GRE and VXLAN need the ICX8200-PREM-LIC licence.
What warranty and support come with it?
A RUCKUS limited lifetime warranty and 3 years of remote TAC support, supplied by SourceIT with local support and a GST invoice.
