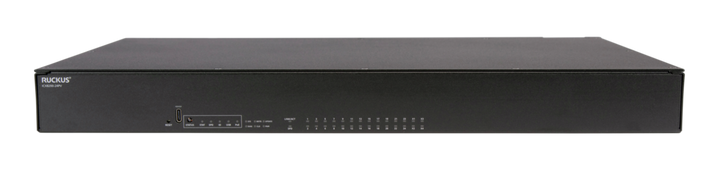

RUCKUS ICX 8200-24PV 24-Port Gigabit PoE+ Pro AV Switch with 4 x 25G SFP28
PRODUCT DESCRIPTION
RUCKUS ICX 8200-24PV 24-Port Gigabit PoE+ Pro AV Switch with 4 x 25G SFP28 (ICX8200-24PV) - Limited Lifetime Local Warranty
Enterprise-Class Stackable Access Switch for Pro AV
The RUCKUS ICX 8200-24PV is the Pro AV edition of the ICX 8200 with 24 x 10/100/1000 Mbps RJ-45 PoE+ (802.3at) ports and 4 x 1/10/25 GbE SFP28 for stacking or uplink. All ports face the rear, and it carries a 370 W PoE budget for AV endpoints, cameras, panels and access points.
AV Profiles for Fast AV Network Setup
RUCKUS AV profiles apply verified presets so an AV network can be set up in minutes, with templates optimised for popular pro AV endpoints including Dante, NDI, Crestron and Q-SYS.
Designed for AV Racks and In-Wall Installation
RUCKUS positions the ICX 8200-24PV for AV rack or in-wall installations. A Layer 3 premium licence, rack and wall mounts are listed by RUCKUS as accessories.
Cloud, On-Premises or Controller-Less Management
RUCKUS lists a choice of its enterprise management platforms — cloud based, on-premises controller, or controller-less with a quick and intuitive web GUI.
Supplied in Singapore with Local Warranty
RUCKUS includes three years of remote TAC support and a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. The power cord is not included. Email sales@sourceit.com.sg with your AV system and endpoint count for a quote.
RUCKUS ICX 8200-24PV ICX8200-24PV Datasheet — Technical Specifications
General
| Product Name | RUCKUS ICX 8200-24PV Pro AV Switch |
| Part Number | ICX8200-24PV |
| RUCKUS Description | RUCKUS ICX 8200 Pro AV 1RU Switch, 24×10/100/1000 Mbps PoE+ rear facing ports, 4×25 GbE SFP28 stacking/uplink rear facing ports, 370 W PoE budget, AV Profiles, three-year remote TAC support. Power cord not included. |
| Form Factor | 1RU; for AV rack or in-wall installation |
| Manufacturer Warranty | Limited lifetime warranty; 3 years remote TAC support included (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports
| Access Ports | 24 x 10/100/1000 Mbps RJ-45, 802.3at PoE+, rear facing |
| Uplink / Stacking | 4 x 1/10/25 GbE SFP28, rear facing |
| PoE Budget | 370 W |
Pro AV
| AV Profiles | Easy-to-use AV profiles with verified presets |
| Endpoint Templates | Optimised for popular pro AV endpoints including Dante, NDI, Crestron and Q-SYS |
Power & Cooling
| Power Supply | Single integrated |
Figures are taken from the RUCKUS Pro AV switches (ICX 8200) data sheet. Items the data sheet does not state for this model are left out; for anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
Choice of RUCKUS enterprise management platforms: cloud based, on-premises controller, or controller-less with web GUI. Confirm the management platform and firmware version with us for your AV design.
AV Endpoints
AV profile templates cover popular pro AV endpoints including Dante, NDI, Crestron and Q-SYS. PoE+ (802.3at) on every RJ-45 port powers AV endpoints, panels, cameras and access points from the shared 370 W budget.
Optics
The SFP28 ports accept RUCKUS-qualified optics or DAC cables, sold separately.
Package Contents & RUCKUS ICX 8200 Ordering Information
In the Box
One ICX 8200-24PV switch. The power cord and transceivers are not included (per the RUCKUS ordering description). Rack mount kits and wall mounts are listed by RUCKUS as accessories; confirm with us before ordering if you need them.
RUCKUS ICX 8200 Switches — Ordering Information
| RUCKUS ICX 8200-C08PF | 8 x 1G PoE+, 2 x 10G SFP+, 124 W PoE | ICX8200-C08PF |
| RUCKUS ICX 8200-C08PFV | Pro AV compact: 8 x 1G PoE+, 2 x 10G SFP+, 124 W PoE | ICX8200-C08PFV |
| RUCKUS ICX 8200-C08ZP | 4 x 2.5G + 4 x 10G PoE+++, 2 x 25G SFP28, 240 W PoE | ICX8200-C08ZP |
| RUCKUS ICX 8200-24 | 24 x 1G, 4 x 25G SFP28 | ICX8200-24 |
| RUCKUS ICX 8200-24P | 24 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-24P |
| RUCKUS ICX 8200-24PV (this listing) | Pro AV: 24 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-24PV |
| RUCKUS ICX 8200-24ZP | 24 x 2.5G PoE+++, 4 x 25G SFP28, 740 W PoE | ICX8200-24ZP |
| RUCKUS ICX 8200-24F | 24 x 1G SFP, 4 x 25G SFP28 | ICX8200-24F |
| RUCKUS ICX 8200-24FX | 16 x 10G SFP+, 8 x 25G SFP28 | ICX8200-24FX |
| RUCKUS ICX 8200-24XP2-E-G | 8 x 10G + 16 x 2.5G PoE+++, 6 x 25G SFP28, 1 PSU, 950 W PoE | ICX8200-24XP2-E-G |
| RUCKUS ICX 8200-24XP2-E2-G | 8 x 10G + 16 x 2.5G PoE+++, 6 x 25G SFP28, 2 PSU, 1900 W PoE | ICX8200-24XP2-E2-G |
| RUCKUS ICX 8200-48 | 48 x 1G, 4 x 25G SFP28 | ICX8200-48 |
| RUCKUS ICX 8200-48P | 48 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-48P |
| RUCKUS ICX 8200-48PF | 48 x 1G PoE+, 4 x 25G SFP28, 740 W PoE | ICX8200-48PF |
| RUCKUS ICX 8200-48PF2-E | 48 x 1G PoE+, hot-swap PSU/fans, 1 PSU, 840 W PoE | ICX8200-48PF2-E |
| RUCKUS ICX 8200-48PF2-E2 | 48 x 1G PoE+, 2 hot-swap PSU, 1480 W PoE | ICX8200-48PF2-E2 |
| RUCKUS ICX 8200-48ZP2-E | 32 x 1G PoE+ + 16 x 2.5G PoE+++, 1 PSU, 800 W PoE | ICX8200-48ZP2-E |
| RUCKUS ICX 8200-48ZP2-E2 | 32 x 1G PoE+ + 16 x 2.5G PoE+++, 2 PSU, 1480 W PoE | ICX8200-48ZP2-E2 |
| RUCKUS ICX 8200-48F | 48 x 1G SFP, 4 x 25G SFP28 | ICX8200-48F |
| RUCKUS ICX 8200-48NP2-E-G | 8 x 10G + 40 x 5G PoE+++, 8 x 25G SFP28, 1 PSU, 950 W PoE | ICX8200-48NP2-E-G |
| RUCKUS ICX 8200-48NP2-E2-G | 8 x 10G + 40 x 5G PoE+++, 8 x 25G SFP28, 2 PSU, 1900 W PoE | ICX8200-48NP2-E2-G |
Licences & Accessories
Layer 3 premium licence; rack mount kits, wall/DIN mounts, USB cables and regional power cords including UK (per the RUCKUS Pro AV data sheet).
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS Pro AV Switches — ICX 8200 Data Sheet |
| RUCKUS product page | RUCKUS ICX 8200-24PV |
| Quick setup guide | RUCKUS ICX Pro AV Switch Quick Setup Guide |
| ICX 8200 family data sheet | RUCKUS ICX 8200 Data Sheet |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ICX8200-24PV.
Frequently Asked Questions — RUCKUS ICX 8200-24PV ICX8200-24PV
What is different about the ICX 8200-24PV?
It is the Pro AV edition of the ICX 8200: rear-facing ports and AV profiles with presets for Dante, NDI, Crestron and Q-SYS endpoints.
How much PoE does it provide?
A 370 W budget shared across 24 PoE+ (802.3at) ports.
Can it be stacked?
Yes — RUCKUS describes the SFP28 ports as stacking/uplink ports. Ask us to confirm stack size and firmware for your design.
How is it managed?
Cloud based, on-premises controller or controller-less with the web GUI, per RUCKUS.
What warranty and support come with it?
A RUCKUS limited lifetime warranty and 3 years of remote TAC support, supplied by SourceIT with local support and a GST invoice.
