Poly Edge E500 Desktop Business IP Phone
PRODUCT DESCRIPTION
Poly Edge E500 Desktop Business IP Phone — 2200-87855-025 / 82M94AA - Local Warranty

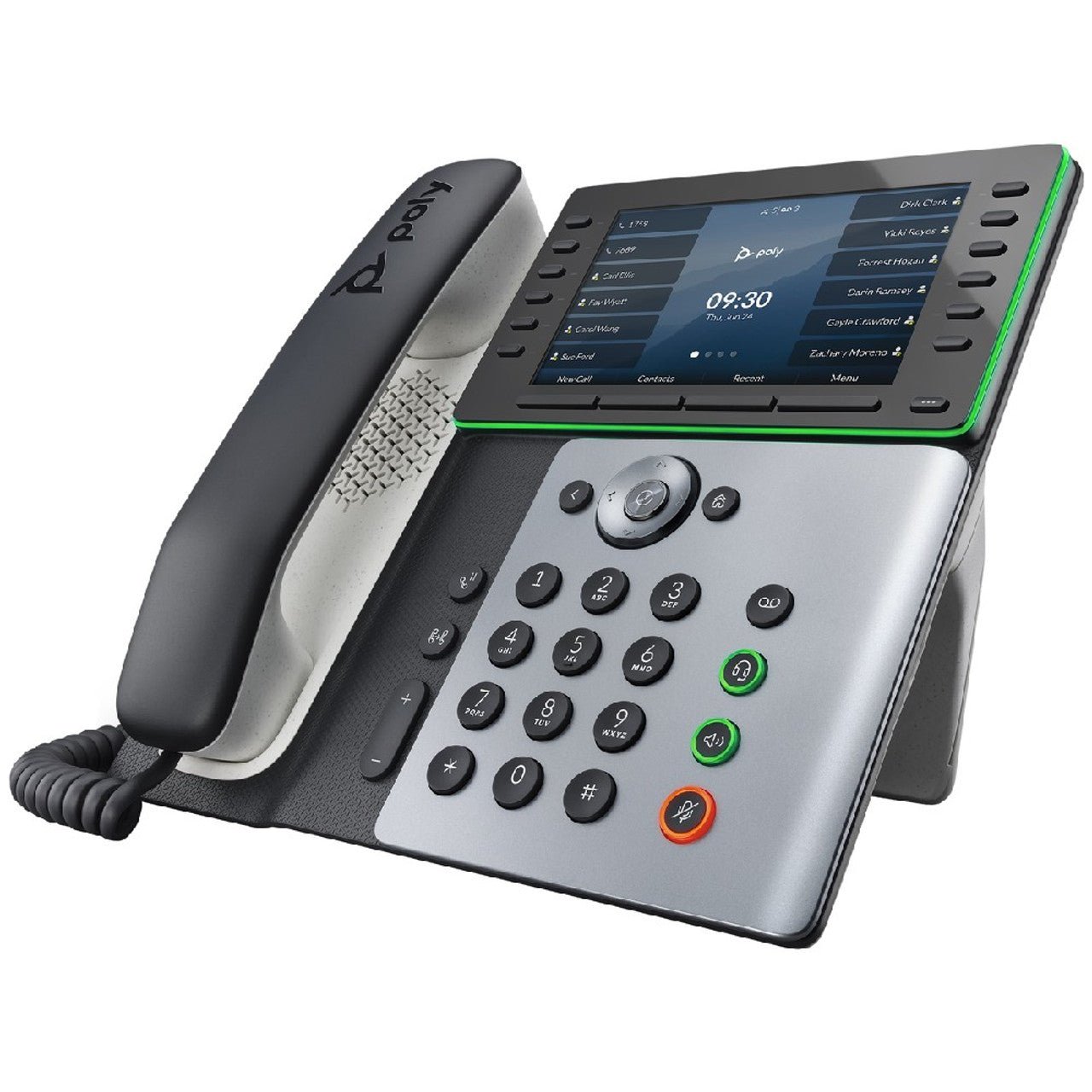

Poly Edge E500 Open SIP Desk Phone with a 5-Inch Display and 12 Line Keys
The Poly Edge E500 opens HP's top Edge E tier: a 5-inch colour IPS LCD at 800 x 480, 12 line keys supporting up to 48 line key assignments for lines, contacts and features, and support for two expansion modules. It is the highest key capacity in the range before accessories, which makes it the model for a Singapore operator console, a switchboard position or an executive assistant desk covering a whole management floor.
Two Expansion Modules for Up to 132 Additional Contacts
The Edge E500 Series is one of only two Edge E families that accepts expansion modules, and it takes two of them. Each Poly Edge E Expansion Module (2200-87020-025, sold separately) adds 22 line keys across three pages for up to 66 additional contacts, so a fully expanded E500 covers a large department without paging. A wall mount bracket for the expansion module is available separately.
Two USB Type-C Ports — Headset, Expansion Module and Future Video
Where the rest of the Edge E range has a single USB port, the E500 has two USB Type-C ports (2.0 compliant), specified for media, storage applications, headset, expansion module and future video camera connectivity. Combined with the dedicated RJ-9 headset port and Electronic Hook Switch capability, that leaves a port free even with a headset and a module attached.
A Wired Phone by Design — No Wi-Fi and No Bluetooth on the E500
Poly's Edge E500 Series datasheet restricts both Wi-Fi and integrated Bluetooth 5.0 to the Edge E550: the Edge E500 has neither. That is a deliberate tier split rather than an omission, and it keeps the E500 the cost-effective choice for a cabled operator position. If the user needs a Bluetooth headset or a wireless network connection, the E550 is the same phone with both radios added.
Poly Edge E500 Datasheet — Technical Specifications
Every specification below is taken from HP and Poly's own published documentation for the Poly Edge E500 — the HP product-details and product-specifications pages, the HP ProductSheet and the Poly datasheet. Where HP does not publish a figure we have left it out rather than estimate it.
General
| Product type | Open SIP business IP desk phone with 5-inch display and dual expansion module support |
| Line keys | 12 line keys supporting up to 48 line key assignments for lines, contacts and features |
| Management | Poly Lens |
| Hygiene | Microban antimicrobial protection on console and handset |
| Procurement | TAA listed among the published certifications for this model |
| Warranty | Local Warranty (Singapore) |
| Part number | 2200-87855-025 / 82M94AA |
Display
| Display | 5-inch colour IPS LCD primary display |
| Resolution | 800 x 480 |
| Secondary display | None — the Edge E500 is a single-display phone |
Audio
| Audio processing | Poly HD Voice; Poly Acoustic Clarity full-duplex speakerphone with acoustic echo cancellation; Poly Acoustic Fence; Poly NoiseBlockAI |
| Frequency response | 150 Hz to 14 kHz |
| Audio codecs | G.711 (A-law and μ-law), G.722, G.722.1, G.729AB, iLBC, OPUS |
| Headset options | Dedicated RJ-9 headset port; Electronic Hook Switch capable; USB headset supported over the USB Type-C ports |
Connectivity
| Ethernet | Two-port gigabit Ethernet switch 10/100/1000Base-TX across LAN and PC ports |
| Power over Ethernet | Built-in auto-sensing IEEE 802.3af Power over Ethernet, 13 W maximum |
| USB | Two USB Type-C ports (2.0 compliant) — for media, storage applications, headset, expansion module and future video camera connectivity |
| Wireless | Not supported — Poly's Edge E500 Series datasheet restricts both Wi-Fi and Bluetooth 5.0 to the Edge E550. The Edge E500 has neither |
| Expansion modules | Up to two Poly Edge E Expansion Modules supported (2200-87020-025, sold separately) — 22 line keys across 3 pages each, up to 66 additional contacts per module |
Design & Power
| Power | Power over Ethernet as above; optional Poly power supply sold separately (2200-49760-001 and regional variants) |
| Packaged dimensions | 25.6 x 33.8 x 8.8 cm (Poly packaging figure) |
| Packaged weight | 1.08 kg (Poly packaging figure) |
| Product dimensions and weight | Not published by HP or Poly for this model |
| Certifications | FCC Part 15, ICES-003, EN55032, CISPR32, VCCI Class B, RoHS compliant, CE Mark, TAA |
Compatibility & Software Support
Platforms and certifications
The Poly Edge E500 is an Open SIP desk phone. It registers against hosted and on-premise SIP platforms — 3CX, Asterisk and FreePBX derivatives, BroadWorks and Metaswitch-based hosted services, and the SIP trunking services offered by Singapore carriers.
HP publishes no Microsoft Teams, Zoom or Google Meet certification for any model in the Edge E range, and we do not claim one. Where a Microsoft Teams certified desk phone is the requirement, the Poly CCX Teams Edition models are the correct line — see the CCX 350 for Microsoft Teams.
Wireless and device connectivity
None. Poly's Edge E500 Series datasheet restricts Wi-Fi and Bluetooth to the Edge E550.
Headsets
Dedicated RJ-9 headset port; Electronic Hook Switch capable; USB headset supported over the USB Type-C ports
Provisioning and security
The Edge E series supports HTTPS provisioning with encrypted configuration files and signed software, 802.1X network authentication, SRTP media encryption and TLS signalling — the controls a Singapore IT team needs to put a phone estate on a corporate VLAN without exceptions.
Management software
HP states “Simple set up and support with Poly Lens” for the Edge E series. Poly Lens is HP's cloud device-management service: from one console your IT team can see device health, push firmware, apply configuration profiles and pull usage insight across every Poly device in the estate, phones and meeting rooms alike.
Package Contents & Poly Edge E Series Ordering Information
In the box
- Setup sheet
- Console with Microban antimicrobial protection
- Handset with Microban antimicrobial protection
- Handset cord
- Network (LAN) cable — CAT-5E
- Desk stand
Poly Edge E Series ordering information
| Model / Variant | Part Number |
| Poly Edge E100 Desktop Business IP Phone | 2200-86980-025 / 82M86AA |
| Poly Edge E220 Desktop Business IP Phone | 2200-86990-025 / 82M87AA |
| Poly Edge E300 Desktop Business IP Phone | 2200-87815-025 / 82M92AA |
| Poly Edge E320 Desktop Business IP Phone | 2200-87000-025 / 82M88AA |
| Poly Edge E350 Desktop Business IP Phone | 2200-87010-025 / 82M89AA |
| Poly Edge E400 Desktop Business IP Phone | 2200-87835-025 / 82M93AA |
| Poly Edge E450 Desktop Business IP Phone | 2200-87030-025 / 82M90AA |
| Poly Edge E500 Desktop Business IP Phone (this listing) | 2200-87855-025 / 82M94AA |
| Poly Edge E550 Desktop Business IP Phone | 2200-87050-025 / 82M91AA |
Mounts and expansion accessories
| Model / Variant | Part Number |
| Poly Edge E100/220 Wall Mount Bracket | 8F3R7AA |
| Poly Edge E300/320/350 Wall Mount Bracket | 8F3R2AA |
| Poly Edge E400/450/500/550 Wall Mount Bracket | 8F3R3AA |
| Poly Edge E Expansion Module Wall Mount Bracket | 8F3T8AA |
| Poly Edge E Expansion Module (ordered separately) | 2200-87020-025 |
Prices, stock and lead times for any of the above are available from the SourceIT sales team.
Datasheet & Downloads
All documents below are published by HP. Links open in a new tab.
- HP Store — Poly Edge E500 IP Phone (82M94AA) — HP's live product page for this model
- HP Poly Edge E Series (Singapore) — HP's Singapore line-up page for the Edge E range
- Poly Edge E Series Phones User Guide (PVOS 8.2.1, PDF) — HP-hosted user guide covering the Edge E range and the expansion module
Frequently Asked Questions — Poly Edge E500
Does the Poly Edge E500 have Wi-Fi or Bluetooth?
No to both. Poly's Edge E500 Series datasheet lists Wi-Fi and integrated Bluetooth 5.0 as Edge E550 features specifically — the Edge E500 has neither. This is the most commonly misread specification in the Edge E range, because the E500 is otherwise the top-tier chassis. If either radio is required, specify the Edge E550.
What is the difference between the Edge E500 and the Edge E550?
The Edge E550 adds integrated Bluetooth 5.0 and Wi-Fi. Display, line keys, line capacity, expansion module support, Ethernet, PoE and audio are otherwise the same across the E500 Series. You are paying for the two radios.
How many contacts can the E500 show with expansion modules fitted?
12 line keys supporting up to 48 line key assignments on the phone itself, plus up to two Poly Edge E Expansion Modules (2200-87020-025) each carrying 22 line keys across three pages for up to 66 additional contacts. That is the largest key capacity available in the Edge E range.
Why does the E500 have two USB ports?
Poly specifies the two USB Type-C ports (2.0 compliant) for media, storage applications, headset, expansion module and future video camera connectivity. In practice it means a USB headset and an expansion module can both be attached without contention — the single-port models in the range make you choose.
Does the Edge E500 need a power supply?
Not where PoE is available. Poly specifies built-in auto-sensing IEEE 802.3af Power over Ethernet at 13 W maximum, and no power supply ships in the box. For positions without PoE, an optional Poly power supply (2200-49760-001 and regional variants) is ordered separately. Note that a fully expanded phone with two modules draws more than a bare one — confirm the switch port budget.
Is a wall mount included?
No. The box contains a setup sheet, console and handset with Microban antimicrobial protection, handset cord, CAT-5E network cable and desk stand. A wall mount bracket covering the E400, E450, E500 and E550 is ordered separately.
Is the Edge E500 certified for Microsoft Teams or Zoom?
HP publishes no Microsoft Teams, Zoom or Google Meet certification for any Edge E model, and we do not claim one. The Edge E range is Open SIP, for hosted and on-premise SIP platforms. TAA is listed among the published certifications for this model, which matters for procurement programmes that require it.
Does the Poly Edge E500 come with a Singapore warranty and GST invoice?
Yes. Every Poly Edge E500 sold by SourceIT comes with local Singapore warranty and a GST invoice.
