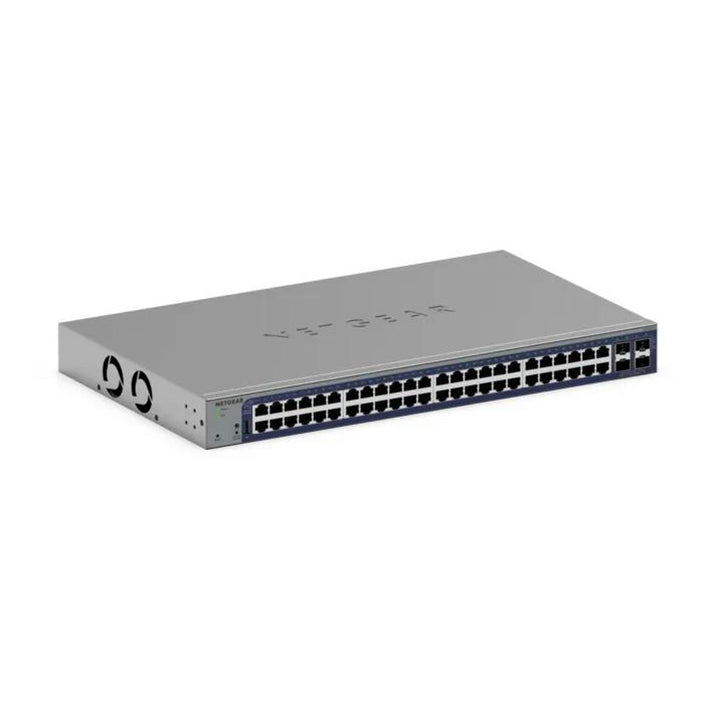

NETGEAR GS752TX 52-Port Gigabit Smart Switch with 4 x 10G SFP+, Cloud Manageable, Rackmount
PRODUCT DESCRIPTION
NETGEAR GS752TX 52-Port Gigabit Smart Switch with 4 x 10G SFP+ (GS752TX-300UKS) - Limited Lifetime Local Warranty
48 Gigabit Ports Plus 4 x 10G SFP+ in 1U
The NETGEAR GS752TX (hardware version 3) is a 52-port Smart switch with 48 x 10/100/1000BASE-T RJ-45 ports and 4 dedicated 1000/10GBASE-X SFP+ ports for 10G fibre or DAC uplinks, in a 1U desktop or rack-mount chassis.
176 Gbps Switching Capacity
NETGEAR rates the switch at 176 Gbps switching capacity and a 130.94 Mpps forwarding rate, with a 16K MAC address table, 1.5 MB packet buffer and jumbo frames up to 10K bytes.
Local Web Management or Optional Insight Cloud Management
Manage the switch locally through the web browser GUI or Lite CLI, or optionally through NETGEAR Insight for remote/cloud management from the Insight mobile app or Insight Cloud portal, with zero-touch auto-join and centralised policies across Insight Managed switches and access points.
Smart Layer 2+ Features
256 VLANs with private VLANs, IPv4/IPv6 static routing (32 routes each), LACP link aggregation (16 LAGs, up to 8 members), DiffServ QoS, IGMP snooping, 802.1X, DHCP snooping and Dynamic ARP Inspection, plus dual firmware images. Two internal fans; NETGEAR rates acoustic noise at 32.5 dBA at 25 °C.
Need help choosing? Email sales@sourceit.com.sg with your port count and uplink needs and we will size it for you.
NETGEAR GS752TX Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS752TX 52-Port Gigabit Smart Switch with 4 x 10G SFP+ |
| Part Number | GS752TX-300UKS |
| Hardware Version | GS752TXv3 |
| Series | NETGEAR Gigabit Ethernet Smart Switches with 4 SFP+ Ports (Smart Cloud) |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 48 x 10/100/1000BASE-T RJ-45 |
| PoE | None (non-PoE model) |
| Uplink Ports | 4 x dedicated 1000/10GBASE-X SFP+ |
Performance
| Switching Capacity | 176 Gbps (line-rate) |
| Forwarding Rate | 130.94 Mpps (64-byte packets) |
| MAC Address Table | 16K |
| Packet Buffer | 1.5 MB |
| Jumbo Frames | Up to 10K bytes |
| CPU / Memory | 800 MHz ARM A55 single core; 512 MB DDR RAM; 64 MB flash |
Software Features
| VLANs | 256 (802.1Q), private VLANs, Multicast VLAN Registration (MVR), Auto-Voice VLAN |
| Layer 3 | IPv4 / IPv6 static routing (32 IPv4 + 32 IPv6 static routes) |
| Link Aggregation | LACP, 16 LAGs with up to 8 members each |
| ACLs | 100 shared for MAC, IP and IPv6 (ingress) |
| Multicast | IGMP snooping and querier, MLD snooping; 512 multicast groups |
| QoS | DiffServ QoS; port-based, 802.1p and L2/L3/L4 DSCP prioritisation; Auto-VoIP |
| Spanning Tree | STP, RSTP, MSTP |
| Security | 802.1X port authentication, MAC lockdown, DHCP snooping, Dynamic ARP Inspection |
| Other | Port mirroring, cable test, LLDP-MED, Energy Efficient Ethernet (IEEE 802.3az), dual firmware images |
Power & Environmental
| Power Supply | 1 internal fixed PSU |
| Power Consumption | 43 W max (all ports, line-rate); 16 W idle |
| Cooling | 2 internal fixed fans |
| Acoustic Noise | 32.5 dBA @ 25 °C |
| MTBF | 346,910 hours @ 25 °C |
| Operating Temperature | 0 to 50 °C |
| Operating Humidity | 90% max RH, non-condensing |
Physical
| Dimensions (W x D x H) | 440 x 257 x 43 mm |
| Weight | 3.53 kg |
| Mounting | Desktop or 19-inch rack (rack-mount brackets included) |
Certifications
| EMC | CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA |
| Safety | CB, CE, CSA, RCM, KC, BSMI |
Compatibility & Software Support
Management
Local management through NETGEAR's web browser-based GUI and a text-based Lite CLI. Optional remote/cloud management with the NETGEAR Insight mobile app or the Insight Cloud portal in a web browser, including centralised policies (VLANs, ACLs, QoS, LAGs) across Insight Managed switches and access points, and zero-touch device auto-join. Discovery and monitoring via SNMP v1/v2c/v3 and RMON.
Compatible NETGEAR SFP / SFP+ Modules
NETGEAR lists the following optional modules for the four SFP+ ports (1G and 10G):
| 1G SFP fibre | AGM731F 1000BASE-SX (short range, multimode); AGM732F 1000BASE-LX (long range, single mode) |
| 1G SFP copper | AGM734 1000BASE-T RJ-45 SFP |
| 10G SFP+ fibre | AXM761 10GBASE-SR (short range, multimode); AXM762 10GBASE-LR (long range, single mode); AXM763 10GBASE-LRM (long range, multimode); AXM764 10GBASE-LR Lite (single mode) |
| 10G SFP+ copper | AXM765v2 10GBASE-T SFP+ RJ-45 transceiver (80 m) |
| SFP+ Direct Attach Cables | AXC761 SFP+ DAC cable (1 m); AXC763 SFP+ DAC cable (3 m) |
Typical Use
Small and medium businesses needing 48 Gigabit ports for wired desktops, servers and network devices, with 10G uplinks to the core or storage. For PoE, see the GS752TXP (48 x PoE+, 380 W) or GS752TXUP (PoE++, 640 W); for 24 ports see the GS728TX.
Package Contents & Gigabit Smart Switch with 4 SFP+ Ordering Information
In the Box
Smart switch, AC power cord with C13 connector (localised to region of sale), brackets and screws for rack mounting, rubber footpads for tabletop installation, rubber protection caps pre-installed in the SFP+ sockets, installation guide.
NETGEAR Gigabit Smart Switches with 4 SFP+ Ports (v3)
| Model | Ports / PoE Budget | Part No. |
| GS728TX | 24 x 1G + 4 x 10G SFP+, non-PoE | GS728TX-300UKS |
| GS728TXP | 24 x 1G PoE+ + 4 x 10G SFP+, 190 W | GS728TXP-300UKS |
| GS728TXUP | 24 x 1G (8 PoE++, 16 PoE+) + 4 x 10G SFP+, 420 W | GS728TXUP-300UKS |
| GS752TX (this listing) | 48 x 1G + 4 x 10G SFP+, non-PoE | GS752TX-300UKS |
| GS752TXP | 48 x 1G PoE+ + 4 x 10G SFP+, 380 W | GS752TXP-300UKS |
| GS752TXUP | 48 x 1G (16 PoE++, 32 PoE+) + 4 x 10G SFP+, 640 W | GS752TXUP-300UKS |
Datasheet & Downloads
| NETGEAR datasheet | Gigabit Ethernet Switches with 4 SFP+ Ports Datasheet (PDF) |
| Installation guide | GS728TXv3 / GS728TXUPv3 / GS752TXv3 / GS752TXUPv3 Installation Guide (PDF) |
| User manual | Gigabit Smart Switches with 4 SFP / 4 SFP+ Ports User Manual (PDF) |
| NETGEAR product page | GS752TXv3 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS752TX-300UKS.
Frequently Asked Questions — NETGEAR GS752TX
Does the GS752TX support PoE?
No. The GS752TX is the non-PoE model; for PoE choose the GS752TXP (380 W) or GS752TXUP (640 W).
Does it have 10G ports?
Yes. It has 4 dedicated SFP+ ports that accept 1G SFP or 10G SFP+ modules and SFP+ DAC cables.
How many ports does it have in total?
52: 48 x 10/100/1000BASE-T RJ-45 ports plus 4 x 1G/10G SFP+ ports.
Can it be managed from the cloud?
Yes, optionally. It can be managed locally via the web GUI or remotely through NETGEAR Insight (mobile app or Insight Cloud portal).
Is it fanless?
No, it has two internal fans; NETGEAR rates acoustic noise at 32.5 dBA at 25 °C.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
