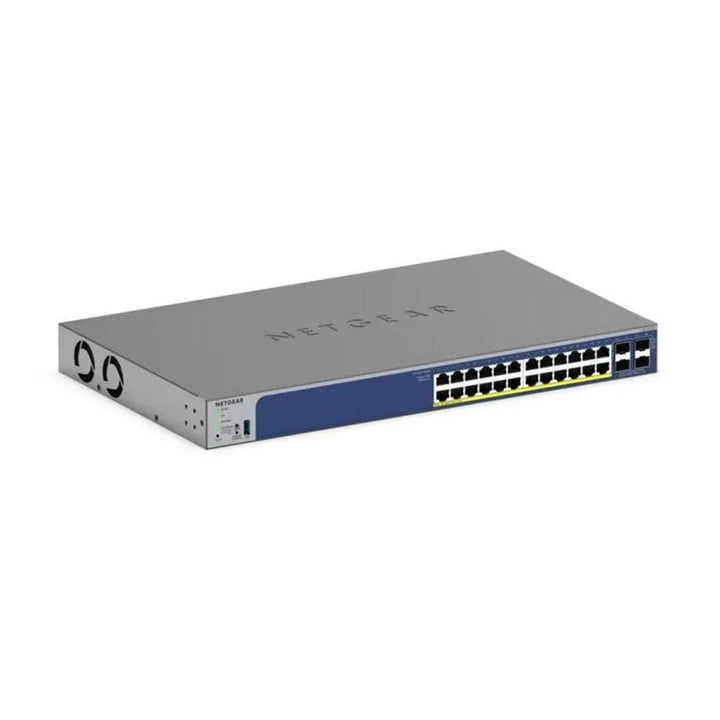

NETGEAR GS728TXP 28-Port Gigabit PoE+ Smart Switch, 190W, 4 x 10G SFP+, Cloud Manageable
PRODUCT DESCRIPTION
NETGEAR GS728TXP 28-Port Gigabit PoE+ Smart Switch with 4 x 10G SFP+ (190W) (GS728TXP-300UKS) - Limited Lifetime Local Warranty
24 PoE+ Gigabit Ports with a 190 W Budget
The NETGEAR GS728TXP (hardware version 3) is a 28-port Smart switch with 24 x 10/100/1000BASE-T RJ-45 ports, all IEEE 802.3at PoE+, sharing a 190 W PoE budget — ready to power IP phones, IP cameras and wireless access points.
4 Dedicated 10G SFP+ Uplinks
Four dedicated 1000/10GBASE-X SFP+ ports provide 10G fibre or DAC uplinks. NETGEAR rates the switch at 128 Gbps switching capacity and a 95.24 Mpps forwarding rate, with a 16K MAC address table and 1.5 MB packet buffer.
Local Web Management or Optional Insight Cloud Management
Manage the switch locally through the web browser GUI or Lite CLI, or optionally through NETGEAR Insight for remote/cloud management from the Insight mobile app or Insight Cloud portal. PoE timer and scheduling lets you switch PoE ports on or off on a schedule or remotely to save energy and tighten security.
Smart Layer 2+ Features
256 VLANs with private VLANs, IPv4/IPv6 static routing (32 routes each), LACP link aggregation (16 LAGs, up to 8 members), DiffServ QoS, IGMP snooping, 802.1X, DHCP snooping and Dynamic ARP Inspection, plus dual firmware images. Two internal fans keep noise to 26.8 dBA at 25 °C.
Need help choosing? Email sales@sourceit.com.sg with your port count, PoE device list and uplink needs and we will size it for you.
NETGEAR GS728TXP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS728TXP 28-Port Gigabit PoE+ Smart Switch with 4 x 10G SFP+ (190W) |
| Part Number | GS728TXP-300UKS |
| Hardware Version | GS728TXPv3 |
| Series | NETGEAR Gigabit Ethernet Smart Switches with 4 SFP+ Ports (Smart Cloud) |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 24 x 10/100/1000BASE-T RJ-45 |
| PoE Ports | 24 x PoE+ (IEEE 802.3at) |
| PoE Budget | 190 W |
| Uplink Ports | 4 x dedicated 1000/10GBASE-X SFP+ |
Performance
| Switching Capacity | 128 Gbps (line-rate) |
| Forwarding Rate | 95.24 Mpps (64-byte packets) |
| MAC Address Table | 16K |
| Packet Buffer | 1.5 MB |
| Jumbo Frames | Up to 10K bytes |
| CPU / Memory | 800 MHz ARM A55 single core; 512 MB DDR RAM; 64 MB flash |
Software Features
| VLANs | 256 (802.1Q), private VLANs, Multicast VLAN Registration (MVR) |
| Layer 3 | IPv4 / IPv6 static routing (32 IPv4 + 32 IPv6 static routes) |
| Link Aggregation | LACP, 16 LAGs with up to 8 members each |
| ACLs | 100 shared for MAC, IP and IPv6 (ingress) |
| Multicast | IGMP snooping and querier; 512 multicast groups |
| QoS | DiffServ QoS; port-based, 802.1p and L2/L3/L4 DSCP prioritisation |
| Spanning Tree | STP, RSTP, MSTP |
| Security | 802.1X port authentication, DHCP snooping, Dynamic ARP Inspection |
| Other | Port mirroring, cable test, Energy Efficient Ethernet (IEEE 802.3az), dual firmware images |
| PoE Management | PoE timer and scheduling (on/off scheduling or remote control of PoE ports) |
Power & Environmental
| Power Supply | 1 internal fixed PSU |
| Power Consumption | 502 W max with full PoE; 29 W max without PoE; 20 W idle (all ports link-down) |
| Cooling | 2 internal fixed fans |
| Acoustic Noise | 26.8 dBA @ 25 °C |
| MTBF | 1,252,990 hours @ 25 °C |
| Operating Temperature | 0 to 50 °C |
| Operating Humidity | 90% max RH, non-condensing |
Physical
| Dimensions (W x D x H) | 440 x 257 x 43 mm |
| Weight | 3.78 kg |
| Mounting | Desktop or 19-inch rack (rack-mount brackets included) |
Certifications
| EMC | CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA |
| Safety | CB, CE, CSA, RCM, KC, BSMI |
Compatibility & Software Support
Management
Local management through NETGEAR's web browser-based GUI and a text-based Lite CLI. Optional remote/cloud management with the NETGEAR Insight mobile app or the Insight Cloud portal in a web browser, including centralised policies (VLANs, ACLs, QoS, LAGs) across Insight Managed switches and access points, and zero-touch device auto-join. Discovery and monitoring via SNMP v1/v2c/v3 and RMON.
Compatible NETGEAR SFP / SFP+ Modules
NETGEAR lists the following optional modules for the four SFP+ ports (1G and 10G):
| 1G SFP fibre | AGM731F 1000BASE-SX (short range, multimode); AGM732F 1000BASE-LX (long range, single mode) |
| 1G SFP copper | AGM734 1000BASE-T RJ-45 SFP |
| 10G SFP+ fibre | AXM761 10GBASE-SR (short range, multimode); AXM762 10GBASE-LR (long range, single mode); AXM763 10GBASE-LRM (long range, multimode); AXM764 10GBASE-LR Lite (single mode) |
| 10G SFP+ copper | AXM765v2 10GBASE-T SFP+ RJ-45 transceiver (80 m) |
| SFP+ Direct Attach Cables | AXC761 SFP+ DAC cable (1 m); AXC763 SFP+ DAC cable (3 m) |
Typical Use
Small and medium businesses powering up to 24 PoE/PoE+ devices — VoIP phones, IP cameras and access points — within a 190 W budget, with 10G uplinks. For higher-power or PoE++ devices see the GS728TXUP (420 W); for 48 PoE+ ports see the GS752TXP (380 W).
Package Contents & Gigabit Smart Switch with 4 SFP+ Ordering Information
In the Box
Smart switch, AC power cord with C13 connector (localised to region of sale), brackets and screws for rack mounting, rubber footpads for tabletop installation, rubber protection caps pre-installed in the SFP+ sockets, installation guide.
NETGEAR Gigabit Smart Switches with 4 SFP+ Ports (v3)
| Model | Ports / PoE Budget | Part No. |
| GS728TX | 24 x 1G + 4 x 10G SFP+, non-PoE | GS728TX-300UKS |
| GS728TXP (this listing) | 24 x 1G PoE+ + 4 x 10G SFP+, 190 W | GS728TXP-300UKS |
| GS728TXUP | 24 x 1G (8 PoE++, 16 PoE+) + 4 x 10G SFP+, 420 W | GS728TXUP-300UKS |
| GS752TX | 48 x 1G + 4 x 10G SFP+, non-PoE | GS752TX-300UKS |
| GS752TXP | 48 x 1G PoE+ + 4 x 10G SFP+, 380 W | GS752TXP-300UKS |
| GS752TXUP | 48 x 1G (16 PoE++, 32 PoE+) + 4 x 10G SFP+, 640 W | GS752TXUP-300UKS |
Datasheet & Downloads
| NETGEAR datasheet | Gigabit Ethernet Switches with 4 SFP+ Ports Datasheet (PDF) |
| Installation guide | GS728TXPv3 / GS752TXPv3 Installation Guide (PDF) |
| User manual | Gigabit Smart Switches with 4 SFP / 4 SFP+ Ports User Manual (PDF) |
| NETGEAR product page | GS728TXPv3 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS728TXP-300UKS.
Frequently Asked Questions — NETGEAR GS728TXP
How much PoE power does the GS728TXP provide?
All 24 Gigabit ports are PoE+ (802.3at) with a total PoE budget of 190 W.
Does it have 10G ports?
Yes. It has 4 dedicated SFP+ ports that accept 1G SFP or 10G SFP+ modules and SFP+ DAC cables.
Can PoE ports be scheduled?
Yes. NETGEAR lists PoE timer and scheduling to turn PoE ports on or off on a schedule or remotely.
Can it be managed from the cloud?
Yes, optionally. It can be managed locally via the web GUI or remotely through NETGEAR Insight (mobile app or Insight Cloud portal).
Is it fanless?
No, it has two internal fans; NETGEAR rates acoustic noise at 26.8 dBA at 25 °C.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
