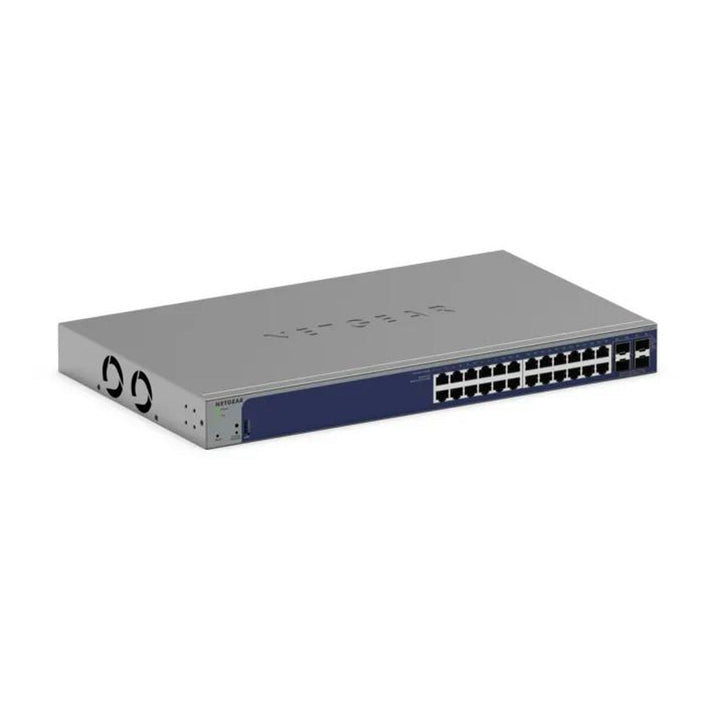

NETGEAR GS728TX 28-Port Gigabit Smart Switch with 4 x 10G SFP+, Cloud Manageable, Rackmount
PRODUCT DESCRIPTION
NETGEAR GS728TX 28-Port Gigabit Smart Switch with 4 x 10G SFP+ (GS728TX-300UKS) - Limited Lifetime Local Warranty
24 Gigabit Ports with 4 Dedicated 10G SFP+ Uplinks
The NETGEAR GS728TX (hardware version 3) is a 28-port Smart switch with 24 x 10/100/1000BASE-T RJ-45 ports and 4 dedicated 1000/10GBASE-X SFP+ ports for 10G fibre or DAC uplinks to a core switch, server or NAS. NETGEAR rates it at 128 Gbps switching capacity and a 95.24 Mpps forwarding rate, with a 16K MAC address table and 1.5 MB packet buffer.
Local Web Management or Optional Insight Cloud Management
Manage the switch locally through NETGEAR's web browser GUI or Lite CLI, or optionally bring it under NETGEAR Insight for remote/cloud management from the Insight mobile app or Insight Cloud portal — with centralised VLAN, ACL, QoS and LAG policies across multiple sites.
Smart Layer 2+ Features for Converged Networks
256 VLANs with private VLANs, IPv4/IPv6 static routing (32 routes each), LACP link aggregation (16 LAGs, up to 8 members), DiffServ QoS, IGMP snooping, 802.1X, DHCP snooping and Dynamic ARP Inspection, plus dual firmware images.
Rack-Ready and Quiet
A single internal fan keeps acoustic noise to 29 dBA at 25 °C, maximum power draw is 26 W, and the switch operates from 0 to 50 °C. Rack-mount brackets and rubber footpads are included for rack or desktop installation.
Need help choosing? Email sales@sourceit.com.sg with your port count, uplink and PoE needs and we will size it for you.
NETGEAR GS728TX Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS728TX 28-Port Gigabit Smart Switch with 4 x 10G SFP+ |
| Part Number | GS728TX-300UKS |
| Hardware Version | GS728TXv3 |
| Series | NETGEAR Gigabit Ethernet Smart Switches with 4 SFP+ Ports (Smart Cloud) |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 24 x 10/100/1000BASE-T RJ-45 |
| Uplink Ports | 4 x dedicated 1000/10GBASE-X SFP+ |
| PoE | None (non-PoE) |
Performance
| Switching Capacity | 128 Gbps (line-rate) |
| Forwarding Rate | 95.24 Mpps (64-byte packets) |
| MAC Address Table | 16K |
| Packet Buffer | 1.5 MB |
| Jumbo Frames | Up to 10K bytes |
| CPU / Memory | 800 MHz ARM A55 single core; 512 MB DDR RAM; 64 MB flash |
Software Features
| VLANs | 256 (802.1Q), private VLANs, Multicast VLAN Registration (MVR) |
| Layer 3 | IPv4 / IPv6 static routing (32 IPv4 + 32 IPv6 static routes) |
| Link Aggregation | LACP, 16 LAGs with up to 8 members each |
| ACLs | 100 shared for MAC, IP and IPv6 (ingress) |
| Multicast | IGMP snooping and querier; 512 multicast groups |
| QoS | DiffServ QoS; port-based, 802.1p and L2/L3/L4 DSCP prioritisation |
| Spanning Tree | STP, RSTP, MSTP |
| Security | 802.1X port authentication, DHCP snooping, Dynamic ARP Inspection |
| Other | Port mirroring, cable test, Energy Efficient Ethernet (IEEE 802.3az), dual firmware images |
Power & Environmental
| Power Supply | 1 internal fixed PSU |
| Power Consumption | 26 W max; 8 W idle (all ports link-down) |
| Heat Dissipation | 87.43 BTU/hr |
| Cooling | 1 internal fixed fan |
| Acoustic Noise | 29 dBA @ 25 °C |
| MTBF | 382,249 hours @ 25 °C |
| Operating Temperature | 0 to 50 °C |
| Operating Humidity | 90% max RH, non-condensing |
Physical
| Dimensions (W x D x H) | 440 x 257 x 43 mm |
| Weight | 3.08 kg |
| Mounting | Desktop or 19-inch rack (rack-mount brackets included) |
Certifications
| EMC | CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA |
| Safety | CB, CE, CSA, RCM, KC, BSMI |
Compatibility & Software Support
Management
Local management through NETGEAR's web browser-based GUI and a text-based Lite CLI. Optional remote/cloud management with the NETGEAR Insight mobile app or the Insight Cloud portal in a web browser, including centralised policies (VLANs, ACLs, QoS, LAGs) across Insight Managed switches and access points, and zero-touch device auto-join. Discovery and monitoring via SNMP v1/v2c/v3 and RMON.
Compatible NETGEAR SFP / SFP+ Modules
NETGEAR lists the following optional modules for the four SFP+ ports (1G and 10G):
| 1G SFP fibre | AGM731F 1000BASE-SX (short range, multimode); AGM732F 1000BASE-LX (long range, single mode) |
| 1G SFP copper | AGM734 1000BASE-T RJ-45 SFP |
| 10G SFP+ fibre | AXM761 10GBASE-SR (short range, multimode); AXM762 10GBASE-LR (long range, single mode); AXM763 10GBASE-LRM (long range, multimode); AXM764 10GBASE-LR Lite (single mode) |
| 10G SFP+ copper | AXM765v2 10GBASE-T SFP+ RJ-45 transceiver (80 m) |
| SFP+ Direct Attach Cables | AXC761 SFP+ DAC cable (1 m); AXC763 SFP+ DAC cable (3 m) |
Typical Use
Small and medium businesses that need 24 Gigabit wired connections with 10G fibre uplinks and VLAN/QoS control. Not a PoE switch — for powered devices see the GS728TXP (24 x PoE+, 190 W) or GS728TXUP (PoE++, 420 W).
Package Contents & Gigabit Smart Switch with 4 SFP+ Ordering Information
In the Box
Smart switch, AC power cord with C13 connector (localised to region of sale), brackets and screws for rack mounting, rubber footpads for tabletop installation, rubber protection caps pre-installed in the SFP+ sockets, installation guide.
NETGEAR Gigabit Smart Switches with 4 SFP+ Ports (v3)
| Model | Ports / PoE Budget | Part No. |
| GS728TX (this listing) | 24 x 1G + 4 x 10G SFP+, non-PoE | GS728TX-300UKS |
| GS728TXP | 24 x 1G PoE+ + 4 x 10G SFP+, 190 W | GS728TXP-300UKS |
| GS728TXUP | 24 x 1G (8 PoE++, 16 PoE+) + 4 x 10G SFP+, 420 W | GS728TXUP-300UKS |
| GS752TX | 48 x 1G + 4 x 10G SFP+, non-PoE | GS752TX-300UKS |
| GS752TXP | 48 x 1G PoE+ + 4 x 10G SFP+, 380 W | GS752TXP-300UKS |
| GS752TXUP | 48 x 1G (16 PoE++, 32 PoE+) + 4 x 10G SFP+, 640 W | GS752TXUP-300UKS |
Datasheet & Downloads
| NETGEAR datasheet | Gigabit Ethernet Switches with 4 SFP+ Ports Datasheet (PDF) |
| Installation guide | GS728TXv3 / GS752TXv3 / GS728TXUPv3 / GS752TXUPv3 Installation Guide (PDF) |
| User manual | Gigabit Smart Switches with 4 SFP / 4 SFP+ Ports User Manual (PDF) |
| NETGEAR product page | GS728TXv3 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS728TX-300UKS.
Frequently Asked Questions — NETGEAR GS728TX
Does the GS728TX have 10G ports?
Yes. It has 4 dedicated SFP+ ports that accept 1G SFP or 10G SFP+ modules and SFP+ DAC cables; the 24 RJ-45 ports are Gigabit.
Does it supply PoE?
No, the GS728TX is non-PoE. For PoE+ see the GS728TXP (190 W) or GS728TXUP (420 W).
Can it be managed from the cloud?
Yes, optionally. It can be managed locally via the web GUI or remotely through NETGEAR Insight (mobile app or Insight Cloud portal).
Is it silent?
No, it has one internal fan; NETGEAR rates acoustic noise at 29 dBA at 25 °C.
Can it be rack-mounted?
Yes, rack-mount brackets and screws are included in the box, along with rubber footpads for desktop use.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
