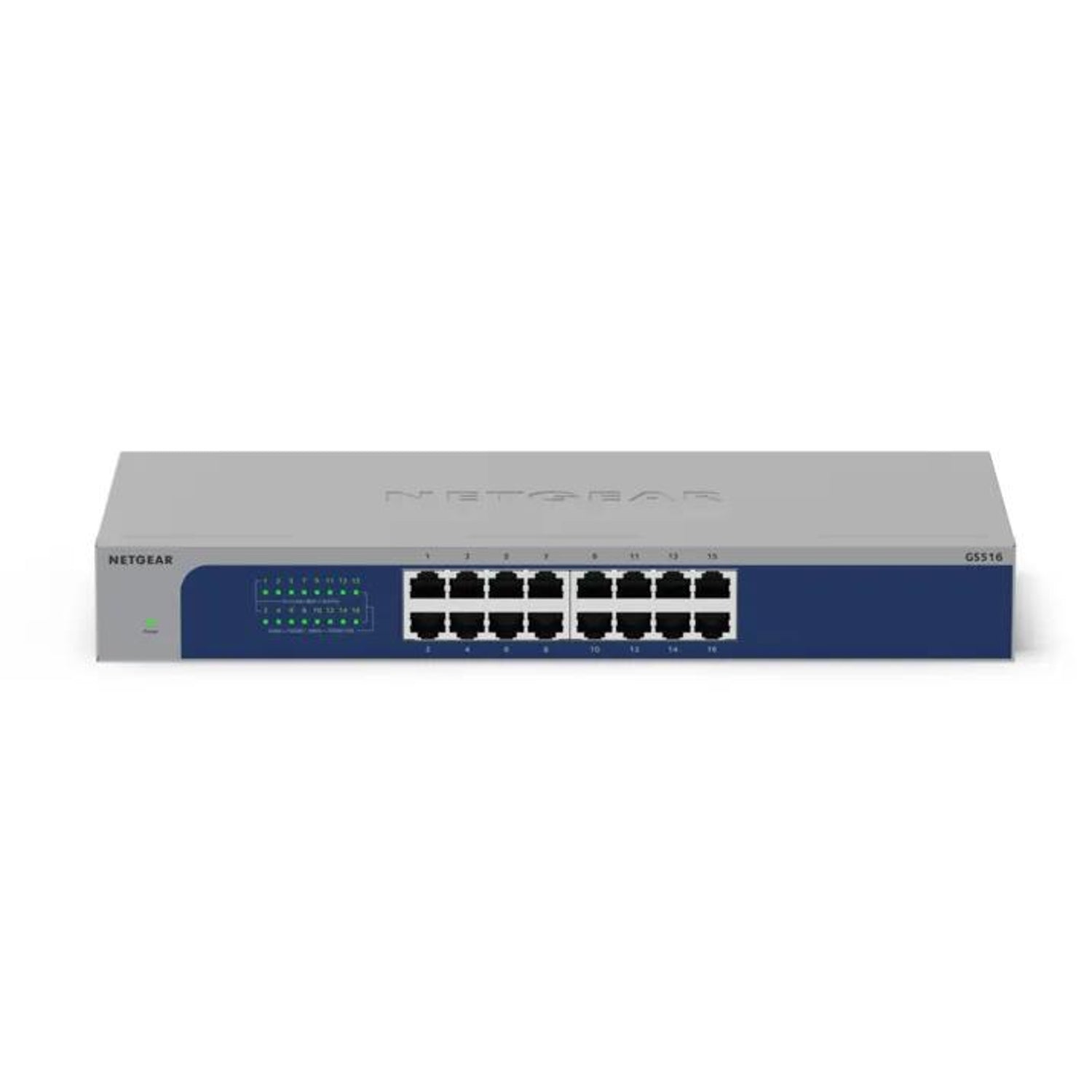

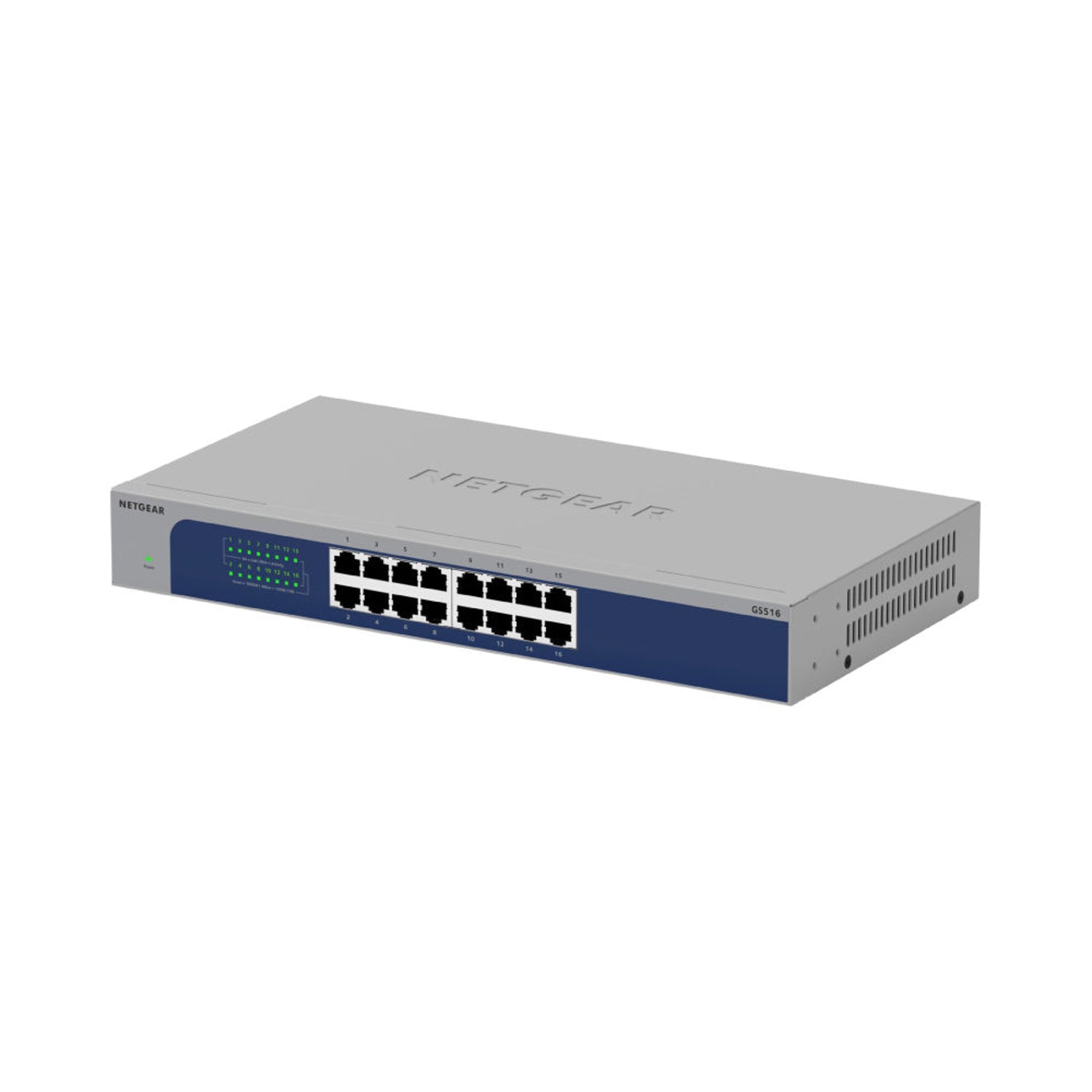

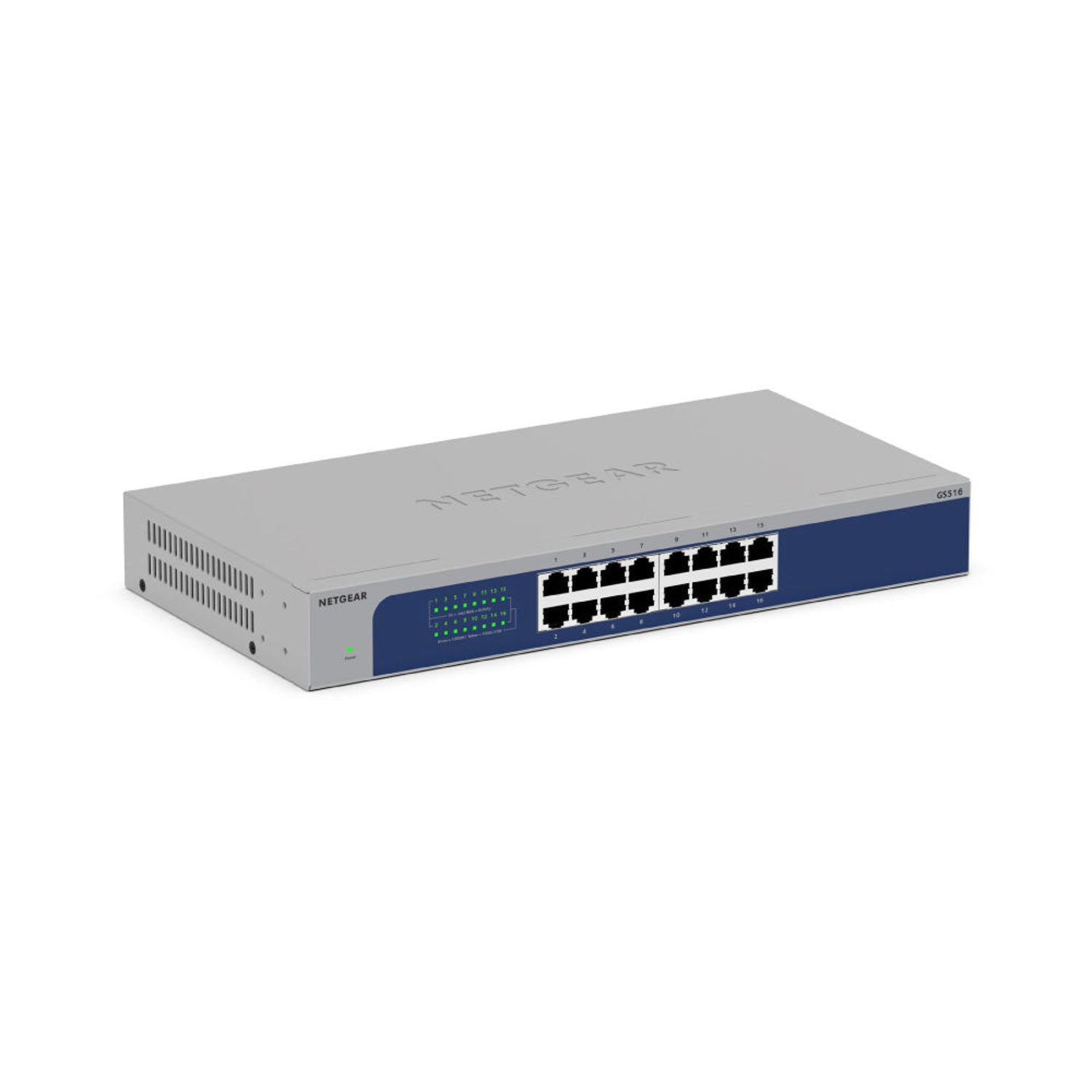

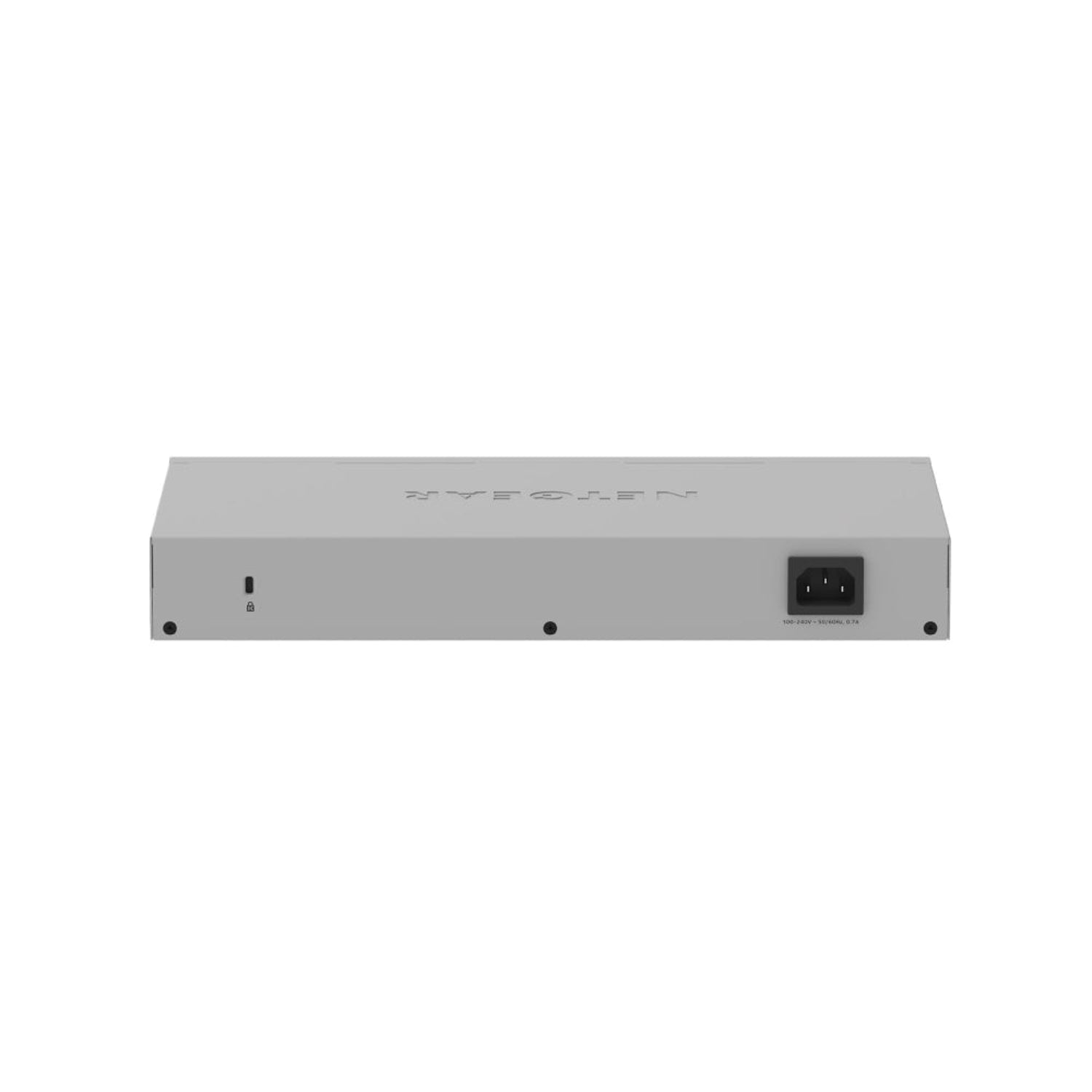

NETGEAR GS516 16-Port Gigabit Ethernet Unmanaged Switch, Fanless, Desktop/Wall/Rackmount
PRODUCT DESCRIPTION
NETGEAR GS516 16-Port Gigabit Ethernet Unmanaged Switch (GS516-300UKS) - Limited Lifetime Local Warranty
16 Gigabit Ports, Plug-and-Play
The NETGEAR GS516 (hardware version GS516v3) is a 16-port Gigabit Ethernet unmanaged switch. Every port is 10/100/1000 Mbps with Auto Uplink, so it works straight out of the box with no configuration — connect PCs, printers, NAS, IP phones and access points and it just runs.
Non-Blocking Gigabit Performance
NETGEAR rates the GS516 at 32 Gbps of switching bandwidth and a forwarding rate of 1,488,000 frames/sec per Gigabit port, with an 8K MAC address table, a 512.5 KB packet buffer, jumbo frames up to 9 KB and IEEE 802.1p QoS for prioritising voice and video.
Silent, Energy-Efficient and Rack-Ready
NETGEAR lists the GS516 as fanless and silent, with IEEE 802.3az Energy Efficient Ethernet, auto power-down and cable-length detection keeping power draw to 10 W max. The compact metal switch sits on a desk, mounts on a wall or goes in a standard 19-inch rack using the wall/rack-mount kit included in the box, and has a Kensington lock slot.
Need help choosing? Email sales@sourceit.com.sg with your port count and mounting needs and we will size it for you.
NETGEAR GS516 Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS516 16-Port Gigabit Ethernet Unmanaged Switch |
| Part Number | GS516-300UKS |
| Hardware Version | GS516v3 |
| Series | NETGEAR 16- and 24-port Gigabit Ethernet Switches (GS516v3, GS524v3) |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 16 x 10/100/1000 Mbps RJ-45 with Auto Uplink |
| LEDs | Unit: power; per port: link/activity, speed |
Performance
| Switching Bandwidth | 32 Gbps |
| Forwarding Rate | 1,488,000 frames/sec per 1000 Mbps port; 148,800 per 100 Mbps port; 14,880 per 10 Mbps port |
| Latency | 15 µs max (1000 Mbps); 30 µs max (100 Mbps); 35 µs max (10 Mbps) |
| MAC Address Table | 8K |
| Packet Buffer | 512.5 KB |
| Jumbo Frames | Up to 9 KB |
Features & Standards
| Quality of Service | IEEE 802.1p QoS for prioritising voice and video |
| Green Features | IEEE 802.3az Energy Efficient Ethernet, auto power-down mode, cable-length detection (auto green mode) |
| IEEE Standards | 802.3 CSMA/CD, 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3x flow control, 802.3az |
Power & Environmental
| Power Input | AC power cord, 100–240 V, 50–60 Hz (plug localised to country of sale) |
| Power Consumption | 10 W max |
| Cooling | Fanless |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -20 to 70 °C |
| Operating Humidity | 90% max RH, non-condensing |
| Storage Humidity | 95% max RH |
| MTBF | 1,397,962 hours |
Physical
| Dimensions (W x D x H) | 328 x 169 x 43 mm |
| Weight | 1.49 kg |
| Enclosure | Metal, with Kensington lock slot |
| Mounting | Desktop, wall or 19-inch rack (wall/rack-mount kit included) |
Certifications
| EMC | CE Class A (EN55032, EN55035), UKCA Class A, FCC Part 15 Class A, ISED Class A, VCCI Class A, RCM, KC, BSMI |
| Safety | CB (IEC 62368-1), CSA (UL/CSA 62368-1), CE (EN 62368-1), UKCA, RCM, BSMI |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed and duplex, and Auto Uplink handles cable type.
Typical Use
Small offices, classrooms, retail and comms cabinets that need 16 Gigabit wired connections in a quiet switch that can go on a desk, a wall or a 19-inch rack. Not a PoE switch — for powered devices NETGEAR offers the GS516UP unmanaged PoE model.
Package Contents & Gigabit Unmanaged Ordering Information
In the Box
GS516 switch, power cord, wall/rack-mount kit, installation guide, warranty/support information card.
NETGEAR Gigabit Unmanaged Models
| Model | Ports | Part No. |
| GS305 | 5 x GE, desktop | GS305-300UKS |
| GS308 | 8 x GE, desktop | GS308-300UKS |
| GS116 | 16 x GE, desktop/wall | GS116-300UKS |
| GS516 (this listing) | 16 x GE, desktop/wall/rack | GS516-300UKS |
| GS324 | 24 x GE, desktop/rack | GS324-200EUS |
| GS524 | 24 x GE, desktop/wall/rack | GS524-300UKS |
| GS348 | 48 x GE, desktop/rack | GS348-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | GS516v3 / GS524v3 Datasheet (PDF) |
| Installation guide | GS516v3 Installation Guide (PDF) |
| NETGEAR product page | GS516 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS516-300UKS.
Frequently Asked Questions — NETGEAR GS516
Does the GS516 need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
Is it fanless?
Yes. NETGEAR lists it as fanless and silent.
Can it be rack-mounted?
Yes. A wall/rack-mount kit is included, so it can sit on a desk, mount on a wall or fit a standard 19-inch rack.
How is it different from the GS116?
Both have 16 Gigabit ports and 32 Gbps bandwidth. The GS516 adds rack mounting and takes a power cord directly, while the GS116 is a smaller desktop/wall-mount switch with an external power adapter.
Does it supply PoE?
No. For PoE see NETGEAR's GS516UP unmanaged PoE switch or the Smart Managed Pro PoE range.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
