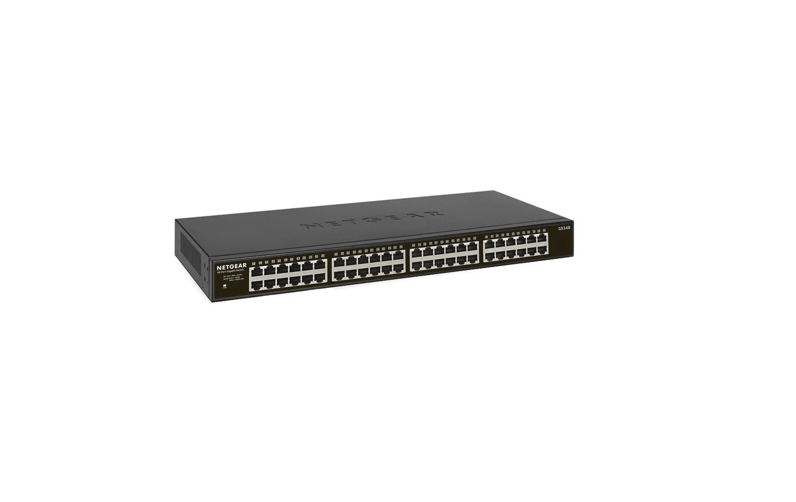

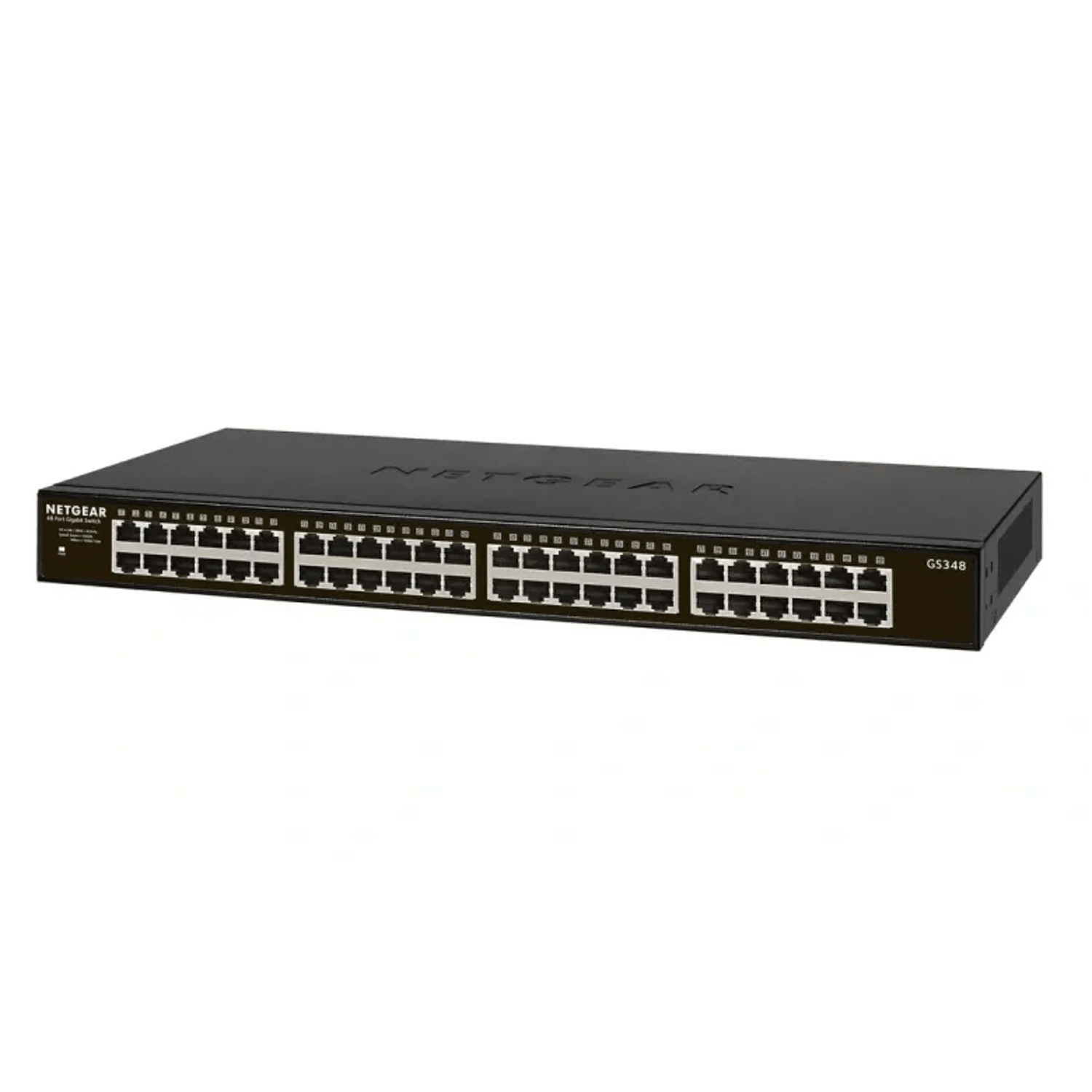

NETGEAR GS348 48-Port Gigabit Ethernet Unmanaged Switch, Fanless, Desktop/Rackmount
PRODUCT DESCRIPTION
NETGEAR GS348 48-Port Gigabit Ethernet Unmanaged Switch (GS348-100EUS) - 3 Years Local Warranty
48 Gigabit Ports, Plug-and-Play
The NETGEAR GS348 is a 48-port Gigabit Ethernet unmanaged switch from NETGEAR's Essentials range. Every port is 10/100/1000 Mbps with Auto Uplink, so it works straight out of the box with no configuration — connect PCs, printers, NAS, IP phones and access points and it just runs.
Non-Blocking Performance
NETGEAR rates the GS348 at 96 Gbps of non-blocking switching bandwidth and a forwarding rate of 1,448,000 pps (64-byte packets at 1000 Mbps), with a 1.5 MB packet buffer and jumbo-frame support for large file transfers.
Silent, Fanless and Rack-Ready
The fanless design runs silently in offices and classrooms. The switch sits on a desk or mounts in a 19-inch rack using the rack-mount kit included in the box, and draws a maximum of 23 W.
Need help choosing? Email sales@sourceit.com.sg with your port count and uplink needs and we will size it for you.
NETGEAR GS348 Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS348 48-Port Gigabit Ethernet Unmanaged Switch |
| Part Number | GS348-100EUS |
| Series | NETGEAR Gigabit Unmanaged Essentials Switches |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces

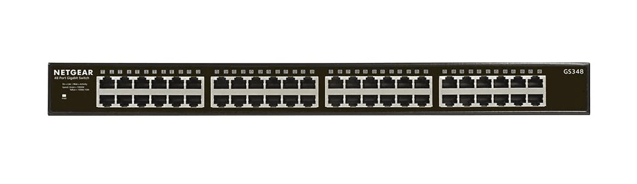

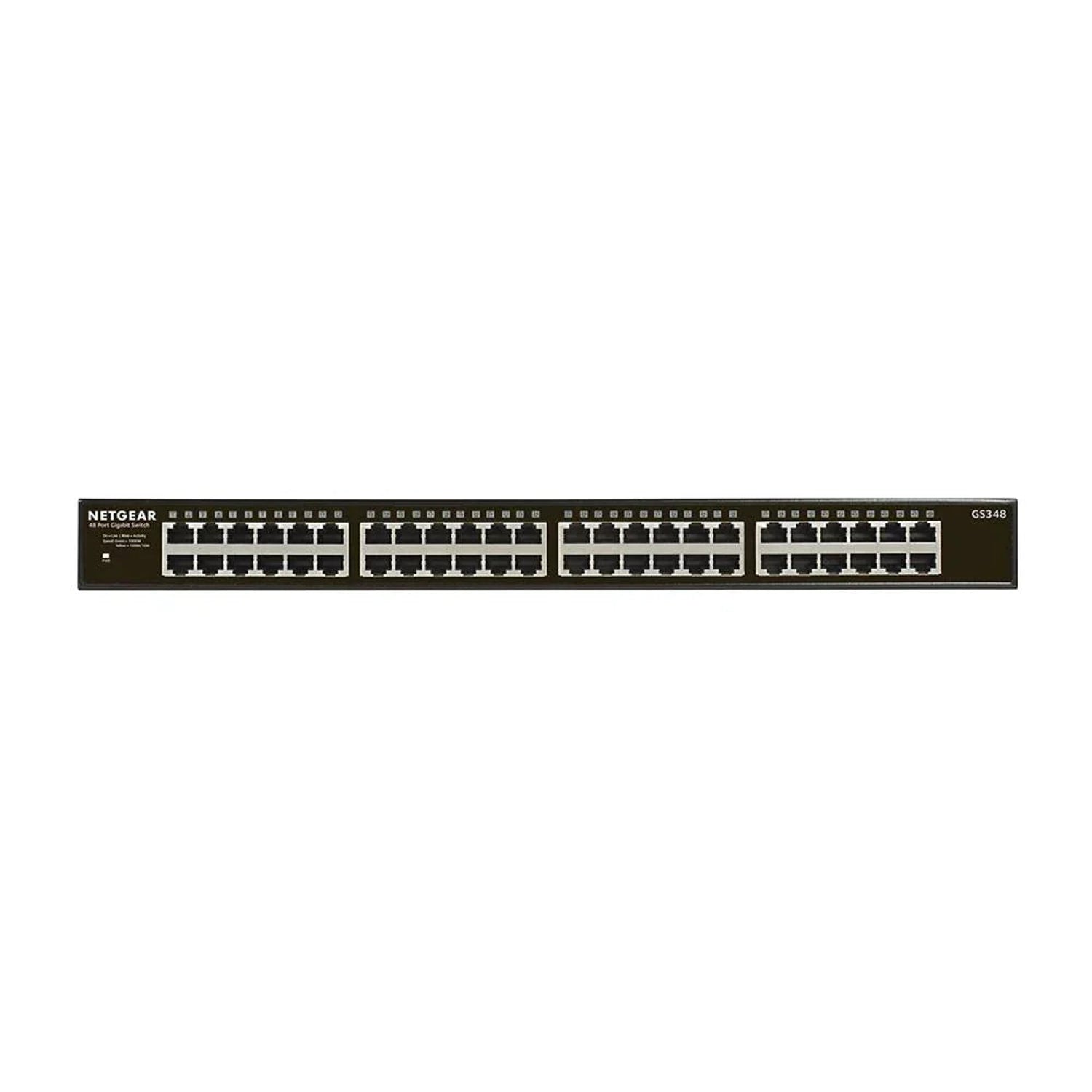

| Ethernet Ports | 48 x 10/100/1000BASE-T RJ-45 with Auto Uplink (auto MDI/MDIX) |
Performance
| Switching Bandwidth | 96 Gbps (non-blocking) |
| Forwarding Rate | 1,448,000 pps (64-byte packets at 1000 Mbps) |
| Latency | < 4 µs (64-byte packets at 1000 Mbps) |
| MAC Address Table | 8K |
| Packet Buffer | 1.5 MB |
| Jumbo Frames | Up to 9,216 bytes |
Power & Environmental
| Power Supply | Internal, 110–240 V AC, 50/60 Hz, 1.0 A max |
| Power Consumption | 23 W max; 8.81 W standby |
| Heat Dissipation | 78.66 BTU/hr max |
| Cooling | Fanless |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max RH, non-condensing |
Physical
| Dimensions (W x D x H) | 440 x 202 x 43 mm |
| Weight | 3.15 kg |
| Mounting | Desktop or 19-inch rack (rack-mount kit included) |
Certifications
| EMC | CE, FCC Part 15 Class A, IC Class A, RCM, VCCI, KC, BSMI |
| Safety | CB, CE LVD, RCM, BSMI |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed, duplex and cable type.
Typical Use
Small and medium offices, schools and retail that need a large number of Gigabit wired connections at the lowest cost per port. Not a PoE switch — for powered devices see NETGEAR's unmanaged PoE+ range (GS316PP, GS324P, GS524PP).
Package Contents & Gigabit Unmanaged Ordering Information
In the Box
GS348 switch, power cord, rack-mount kit, installation guide.
NETGEAR Gigabit Unmanaged Models
| Model | Ports | Part No. |
| GS305 | 5 x GE, desktop | GS305-300UKS |
| GS308 | 8 x GE, desktop | GS308-300UKS |
| GS324 | 24 x GE, desktop/rack | GS324-200EUS |
| GS348 (this listing) | 48 x GE, desktop/rack | GS348-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | Gigabit Unmanaged Essentials Switches Datasheet (PDF) |
| Installation guide | GS348 Installation Guide (PDF) |
| NETGEAR product page | GS348 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS348-100EUS.
Frequently Asked Questions — NETGEAR GS348
Does the GS348 need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
Is it fanless?
Yes. NETGEAR lists a fanless design, so it runs silently.
Can it be rack-mounted?
Yes, a rack-mount kit is included in the box.
Does it supply PoE?
No. For PoE see NETGEAR's unmanaged PoE+ range (e.g. GS324P, GS524PP) or the Smart Managed Pro PoE range.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
