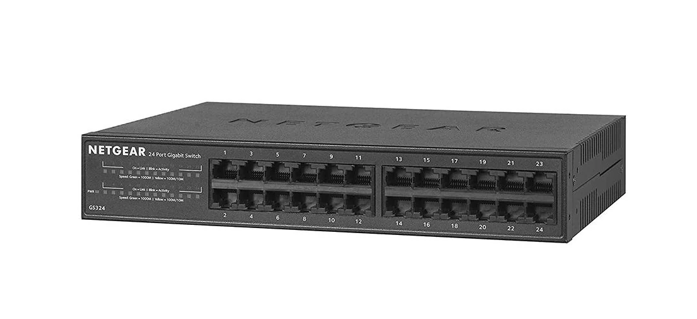

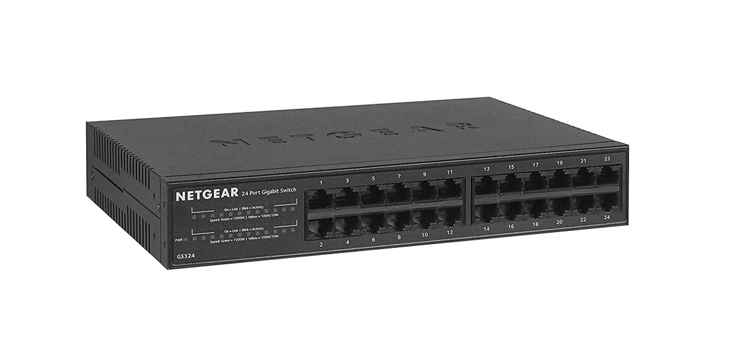

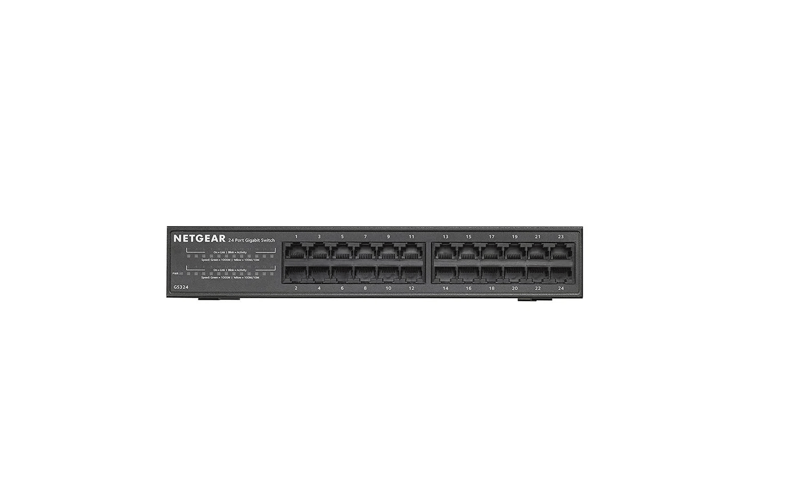

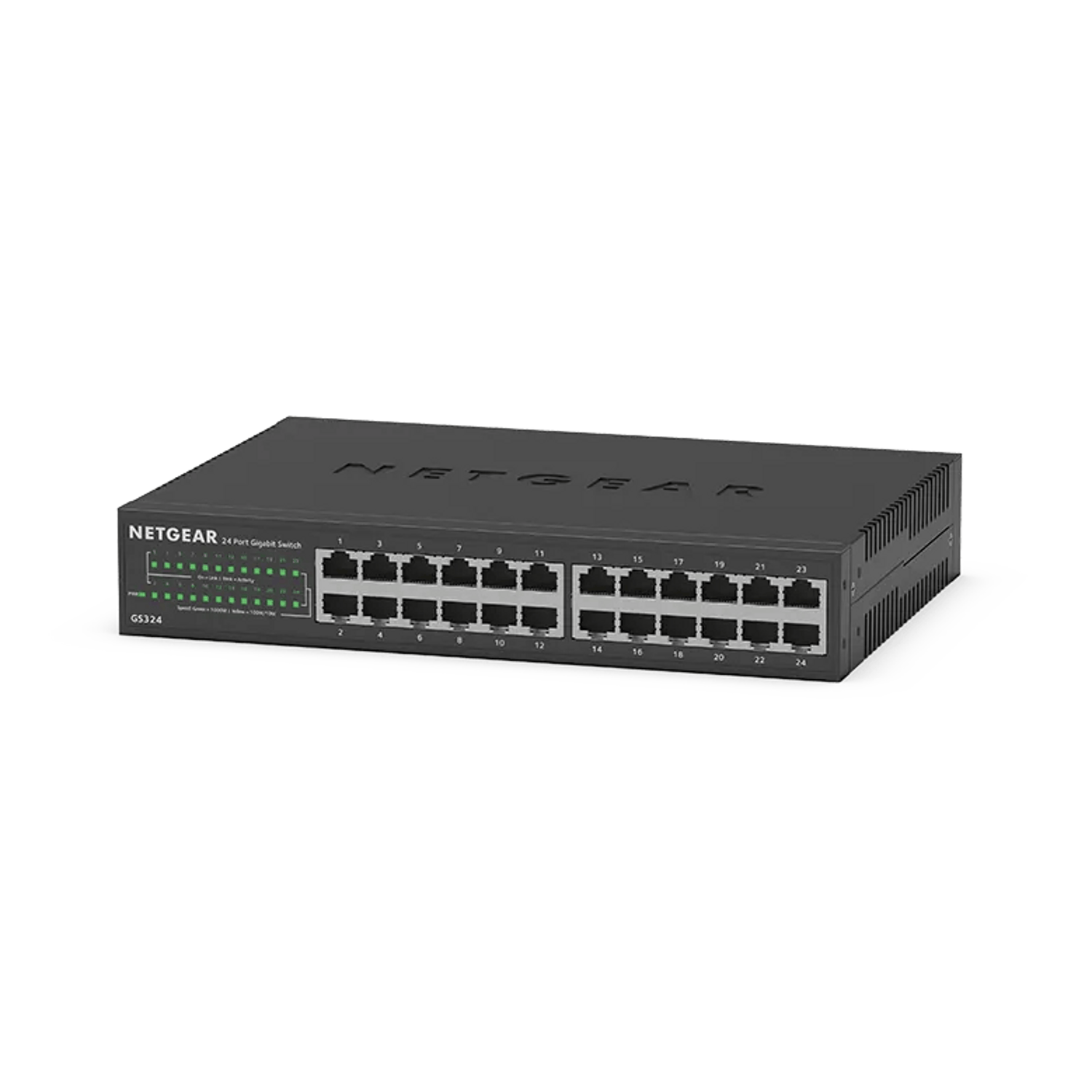

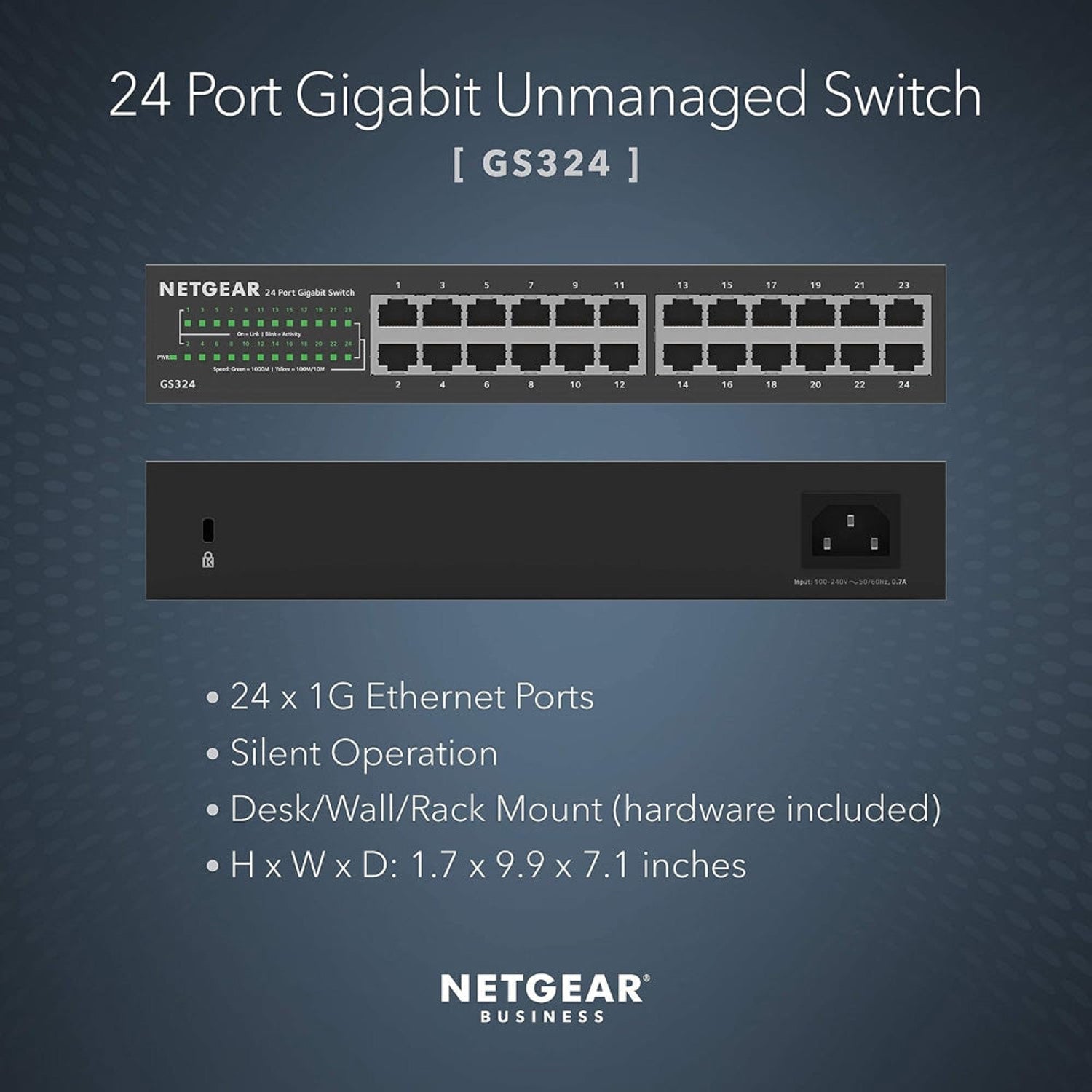

NETGEAR GS324 24-Port Gigabit Ethernet Unmanaged Switch, Fanless, Desktop/Rackmount
PRODUCT DESCRIPTION
NETGEAR GS324 24-Port Gigabit Ethernet Unmanaged Switch (GS324-200EUS) - 3 Years Local Warranty
24 Gigabit Ports, Zero Configuration
The NETGEAR GS324 is a 24-port Gigabit Ethernet unmanaged switch from NETGEAR's Essentials range. Every port is 10/100/1000 Mbps with Auto Uplink and runs at full non-blocking performance straight out of the box — no software and no setup.
48 Gbps Non-Blocking Performance
NETGEAR rates the GS324 at 48 Gbps of non-blocking bandwidth with a 4.1 MB packet buffer, 802.1p QoS and jumbo frames up to 9,216 bytes, while IEEE 802.3az Energy Efficient Ethernet keeps power use to 12 W maximum.
Silent, Fanless and Flexible Mounting
The fanless metal-case design runs silently. Rack-mount brackets, wall-mount screws and rubber feet are all in the box, so the GS324 can go on a desk, a wall or in a 19-inch rack.
Need help choosing? Email sales@sourceit.com.sg with your port count and uplink needs and we will size it for you.
NETGEAR GS324 Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS324 24-Port Gigabit Ethernet Unmanaged Switch |
| Part Number | GS324-200EUS |
| Series | NETGEAR Gigabit Unmanaged Essentials Switches |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 24 x 10/100/1000BASE-T RJ-45 with Auto Uplink (auto MDI/MDIX) |
Performance
| Switching Bandwidth | 48 Gbps (non-blocking) |
| Forwarding Rate | 1,448,000 pps (64-byte packets) |
| Latency | < 4.7 µs (64-byte packets) |
| MAC Address Table | 8K |
| Packet Buffer | 4.1 MB |
| Jumbo Frames | Up to 9,216 bytes |
| QoS | 802.1p traffic prioritisation |
Power & Environmental

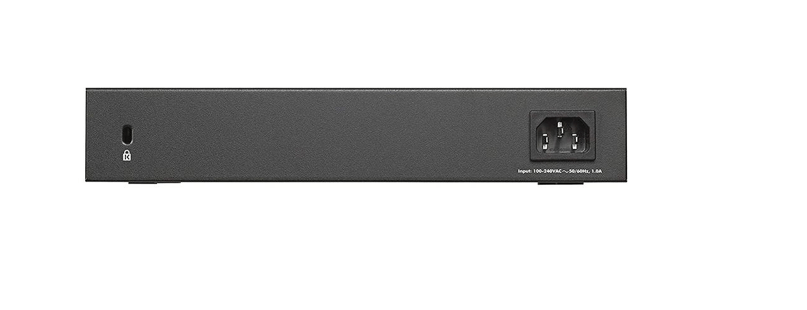

| Power Supply | Internal, 110–240 V AC |
| Power Consumption | 12 W max; 4.3 W standby |
| Heat Dissipation | 41.04 BTU/hr max |
| Cooling | Fanless |
| Energy Efficiency | IEEE 802.3az Energy Efficient Ethernet |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max RH, non-condensing |
| MTBF | 1,016,877 hours at 25 °C |
Physical
| Dimensions (W x D x H) | 252 x 180 x 44 mm |
| Weight | 1.31 kg |
| Mounting | Desktop, wall or 19-inch rack (brackets and screws included) |
Compatibility & Software Support
Management

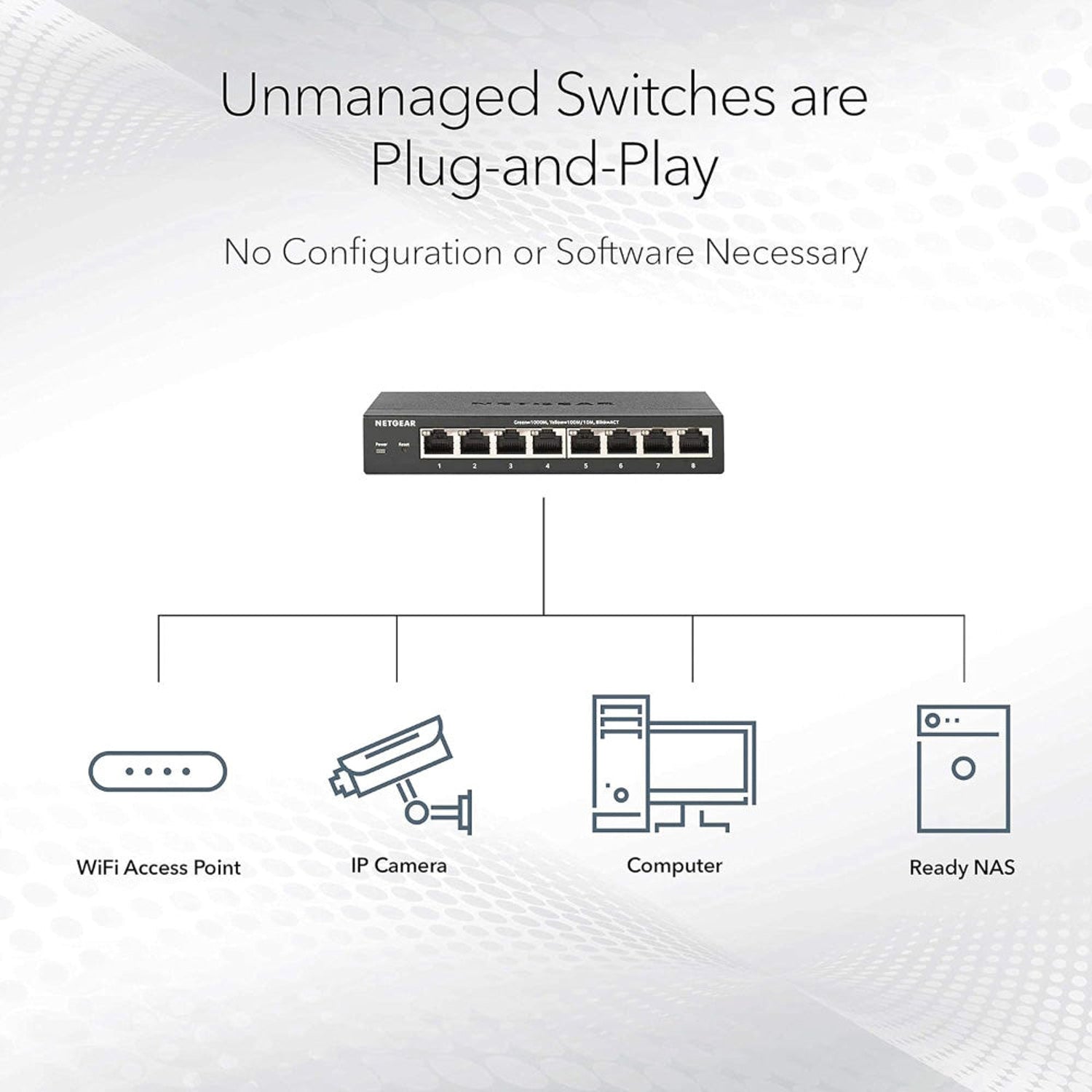

Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed, duplex and cable type.
Typical Use
Growing offices, schools and retail that need 24 Gigabit wired connections at low cost per port. Not a PoE switch — for powered devices see NETGEAR's GS324P.
Package Contents & Gigabit Unmanaged Ordering Information
In the Box
GS324 switch, power cord, rack-mount brackets and screws, wall-mount screws, rubber foot pads, installation guide.
NETGEAR Gigabit Unmanaged Models
| Model | Ports | Part No. |
| GS305 | 5 x GE, desktop/wall | GS305-300UKS |
| GS308 | 8 x GE, desktop/wall | GS308-300UKS |
| GS324 (this listing) | 24 x GE, desktop/wall/rack | GS324-200EUS |
| GS348 | 48 x GE, desktop/rack | GS348-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | Gigabit Unmanaged Essentials Switches Datasheet (PDF) |
| Installation guide | GS324 Installation Guide (PDF) |
| NETGEAR product page | GS324 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS324-200EUS.
Frequently Asked Questions — NETGEAR GS324
Does the GS324 need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
Is it fanless?
Yes. It runs silently with no fan.
Can it be rack-mounted?
Yes. Rack-mount brackets and screws are included, as are wall-mount screws.
Does it supply PoE?
No. For PoE see NETGEAR's GS324P.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
