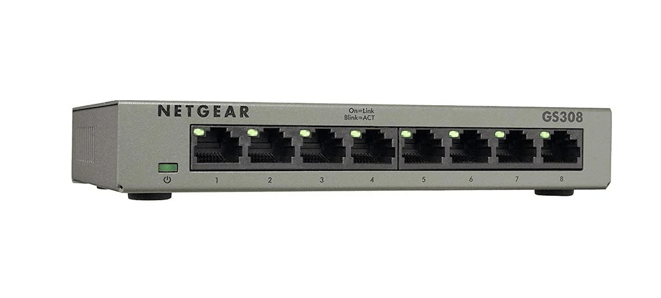

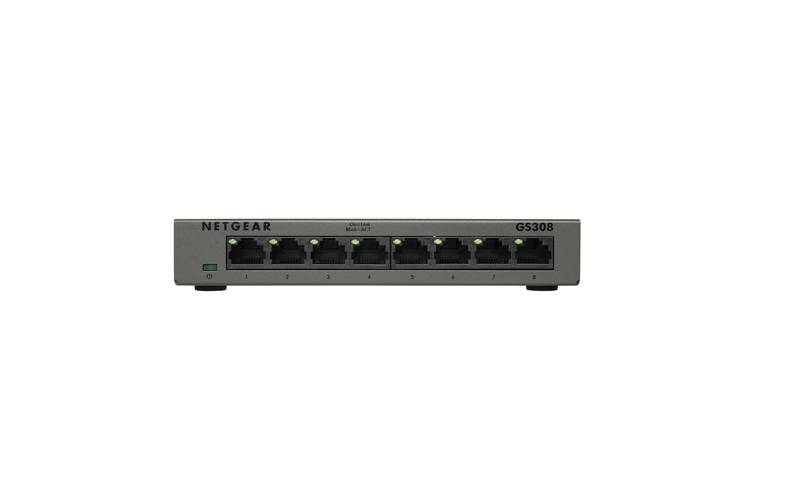

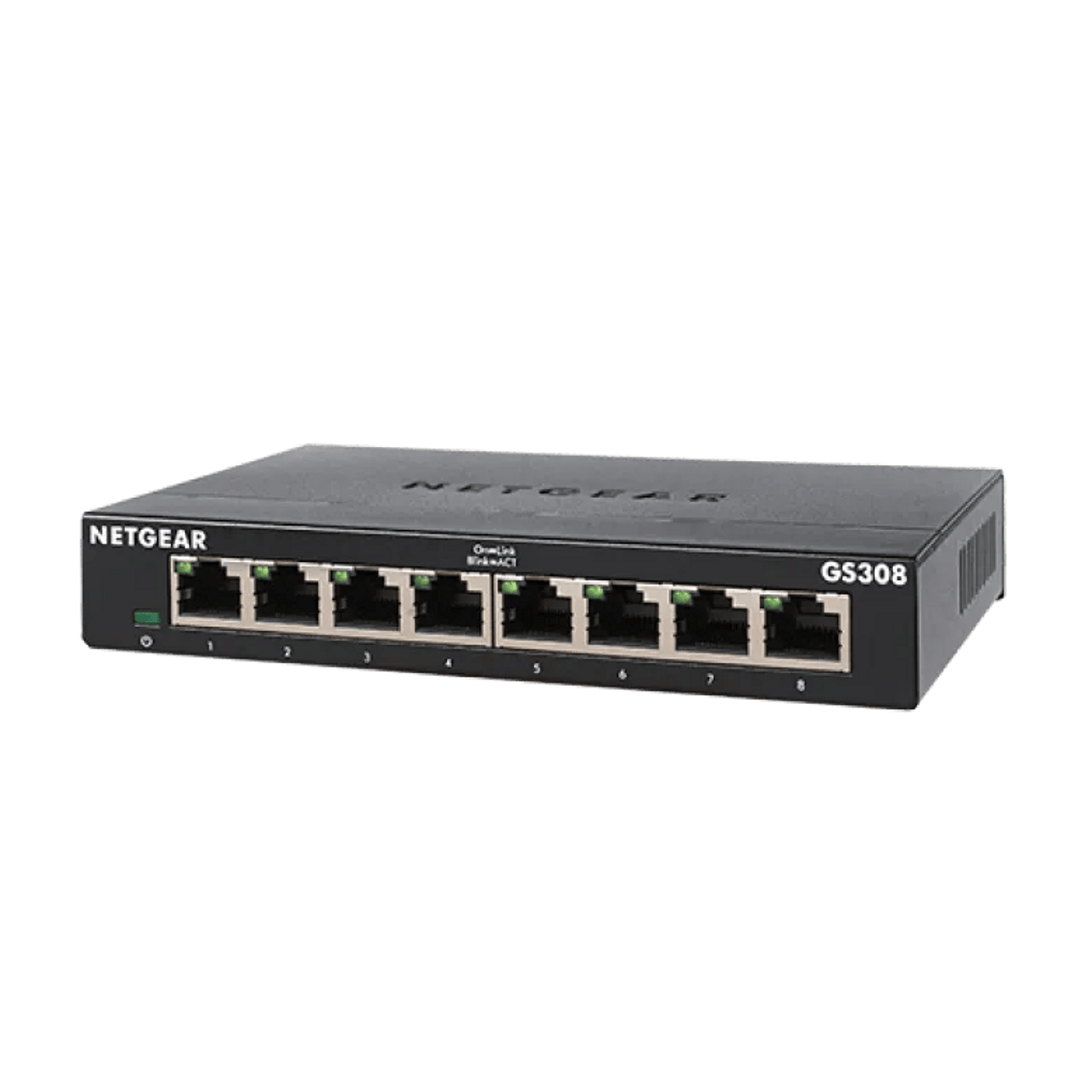

NETGEAR GS308 8-Port Gigabit Ethernet Unmanaged Switch, Fanless, Desktop/Wall-Mount
PRODUCT DESCRIPTION
NETGEAR GS308 8-Port Gigabit Ethernet Unmanaged Switch (GS308-300UKS) - 3 Years Local Warranty
Plug-and-Play Gigabit for 8 Devices

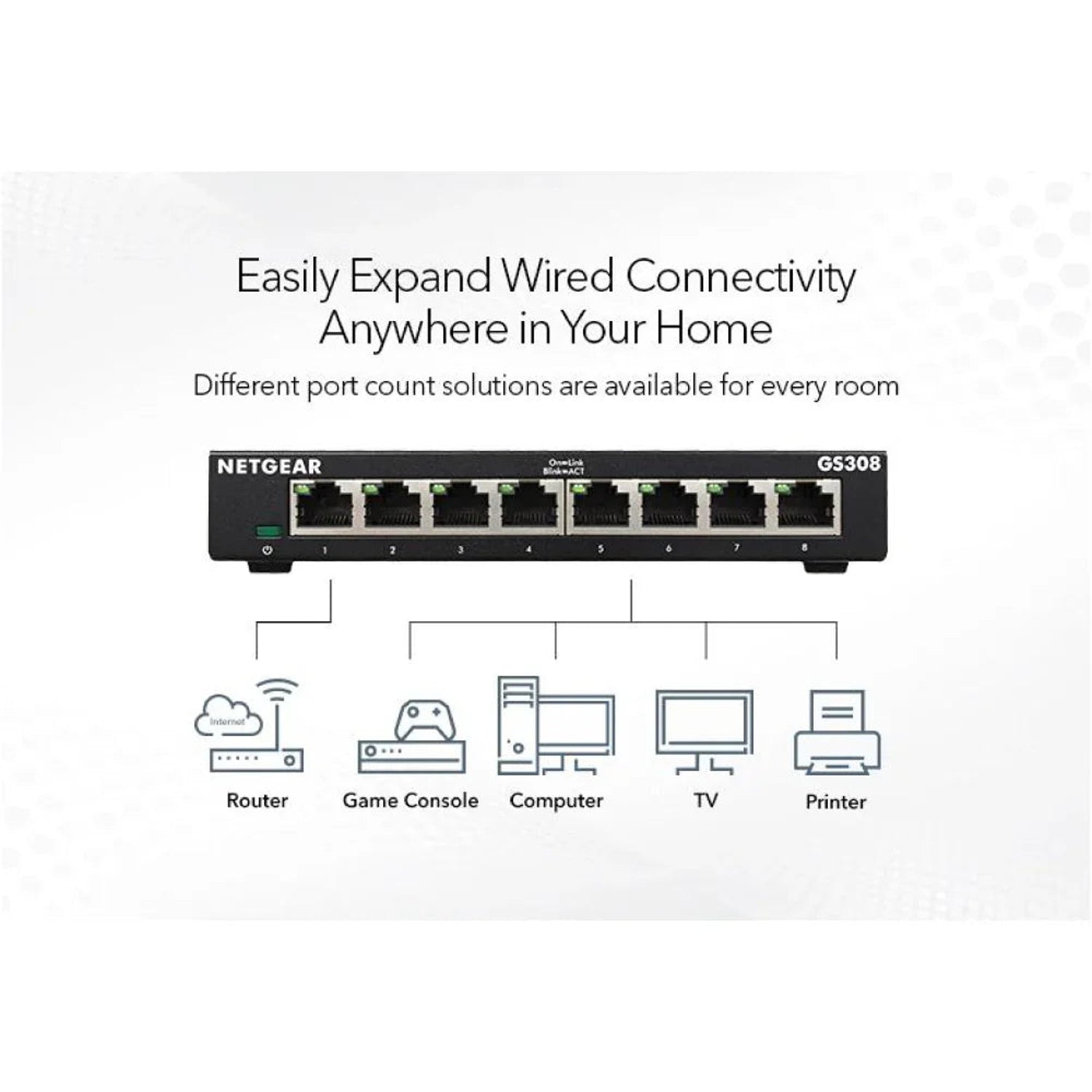

The NETGEAR GS308 is an 8-port Gigabit Ethernet unmanaged switch from NETGEAR's Essentials range. No configuration is necessary — connect PCs, printers, NAS, IP phones and access points and every port runs at up to 1000 Mbps with Auto Uplink.
Smart Energy Savings
IEEE 802.3az Energy Efficient Ethernet cuts power consumption, and the switch draws just 3.04 W maximum while delivering 16 Gbps of non-blocking bandwidth.
Built to Last, Designed for Zero Noise
A solid, compact metal case and a passively cooled fanless design (0 dBA) make the GS308 suited to offices, classrooms and homes. It sits on a desk or mounts on a wall.
Need help choosing? Email sales@sourceit.com.sg with your port count and we will size it for you.
NETGEAR GS308 Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS308 8-Port Gigabit Ethernet Unmanaged Switch |
| Part Number | GS308-300UKS |
| Series | NETGEAR Gigabit Unmanaged Essentials Switches |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 8 x 10/100/1000BASE-T RJ-45 with Auto Uplink (auto MDI/MDIX) |
Performance
| Switching Bandwidth | 16 Gbps (non-blocking) |
| Forwarding Rate | 1,448,000 pps (64-byte packets) |
| Latency | < 2.6 µs (64-byte packets) |
| MAC Address Table | 8K |
| Packet Buffer | 192 KB |
| Jumbo Frames | Up to 9,216 bytes |
| QoS | 802.1p traffic prioritisation |
Power & Environmental
| Power Supply | External adapter, 12 V / 0.5 A |
| Power Consumption | 3.04 W max; 0.36 W standby |
| Heat Dissipation | 10.40 BTU/hr max |
| Cooling | Fanless (0 dBA) |
| Energy Efficiency | IEEE 802.3az Energy Efficient Ethernet |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max RH, non-condensing |
| MTBF | 3,711,898 hours at 25 °C |
Physical
| Dimensions (W x D x H) | 158 x 101 x 29 mm |
| Weight | 0.39 kg |
| Housing & Mounting | Metal case; desktop or wall-mount |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed, duplex and cable type.
Typical Use
Small offices, classrooms, meeting rooms and home offices. Not a PoE switch — for powered devices see NETGEAR's GS308PP; for VLAN and QoS control see the GS308E Easy Smart range.
Package Contents & Gigabit Unmanaged Ordering Information
In the Box

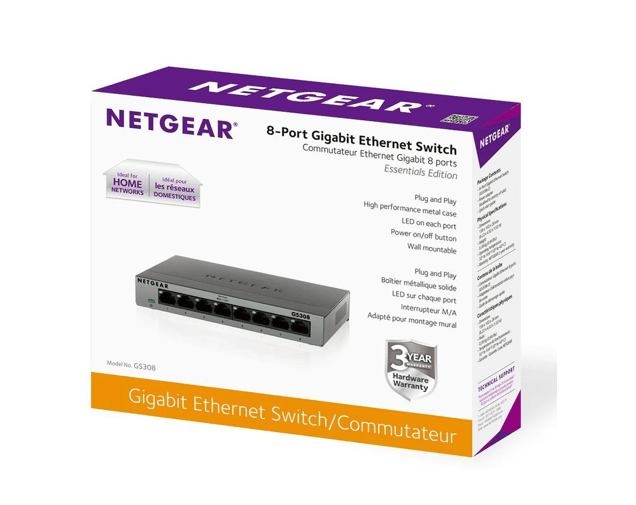

GS308 switch, power adapter, installation guide. Ethernet cables are not included.
NETGEAR Gigabit Unmanaged Models
| Model | Ports | Part No. |
| GS305 | 5 x GE, desktop/wall | GS305-300UKS |
| GS308 (this listing) | 8 x GE, desktop/wall | GS308-300UKS |
| GS324 | 24 x GE, desktop/rack | GS324-200EUS |
| GS348 | 48 x GE, desktop/rack | GS348-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | Gigabit Unmanaged Essentials Switches Datasheet (PDF) |
| Installation guide | GS305 / GS308 Installation Guide (PDF) |
| NETGEAR product page | GS308 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS308-300UKS.
Frequently Asked Questions — NETGEAR GS308
Does the GS308 need configuring?
No. It is unmanaged and plug-and-play — every port auto-negotiates.
Is it fanless?
Yes. It is passively cooled with 0 dBA acoustic output.
Can it be wall-mounted?
Yes. NETGEAR lists it as desktop or wall-mountable.
Does it supply PoE?
No. For PoE see NETGEAR's GS308PP.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
