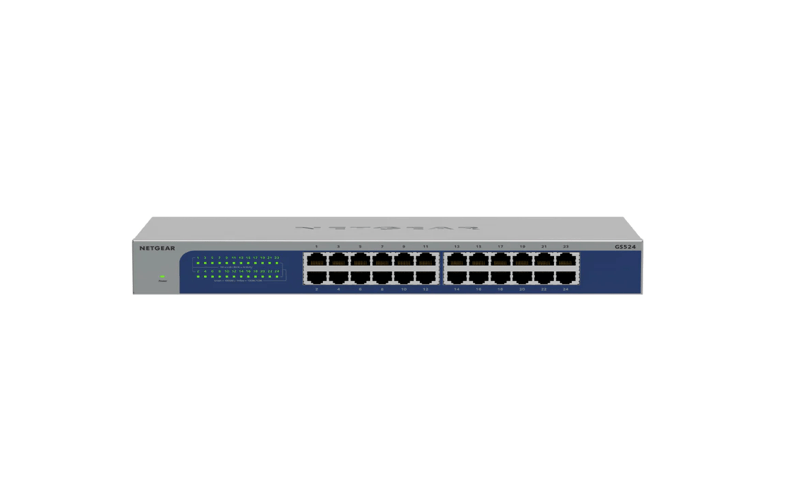

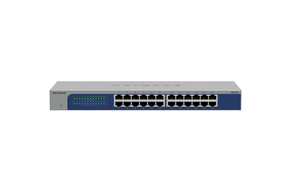

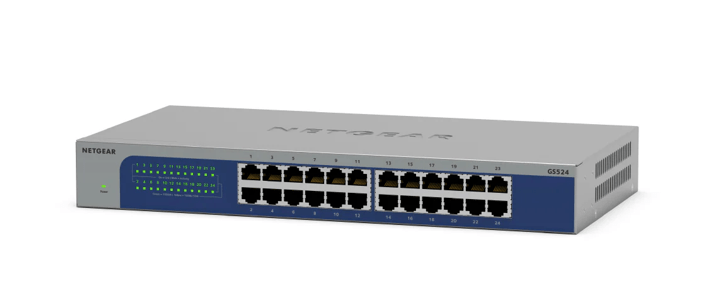

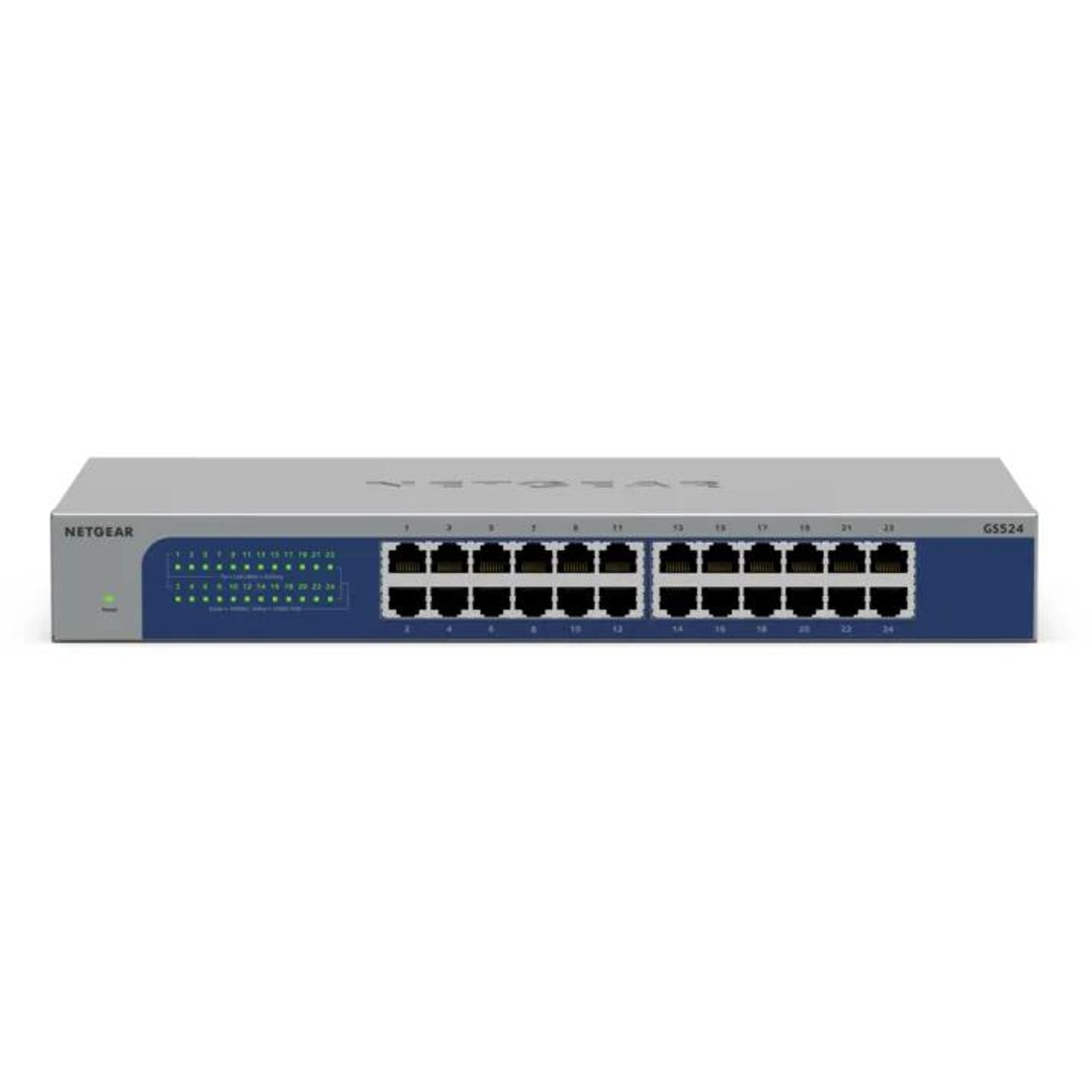

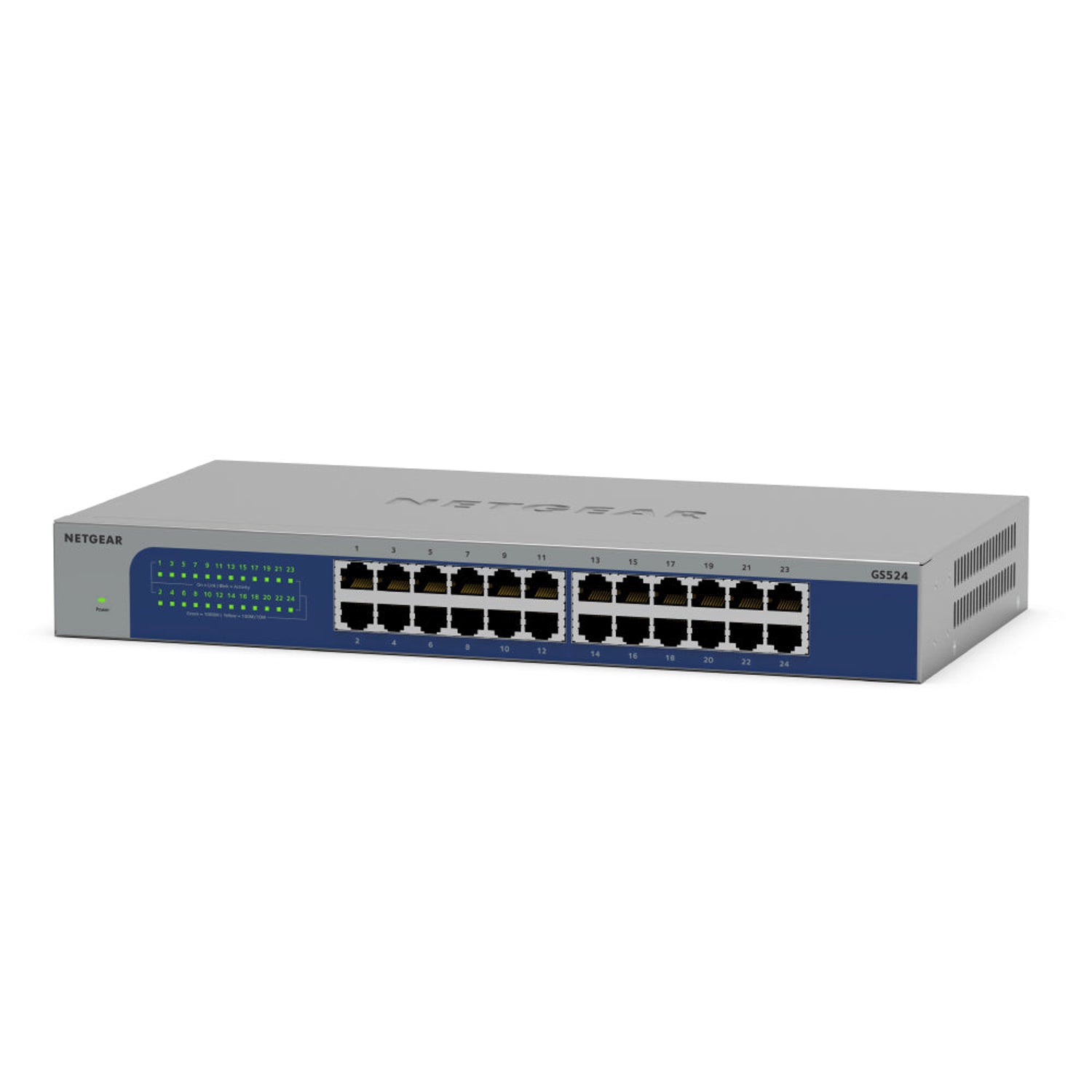

NETGEAR GS524 24-Port Gigabit Ethernet Unmanaged Switch, Fanless, Desktop/Rackmount
PRODUCT DESCRIPTION
NETGEAR GS524 24-Port Gigabit Ethernet Unmanaged Switch (GS524-300UKS) - Limited Lifetime Local Warranty
True Gigabit Speed at Non-Blocking Rate
The NETGEAR GS524 is a 24-port Gigabit Ethernet unmanaged switch delivering 48 Gbps of non-blocking switching capacity. There is no software to install, no configuration and zero maintenance — connect it and it runs.
Energy-Efficient and Silent
IEEE 802.3az Energy Efficient Ethernet reduces power use, with a maximum draw of just 12 W, and the fanless design adds zero noise wherever it is located.
Rugged Case with Wall and Rack Mounting
A durable, rugged case is rated for 0 to 50 °C operation, and the included wall/rack-mount kit lets you install the GS524 on a desk, on a wall or in a standard 19-inch rack.
Need help choosing? Email sales@sourceit.com.sg with your port count and uplink needs and we will size it for you.
NETGEAR GS524 Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS524 24-Port Gigabit Ethernet Unmanaged Switch |
| Part Number | GS524-300UKS |
| Series | NETGEAR GS516v3 / GS524v3 Gigabit Unmanaged Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 24 x 10/100/1000 Mbps RJ-45 |
Performance
| Switching Bandwidth | 48 Gbps (non-blocking) |
| Forwarding Rate | 1,488,000 frames/sec per 1000 Mbps port |
| Latency | 15 µs max (64-byte packets at 1000 Mbps) |
| MAC Address Table | 8K |
| Packet Buffer | 512.5 KB |
| Jumbo Frames | Up to 9 KB |
| QoS | 802.1p / TOS prioritisation |
Power & Environmental

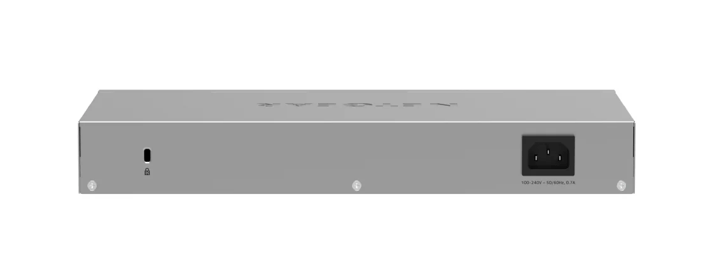

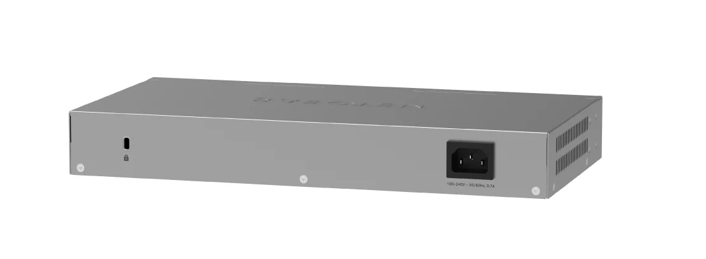

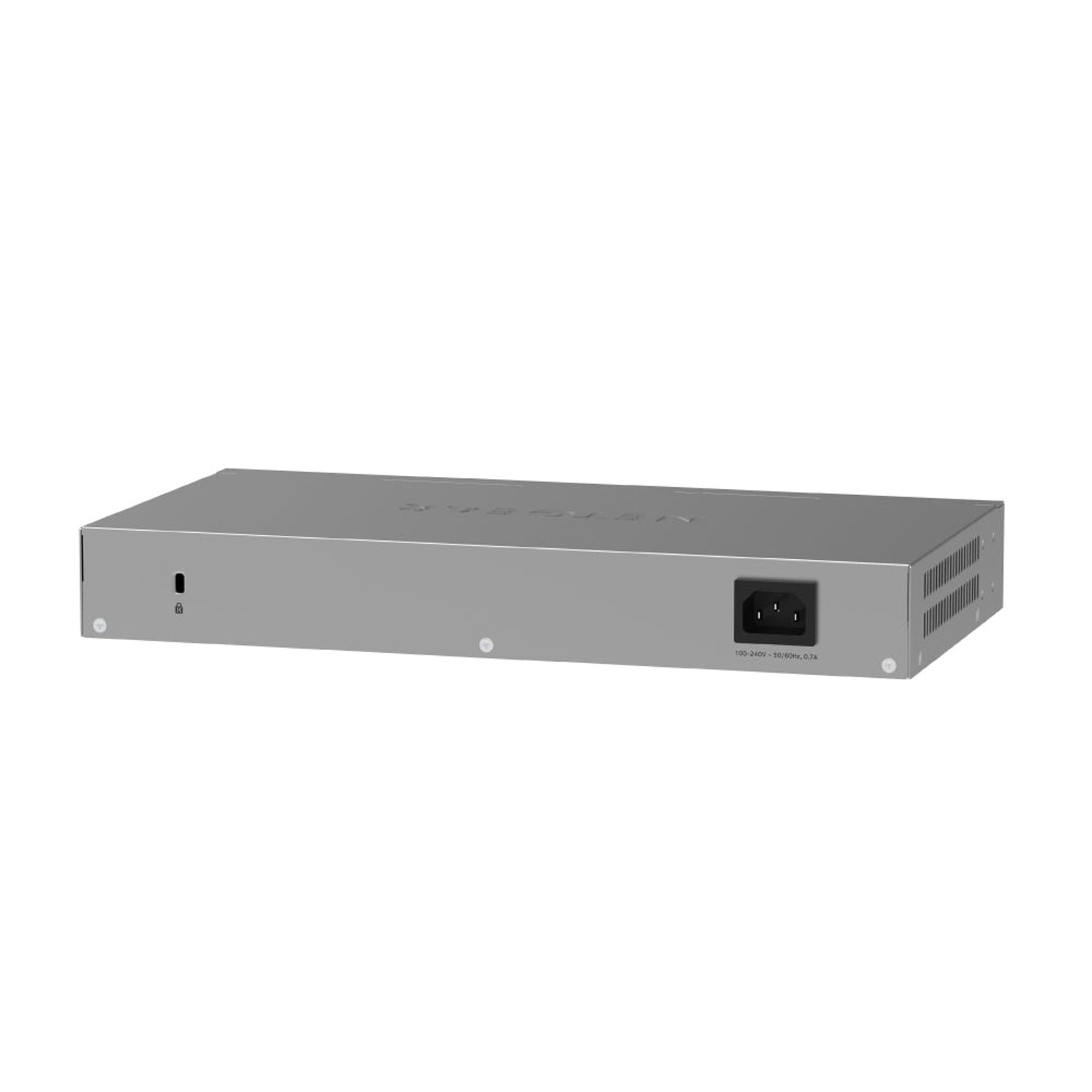

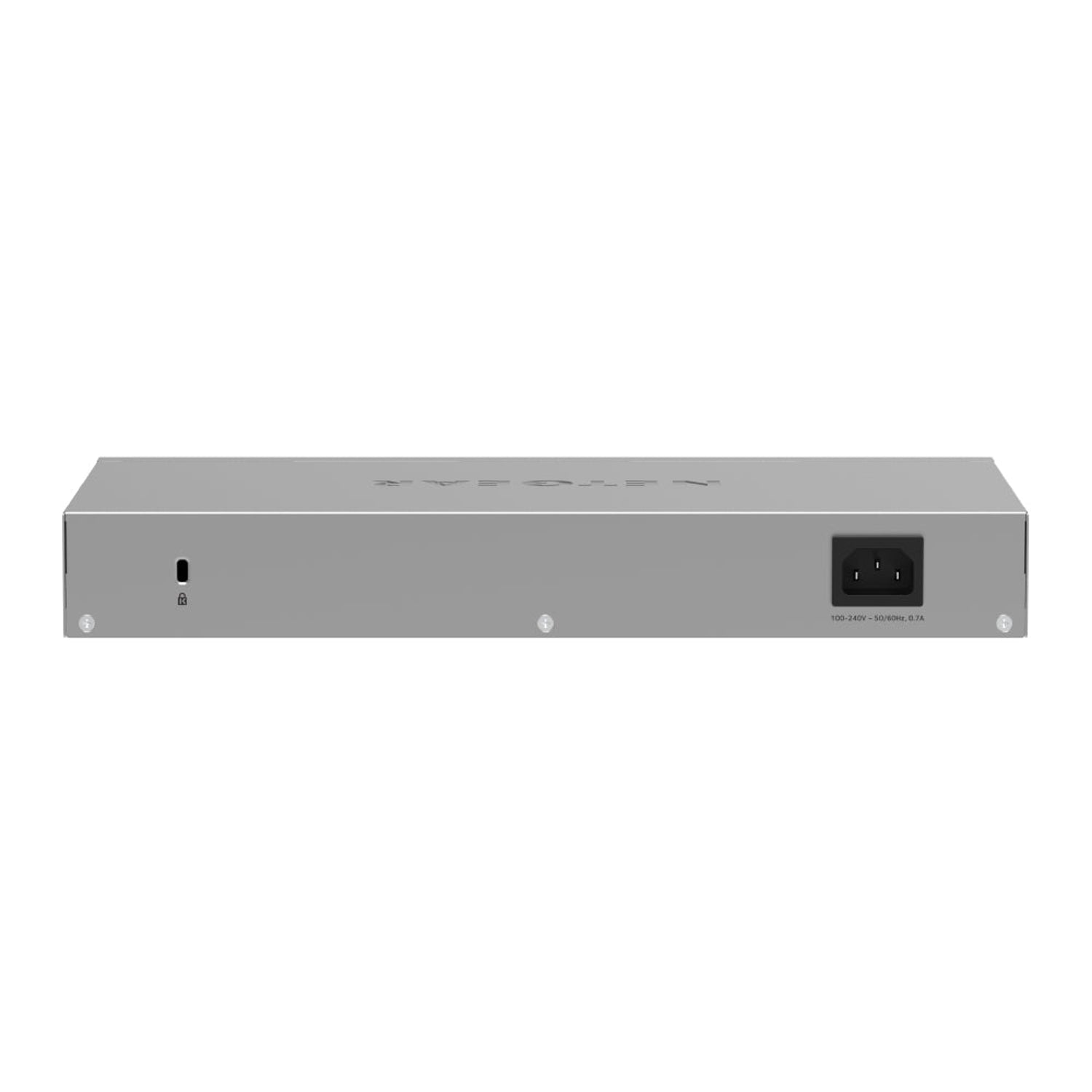

| Power Supply | Internal, 100–240 V AC, 50–60 Hz |
| Power Consumption | 12 W max |
| Cooling | Fanless |
| Energy Efficiency | IEEE 802.3az Energy Efficient Ethernet |
| Operating Temperature | 0 to 50 °C |
| Operating Humidity | 90% max RH, non-condensing |
| MTBF | 1,016,877 hours |
Physical
| Dimensions (W x D x H) | 328 x 169 x 43 mm |
| Weight | 1.47 kg |
| Mounting | Desktop, wall or 19-inch rack (wall/rack-mount kit included) |
Certifications
| Certifications | CE, UKCA, FCC, ISED, VCCI, RCM, KC, BSMI, CB, CSA |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate speed and duplex.
Typical Use
Offices, schools, retail and server rooms that need a reliable 24-port Gigabit backbone, including warmer locations up to 50 °C. Not a PoE switch — for powered devices see NETGEAR's GS524PP or GS524UP.
Package Contents & Gigabit Unmanaged Ordering Information
In the Box
GS524 switch, power cord, wall/rack-mount kit, installation guide, warranty card.
NETGEAR Gigabit Unmanaged Rackmount Models
| Model | Ports | Part No. |
| GS516 | 16 x GE, desktop/wall/rack | GS516-300UKS |
| GS524 (this listing) | 24 x GE, desktop/wall/rack | GS524-300UKS |
| GS324 | 24 x GE, Essentials, desktop/wall/rack | GS324-200EUS |
| GS348 | 48 x GE, desktop/rack | GS348-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | GS516v3 / GS524v3 Datasheet (PDF) |
| Installation guide | GS516 / GS524 Series Installation Guide (PDF) |
| NETGEAR product page | GS524 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS524-300UKS.
Frequently Asked Questions — NETGEAR GS524
Does the GS524 need configuring?
No. It is unmanaged and plug-and-play.
Is it fanless?
Yes. The fanless design adds zero noise.
Can it be rack-mounted?
Yes. A wall/rack-mount kit is included for a standard 19-inch rack.
How is it different from the GS324?
Both have 24 Gigabit ports. The GS524 is rated for 0–50 °C operation and carries NETGEAR's limited lifetime warranty.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
